NEWHOW Ignition Coil for Harley 53-434 — 3Ω 12V Single-Fire Black Canister, Direct Replacement

NEWHOW 53-434 is a direct-replacement 3 ohm, 12V single-fire ignition coil designed to restore proper spark for Harley Evo and Twin Cam engines using single-fire ignition modules.

This aftermarket coil swaps in for Accel 53-434 and equivalent cross-references (53434, 140-434, 8-434) and is built as a two-wire, oil-filled canister finished in black. It’s intended for Harley models that run single-fire ignition modules — when matched to the correct module it reduces misfires, backfires and high-rpm cutout issues by delivering a stronger secondary spark without overloading the ignition box.

How do I know this coil fits my Harley?

Confirm your bike uses a single-fire ignition module and that your original coil measures approximately 3 ohms (±10%). This coil is not compatible with dual-fire (5) coils or Delphi EFI 2004+ Sportster systems, so verifying the module type and coil rating prevents damage or overheating of the ignition module.

• Compatible models: Sportster XL 883/1200 (1986–2003), Dyna (1991–2006), Softail (1984–2006), Touring FLH/FLT (1984–2006) when on single-fire modules.
• Replace ACCEL 53-434 and crosses 53434, 140-434, 8-434.
• Not for dual-fire 5-stock coils or Delphi EFI 2004+ Sportster.
• Ohm test: 3 ohm ±10% means match; open or <1 ohm indicates a bad coil.

What problems can this coil fix on Evo and Twin Cam engines?

When the coil is the weak link, symptoms include cold-start no-fire, popping on deceleration, rough idle, or a dead miss at higher rpm. The NEWHOW coil’s winding ratio and 3-ohm primary are designed to produce a hotter spark from single-fire modules, which often cures these ignition-related symptoms.

• Resolves misfire, popping on decel, rough idle and dead miss above ~4,000 rpm.
• Prevents module overdraw when matched to single-fire systems.
• Replace if spark jumps to coil tower instead of to the spark plug.

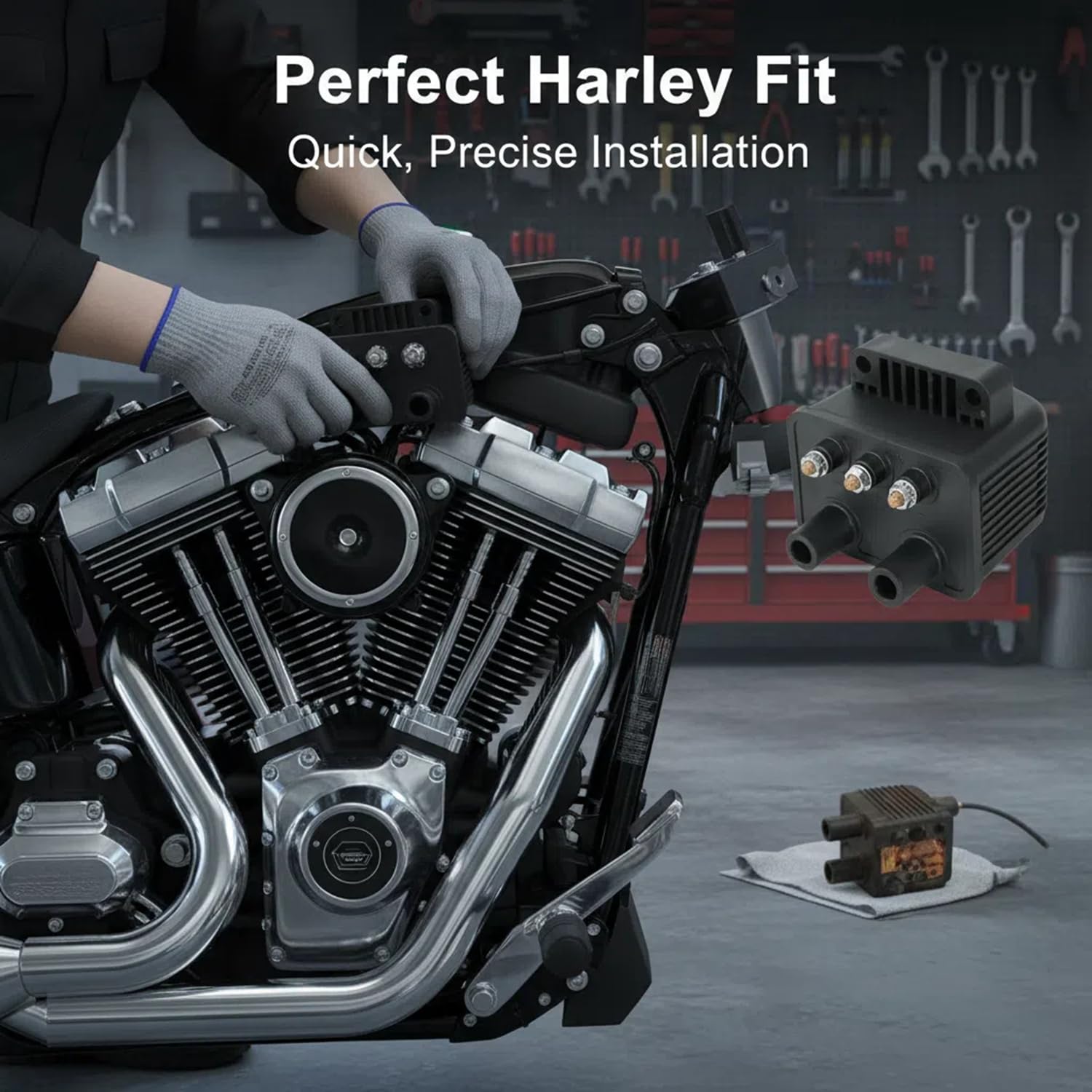

How do I install the NEWHOW 53-434 coil?

Installation is a straightforward bolt-on that typically takes about 15 minutes with basic tools. Remove the seat or side cover, disconnect the two spade wires, unbolt the mount, swap coils, torque mounting bolts to specification, and reconnect the two wires (red to module, black to ground).

• Tools: basic hand tools; torque bolts to 35 in-lb.
• Mounting: fits factory 2 1/4" bracket locations; reuses stock bracket.
• Wires: reuse 7mm/8mm plug wires if under 5k ohm/ft; otherwise replace wires too.

Will this coil work with aftermarket modules like Crane or Dynatek?

Yes — this 3-ohm single-fire coil is compatible with many common aftermarket single-fire modules (e.g., Crane, Dynatek) as long as the module is single-fire. Installing a 3-ohm single-fire coil onto a dual-fire module or an incompatible stock system can cause overheating or module failure.

• Compatible with Crane HI-4, Dynatek S/2000 and similar single-fire modules.
• Not suitable for early stock dual-fire modules; choose a 5 dual-fire coil instead.
• Confirm module type before ordering to avoid damage.

Who is this product for? The NEWHOW 53-434 coil is for Harley riders, DIY mechanics, and shops working on Evo and Twin Cam bikes that run single-fire ignition modules and need a reliable, direct-replacement coil to cure ignition faults. If you verified a 3-ohm single-fire coil on your bike and want a bolt-on, oil-filled canister that replaces common cross-referenced part numbers, this coil is a suitable and cost-effective option. Do not buy this unit if your bike uses a 5 dual-fire stock coil or Delphi EFI Sportster systems from 2004 onward.
