NGK Spark Plug Set of 4 DPR6EA-9 – Nickel/Copper Resistor, 0.036" Pre-Gapped

NGK DPR6EA-9 is a set of four nickel/copper resistor spark plugs built to OEM specs for mid-projection, standard-performance ignition in compatible motorcycles and cruisers.

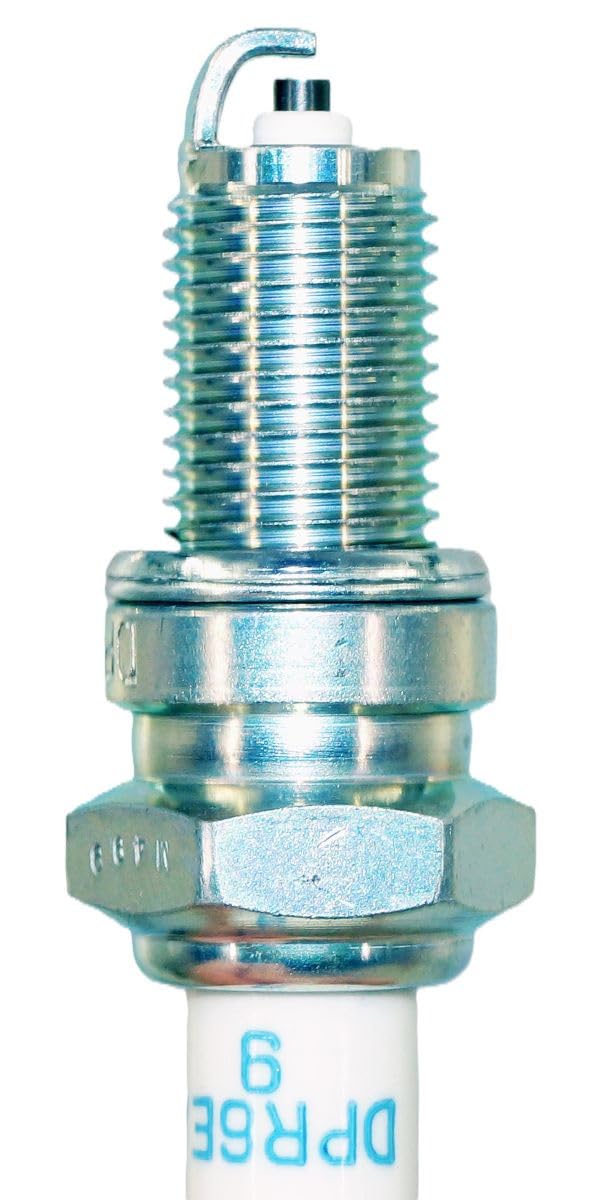

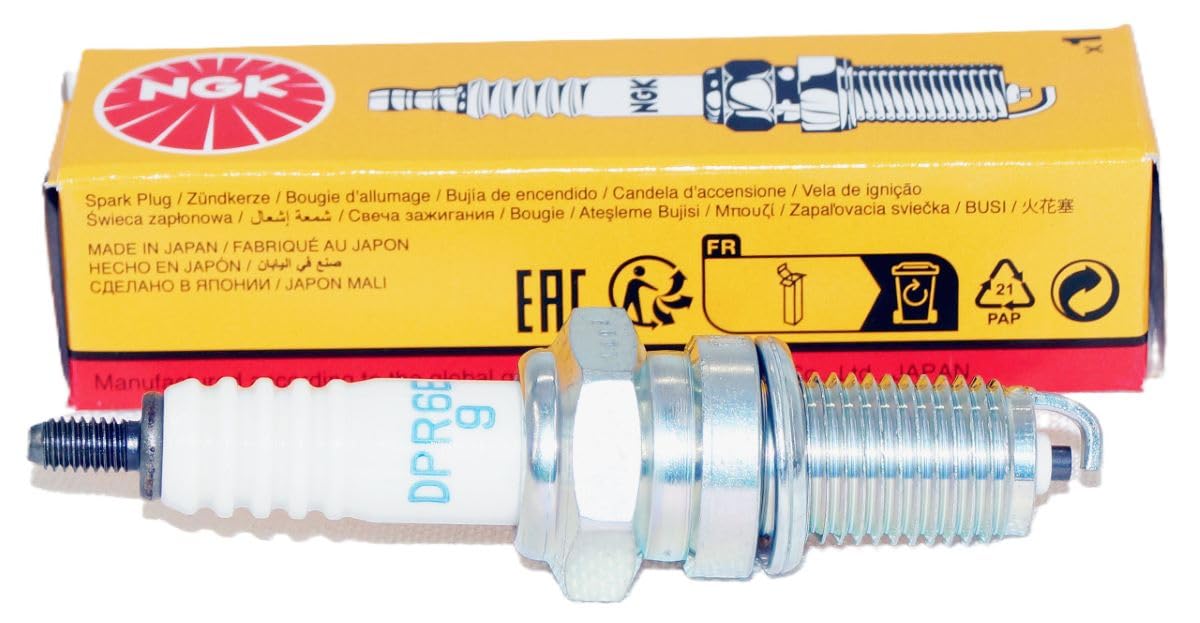

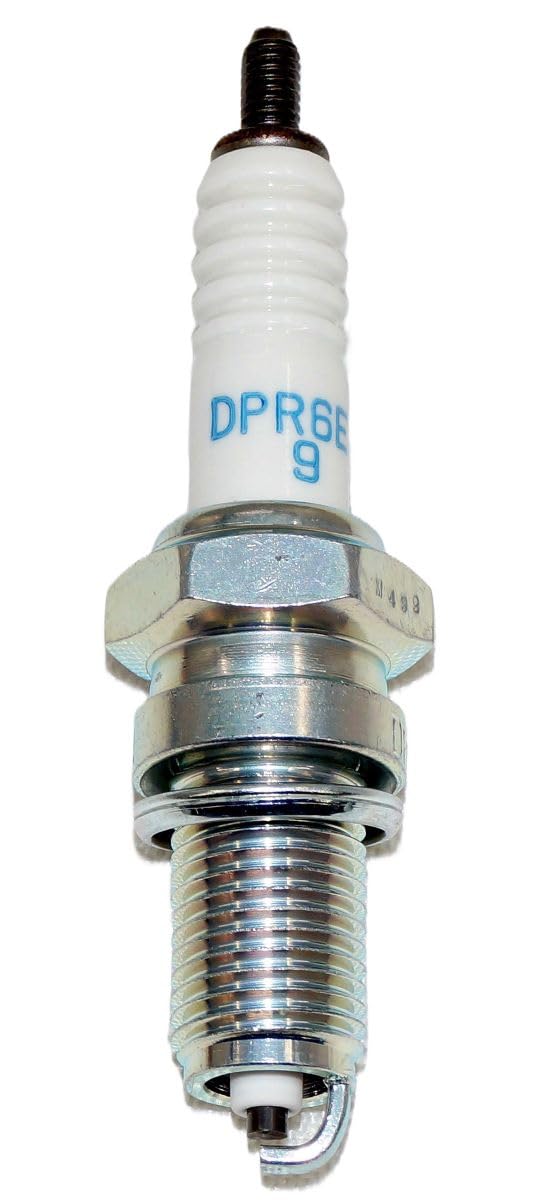

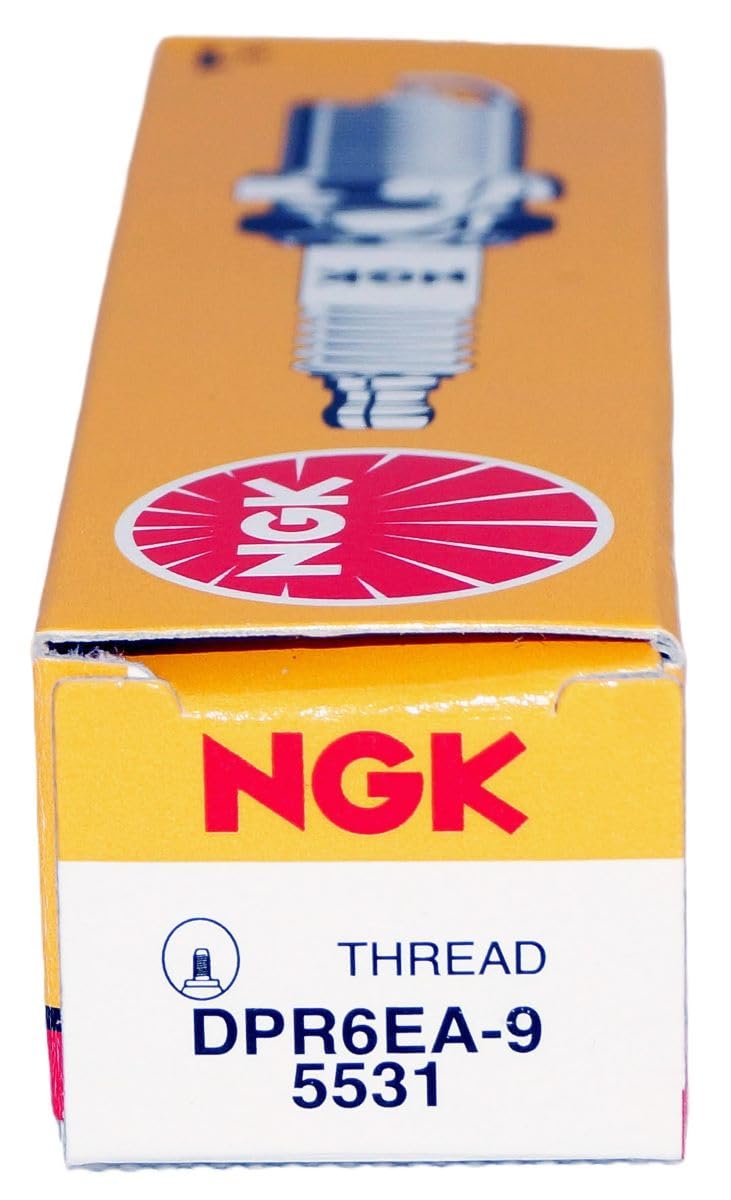

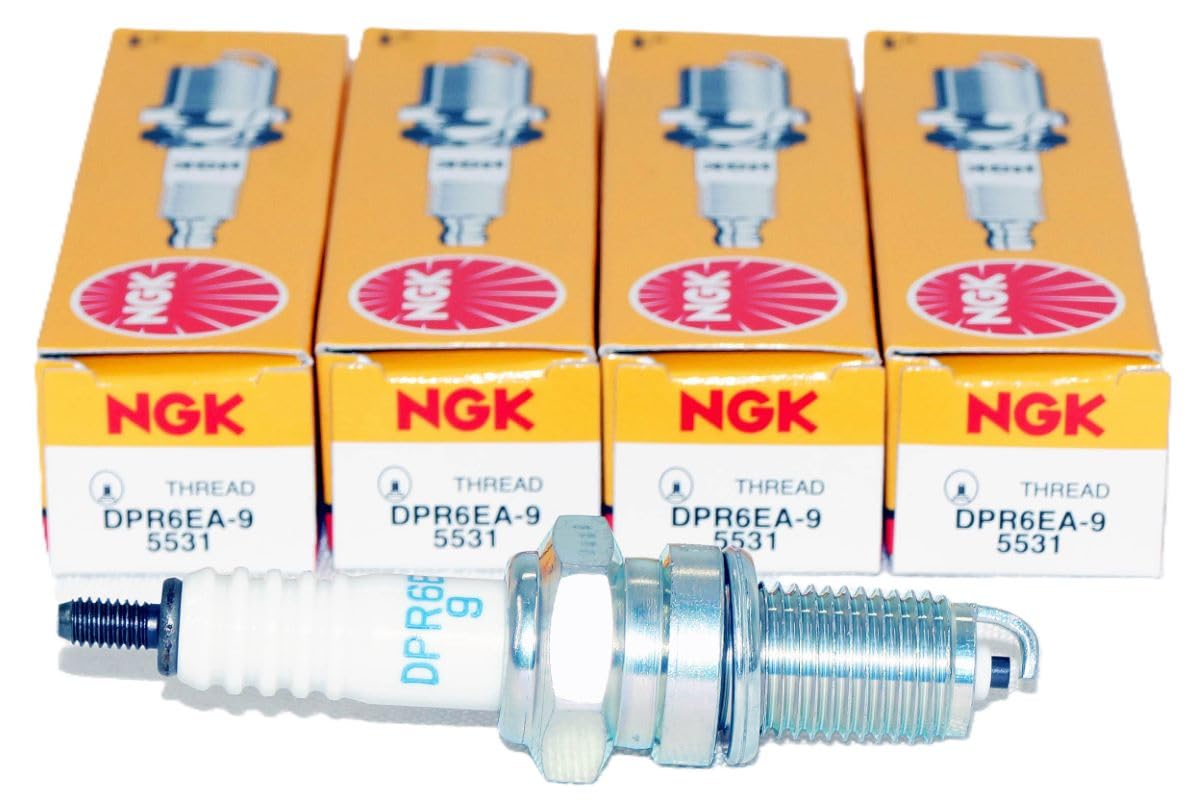

This four-pack of NGK DPR6EA-9 (part number 5531) plugs delivers OE-style construction with a copper core, nickel-plated tip, and a ceramic insulator engineered for reliable starting and consistent combustion. Each plug features a 0.036 in (0.9 mm) pre-gap, an 18 mm hex, 0.750 in (19 mm) reach and a flat seat with a crush washer for secure sealing. The DPR6EA-9 is a resistor-type, 5000-ohm plug with a J-gap ground configuration and mid projection center electrode that suits many V-twin and large-displacement motorcycle engines where original equipment nickel alloy plugs are specified.

Which engines and models commonly use DPR6EA-9 plugs?

The DPR6EA-9 matches several Kawasaki Vulcan 1500 variants and a broad range of Triumph Thunderbird and Thunderbird-derived models across multiple years and displacements. Always cross-check your vehicle’s owner manual or existing plug part number before ordering to ensure fit and correct heat range selection.

• Kawasaki VN1500E, VN1500J/R, VN1500L, VN1500N, VN1500P — 1471cc with 0.036" gap
• Triumph Thunderbird series and variants (1597–1700cc and related models) with 0.036" gap
• Check application notes and OEM equivalence when replacing factory precious-metal plugs

How does the DPR6EA-9 construction affect performance and longevity?

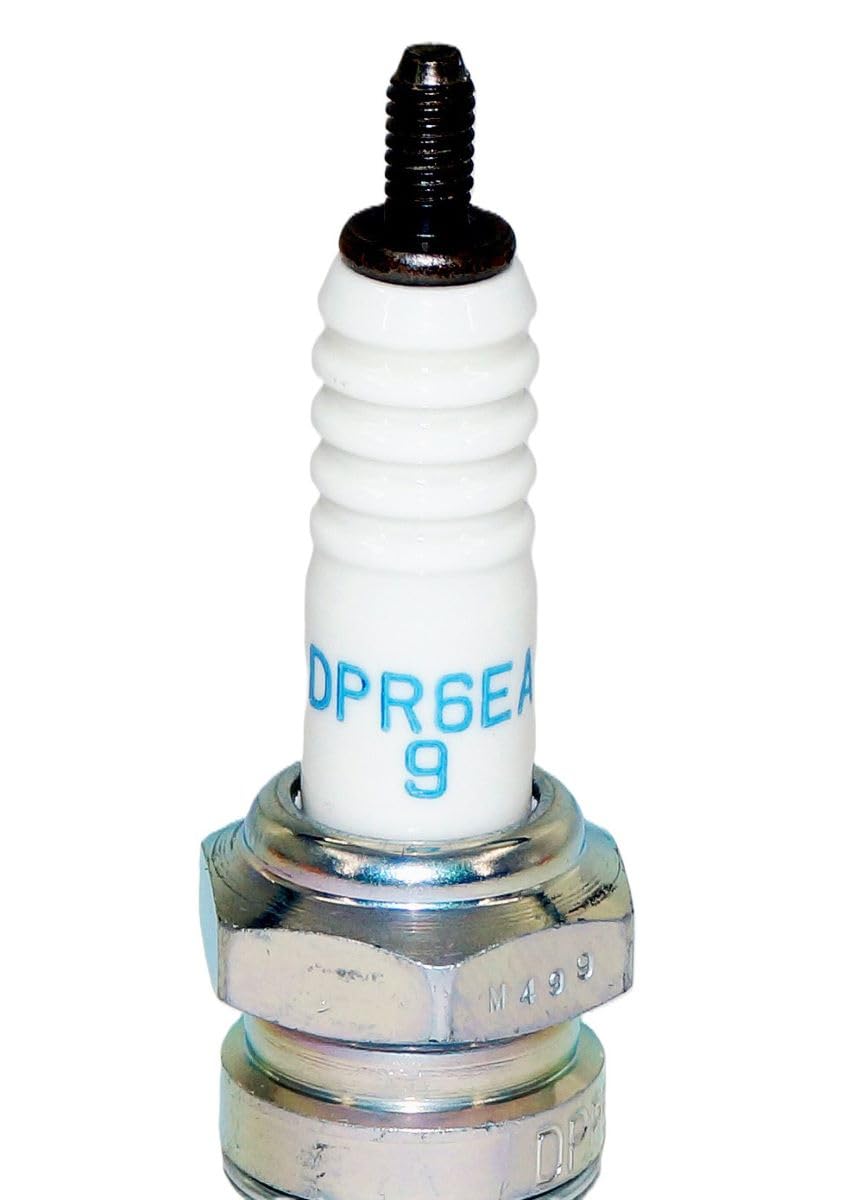

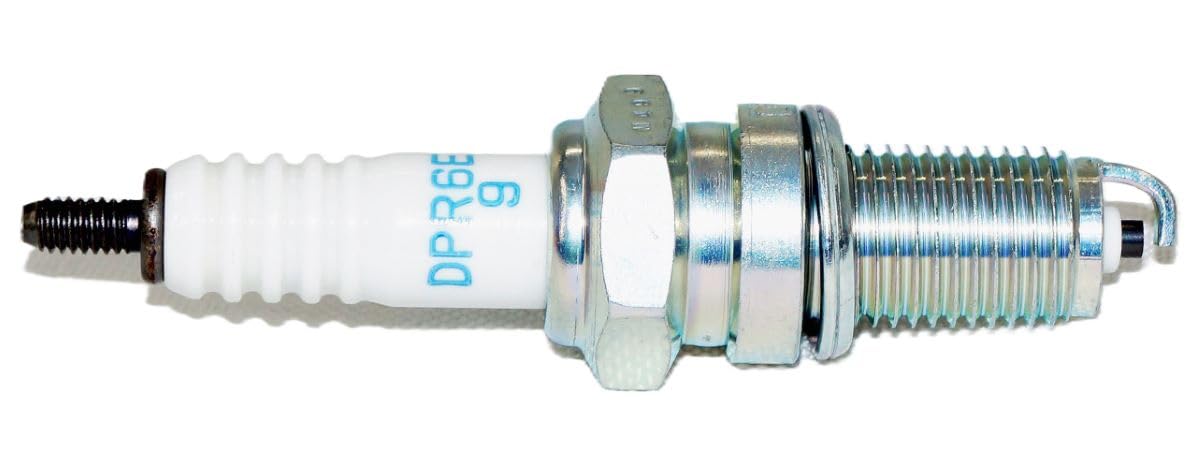

NGK engineered these plugs with a solid copper core for excellent thermal transfer and a nickel alloy tip that mirrors traditional OE designs. The high-grade alumina-silicate ceramic insulator and trivalent metal plating resist corrosion, while the resistor reduces ignition noise for electronic systems.

• Copper core improves heat dissipation and conductivity for stable spark energy
• Nickel tip provides a cost-effective, OE-style electrode surface
• Ceramic insulator and triple gasket sealing reduce leakage and electrical stress
• 5000-ohm resistor helps prevent radio-frequency interference with onboard electronics

What installation and maintenance details should I know?

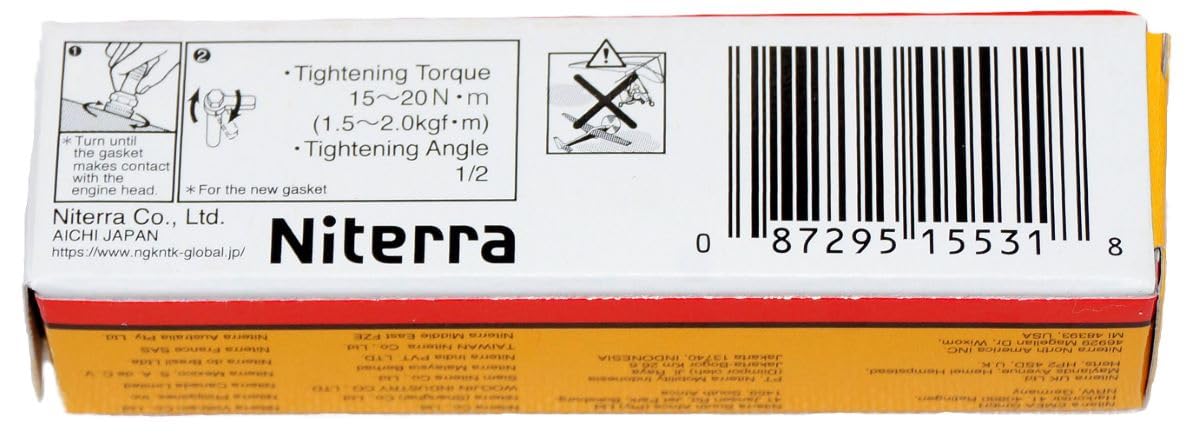

These plugs come pre-gapped to 0.036 in (0.9 mm) and include crush washers for proper sealing to a flat seat. Use an 18 mm socket and a torque wrench to the vehicle manufacturer’s specification; avoid over-tightening to protect the threads and sealing surface.

• Pre-gap: 0.036 in (0.9 mm); verify gap before installation

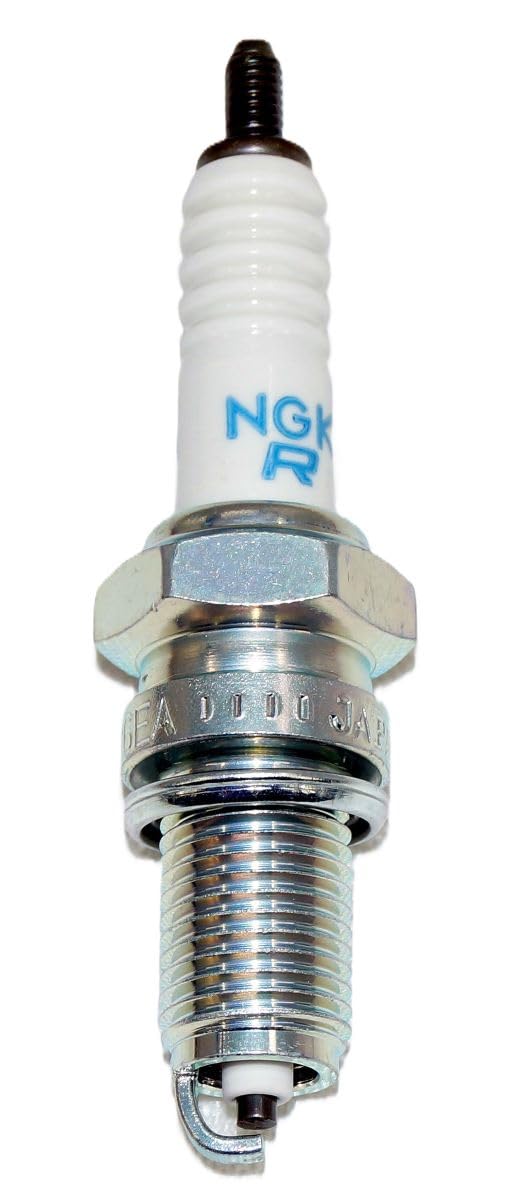

• Hex size: 18 mm; reach: 0.750 in (19.0 mm); seat type: flat with crush washer
• Insulator height: 50.0 mm and center electrode projection: mid-projection
• Follow torque specs and replace in sets of matching plugs for balanced firing

Are these DPR6EA-9 plugs the right choice over precious-metal types?

DPR6EA-9 plugs are engineered as standard-replacement nickel/ copper plugs ideal for engines originally equipped with nickel alloy electrodes. They are not recommended for engines that require factory-installed precious-metal or long-life plugs, where different material properties are necessary.

• Recommended when original equipment uses nickel alloy plugs
• Not advised for applications that originally specified platinum or iridium plugs
• Choose based on OEM recommendations to preserve engine tuning and service intervals

Who is this for: Riders, mechanics, and DIY motorcycle owners seeking an affordable, OE-style spark plug replacement for Kawasaki Vulcan 1500 series and many Triumph Thunderbird family models. This NGK four-pack is suitable for those who want reliable ignition performance, straightforward installation, and the proven durability of NGK’s standard nickel alloy spark plug design.
