Nilight 16AWG LED Light Bar Wiring Harness Kit — 12V Relay, Illuminated Waterproof Switch, Inline Blade Fuse

Nilight's 16AWG wiring harness kit provides a ready-to-install 12V power and control solution for LED light bars, featuring an illuminated waterproof switch, relay, and blade fuse for circuit protection.

If you need a tidy, safe way to wire an LED light bar to a 12V system, this Nilight harness kit supplies the core components in a compact package. It’s built for universal compatibility with cars, trucks, SUVs, ATVs, and marine craft, supplying a switch with a red indicator, a power relay to handle load, and an inline blade fuse to guard against overcurrent or short circuits. The kit is designed for straightforward installation and repeated daily use.

How does this harness make installation easier?

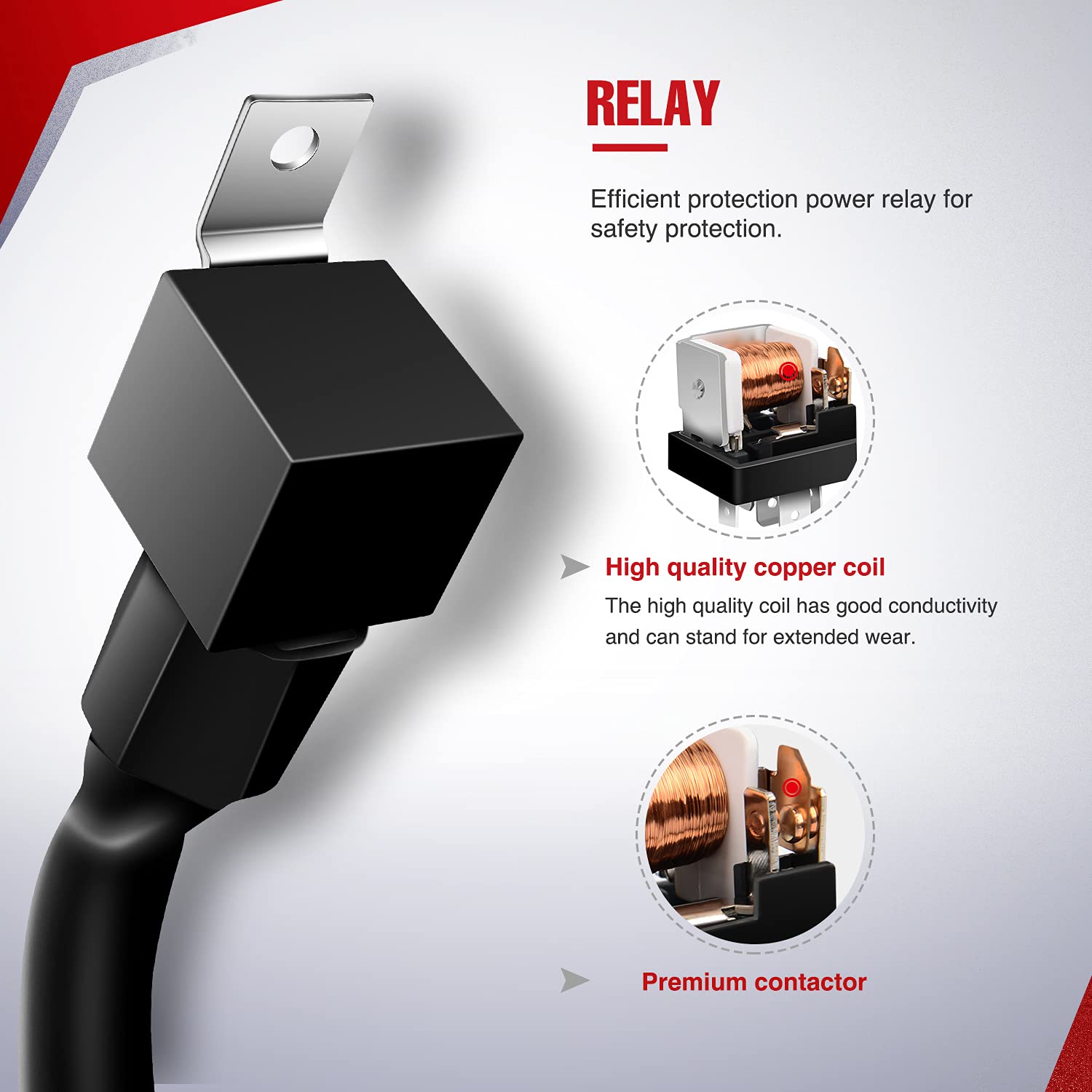

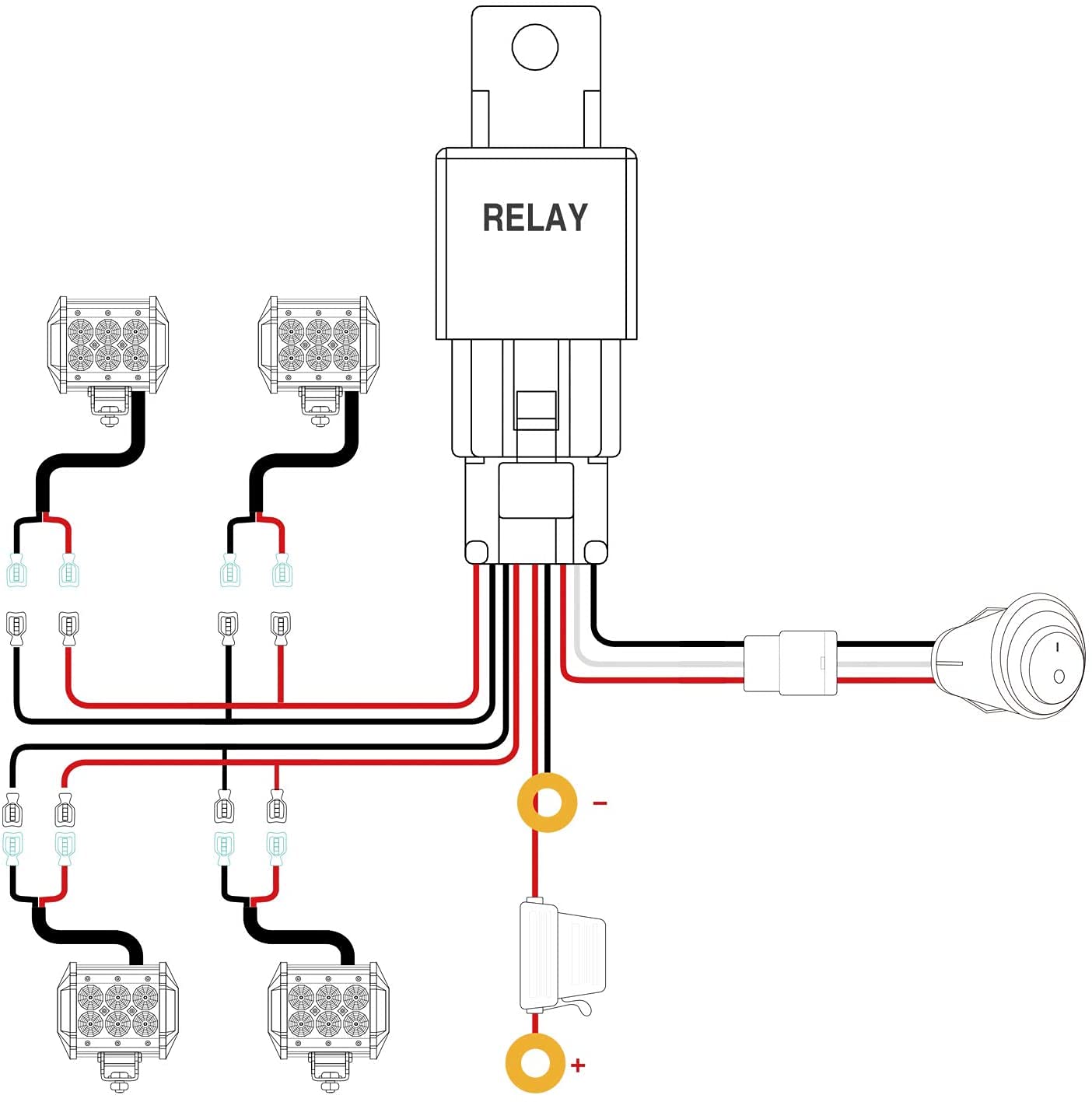

The harness arrives pre-assembled with color-coded leads and standard connectors so you can hook up power, ground, and switch in minutes. The integrated relay removes stress from the switch by routing heavy current through the relay instead of the switch contacts.

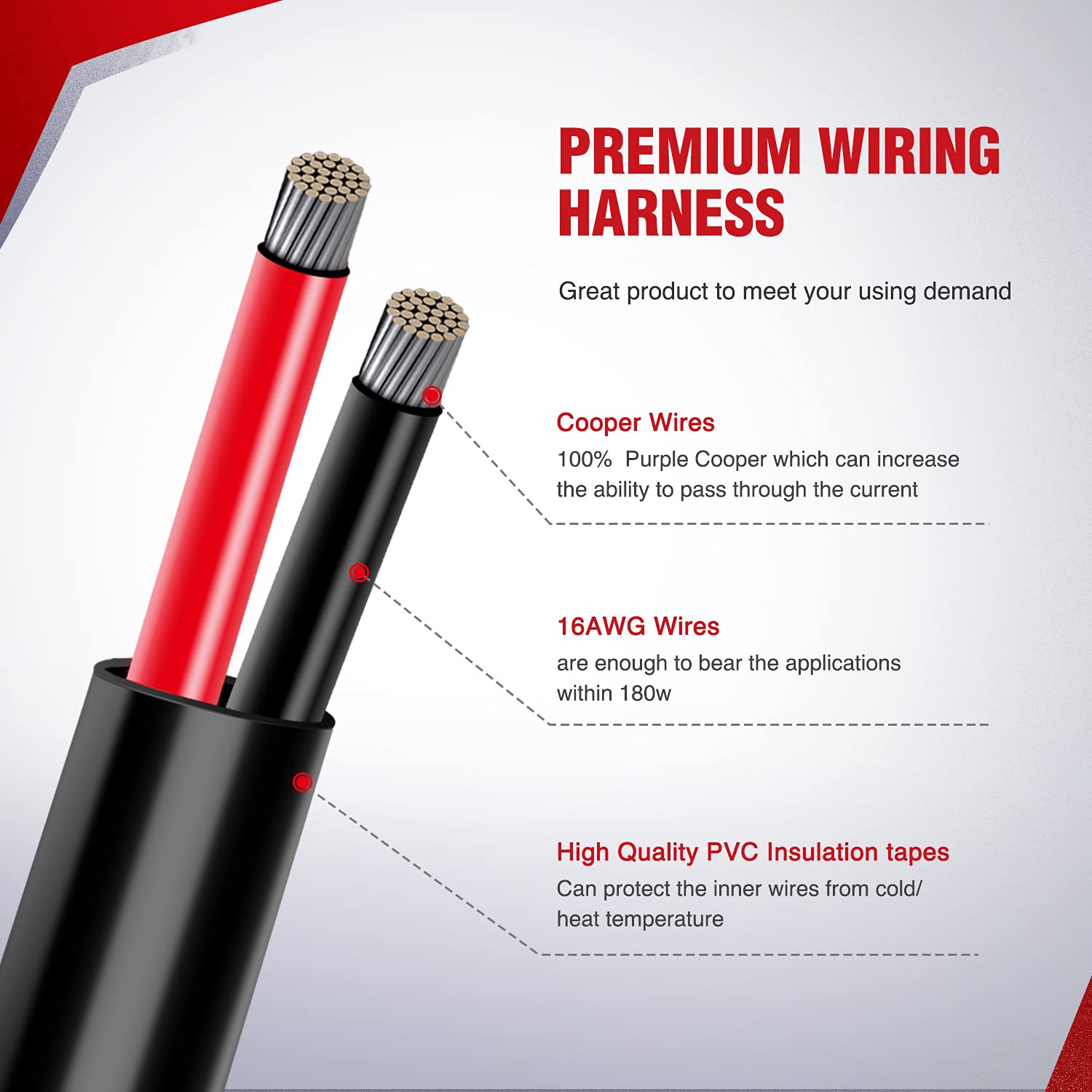

• Pre-wired 16AWG leads for reliable current carrying capacity

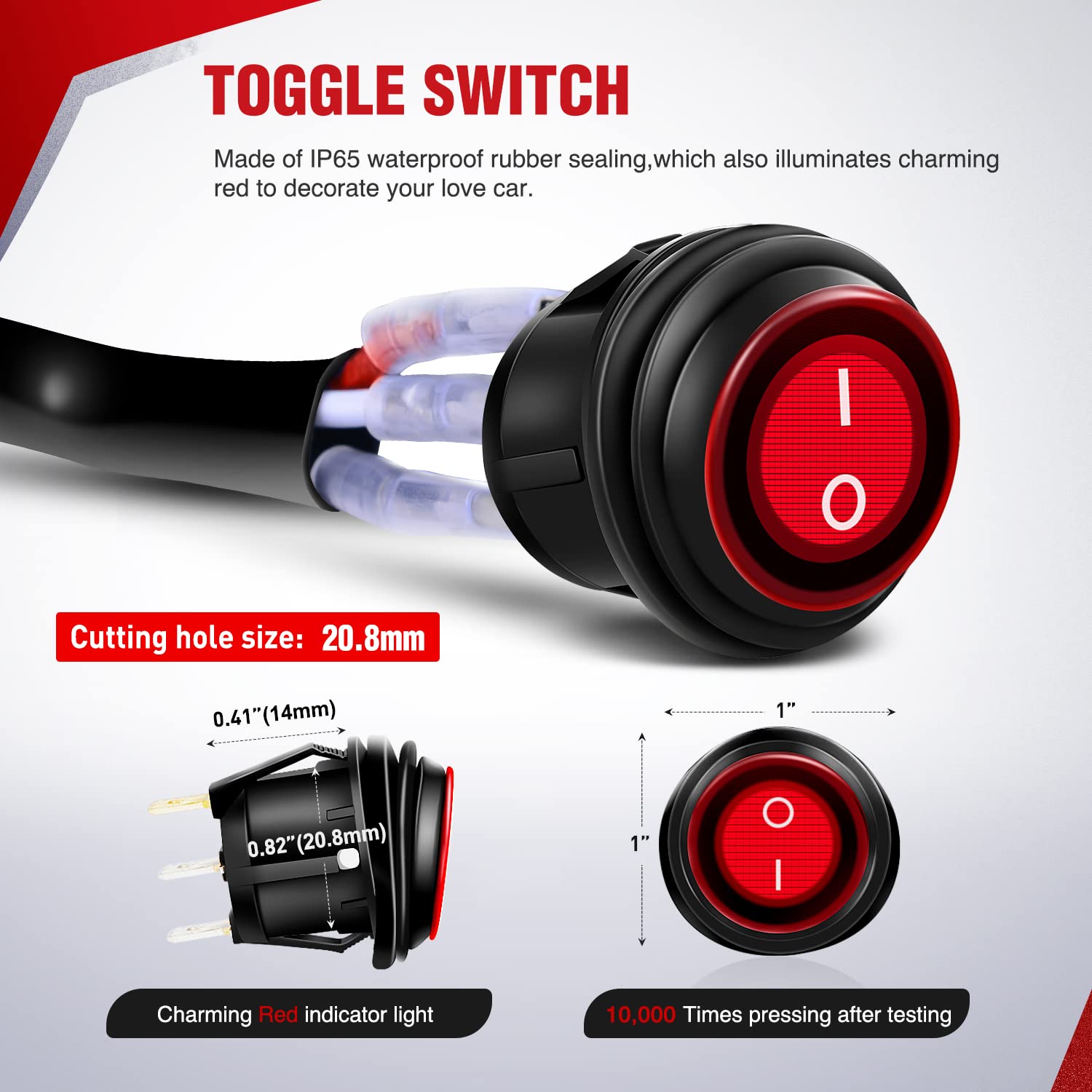

• Illuminated 3-pin on/off rocker switch with red indicator for visibility

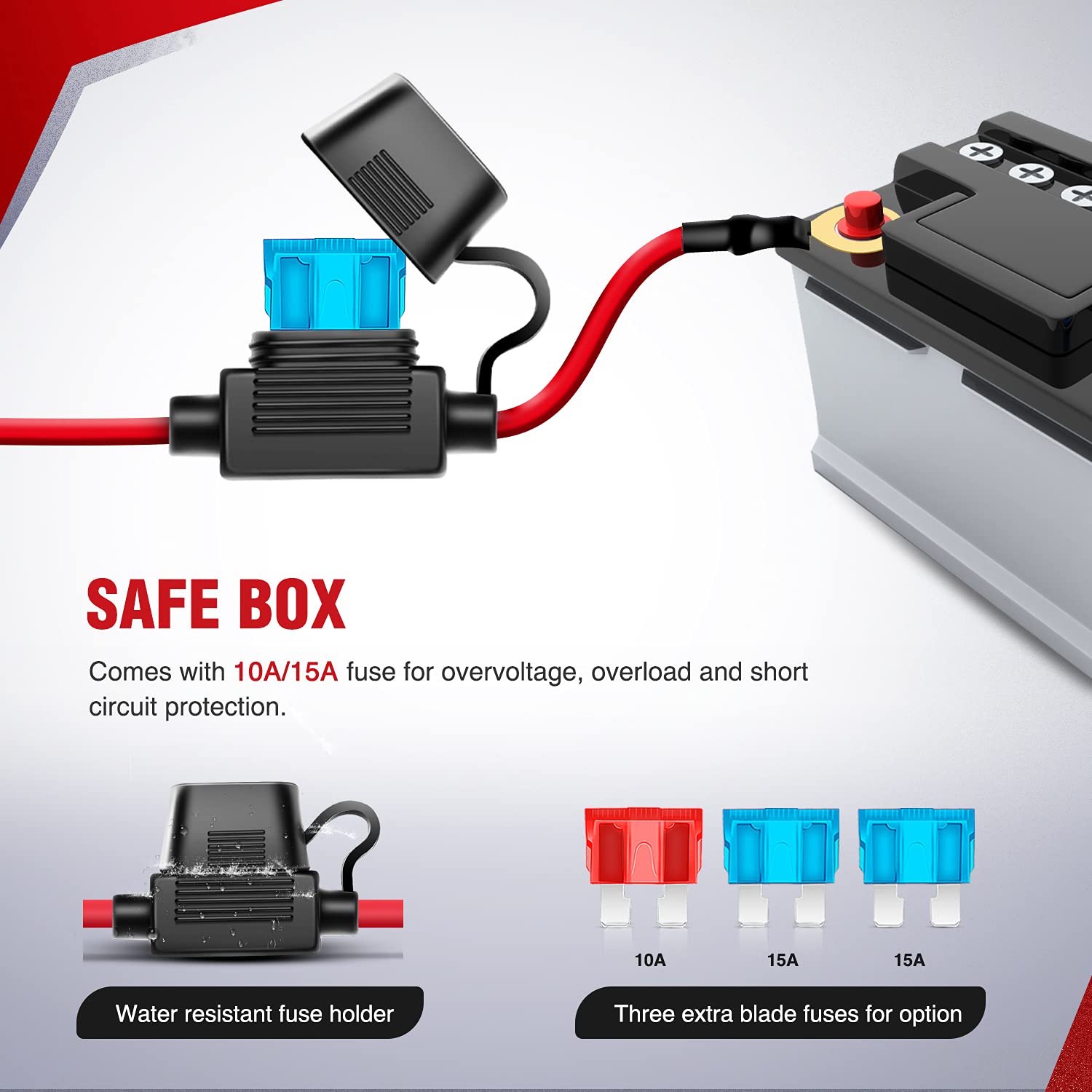

• Inline blade fuse holder for quick fuse changes

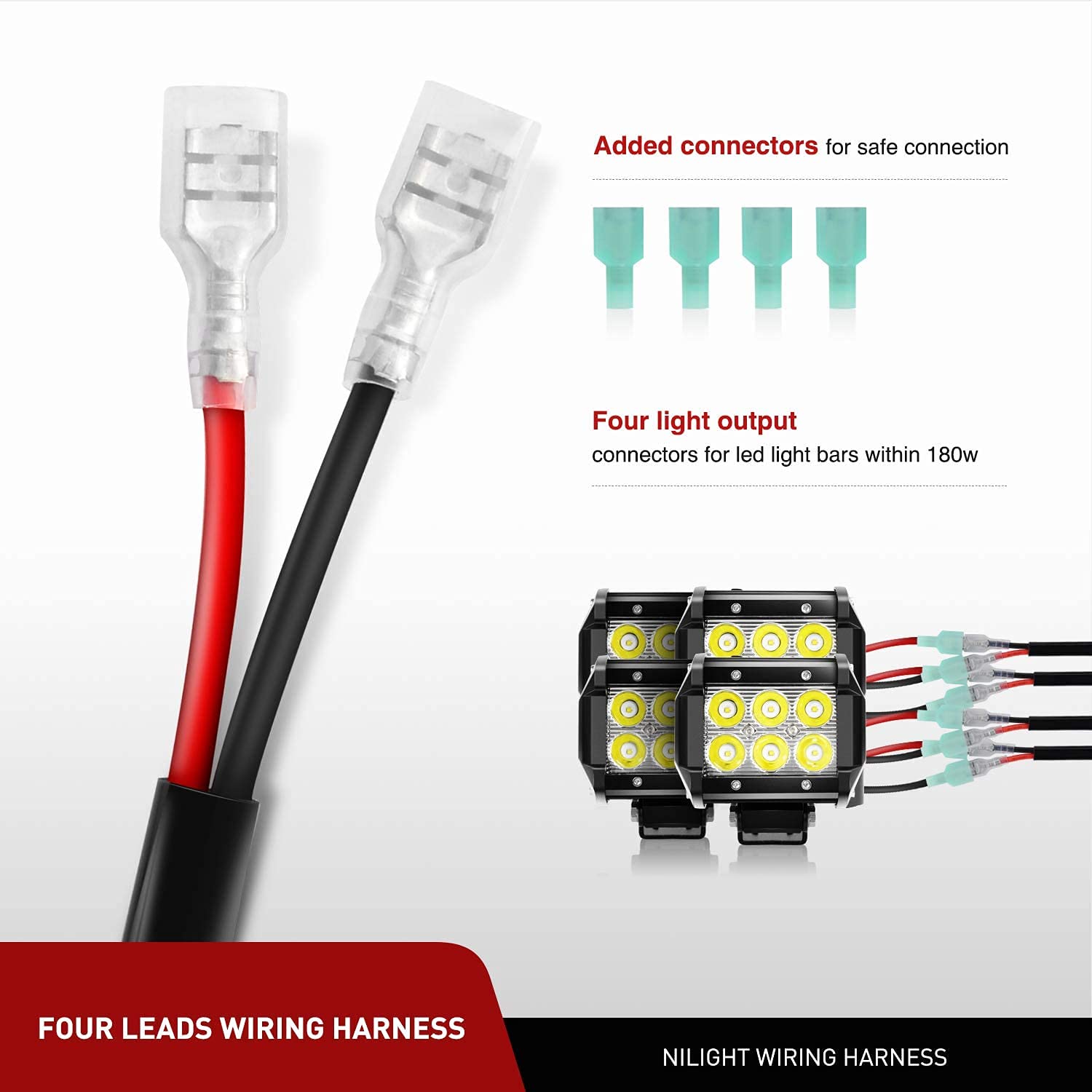

• Plug-and-play style connectors reduce splicing and soldering

Will this work with my vehicle or boat 12V system?

The kit is made to be universally compatible with any device that uses a 12V DC supply, so it fits most automotive and marine lighting installations. If you’re adding multiple high-power lights, consider length and total amperage and add extensions or heavier-gauge wiring as needed.

• Designed for 12V systems found in cars, trucks, ATVs, boats
• Best-suited for small to mid-size light groups or a single light bar
• Use extension cable for multiple light setups or long cable runs
• Relay handles switching of higher currents to protect the switch

What safety and durability features are included?

Safety is addressed with a blade fuse to interrupt overcurrent and a power relay to prevent overheating the switch. The switch is rated and tested for thousands of cycles, and the harness’ components are built to resist typical environmental stresses encountered in automotive and marine uses.

• Blade fuse protects against short circuits and overloads
• Power relay reduces heat and wear on the switch and wiring
• Waterproof illuminated switch for wet environments
• Durable 16AWG wiring balances flexibility and current capacity

How will the switch and wiring hold up over time?

The rocker switch includes an illuminated red indicator and is rated for repeated use, having passed multi-thousand-cycle testing. Proper routing, secure connectors, and using the recommended fuse rating will extend the life of the harness and protect connected lights.

• Switch tested for at least 5,000 actuations for long-term reliability
• Secure connectors help prevent vibration-related failures
• Use manufacturer-recommended fuse and routing to minimize wear
• Periodic inspection and correct mounting improve service life

Who this is for: This Nilight wiring harness kit suits DIYers, mechanics, and vehicle owners who want a simple, reliable way to power a 12V LED light bar without fabricating wiring from scratch. It’s ideal for single light bars or small light clusters on trucks, SUVs, ATVs, and boats where a waterproof switch, a protective fuse, and a power relay are required for safe, convenient operation.
