Nilight LED Light Bar Wiring Harness Kit 10ft 12AWG — Illuminated Switch & Sealed Relay

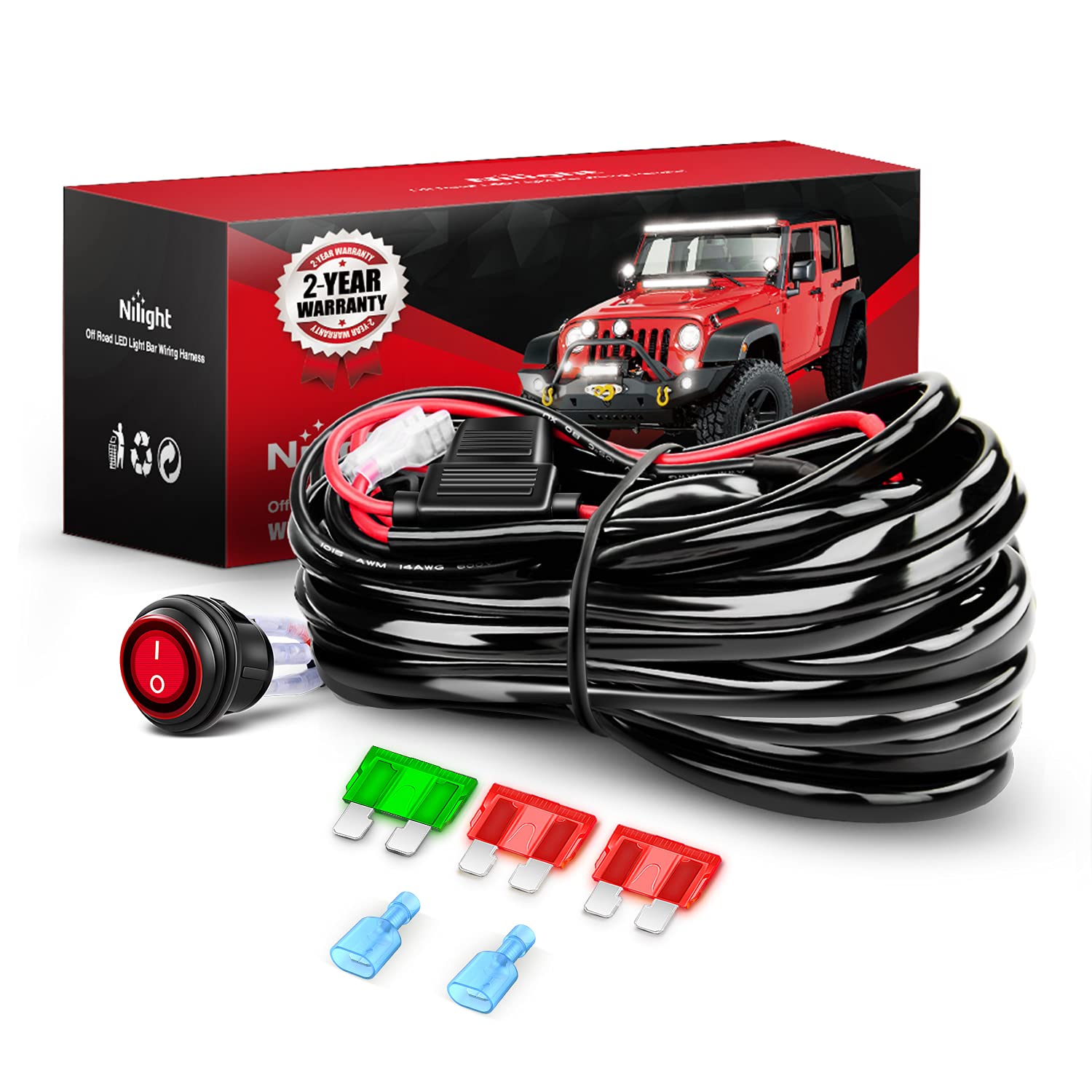

The Nilight Copper LED Light Bar Wiring Harness Kit is a ready-to-install 10-foot, 12AWG heavy-duty wiring kit with an illuminated on/off rocker switch, relay and blade fuse for powering 12V off-road and marine LED lights.

This harness kit supplies a robust, easy-to-use electrical path for LED light bars, work lights and auxiliary lighting on a wide range of 12V vehicles and boats. Built with stranded 12-gauge copper wiring, a sealed relay, and a fuse holder, the kit is designed to reduce installation time while protecting your vehicle’s electrical system from overloads and shorts. It includes clear instructions so you can connect a light bar to a battery and switch without fabricating custom cabling.

How does the kit protect my vehicle’s electrical system?

The Nilight wiring harness integrates a relay and a blade fuse to isolate the light load from the vehicle’s dash wiring and stop damage from overcurrent conditions. The relay lets the switch control high current indirectly, while the fuse interrupts power if an overcurrent or short occurs.

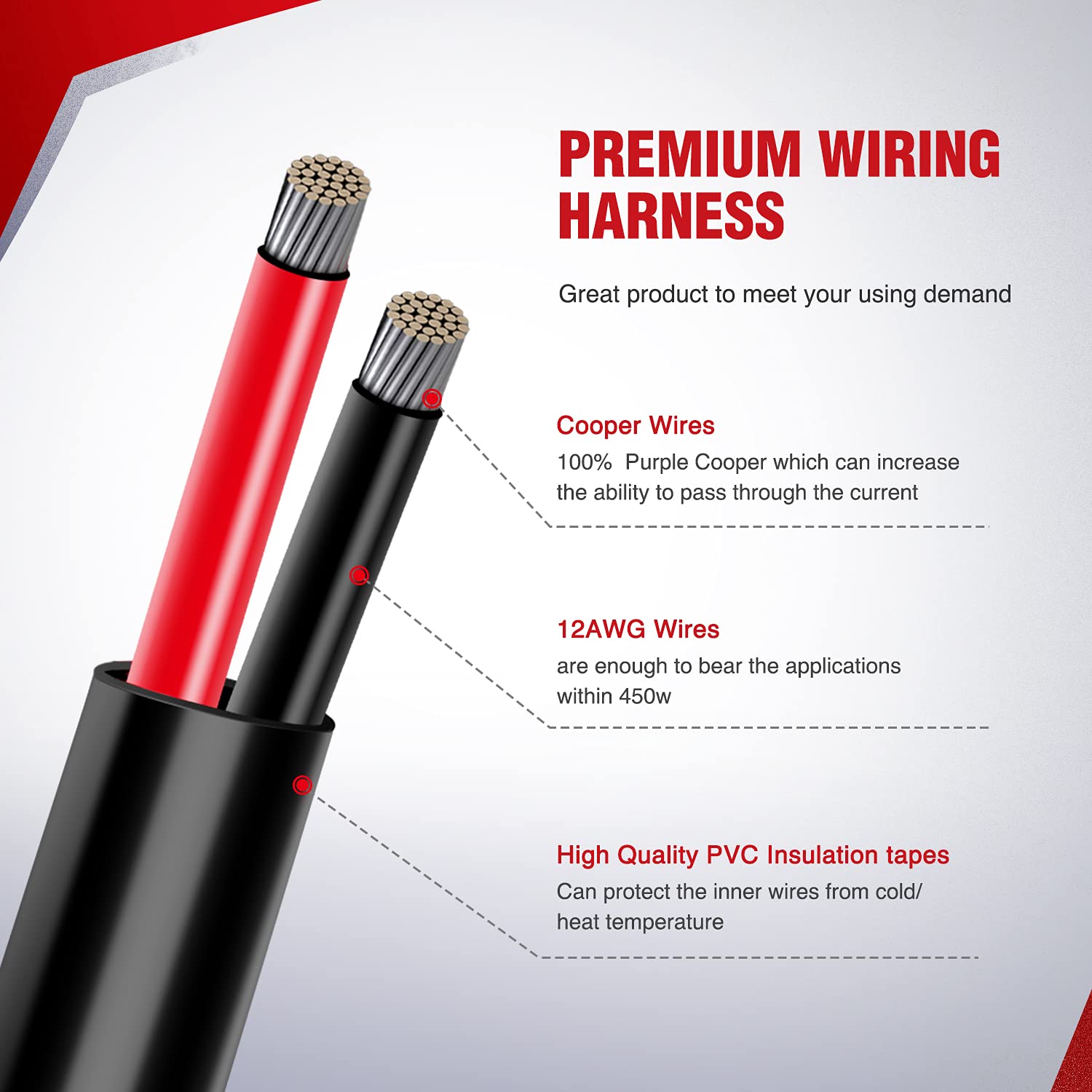

• 12AWG stranded copper conductors handle higher current with less voltage drop.

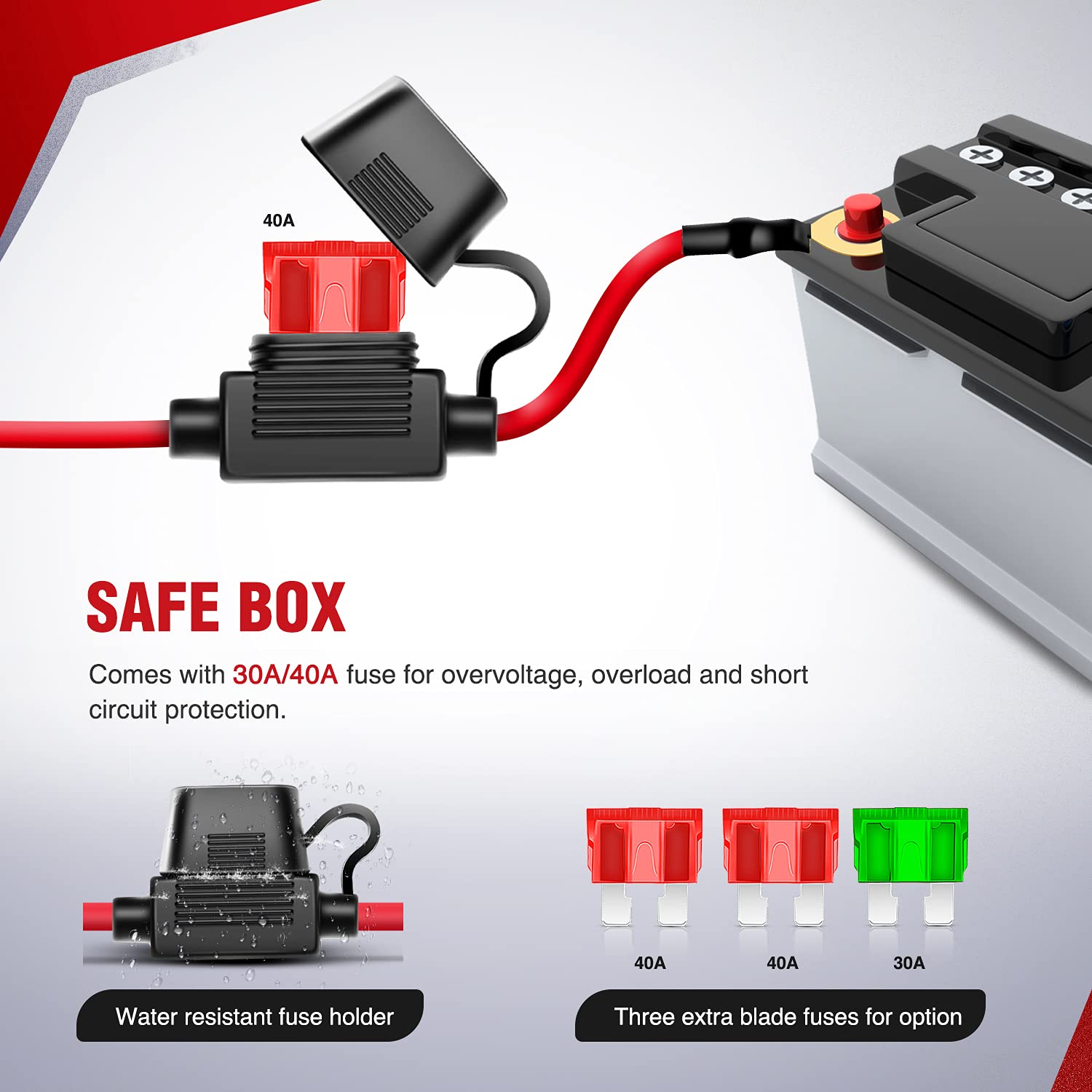

• Inline blade fuse provides replaceable overcurrent protection.

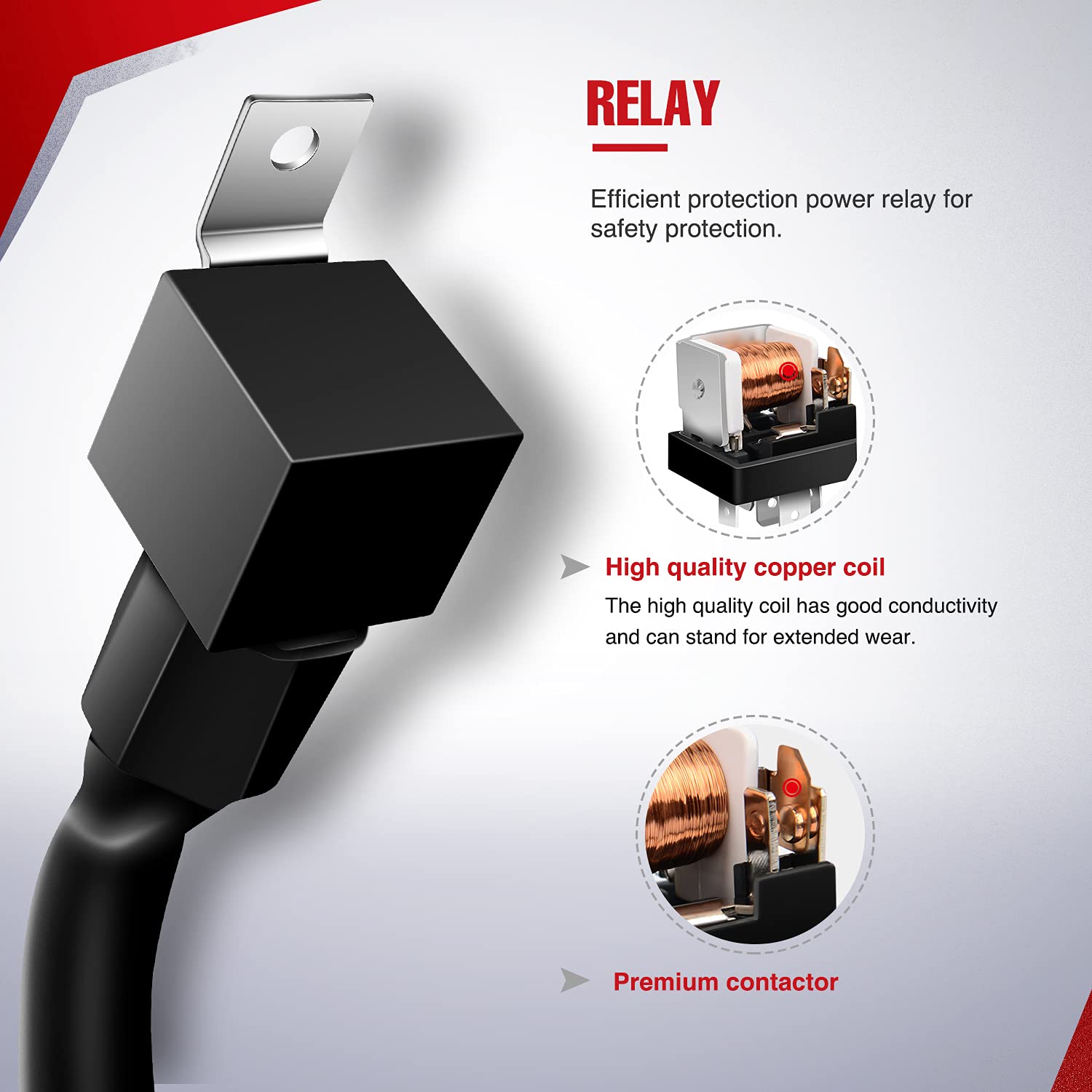

• Sealed automotive relay reduces heat at the switch and prolongs switch life.
• Wiring length and connectors minimize splicing and simplify routing.

Will this harness work with my LED light bar and vehicle?

The kit is built for compatibility with most 12V lighting loads up to the harness capacity, and it suits cars, trucks, jeeps, ATVs, UTVs, motorcycles and marine craft. Confirm your light bar’s total wattage and running amperage to ensure it falls within the harness’s rated capacity.

• Rated to support typical 12V LED bars and auxiliary lamps (check wattage/amperage).

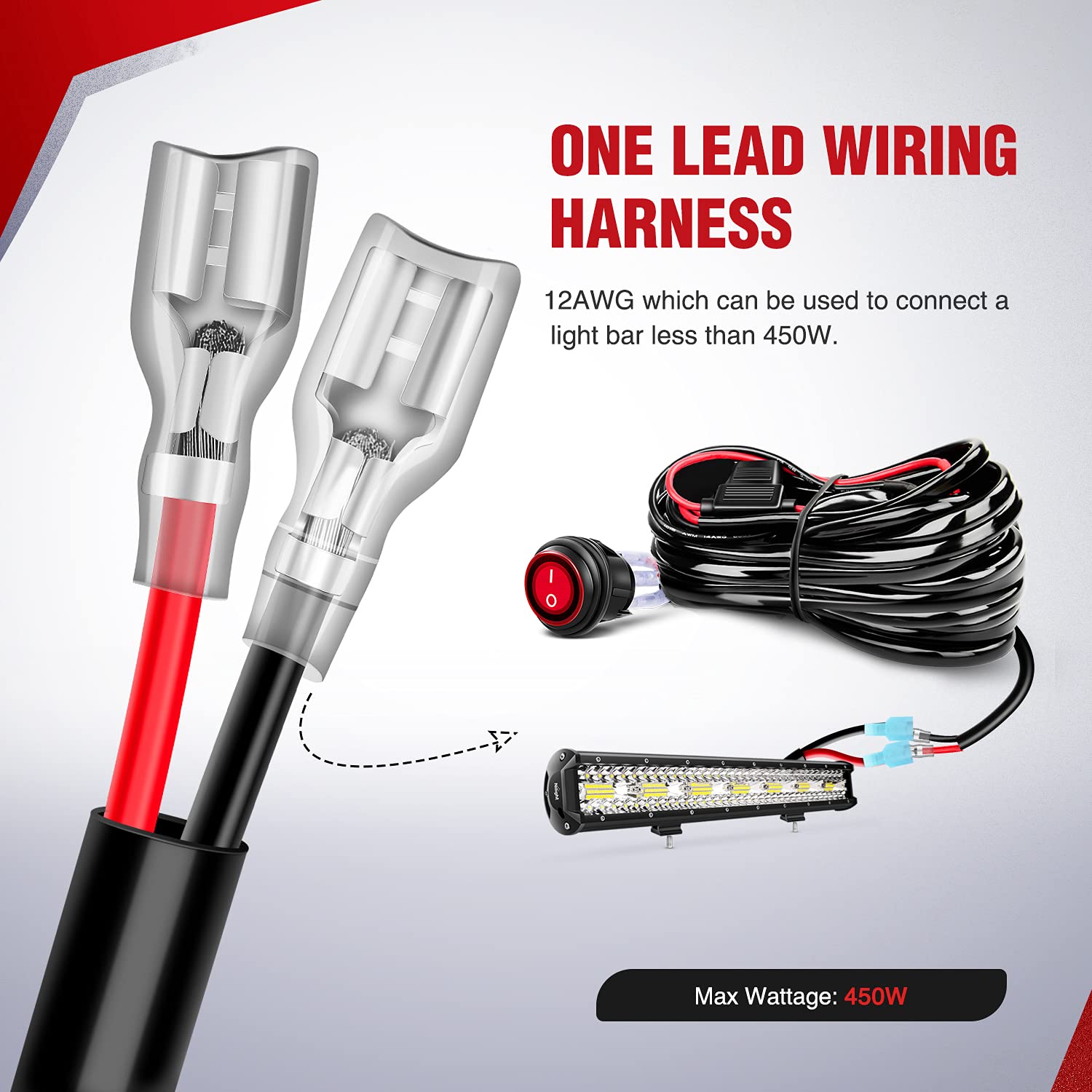

• Universal terminal and quick-disconnect connectors for common light bar plugs.
• 10-foot length provides flexible routing from battery to switch and lights.
• Suitable for on-road and off-road vehicles plus boats and trailers.

How simple is installation and daily operation?

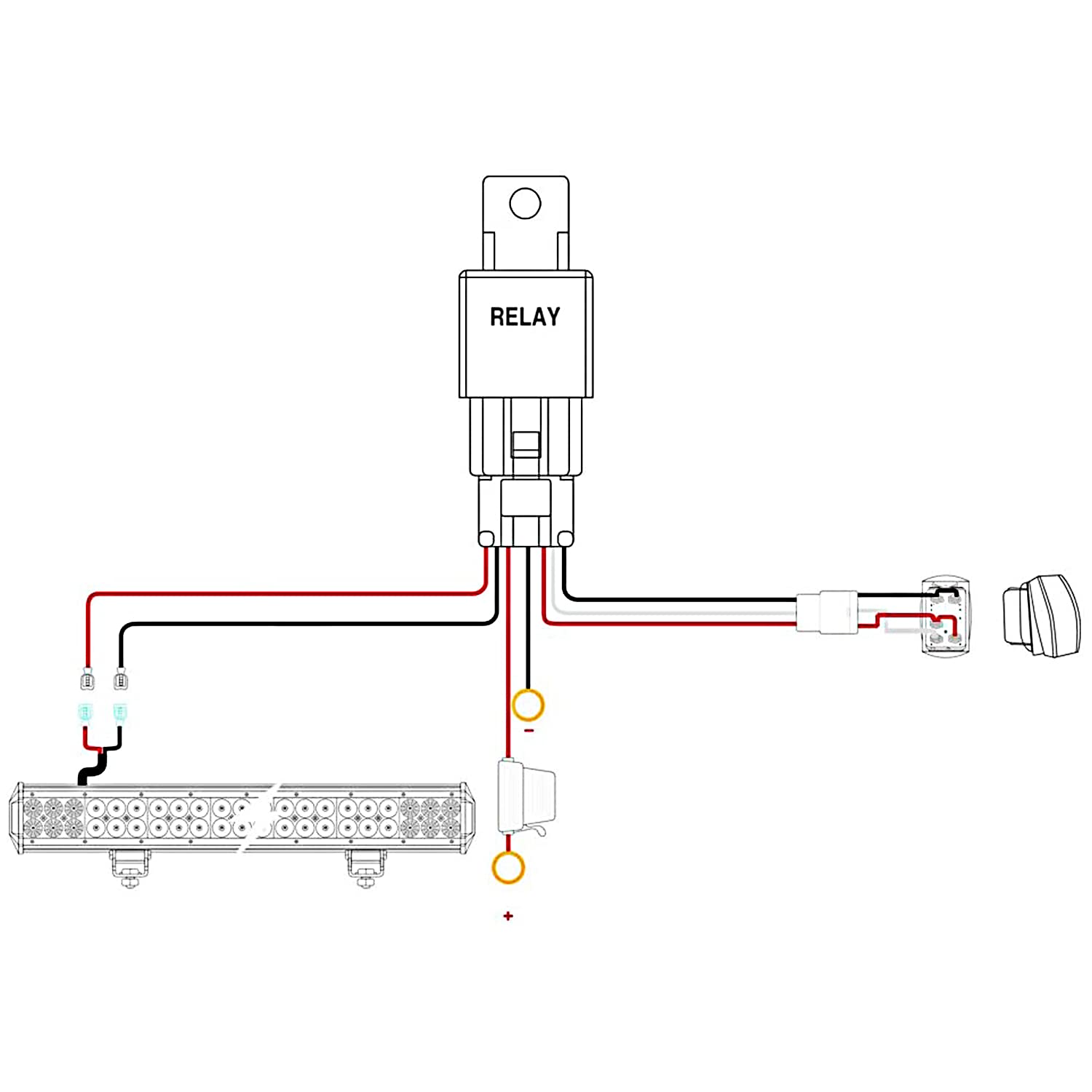

The harness comes pre-assembled with labeled wires, an illuminated rocker switch and a relay so you can complete a reliable installation with basic hand tools. Daily use is straightforward: flip the red-indicator rocker switch to power your lights; the switch is rated for thousands of cycles for long-term durability.

• Pre-wired connections reduce time and wiring errors during installation.

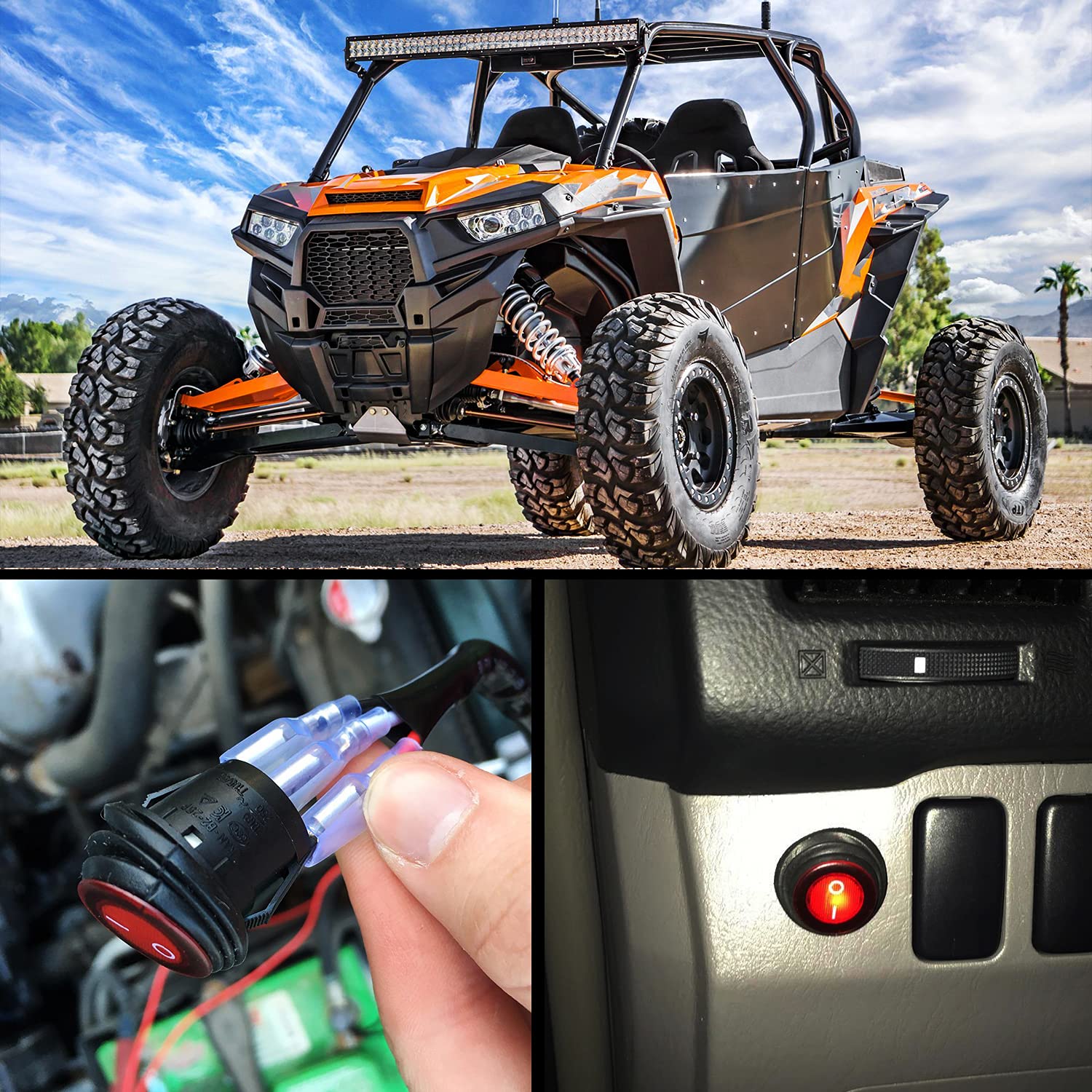

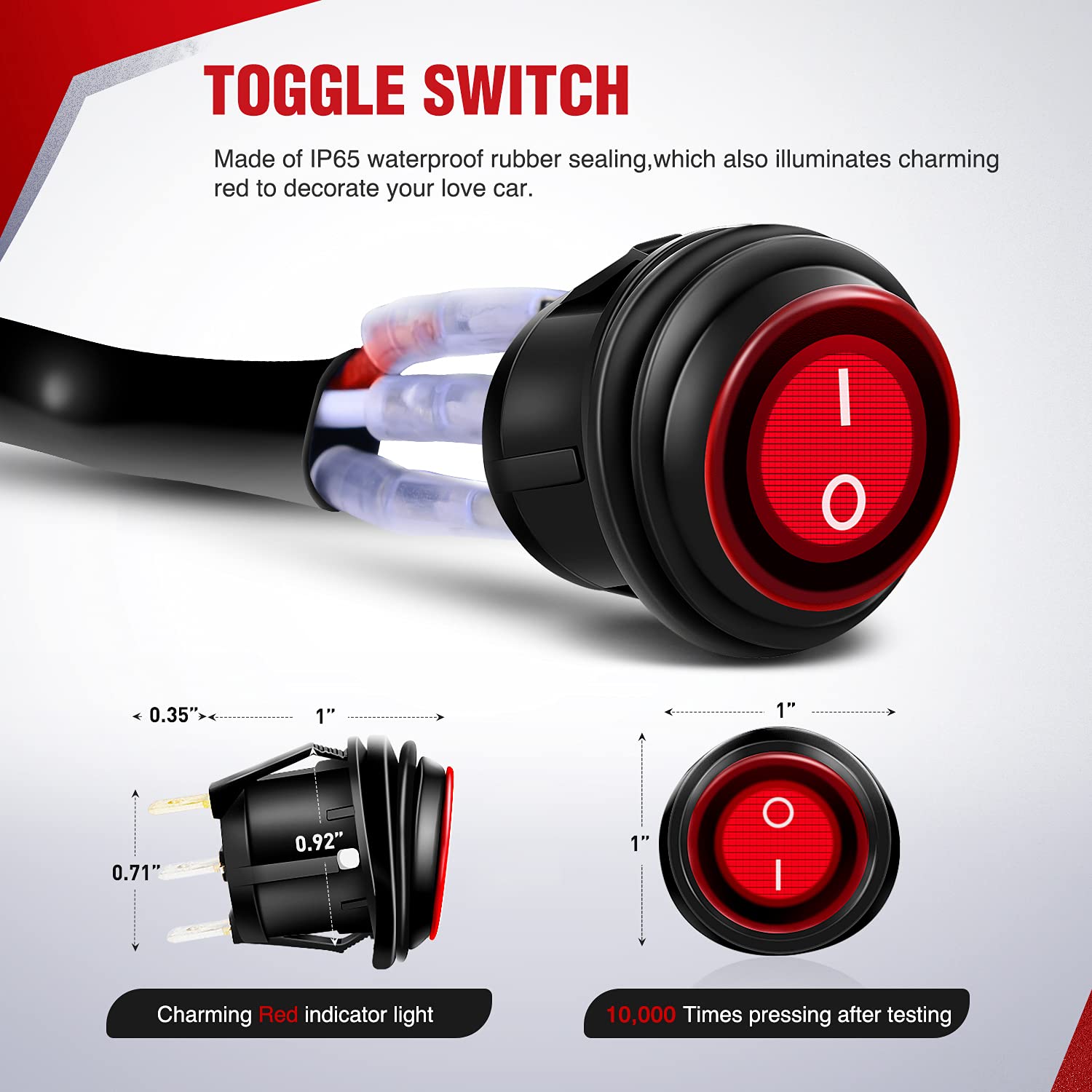

• Illuminated 3-pin rocker switch displays power status at night.
• Durable switch tested for repeated on/off cycles for dependable operation.
• Includes straightforward instructions to guide placement and connections.

What practical details should I verify before buying?

Before purchase, check the total amp draw of your LED lights and the distance you need to run wiring to ensure the 10ft length and 12AWG gauge meet your installation requirements. Also verify space for mounting the switch and relay in your dash or mounting panel.

• Measure distance from battery to switch and to the light bar to confirm 10ft coverage.
• Compare light bar wattage/amperage to harness capacity to avoid overload.
• Plan switch mounting location for visibility and access to the 3-pin connector.
• Allow space for inline fuse access and relay placement near the battery or ground.

Who is this for: The Nilight Copper LED Light Bar Wiring Harness Kit is ideal for DIY installers, off-road enthusiasts, mechanics, boat owners and fleet technicians who need a durable, plug-and-play wiring solution for 12V LED auxiliary lighting. It’s suited to anyone looking for a straightforward, protected way to add or replace lighting without custom wiring work, as long as the light load matches the harness capacity.
