Nilight LED Trailer Light Kit — Red/Amber Square Full-Function, Dual SMD Waterproof

Nilight Square LED Trailer Light Kit combines bright 2835 and 5050 SMD LEDs into a sealed red/amber assembly that delivers running, stop, turn, tail, marker and license lighting for 12V trailers and vehicles.

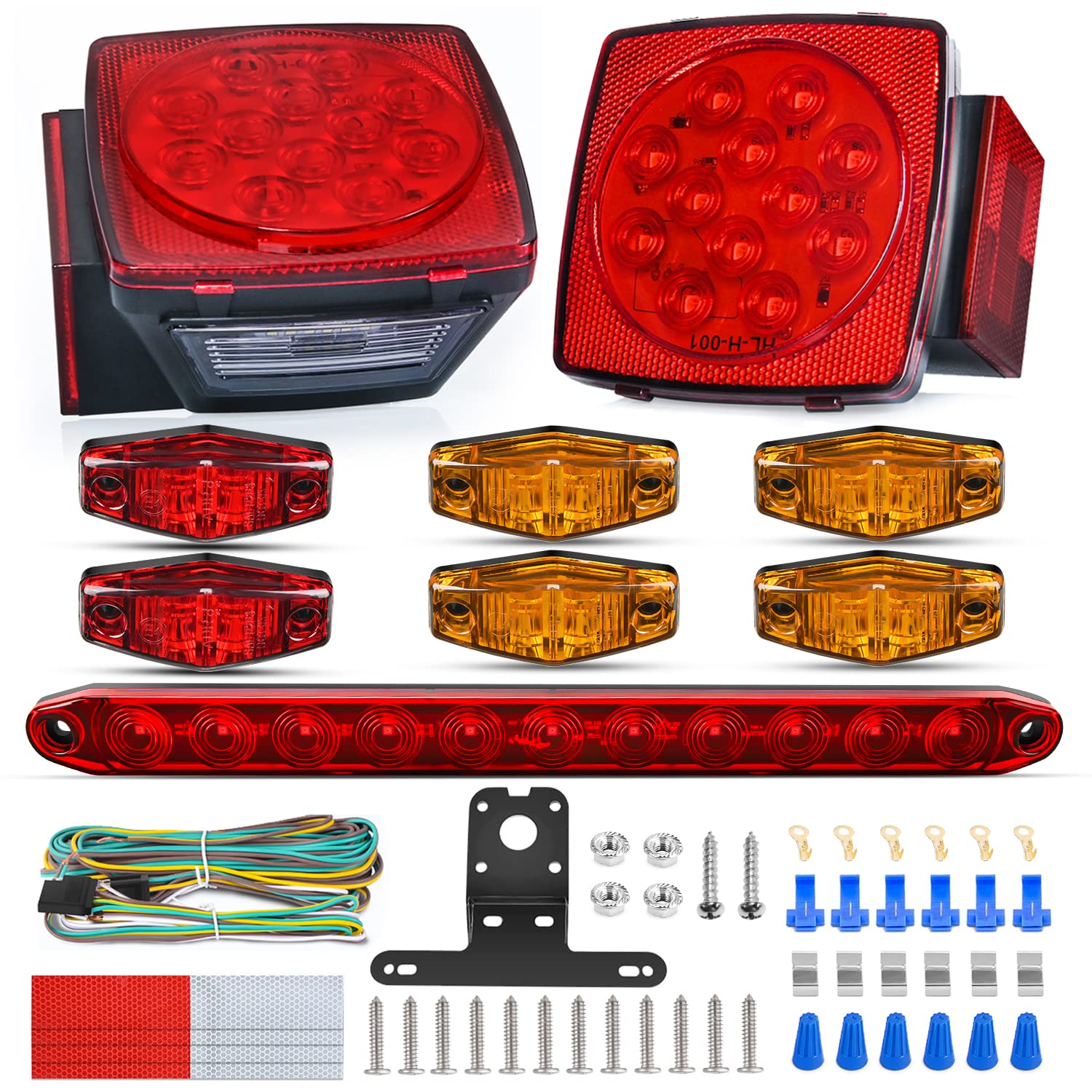

This compact kit brings multiple lamp functions into a durable, weatherproof package designed for trailers, trucks, RVs and marine applications. The set uses both 2835 and 5050 SMD diodes for high output and long life, with clearly labeled wires for fast hookup and stud or screw mounting options for simple installation.

How bright and reliable are the LEDs for night driving?

The kit uses two SMD types—2835 for steady running illumination and 5050 where extra punch is needed—so you get strong, consistent output across functions. The circuitry and LED selection emphasize stability to resist flicker and extend service life under regular use.

• Dual SMD technology: 2835 + 5050 for balanced brightness and intensity
• Designed for clear visibility in low-light and inclement weather
• Stable operation aimed at long-term durability

How simple is installation and wiring on my trailer?

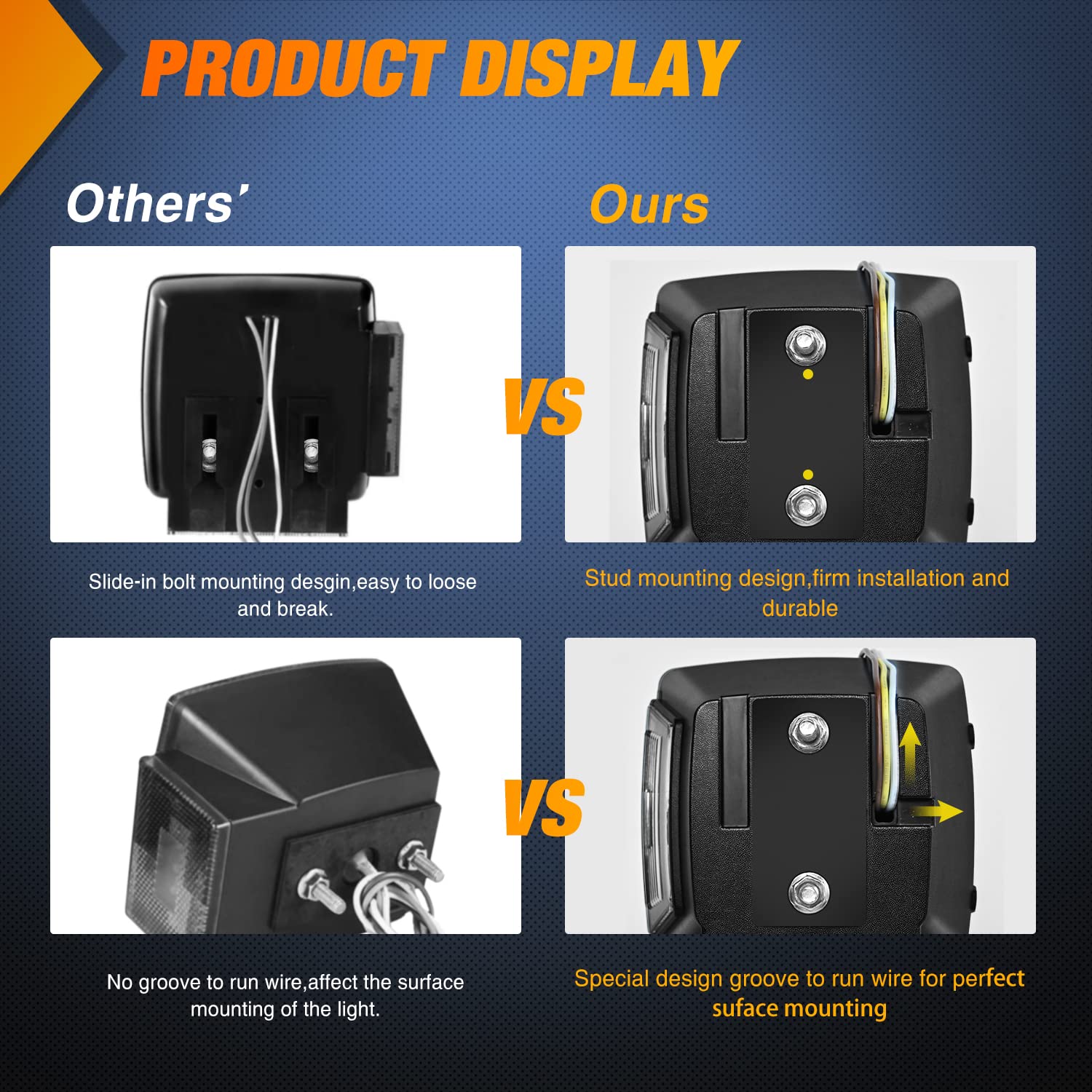

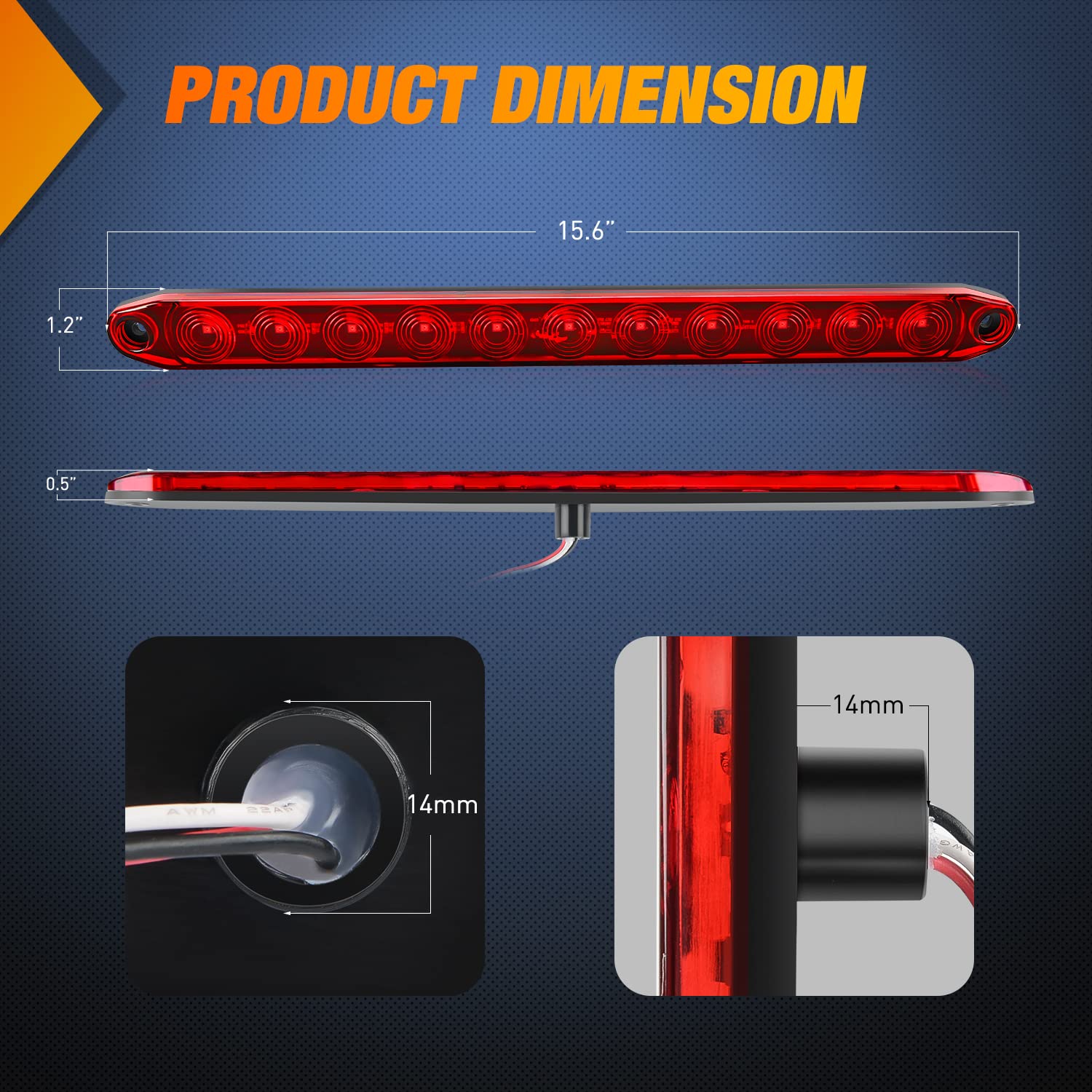

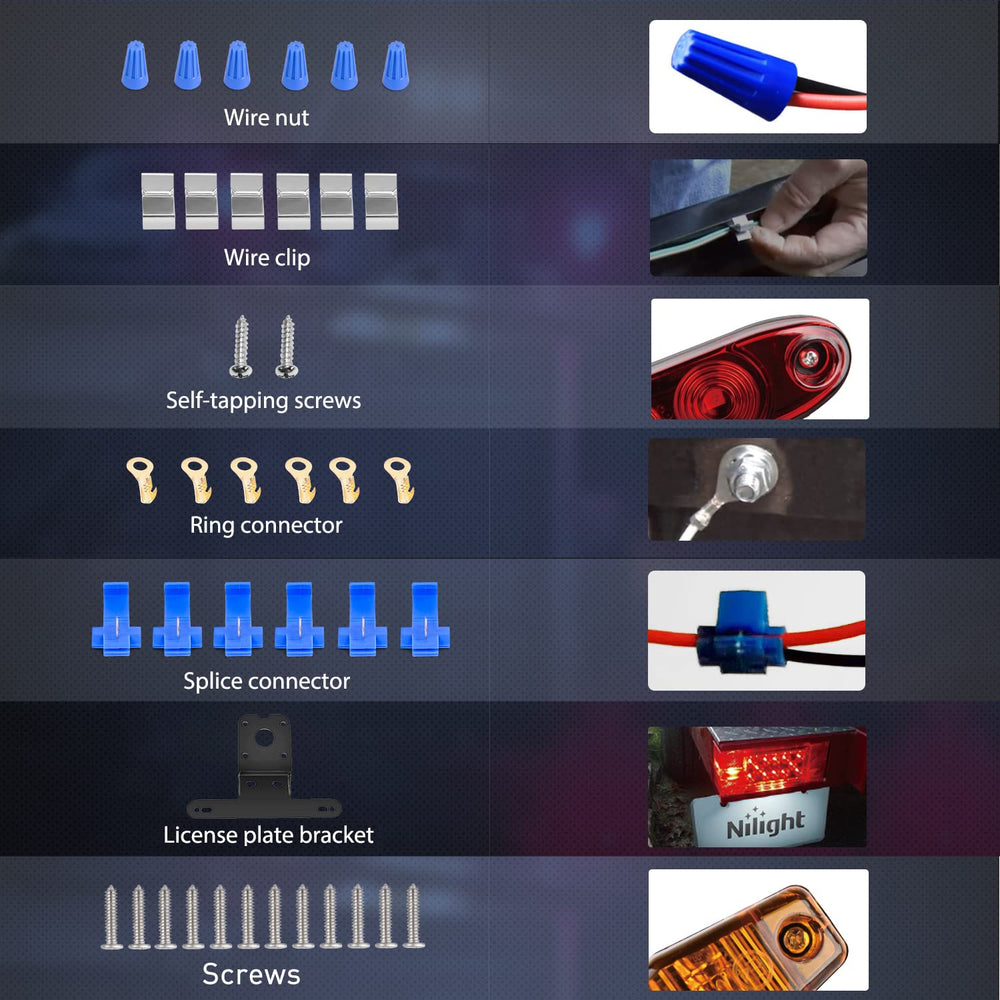

Mounting is straightforward: square lights are stud-mounted on the surface while the 16" brake light bar and side marker are screw-mounted. Wire colors are standardized for fast identification so you can connect running, brake and turn circuits without guesswork.

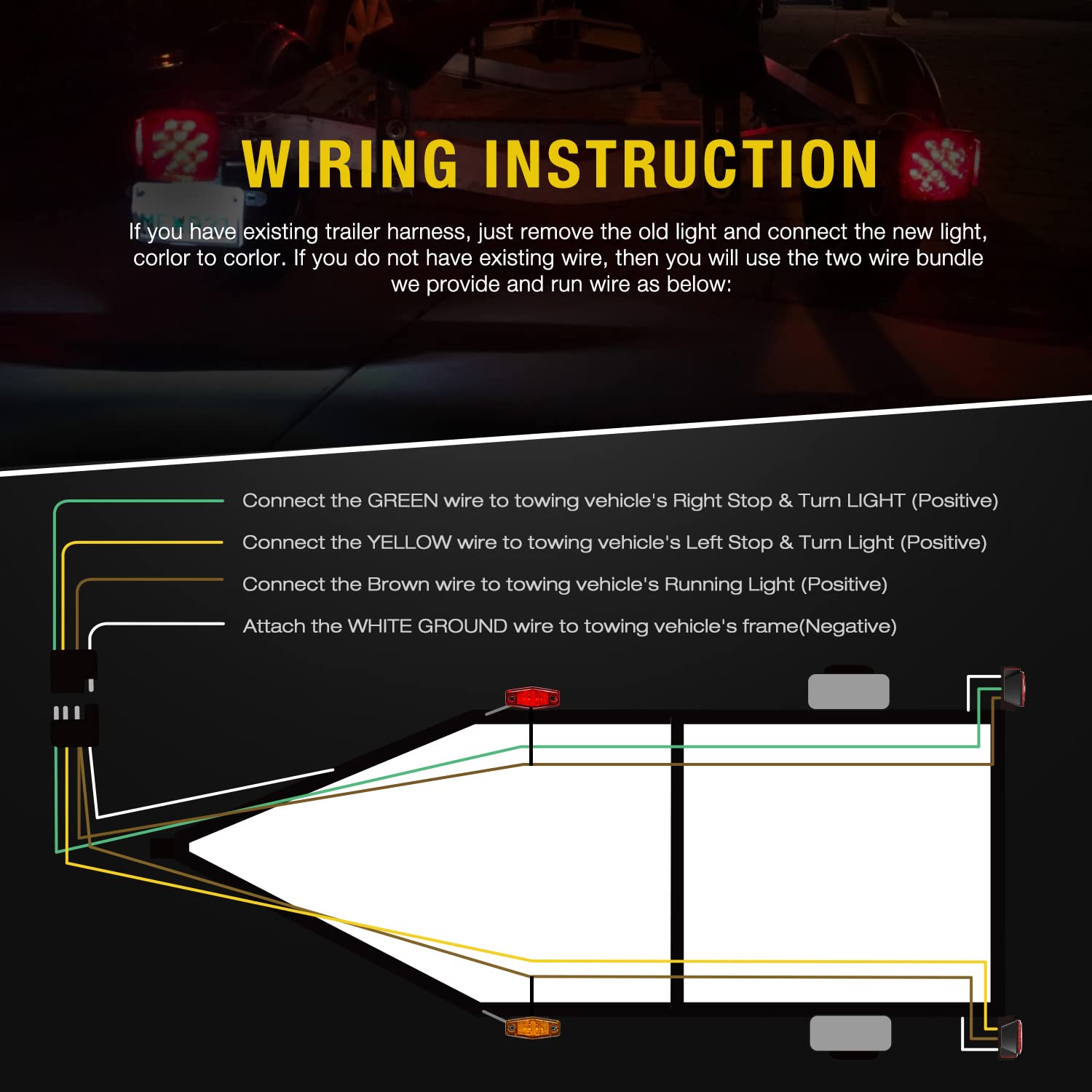

• Square light wires: white = ground, brown = running, yellow = left turn/brake, green = right turn/brake
• 16" bar wires: white = ground, black = tail (low), red = brake (high)
• Side marker: white = ground, black = positive; fits typical 12V trailer wiring

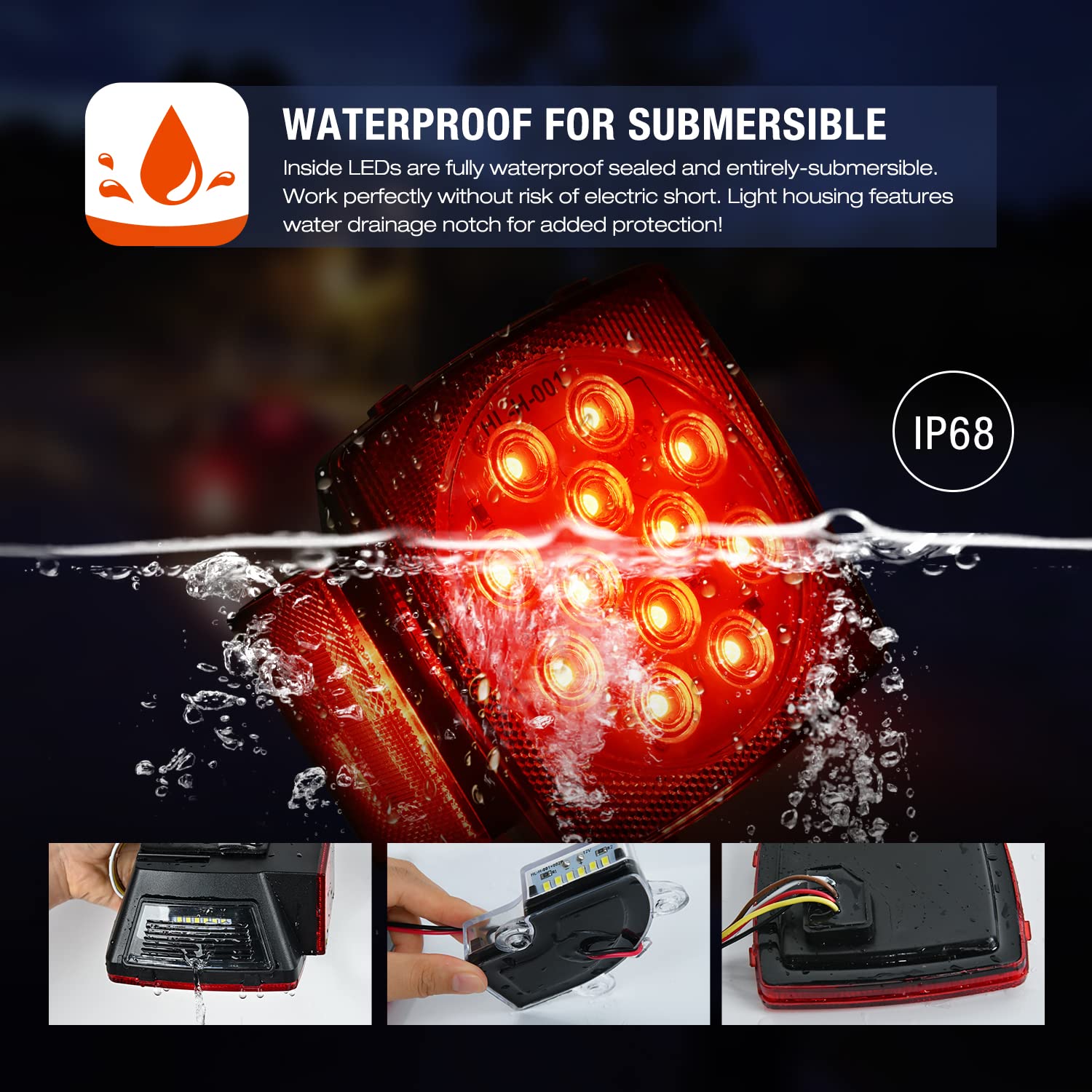

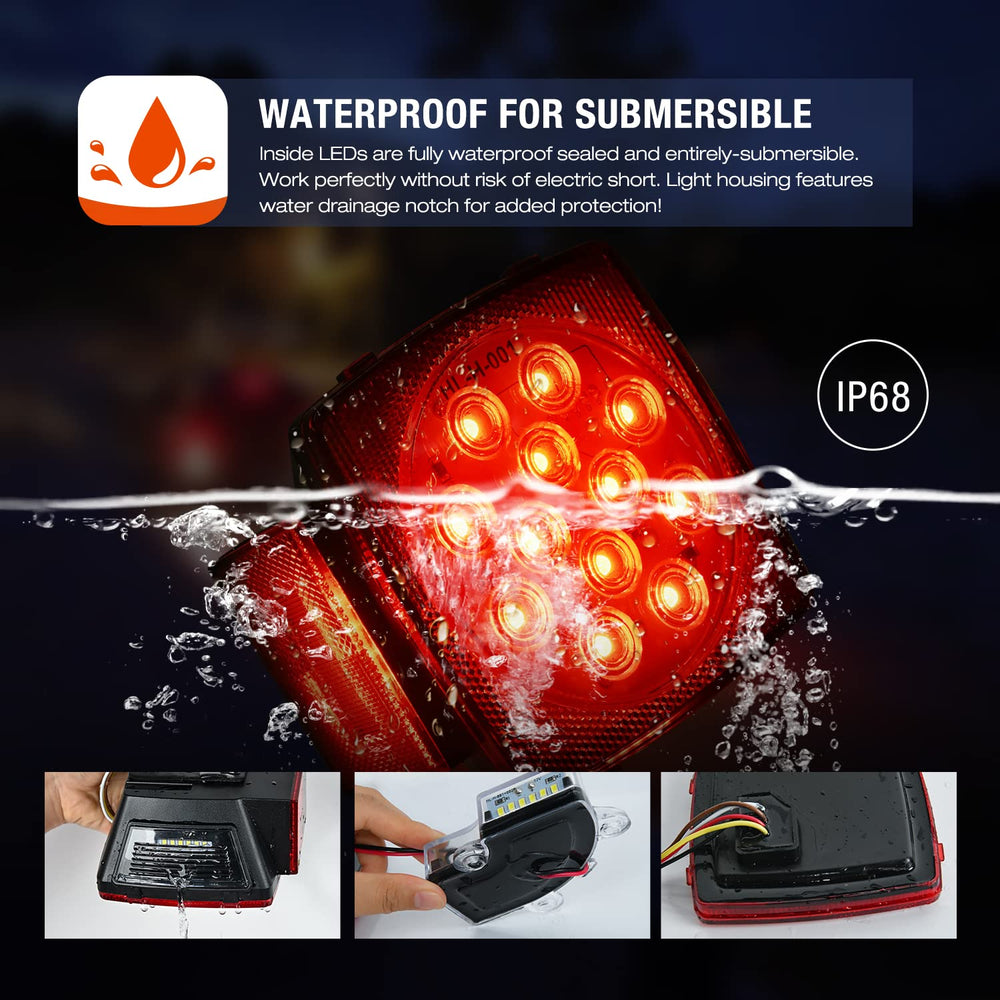

Will these lights withstand wet or salty conditions?

Each lamp is sealed with a waterproof design and includes drainage notches at the square light sides to channel any intruding moisture away from the LEDs. The enclosure reduces the risk of corrosion and water damage, making the kit suitable for marine and exposed environments.

• High-seal housings to block moisture and dust
• Integrated drainage notches to evacuate any trapped water
• Materials and assembly chosen for salt- and splash-prone use

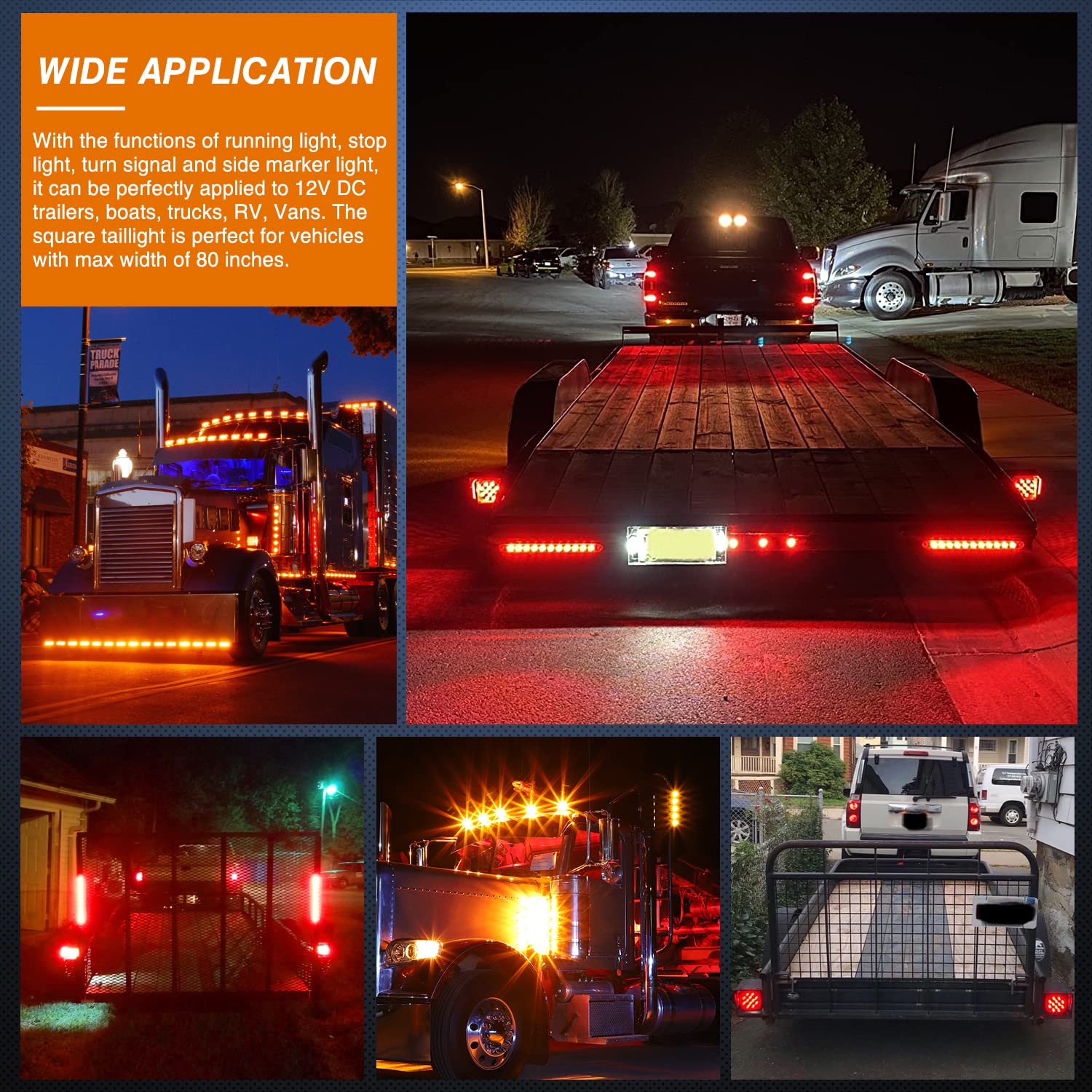

What functions and vehicle types does this kit support?

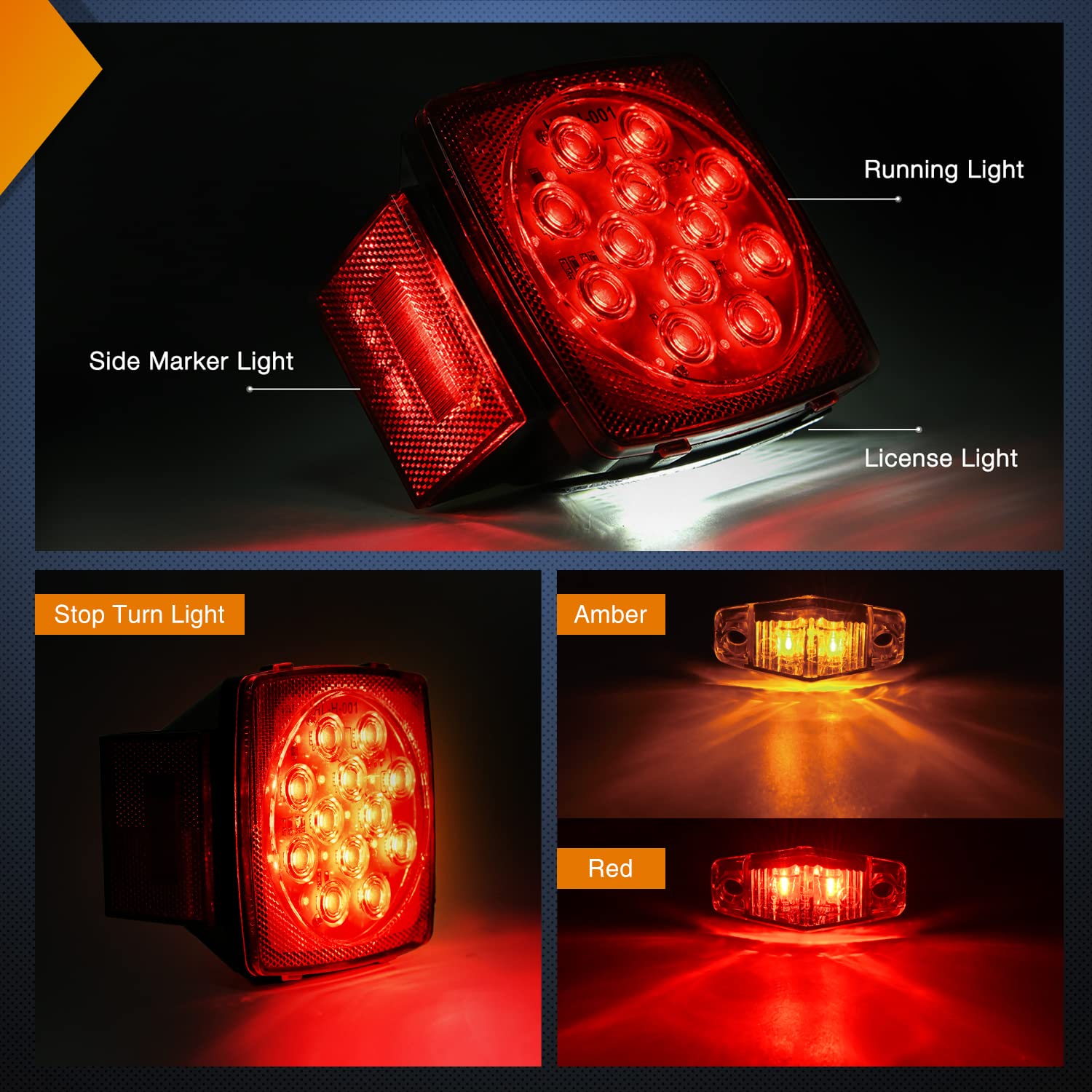

This is a full-function lighting kit: running lights, side markers, license light, turn signals, stop/brake and tail lighting in one package. It’s built for 12V systems and recommended for trailers up to about 80 inches wide, and fits boats, trucks, RVs, pickups, campers, utility trailers and similar equipment.

• Combined functions reduce the need for multiple separate fixtures
• Suitable for trailers, boats, RVs, pickups, tractors and more
• Works with standard 12V vehicle electrical systems

Who is this for: This Nilight Square LED Trailer Light Kit is aimed at owners and fleet operators who want a compact, multi-function lighting solution that’s easier to install than multiple separate lamps. It’s a good fit for DIY trailer builders, boat owners needing marine-capable rear lights, and anyone upgrading older incandescent fixtures to brighter, more reliable LEDs.
