Nilight Motorcycle Handlebar Wiring Harness Kit 12V with Illuminated Rocker Switch, 180W Dual Output

If you’re adding auxiliary lights to a motorcycle, ATV, scooter, or e-bike, this Nilight wiring harness simplifies installation while protecting your electrical system. The kit combines a heavy-gauge 16 AWG wire loom, a durable inline fuse and relay, plus a CNC aluminum handlebar rocker switch with a silicone sleeve to withstand weather and vibration. It’s designed so riders can mount a visible, illuminated switch on a 7/8" handlebar and connect up to two light fixtures with a combined load under 180W.

How does Nilight’s harness protect my bike’s electrical system?

The kit includes built-in circuit protection to reduce the risk of overcurrent and shorts. A relay handles the switching load while an inline blade fuse is the first safety barrier, and the 16 AWG stranded wiring is rated to carry higher current without overheating.

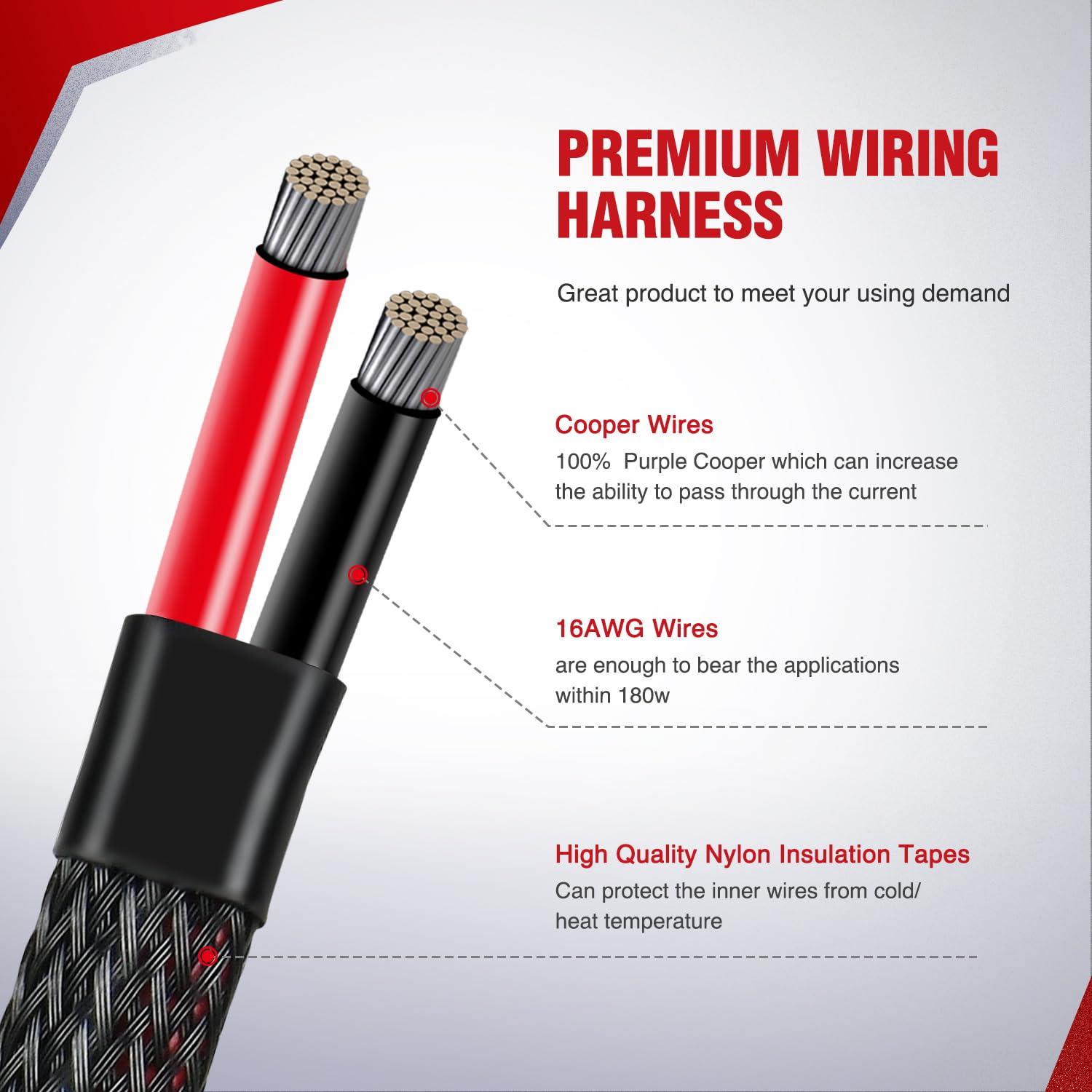

• 16 AWG stranded wires for improved conductivity and flexibility

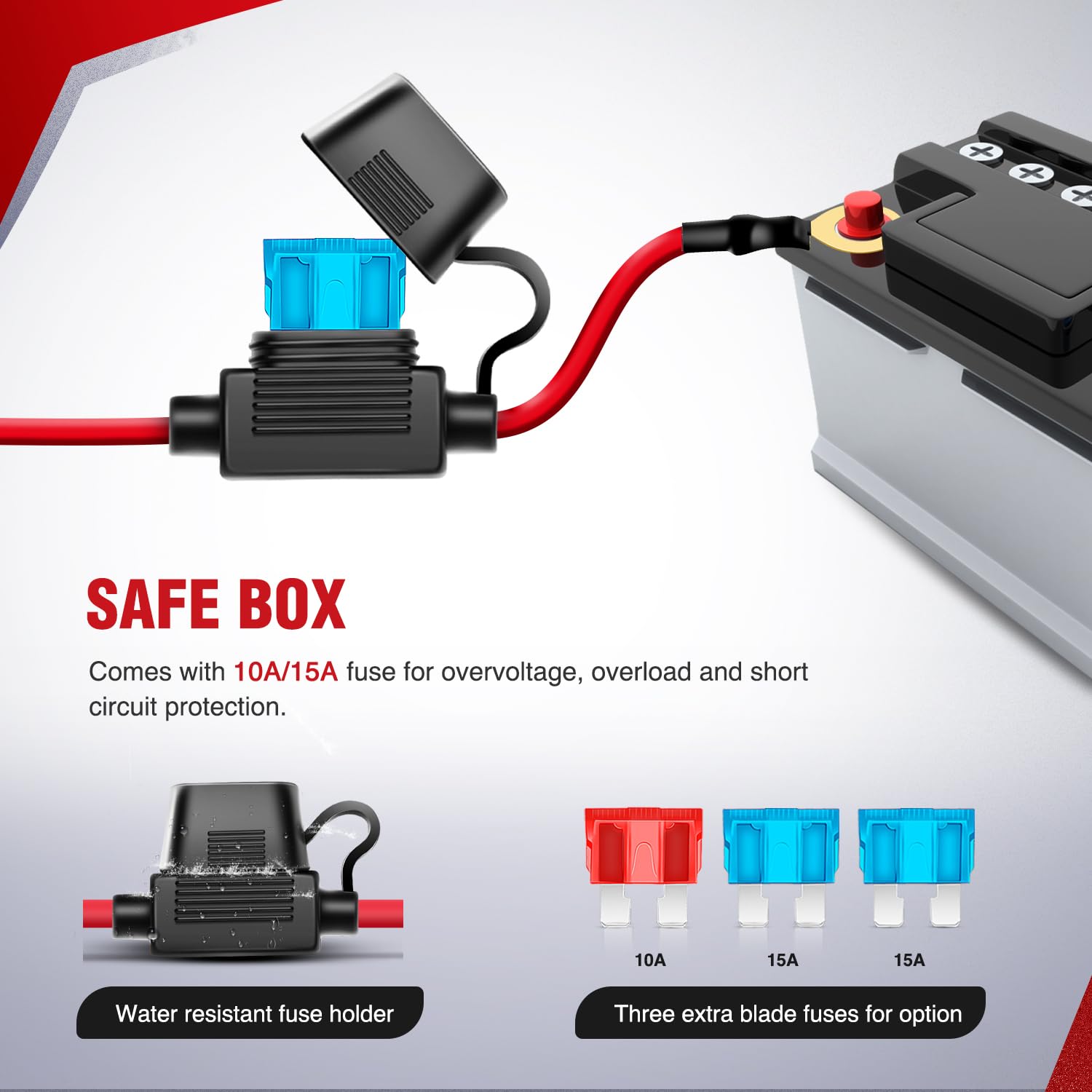

• Inline blade fuse to interrupt excessive current

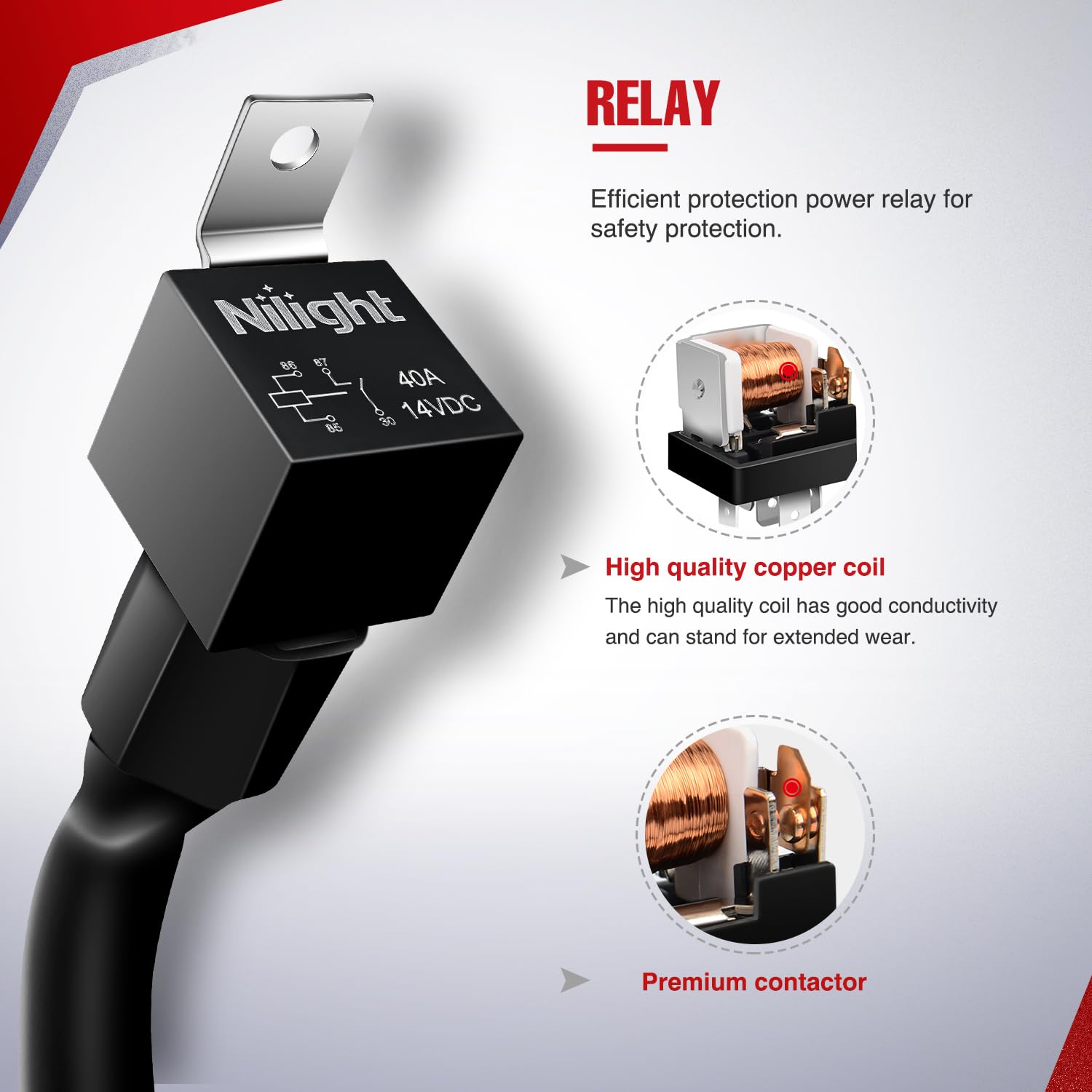

• Power relay to isolate the switch from the light load
• Nylon jacket for abrasion and heat resistance

Will the handlebar switch stand up to wet and rough conditions?

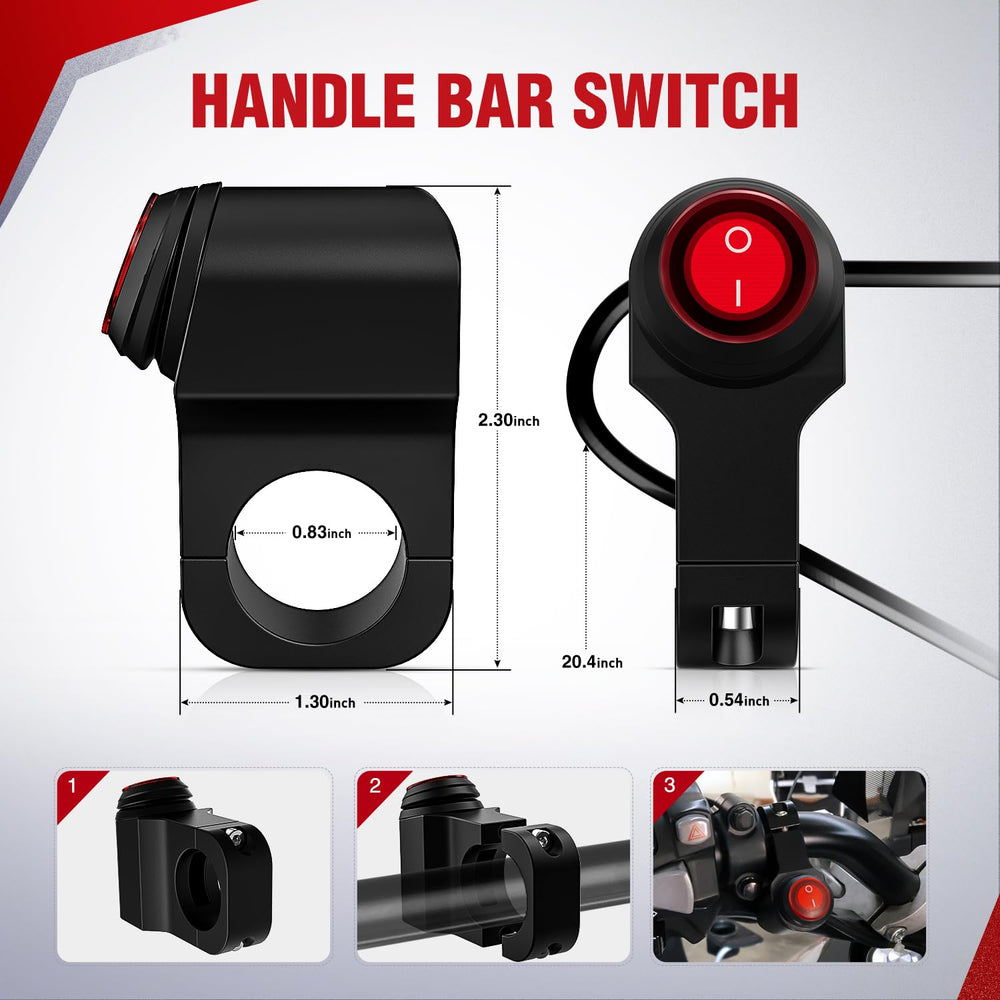

The rocker switch body blends CNC aluminum and rugged plastic, and a snug silicone sleeve helps seal it against water, dust, and road spray. The illuminated 3-pin rocker has been tested for long life and provides a clear visual cue when lights are active.

• Silicone sleeve for weather and dust resistance
• Red indicator light inside the rocker for on-state visibility
• Durable construction tested for thousands of presses
• Fits standard 7/8" (22 mm) handlebar diameters

How do I use the two output leads and what setups are supported?

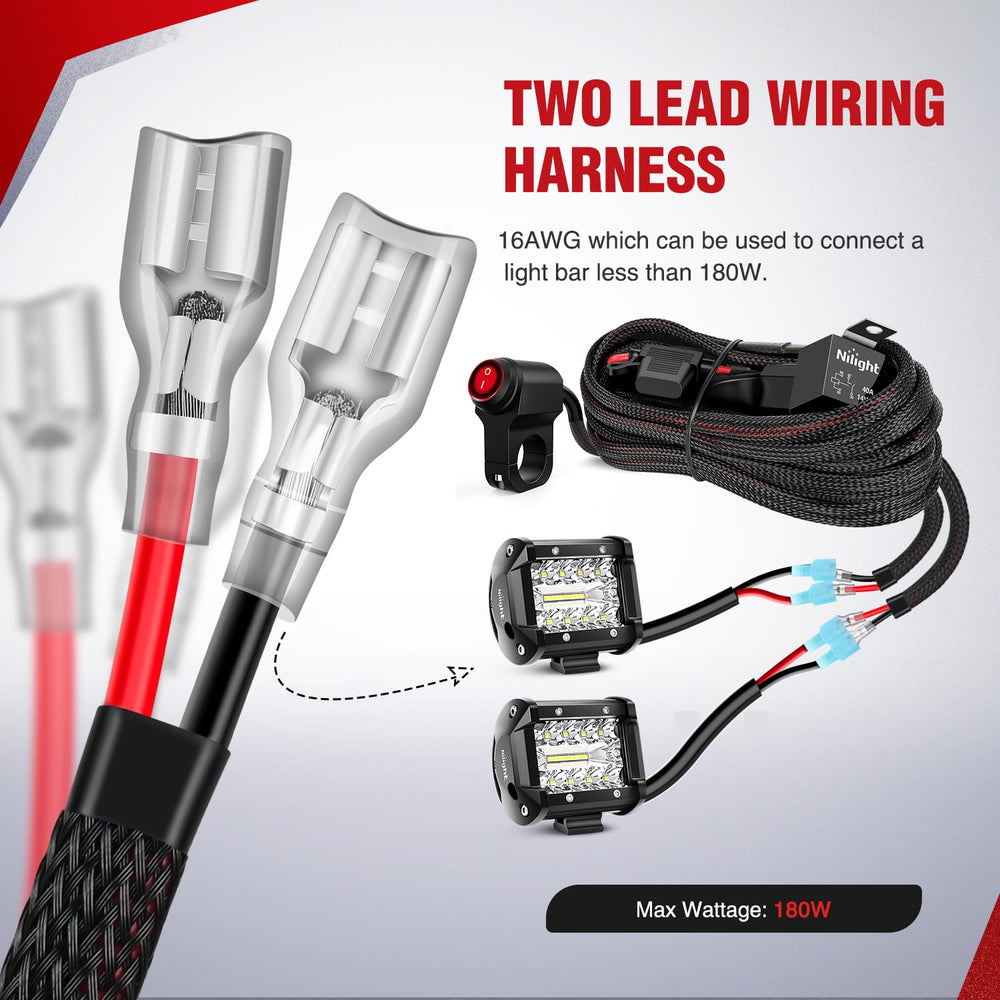

Two separate light output leads let you power dual fixtures—such as a pair of pods or a pod plus a light bar—while keeping each connector stable. The harness is intended for combined loads up to 180W, so it’s suitable for most LED pods and compact light bars on 12V systems.

• Two output connectors for dual lights or staged lighting
• Stable plug connections to reduce vibration-related failures
• Works with standard 12V lighting accessories under 180W total
• Clear wiring layout simplifies routing and mounting

What makes installation straightforward for riders and installers?

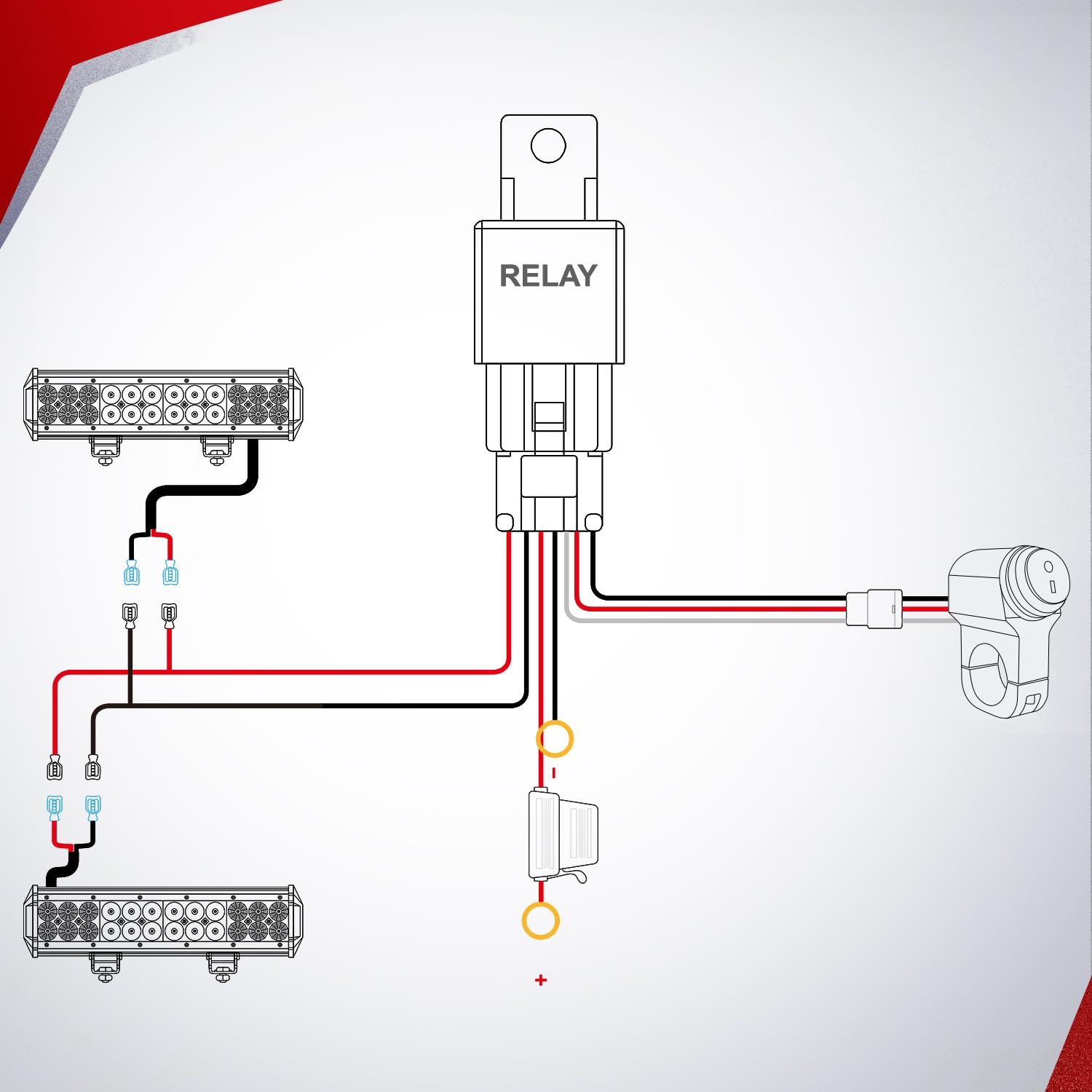

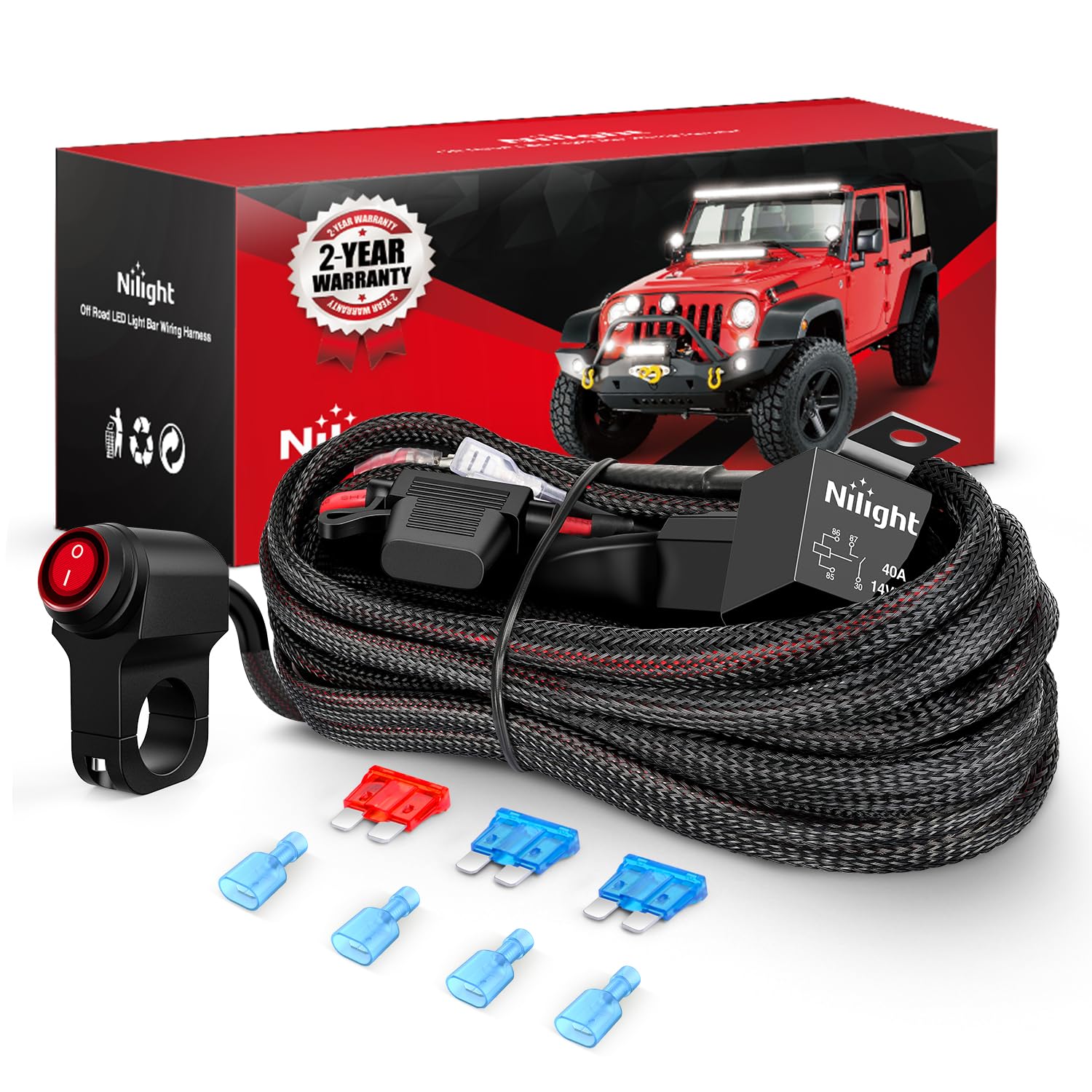

The harness arrives as a pre-assembled loom with labeled leads, a relay already wired into the pack, and a handlebar-ready switch cluster. That reduces cutting, splicing, and guesswork—installers only need to mount the switch, connect the outputs to the lights, and attach the power/ground to the battery.

• Pre-assembled wiring reduces installation time
• Relay and fuse pre-mounted for plug-and-play convenience
• Switch sized to clamp on standard 7/8" handlebars
• Nylon jacketed wires for easier routing and protection

Who is this for? Riders who want a tidy, dependable way to add auxiliary lighting—whether commuting, touring, off-roading, or customizing a café racer—will benefit from this Nilight harness. It’s particularly useful for DIY installers and professional shops that prefer a pre-wired solution with built-in protection and a weatherproof handlebar switch. Avoid using the harness with loads exceeding 180W and consult your vehicle’s wiring diagram if you’re unsure about grounding or fuse placement.
