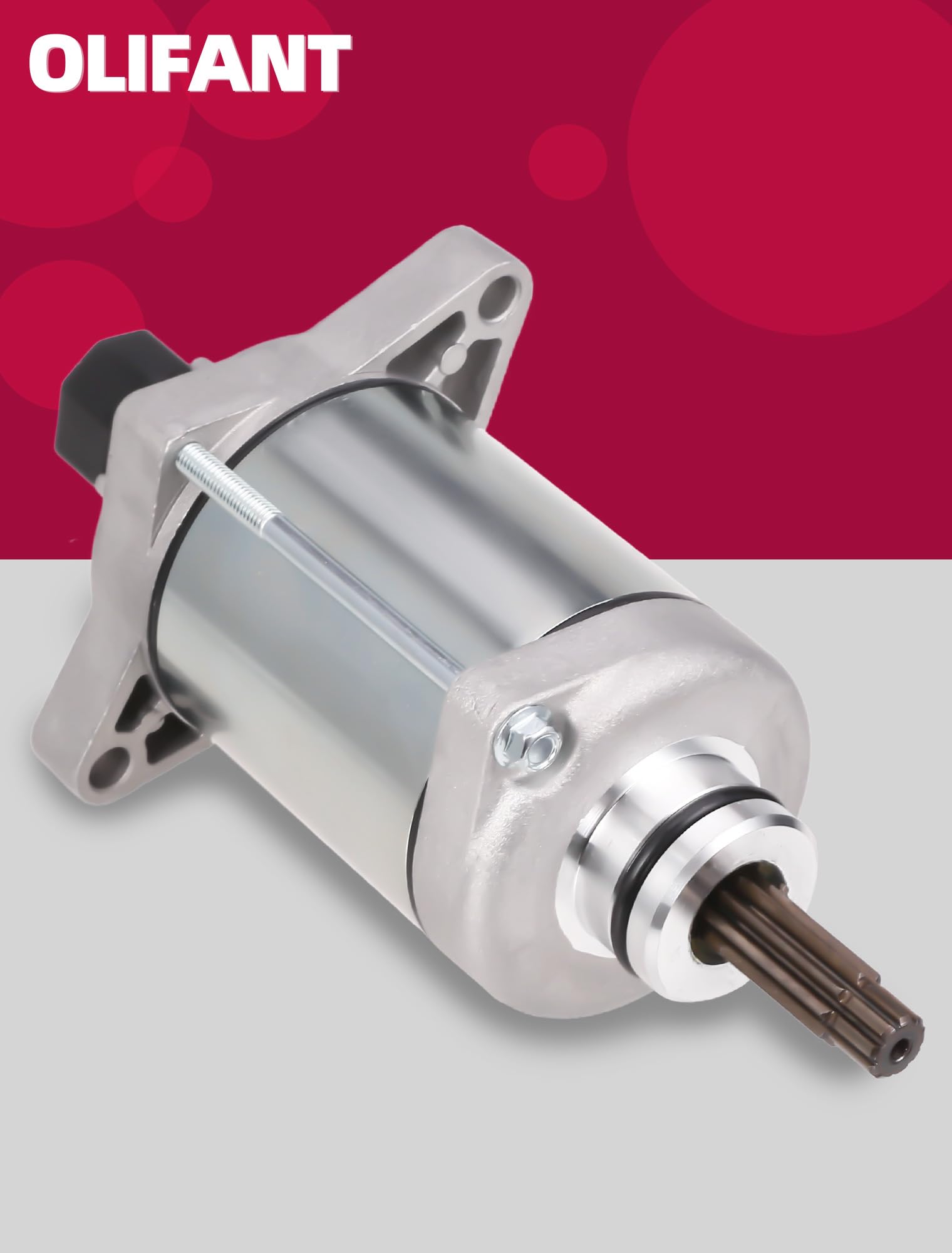

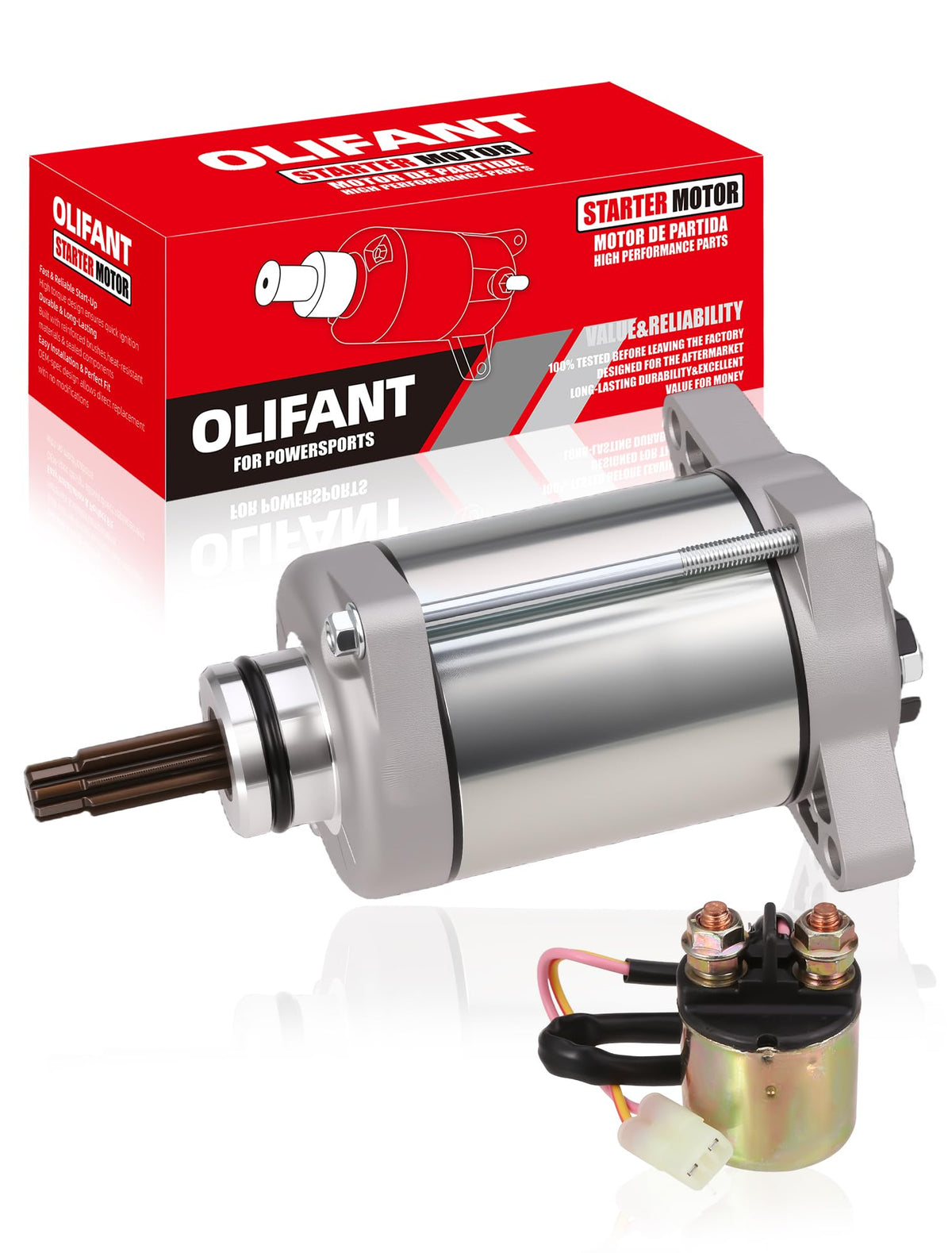

OLIFANT Starter for Honda Rancher 420 & Foreman 500 — 2007–2019/2012–2019, 12V PMDD CCW 9‑Tooth

OLIFANT replacement starter for Honda Rancher 420 (2007–2019), Foreman 500 (2012–2019) and compatible Pioneer 500 models restores reliable engine starts with a 12V PMDD motor and 9-tooth CCW sprocket.

If your ATV or UTV won't crank or the starter grinds, this OLIFANT unit is built to match common OE references and fit multiple Honda utility models. Engineered to the same form and function as original equipment, it uses quality enameled copper windings, stronger magnets/field coils for improved torque, and a durable aluminum housing to withstand shop and trail use. The starter is compatible with OE numbers including 31200-HP5-601 and 31200HR0F01 and is specified as a PMDD 12V CCW motor with a 9-tooth pinion.

Will this starter fit my Honda Rancher or Foreman?

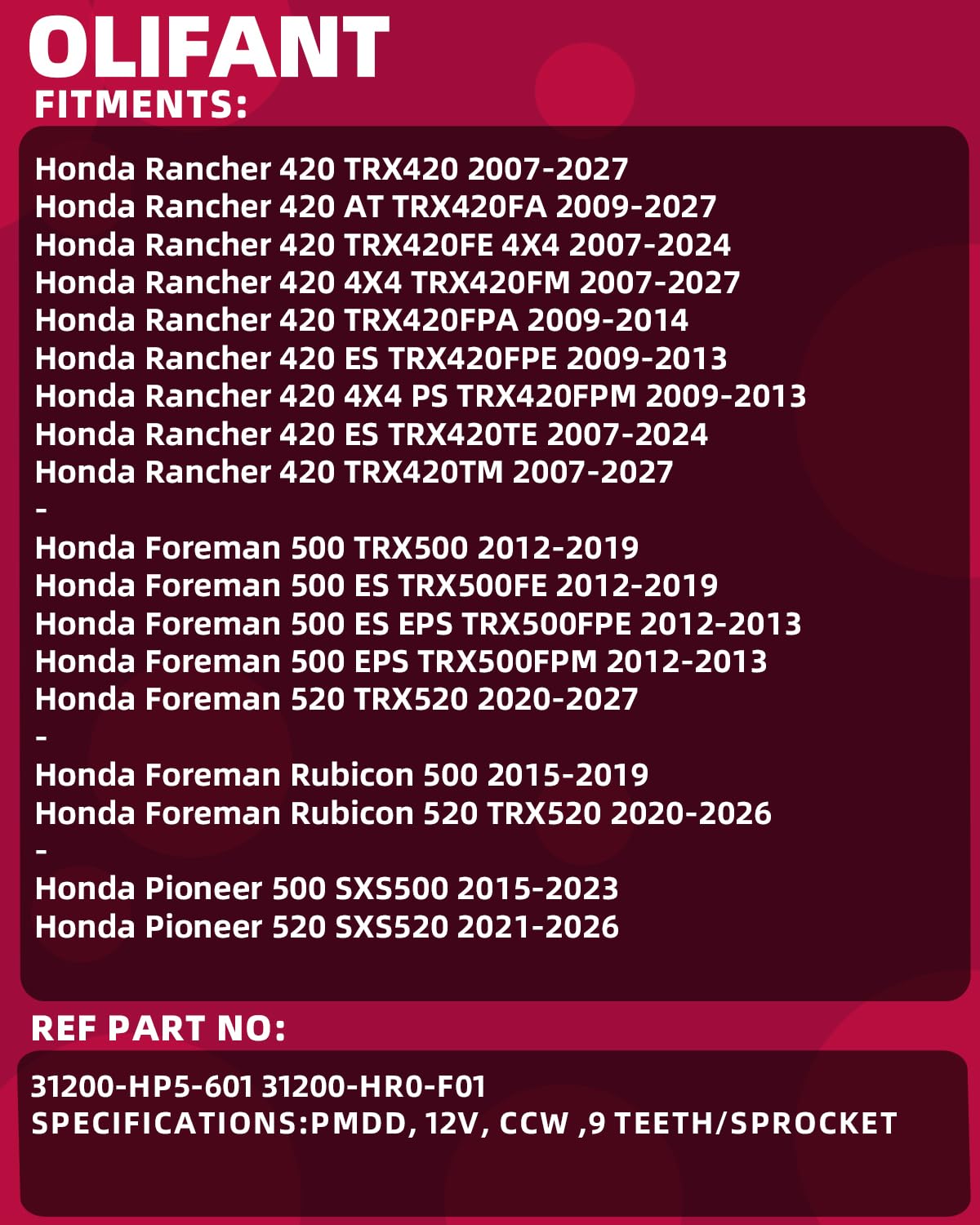

Yes—this OLIFANT starter is designed to fit Rancher 420 models from 2007 through 2019 and Foreman 500 models from 2012 through 2019, plus Foreman Rubicon 500 (2015–2019) and Pioneer 500 (2015–2021). Always cross-check your OEM number to confirm compatibility before ordering.

• Fits Honda Rancher TRX420 series years 2007–2019
• Fits Honda Foreman 500 and Rubicon 500 (2012–2019 and 2015–2019 respectively)
• Also fits Honda Pioneer 500 models 2015–2021
• Matches OE references: 31200-HP5-601, 31200HR0F01 and MITSUBA SM18

How does the OLIFANT starter perform compared with the original?

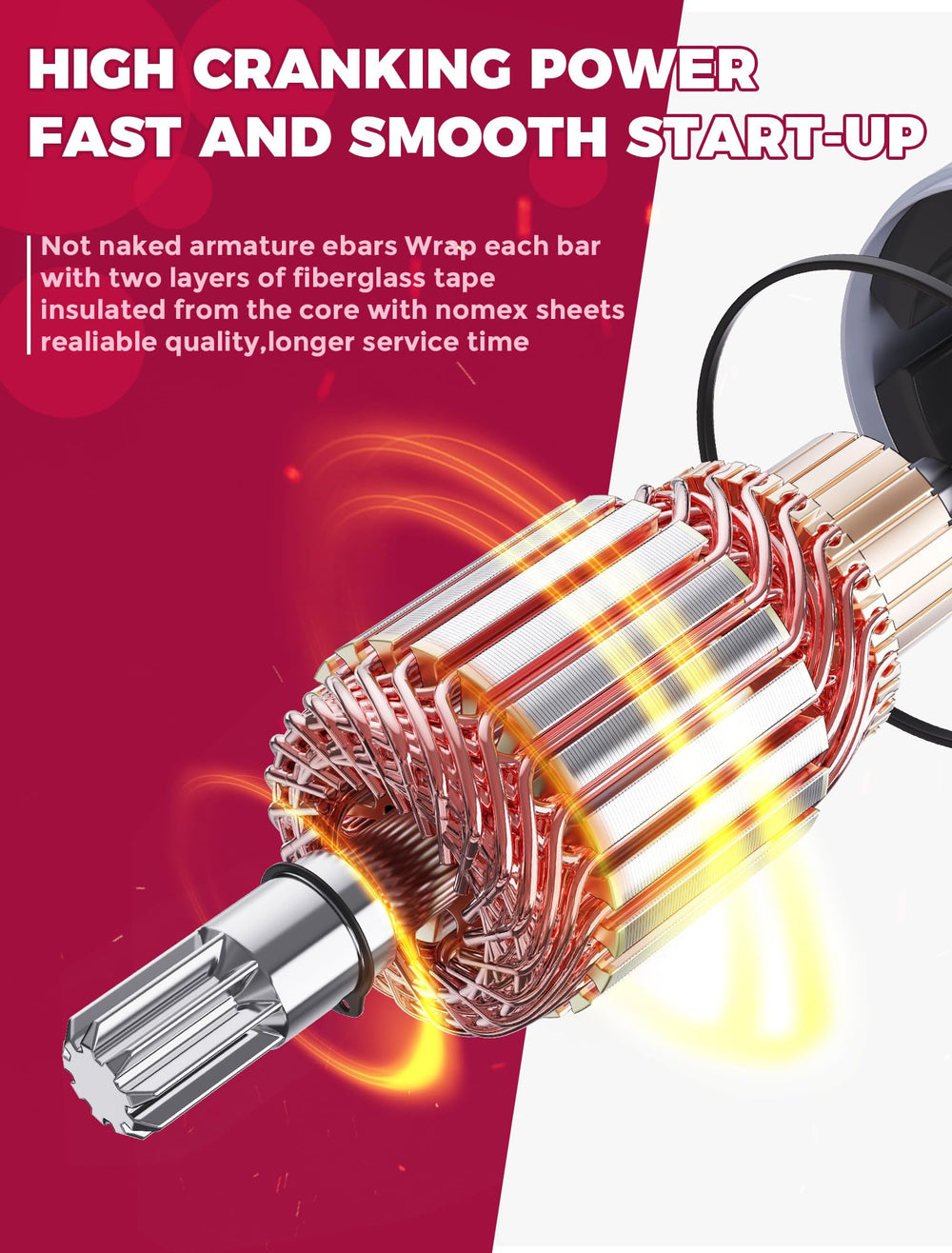

This replacement uses high-quality magnets or field coils and enameled copper armature windings to generate strong starting torque. The PMDD (permanent magnet direct drive) 12V design and robust aluminum housing yield consistent cranking and resistance to workshop and trail stresses.

• PMDD 12V motor provides efficient power delivery
• High-quality magnets/field coils for increased torque
• Enameled copper armature for durability and heat resistance
• Sturdy aluminum housing for long-term mechanical protection

What are the electrical and mechanical specifications I should know?

The starter is specified as a CCW (counter-clockwise) rotation unit with a 9-tooth drive sprocket. It is electrically a 12-volt PMDD motor designed to match common OE mounting points and connectors for direct replacement without modification in properly equipped vehicles.

• Voltage: 12V
• Rotation: CCW (counter-clockwise)
• Drive: 9 teeth on the pinion/sprocket
• OE cross-references: 31200-HP5-601, 31200HP5601, 31200HR0F01, MITSUBA SM18

What should I expect during installation and maintenance?

Installation is straightforward for anyone familiar with ATV starter replacement: disconnect the battery, remove the old starter, and bolt the OLIFANT unit in place using original hardware. Check wiring connections and fuses, and test cranking before reassembling any bodywork. Regular battery maintenance and clean terminals will extend starter life.

• Disconnect battery before starting the job
• Use original mounting bolts and torque to factory specs
• Inspect wiring, starter solenoid, and fuses during install
• Test cranking under no-load before final reassembly

Who is this for? This OLIFANT starter is for owners and mechanics of Honda Rancher 420, Foreman 500/Rubicon, and compatible Pioneer 500 models who need a reliable direct-replacement starter. It's suited to riders who want an affordable, OEM-referenced unit built with improved magnets and quality windings—ideal for farm, trail, or utility use where dependable starting is essential.
