OLIFANT Starter Motor for 50–125cc ATVs — 3-Bolt 12V PMDD, 12-Tooth CCW with Pre-Wired Harness

Replacement 12V PMDD starter motor with a 3-bolt top mount and wire harness for 50–125cc Chinese-made ATVs, quads, pit bikes and go-karts.

If your TaoTao, Roketa, SunL, Coolster or similar Chinese-made small-displacement ATV or quad won’t crank, this OLIFANT 3-bolt starter is built to match the common 12V, 12-tooth top-mount PMDD units used across many 50–125cc four-stroke models. The unit ships complete with a pre-wired harness and relay connection to simplify installation—save time replacing a worn or damaged starter instead of sourcing a hard-to-find OEM part.

How do I know this starter fits my ATV?

Confirm fit by checking three key physical details on your current starter: bolt pattern, rotation direction, and tooth count. This OLIFANT unit uses a 3-bolt top-mount pattern, countersclockwise (CCW) rotation, and a 12-tooth pinion designed for many Chinese 50–125cc four-stroke engines. If your original starter shows a 2-bolt pattern or different tooth count, this specific model will not align properly.

• Mounting: 3-bolt top mount—measure bolt spacing to verify.
• Rotation: CCW (counterclockwise) as viewed from the pinion end.
• Pinion: 12 teeth—compare to existing starter pinion.
• Voltage/type: 12V permanent magnet direct drive (PMDD).

What tools and steps are needed for installation?

Basic hand tools and a short block of time are usually enough for the swap—no advanced diagnostics required if the starter is the known fault. Remove battery ground, disconnect the old starter, unbolt the unit, swap the mount and wiring harness, then reassemble and test. The included wire harness and relay connectors reduce splicing and help position the starter wiring cleanly.

• Tools: socket set, wrenches, pliers, screwdriver, and safety gloves.
• Preparation: disconnect negative battery terminal before work.

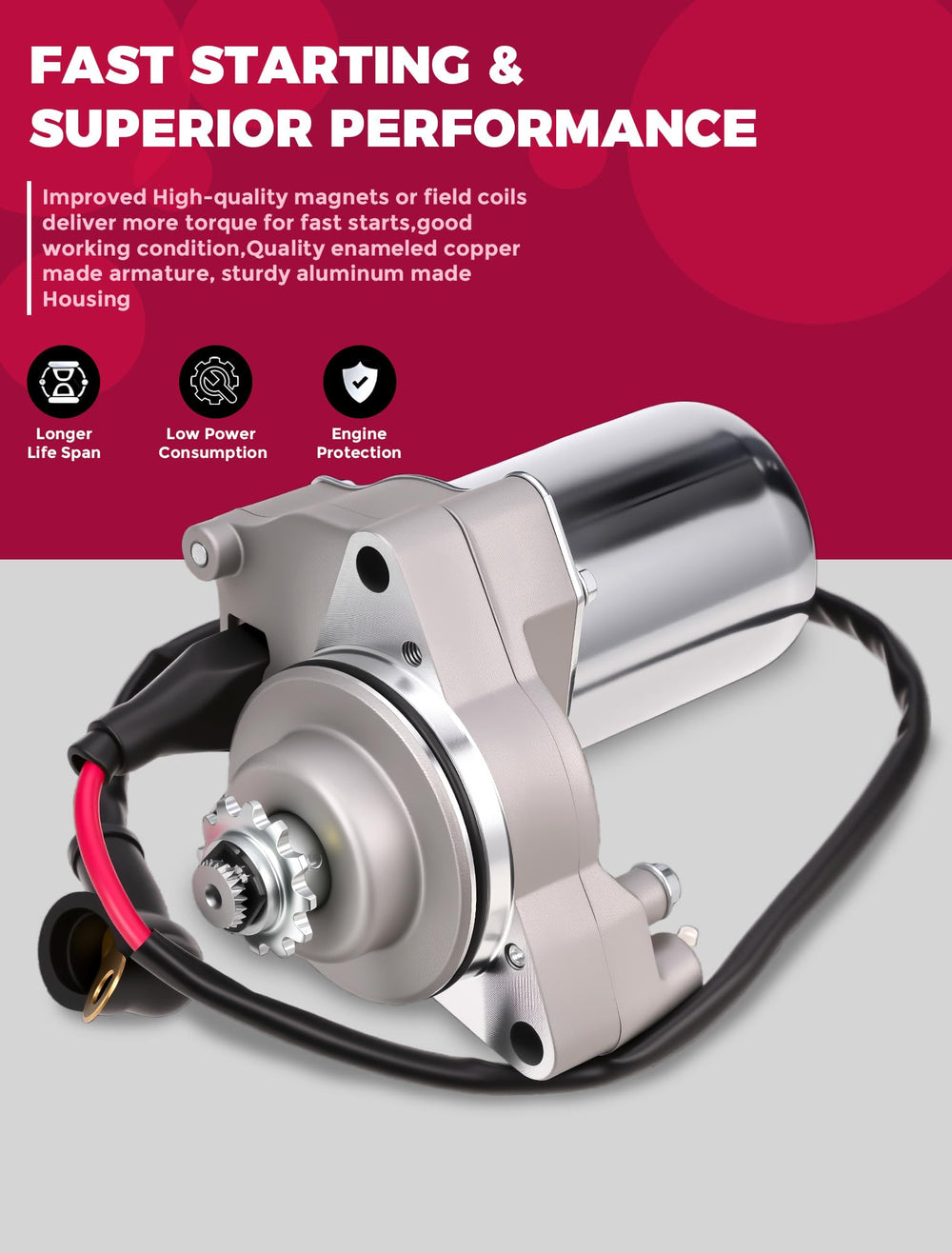

• Electrical: plug-and-play harness with common starter relay terminal layout.
• Testing: reconnect battery last and verify engine cranks without smoking or grinding.

Which models and applications is this starter designed for?

This OLIFANT starter is aimed at many small Chinese-built 4-stroke machines including TaoTao, SunL, Roketa, Coolster, SSR, Jonway and similar brands commonly sold as kids’ ATVs, quads, pit bikes and go-karts. It covers a broad range of displacements from 50cc up to 125cc when the starter’s physical specs match. It’s a common aftermarket replacement where OEM units are expensive or discontinued.

• Compatible with many 50–125cc Chinese 4-stroke models.
• Commonly used on kids’ ATVs, quads, pit bikes, and go-karts.
• Fits TaoTao, Roketa, SunL, Coolster, KAZUMA-style platforms.
• Not suitable if bike uses 2-bolt mount or different pinion/rotation.

Who is this for: mechanics, hobbyists and owners who need a straightforward, cost-effective replacement starter for a small-displacement, Chinese-built ATV or quad. Choose this OLIFANT 3-bolt 12V PMDD starter if your existing unit matches the 3-bolt top-mount pattern, 12-tooth pinion and CCW rotation, and you want a ready-mounted wire harness to speed installation. If you’re unsure about the bolt pattern or tooth count, remove and compare the old starter before ordering to avoid returns.
