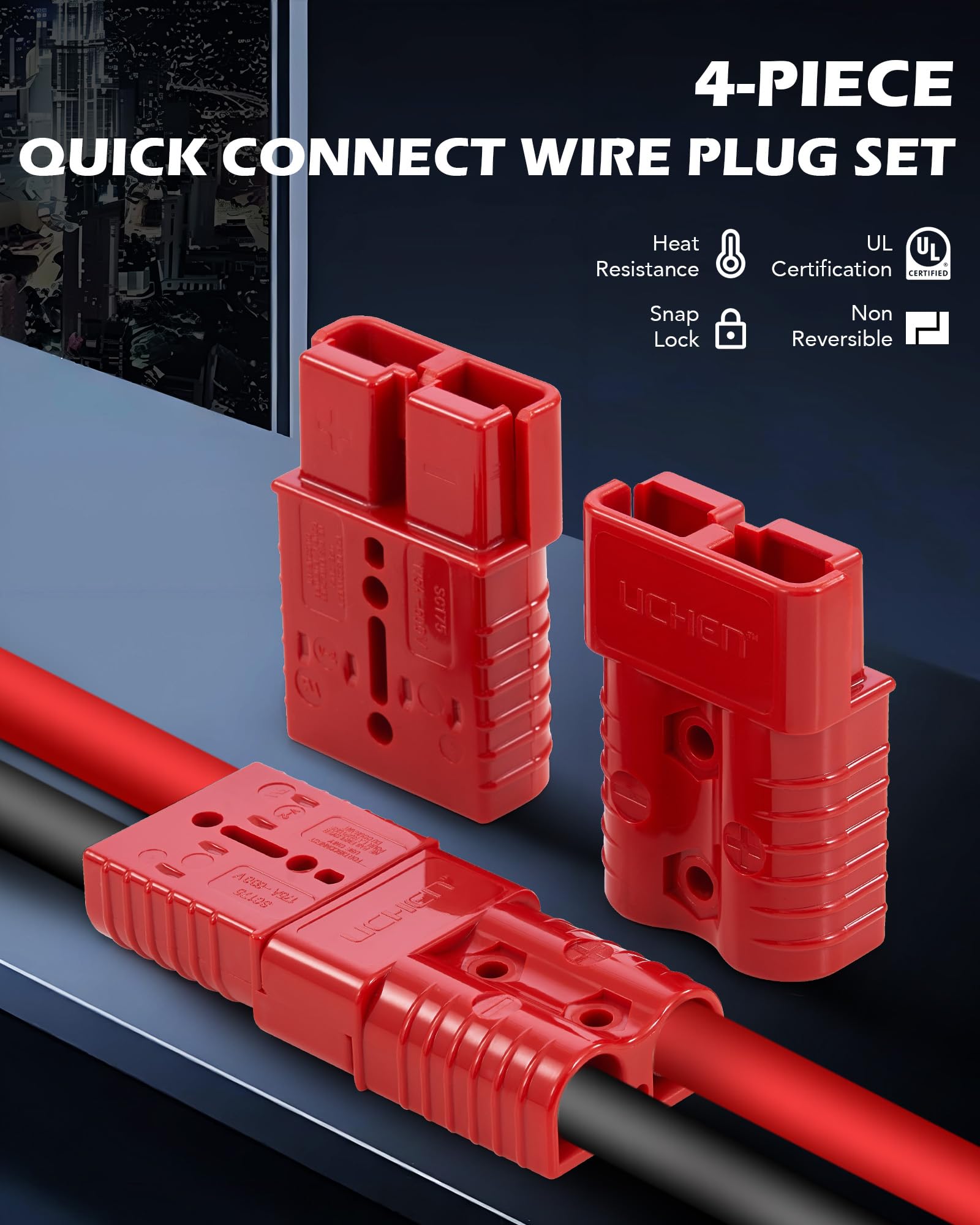

Orion Motor Tech 175A Quick Connect Battery Plug Set for 2-Gauge Cables, Weatherproof Polycarbonate, Silver-Plated Pins

Orion Motor Tech's OMT 175A Quick Connect Plug Set is a weatherproof, genderless battery connector pair designed to join and disconnect 2-gauge (0.25") power cables safely at 12V, 24V, or 36V systems up to 175 amps.

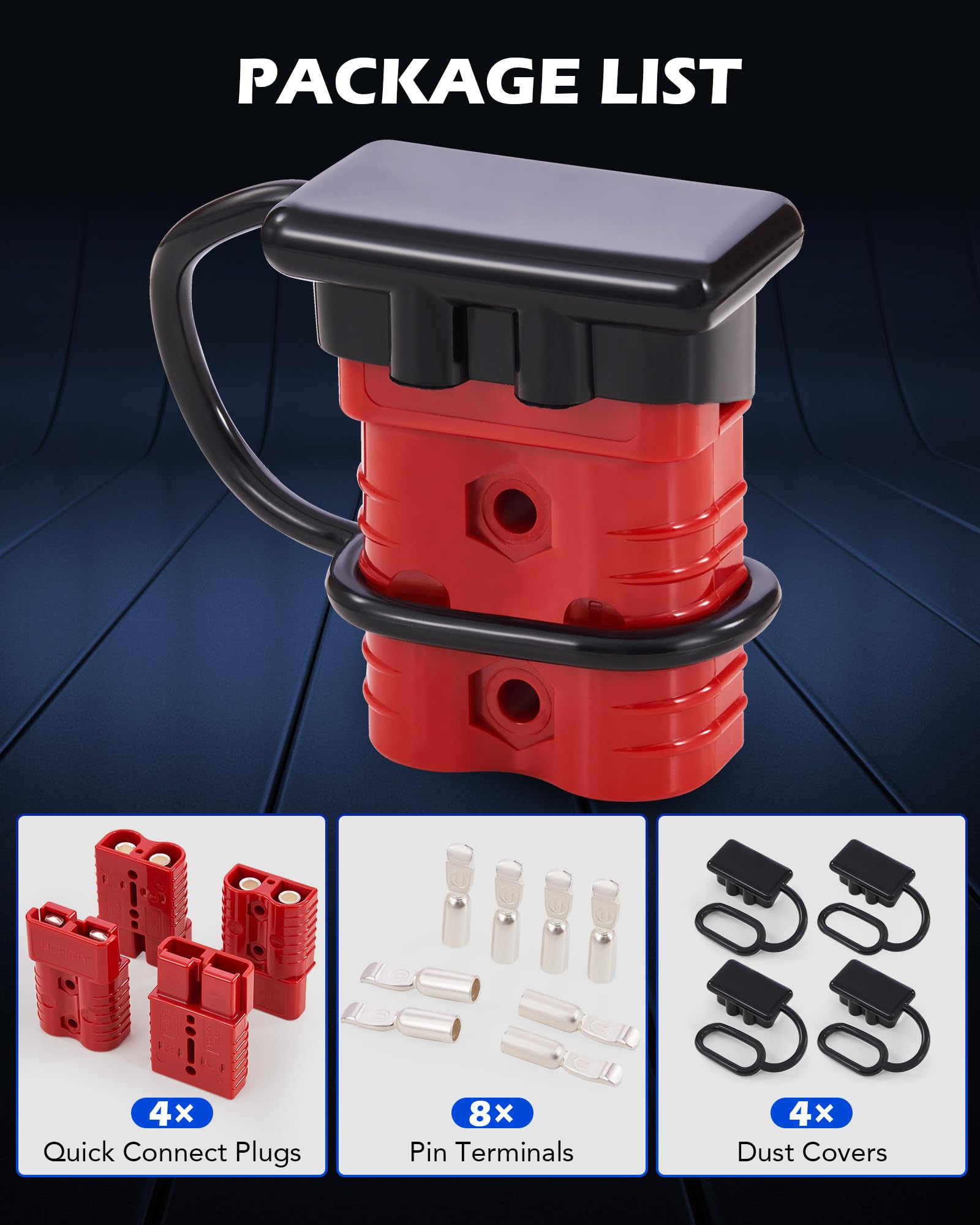

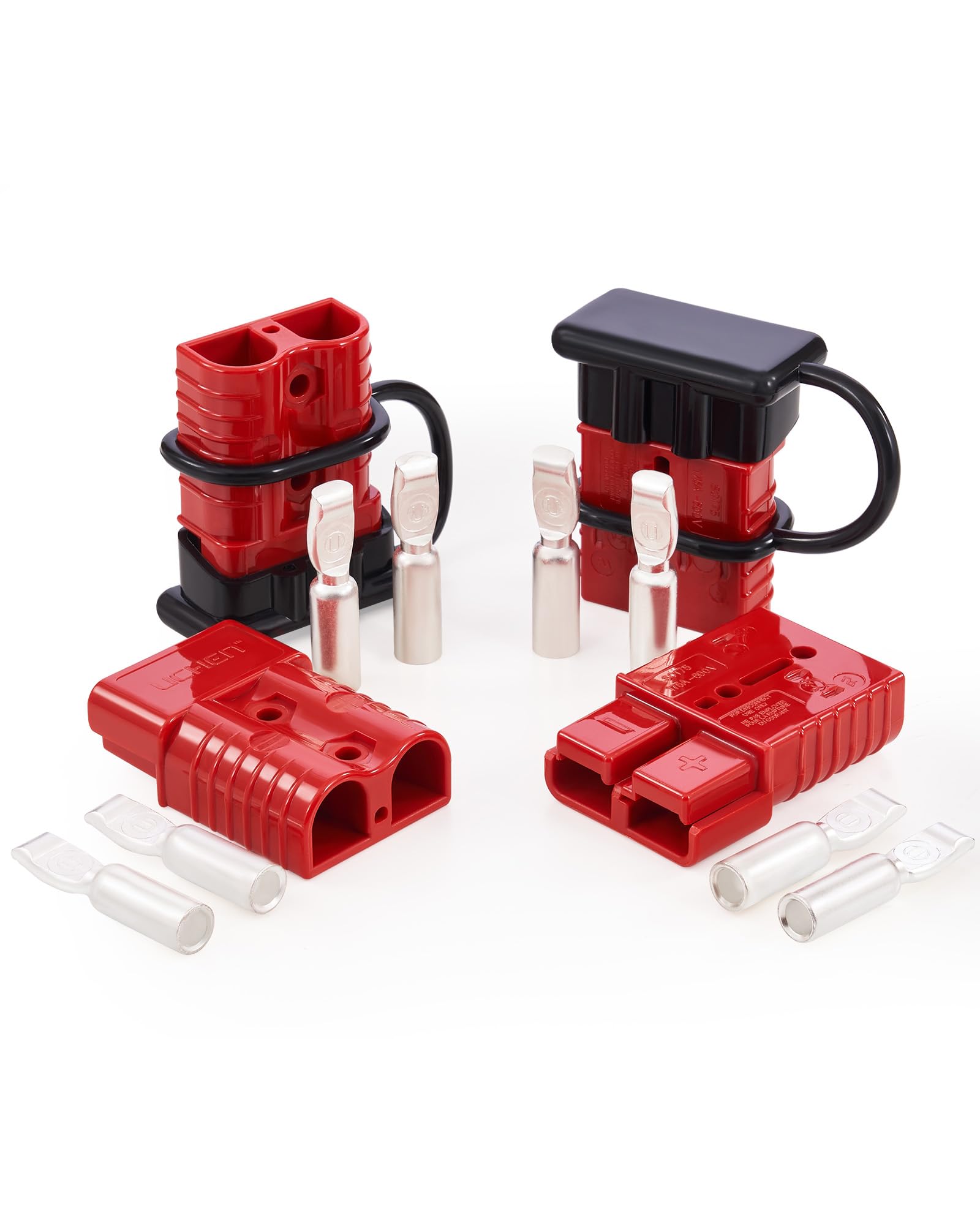

This compact plug set simplifies heavy-duty wiring for vehicles, boats, shop equipment, and portable power systems. The kit includes four clearly marked plugs with a durable polycarbonate housing and silver-plated copper pins, so you can make repeated connections without excessive wear or corrosion. Designed for ease of use and long life, the connectors give you a neat, removable interface for batteries, chargers, inverters, and motors.

How do these quick-connect plugs simplify battery wiring?

The OMT 175A plugs let you turn permanent wiring into modular connections that are fast to disconnect and reattach. Their genderless design means any plug pairs with any other of the set, reducing confusion when hooking up multiple cables.

• Pre-marked housings speed up polarity identification and installation.
• Strip, crimp, and insert terminals — no complex soldering required.
• Boot caps protect contacts while not in use to keep connections clean.

Will these connectors hold up in marine or outdoor conditions?

Yes — the plug housings are molded from unibody polycarbonate to resist water, salt, and UV exposure better than ordinary plastics. That durable construction helps the plugs survive repeated use in boats, trailers, and other outdoor settings.

• Weatherproof design reduces corrosion risk for long-term reliability.
• Sealed boot caps keep out debris and moisture between uses.
• Materials rated for thousands of connect/disconnect cycles.

Are these connectors rated for my system’s voltage and current?

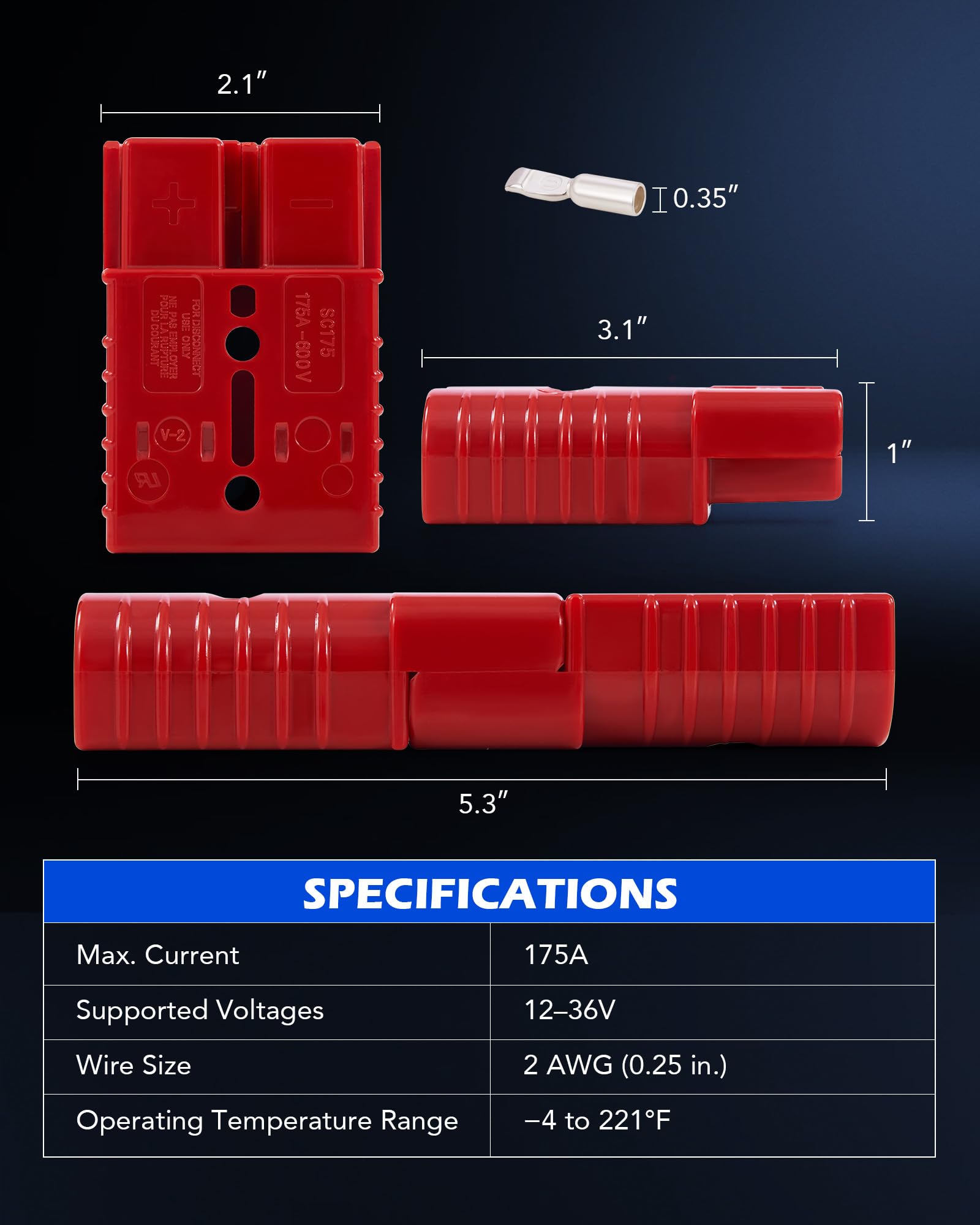

The set supports 12V, 24V, and 36V systems and continuous currents up to 175 amps when used with appropriately sized 2-gauge conductors. Silver-plated copper terminal pins keep contact resistance low for stable power delivery under load.

• Works with 2-gauge (0.25") wires for heavy-current runs.

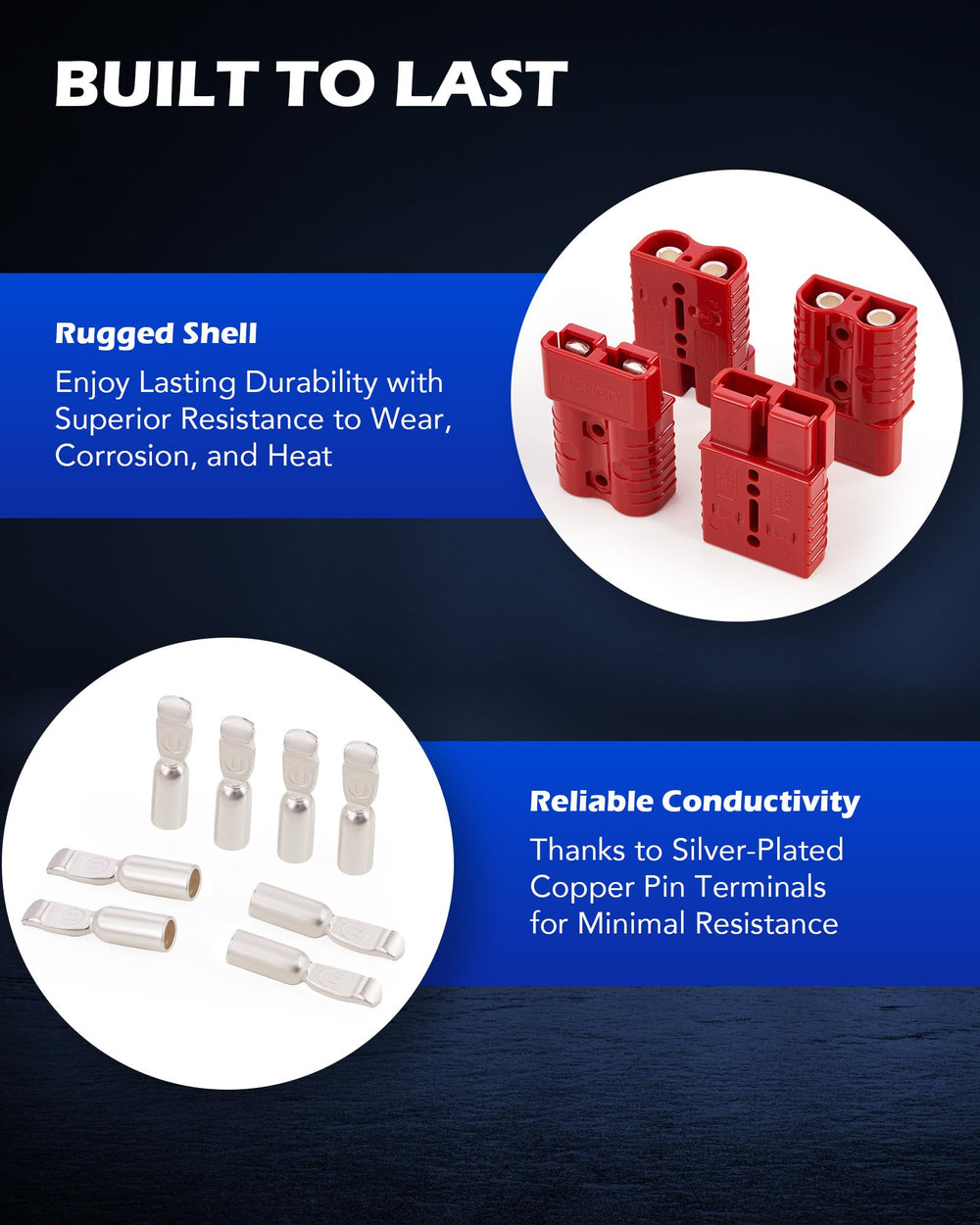

• Silver plating on eight copper pins minimizes oxidation and resistance.
• Reliable for battery, motor, inverter, and charger applications within rated specs.

How easy is installation and maintenance?

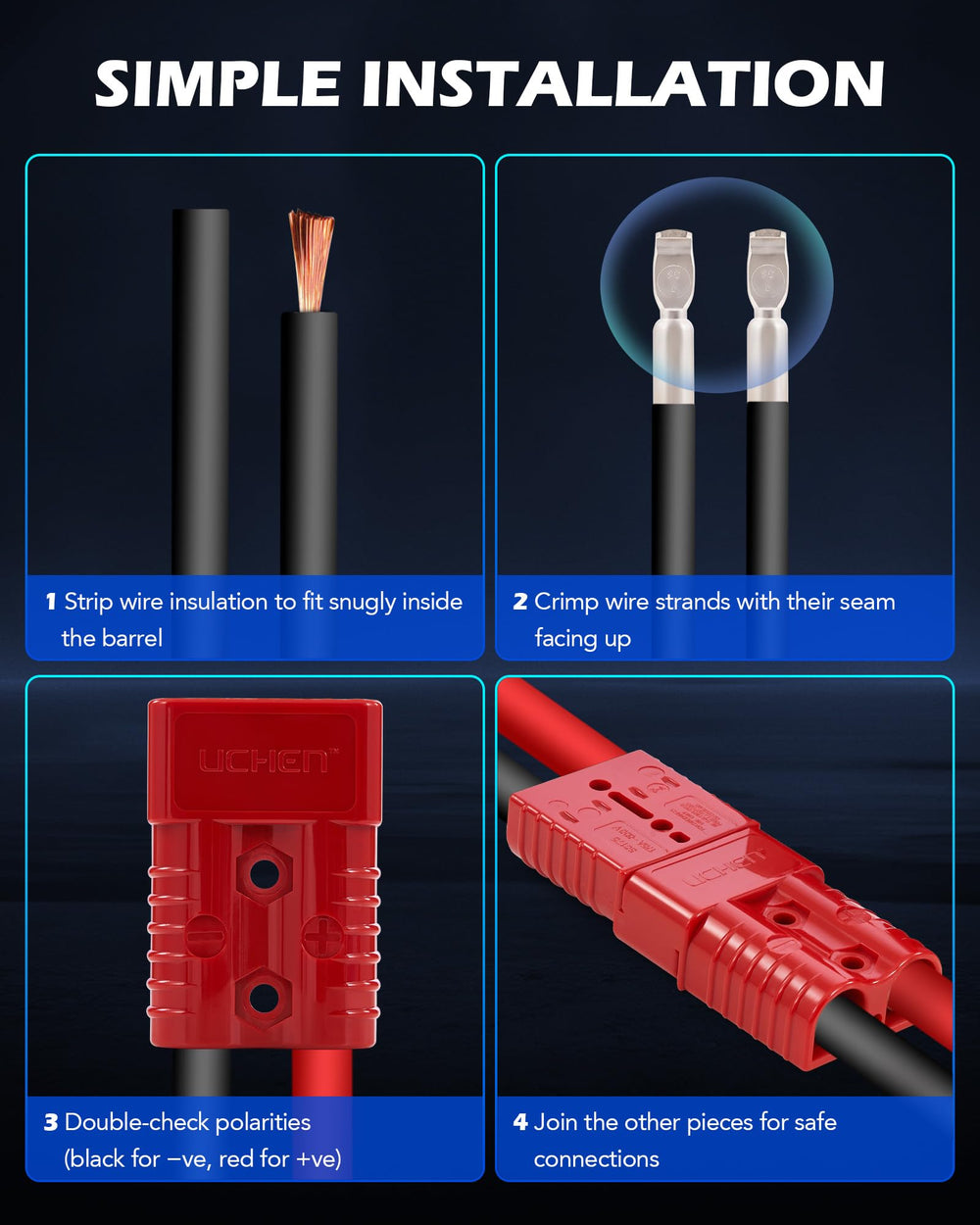

Installation is straightforward: strip the cable, crimp the terminal, insert into the housing, and snap on the boot. Maintenance is minimal — keep the boot caps in place when not connected and inspect terminals for corrosion periodically.

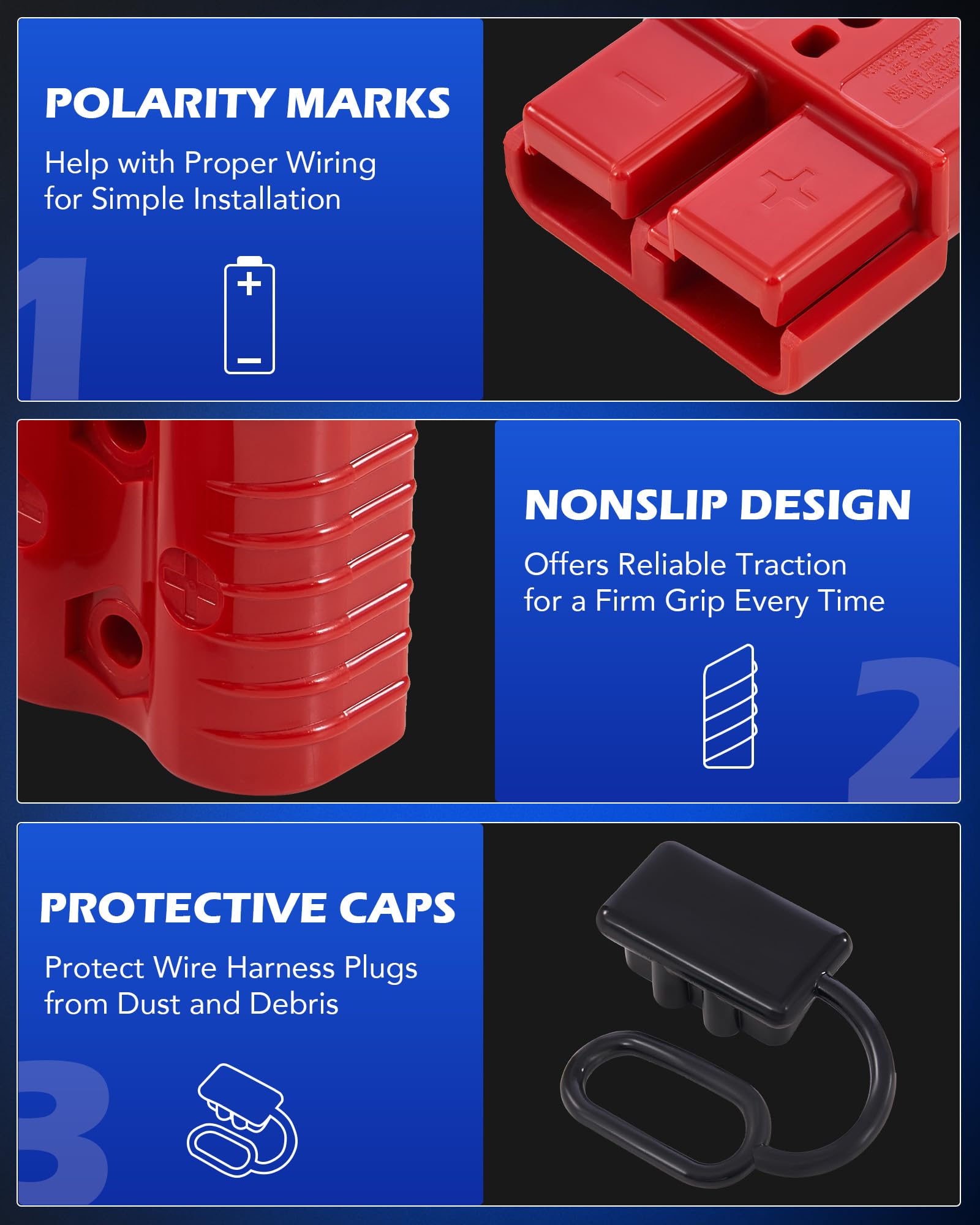

• Textured grips and polarity markers improve safe handling during installation.
• Genderless plugs reduce fumbling when matching connectors in low light.
• Crimp-style termination enables quick field repairs with basic tools.

Who is this for? The OMT 175A Quick Connect Plug Set is made for DIY mechanics, boat owners, RV and trailer technicians, and workshop users who need a robust, removable way to route heavy battery power. If you wire winches, trolling motors, inverters, chargers, or portable power stations and want clean, repeatable connections that tolerate outdoor exposure, this set streamlines installation and protects your investment. It’s particularly useful where frequent disconnects are required or when you want to swap accessories without cutting or re-soldering cables.
