Orion Motor Tech 23pc Ball Joint Press Kit — 9-inch C‑Frame, Forged AISI 1045 Steel

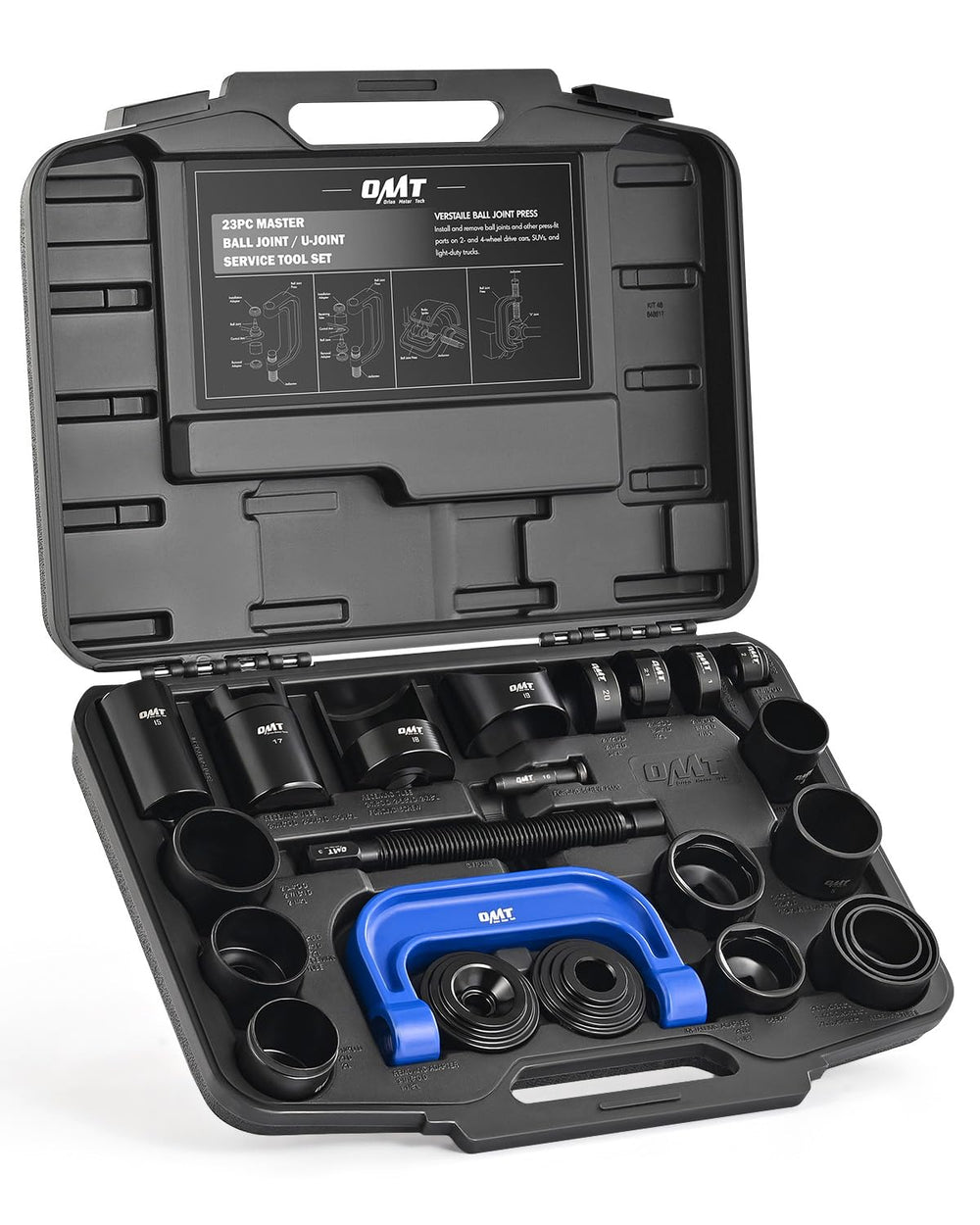

Orion Motor Tech's 23-piece ball joint press kit is a complete C-frame press set with sockets and adapters designed to remove and install press-fit ball joints, U-joints, and brake anchor pins.

This heavy-duty kit provides a range of receiving tubes, adapters, and two Chrysler-specific 4-point sockets so you can service many passenger vehicles without improvising. The 9-inch C-frame with a long jackscrew delivers straight, controlled pressure while the forged AISI 1045 carbon-steel components resist wear and corrosion for repeated shop or garage use.

How does the kit handle stubborn press-fit ball joints?

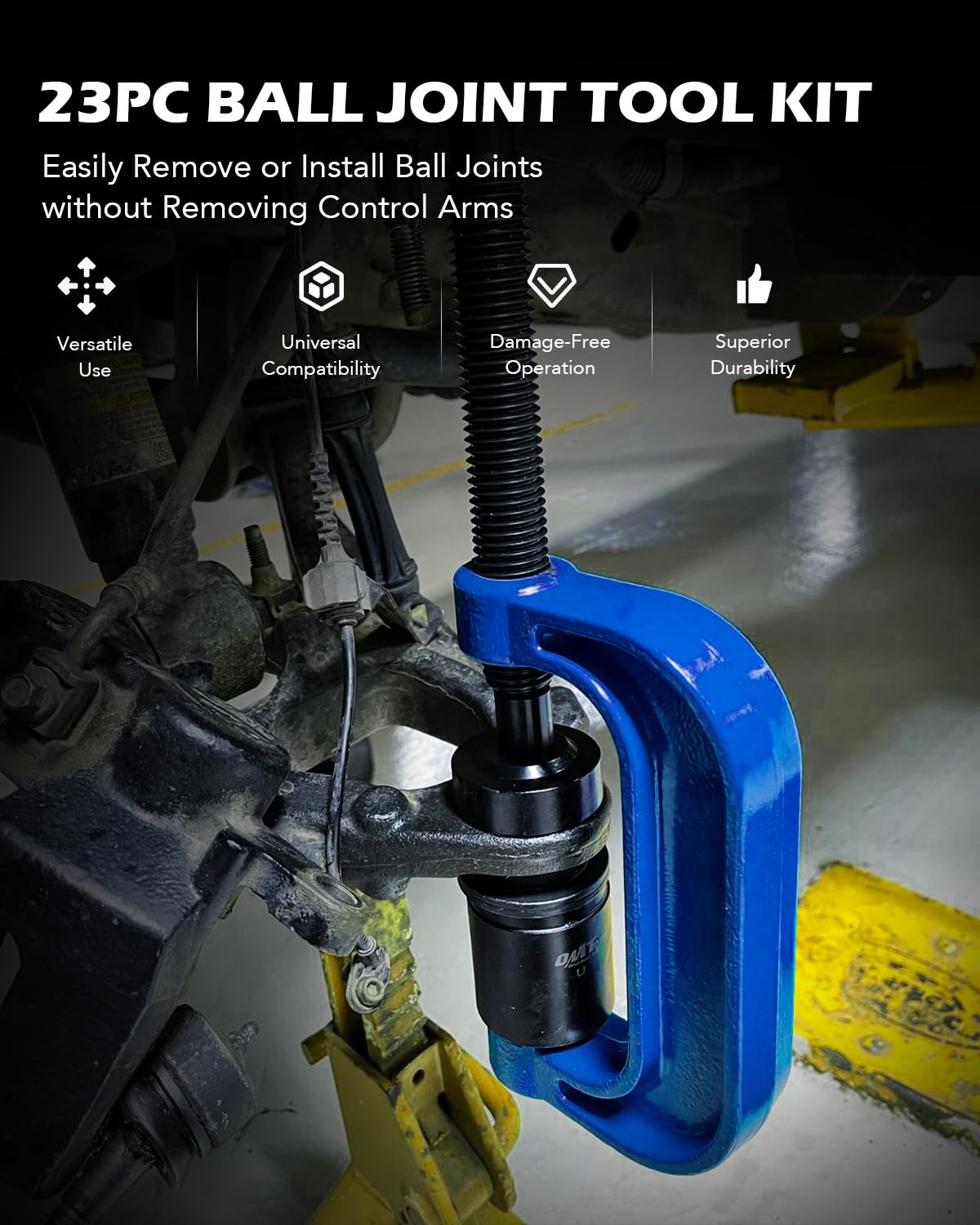

The kit uses a 9-inch C-frame press and an extra-long jackscrew to apply steady, centered force that pushes joints out without levering on nearby components. Included receiving tubes give the pressed part a solid seat while adapters transfer the load safely.

• 9-inch C-frame with 6-inch opening for clearance
• Extra-long hardened jackscrew for increased reach
• Multiple receiving tubes to support the pressed component
• Forged steel construction to resist bending under load

Will this kit fit Chrysler upper ball joints and other specific vehicles?

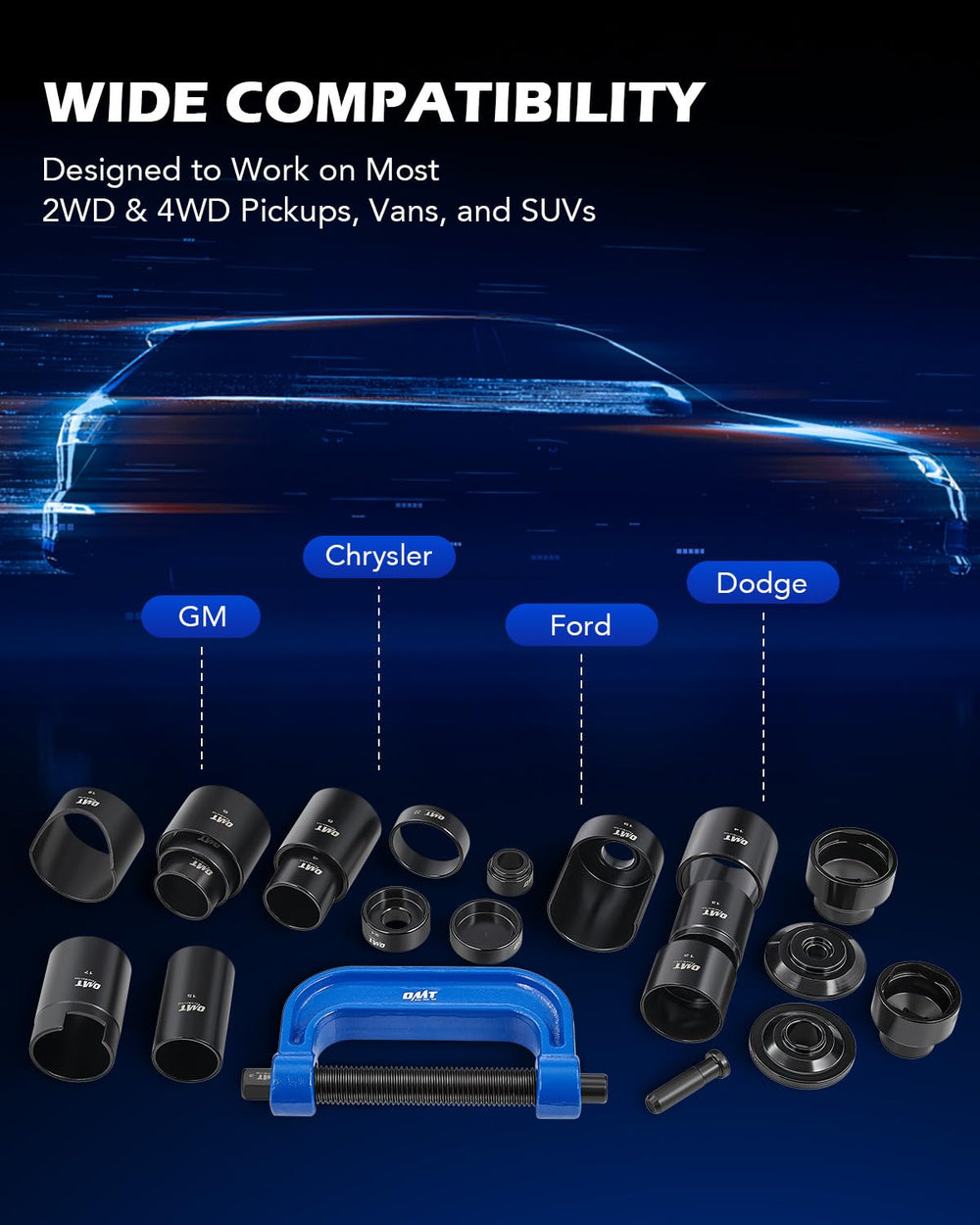

Yes — the set includes two 4-point sockets sized 1-59/64 in. and 2-9/64 in. made to match the unique dimensions of many Chrysler upper ball joints. In addition, the receiving tubes and adapters are sized to work across common 2WD and FWD passenger vehicles from multiple manufacturers.

• Two Chrysler-focused 4-point sockets for accurate fit
• Adapters and tubes compatible with GM, Ford, Jeep, Dodge, and more
• Useful for both upper and lower press-fit joints where space allows

What materials and durability features does the OMT 23pc kit include?

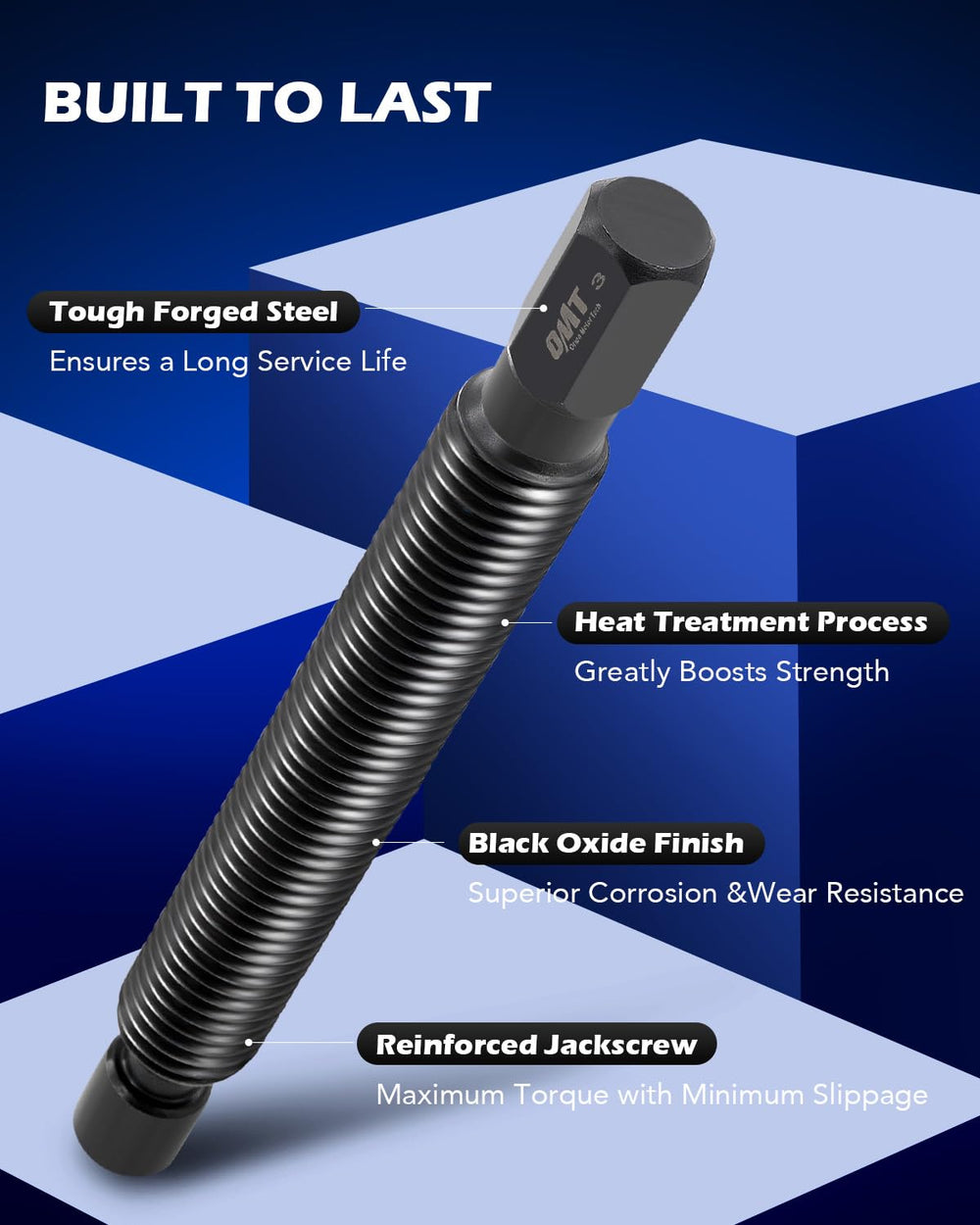

Components are forged from AISI 1045 carbon steel and finished with a protective blackening to improve corrosion resistance and extend service life. The hardened jackscrew and reinforced C-frame are designed to withstand repeated pressing tasks in a home garage or professional shop.

• AISI 1045 carbon-steel forging for strength
• Blackened finish to reduce surface corrosion
• Heat-treated jackscrew for wear resistance
• Precision-machined sockets and tubes for accurate alignment

How do I use the kit safely and effectively?

Position the receiving tube behind the joint, align the appropriate adapter or socket over the joint, then thread the jackscrew into the C-frame so the press applies straight, centered pressure. Take steady turns on the jackscrew and recheck alignment frequently to avoid side loading or part damage.

• Select the correctly sized receiving tube and adapter first
• Ensure the C-frame is square to the joint before applying force
• Turn the jackscrew gradually; avoid sudden impacts
• Use safety glasses and follow vehicle service manual clearance steps

Who is this for: The Orion Motor Tech OMT 23pc Ball Joint Press Kit is aimed at DIY mechanics and professional technicians who need a versatile, durable press for suspension and drivetrain service. It's particularly useful for anyone working on Chrysler models that require the included 4-point sockets, or for garages that service a variety of 2WD and FWD passenger vehicles and want one set that covers ball joints, U-joints, and brake anchor pins without improvisation.
