Orion Motor Tech 5 CFM Sparkless HVAC Vacuum Pump — R1234yf A2L Compatible, 1.5 Micron Deep Pull

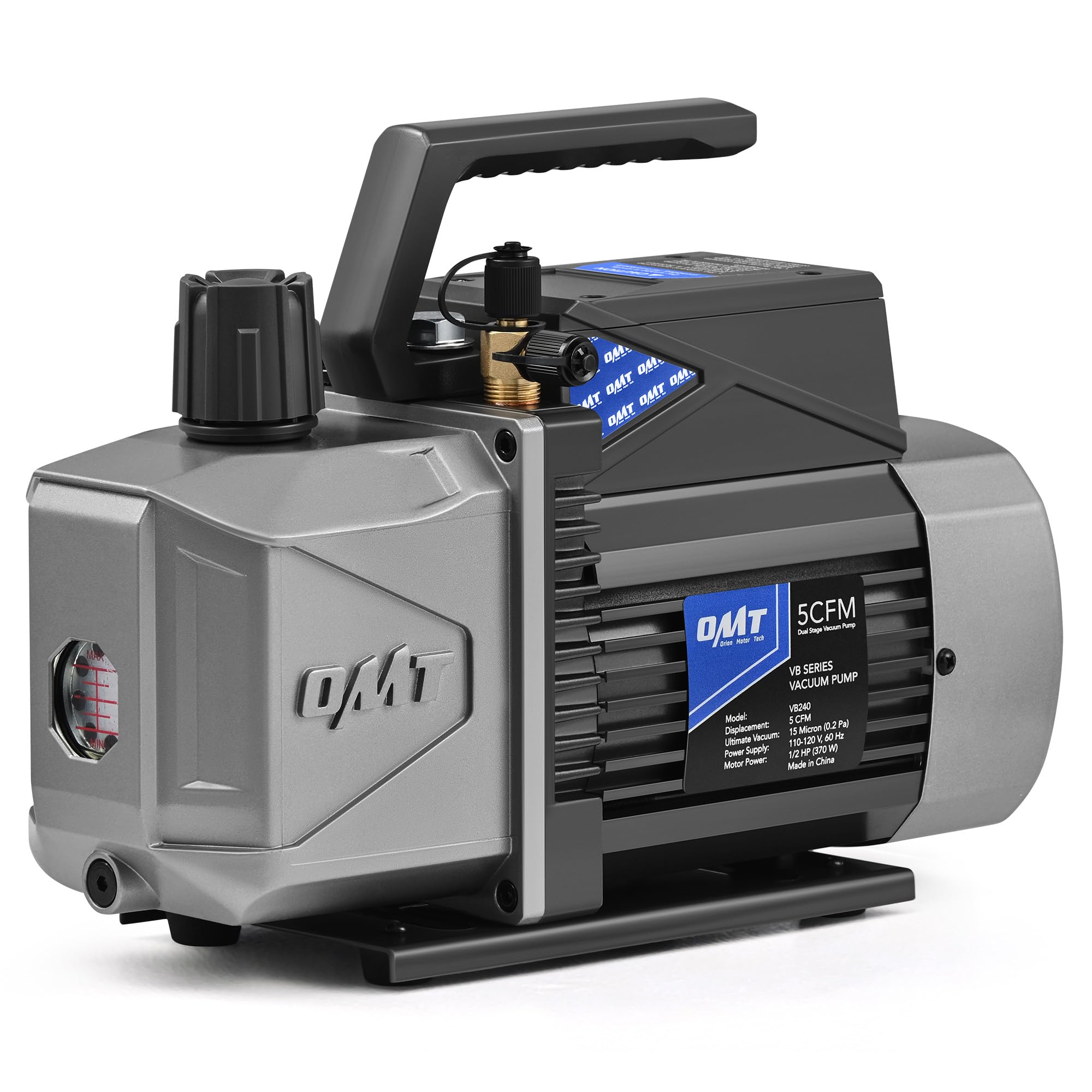

Orion Motor Tech's OMT 5 CFM sparkless vacuum pump is a compact, ignition-proof evacuator designed for safe and efficient evacuation of HVAC systems charged with A2L and other common refrigerants.

This pump combines a sparkless ON/OFF switch, a 3450 rpm motor, and a 14.9 fl. oz. oil reservoir to deliver dependable 5 CFM pumping while keeping workplace safety and cleanliness in mind. It is engineered to pull down to 1.5 microns (0.2 Pa), minimize oil mist, and run quietly—making it suitable for automotive shops, HVAC technicians, laboratories, and field service work where mildly flammable refrigerants like R1234yf are used.

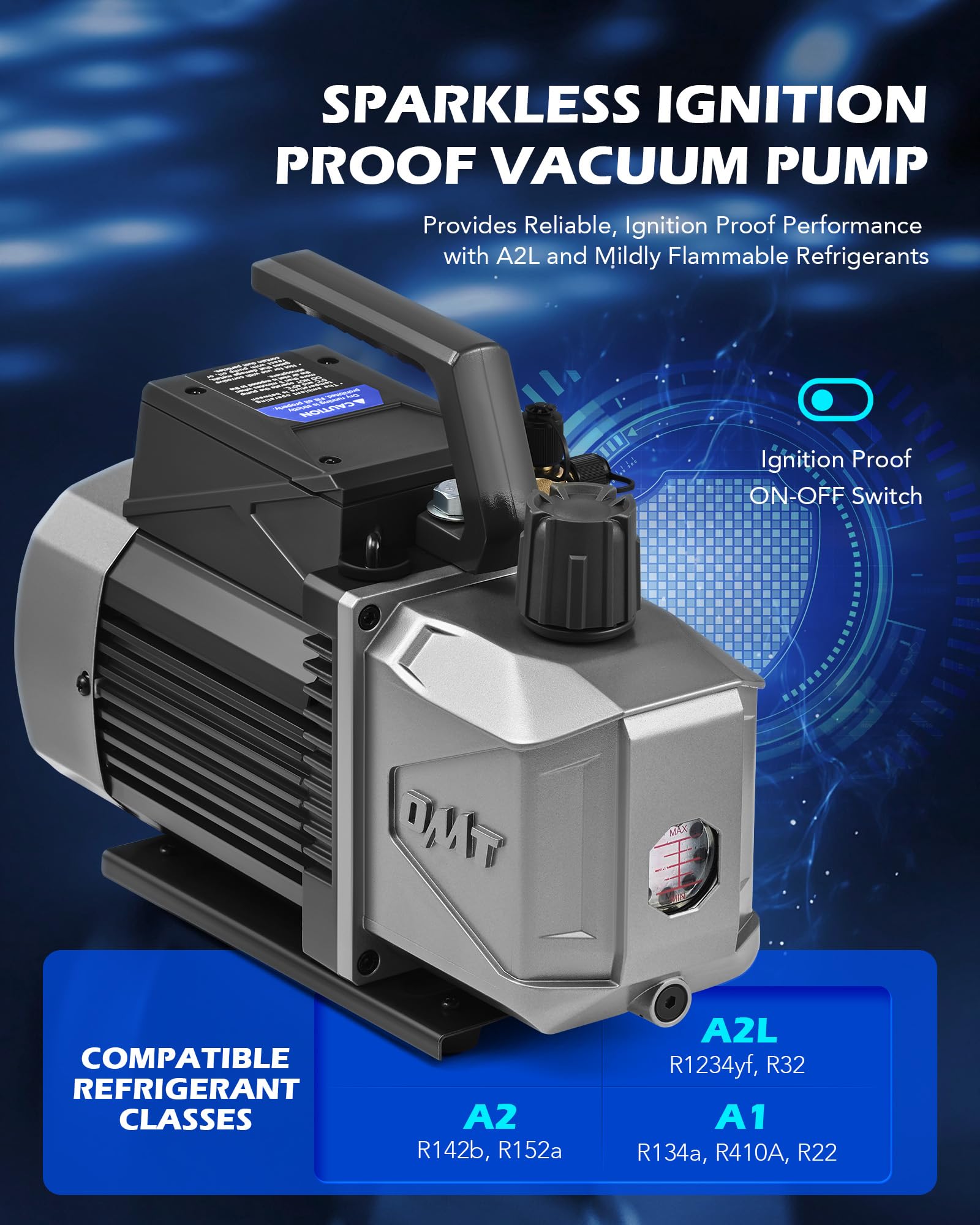

How does the sparkless design improve safety when working with A2L refrigerants?

The pump features an ignition-proof ON/OFF switch and internal design choices that prevent spark generation during startup and operation. This reduces ignition risk when handling mildly flammable refrigerants, though standard safety procedures and ventilation should still be followed.

• Ignition-proof power switch reduces spark risk during power cycles
• Designed for A2L refrigerants such as R1234yf while following safety protocols
• Robust housing and better oil containment lower accidental exposures

How fast and deep can this pump evacuate an AC system?

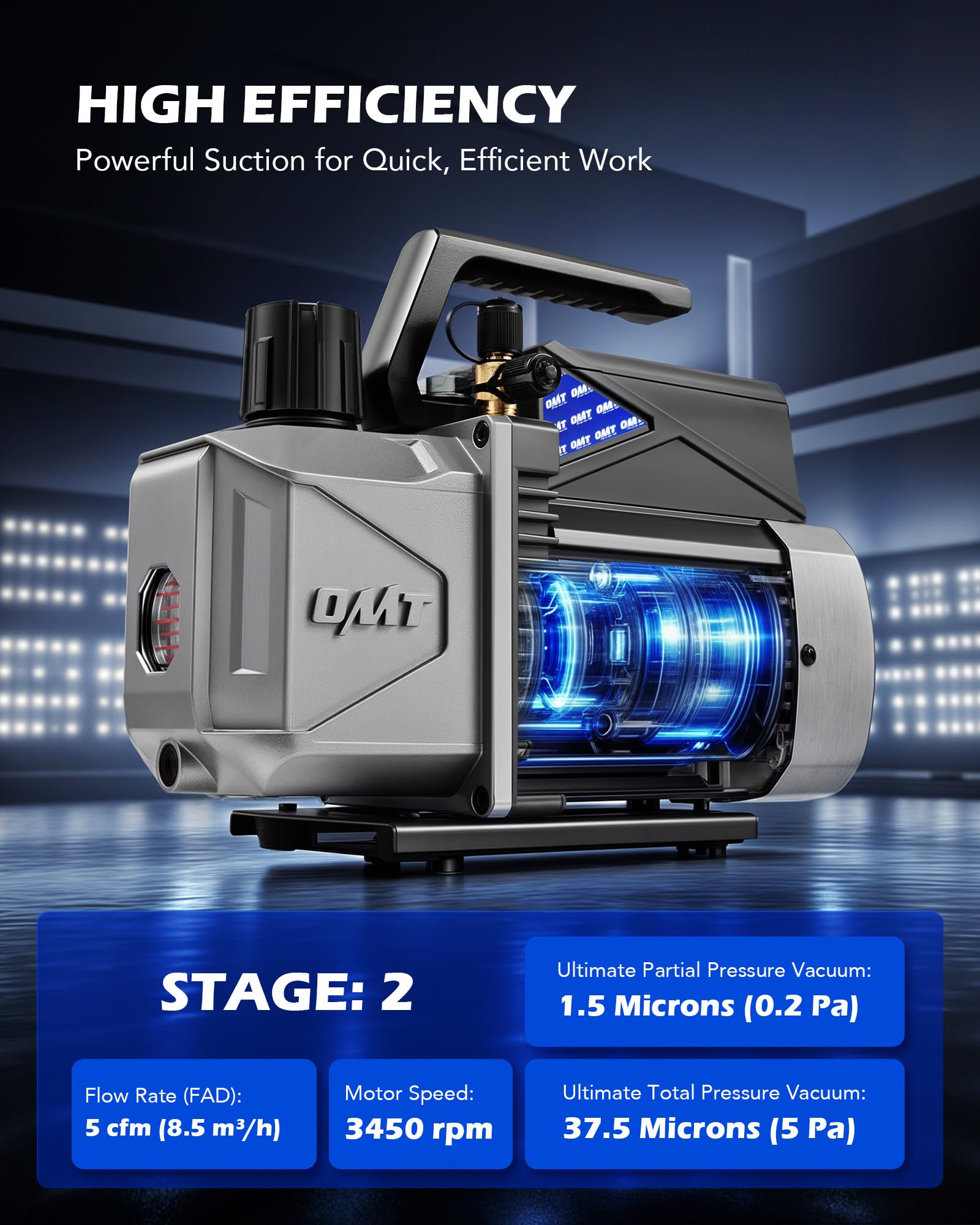

Powered by a 3450 rpm motor, the OMT 5 CFM vacuum pump provides a steady 5 cubic feet per minute for effective evacuation. It can reach deep vacuums down to approximately 1.5 microns (0.2 Pa), allowing technicians to remove moisture and non-condensables efficiently before charging systems.

• 3450 rpm motor for consistent 5 CFM flow rate
• Pulls down to 1.5 microns (0.2 Pa) for thorough evacuation
• Speeds up service cycles by reducing evacuation time

What features reduce oil mist, noise, and maintenance hassles?

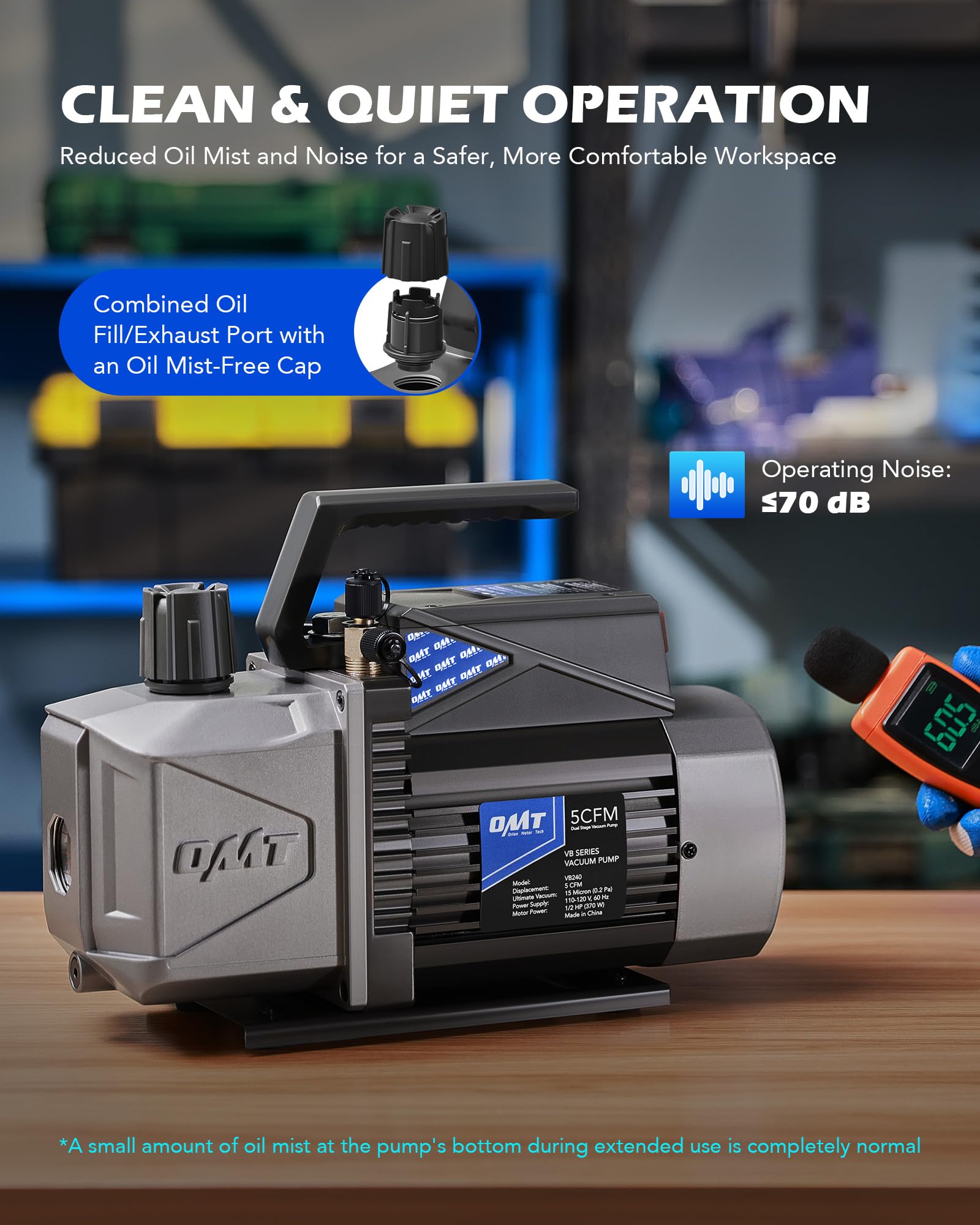

The vacuum pump uses an oil mist-free cap on the combined fill/exhaust port and a double-layer internal baffle to limit oil spray and keep oil where it belongs. Noise stays at or below 70 dB, and the angled oil drain plus reinforced base simplify routine service and improve durability.

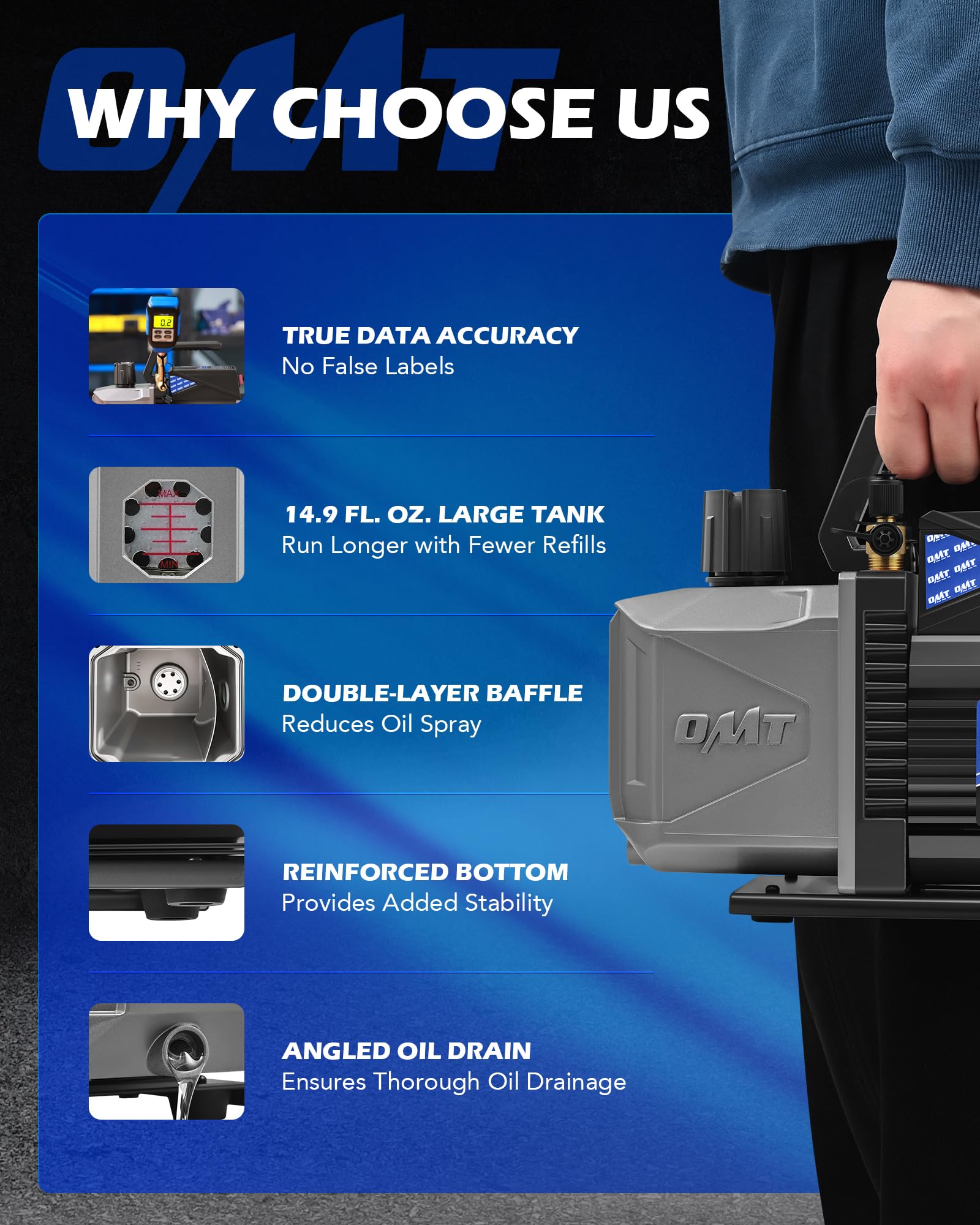

• Oil mist-free cap and double-layer baffle minimize oil spray
• Operates at ≤70 dB for a quieter work environment
• Angled drain and 14.9 fl. oz. tank reduce refill frequency and ease maintenance

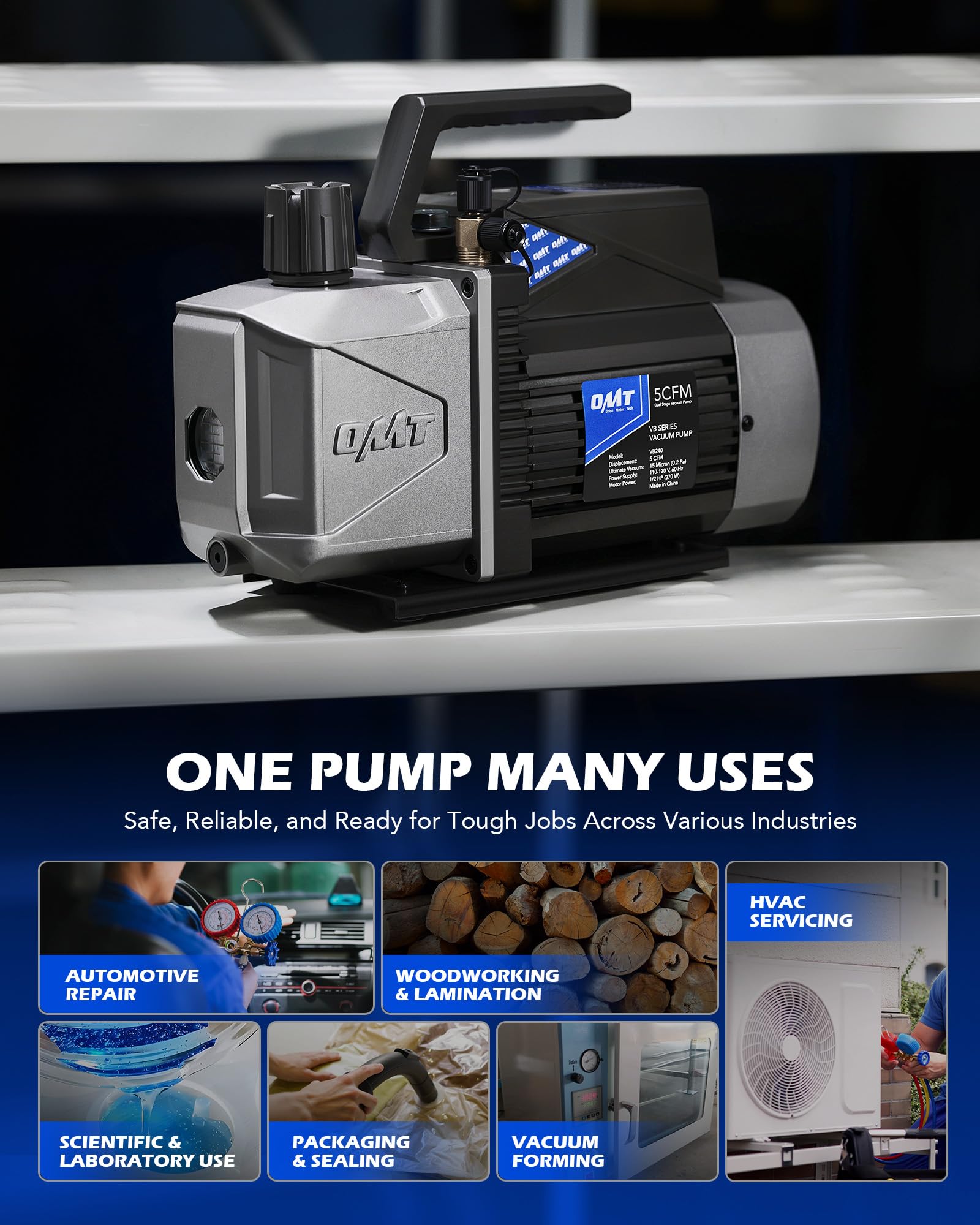

Which fittings, applications, and portability features make it versatile?

The pump accepts standard 1/4" SAE and 1/2" ACME fittings and includes an ergonomic handle and compact footprint for easy transport and storage. It’s well suited for HVAC service, automotive air conditioning, lab vacuum tasks, and small packaging operations that require a reliable, portable evacuator.

• Compatible with 1/4" SAE and 1/2" ACME connections for common hoses

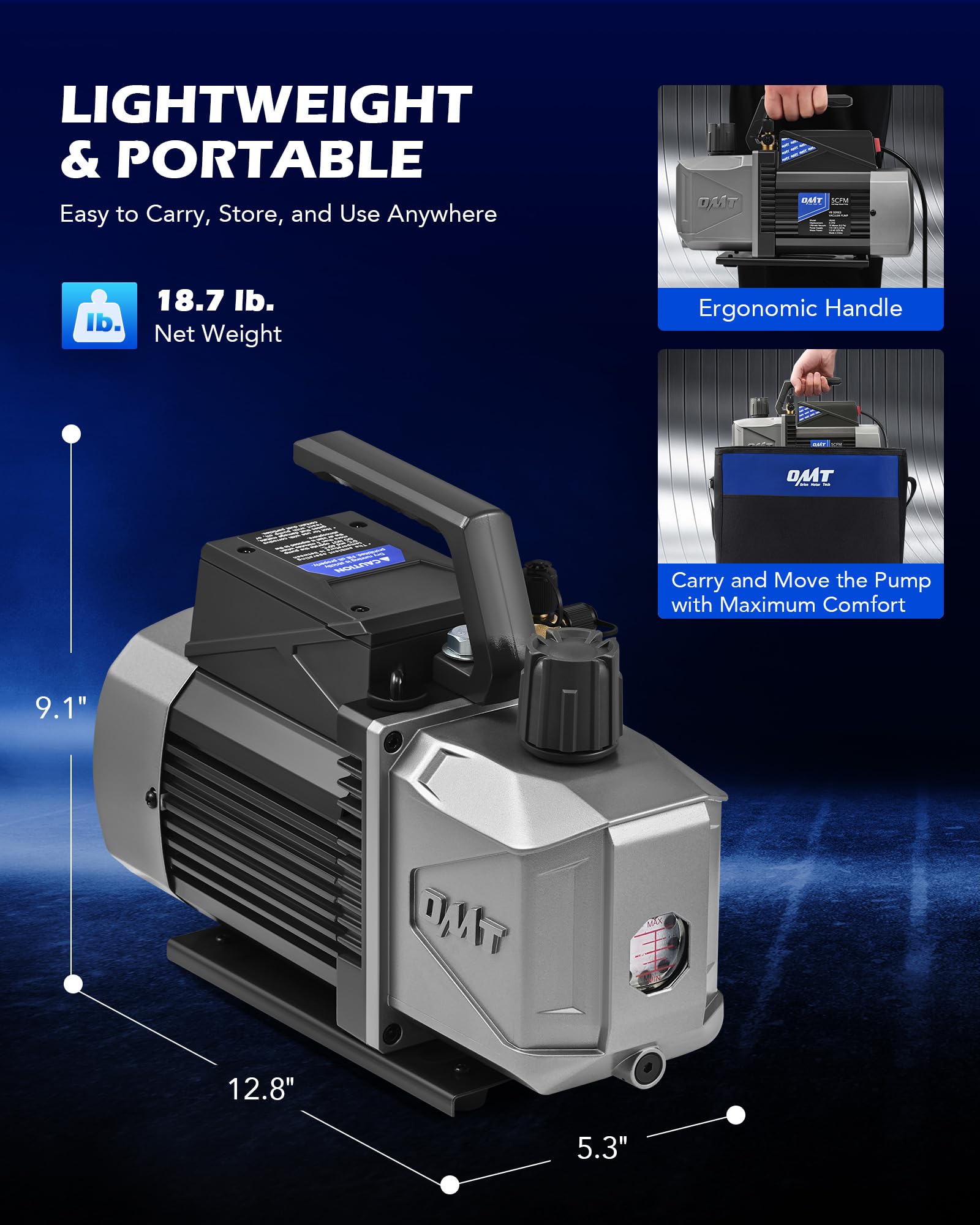

• Compact body and ergonomic handle for easy carrying and storage
• Useful across HVAC, automotive, lab, and light industrial environments

Who is this for: The Orion Motor Tech OMT 5 CFM sparkless vacuum pump is ideal for HVAC and automotive technicians who work with mildly flammable refrigerants (A2L), service shops needing a portable, low-noise evacuator, and labs or small operations that require reliable deep vacuum performance with reduced oil mist and straightforward maintenance. It is designed for professionals and experienced DIYers who follow refrigerant handling and safety guidelines.
