Orion Motor Tech Master Coolant Pressure & Vacuum Refill Kit — 33-Piece, Universal Adapters & Vacuum Pump

Orion Motor Tech’s 33-piece Master Coolant Pressure Tester and Vacuum Refill Kit lets you pressure-test cooling systems and vacuum-fill radiators to find leaks and remove air pockets without a trip to the shop.

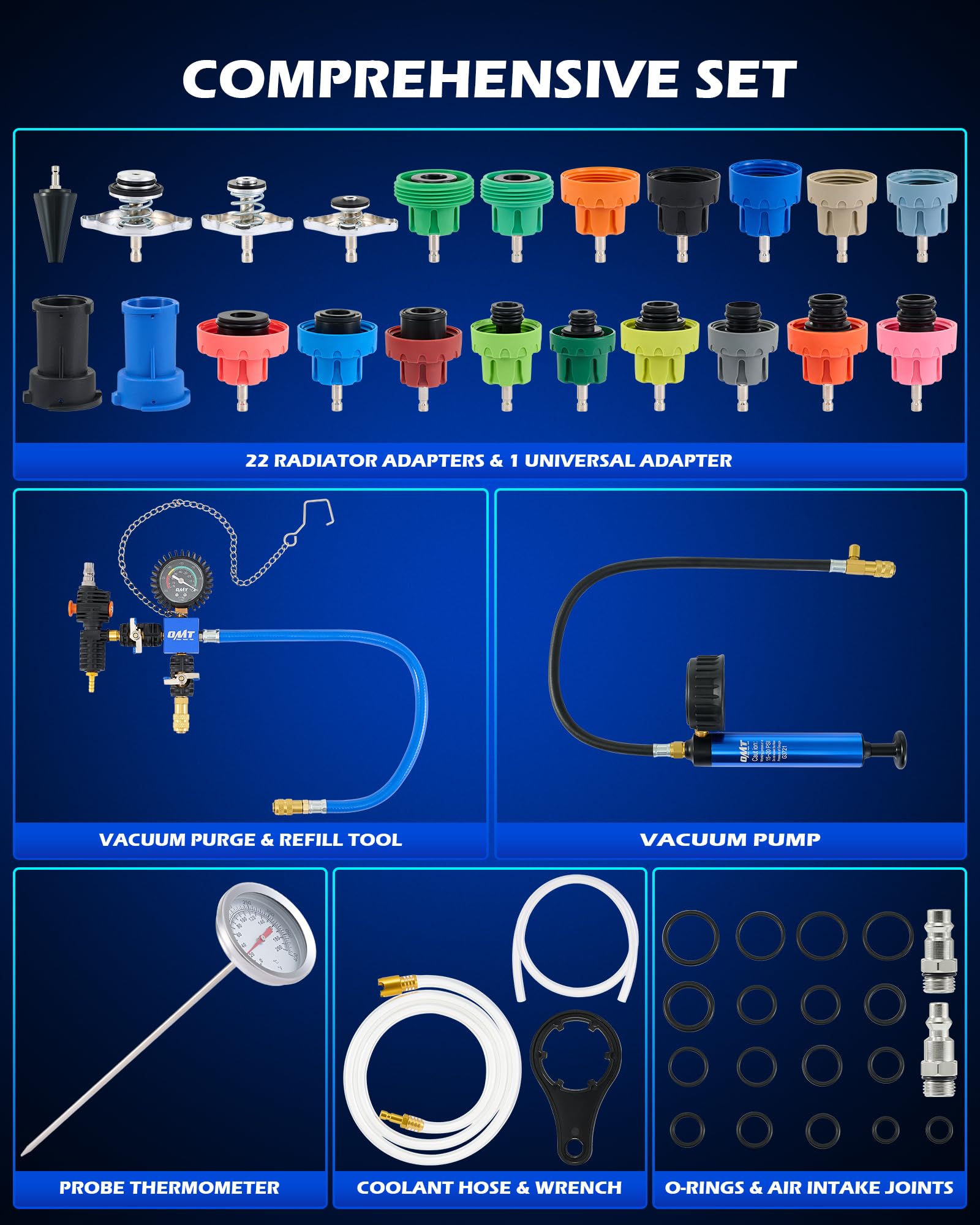

When cooling-system issues appear—overheating, mysterious coolant loss, or trapped air—this all-in-one kit combines pressure testing and vacuum refilling tools so you can diagnose leaks and perform a clean refill. The set bundles a handheld vacuum pump, a vacuum purge and refill adapter, a set of 23 radiator adapters plus an extra universal piece, a probe thermometer, fittings for EU and US intakes, O-rings, hoses, a wrench, and a tough molded case. Components are made from aluminum alloy, brass, nylon and rubber for durability while color-coated adapters and molded size marks make selection fast.

How do I find a coolant leak with this kit?

Use the pressure tester portion to pressurize the cooling system to the manufacturer’s specified level and watch for pressure loss or visible coolant escape. This method isolates leaks from the radiator, hoses, water pump, head gasket area, heater core, and expansion tank.

• Attach the correct adapter from the 23-piece adapter set to match your radiator or expansion tank cap.
• Pump the tester to the specified pressure and observe the gauge for drops.
• Inspect hose junctions, radiator seams, and the engine bay for coolant drips or steam.

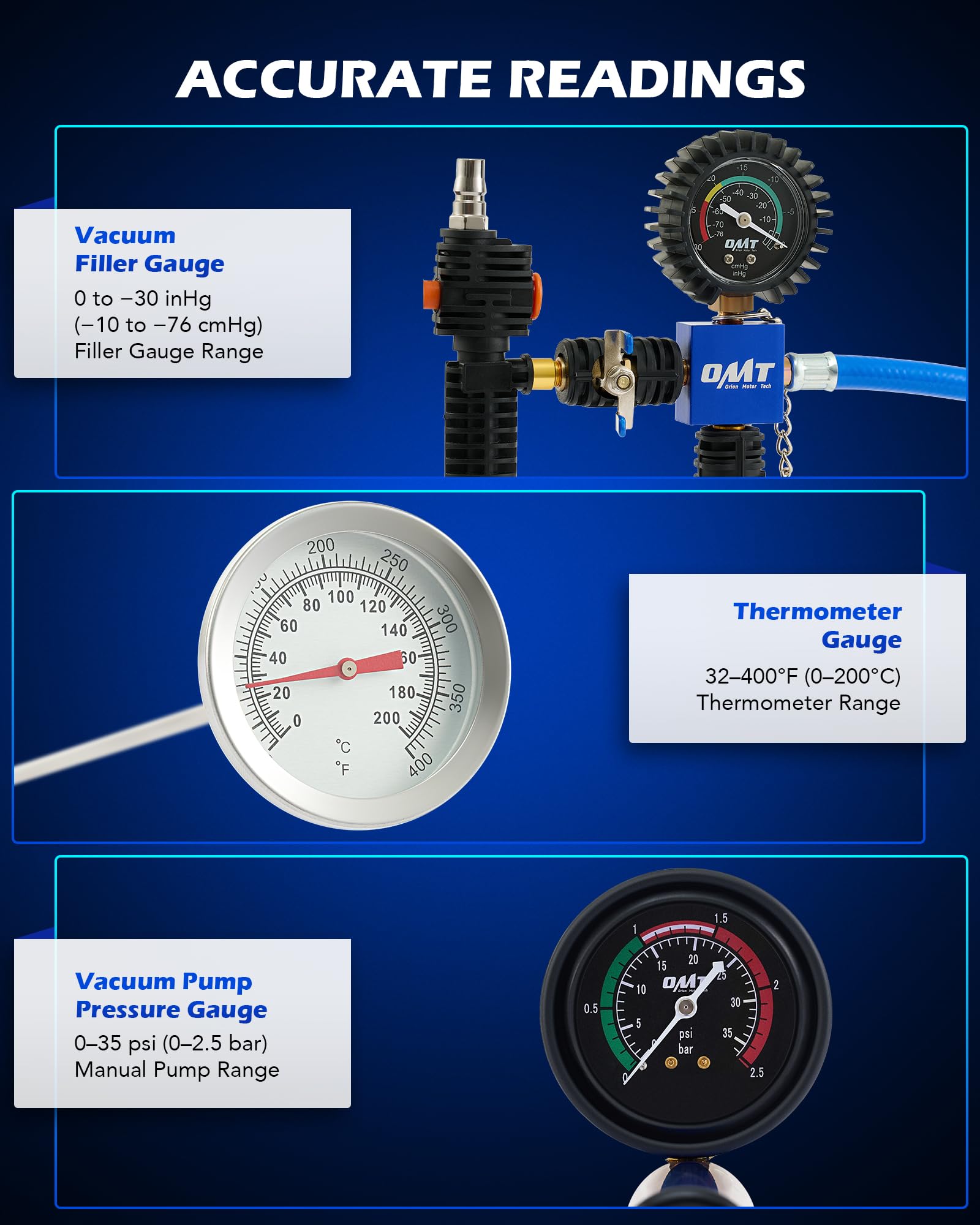

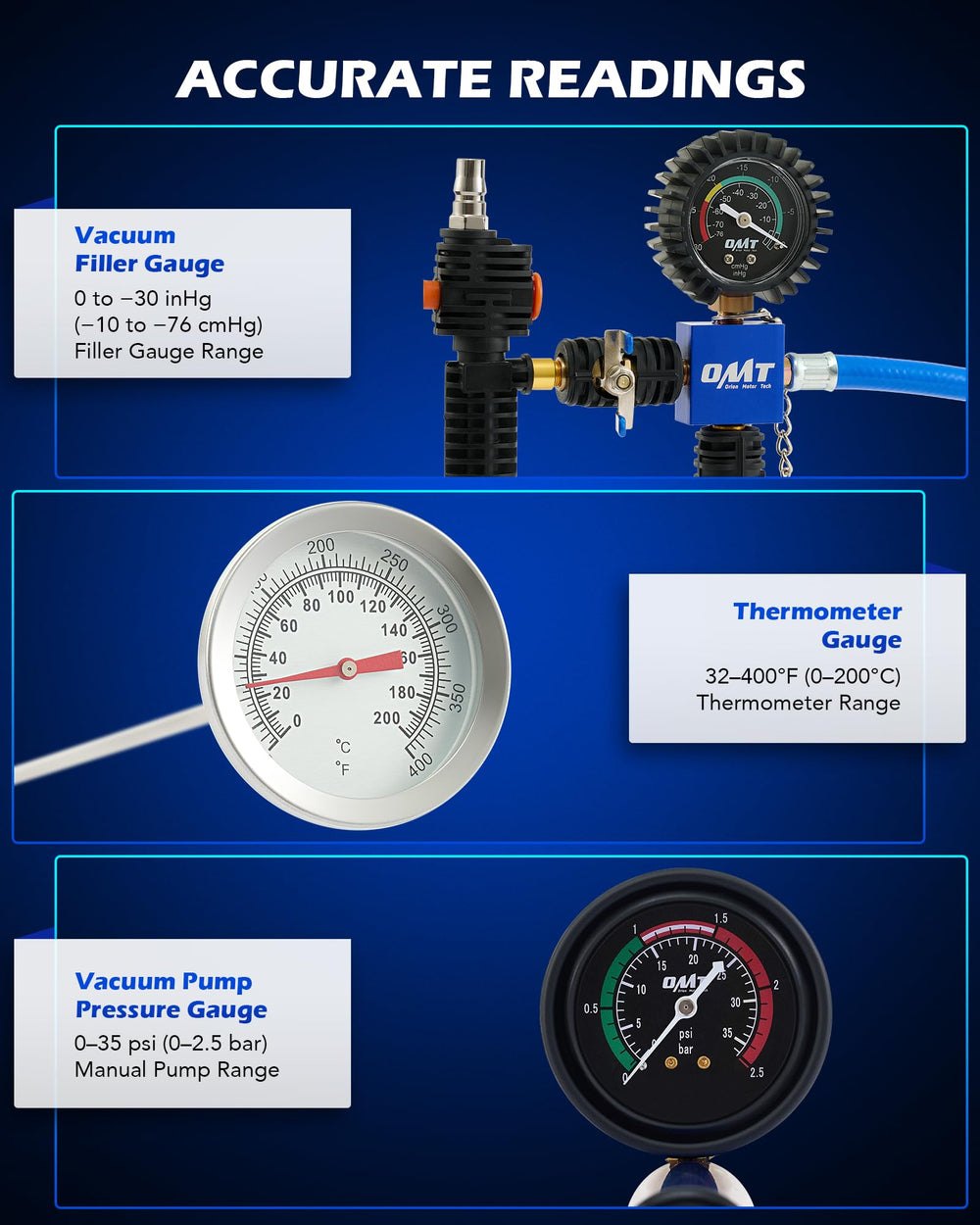

• Use the probe thermometer to check for unexpected hot/cold spots indicating blockages or failing components.

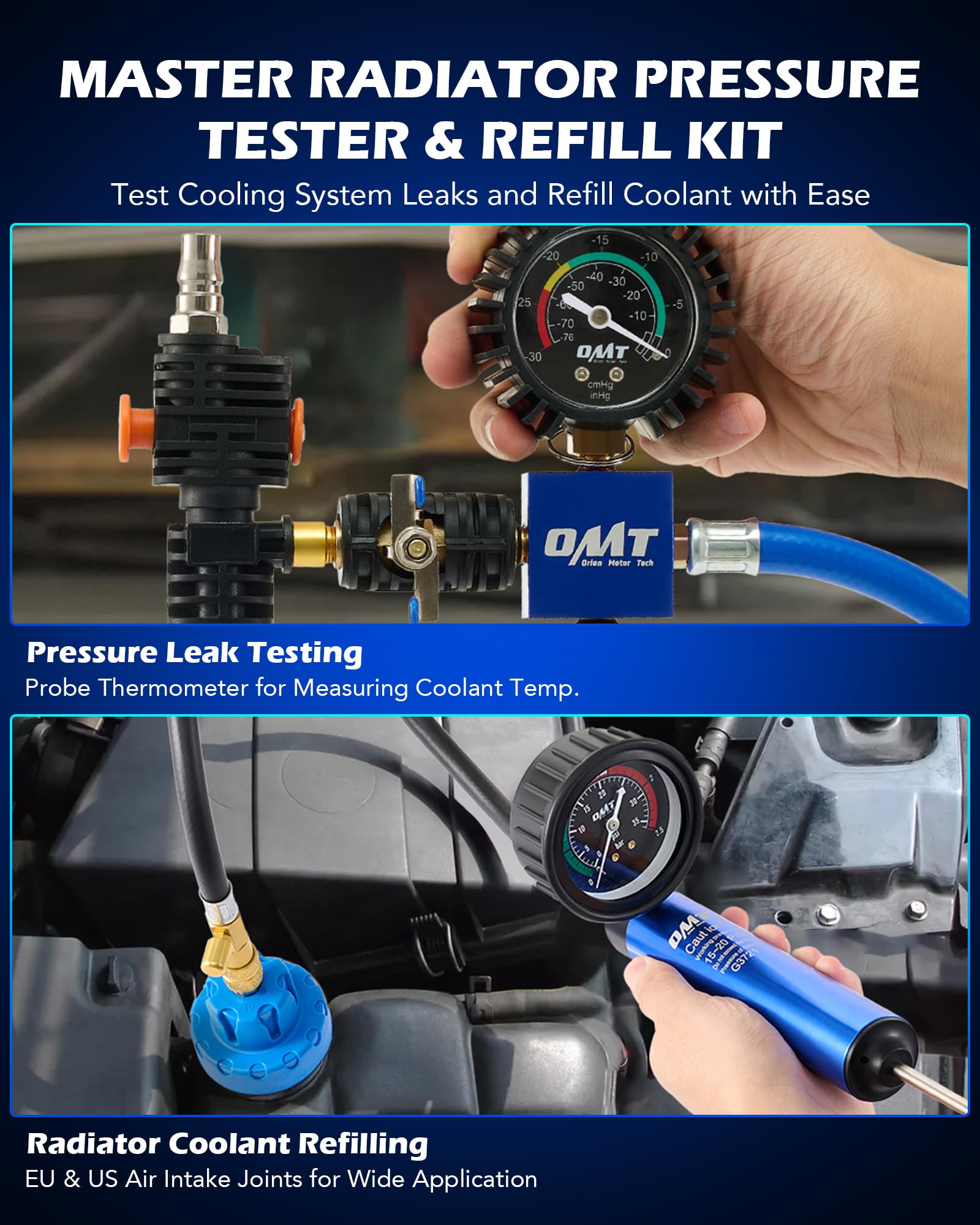

How does the vacuum refill feature improve coolant replacement?

The vacuum refill tool evacuates air from the cooling circuit and then draws coolant in under vacuum, preventing trapped air pockets that can cause hot spots and poor heater performance. It yields a cleaner, faster refill than top-up methods that risk aeration.

• Connect the vacuum pump and purge/refill adapter to the radiator or expansion tank.
• Create vacuum to remove air and old coolant residues from the system.
• Open the coolant reservoir to let fresh coolant flow in as vacuum releases, ensuring a full, air-free fill.
• Includes hoses and O-rings for leak-free connections during the process.

Will this kit work on my car make and model?

Yes—the kit’s 23 adapters plus a universal adapter cover a wide range of radiator necks and expansion tank fittings across European, American and Asian vehicles. Color-coded adapters and molded size marks make matching fast and reduce trial-and-error.

• Adapters fit common brands like BMW, Ford, VW, Mercedes, Nissan, Peugeot, Fiat, Porsche, Opel and Chrysler.
• Universal adapter steps in when a specific fit isn’t listed.
• EU and US air intake joints ensure regional compatibility.
• Molded case keeps each adapter labeled and stored to avoid loss.

What materials and quality features does the kit include?

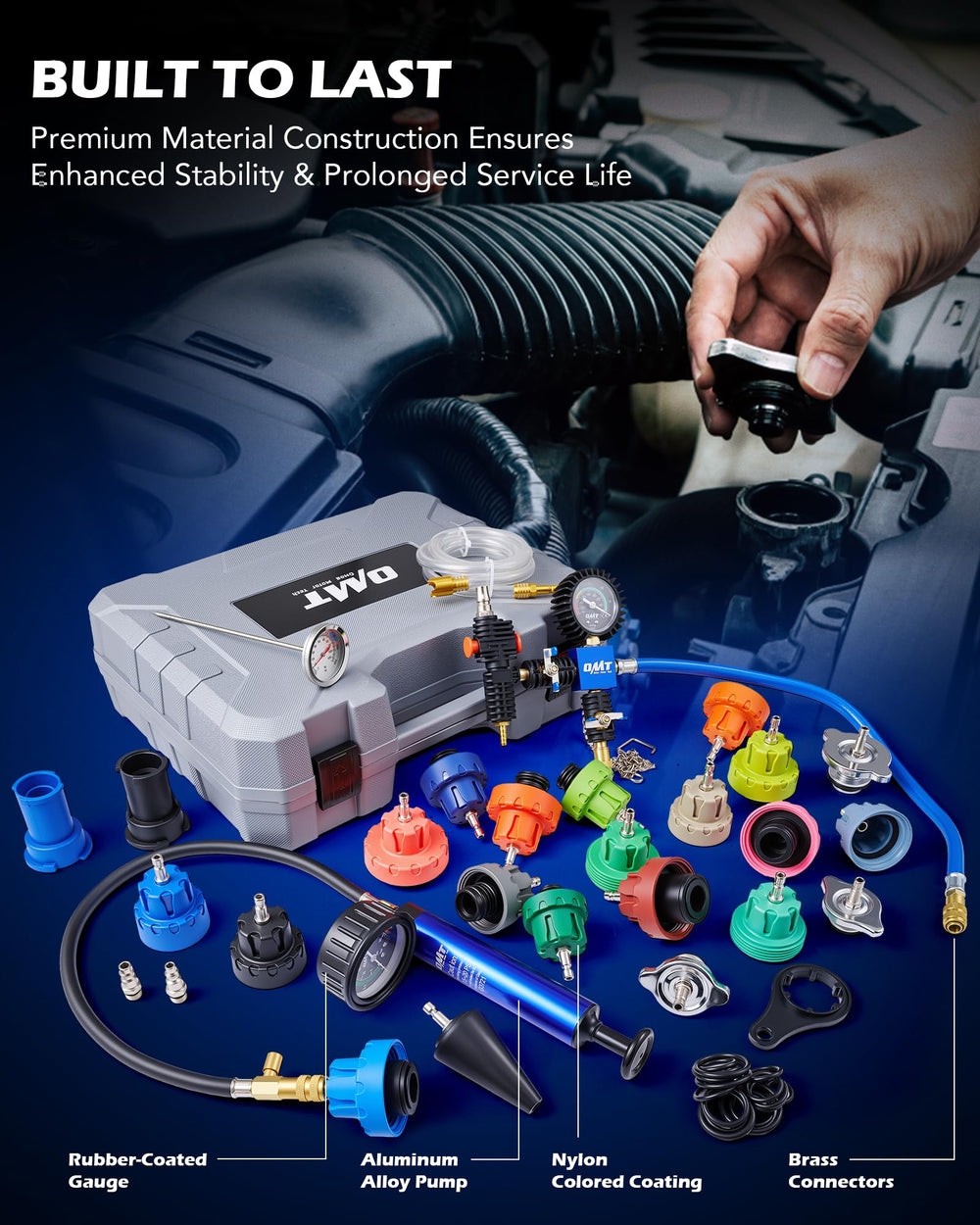

The kit combines rugged materials chosen for workshop use: aluminum alloy and brass fittings resist corrosion, nylon and rubber parts provide flexibility and sealing, while the molded case protects tools in transport and storage.

• Aluminum alloy and brass for durable, repeatable connections.
• Nylon and rubber hoses and O-rings for secure seals under pressure and vacuum.

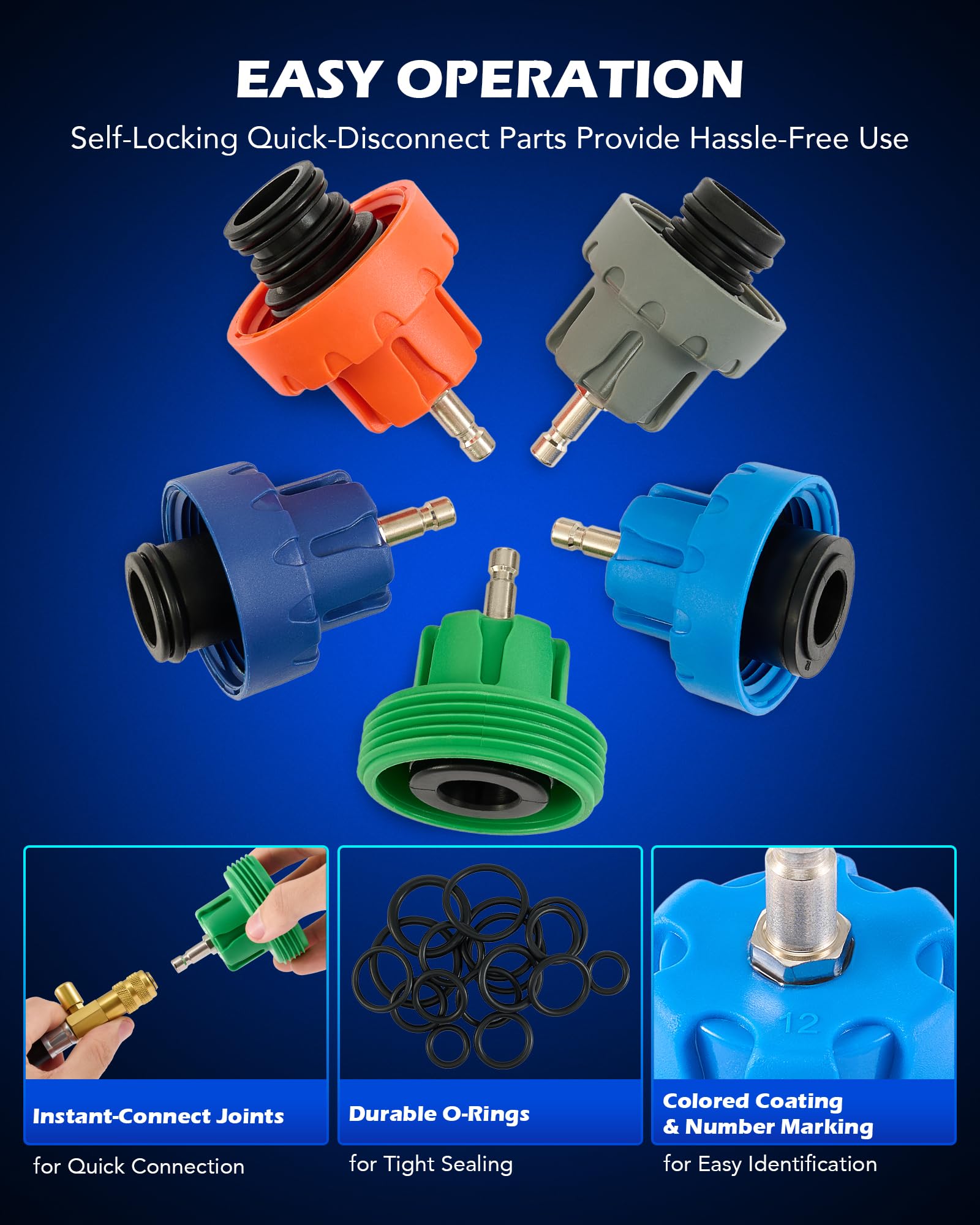

• Color-coded adapters and molded markings for quick identification.

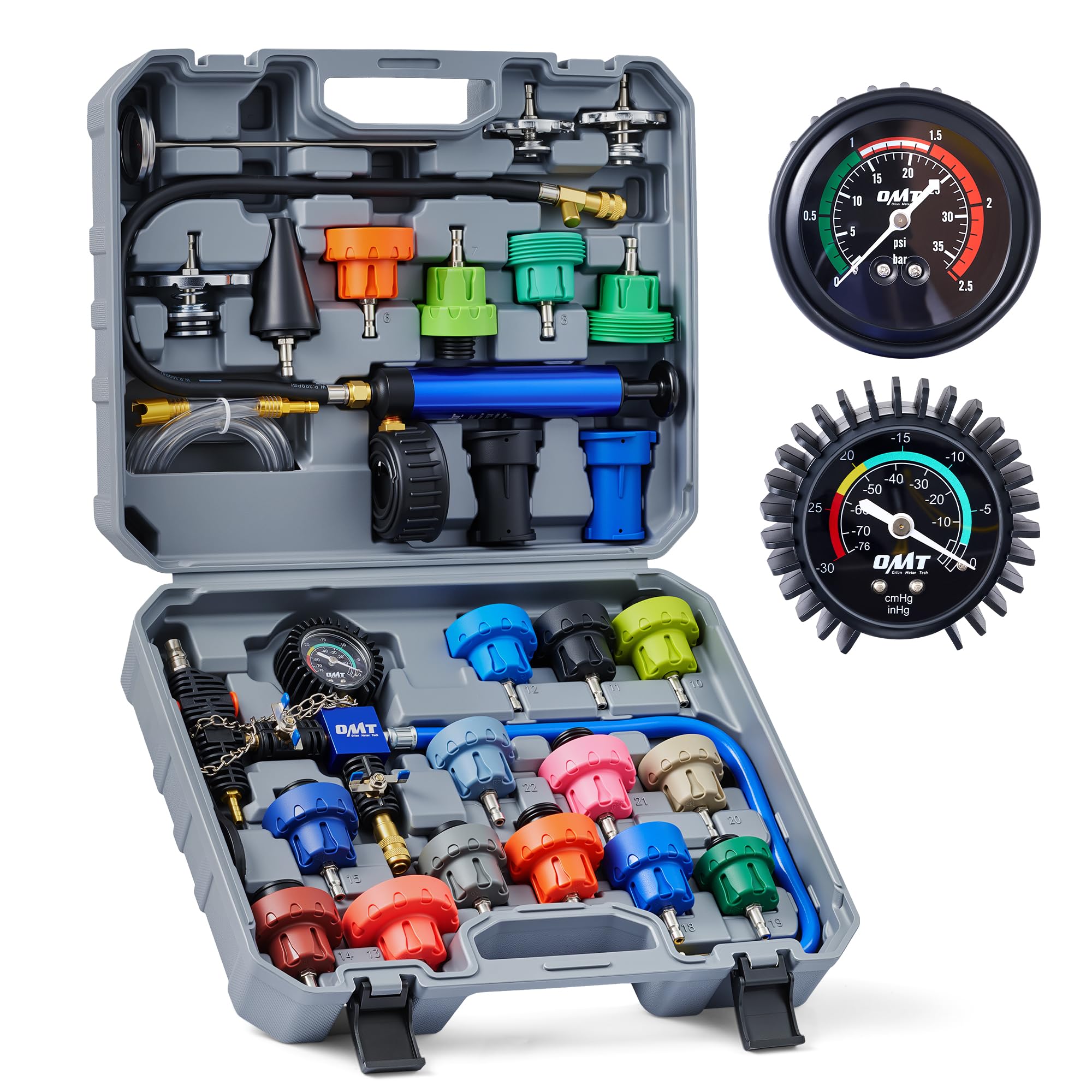

• Compact, custom-molded carrying case for organization and portability.

Who is this for? Home mechanics, professional technicians, and fleet maintenance teams who want an efficient way to diagnose cooling-system leaks and perform clean, air-free coolant refills will benefit most from this Orion Motor Tech kit. It’s useful for anyone servicing a mixed fleet or multiple vehicle brands because of its broad adapter range, clear markings, and durable construction. Avoid guesswork and messy refills—this toolset is built to speed diagnosis and deliver consistent refills that reduce air-related cooling issues.
