Oyviny Trailer Light Circuit Tester — 7‑Way Blade & 4‑Pin LED Tester, 6‑Function Compact ABS Plug‑In

Whether you're prepping an RV for a trip or troubleshooting a towed vehicle, this combined 4‑pin and 7‑way blade tester gives a fast visual check of common trailer electrical circuits. It requires no batteries, plugs directly into standard trailer sockets, and uses bright LEDs to show which circuits are live. Built from durable ABS with tin‑plated copper contacts, the tester is designed for repeated field use on trucks, campers, boats, and trailers.

How does the tester identify which trailer light or circuit is faulty?

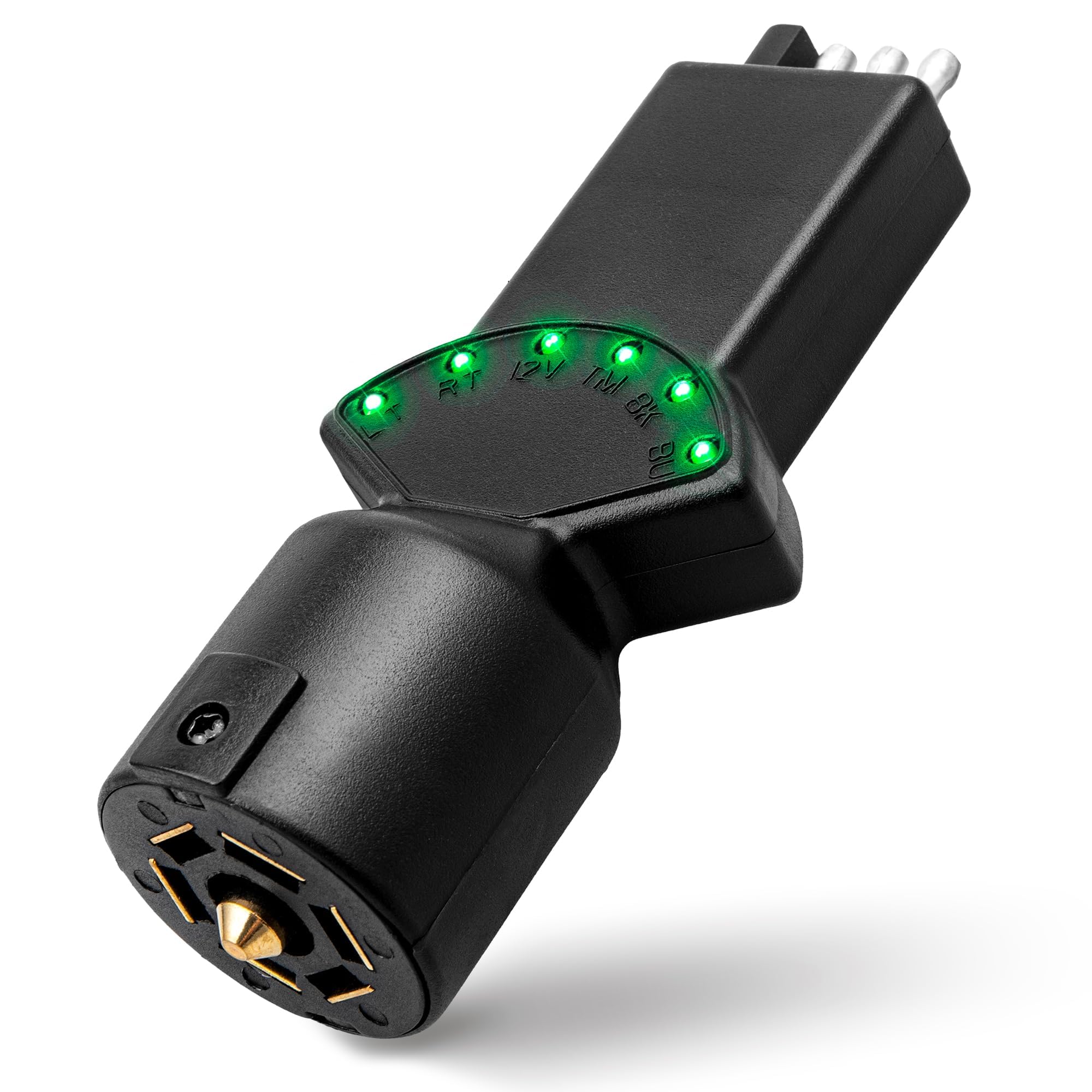

Each electrical function is tied to its own LED so you can see at a glance which circuit is receiving power. When plugged into the trailer socket, the corresponding LED illuminates if that circuit is energized; a non‑lit LED indicates an open or faulty circuit. This visual approach speeds diagnosis compared with manual probing.

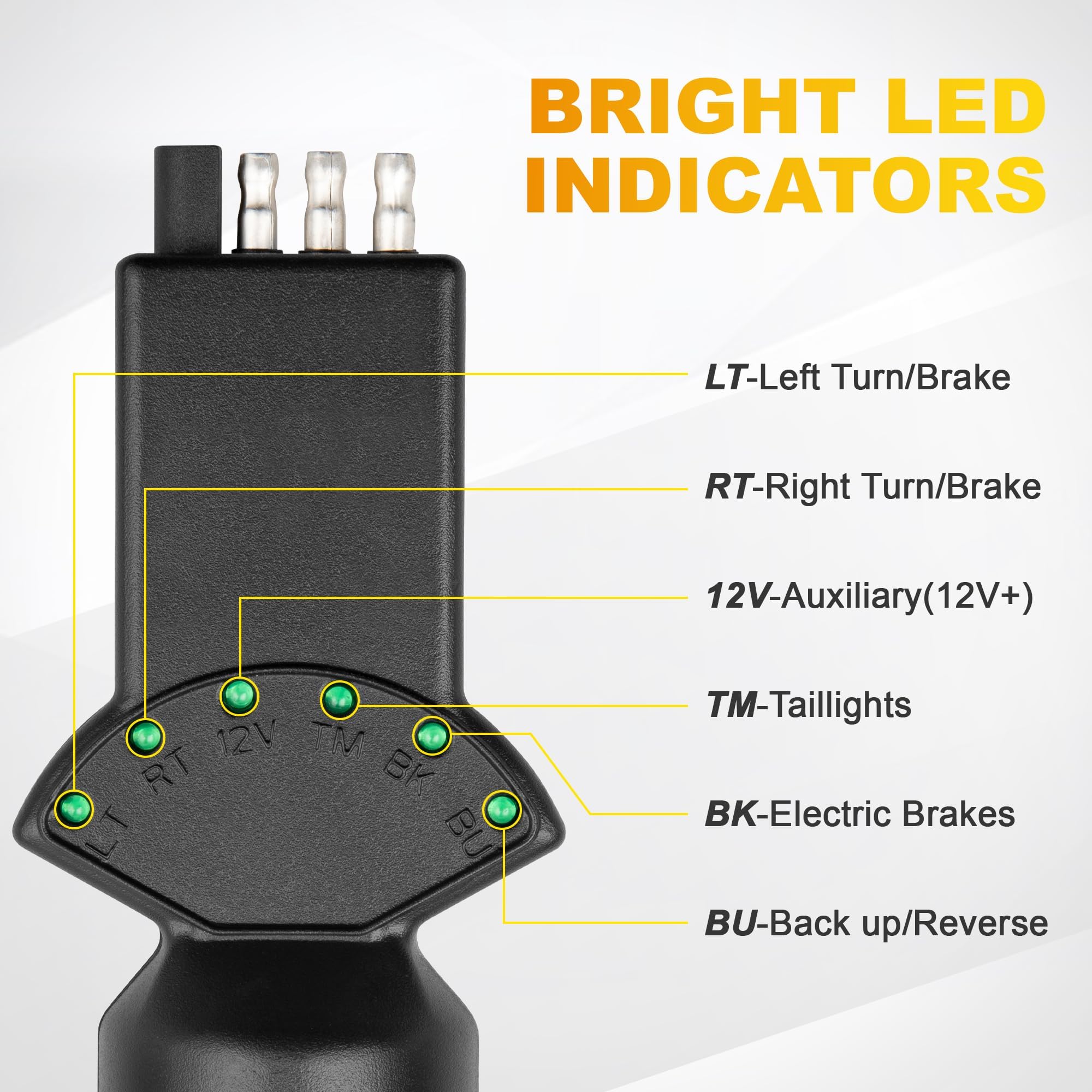

• Six labeled LEDs correspond to taillight, brake, reverse, left/right turn, electric brakes and 12V auxiliary.

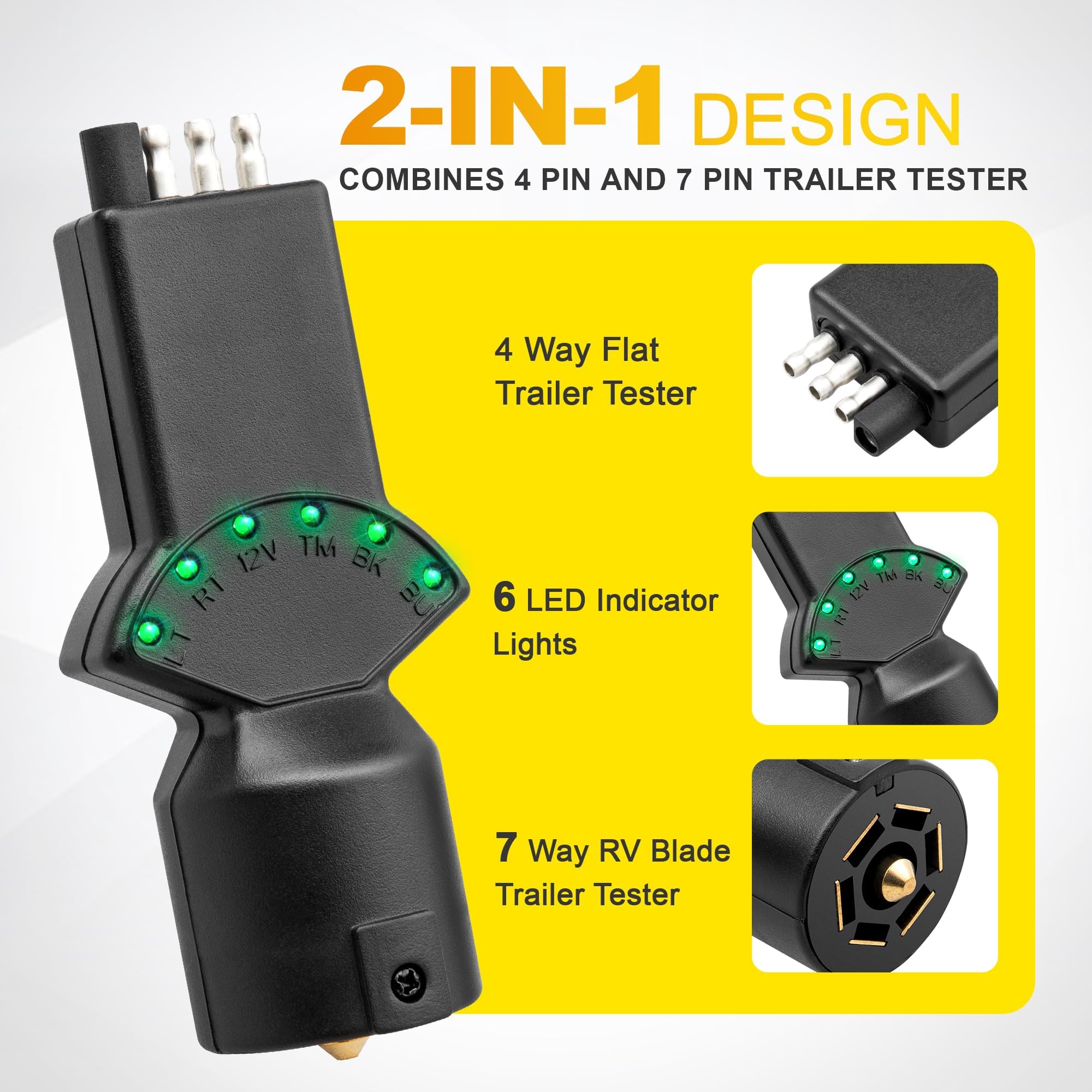

• Works for both 4‑pin flat and 7‑way round/blade sockets in a single unit.
• No battery needed—powered by the vehicle/trailer wiring for instant results.

Will this tester work with my vehicle or LED trailer lights?

The tester supports most conventional 4‑pin and 7‑pin wiring systems found on trucks, RVs, and trailers, but it has limitations. It cannot validate LED systems that require a resistor or monitor lamp‑out sensors; some modern vehicles with lamp‑out alarms (BMW, VW, Audi, Mercedes, Porsche, etc.) may not show accurate results. Also, certain 2017+ Ford/GMC/Chevy sockets can invert the plug orientation.

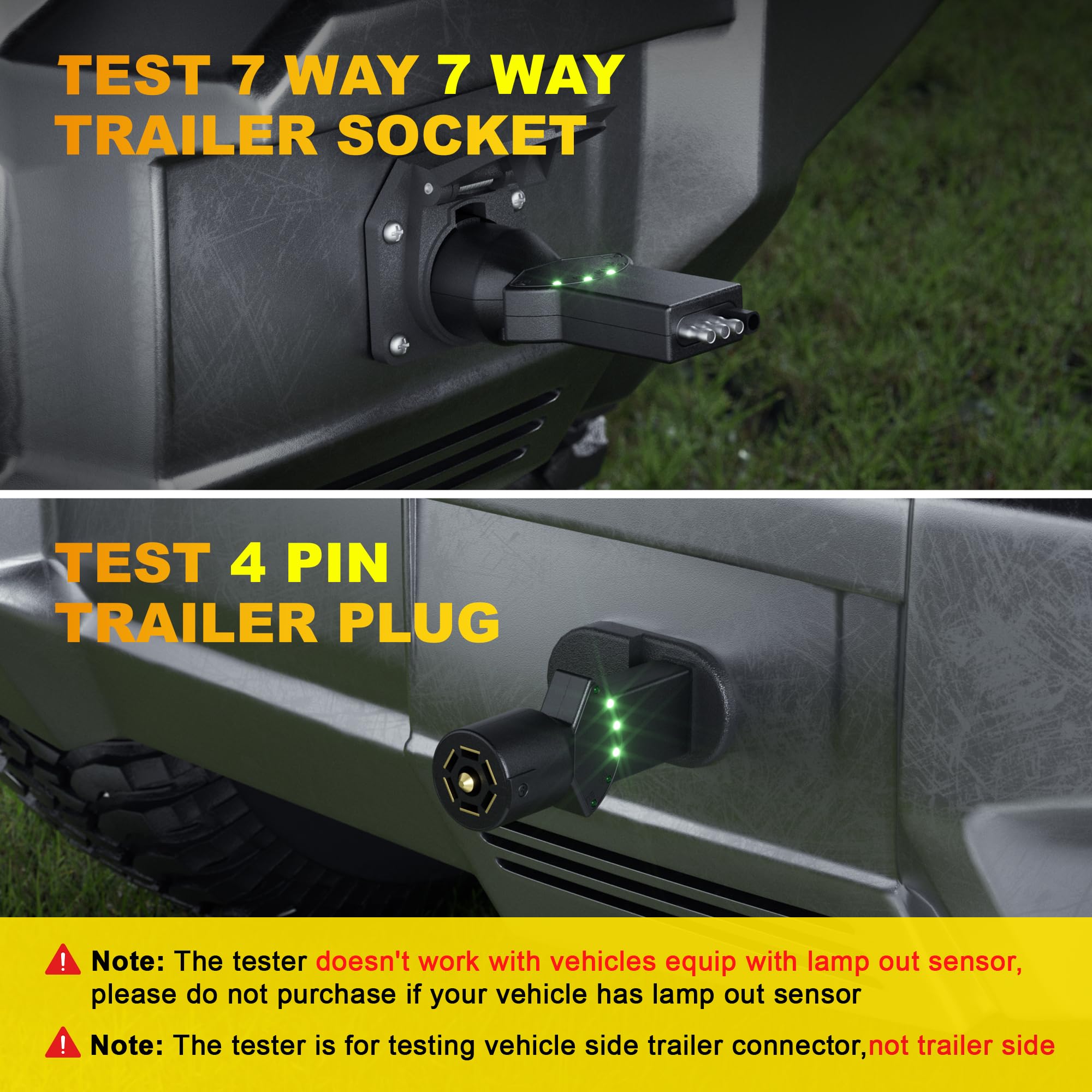

• Not compatible with lamp‑out sensor systems or some modern LED circuits.

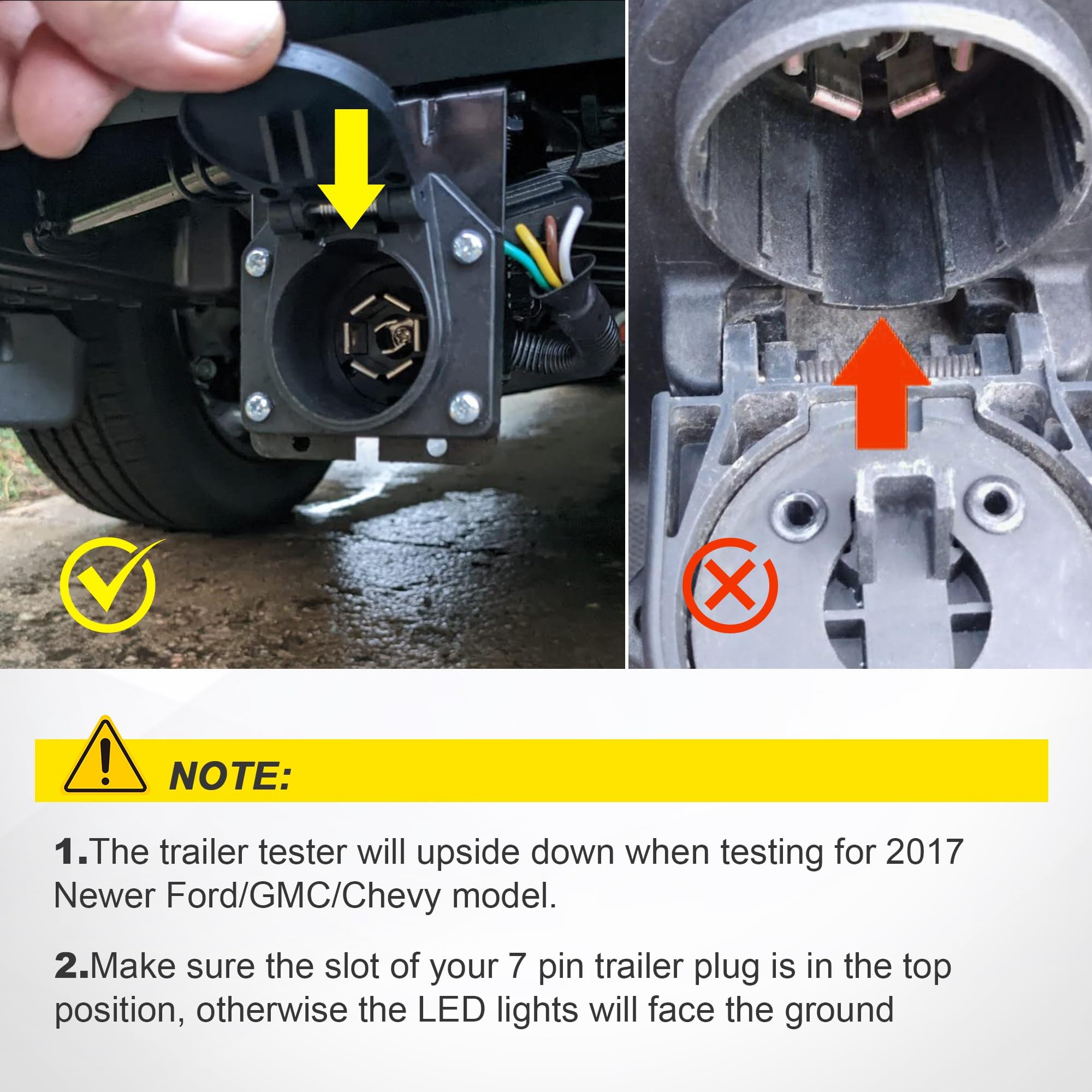

• 2017+ Ford/GMC/Chevy sockets may insert upside down—check orientation before testing.
• Ideal for conventional incandescent trailer wiring and most older vehicle sockets.

How durable and easy to use is the Oyviny tester in the field?

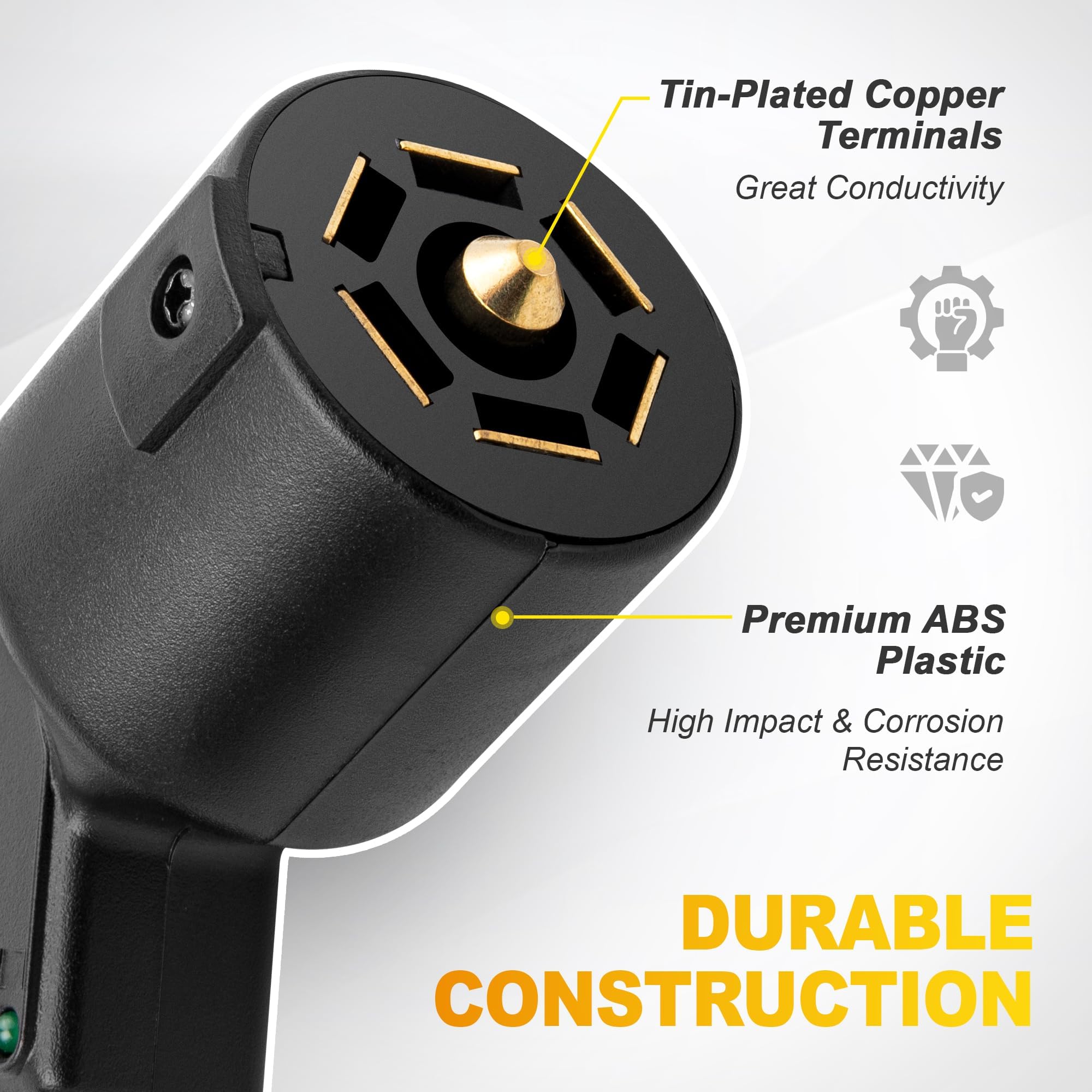

Designed for rugged, repeated use, the tester’s housing is molded from ABS plastic that resists corrosion and impact. Tin‑plated copper terminals maintain good conductivity and resist tarnish. Its ergonomic shape and plug‑and‑play operation make it quick to plug in, read, and remove—even in low light thanks to the bright green LEDs.

• ABS plastic body for weather resistance and long life.
• Tin‑plated copper contacts for reliable electrical connection.

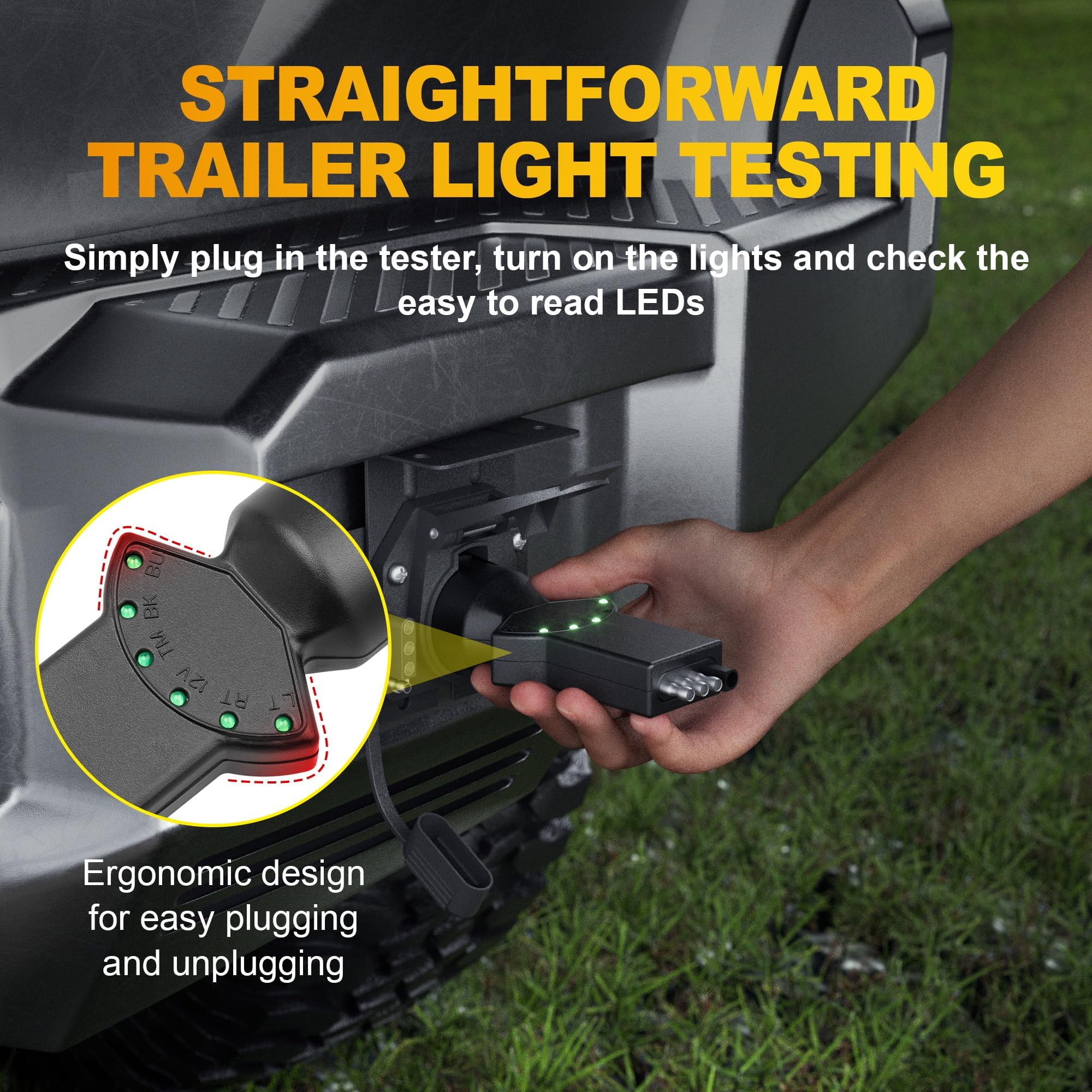

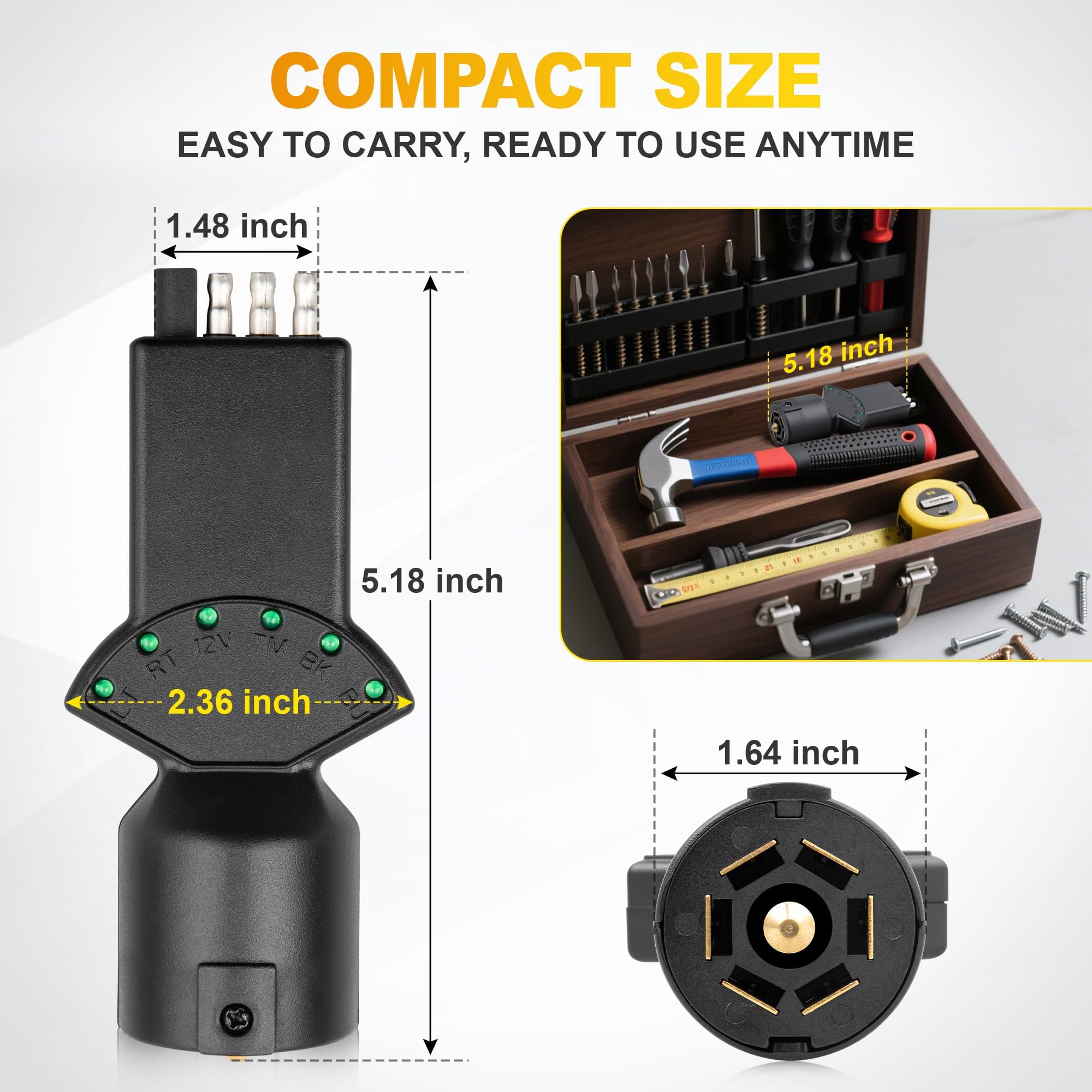

• Compact, ergonomic form factor—no tools or batteries required.

What exactly can I test with this unit on my trailer or tow vehicle?

The Oyviny unit checks the most commonly troubleshooting points on trailers and tow vehicles. It confirms power to taillights, stop lights, left/right turn signals, reverse lights, electric trailer brakes, and the 12V auxiliary supply on 7‑way connectors. For 4‑pin hookups it verifies the basic running, brake, and turn functions present on flat connectors.

• Seven‑pin: taillight, brake, reverse, left and right turn, electric brakes, 12V auxiliary.
• Four‑pin: combined lighting and turn/brake circuits for flat trailer sockets.
• Quick verification before towing, during maintenance, or at the campsite.

This tester is for vehicle owners, fleet technicians, RV and trailer enthusiasts, and roadside troubleshooters who need a fast, portable way to confirm trailer wiring is functioning before towing. It’s especially useful for garages, rental fleets, DIYers preparing a trailer for a trip, and anyone who wants a visual, no‑battery check of common trailer circuits. If your vehicle uses advanced lamp‑out monitoring or specialized LED controllers, pair this tool with manufacturer diagnostics for full coverage.
