PAC SWI-RC-1 Universal Steering Wheel Control Retention Interface — CAN-Bus/GMLAN Compatible, Web-Configurable

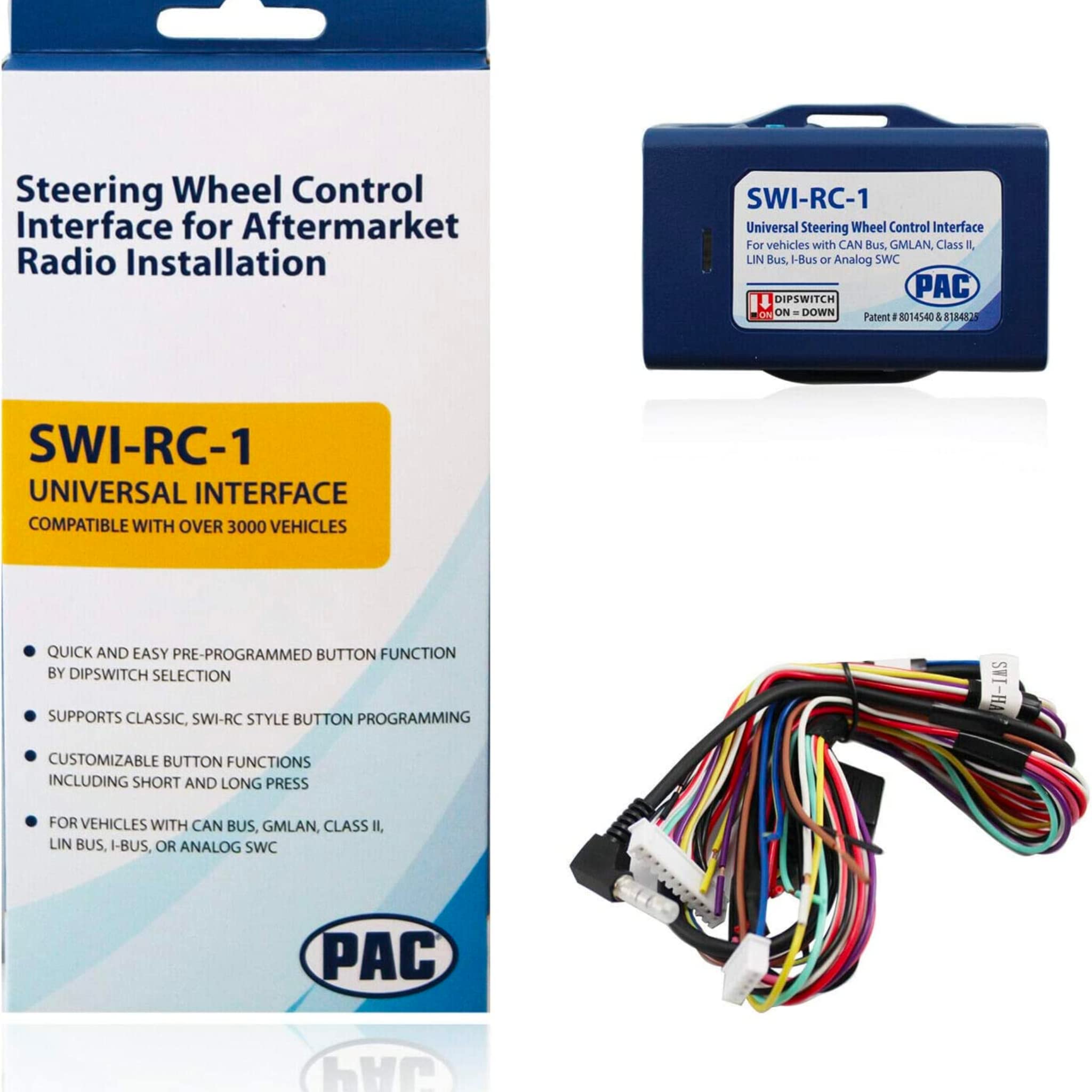

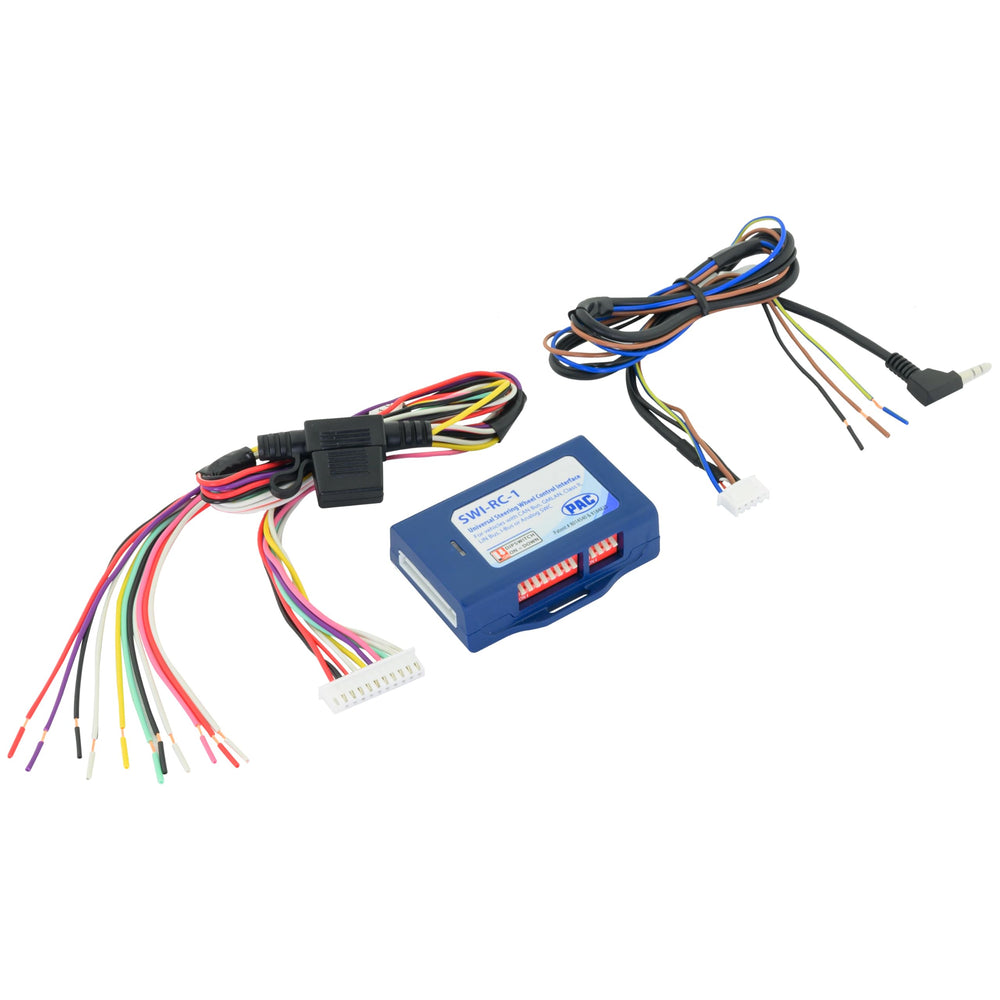

PAC SWI-RC-1 keeps your factory steering wheel controls working with nearly any aftermarket radio using CAN-Bus, GMLAN, Class II and many other vehicle data systems. The SWI-RC-1 is a compact retention interface that translates your vehicle's steering wheel control signals to most aftermarket head units. It uses PAC's latest firmware and a simple web-based setup so you can select pre-programmed button maps via DIP switches or customize functions quickly from your phone or computer. The module also supplies a fused 2-amp 12V accessory output for radios in many CAN and data-networked vehicles, saving installation time.

How do I set up steering wheel buttons with the SWI-RC-1?

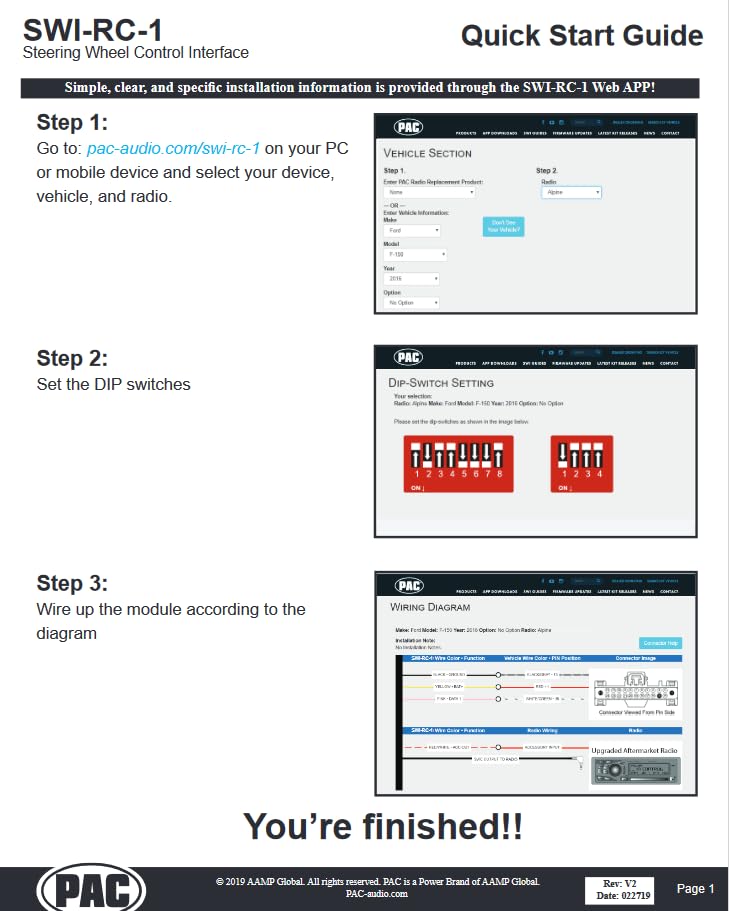

Setup is designed to be fast and foolproof: open the SWI-RC-1 web app on a PC, Mac, or mobile device, pick your vehicle make/model/year and the radio brand, then follow the prompted wiring and DIP switch recommendations. The unit includes pre-programmed mappings for common radios, and you can reassign or program buttons on the fly if you prefer a custom layout.

• Use web-based installer to select vehicle and radio combination.
• Set DIP switches for pre-programmed button maps or enter custom mode.
• Program short-press/long-press behavior and button reassignment if needed.
• Follow the clear wiring diagram and verify latest firmware before install.

Which vehicles and radios are compatible with this retention interface?

The SWI-RC-1 supports over 3,000 vehicles that use data or resistive steering wheel control systems, including CAN-Bus, GMLAN, Class II, LIN-Bus, IBUS and analog resistive SWC. Most modern radios that accept a wired remote input via a 3.5mm jack or two-wire remote connection are supported, but check specific model notes for exceptions.

• Works with CAN-Bus, GMLAN, Class II, LIN-Bus, IBUS, ACP, PCI, and analog SWC.
• Radio must have wired remote input (3.5mm or remote wire) to be compatible.
• Some specific radio models have known limitations; confirm compatibility list.
• Vehicle must have factory steering wheel controls to retain SWC functions.

What installation steps and tools are required for a successful install?

Installation requires basic tools, a connection to the SWI-RC-1 web app, and attention to the wiring guide provided by PAC. Confirm the module has the latest firmware via the web app, set the DIP switches per the chosen map, wire the unit to the radio and vehicle harness, then test each steering wheel button for intended action.

• Access the SWI-RC-1 web app from any browser to get vehicle-specific wiring instructions.
• Set DIP switches or program buttons directly for custom behavior.
• Use the included 2-amp 12V accessory output when the vehicle’s accessory source is not readily available.
• Test all SWC functions before reassembling dash panels to ensure correct operation.

Will the SWI-RC-1 handle advanced functions like voice and presets?

The SWI-RC-1 translates standard steering wheel commands and supports many preset, volume, seek, and source functions. Some head-unit-specific limitations exist—certain radios may not accept voice or preset commands via wired remote input; these limitations are due to the radio firmware, not the interface.

• Supports common commands: volume, track, seek, source, and presets where the radio accepts them.
• Voice control and phone-call volume may be restricted on certain radio models.
• Refer to PAC compatibility notes for radios with known functional limits.
• When wired remote input is absent on a radio, consider PAC’s SWI-X alternative.

Who is this for: The PAC SWI-RC-1 is ideal for installers, DIYers and car audio enthusiasts replacing factory radios who want to preserve steering wheel control functionality across a wide range of vehicles and aftermarket head units. Choose it if you need a fast web-guided setup, programmable button behavior, and a convenient 12V accessory output when working with CAN-Bus or other data-networked cars.

FAQ

Q: Does my radio need any special input to use the SWI-RC-1?

A: Yes. The radio must have a wired remote input (3.5mm jack or two-wire remote) for compatibility; otherwise use PAC’s SWI-X.

Q: Can I customize which steering wheel buttons do what?

A: Yes. Use DIP switches for pre-programmed maps or program button functions on the fly via the SWI-RC-1 web app.
