Panari carburetor replacement for Briggs & Stratton Quantum 6.0 HP — 499059 manual‑choke kit, pre‑tuned and complete

Panari 499059 is a complete replacement carburetor kit engineered to fit manual-choke Briggs & Stratton Quantum 6.0/6.5 HP engines that originally used part #499059 or the manual-choke variant of #799869.

If your lawn mower, pressure washer, or small engine won’t start or runs poorly and it uses a manual-choke Briggs & Stratton Quantum engine, this Panari kit offers an all-in-one swap that restores fuel delivery without hunting for individual parts. The kit is supplied pre-tuned from the factory, includes essential consumables, and is designed to match the mounting and fuel-port geometry of the specified engines.

Will this carburetor fit my Briggs & Stratton Quantum engine?

Fitment depends on choke type and original carburetor part number rather than horsepower alone. This Panari 499059 replacement is compatible only with manual-choke models and with specific series and legacy part numbers.

• Fits many manual-choke engine series (122L, 122T, 124L/T, 126, 128M, 121K, 122K, 123K, 124T, 125K, 12-series, and select 127/128 models).
• Compatible if your original carburetor is numbered 499059 or the manual-choke variant of 799869/792253/497586.
• Not compatible with any auto-choke Quantum engines; verify choke type before purchase.

What is included in the Panari 499059 all-in-one kit?

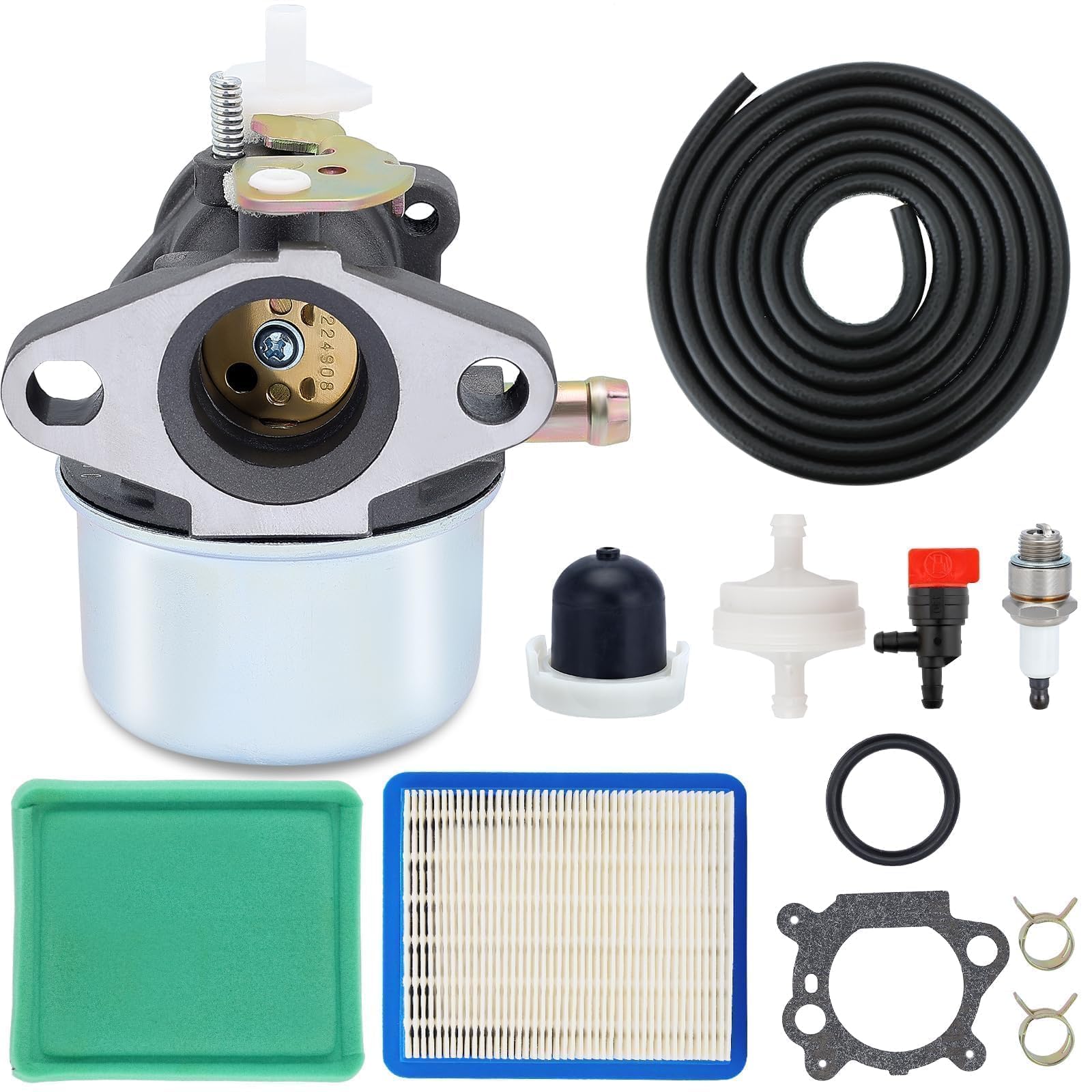

The kit supplies a ready-to-install carburetor plus commonly replaced parts so you can complete the repair in one visit. Everything arrives assembled or packaged for straightforward installation and immediate use.

• Panari 499059 carburetor x1 (factory tuned)
• Air filter x1 and pre-filter x1 for intake protection
• Fuel shut-off valve x1, fuel filter x1, 2ft fuel line x1, and clamps x2
• Spark plug x1, primer bulb x1, gasket x1 and o-ring x1

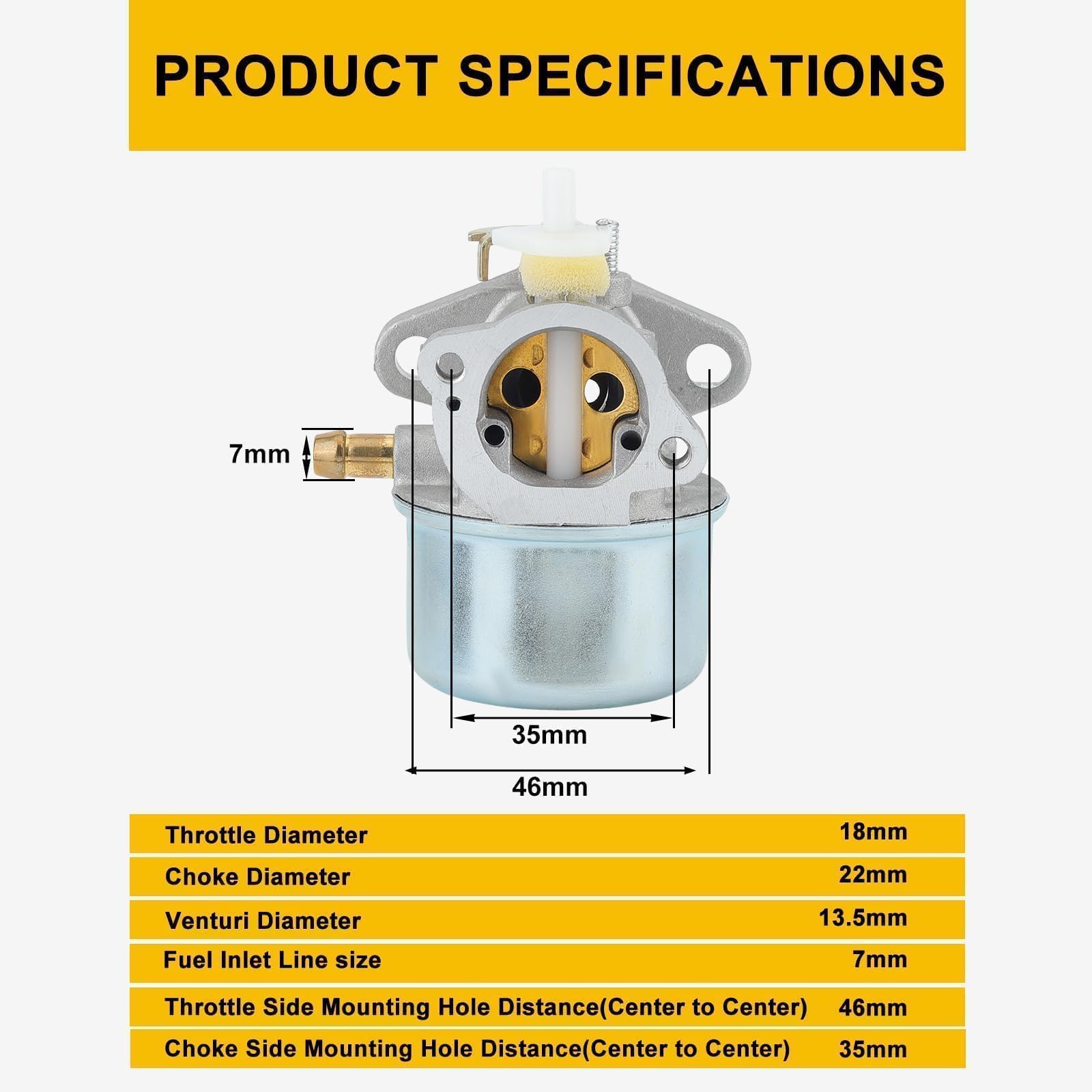

How precise is the fit and what are the key dimensions?

This replacement replicates the critical mounting and flow dimensions to ensure correct alignment and throttle linkage fit. Measuring these specs against your original carburetor helps confirm compatibility.

• Throttle side mounting hole spacing (center-to-center): 46mm
• Choke side mounting hole spacing (center-to-center): 35mm
• Throttle bore diameter: 18mm; choke bore diameter: 22mm; venturi: 13.5mm
• Fuel inlet line size: 7mm

What performance or quality checks does this carburetor undergo?

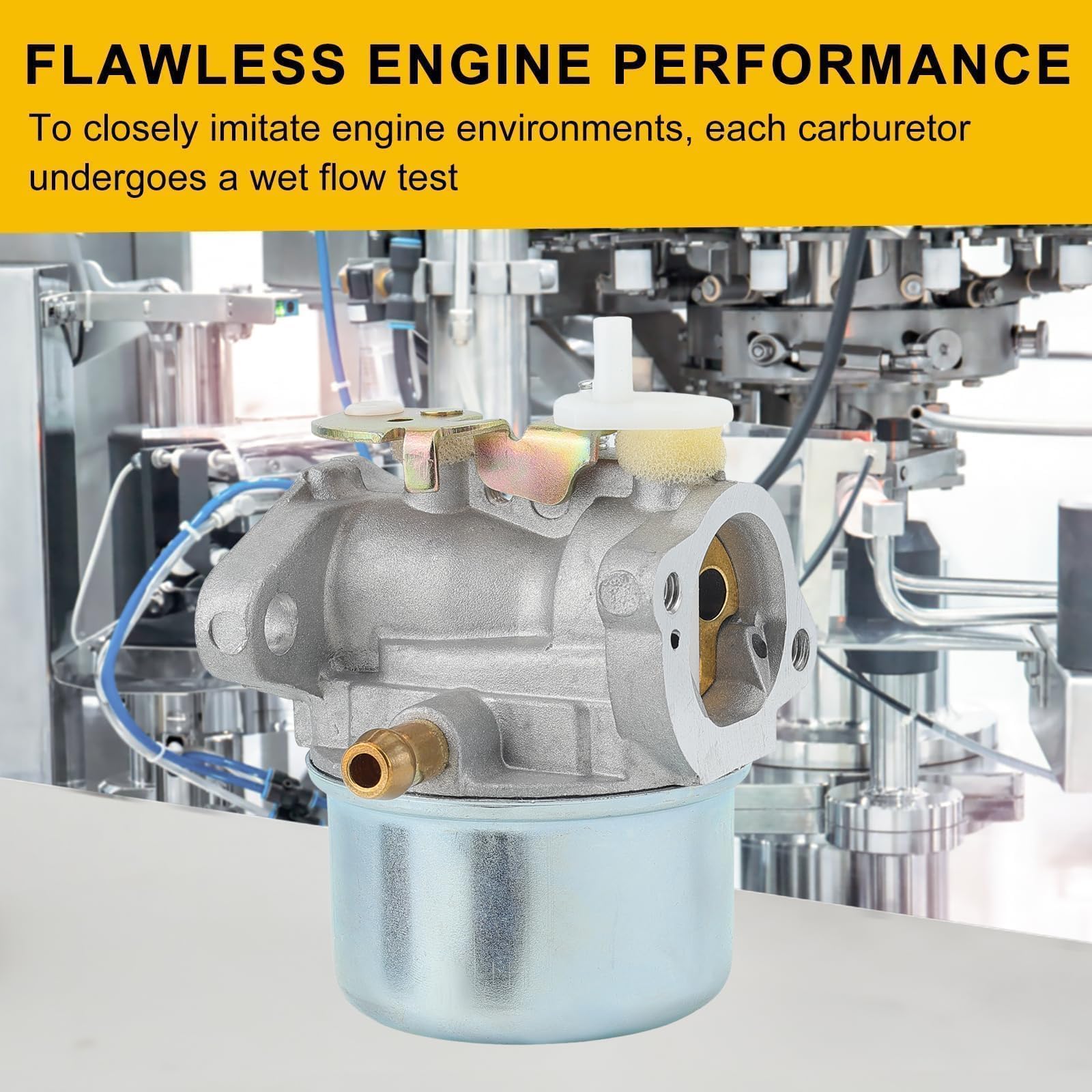

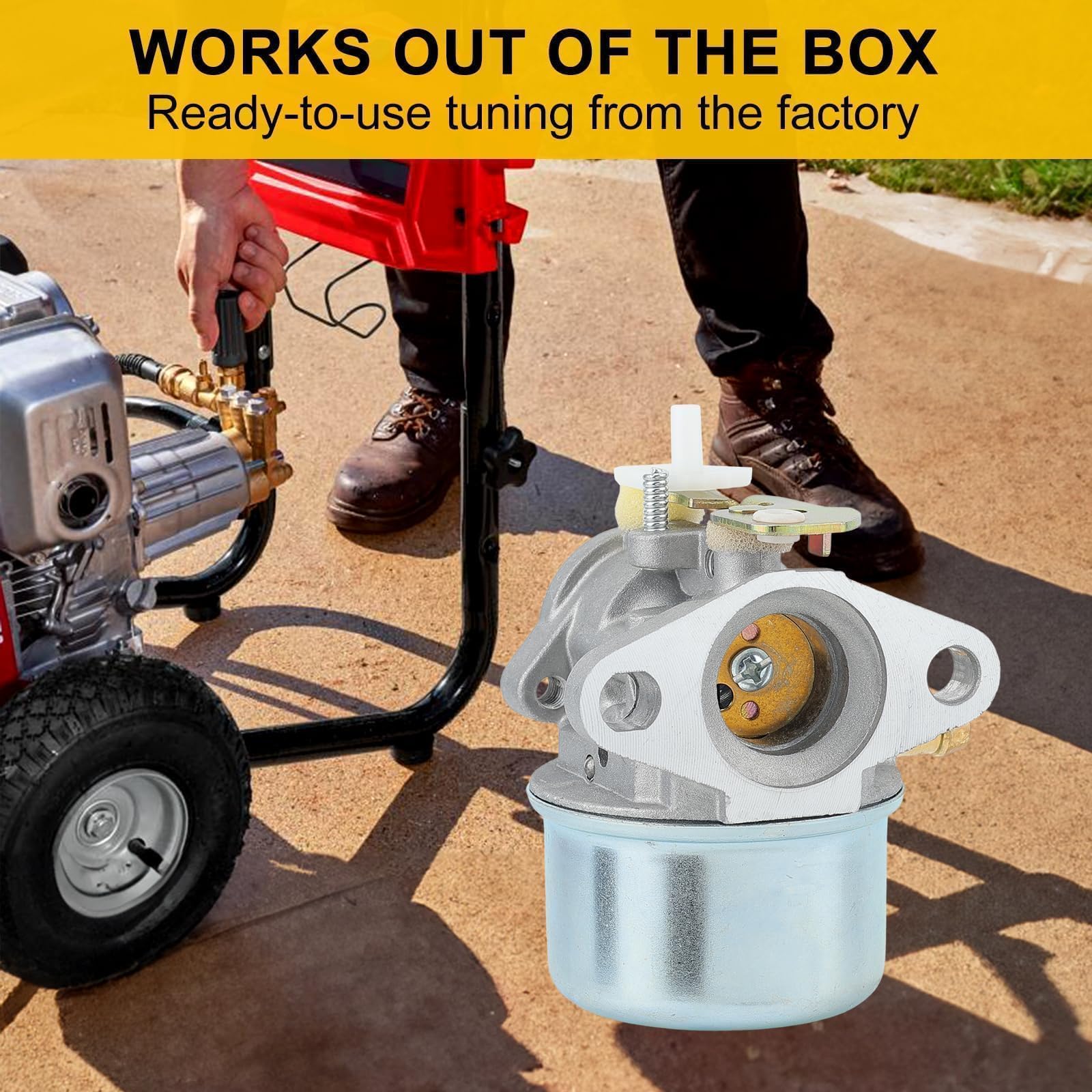

Each Panari unit is factory-adjusted and wet-flow tested to simulate engine fuel flow and help reduce break-in tuning. The goal is reliable starting and smoother idling right after installation.

• Factory-set tuning for out-of-box starting behavior
• Wet flow testing to verify internal passages and sealing
• Supplied consumables reduce the chance of leaks or installation delays

Who is this for: This replacement is intended for DIYers, small-engine technicians, and owners of equipment powered by Briggs & Stratton Quantum manual-choke 6.0/6.5 HP engines who need a straightforward, complete carburetor swap. If you’re unsure which choke type your engine uses or cannot locate the original carb part number, check the carburetor housing or service manual before ordering to avoid fitment issues. This kit speeds repairs by including filters, fuel line, and other parts you’d otherwise buy separately.
