Partsam 10-Pack 6" Oval LED Trailer Tail Lights Red — DOT-Compliant, IP65 Sealed, Bright SMD

Partsam 10-pack 6" oval LED trailer tail lights are flush-mount, DOT-compliant stop/turn/tail lamps that include rubber grommets and 3-prong pigtails for a complete, weather-resistant replacement set.

Upgrade or replace worn trailer lighting with this set of ten 6-inch oval red LED tail lights from Partsam. Each lamp uses ten high-quality SMD LEDs to deliver bright, highly visible stop/turn/brake illumination while the included grommets and 3-prong wire pigtails simplify installation. Built with robust sealing and an IP65 rating, these lights are engineered to withstand road spray and typical outdoor conditions on trailers, RVs, trucks, and utility vehicles.

How bright and visible are these LED tail lights?

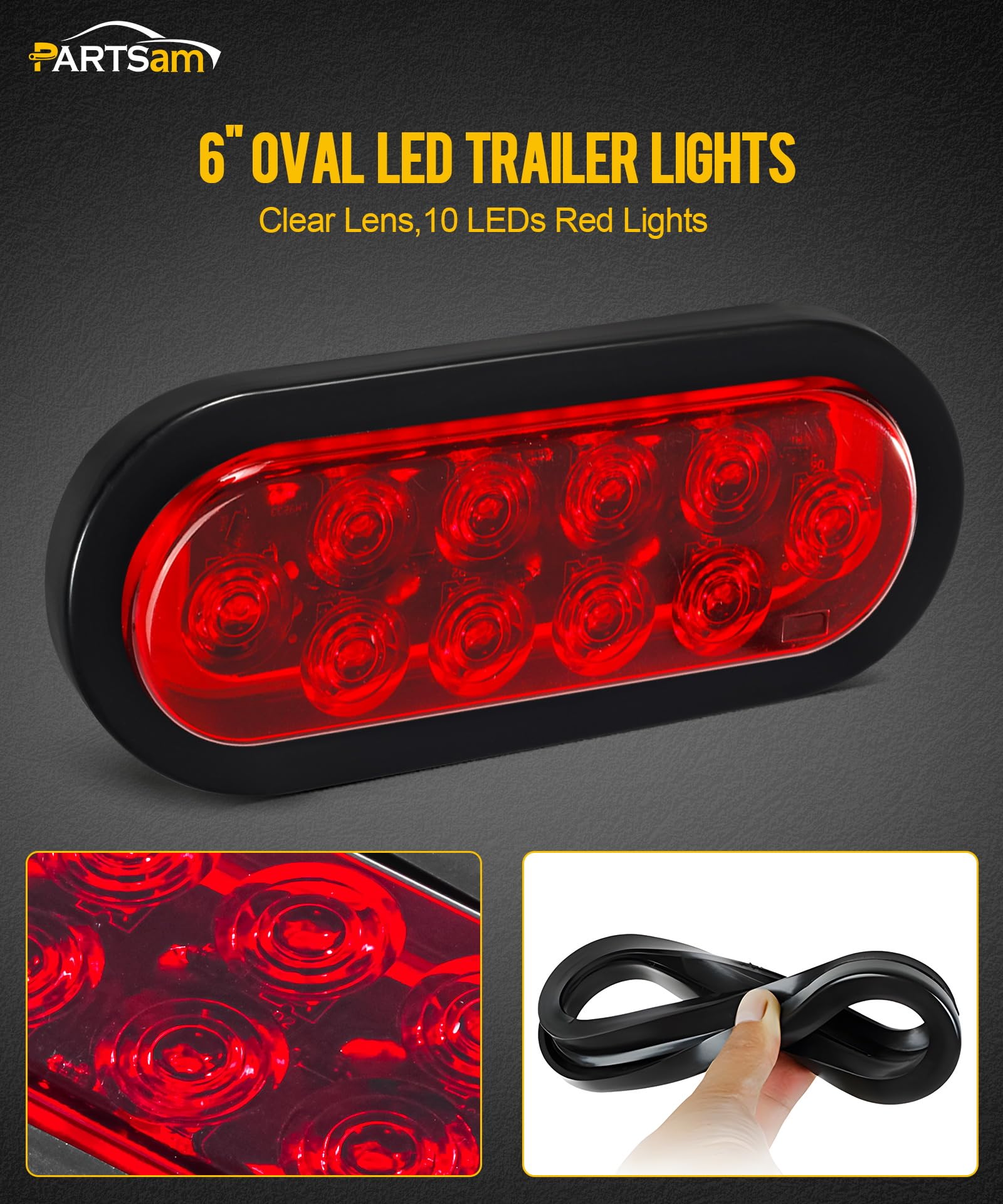

These oval fixtures use 10 SMD-style LEDs each, producing a strong red output meant to improve conspicuity compared with incandescent bulbs. The concentrated LED array gives clear stop and turn signals at distance while consuming less current.

• Ten high-output SMD LEDs per lamp for bright red signaling
• Separate high/low intensity wiring for brake versus running lights
• Designed to enhance night and daytime visibility for safer towing

What does installation involve and which wires do what?

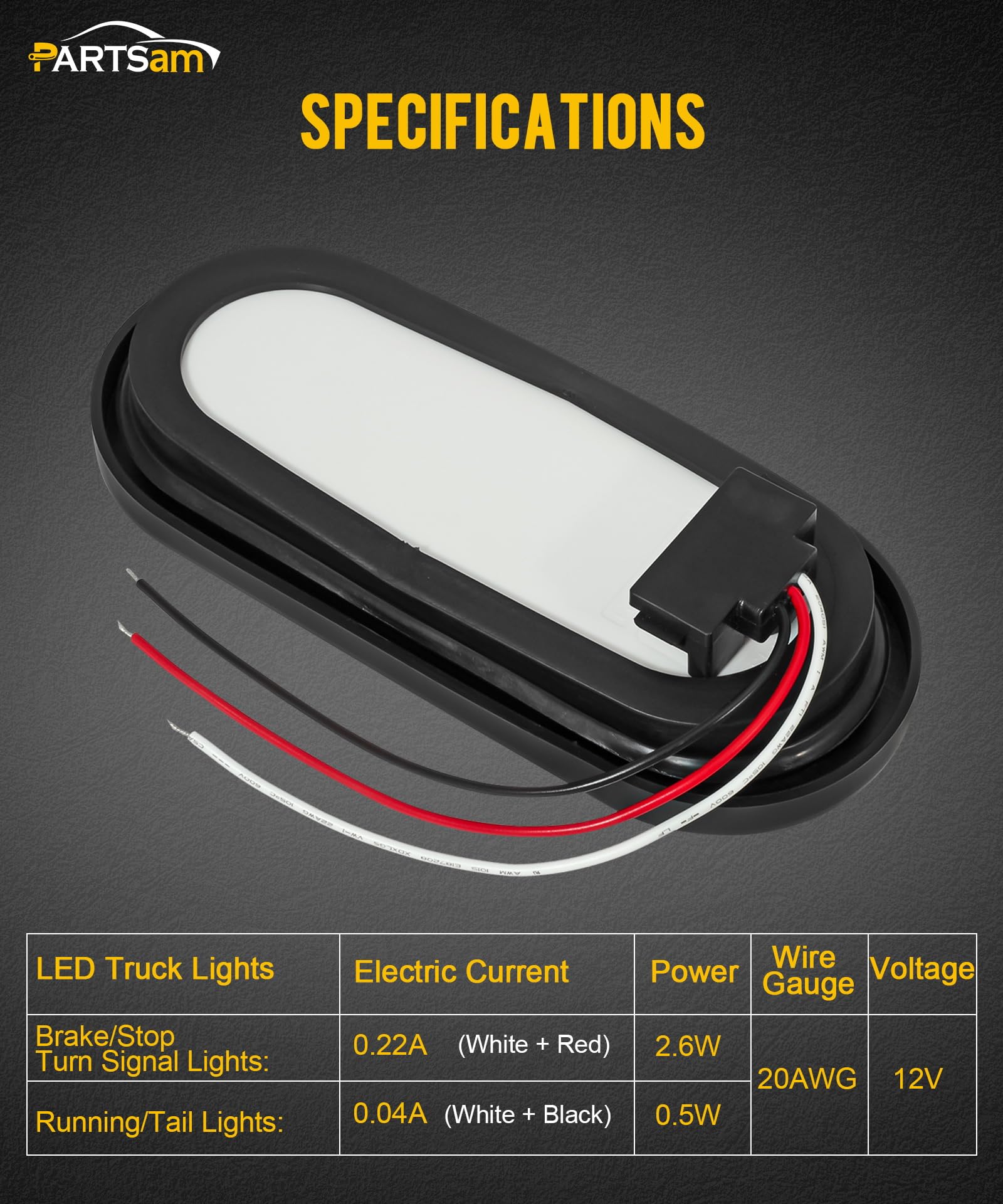

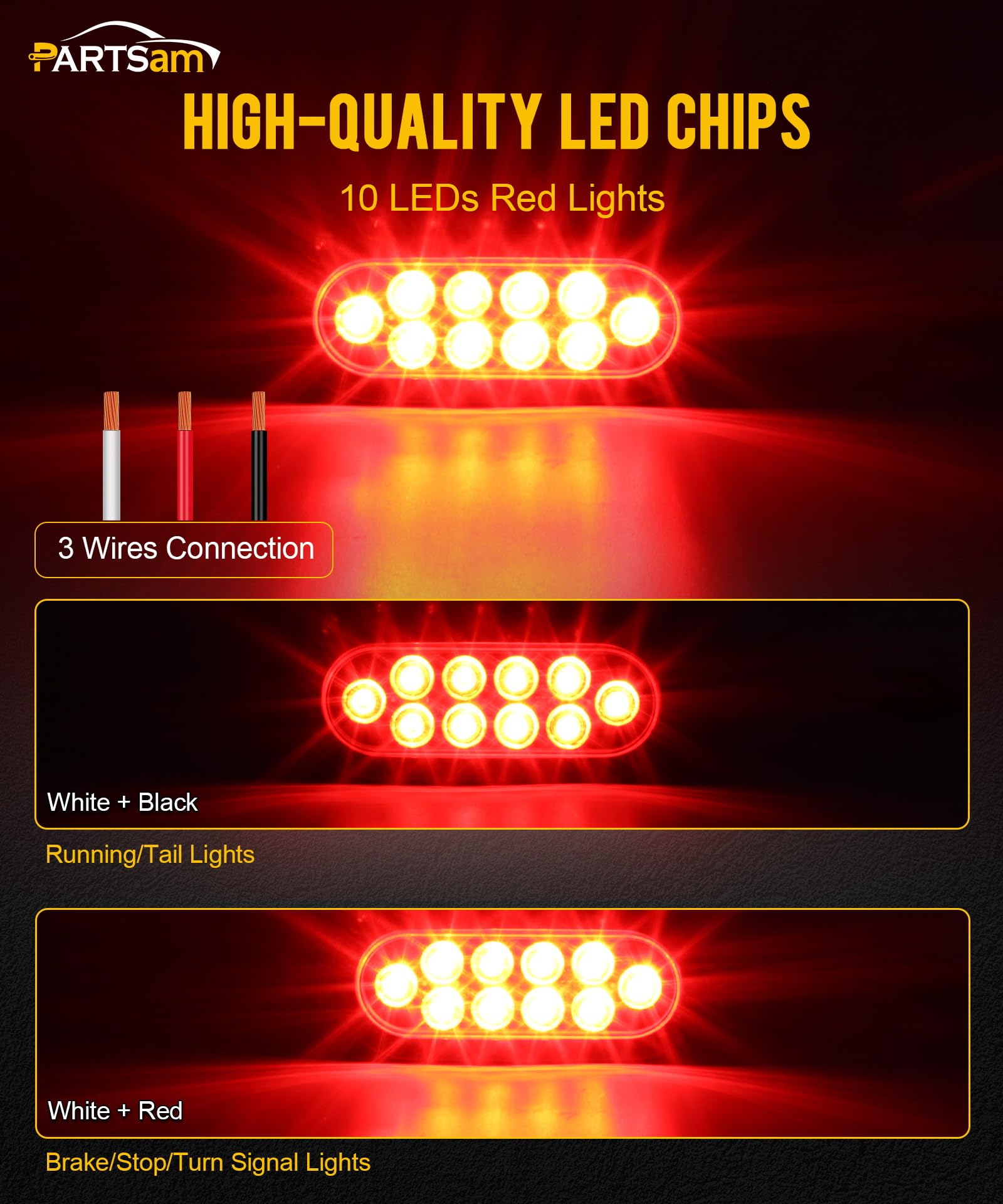

Each light arrives ready with a 3-prong pigtail and a rubber grommet for flush mounting. Connections are color-coded: white is ground, red is the high-brightness brake/turn feed, and black supplies the low-brightness tail or running function. Mounting requires cutting an approximately 6 1/3" hole if you’re installing without the grommet; with grommets the included hardware enables secure surface mounting.

• Includes rubber grommets and 3-prong pigtails for plug-and-play wiring
• White = ground, Red = stop/turn (bright), Black = tail/running (dim)
• Flush or surface mountable; drill a 6 1/3" hole for recessed fit

Are these lights weatherproof and compatible with my vehicle?

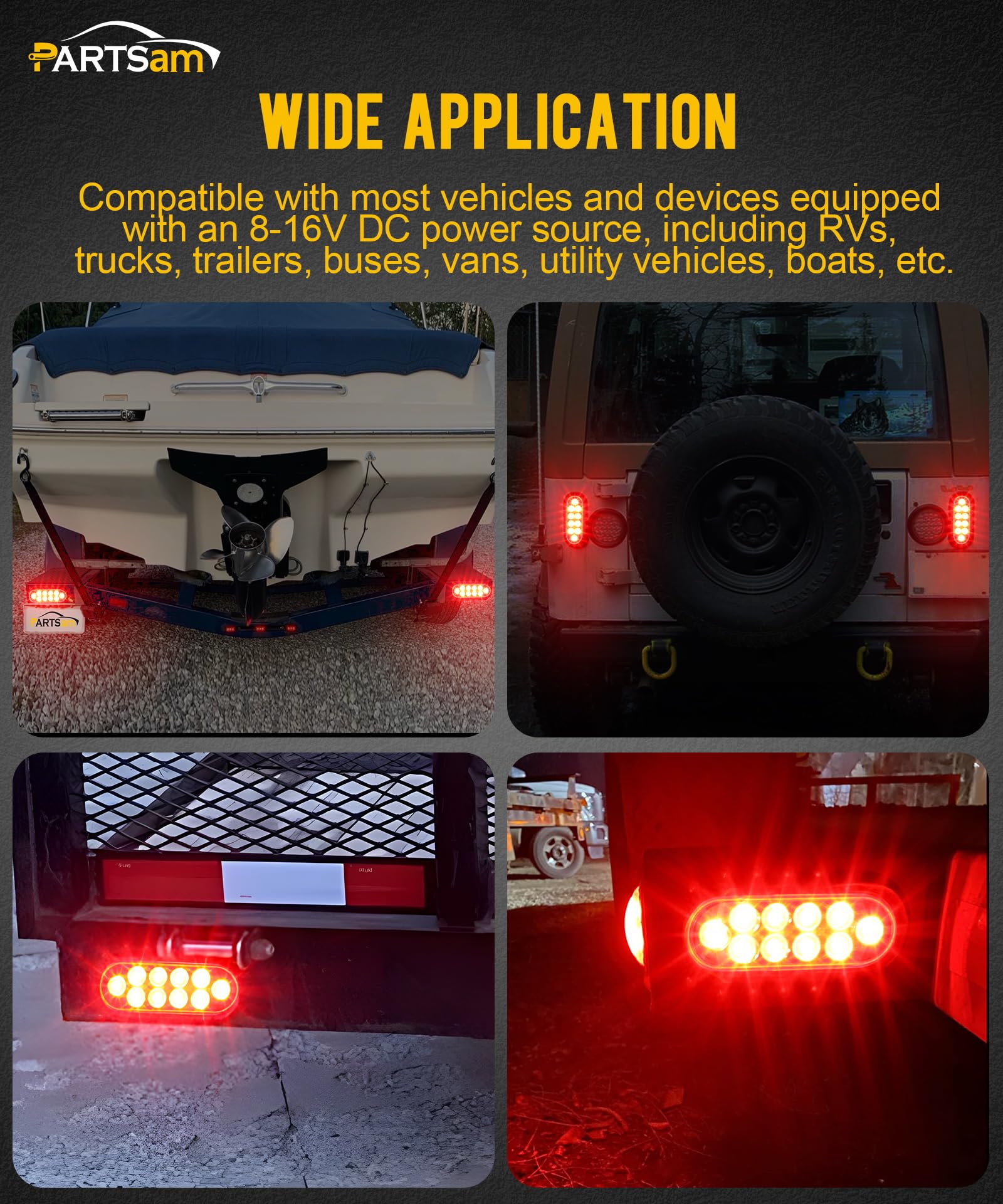

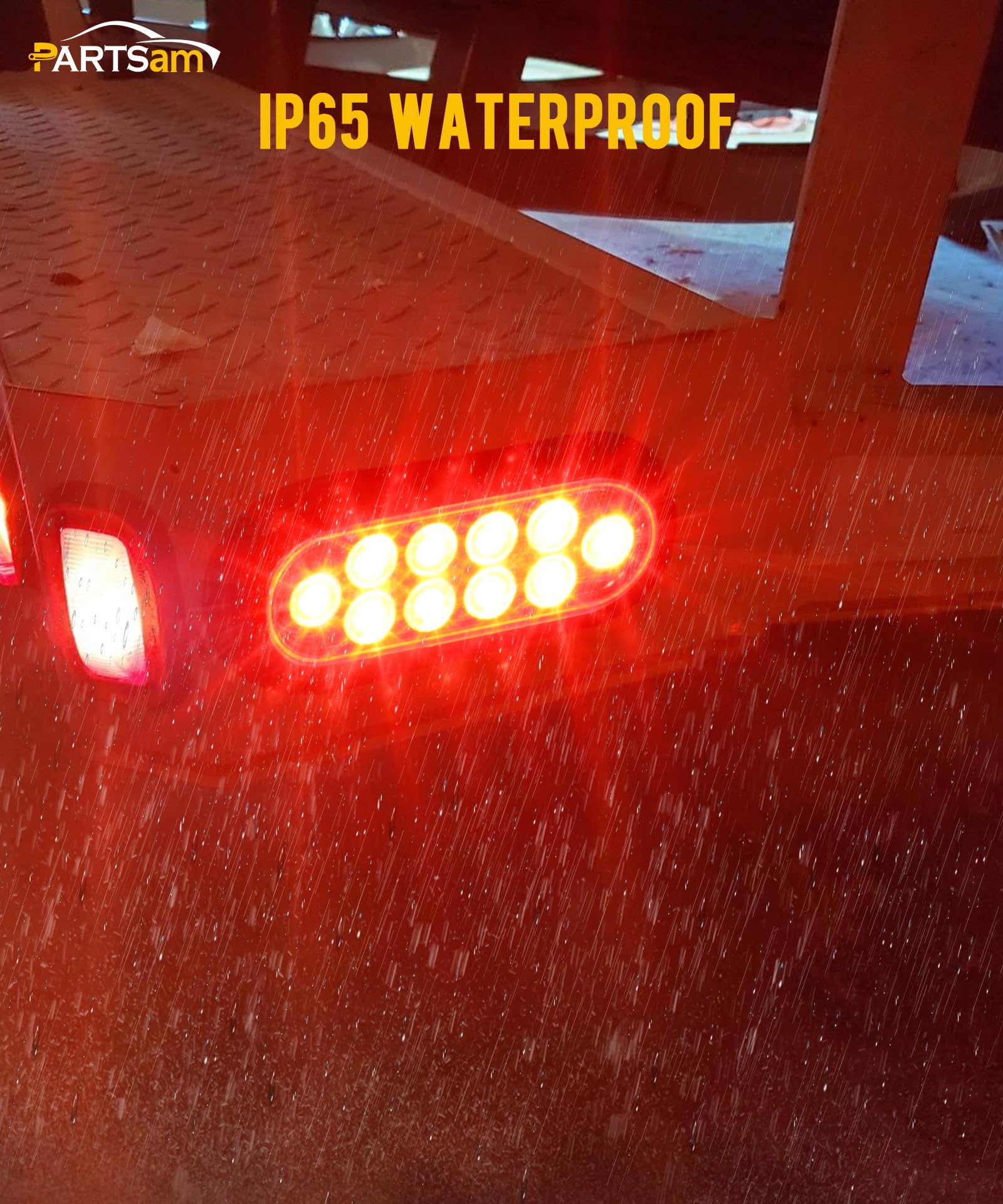

Partsam constructed these lights with heavy silicone sealing and an IP65 rating to resist rain, road spray and dust ingress. They operate on 8–16 V DC systems, making them compatible with a wide range of trailers, trucks, RVs and utility vehicles. The set is marketed as DOT-compliant for use where regulatory conformity is required.

• IP65-rated sealing to resist water and dust
• Works with 8–16 V DC electrical systems
• Suitable for trailers, RVs, pickup trucks, semi-trailers and more

What are the physical dimensions and package contents?

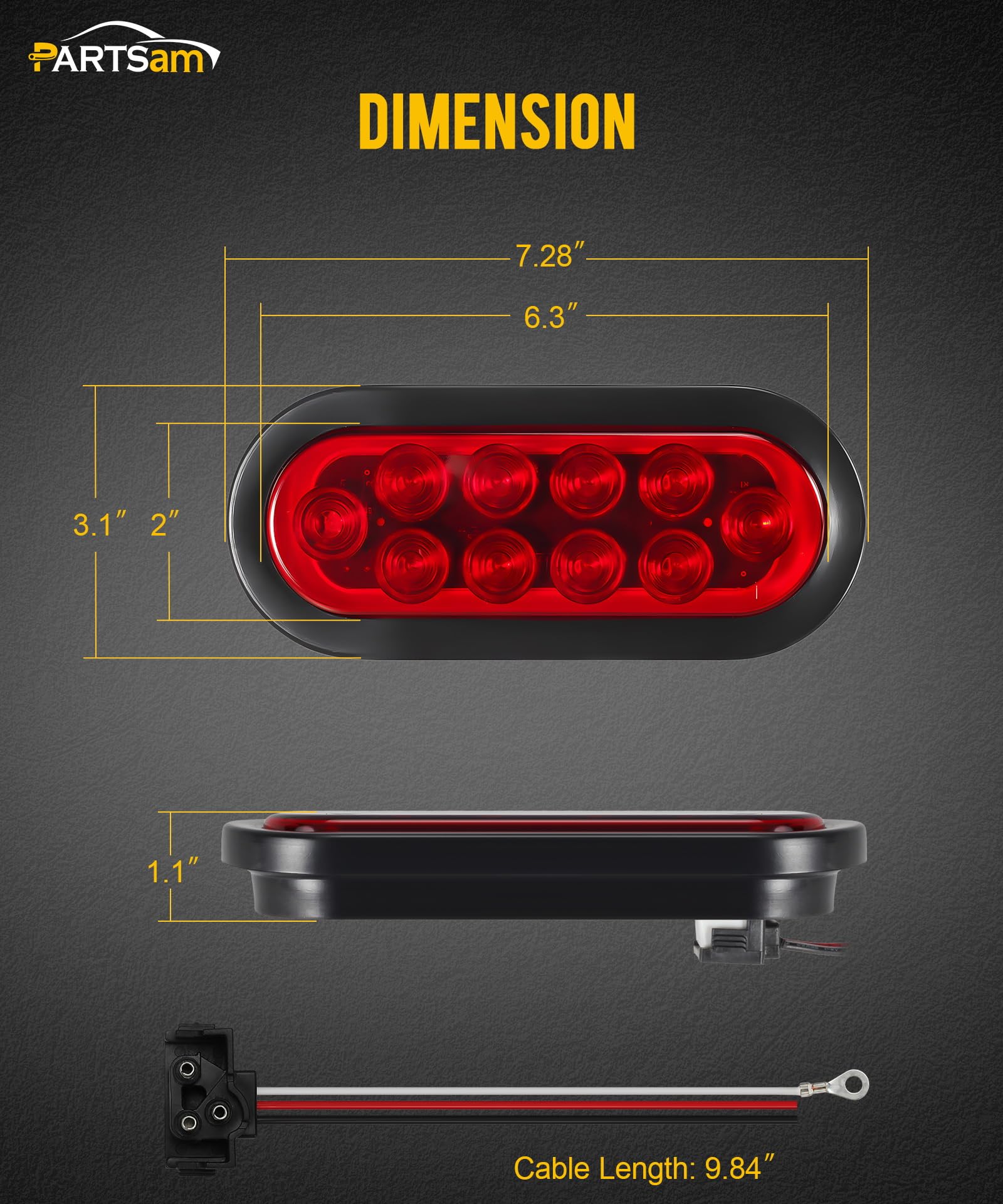

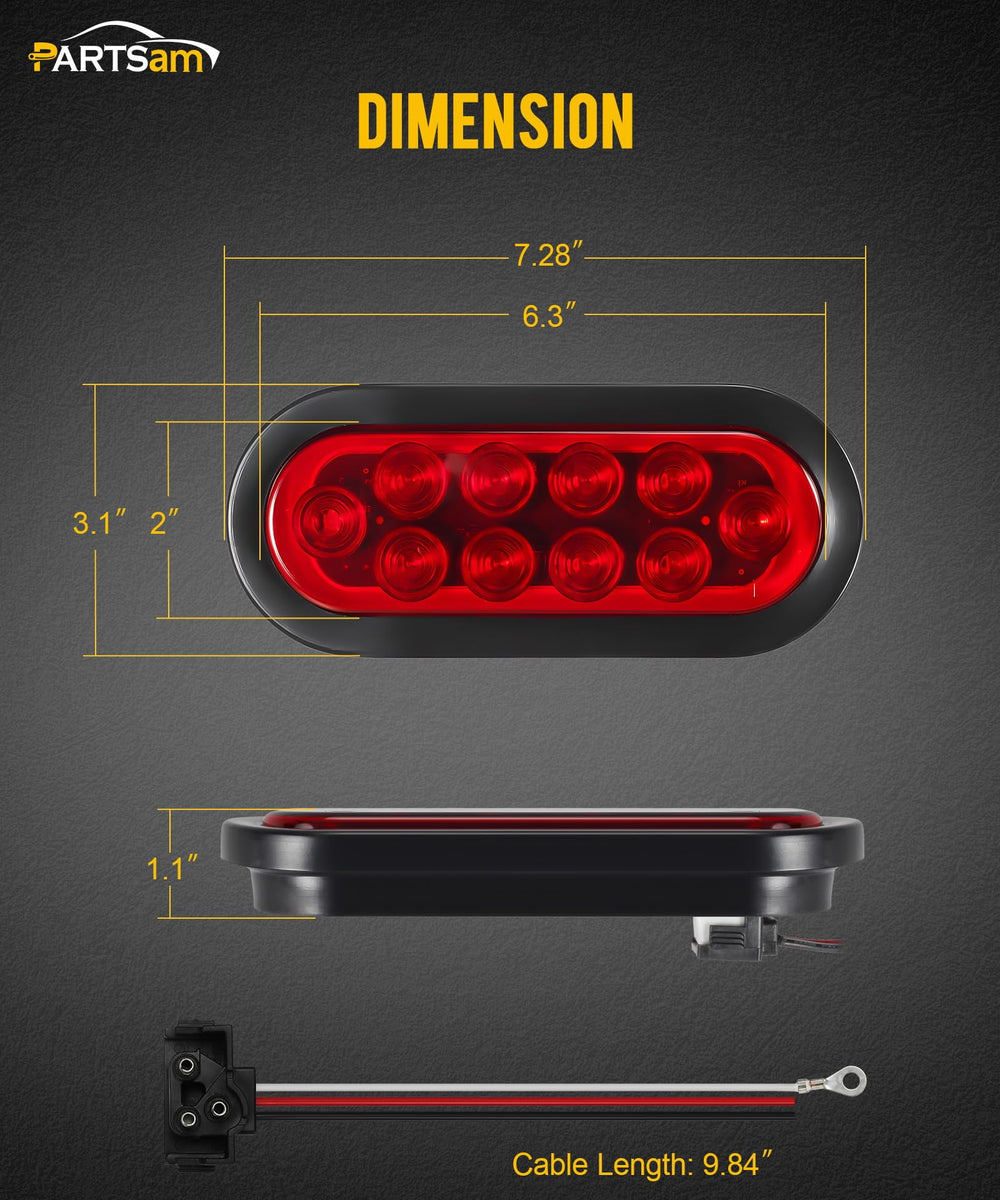

Each lamp measures approximately 6 1/3" x 2" x 1" without grommet and about 7 1/3" x 3 1/8" x 1 1/8" with grommet installed. The shipment contains ten identical oval LED tail lights plus matching rubber grommets and 3-prong wire pigtails to complete wiring on multiple vehicles or trailers. The size and kit contents make this a convenient bulk replacement set for fleets or owners with several trailers.

• Individual lamp size: ~6 1/3" x 2" x 1" (no grommet)
• With grommet: ~7 1/3" x 3 1/8" x 1 1/8"

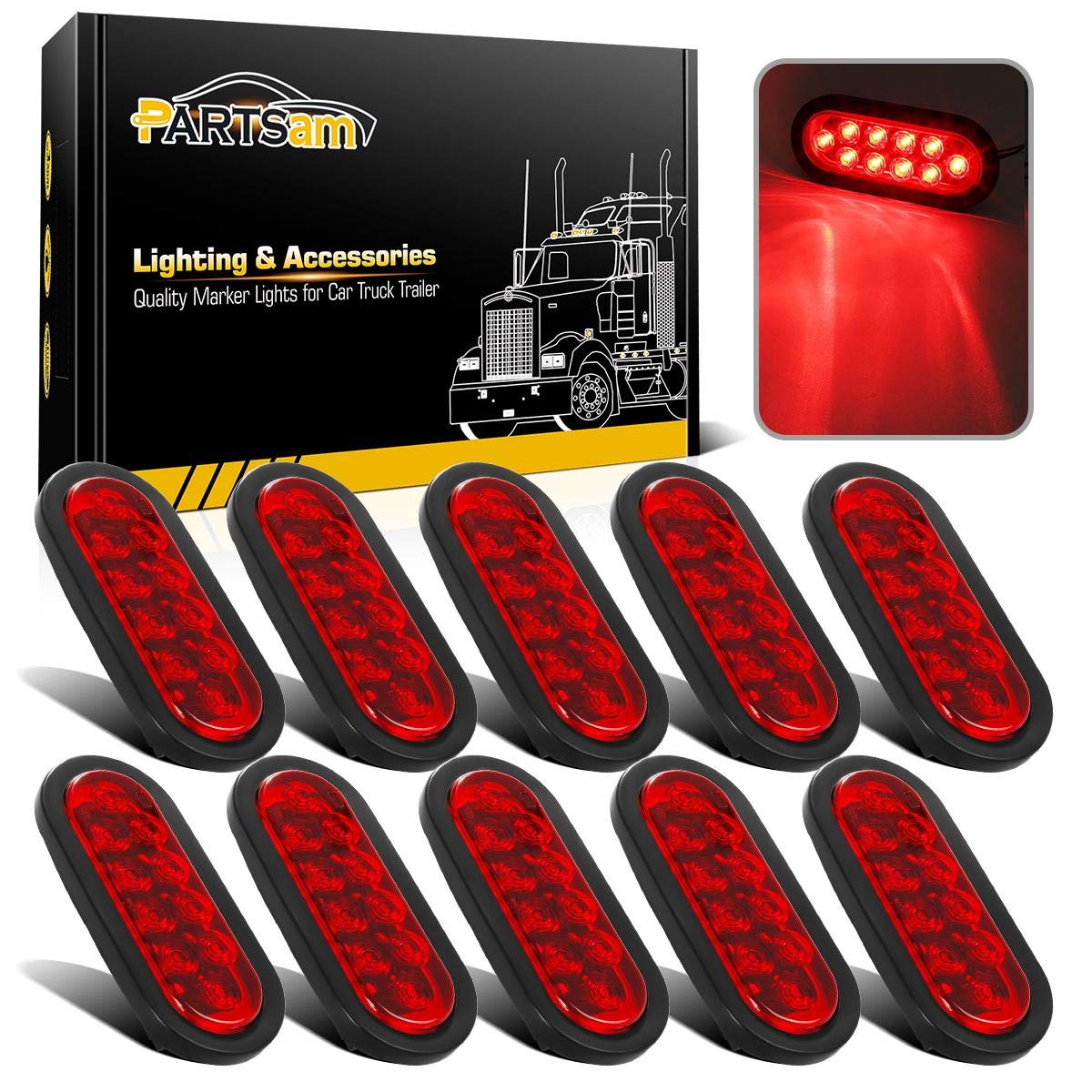

• Package: 10 lights, 10 rubber grommets, 10 three-prong pigtails

Who is this for? These Partsam LED oval tail lights are aimed at trailer owners, fleet managers, RV and truck operators, and anyone who needs a reliable bulk replacement set. They work well for service vehicles, horse and utility trailers, pickup trucks, and commercial trailers that require bright, low-draw lighting and weather resistance. Choose this kit if you want a practical, plug-ready solution for multiple vehicles or to keep spare lights on hand for maintenance.
