Partsam 15-inch LED Tail/Stop Light Bar — Clear Lens Red, 11-LED Flange-Mount Sealed

Partsam 15-inch 11-LED clear lens red light bar is a sealed, flange-mount stop/turn/tail lamp designed for trailers, trucks, RVs and other heavy-duty vehicles.

This slim, surface-mounted LED bar delivers high-visibility brake, turn, and running light functions in a compact 15.5" housing. Built with 11 high-output diodes behind a clear polycarbonate lens and sonic-welded to a rugged housing, the lamp resists moisture and road spray for reliable service on trailers, work trucks, campers, and off-road rigs. The unit is flange-mounted for straightforward installation and hardwired with three color-coded conductors for separate tail and brake circuits.

How bright and durable is this 11-LED light bar?

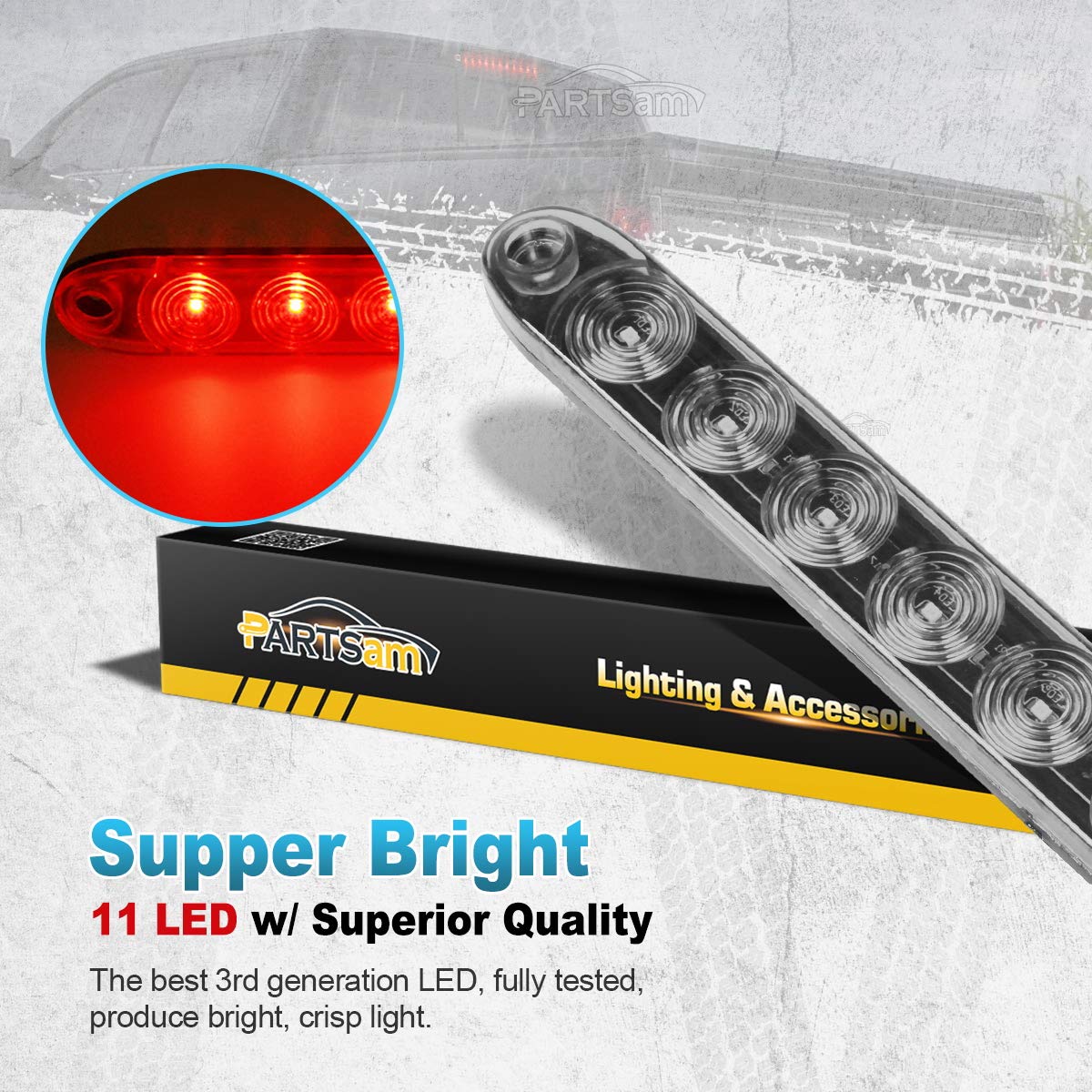

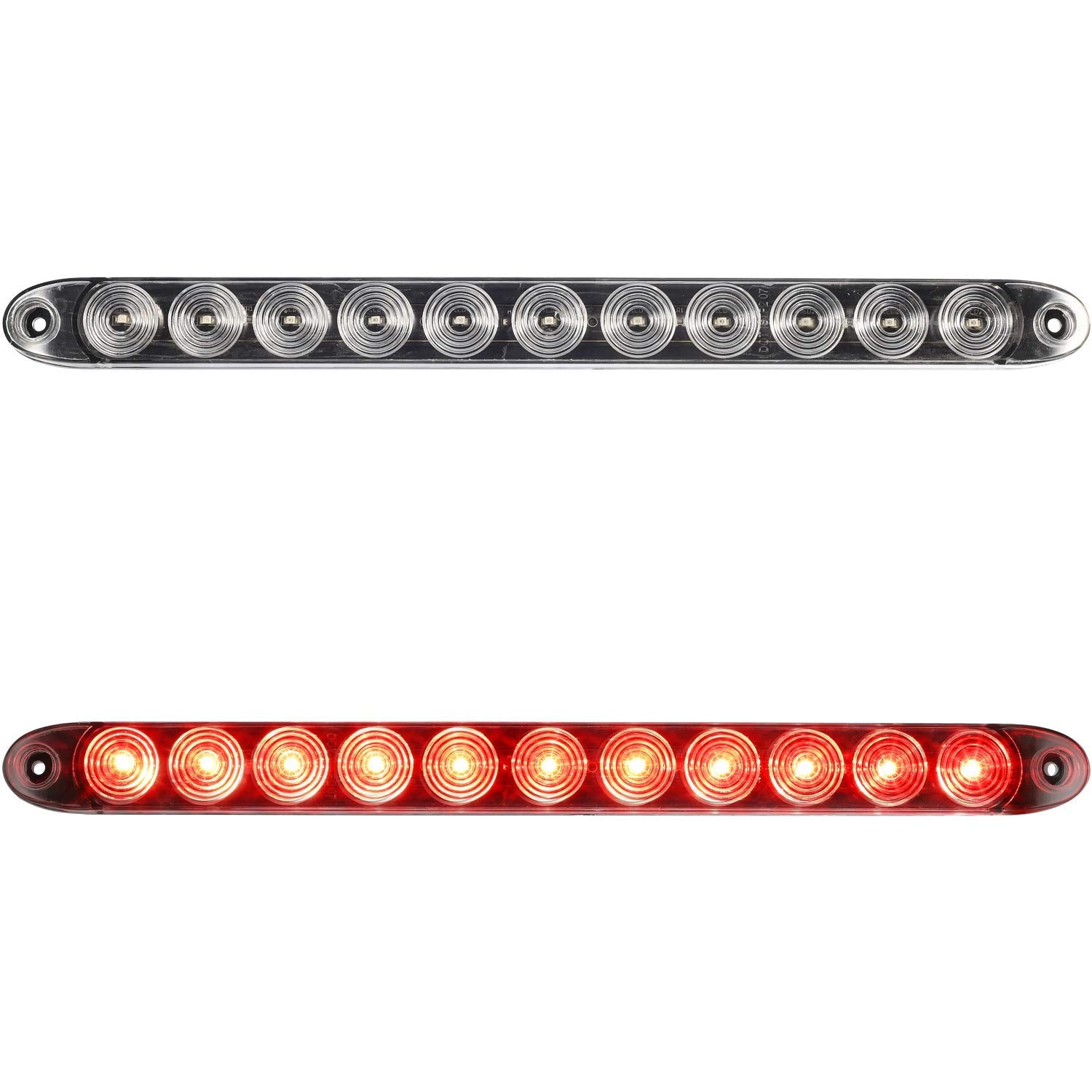

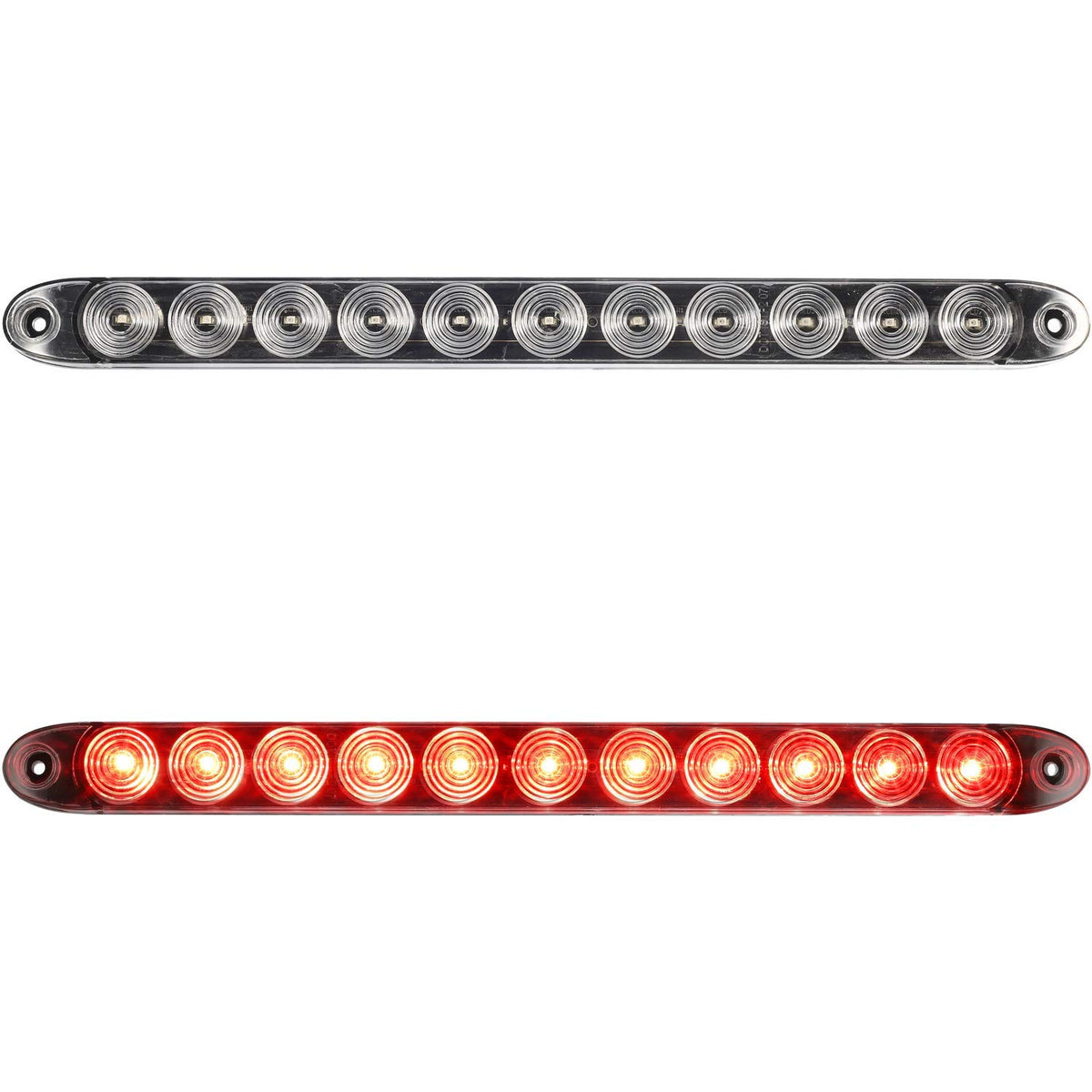

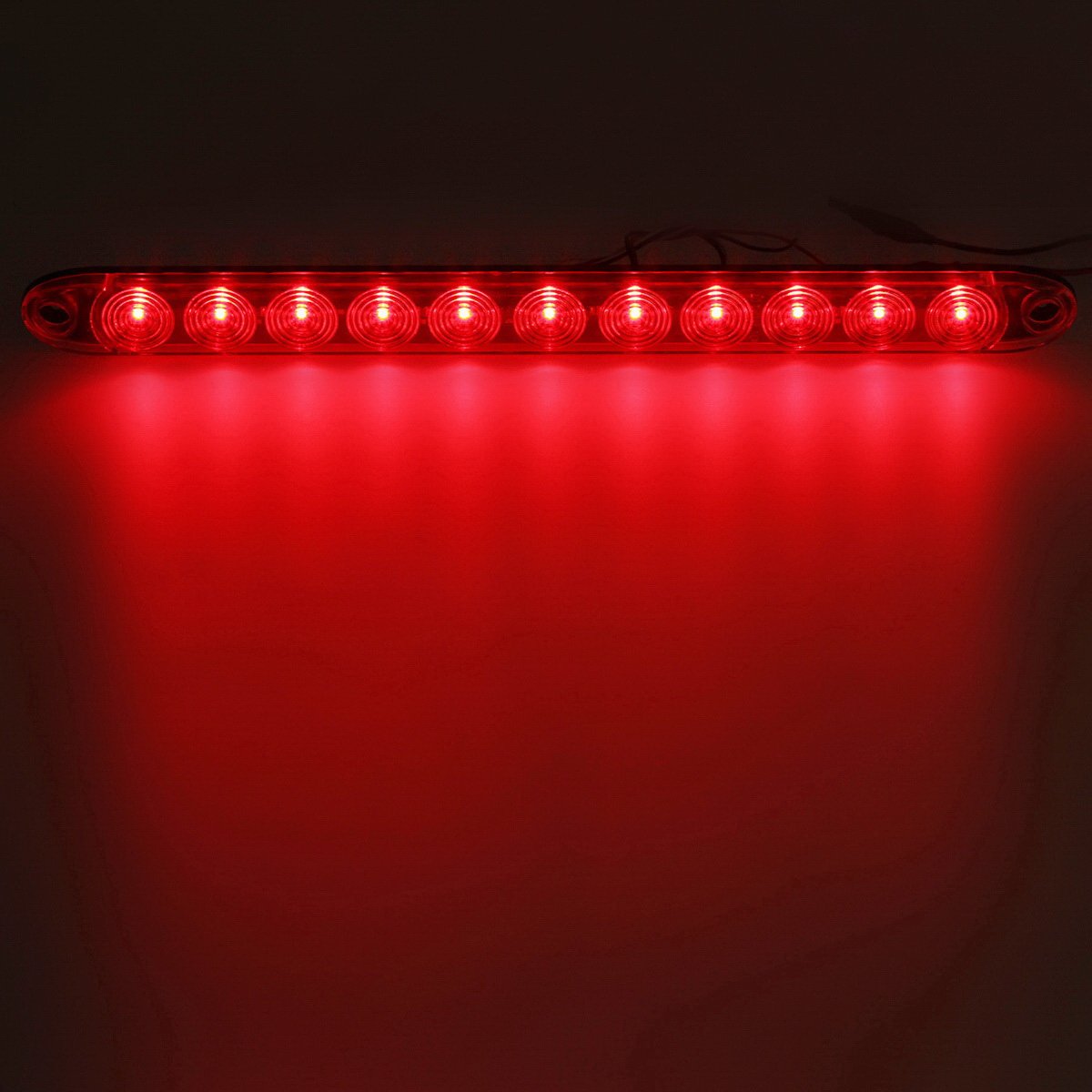

The bar uses 11 super-bright diodes that provide crisp red illumination for stop, turn and running functions. The clear polycarbonate lens and sonic-welded housing keep the LEDs protected while maintaining optical clarity for visibility in daylight and low-light conditions.

• 11 high-output red LEDs for consistent brightness

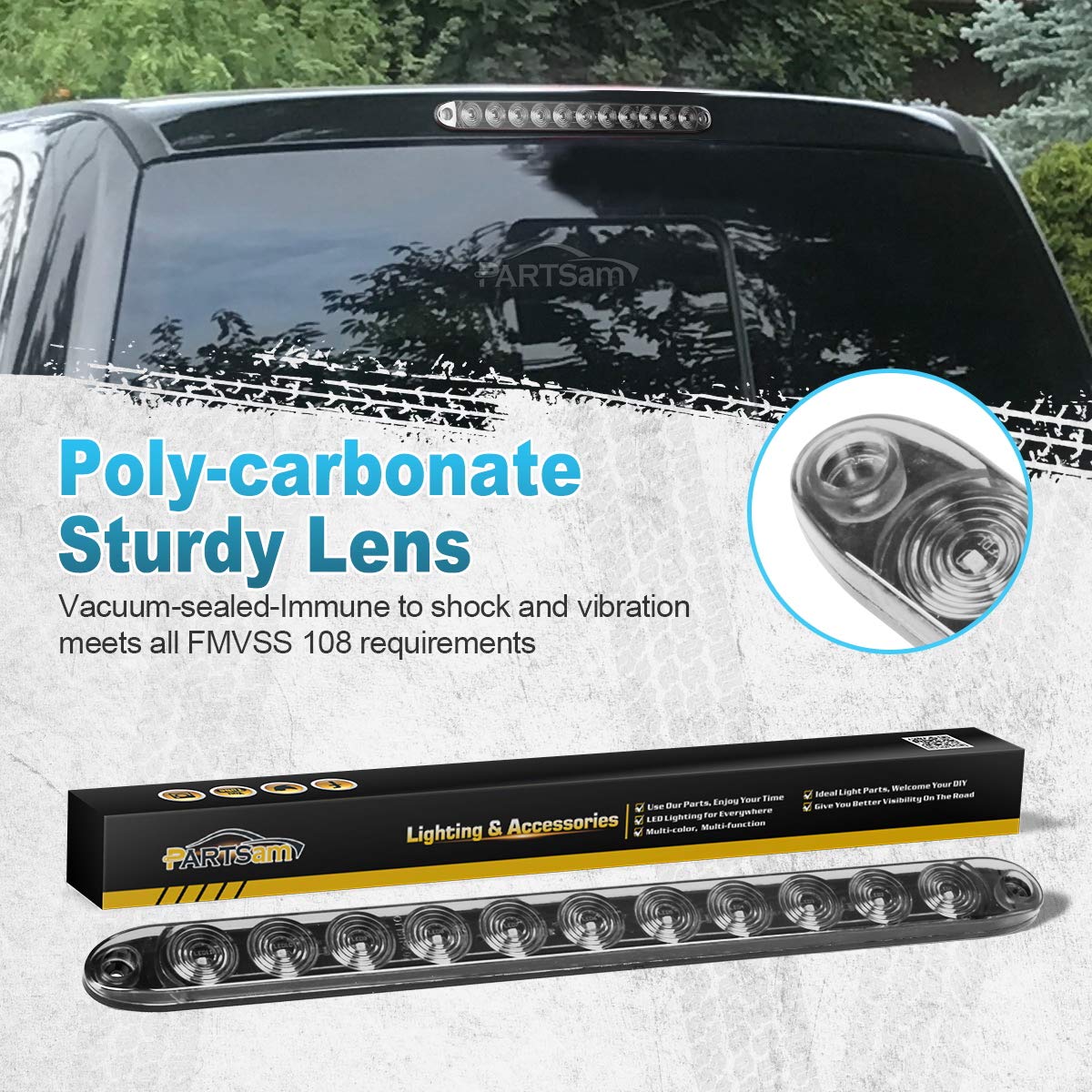

• Clear polycarbonate lens resists impact and yellowing
• Sonic-welded, fully sealed housing for water and dust resistance
• Flange-mount design prevents lens separation under vibration

What wiring and functions does the light bar support?

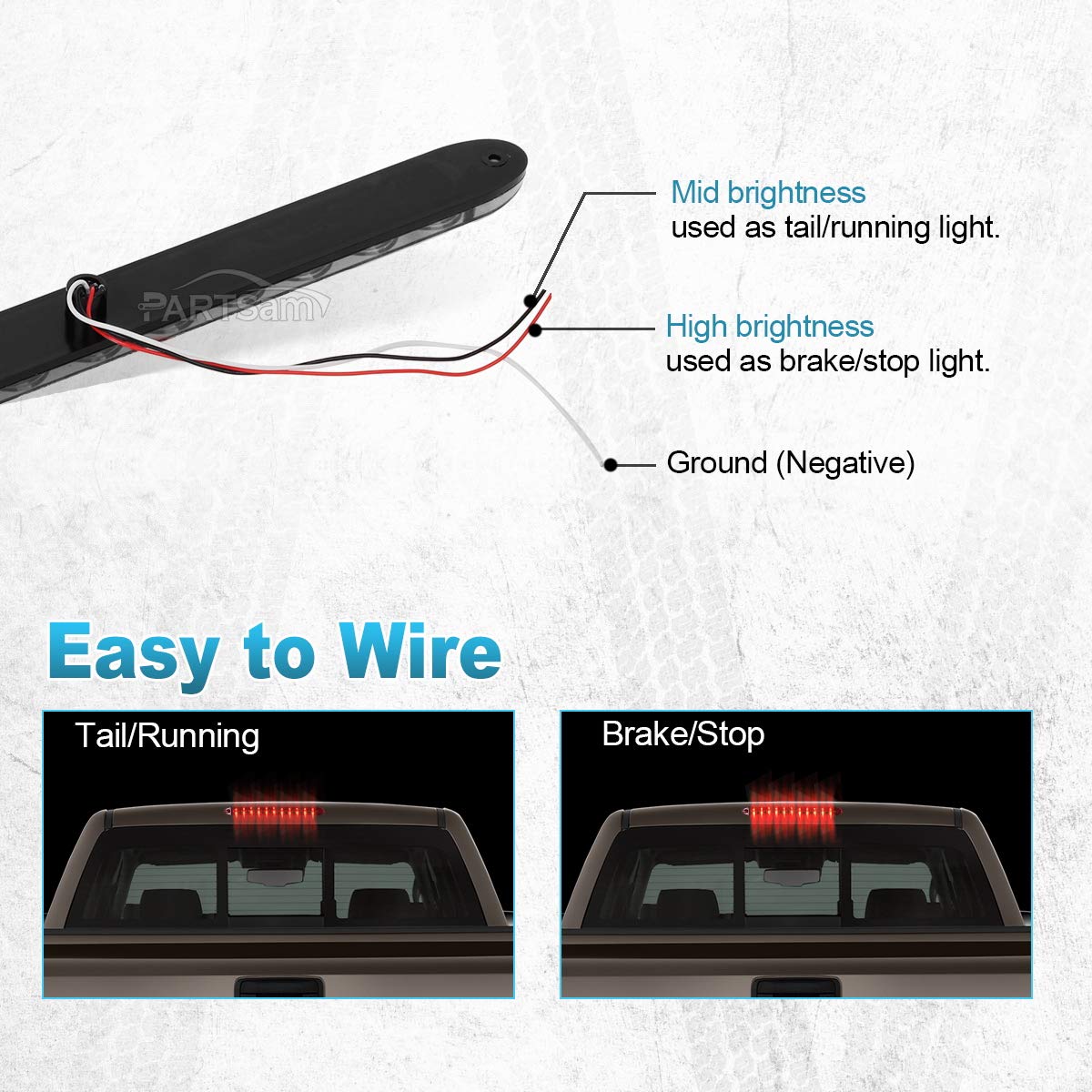

The light bar is hardwired with three leads so you can connect separate circuits: ground, low-brightness tail/running, and high-brightness stop/brake. Note that the design does not allow the stop and tail circuits to be lit simultaneously on the same LED array—each LED provides either low or high output depending on which circuit is energized.

• White wire = ground
• Black wire = low-brightness tail/running light
• Red wire = high-brightness stop/brake light
• Requires proper wiring to avoid simultaneous tail/stop conflict

What are the physical dimensions and mounting details?

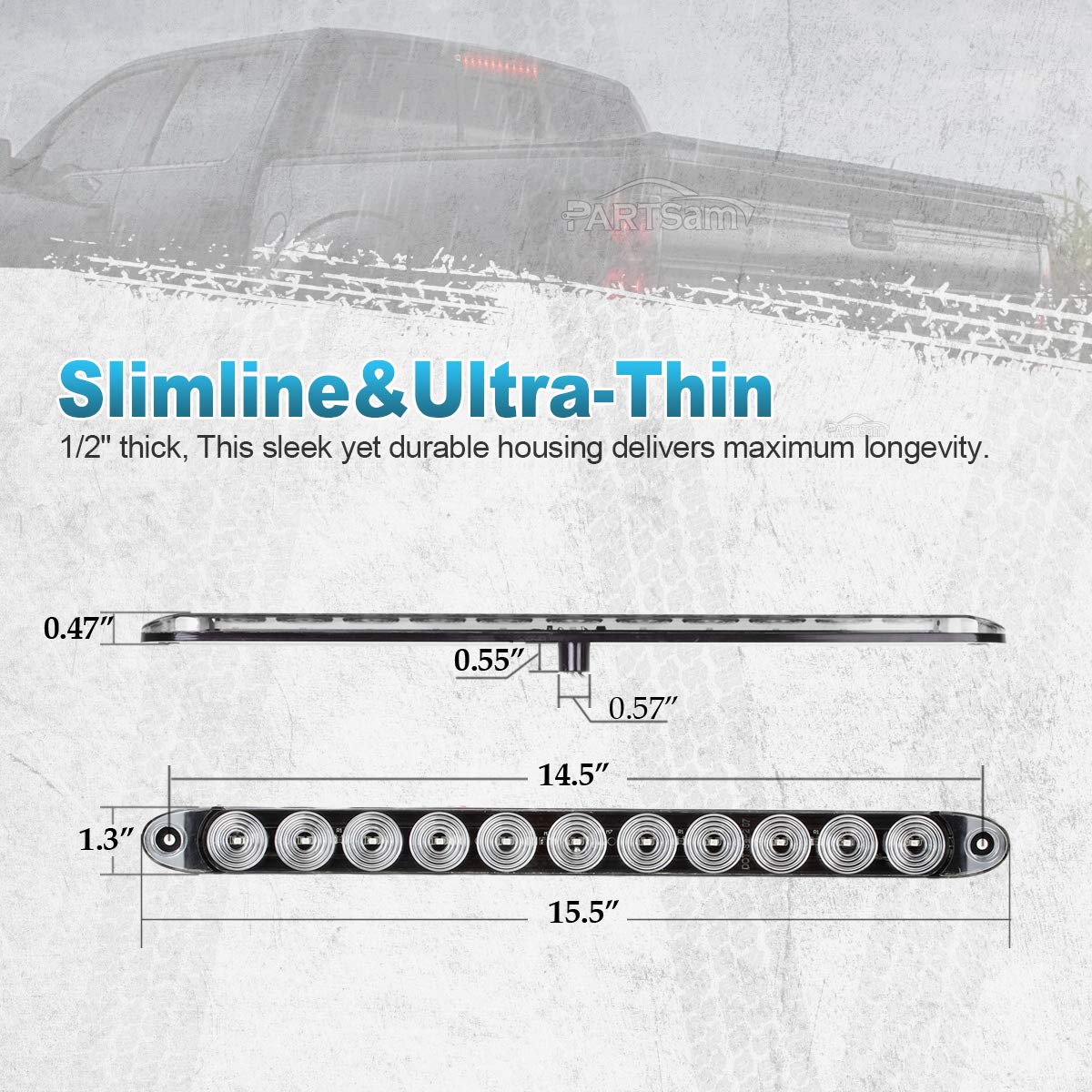

The lamp measures approximately 15.5" long, 1.25" tall and 0.5" deep, with mounting holes spaced 14.5" center-to-center for flange installation. Its low-profile footprint keeps the bar unobtrusive on vehicle rear surfaces while offering secure attachment on trailers, truck beds, or RV rear caps.

• Overall length: 15.5 inches
• Height: 1.25 inches; depth: 0.5 inches
• Mount hole center-to-center: 14.5 inches
• Surface/flange mounting with pre-drilled locations

Where can I use this lamp and what vehicles is it compatible with?

This LED bar is engineered for a wide range of heavy-duty and recreational applications—anything that needs a durable ID/marker, tail, brake, or turn signal. It's commonly used on enclosed trailers, utility trailers, semi-trucks, pickup trucks, campers, RVs, and off-road vehicles like Polaris RZR models.

• Trailers: enclosed, utility, car haulers
• Trucks and commercial vehicles: pickups, work trucks, semis
• Recreational vehicles: RVs, campers, ATV/UTV racks
• Also fits custom or retrofit projects requiring a thin ID bar

Who is this for: The Partsam 15" 11-LED light bar is aimed at vehicle owners and fleet operators who need a low-profile, weatherproof rear lamp that combines marker, tail, stop and turn functions in one sealed unit. Installers, trailer builders, and DIYers who value straightforward flange mounting and clear wiring color-coding will appreciate its durable construction and broad vehicle compatibility.
