Partsam 16-LED Universal Stop Tail Turn Backup Lights - Red/White, 12V Waterproof Dual-Function Pair

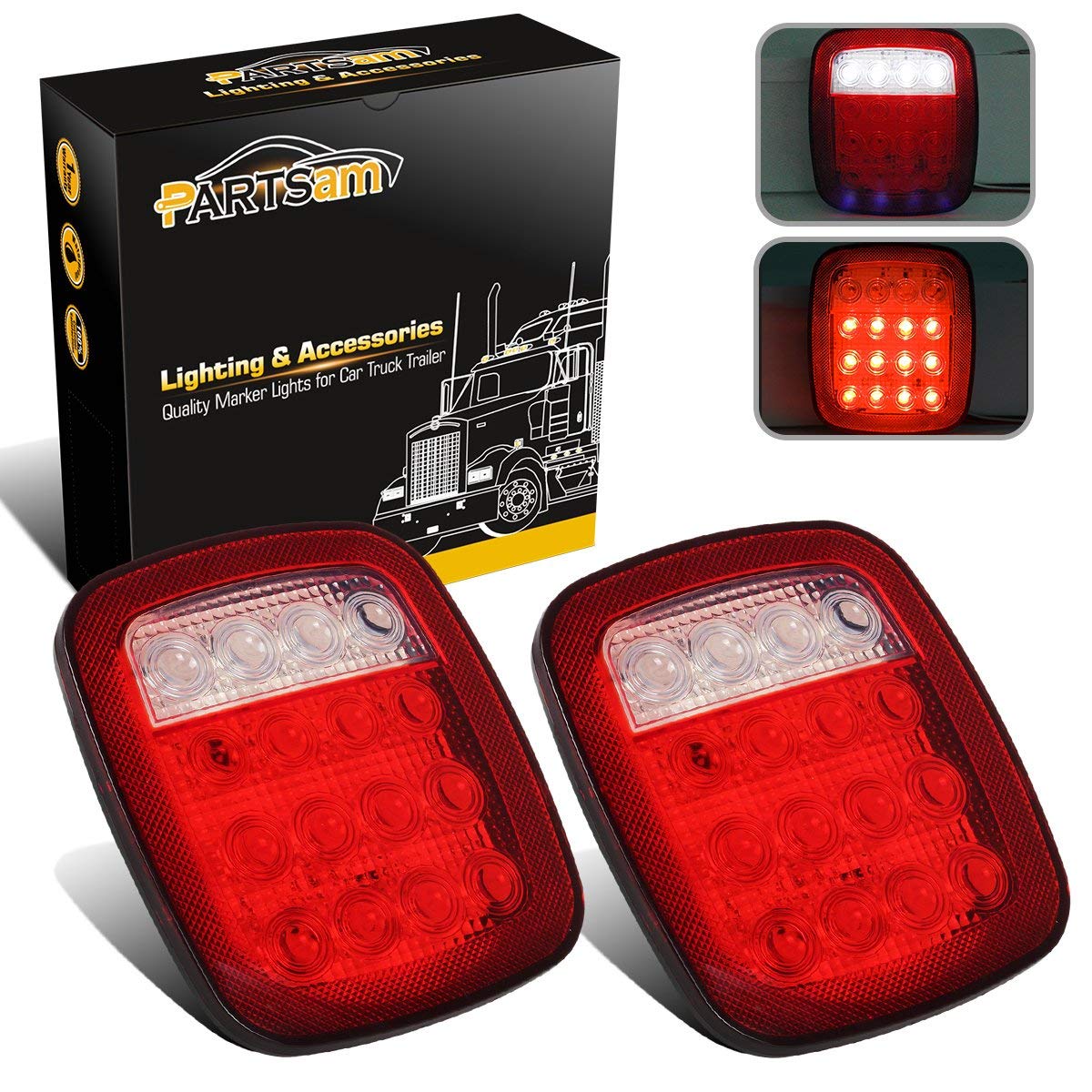

These are two universal Partsam 16-LED combination lights that serve as stop, turn, tail and reverse backup lamps for 12V vehicles.

Built as a compact, square replacement lamp set, these Partsam lights combine red LEDs for braking/turn/tail functions with white LEDs for reverse illumination. They’re designed to fit a wide range of trucks, trailers, Jeeps (after modification), RVs and other 12V applications where a single multi-function light is preferred. The housing is weatherproof for exterior mounting and each unit contains 16 individual LEDs laid out to separate red and white functions clearly.

How do these lights perform as stop, turn, tail and backup lamps?

The lights integrate multiple circuits inside one housing so one assembly handles braking, signaling and reverse illumination. Red LEDs light for stop/turn/tail functions while white LEDs engage for reverse, giving clear visual separation between modes without extra fixtures.

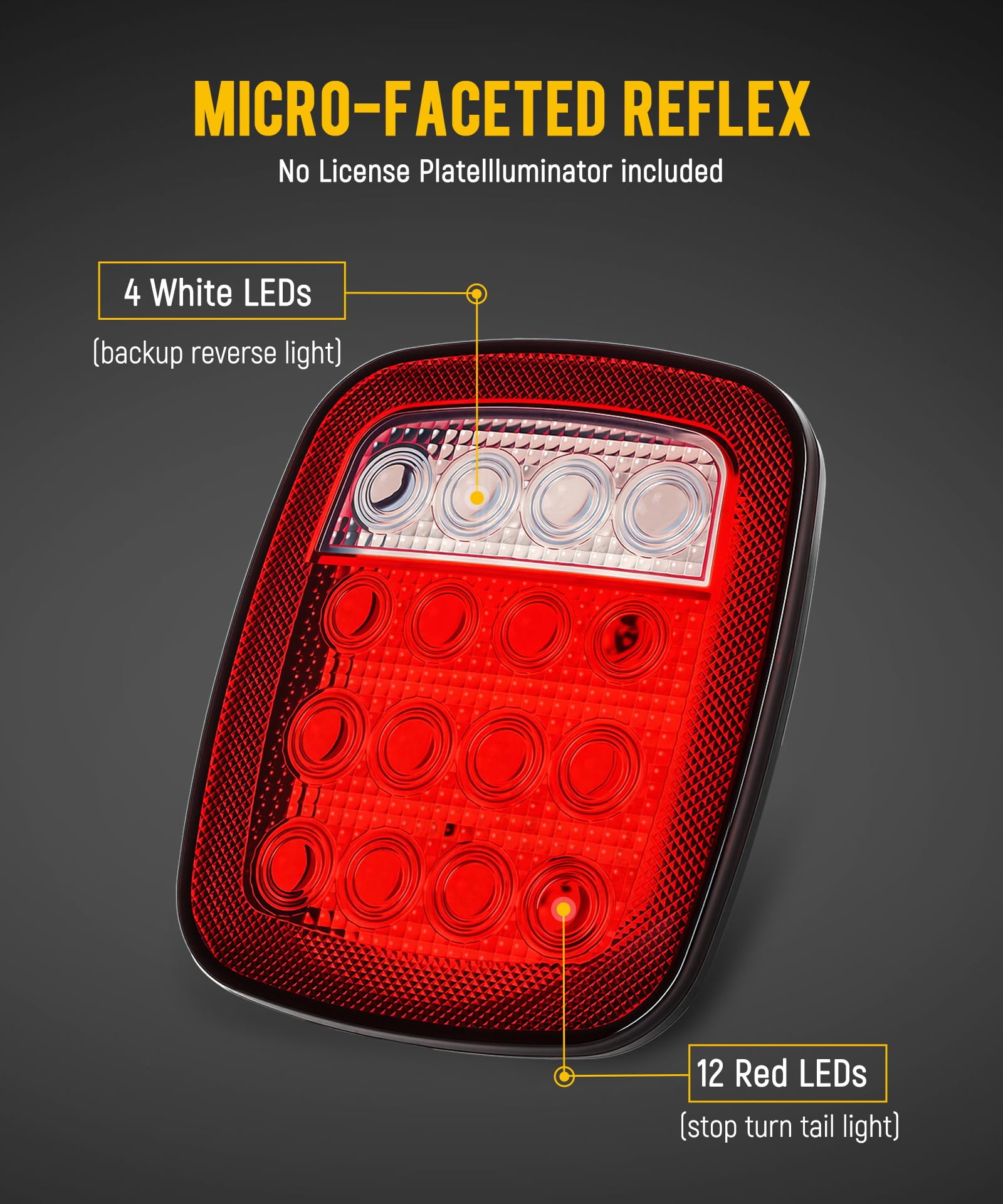

• 12 red square LEDs for stop, turn and tail indications.
• 4 white square LEDs dedicated to backup/reverse lighting.
• Combined-reflector design improves visibility while reducing installations.
• Standard 12V operation suitable for most light-duty vehicles and trailers.

What wiring and installation steps are required?

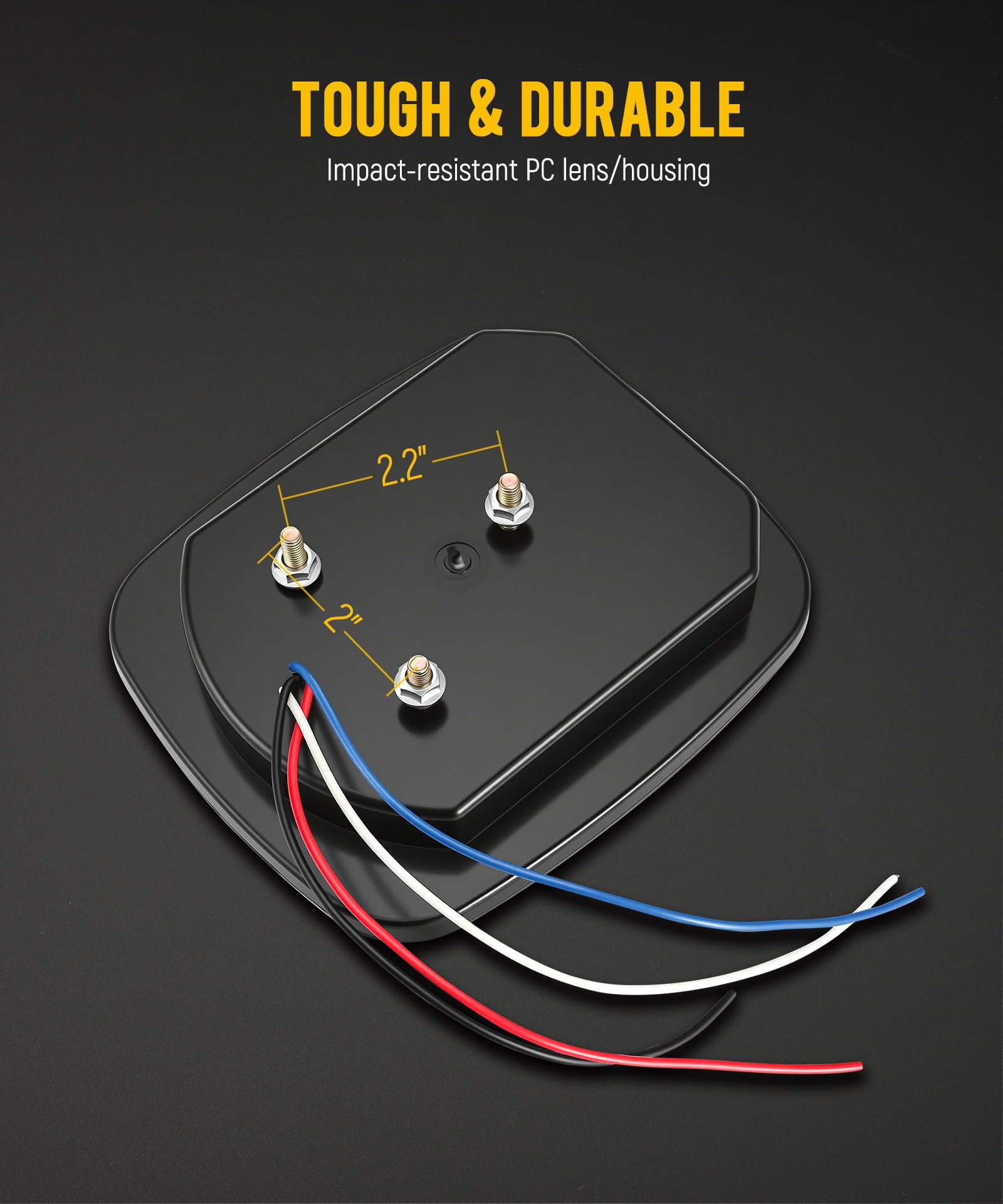

Installation follows a simple multi-wire hookup where each wire controls a different brightness or function. The white wire is the ground; pairing it with colored wires selects high/low brightness or reverse mode. Some applications (notably many Jeep models) may require modification or custom mounting rather than a direct factory swap.

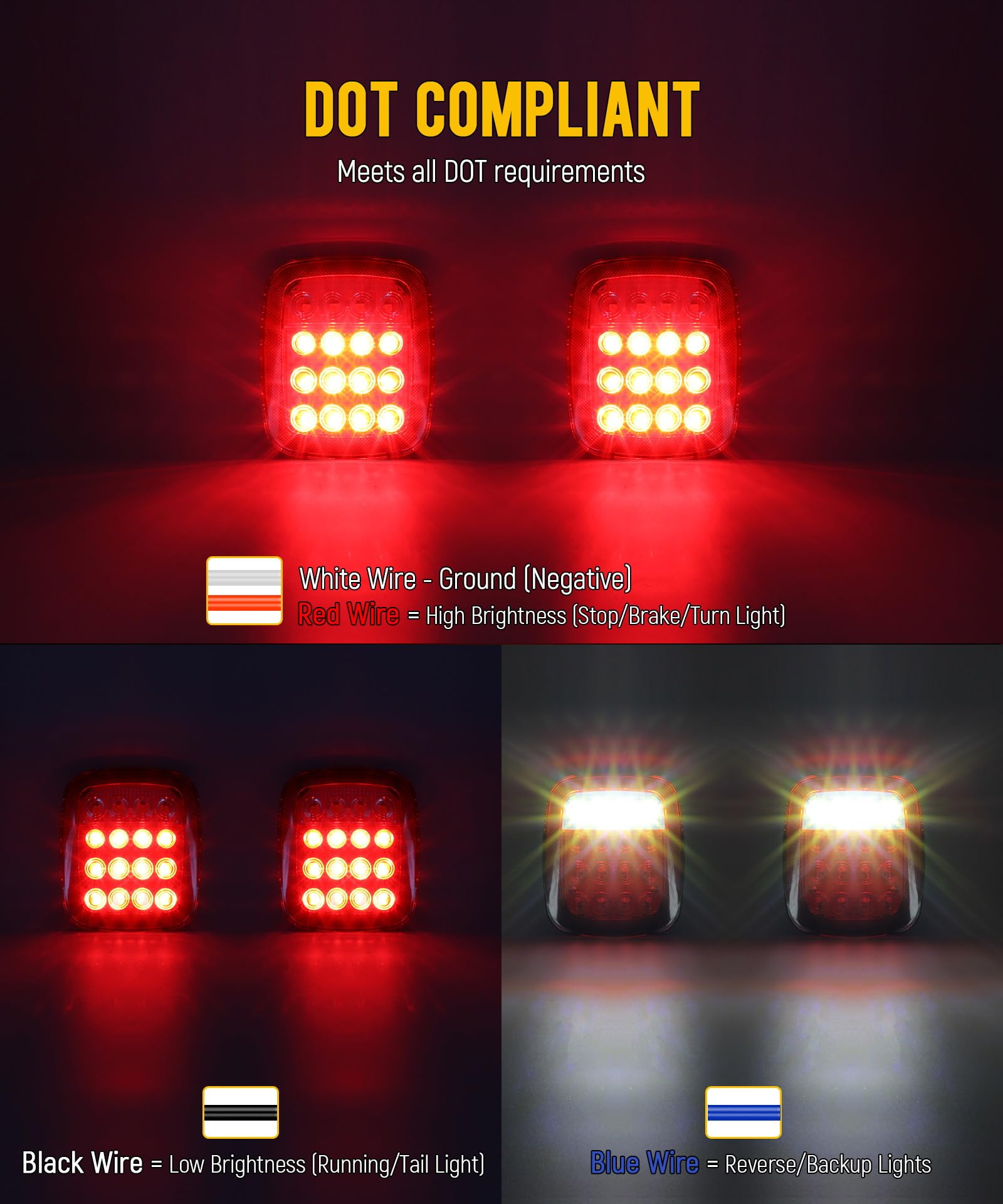

• White = ground; White + Red = high-bright red (stop/turn/high tail).
• White + Black = lower-bright red (tail/parking mode).
• White + Blue = white LEDs for reverse/back-up light.
• Requires basic wiring skills and may need bracket or hole modification for certain vehicles.

Are these lights compatible with my vehicle and mounting options?

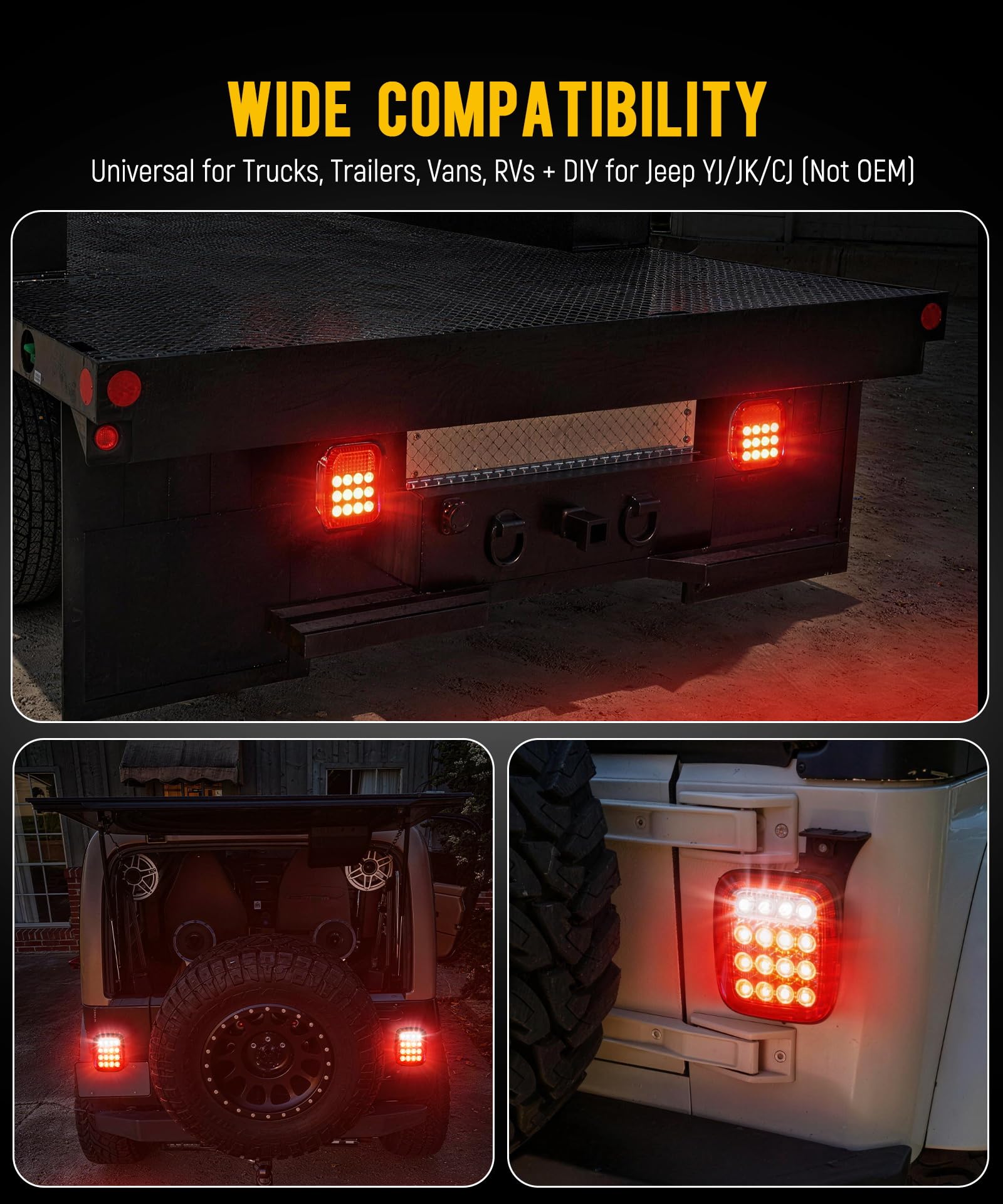

These are universal lamps intended for many 12V platforms: trailers, trucks, RVs, vans and various Jeep builds. They are not direct OEM replacements for factory-specific housings; expect to drill, adapt or fabricate a mounting solution for some makes and models. License plate illumination is not included, so you’ll need a separate light if required.

• Works on most 12V systems including trailers, trucks, SUVs and boats (check polarity and fuse ratings).
• Not a factory OEM Jeep light—modification required for YJ, JK, CJ models.

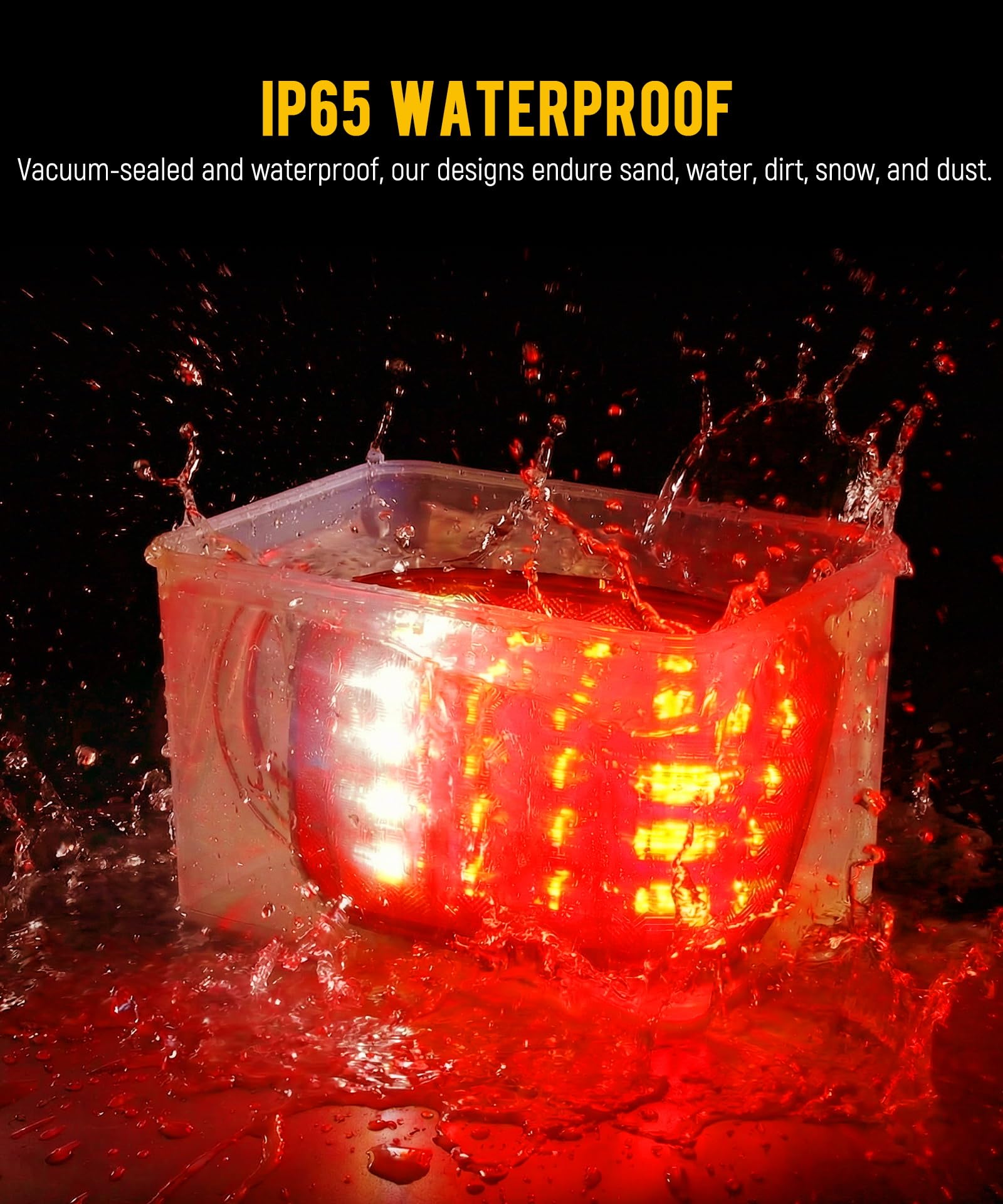

• Waterproof housing suitable for exterior mounting in exposed locations.
• Doesn’t include a license plate lamp or side marker functions.

How durable and visible are the LEDs in real-world conditions?

The LEDs offer bright, focused output designed for signaling and backup visibility in varying weather. The sealed housing protects the circuitry from moisture and road spray, while the LED design reduces heat and draws low current compared with incandescent bulbs. For nighttime reversing or signaling in rain, the white backup LEDs and red signal cluster remain distinct for easier recognition by other drivers.

• Sealed, weather-resistant lens and housing for outdoor use.
• LEDs provide strong light with low power draw and long service life.
• Distinct red/white separation improves mode recognition by others on the road.
• Simple plug-and-splice wiring enables integration with existing vehicle circuits.

Who this is for: These Partsam dual-purpose lights suit DIYers, trailer owners, off-road builders and fleet operators who want a compact, multi-function lamp to replace multiple fixtures. Choose them if you need a weatherproof 12V stop/turn/tail plus reverse light solution and are comfortable with basic wiring and possible mounting adaptation. If you require a direct OEM swap with no modifications, verify fitment carefully before purchase.
