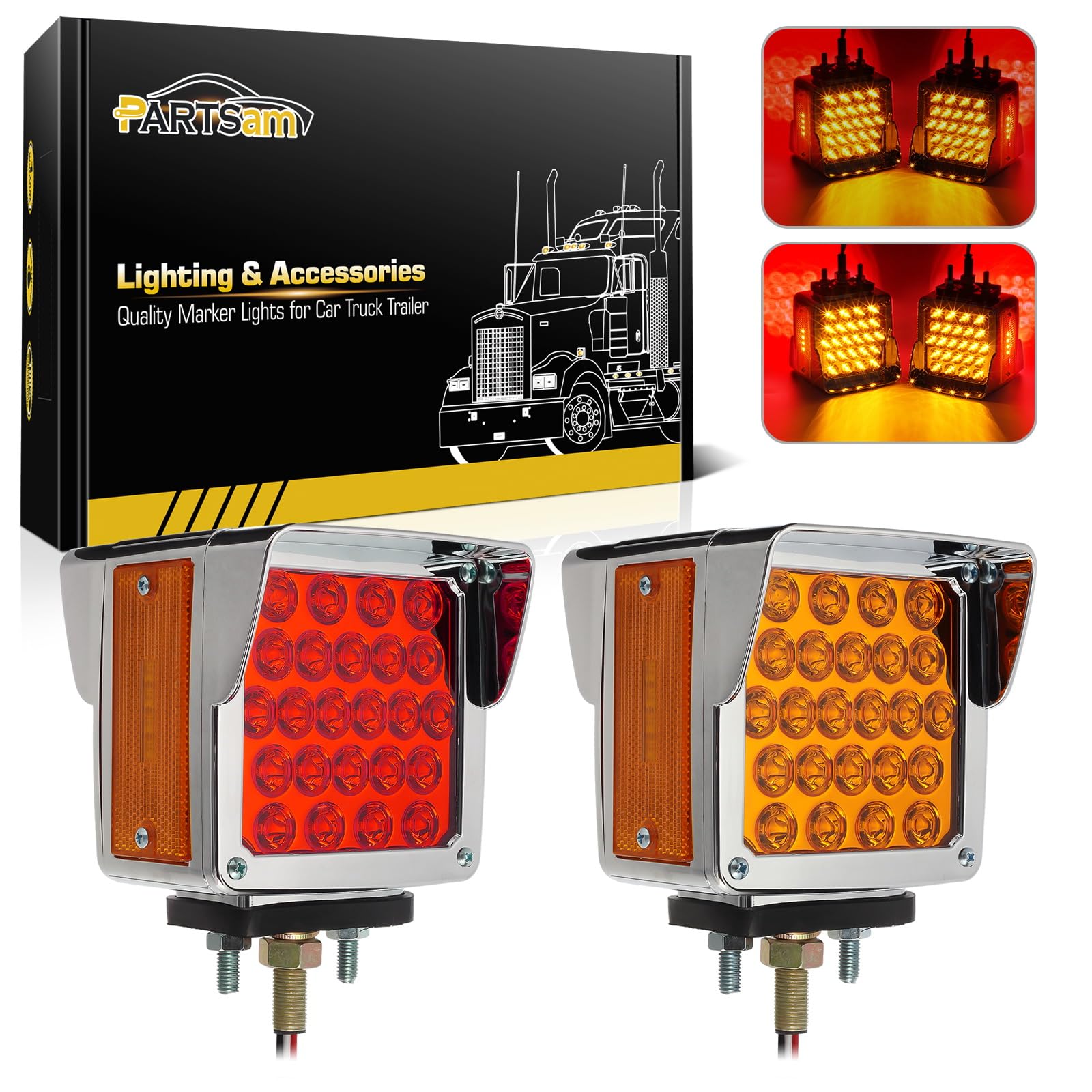

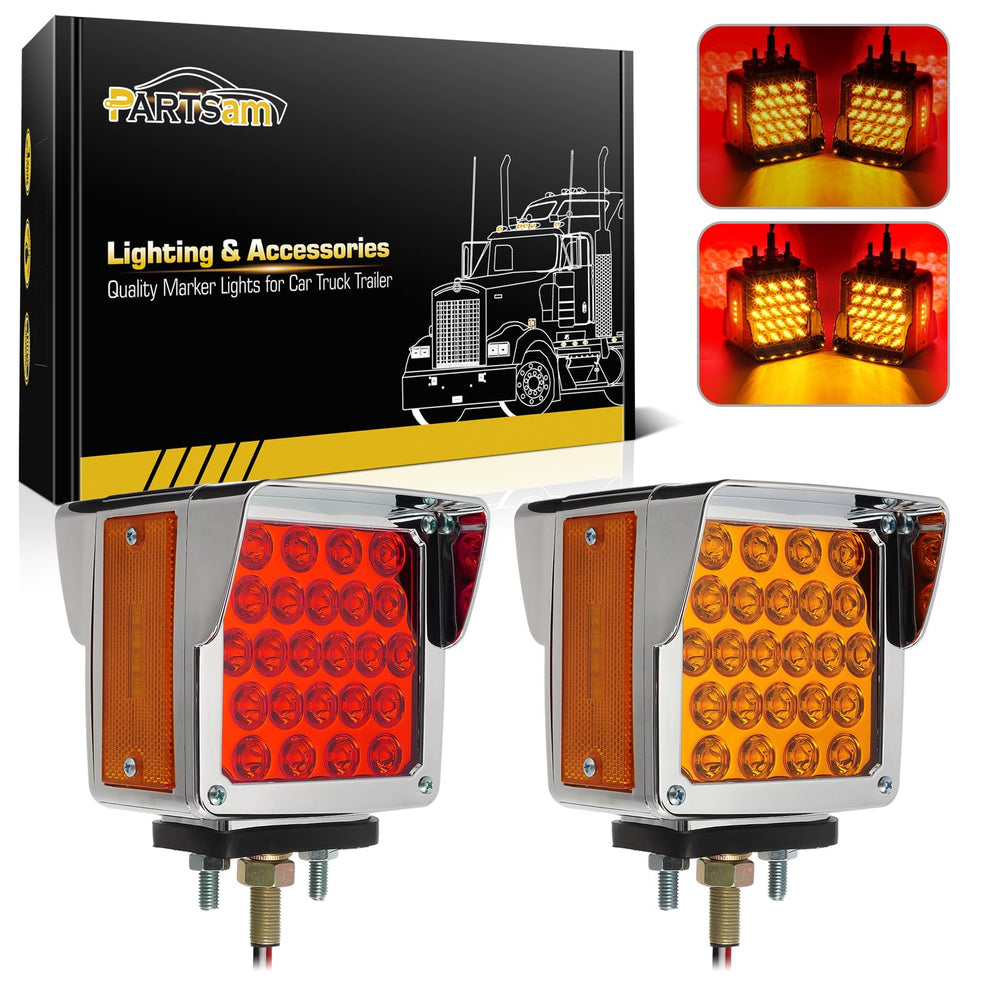

Partsam 52-LED Double-Face Truck Pedestal Light — Red/Amber Square, Chrome Bezel, IP67 Waterproof

This post-mounted LED assembly replaces traditional incandescent pedestal lights on heavy trucks and trailers. Built with 52 high-power LEDs (24 red, 24 amber, plus 4 amber side-marker LEDs), a chrome housing and a visor, the lamp combines visibility and a polished appearance while operating on standard 9–14.8 VDC systems. The housing is sonically sealed with a polycarbonate lens and rated IP67, so it tolerates wet conditions and road spray.

How does this light function as both stop/turn/tail and marker light?

The unit is double-faced: one side emits red for stop, turn and tail functions while the opposite face is amber for parking and rear turn signals. Internal wiring lets you select which faces and brightness levels illuminate, allowing flexible installation depending on vehicle wiring and local regulations.

• Red face: stop, turn and tail lighting (high visibility rear functions)
• Amber face: parking and rear turn signal functions plus side marker
• Integrated 4-LED amber side marker with reflex reflector for added lateral visibility
• Operates on 9–14.8 VDC — compatible with most truck electrical systems

What are the mounting, wiring, and compatibility details?

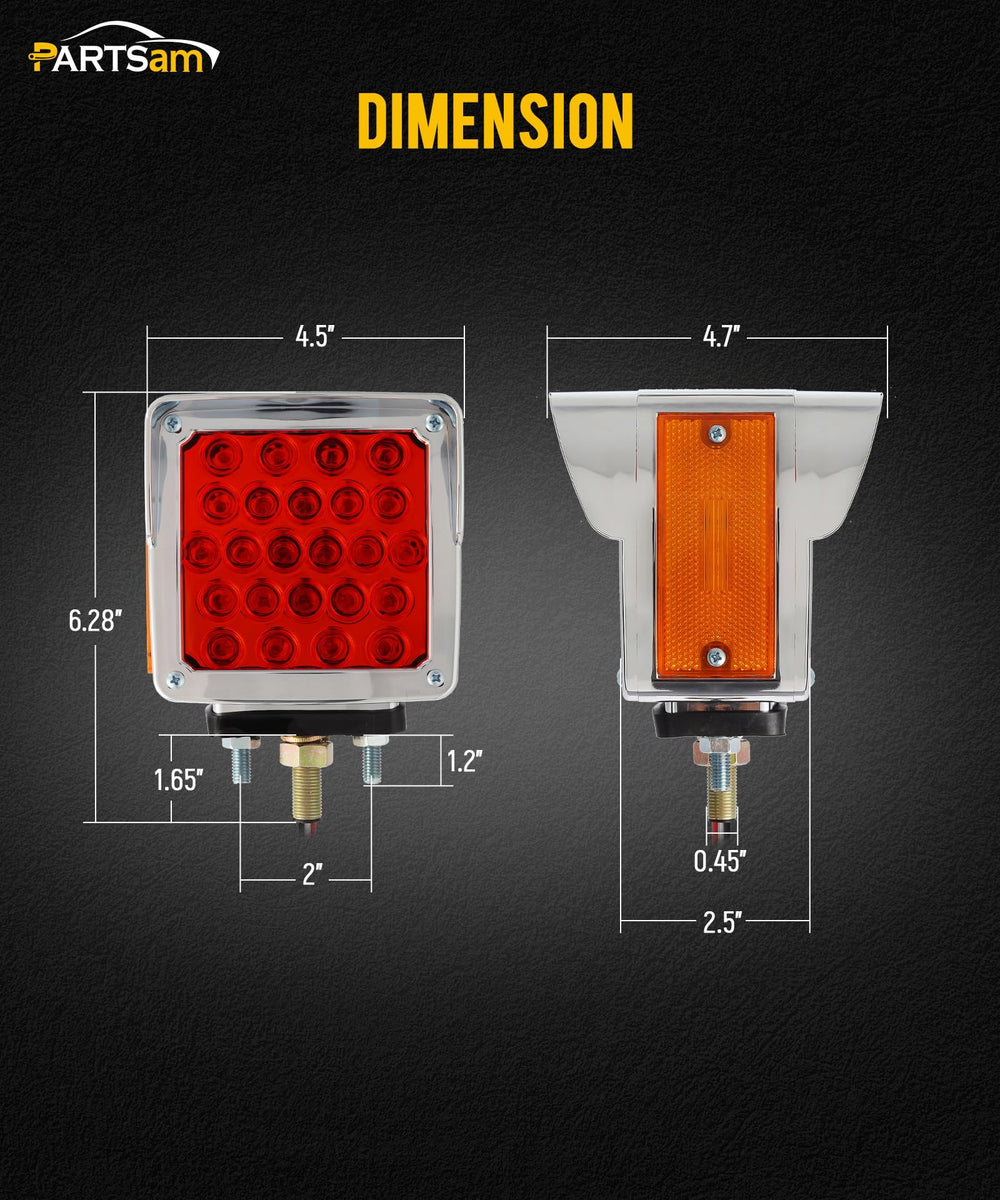

This square pedestal light uses a single stud mount and fits many common heavy-duty truck models, including Peterbilt, Kenworth and Freightliner lines. Wiring is color-coded for straightforward connections; follow the wiring tips to achieve desired illumination patterns and grounding.

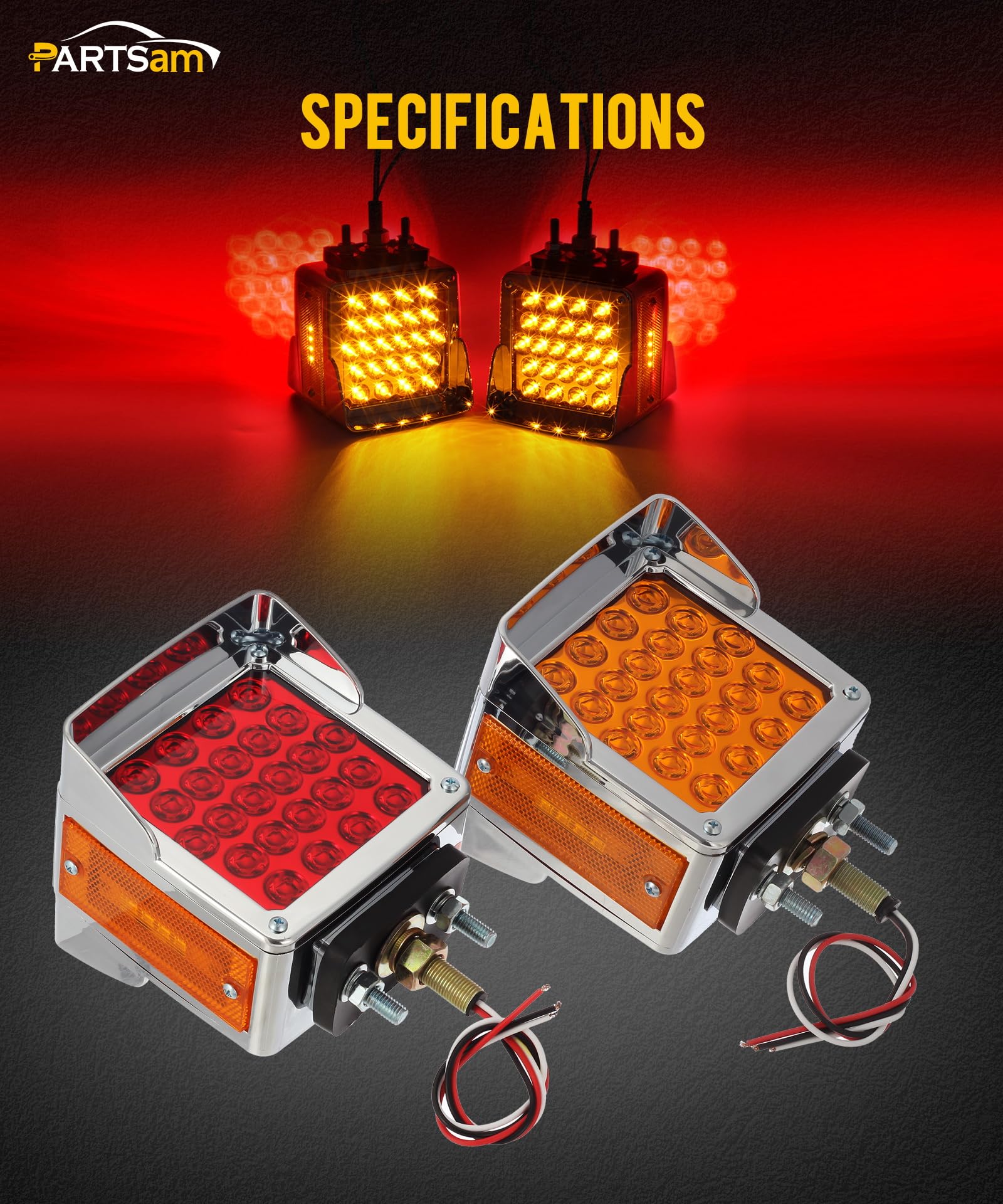

• Single stud mounting with chrome bezel and visor for a factory-style look

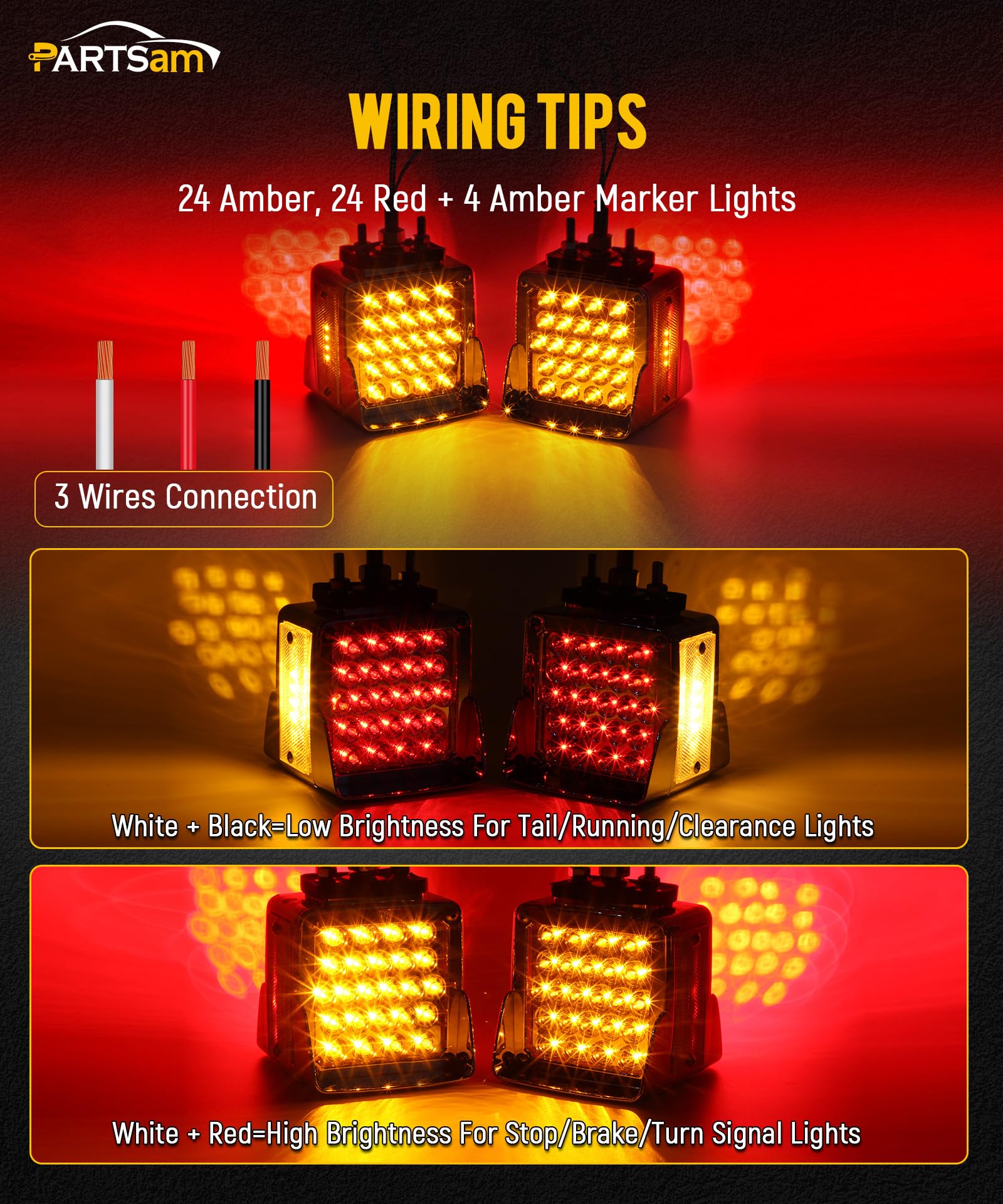

• White wire: ground; white+black and white+red combinations change active faces and brightness
• Designed to fit models such as FL70, FLD112/120, M2 and Kenworth/T660/W900 series among others
• Sonically sealed housing for long-term durability against vibration and elements

How durable and weatherproof is the Partsam pedestal light?

The assembly is built to withstand road conditions with a waterproof enclosure and impact-resistant lens. IP67-rated protection plus a chrome-plated bezel and visor protect the LEDs and internal circuitry from moisture, salt spray and grime that trucks encounter daily.

• IP67 waterproof rating — resistant to heavy rain and temporary immersion
• Polycarbonate lens and sonically sealed housing for dust and moisture protection
• Chrome bezel and visor add corrosion resistance and reduce glare into the lens
• High-power LEDs rated for long life and steady illumination under vibration

Who is this for?

This Partsam 52-LED double-face pedestal light is intended for fleet operators, owner-operators and mechanics who want a durable, high-visibility replacement for incandescent fender lights. It's ideal for trucks and trailers needing a combined stop/turn/tail and side-marker solution with a polished chrome appearance, especially when upgrading older, dimmer lights to LED for improved visibility and reduced maintenance.
