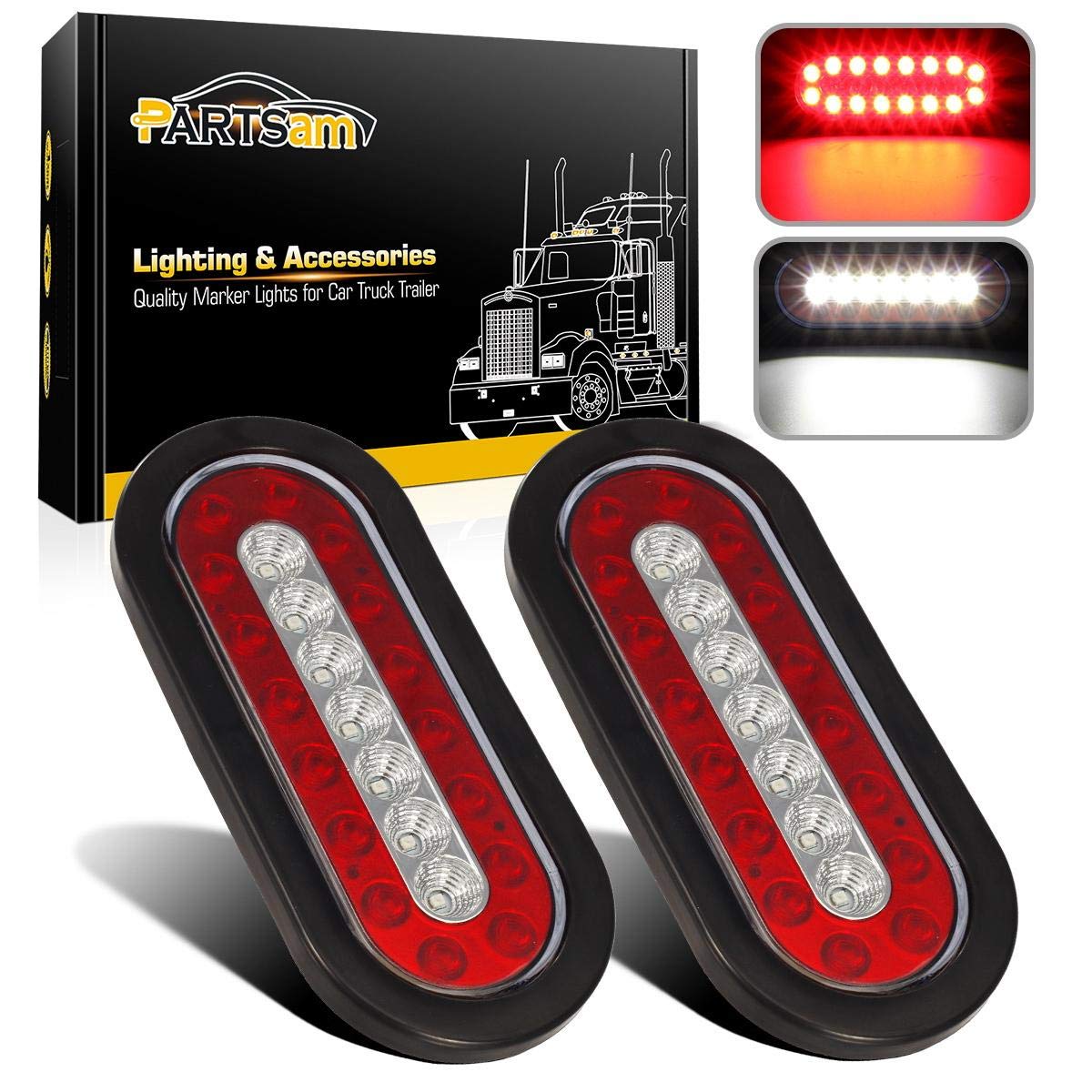

Partsam 6.3" Oval LED Trailer Tail Lights — Red/White Dual-Function, IP65 Sealed Flush-Mount Pair

Partsam 6.3" oval LED tail lights are sealed, multi-function trailer lights that combine red running/brake illumination with a bright white backup beam in a single flush-mount unit.

These Partsam two-piece oval tail lights are built for trailers, trucks, RVs and campers that need compact, weatherproof rear lighting. The lamps integrate an outer ring of red LEDs with dual-mode high/low output for tail and brake functions and a center cluster of white LEDs for reversing and backup. With a recessed mount design, rubber grommet seal, and a 4-wire hardwired connection system, they are ready for straightforward replacement of worn or incompatible fixtures on 12–24V vehicles.

How do these lights perform in brake, tail and reverse roles?

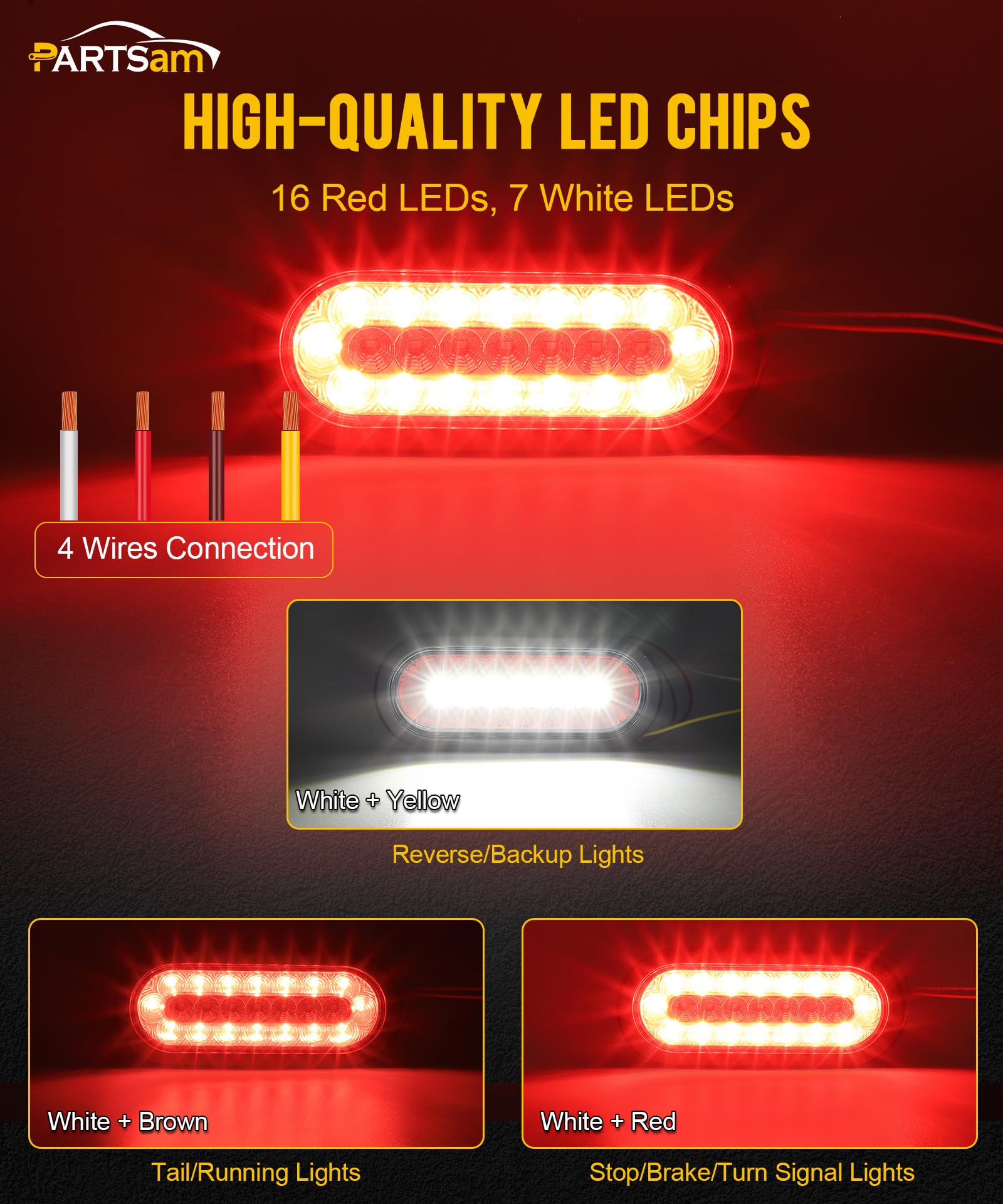

The outer ring uses 16 red LEDs arranged to function as both running (tail) lights and high/low brake lamps, while seven clear white LEDs in the center act as a reverse/backup lamp. This separation ensures distinct, visible signals for drivers behind you. The miro-flex faceted reflector around the center LEDs boosts perceived brightness and spreads light evenly.

• 23 total LEDs: 16 red outer + 7 white inner
• Outer red LEDs support dual-mode high/low brake output
• Center white LEDs provide concentrated reverse illumination
• Faceted reflector increases light dispersion and visibility

How weatherproof and durable are the Partsam oval tail lights?

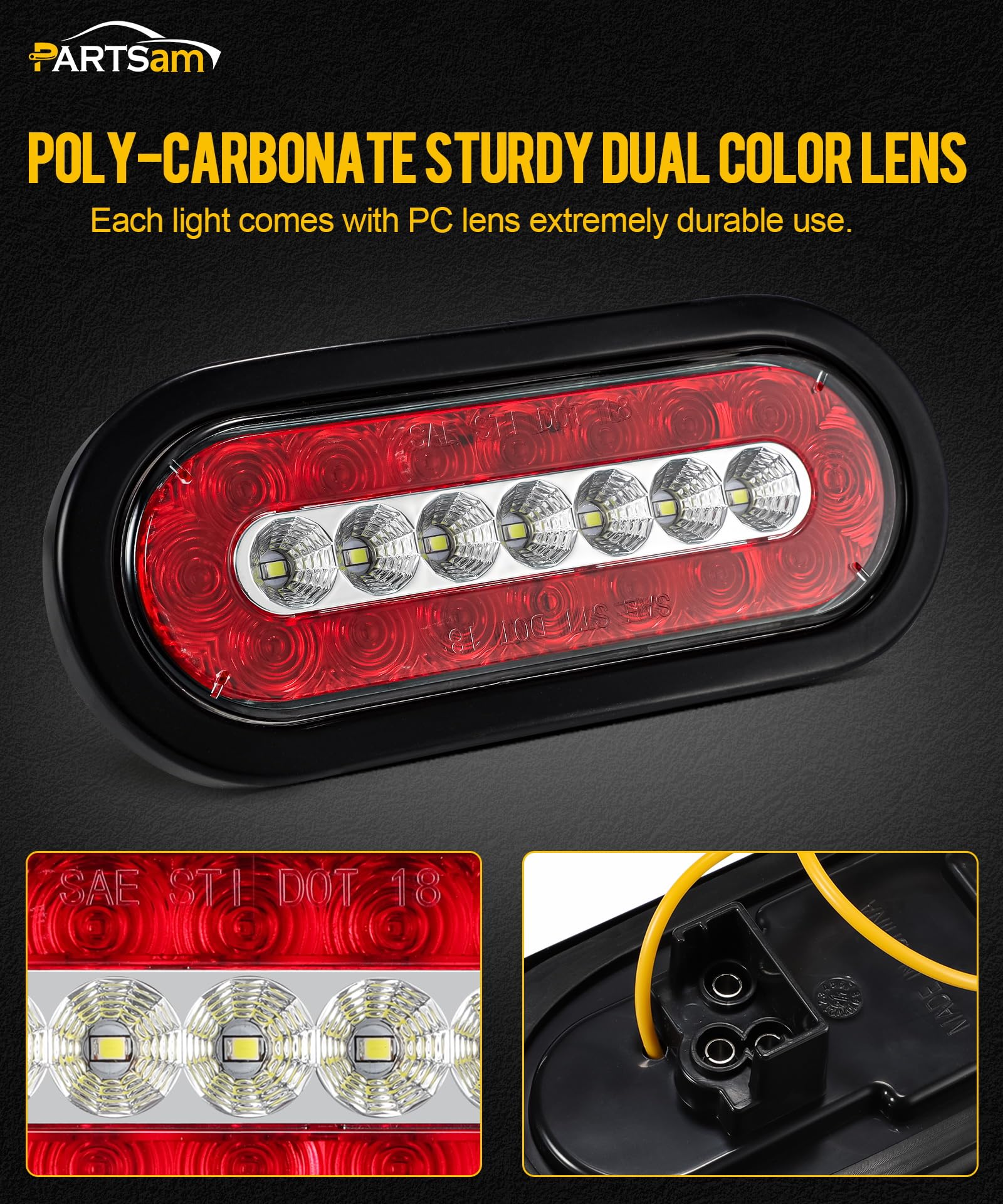

Each lamp is rated IP65 for protection against dust and low-pressure water jets, making them suitable for exposed rear mounts on trailers and work vehicles. The housing seals into a robust rubber grommet and the recessed flush-mount profile reduces snagging and physical damage. Individual diodes are fitted with pearl-shaped reflectors for cleaner optics and long-lasting output.

• IP65 waterproof rating for rain and road spray resistance
• Durable oval rubber grommet for a secure, sealed fit
• Recessed mount reduces impact exposure
• Individual diode reflectors for sustained light quality

What are the installation requirements and wiring details?

These units use a four-wire hardwired connection to match standard trailer wiring. They accept DC 12–24V systems, so they work on most passenger vehicles, light trucks, RVs, UTVs and trailers without needing voltage conversion. The grommet-style fit hides the body gap and the listed drill hole and diameters help you confirm fit before cutting.

• 4-wire connections: white = ground, red = brake, yellow = reverse, brown = running/tail
• Compatible with 12–24V electrical systems

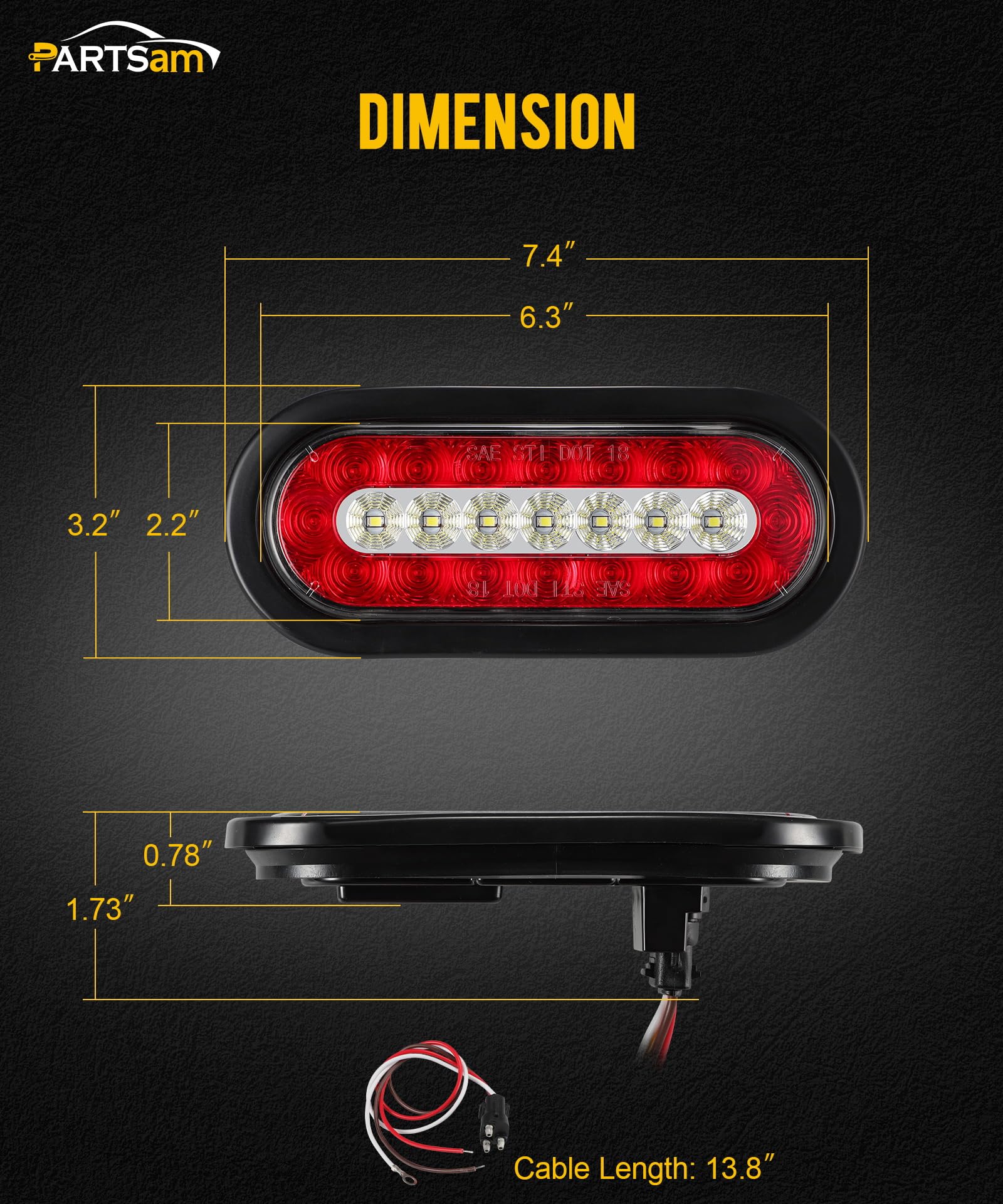

• Outer diameter 7.4", inner LED ring 6.3", drill hole 6.5"
• Flush/recessed mounting with supplied grommet

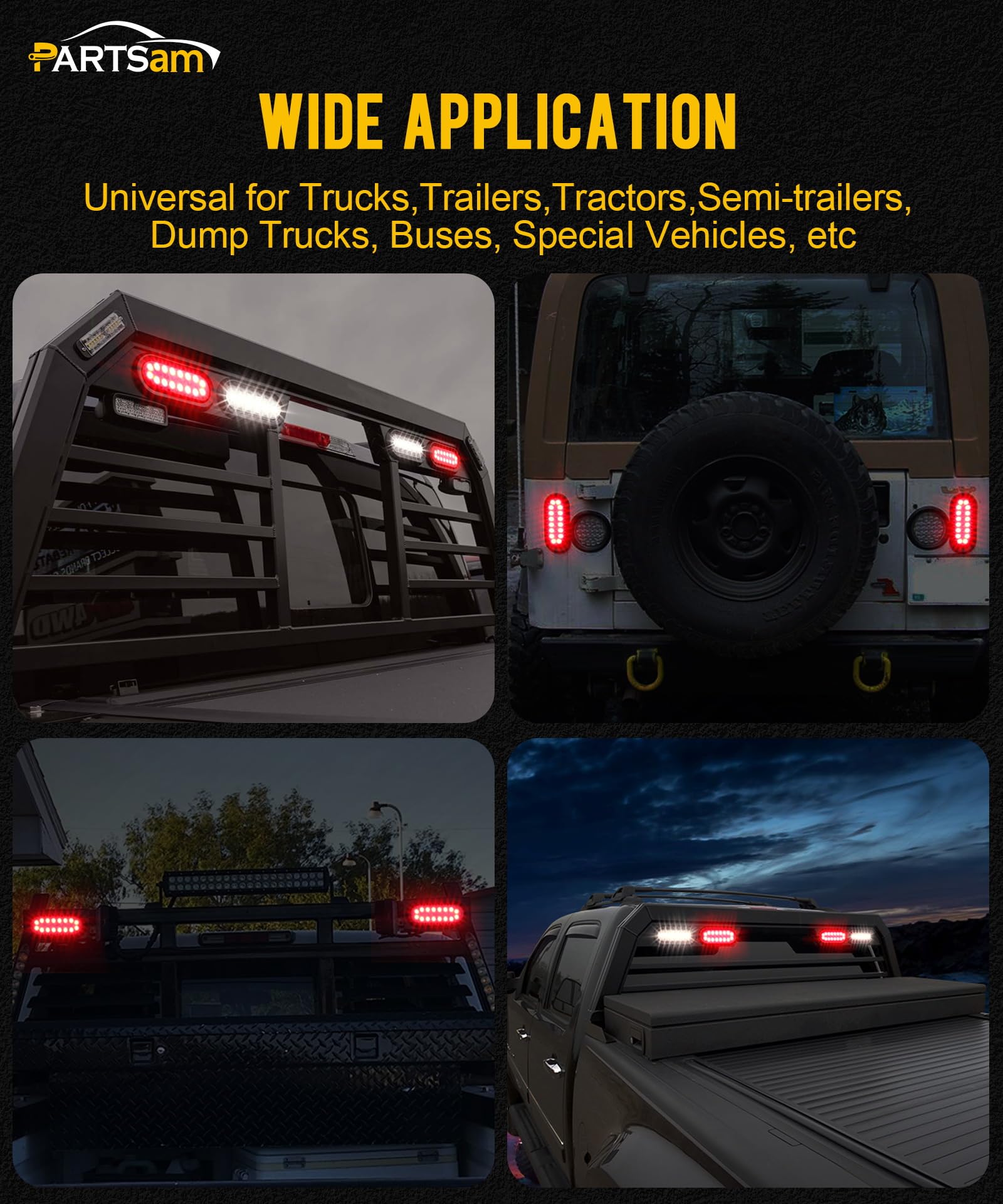

Will these lights fit my vehicle and what vehicles are they suited for?

Partsam designed these oval lamps for universal fitment across many light- and medium-duty vehicles. They are ideal as replacements on trailers, campers, caravans, UTVs, utility trailers, box trucks and many RV rear assemblies. Check physical diameters and your wiring harness to ensure compatibility before installation.

• Universal compatibility for trucks, trailers, RVs, campers and UTVs
• Designed for DC12–24V systems common on consumer and commercial vehicles
• Compact 6.3" inner LED ring fits many existing cutouts or can be adapted
• Good for replacing faded or non-LED legacy tail lamps

Who is this for: If you maintain trailers, fleet vehicles, RVs or DIY utility rigs and need a compact, weatherproof LED tail light that combines distinct red tail/brake output with a bright white reverse lamp, the Partsam 6.3" oval LED set is a practical upgrade. It fits a wide range of 12–24V vehicles, simplifies wiring with a standard four-conductor hookup, and provides improved optics and durability compared with older incandescent assemblies.
