Partsam 6-Inch Oval LED Tail Lights 2-Pack, Red 24-LED Grommet Mount Waterproof

Partsam 6-inch red oval LED tail lights are a sealed, 24-LED grommet-mount replacement set designed to serve as stop, turn and tail lights for trailers, RVs, trucks and other utility vehicles.

These two replacement lights give you a compact, durable lighting solution for rear vehicle signaling. Each lamp contains 24 high-efficiency LEDs sealed in a welded polycarbonate housing with a rubber grommet for flush or semi-flush installation. Hardwired with three conductors for ground, low and high brightness circuits, the lights are rated for 12V systems and built to resist moisture and road exposure.

How do these lights install on my trailer or truck?

Installation is straightforward when your trailer has a grommet-style opening or an accessible rear mounting hole. The flexible rubber grommet compresses for a snug fit and the unit’s wiring pigtail allows for direct splice or connector hookup to your vehicle harness. Measure the opening before purchase to ensure a correct fit.

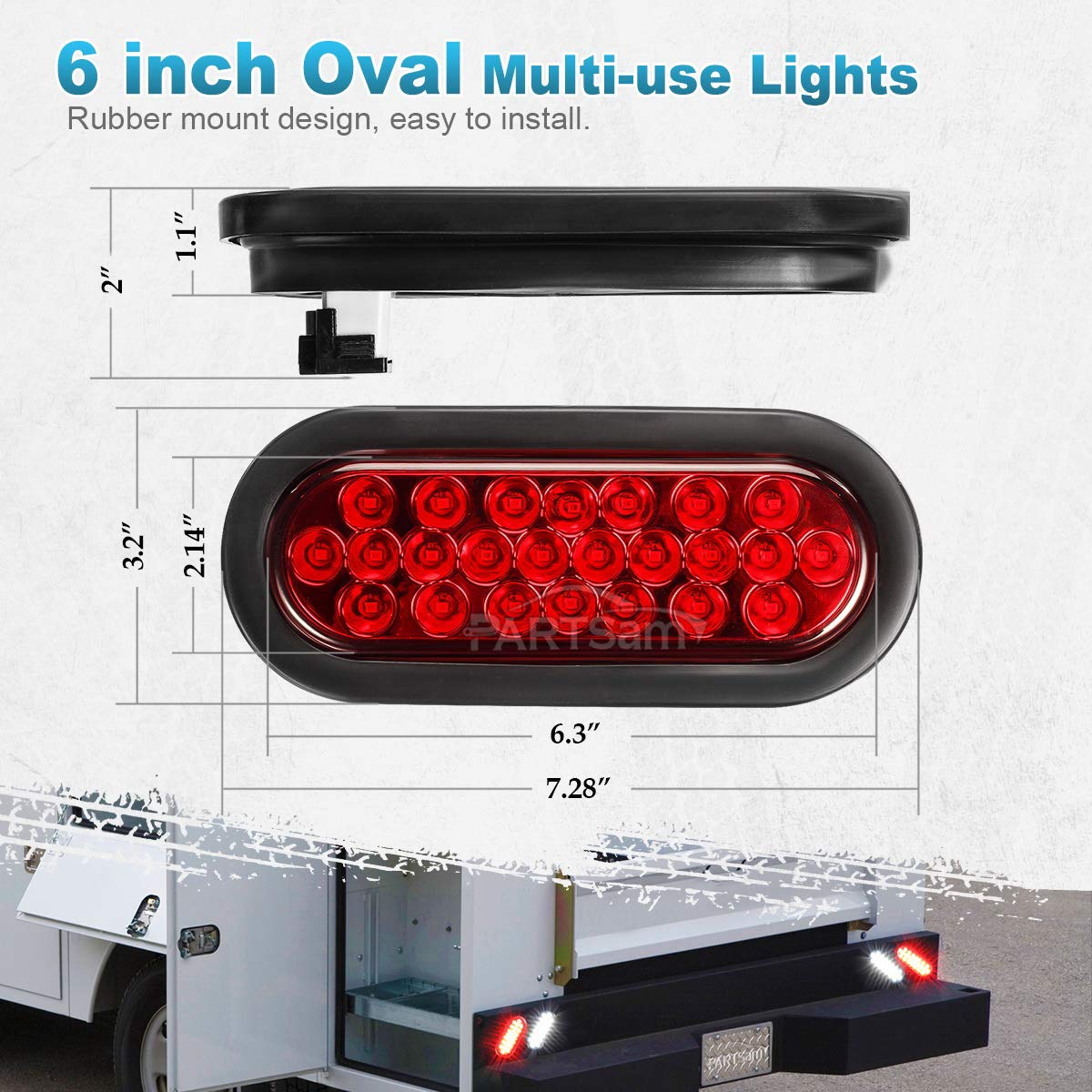

• Required hole diameter: approximately 6.4 inches
• Overall size with grommet: 7.28" x 3.2" x 1.1"
• Three-wire hardwired pigtail: ground, low brightness, high brightness

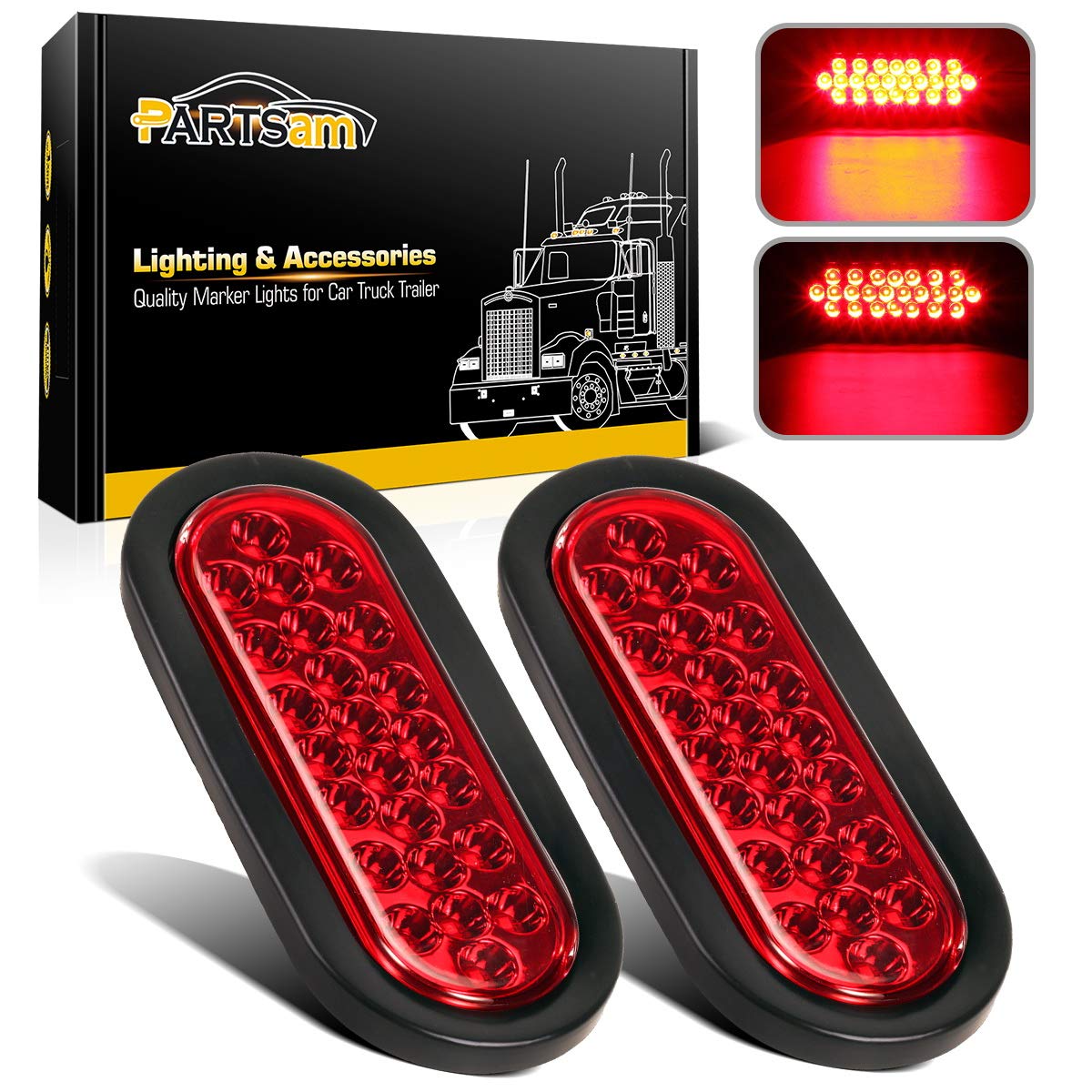

• Supplied as a 2-piece set for left and right replacements

What lighting functions do these LEDs provide and how bright are they?

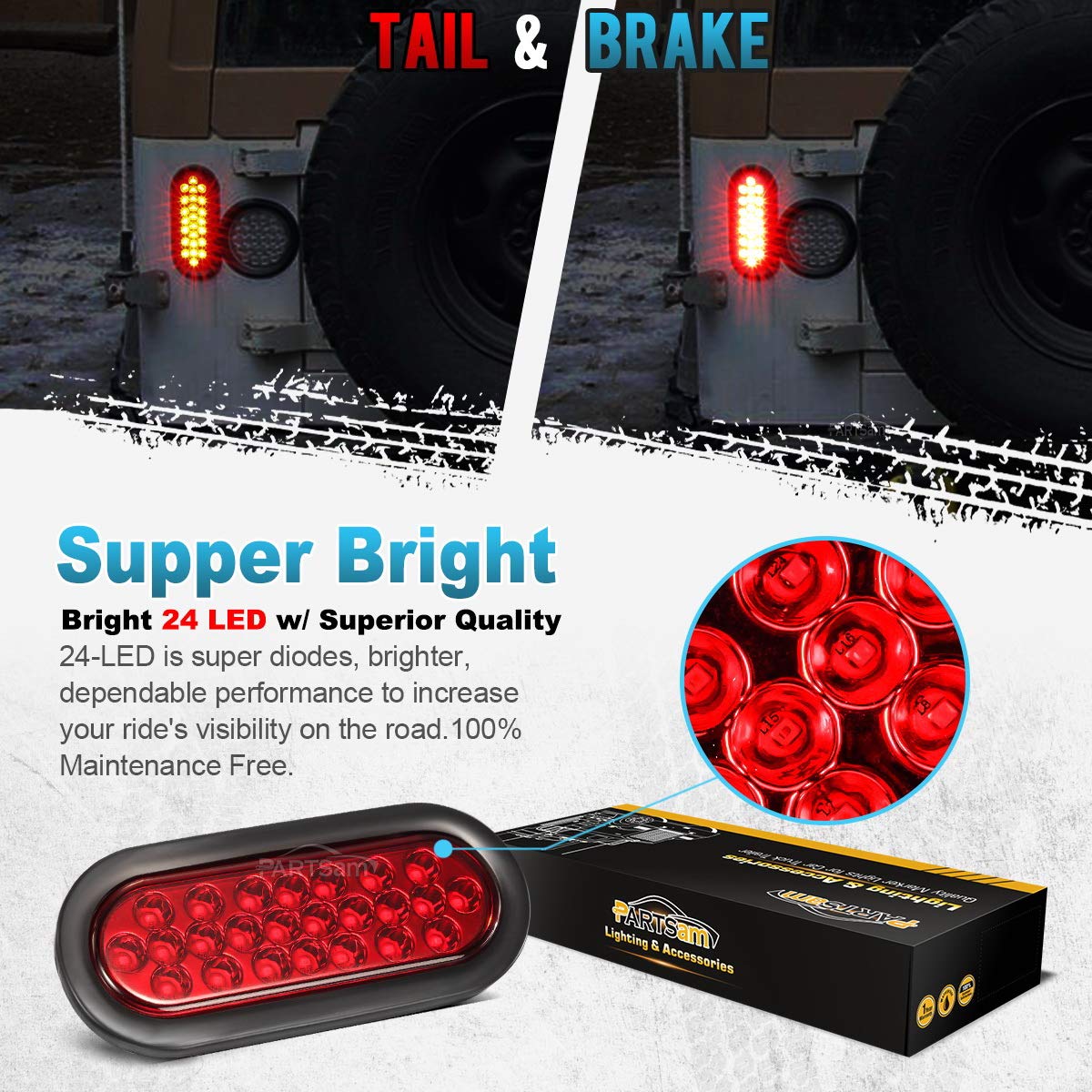

Each oval lamp uses 24 LEDs to deliver bright, visible output suitable for stop, tail and turn functions on 12V systems. The three-wire configuration separates low and high brightness circuits so the same fixture can serve as a running light and a brake/turn signal. LEDs offer quick illumination and long life compared with incandescent bulbs.

• 24 LEDs per lamp for consistent, intense output
• Red lens and LEDs for standard rear signaling
• Separate low/high brightness wiring for multi-function use
• Instant-on LED response improves visibility to other drivers

Are these lights weatherproof and durable enough for heavy use?

Yes—the lens and housing are welded together to form a permanent, waterproof seal, and the LED circuit board is coated for added moisture and environmental protection. The rubber grommet adds vibration isolation and helps prevent water ingress at the mounting point. These features make the lights suitable for trailers, RVs, trucks, buses and other utility vehicles exposed to road and weather conditions.

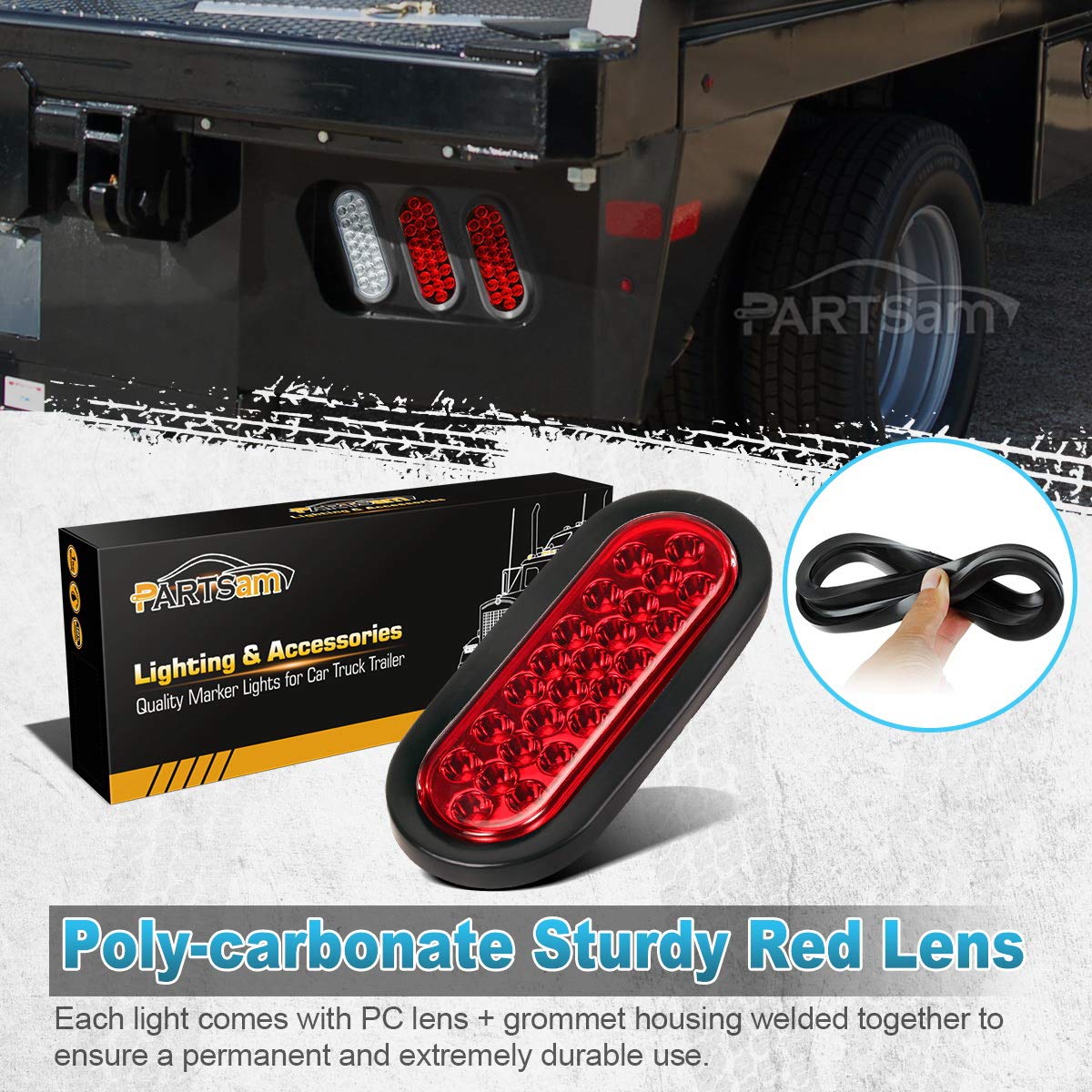

• Welded polycarbonate lens and housing for a sealed assembly
• Conformal-coated LED circuit board for moisture resistance
• Rubber grommet reduces vibration and seals the mounting hole
• Designed for heavy-duty and outdoor vehicle applications

Will these lights work with my vehicle electrical system?

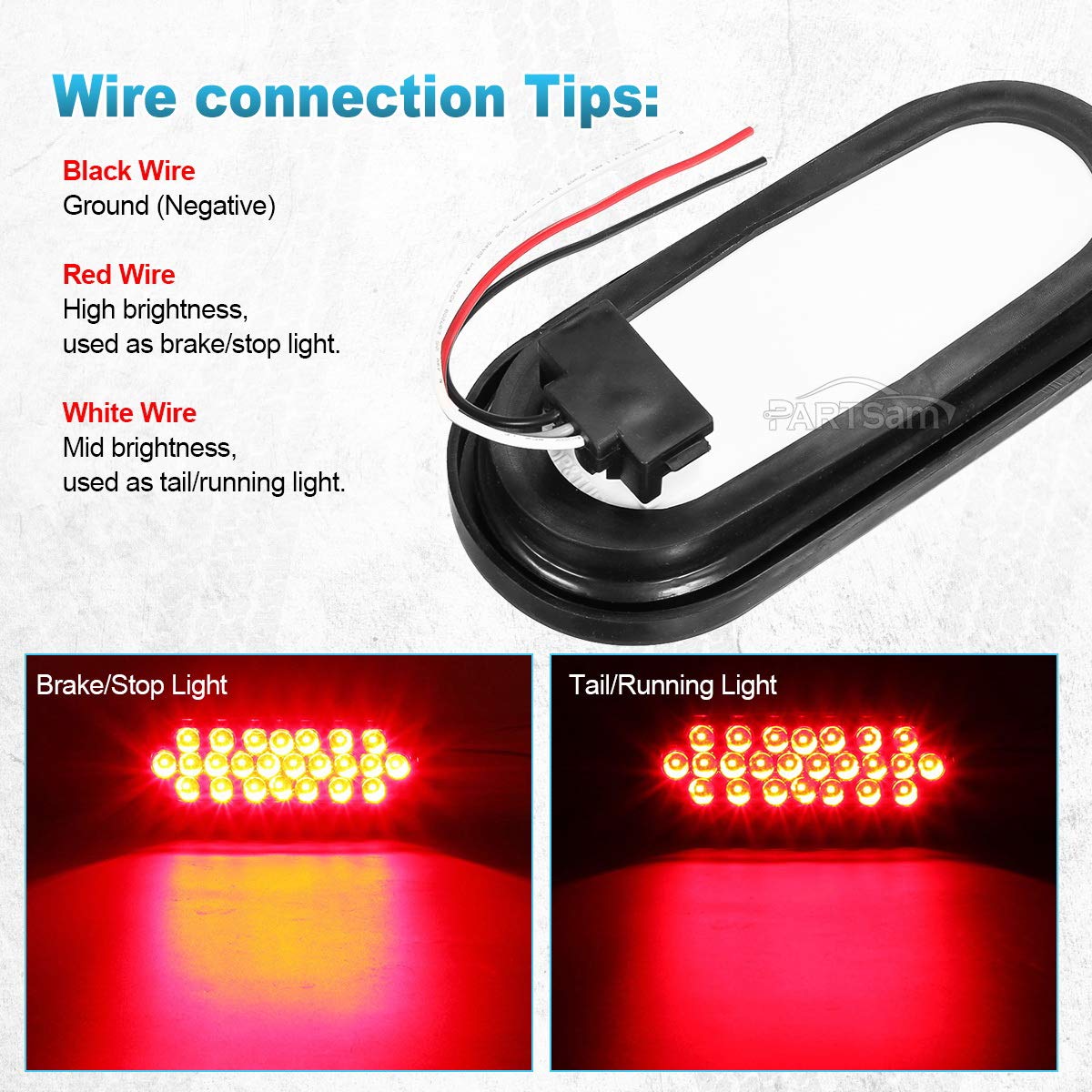

The Partsam oval LEDs are designed for 12V DC systems common on trailers, RVs and trucks. They come with three wires: ground, low brightness and high brightness, which fit typical trailer wiring setups. Note there are two ground-wire variants in supply (black-ground or white-ground), but functionally they perform the same when wired correctly.

• Operates on standard 12V vehicle electrical systems
• Three-wire configuration: ground, low, and high brightness
• Two ground-wire color variants available—same performance
• Suitable for heavy trucks, trailers, RVs, buses and specialty vehicles

Who is this for: This 2-pack from Partsam is aimed at owners and fleet operators who need a rugged, low-maintenance replacement for rear signal lighting—ideal for trailer owners, RV enthusiasts, pickup and heavy-truck drivers, and maintenance professionals seeking waterproof, bright LED stop/turn/tail lamps that install with a grommet mount.
