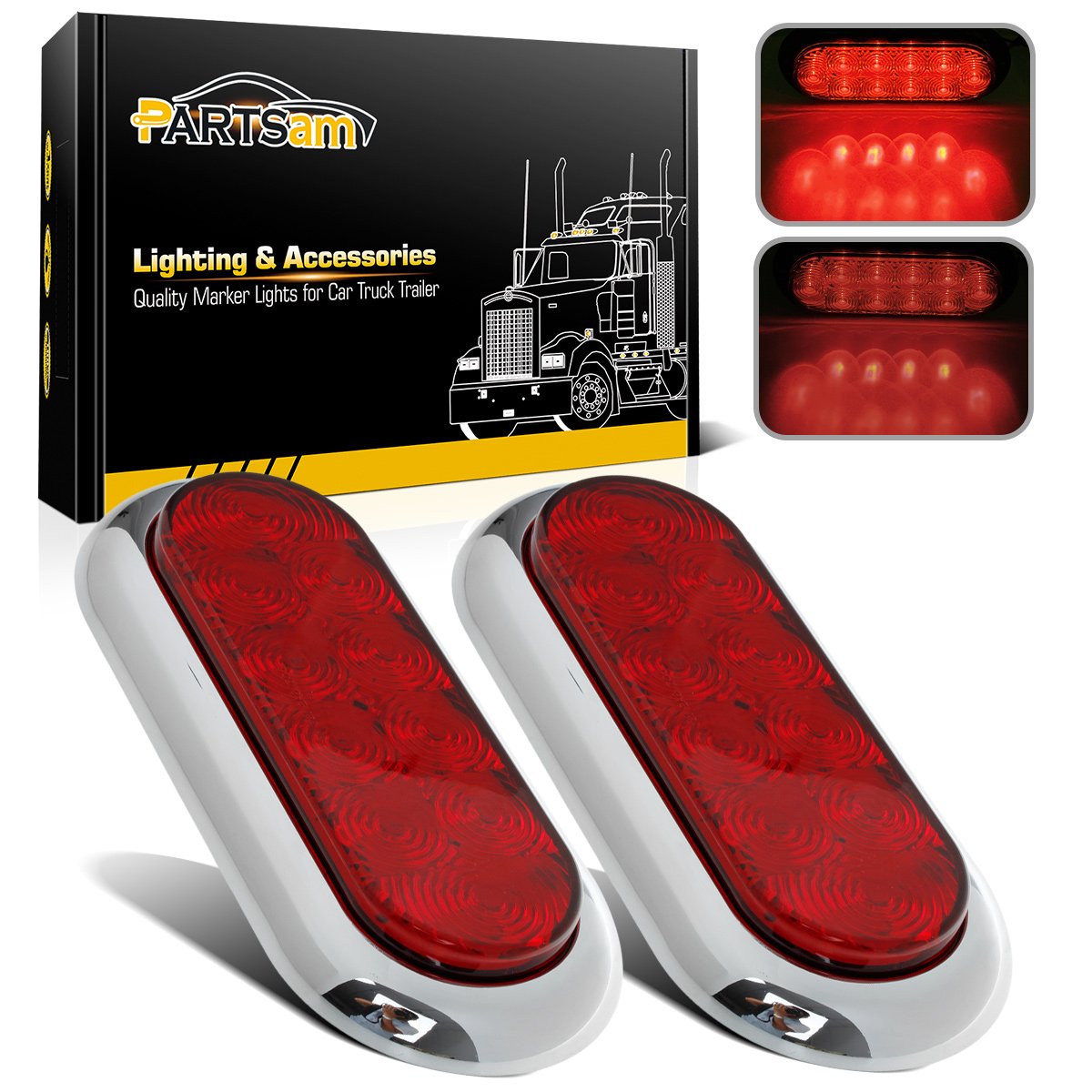

Partsam 6" Oval LED Trailer Stop Turn Tail Lights - 2-Pack Red, 10-LED, Chrome Trim, Waterproof

Partsam 2-pack 6-inch oval red LED surface mount lights are DOT-approved stop/turn/tail lamps with 10 high-output LEDs, chrome snap-on trim rings, and a waterproof polycarbonate housing for trailers and trucks.

These Partsam lights combine bright LED performance with rugged, weatherproof construction for use on trailers, trucks, RVs, vans and other utility vehicles. Each lamp uses a durable polycarbonate housing and lens, includes chrome-plated snap-on trim rings, and arrives hardwired with a three-pin connection for simple surface mounting. The compact oval design gives a clean, finished look while delivering reliable signaling and a long operational life compared with incandescent bulbs.

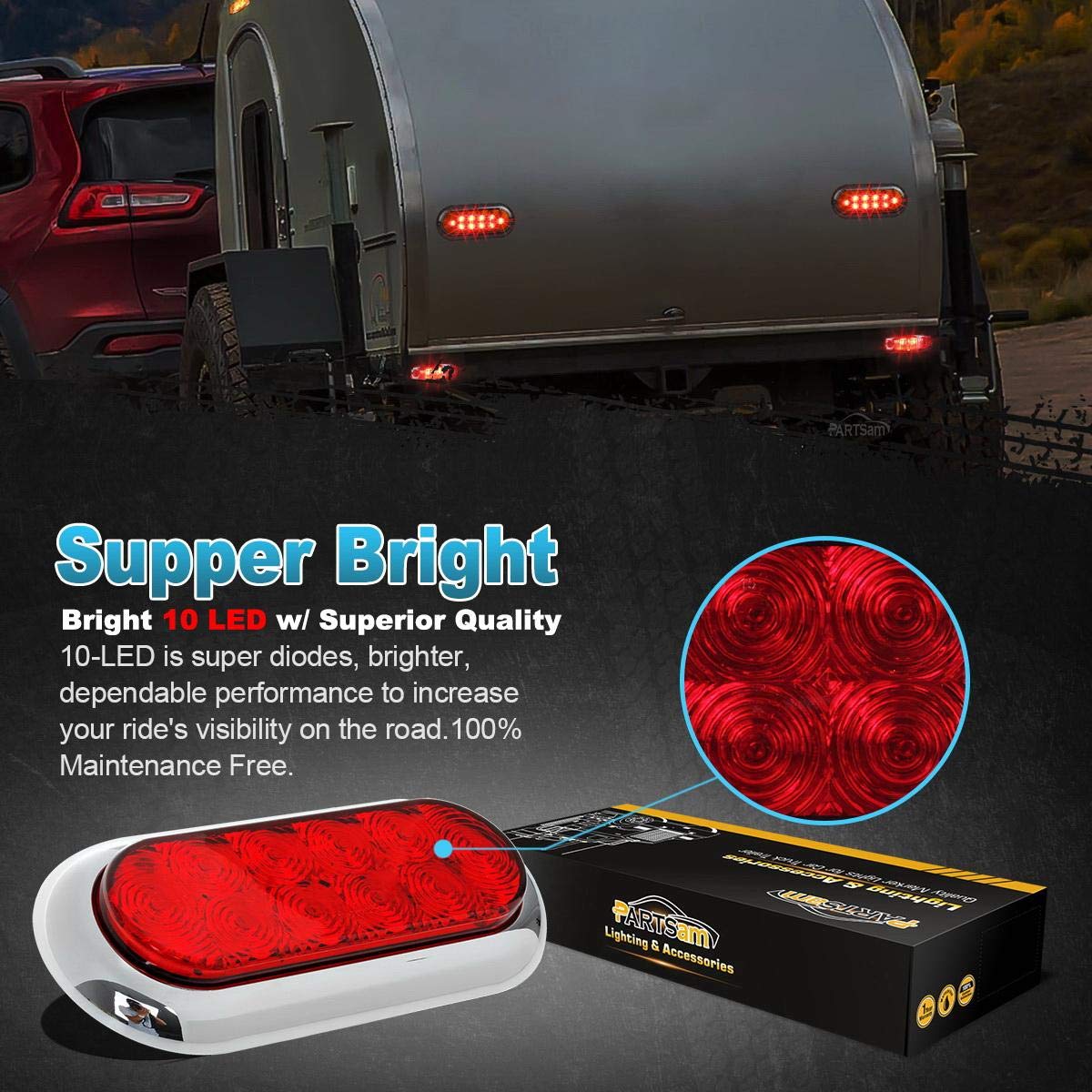

How bright and visible are these LEDs on the road?

The 10-diode LED array produces a clear, intense red signal for stop, turn and tail functions that is easier to see in daylight and at night than traditional bulbs. DOT approval confirms they meet common visibility standards for road use. The polycarbonate lens maintains optical clarity while resisting yellowing from sunlight exposure.

• 10 high-intensity LEDs per light for strong visibility
• DOT-approved for compliant road signaling
• Polycarbonate lens resists UV yellowing and abrasion
• Chrome trim rings improve contrast and reflectivity

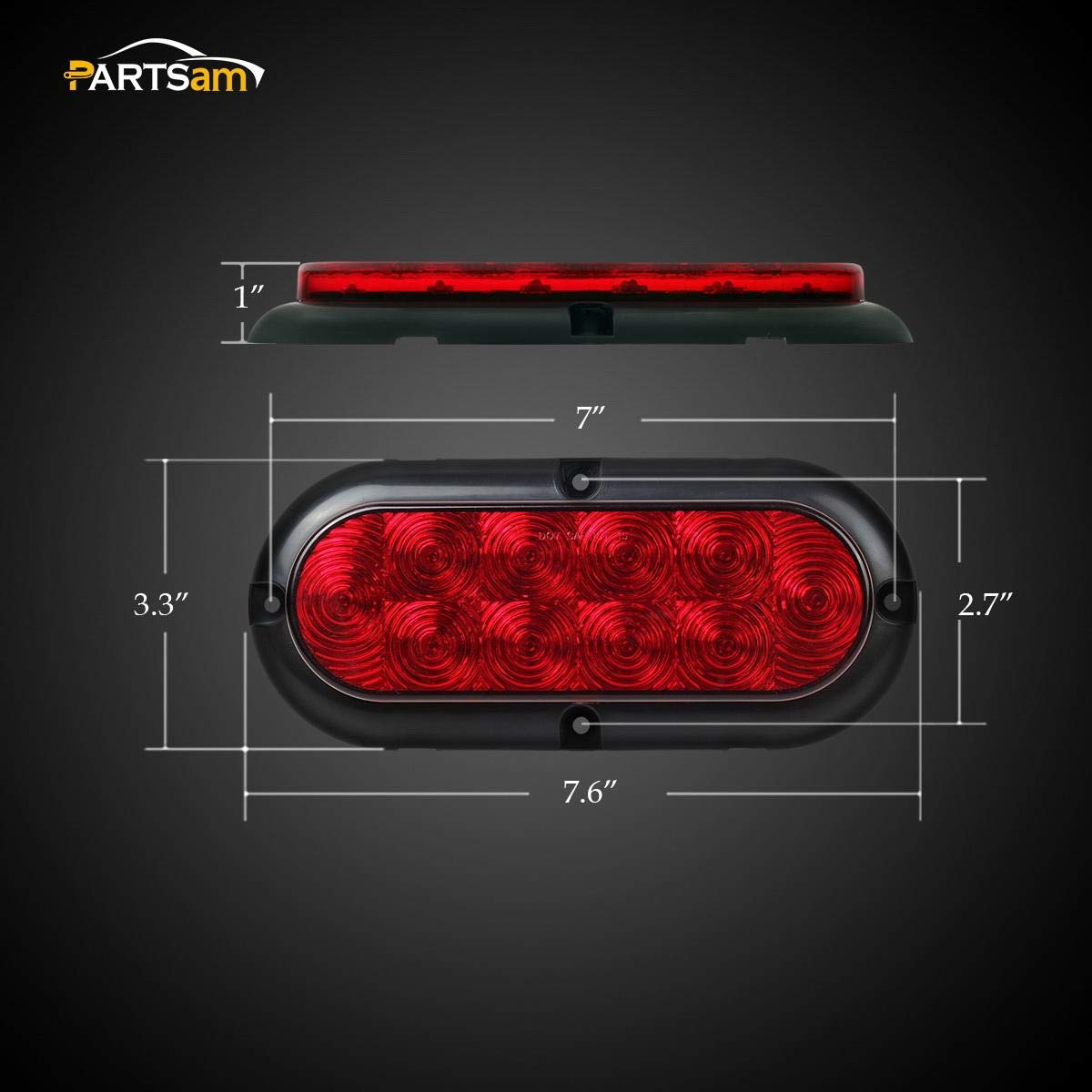

What are the mounting dimensions and how do I fit them?

Each lamp has an outside surface-mount footprint of 7.5 inches long by 3.25 inches wide, while the illuminated oval measures about 6-3/8 inches long by 2-1/8 inches wide. The unit includes four screw holes for secure surface attachment and ships with chrome snap-on trim rings to hide mounting hardware for a finished look.

• Overall surface mount size: 7.5" L x 3.25" W
• Actual light face: 6-3/8" L x 2-1/8" W
• Four mounting holes for secure fastening
• Snap-on chrome trim rings included for clean installation

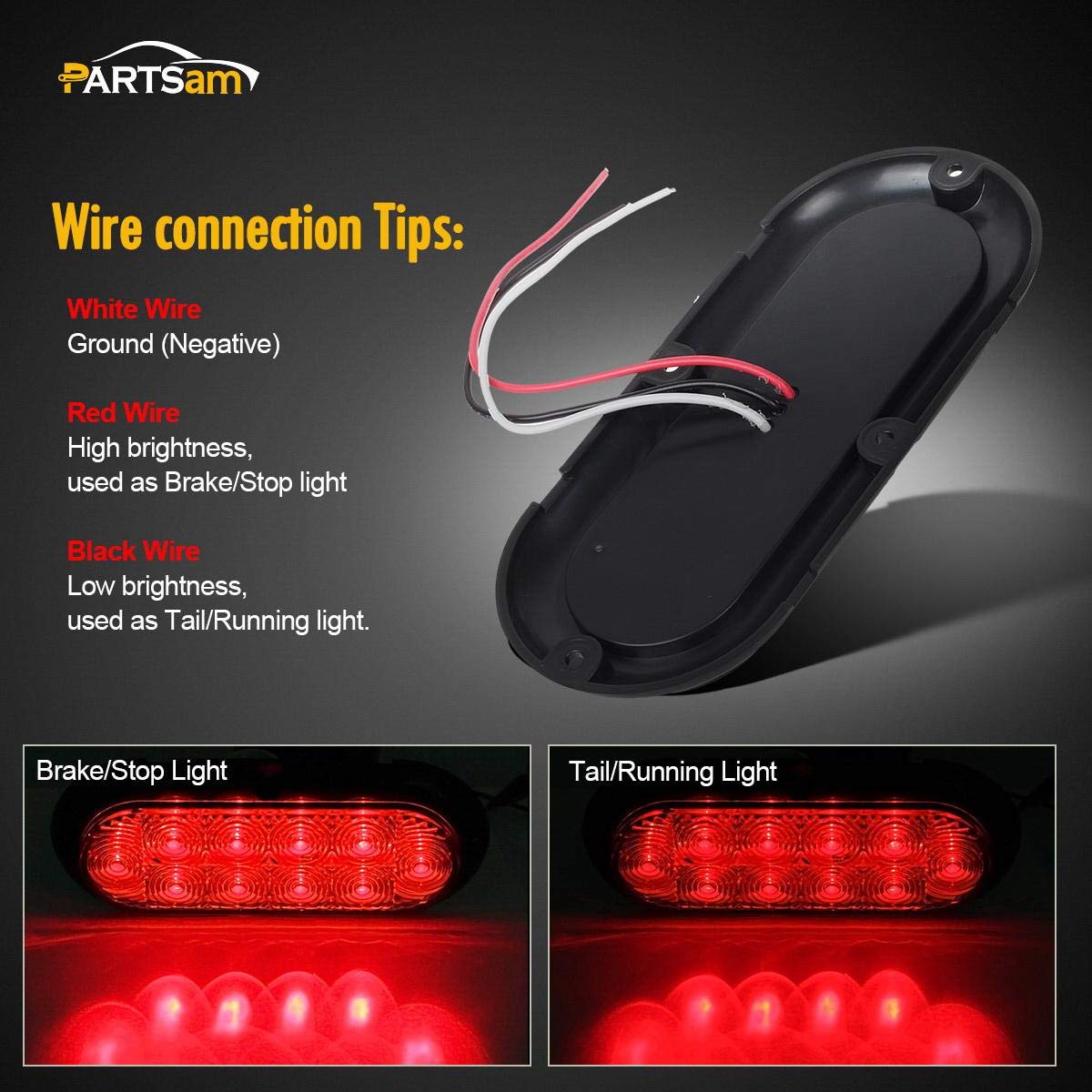

How do I wire these lights for different brightness levels?

The lights come pre-wired with a three-conductor configuration that supports ground, high-brightness, and lower-brightness modes. Use the white lead as the ground reference. Pairing white with the red lead gives full (100%) brightness; pairing white with the black lead produces a reduced 50% brightness suitable for tail lamp use or reduced-intensity signaling.

• White = ground connection
• White + red = high (100%) brightness for stops/turns
• White + black = low (50%) brightness for tail/marker use
• 3-pin hardwired connection simplifies installation

Are these lights built to handle outdoor conditions?

Yes—Partsam designed these oval lights with waterproof sealing and robust materials for long-term outdoor use. The polycarbonate housing and lens resist impact and weather, while the chrome-plated trim ring snaps on securely to protect edges. They are suitable for many vehicle types, including trailers, trucks, RVs and agricultural equipment.

• Waterproof construction for all-weather use

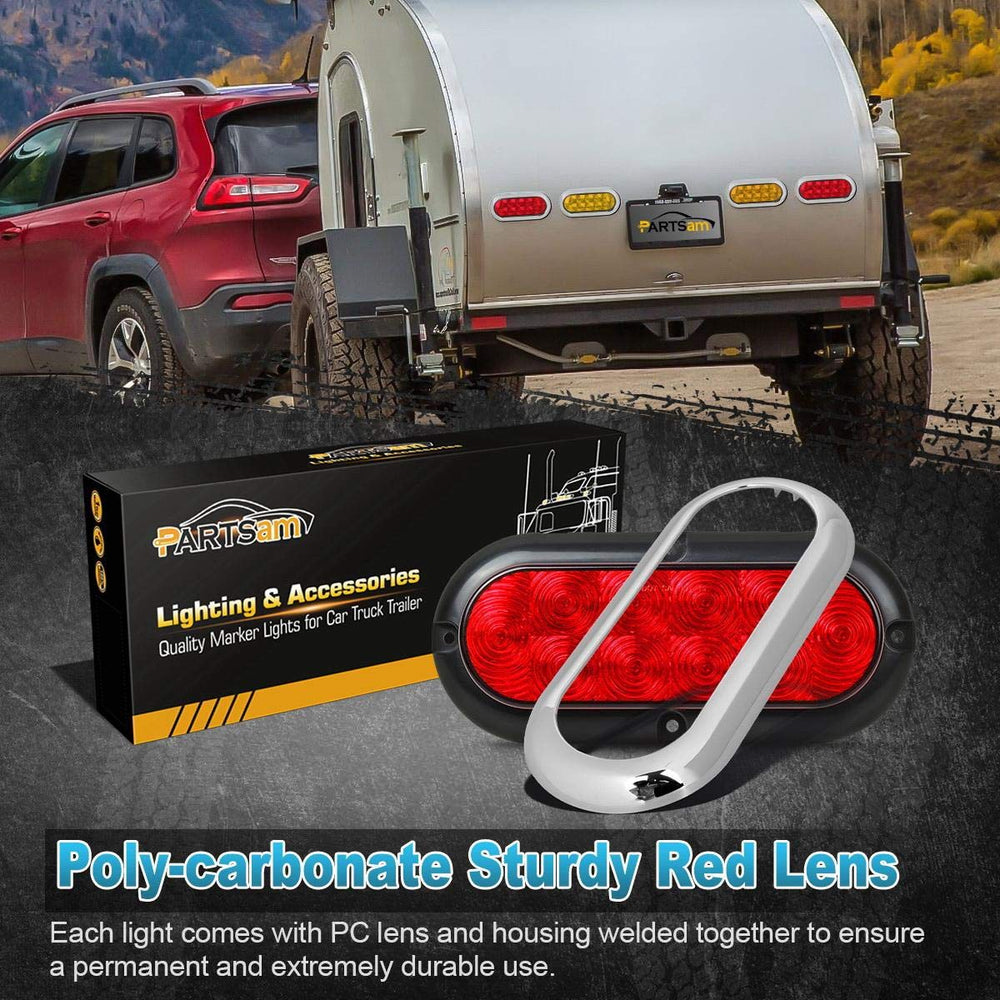

• Polycarbonate housing and lens for impact resistance
• Chrome-plated trim rings for corrosion resistance and style
• Suitable for trailers, vans, RVs, tractors and trucks

Who is this for: These Partsam 6" oval LED lights suit vehicle owners, fleet managers and DIY mechanics who need reliable, DOT-compliant stop/turn/tail signaling for trailers, trucks, RVs and specialty vehicles. They’re ideal when you want easy surface-mount installation, clear daytime visibility, durable weatherproofing, and a polished chrome-trim appearance without rewiring complex harnesses. If you need dependable rear lighting that balances brightness, longevity and simple wiring options, this two-piece kit is a practical choice.
