Partsam 8.5" Oval LED Tail Lights 2-Pack Red — 40-LED Surface Mount, IP68 Submersible

Partsam 2-piece 8.5" oval LED tail lights are weatherproof, surface-mount stop/turn/tail lamps with 40 high-output LEDs each for trailers, RVs and utility vehicles.

These compact, low-profile taillights combine a reflex lens with 40 LEDs per lamp to deliver brighter, quicker illumination than incandescent bulbs while using less power. Built for a 12V DC system, they include mounting gaskets and self-tapping screws for straightforward surface installation. With an IP68 submersible rating, the lights are engineered to withstand harsh road and weather conditions when mounted correctly.

How do these LED tail lights improve visibility and safety?

The 40 LEDs per unit light faster and more consistently than traditional bulbs, making brake and turn signals easier for other drivers to see. The built-in reflex lens amplifies light output, helping the beam remain visible from wider angles. This combination enhances daytime and nighttime conspicuity without drawing excessive current.

• 40 high-efficiency LEDs for bright, rapid illumination.

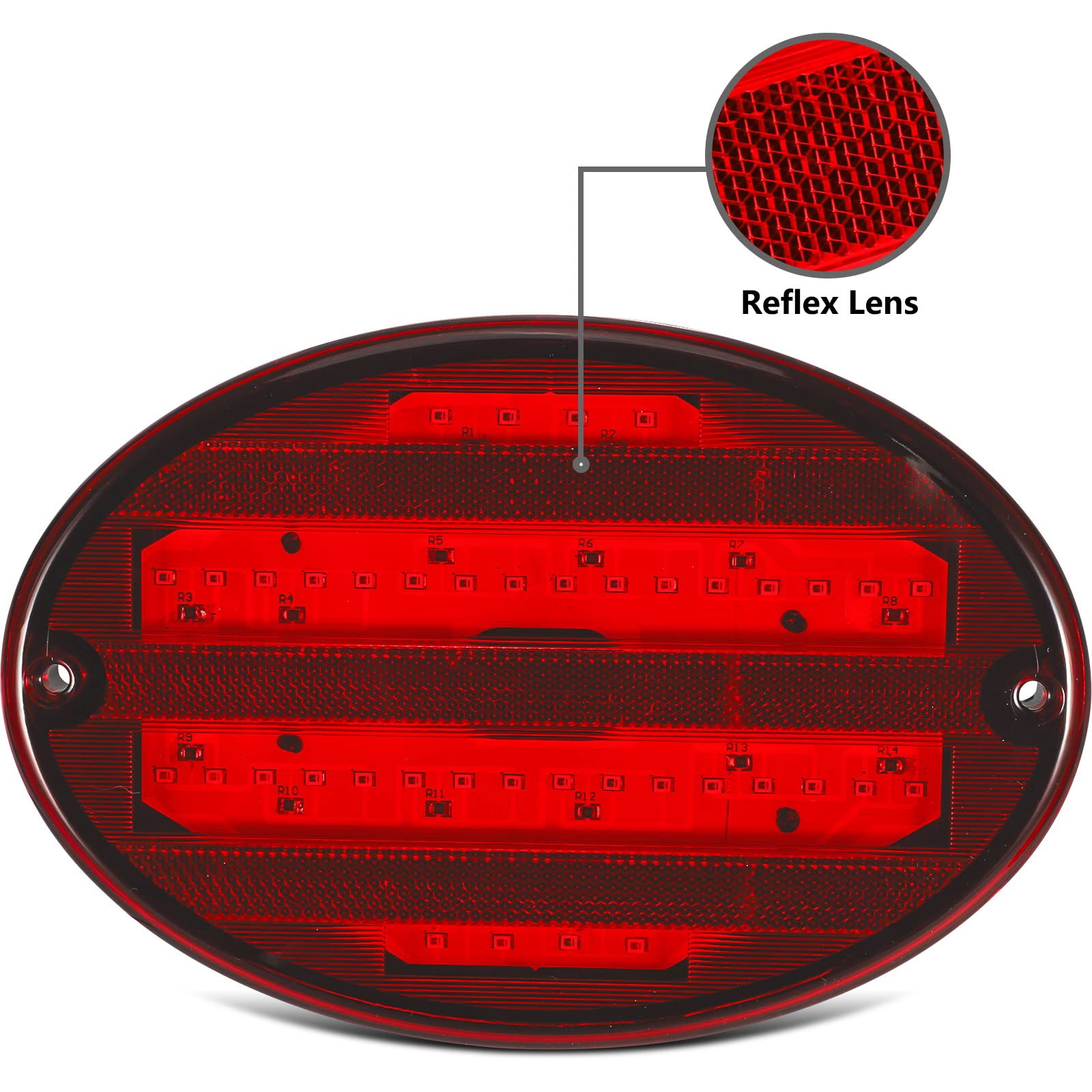

• Reflex lens increases visible light spread.
• Lower current draw than incandescents, reducing electrical load.

What installation steps are needed for these surface-mount lights?

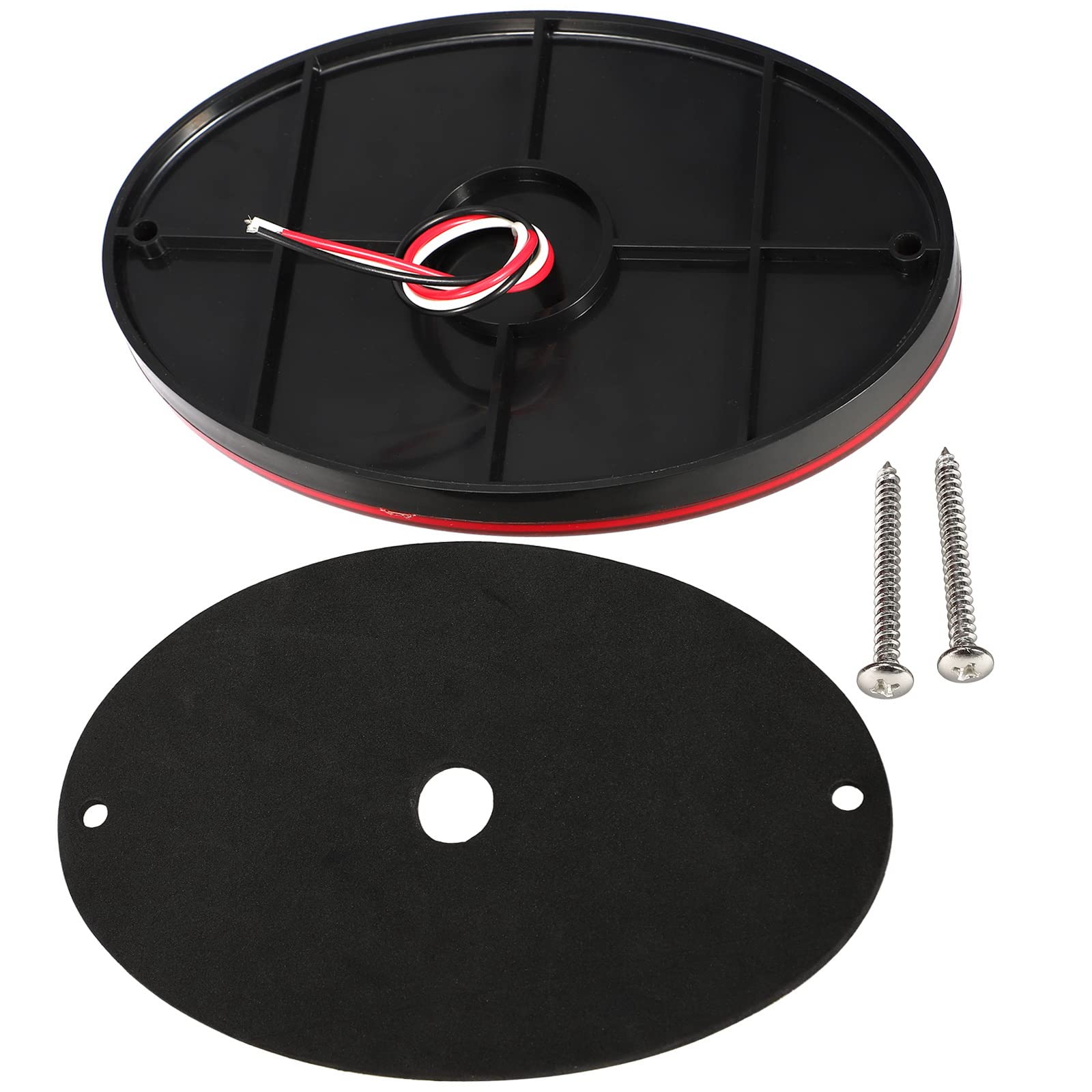

Installation is direct: these oval lights mount on the surface and require a hole for wire passage because there’s limited cavity depth behind the lens. They hardwire to a 3-wire 12V system — ground, brake/turn, and tail/running — and include mounting gaskets plus self-tapping screws to form a sealed connection. Basic hand tools and a proper gasket seal are all you need for a durable fit.

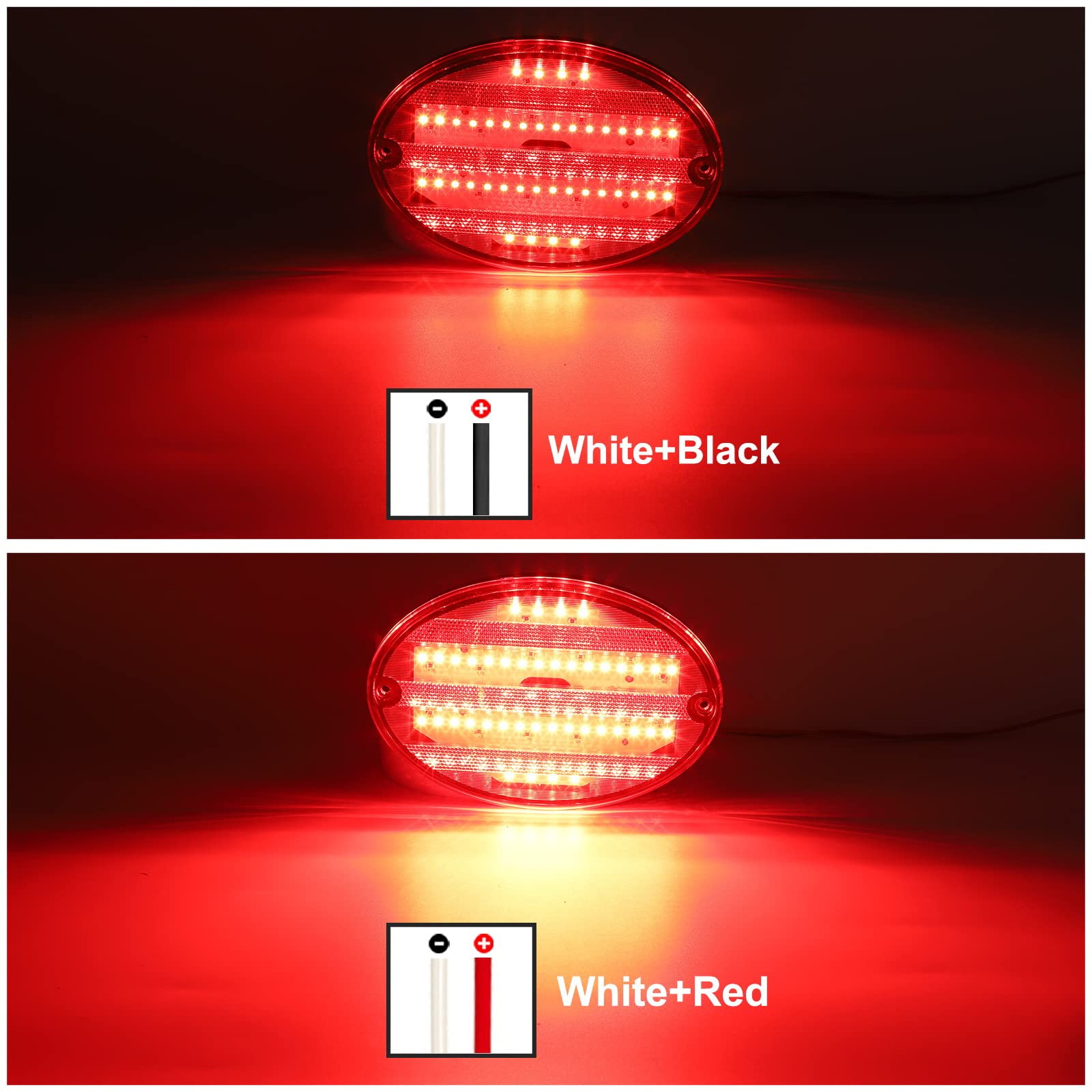

• Hardwired 3-wire hookup: white = ground, red = stop/turn, black = tail.
• Surface-mount design with two securing holes and included screws.
• Mounting gasket for a tight, weather-resistant seal.

Are these lights compatible with my vehicle or trailer?

These 8.5" x 6" oval lights are a universal 12V DC fit for many vehicle types, including trailers, RVs, campers, tractors, pickups, and utility vehicles. The hole center spacing (horizontal 7.6") and low-profile depth make them suitable for common rear mounting locations. Always verify your vehicle's wiring and available surface area before purchase to ensure proper fit and routing.

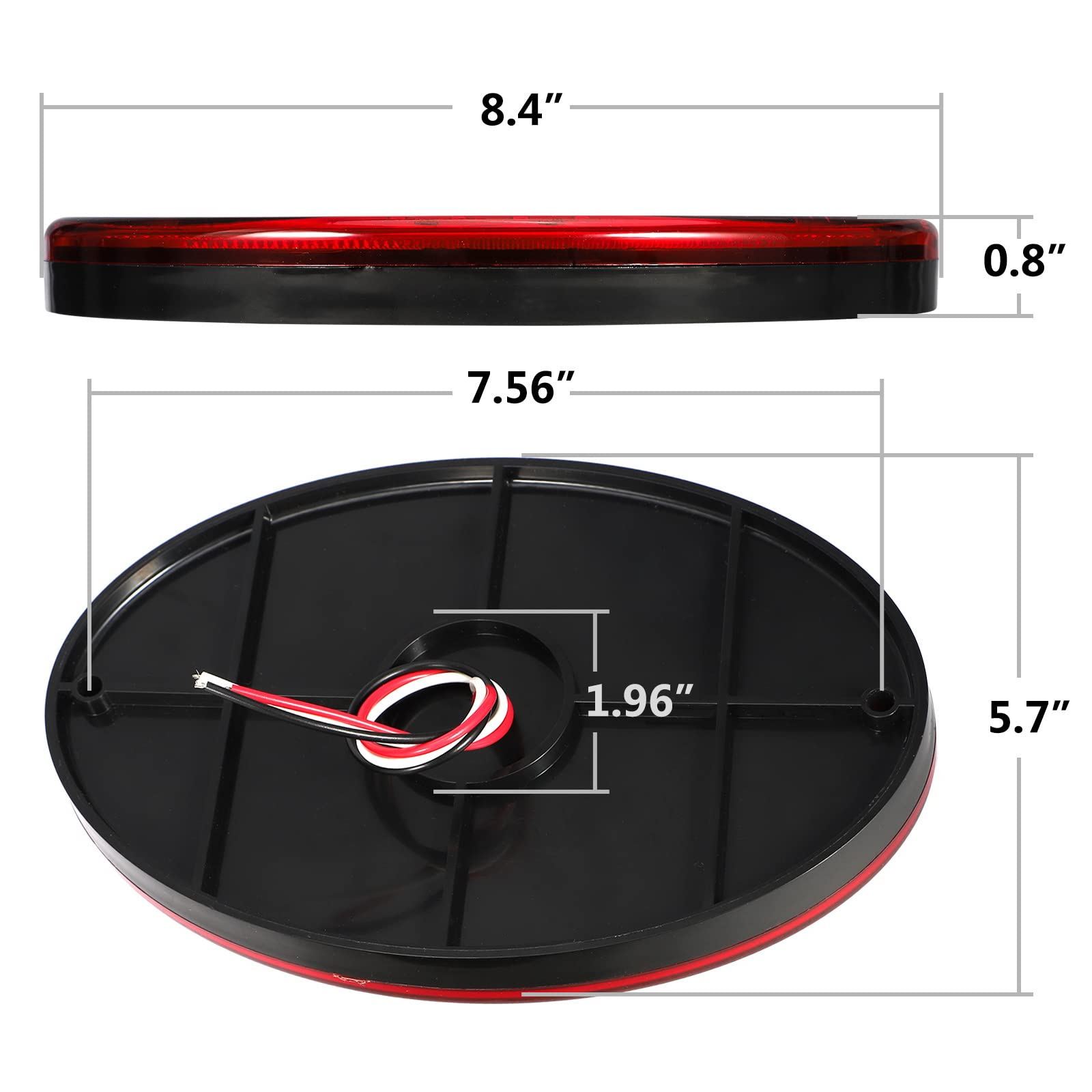

• Dimensions: 8.5" x 6" x 1", 7.6" horizontal hole spacing.
• Suitable for trailers, RVs, motorhomes, trucks, tractors, and more.
• Universal 12V DC design—vehicle-specific brackets not required.

How weatherproof and durable are these taillights?

Each lamp is sonically sealed and rated IP68, meaning it resists dust ingress and is submersible under specified conditions, making it appropriate for wet or muddy environments. The LEDs produce less heat than incandescent bulbs, which reduces stress on the housing and lens over time. The supplied gasket also cushions and seals the mounting flange to limit vibration and water intrusion.

• IP68 submersible rating for strong water and dust resistance.
• Sonic seal and mounting gasket for a watertight flange connection.
• LED technology generates less heat, extending lifespan.

Who this is for: Installers, fleet managers, RV owners, and trailer DIYers who need a reliable, brighter replacement for incandescent tail lights will appreciate these Partsam oval LED lamps. They’re ideal when you want a low-profile, energy-efficient stop/turn/tail solution that withstands wet conditions and fits a wide range of 12V vehicles.
