Partsam LED RV Tail Lights, Low-Profile Smoke Lens Black Base Pair with Integrated Number Plate Light

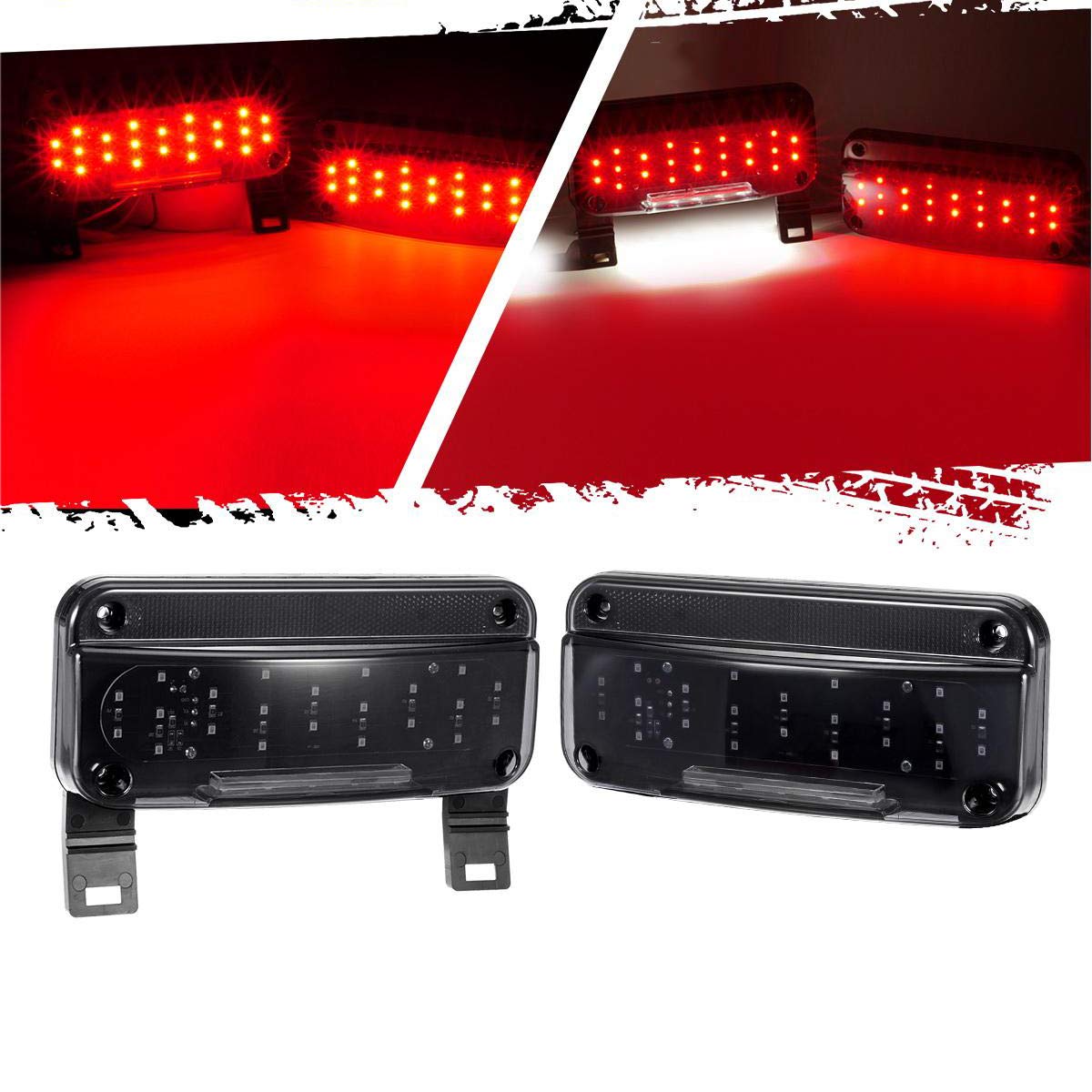

Partsam Red LED Low Profile Combination RV Tail Lights are a surface-mount pair that combine tail, stop/turn, and integrated license plate lighting in a compact smoke-lens assembly for trailers and campers.

These Partsam combination lights are designed for owners who need a durable, easy-to-install replacement for incandescent trailer lamps. With a black base and smoked lens, the set provides bright LED illumination from multiple diodes while maintaining a low profile that sits flush against the trailer surface. The left lamp includes a built-in license plate light and mounting bracket, making the pair a tidy, all-in-one solution for many RV, camper, and trailer applications.

How do these lights work on my RV or trailer?

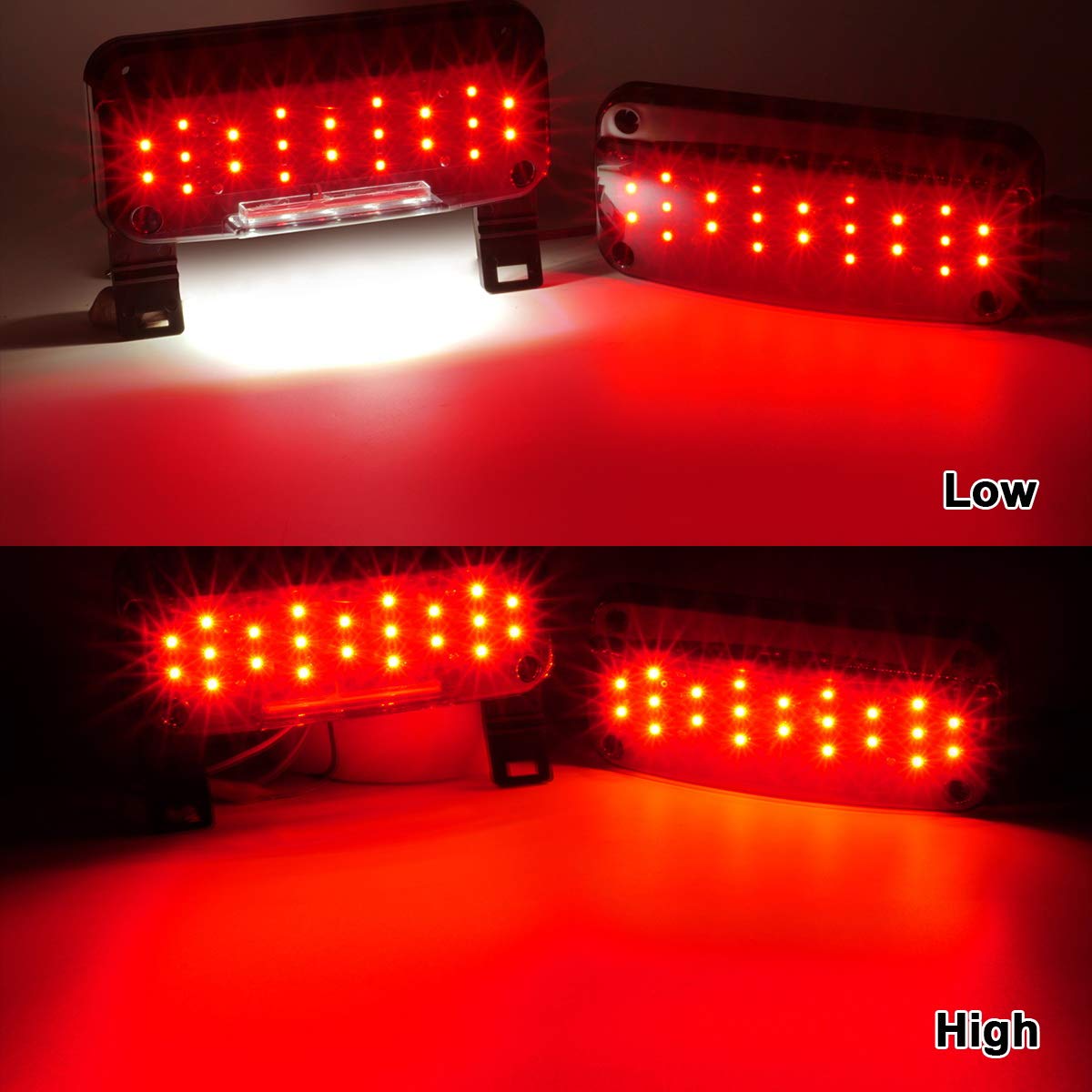

The pair performs three traffic lighting functions: taillight, brake/turn signal, and an integrated license plate lamp on the driver side unit. Each lamp uses multiple LEDs to emit clear red light for visibility, and the wiring is simplified into three conductors for direct replacement or retrofit installations.

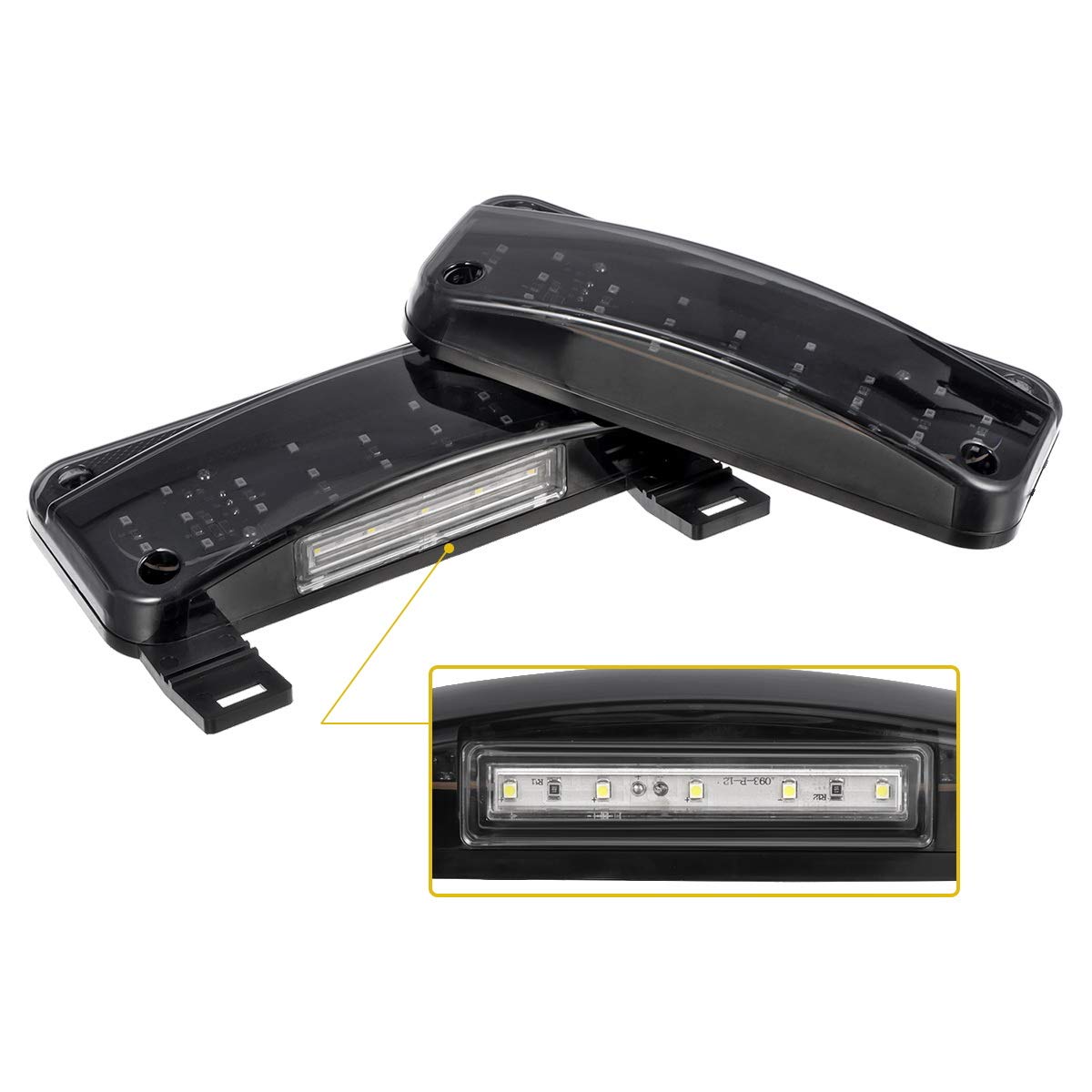

• Left unit: 27 diodes (22 red LEDs + 5 white LEDs for the license plate)
• Right unit: 22 red diodes for tail/stop/turn
• Wiring: white = ground, black = taillight, red = brake/turn

What are the physical dimensions and mounting details I should know?

These surface-mount lamps are compact yet visible, with dimensions that fit many common trailer cutouts and flange patterns. They mount flat against the exterior surface using the supplied flange mounting holes; you may need to route wiring through a small access hole in the mounting surface.

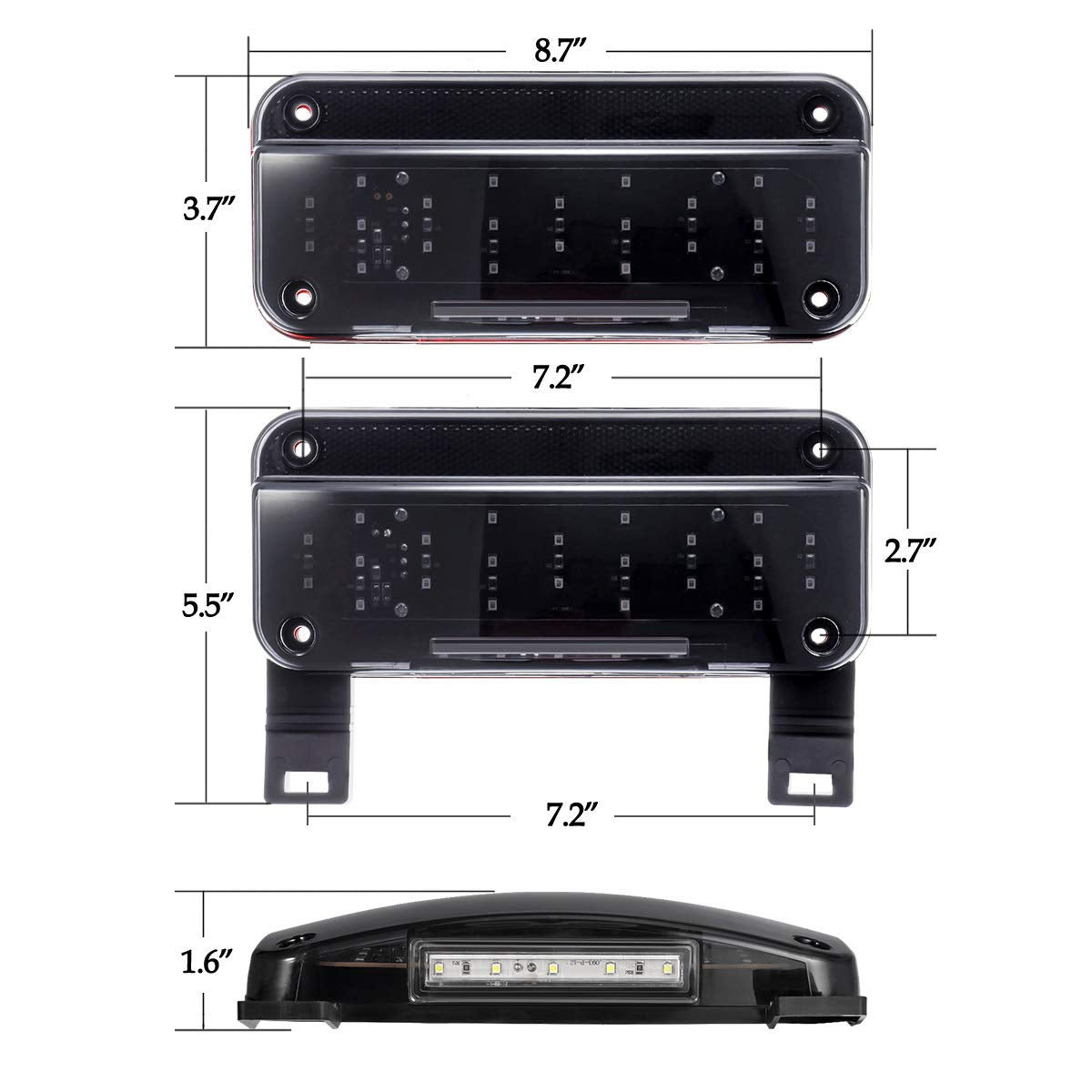

• Overall length: 8 5/8" (approx.)
• Height: 3 7/8"; depth: 1 3/5"
• Mounting-hole spacing: about 7" by 2 1/2"

Are these lights durable and regulation friendly?

The units are LED-based which offers longer life and greater energy efficiency than incandescent bulbs. The assemblies are designed with a black plastic base and smoked lens; they meet SAE and DOT requirements for combination rear lighting when installed correctly, offering dependable visibility without frequent bulb replacements.

• LEDs last much longer than incandescent equivalents
• Lower power draw helps preserve vehicle battery and wiring
• SAE and DOT approved for typical trailer lighting applications

How simple is the installation process?

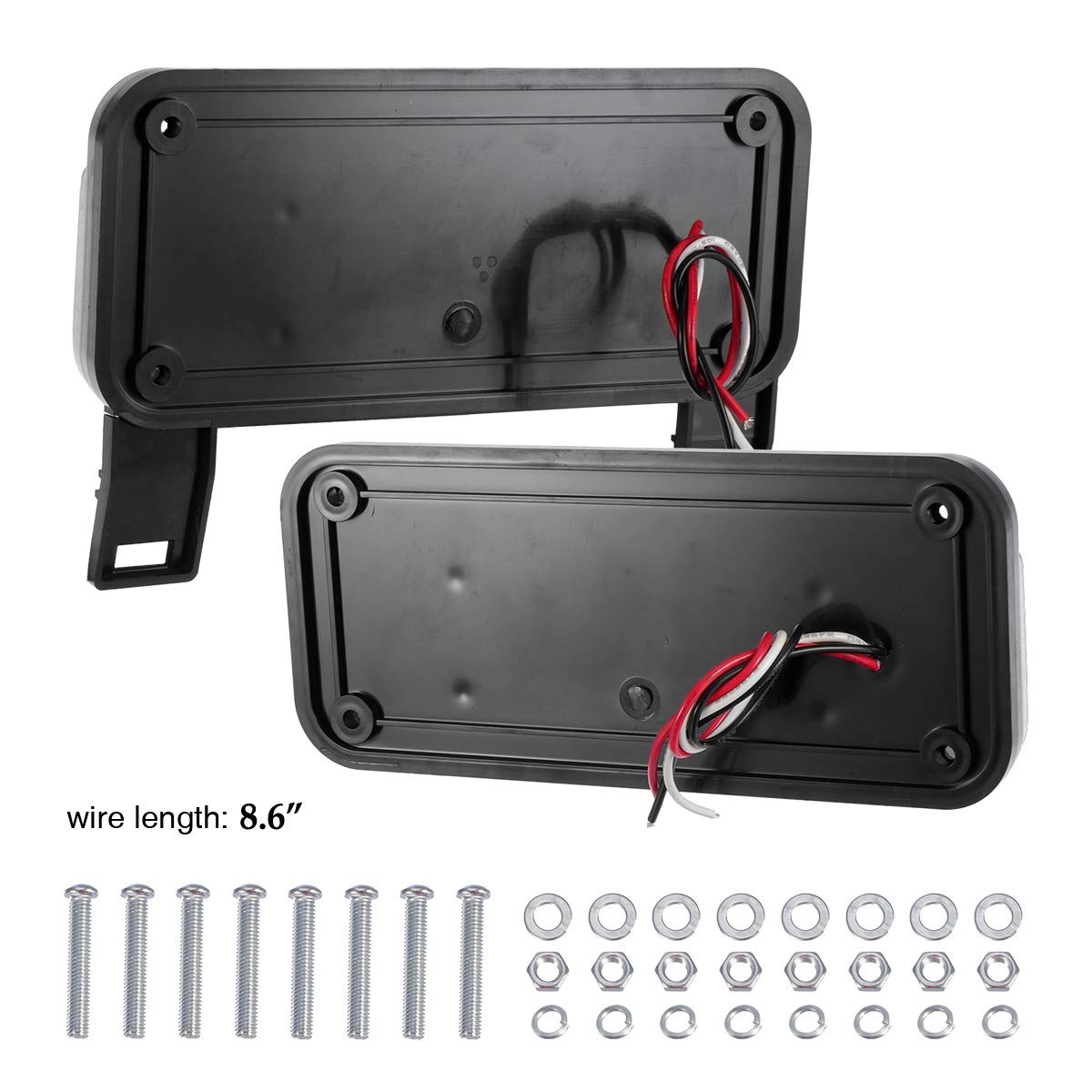

Installation is straightforward for surface-mount applications: secure the flange, route the wires, and make three-wire connections. Most installations require only basic tools; confirm wiring color functions and secure a weather-tight connection for long-term reliability.

• Surface mount design installs flat against the trailer body
• Requires hole for wiring pass-through and standard mounting hardware
• Three-wire hook-up: ground, taillight, brake/turn

Who is this for: This Partsam pair is ideal for RV and trailer owners who want a reliable LED upgrade or replacement that reduces maintenance and enhances rear visibility. It suits DIY installers and fleet managers seeking a low-profile, regulation-friendly solution with an integrated license plate lamp on the driver side—especially useful for campers, travel trailers, utility trailers, and light-duty commercial trailers where compact, multi-function rear lighting is needed.
