Partsam LED Trailer Tail Lights 2-Pack Double Surface Mount Black Base, 33-LED Dual Stop/Turn/Backup Slim Low-Profile

Partsam 2-pack double LED trailer tail lights are compact surface-mount assemblies that combine stop, turn, tail, and backup illumination in one slim housing for trailers, RVs, and utility vehicles.

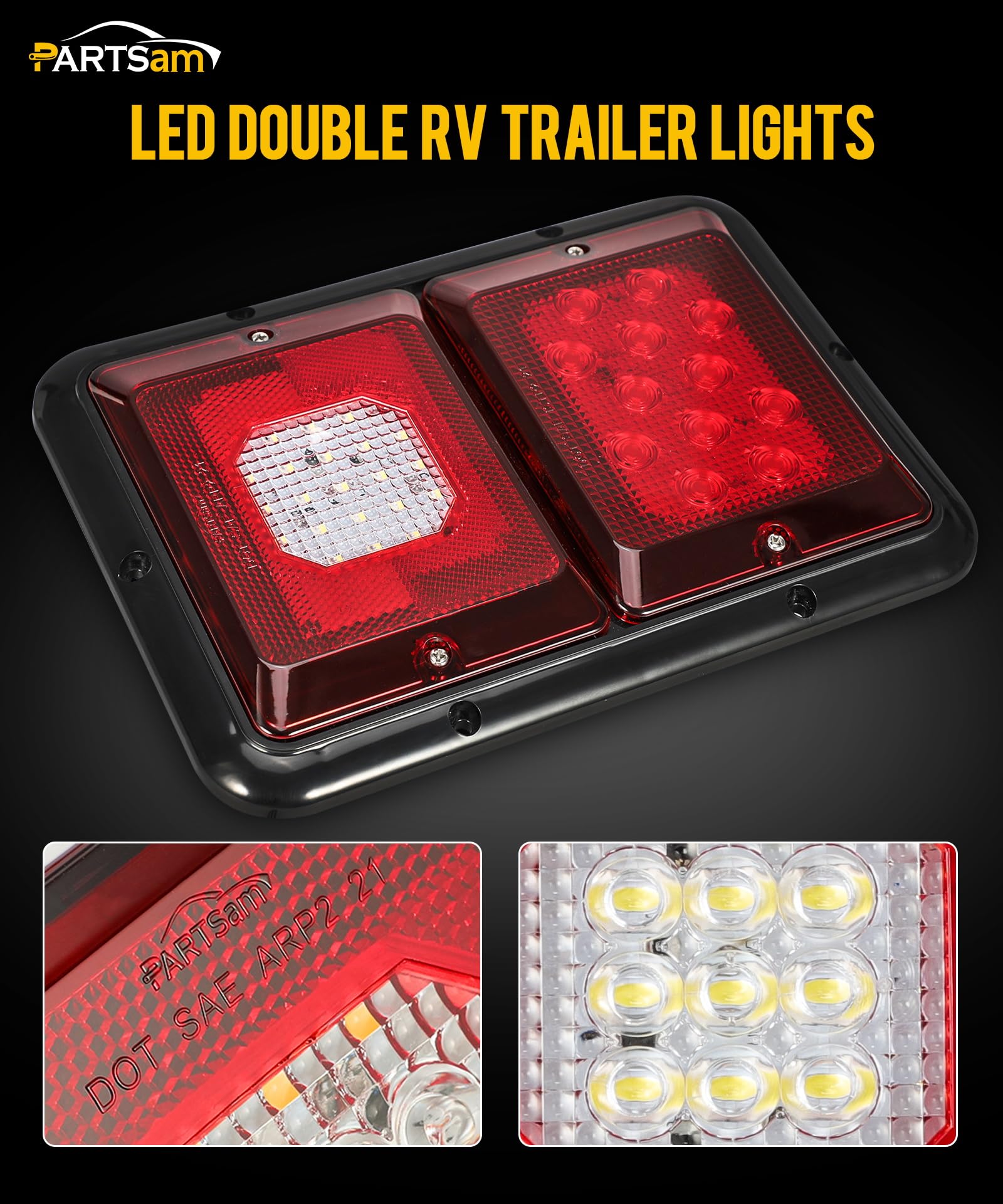

These paired taillights offer a low-profile, versatile replacement for broken or outdated lens assemblies. Each unit integrates multiple LED circuits and a clear reverse lens with a red reflex border, so you get distinct running, braking, signaling, and reverse illumination in a single surface-mounted module. Built with a black base and included gaskets and stainless hardware, the lights are designed for weather resistance and straightforward installation either horizontally or vertically.

How do these lights simplify replacing trailer tail assemblies?

They combine several functions—running, braking, turn, and reverse—into one compact light so you don’t need multiple fixtures. The two-piece kit contains both left and right lamps plus mounting gaskets and stainless screws to streamline a direct swap.

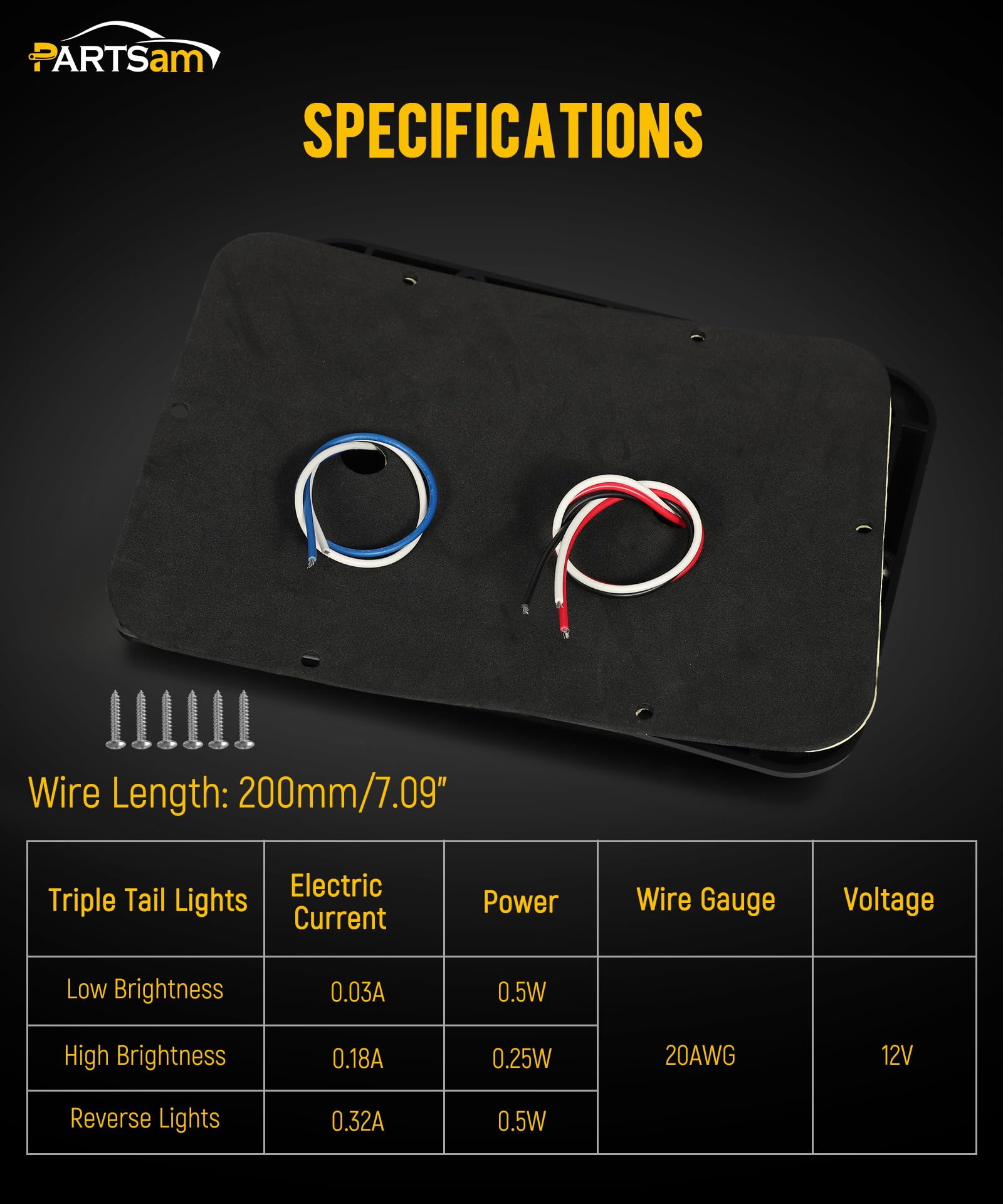

• Pre-wired 5-conductor cable: ground, backup, high (brake/turn), and low (running)
• Mounting gasket and stainless screws included for a sealed installation
• Can be mounted horizontally or vertically to match existing cutouts
• Slim profile saves space and fits tight mounting areas

What wiring and electrical details should I expect during installation?

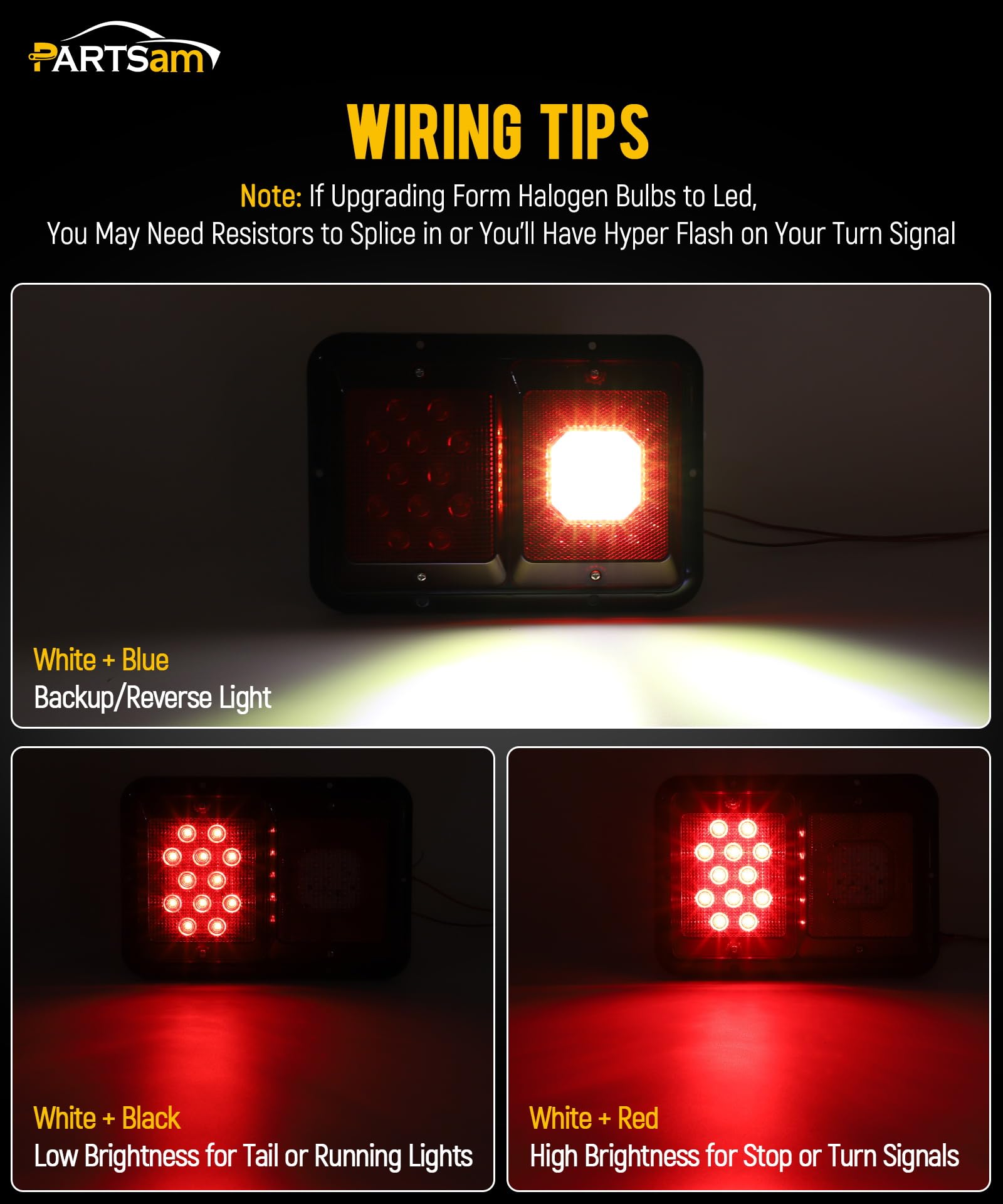

Each lamp arrives with five wires: white (ground), blue (reverse), red (high mode for brake/turn), and black (low mode for running lights). Because LEDs draw less current than incandescent bulbs, you may need load resistors or a compatible flasher to avoid fast-turning signals on older flasher units.

• 5-wire harness for full-function control
• May require resistors or updated flasher for hyper-flash prevention

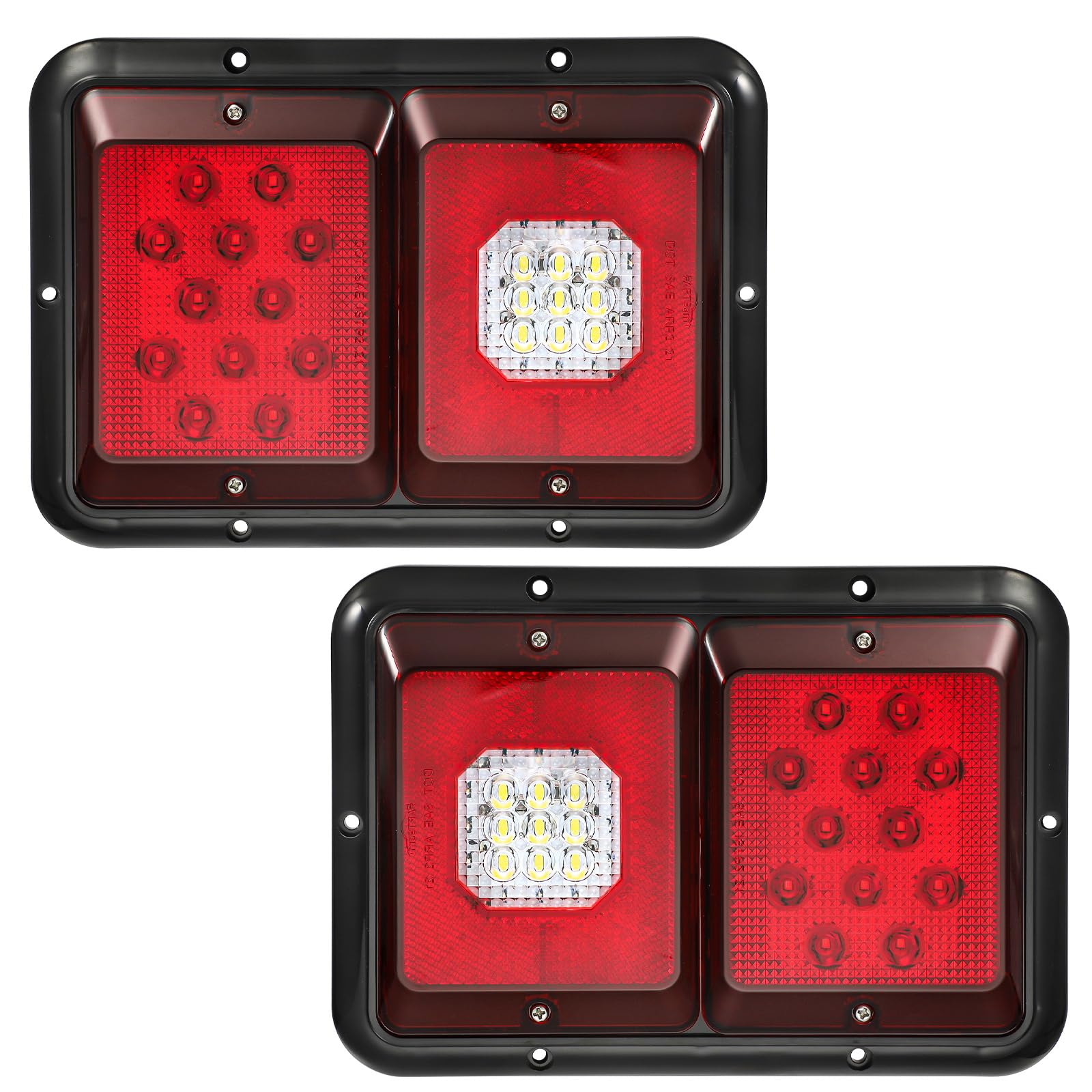

• Back-up LEDs are white with a clear lens and red reflex border
• Simple splice-in wiring for retrofit projects

What are the physical dimensions and mounting requirements?

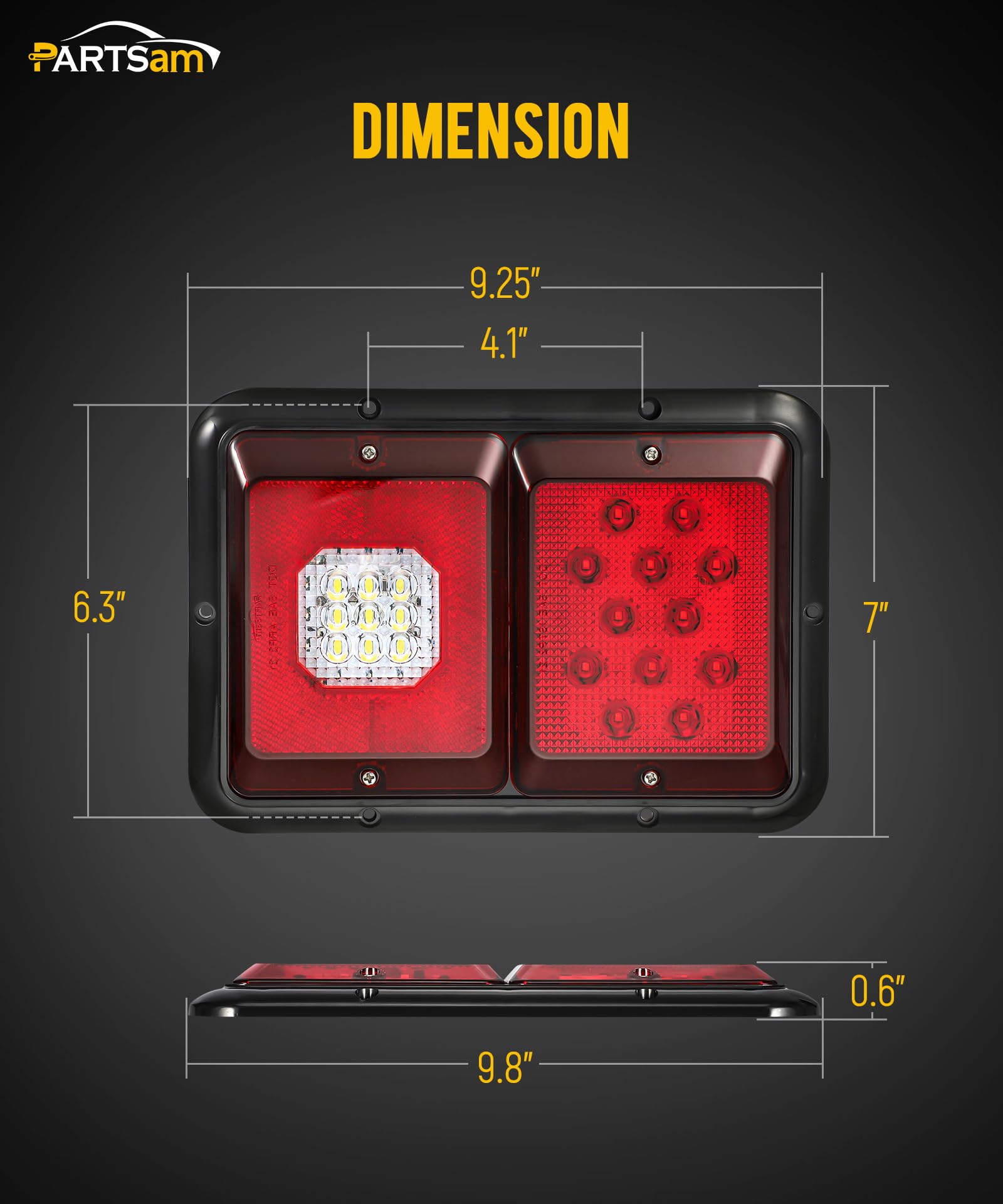

The assemblies are compact yet readable from a distance, with an overall length of about 9.5 inches, width near 7 inches, and thickness around 0.87 inch. For a complete replacement fit, plan a cutout roughly 9 inches by 6.3 inches between mounting points.

• Approximate outer dimensions: 9.5" long × 7" wide × 0.87" thick
• Recommended cutout spacing: 9.0" long × 6.3" hole-to-hole
• Six mounting holes on a black base for secure fastening
• Slim profile works well on RVs, trailers, and compact rear panels

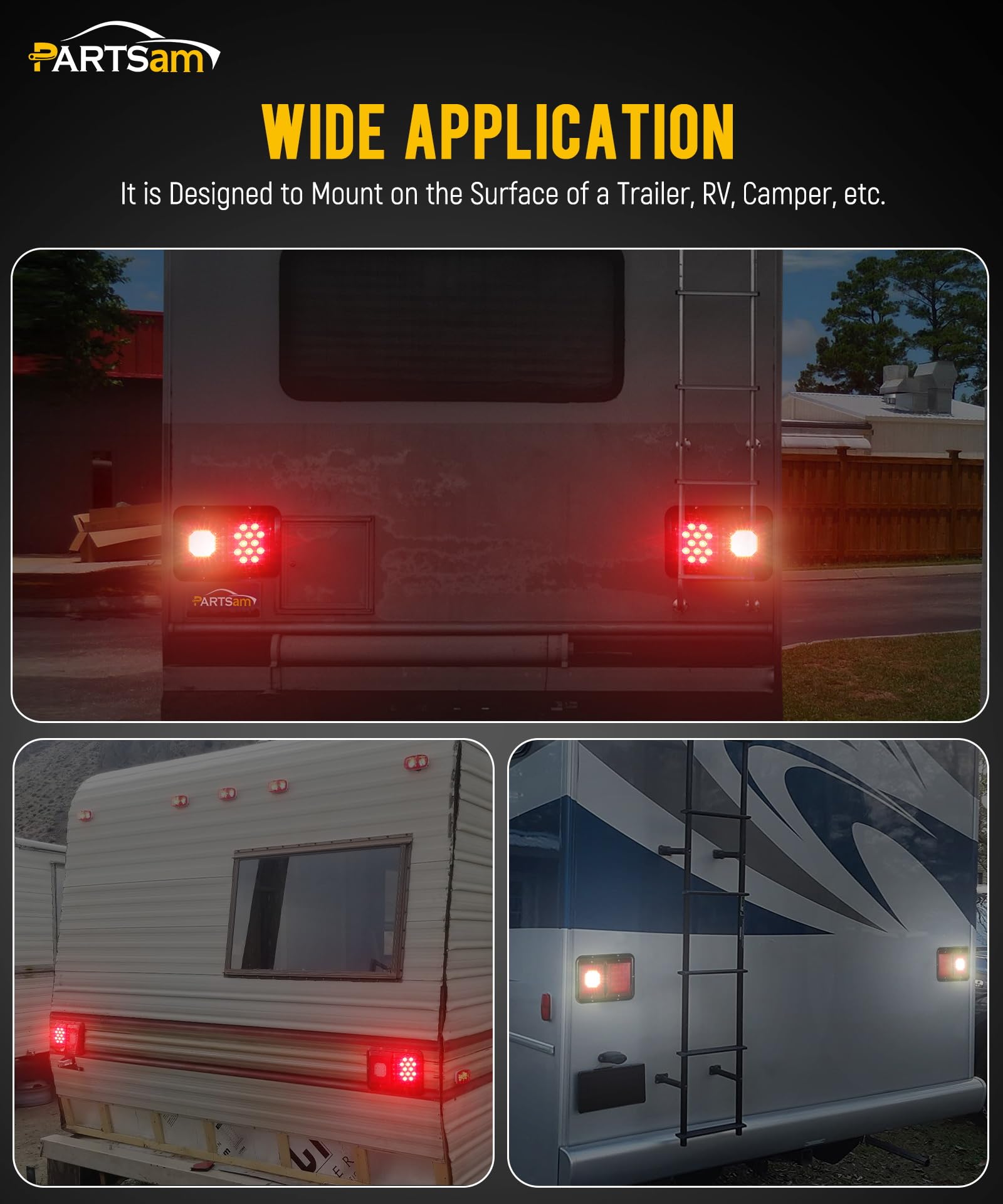

Which vehicles and applications are these tail lights compatible with?

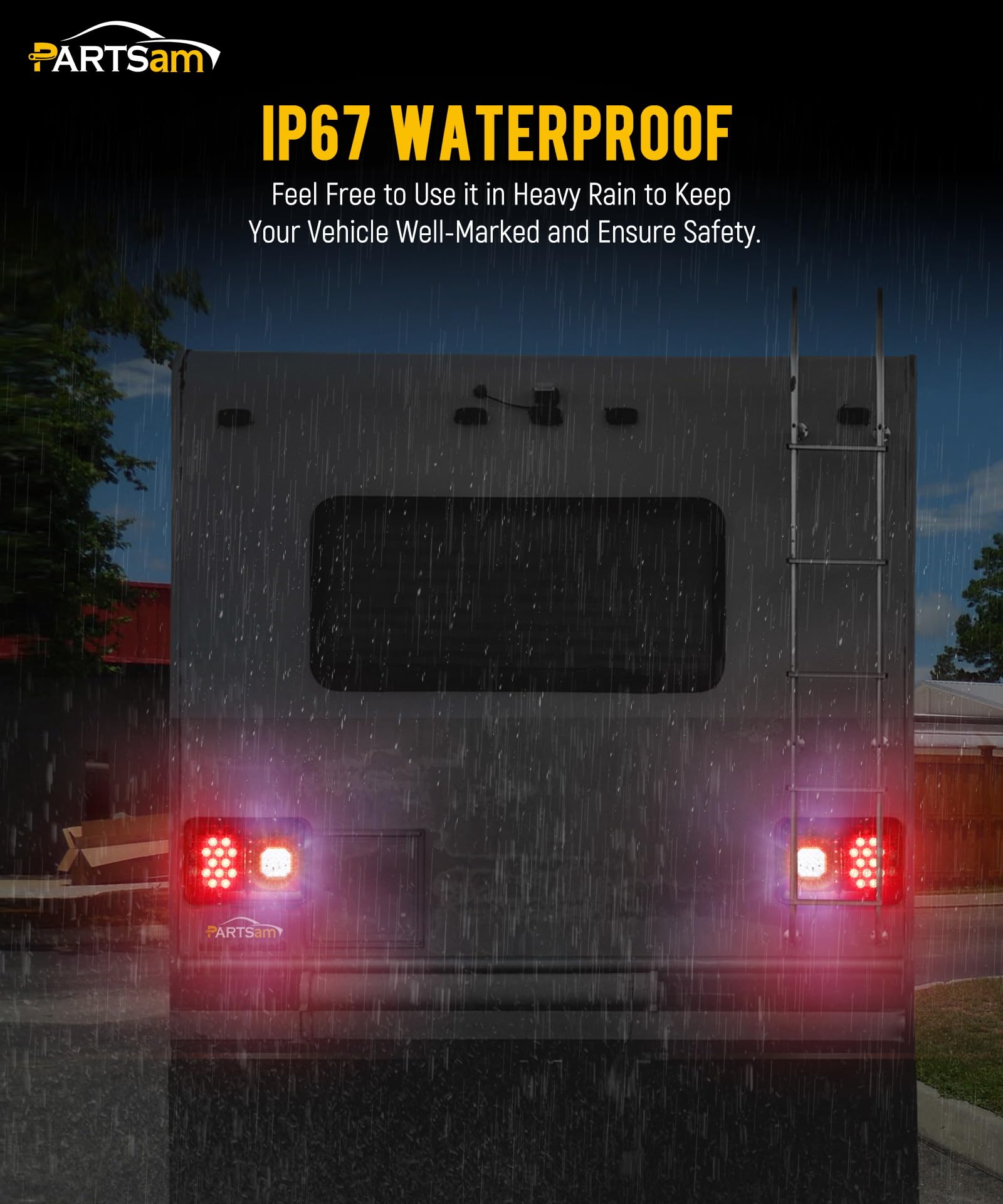

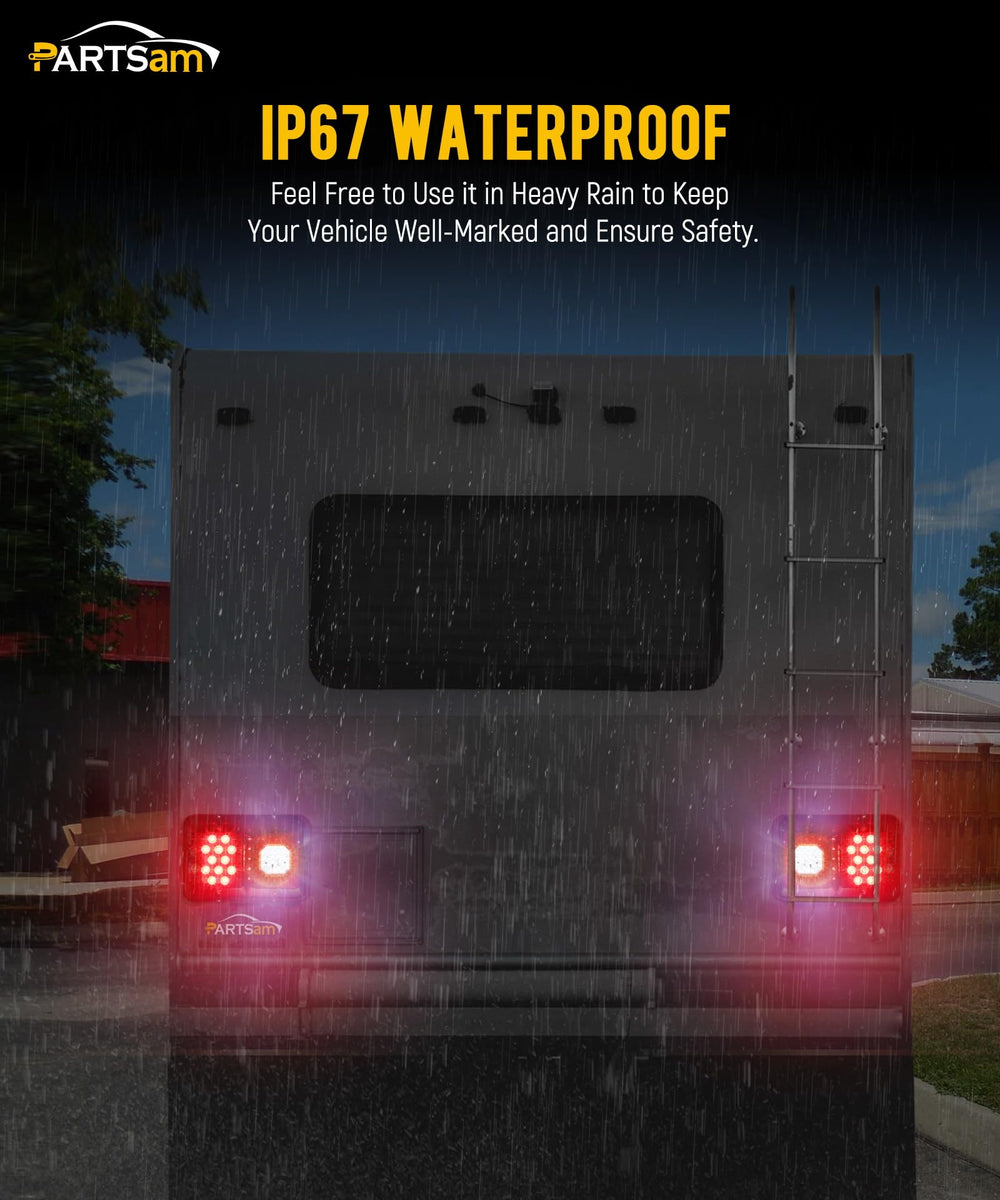

They’re suitable for a wide range of tow and commercial vehicles that accept surface-mount LED assemblies. The durable base and included gaskets make them appropriate for outdoor, marine, and heavy-duty use—anything from small utility trailers to larger campers and specialty trucks.

• Trailers, utility trailers, and boat trailers
• RVs, campers, and motorhomes
• Commercial trucks, tractors, buses, and specialty vehicles
• Works for OEM replacements or aftermarket upgrades

Who is this for: The Partsam double LED tail lights suit DIYers, fleet owners, and RV enthusiasts who want a compact, all-in-one lighting solution with flexible mounting options. If you need a durable, sealed assembly that replaces multiple separate lamps and reduces installation complexity, this two-piece kit is built for retrofit and replacement projects where space, clarity, and reliability matter.
