Partsam LED Trailer Tail Lights 2-Pack Rectangle Vertical/Horizontal Mount — Red/Clear, Black Base, 45-LED, 8-Wire

These Partsam LED triple tail lights are a two-piece set of versatile, high-visibility stop/turn/tail and backup lamps designed for trailers, RVs, and campers, mountable either vertically or horizontally.

Engineered to replace conventional incandescent fixtures, this Partsam pair combines energy-efficient LEDs with a durable black base and a red/clear lens arrangement to deliver brighter signaling and longer life. Each lamp houses three red lens zones plus a clear backup lens with integrated white LEDs, all supplied with stainless fasteners and mounting gaskets to simplify installation and help prevent moisture intrusion.

How do these lights fit my trailer or RV?

The lights are built to work in multiple orientations and installation styles: they can be mounted vertically or horizontally and accept surface or recessed mounting depending on your vehicle's configuration. The package includes the screws and gaskets needed for a secure attachment, and pre-drilled holes on the housing help align the fixtures for consistent placement.

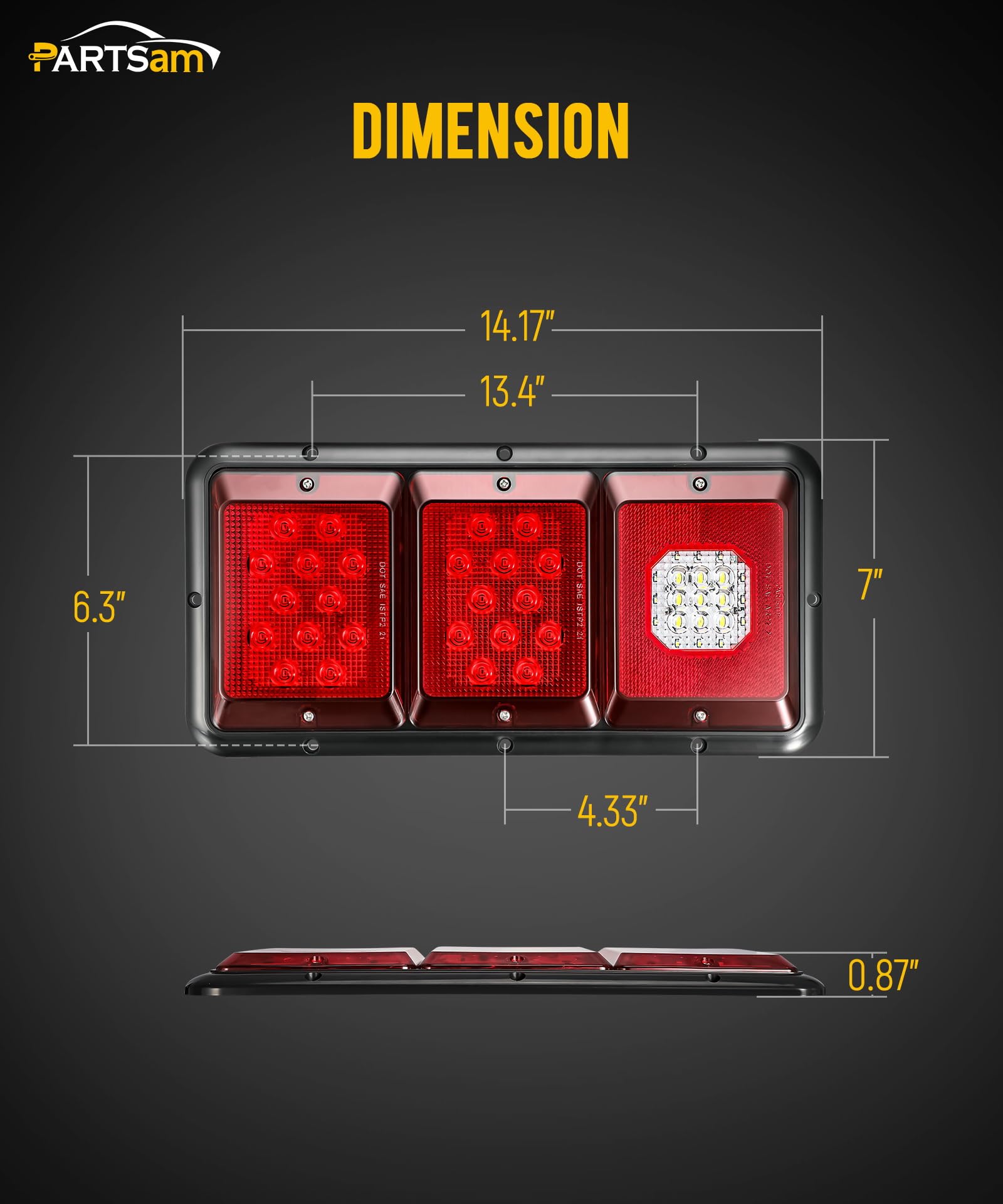

• Overall dimensions approx. 14.17" × 7" × 0.87" for broad compatibility
• Required cutout: 13.4" long by 6.3" hole-to-hole
• 8 screw holes for stable mounting
• Includes stainless steel screws and mounting gaskets

What functions and light patterns do these taillights provide?

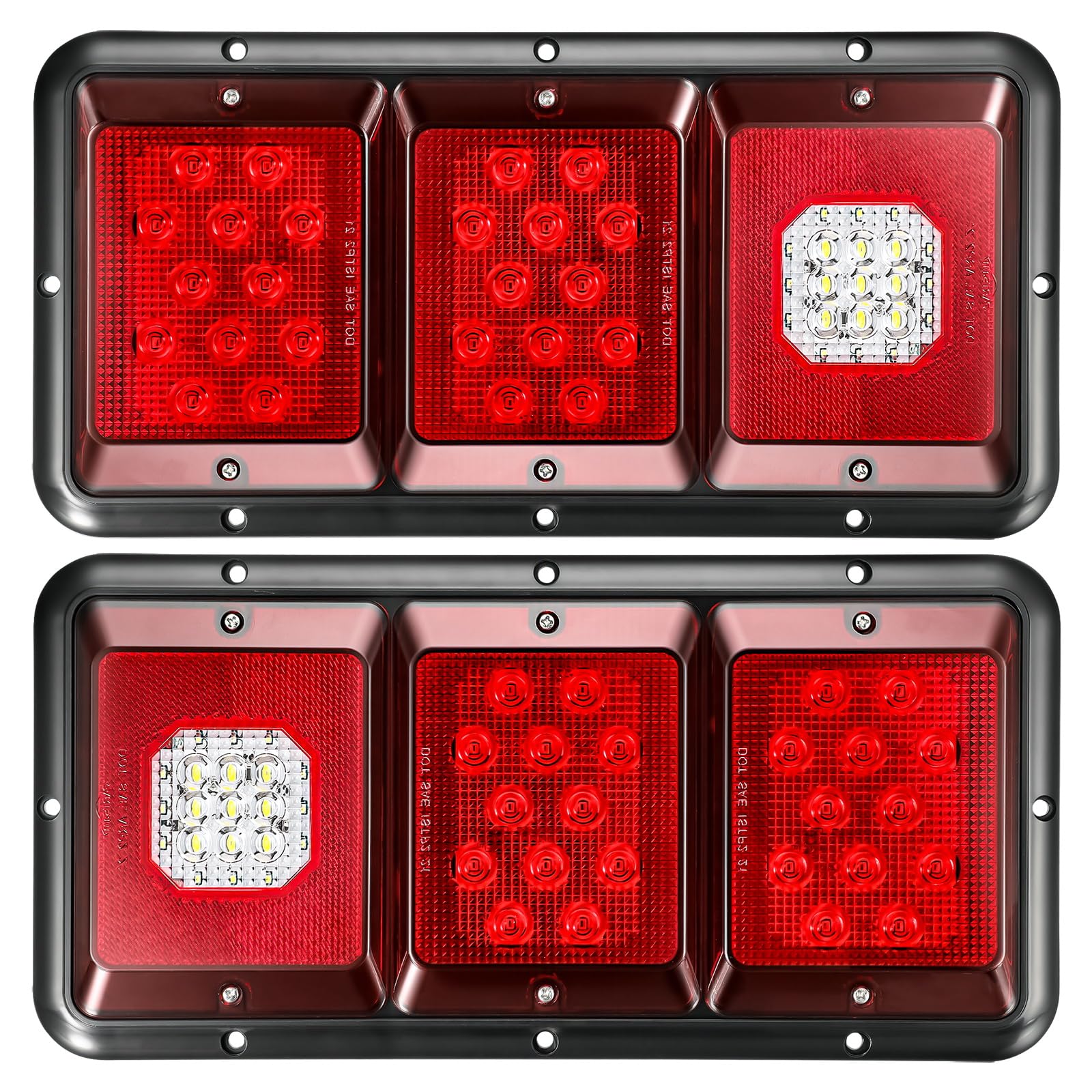

Each assembly combines multiple lighting roles in one housing: dual red LED circuits for stop/turn and tail/running modes plus a clear backup light with white LEDs. The center red reflex border enhances visibility while the clear backup lens offers bright reverse illumination.

• Two replaceable red LED bulbs for stop/turn and tail modes
• One clear backup lamp with built-in white LEDs
• Red reflex border around backup lens for added visibility
• Distinct circuits for stop/turn, tail, and reverse function

What wiring and electrical considerations should I know?

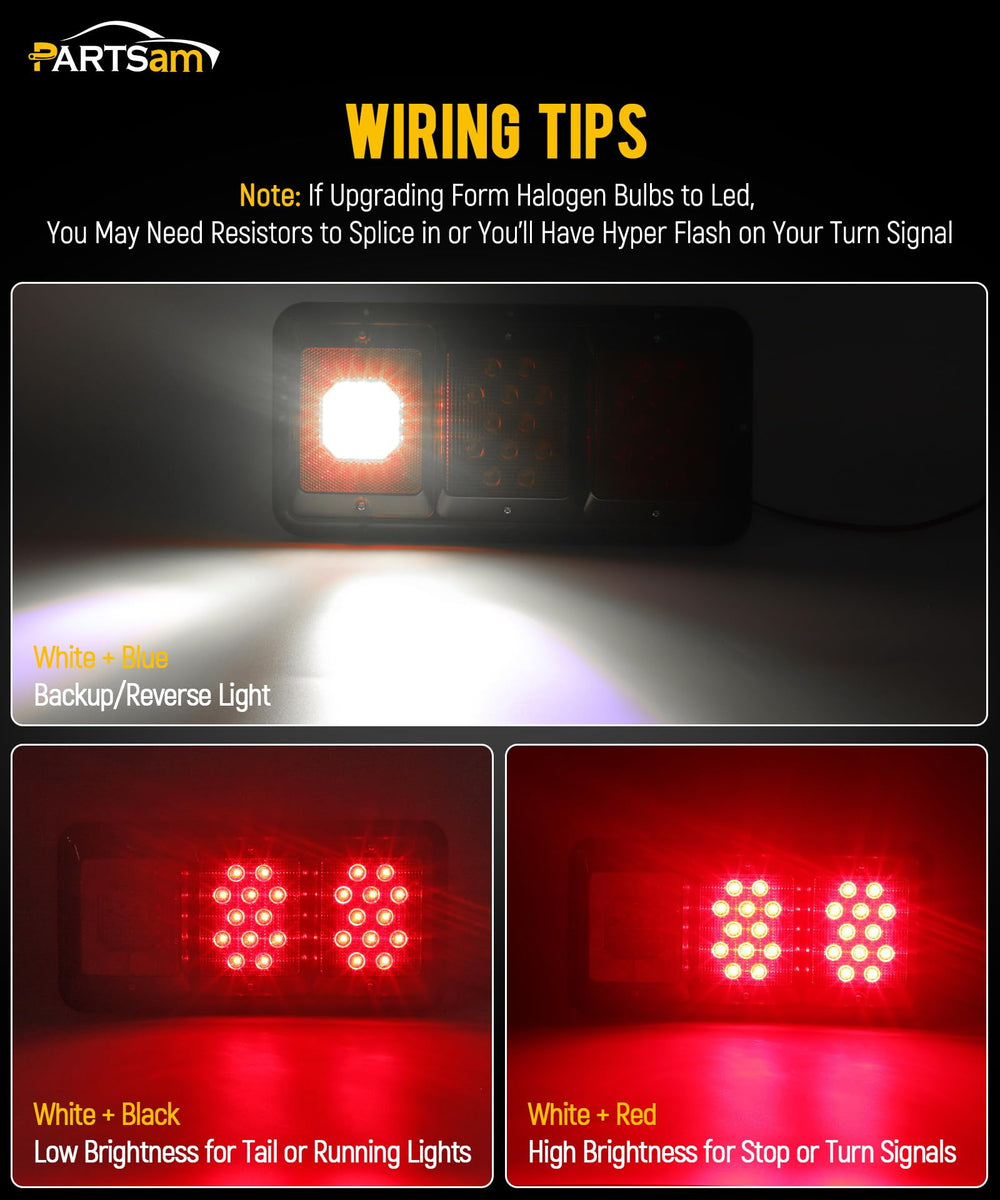

These lights arrive hardwired with eight conductors so you can connect ground, reverse, and both high (stop/turn) and low (tail) modes separately. If replacing incandescent lamps with LEDs on a vehicle that uses bulb-load sensing or hyperflash, you may need load resistors or an LED-compatible flasher to maintain proper signal timing.

• 8-wire harness: white ground, blue reverse, red high (stop/turn), black low (tail)
• May require resistors for halogen-to-LED upgrades on certain systems
• Separate circuits simplify troubleshooting and future replacements
• Hardwired harness reduces additional connector needs

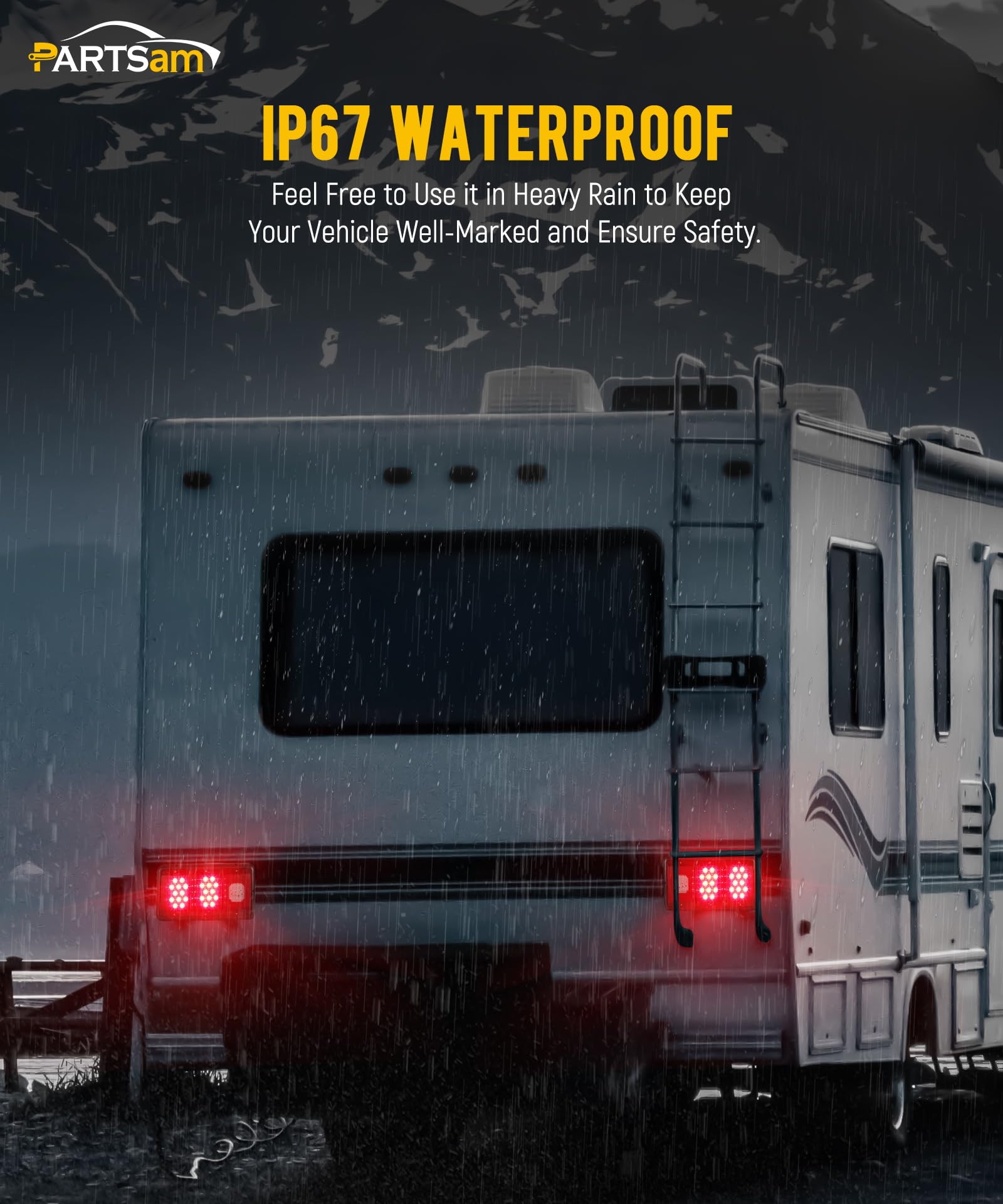

How durable and weather-resistant are these fixtures?

The housings are fitted with mounting gaskets and stainless steel fasteners to reduce water intrusion at the mounting points, while the low-profile black base helps shield internal components. LED technology itself resists filament failure and vibration better than traditional bulbs, giving these lamps a longer expected service life.

• Included gaskets and stainless screws for tighter seals

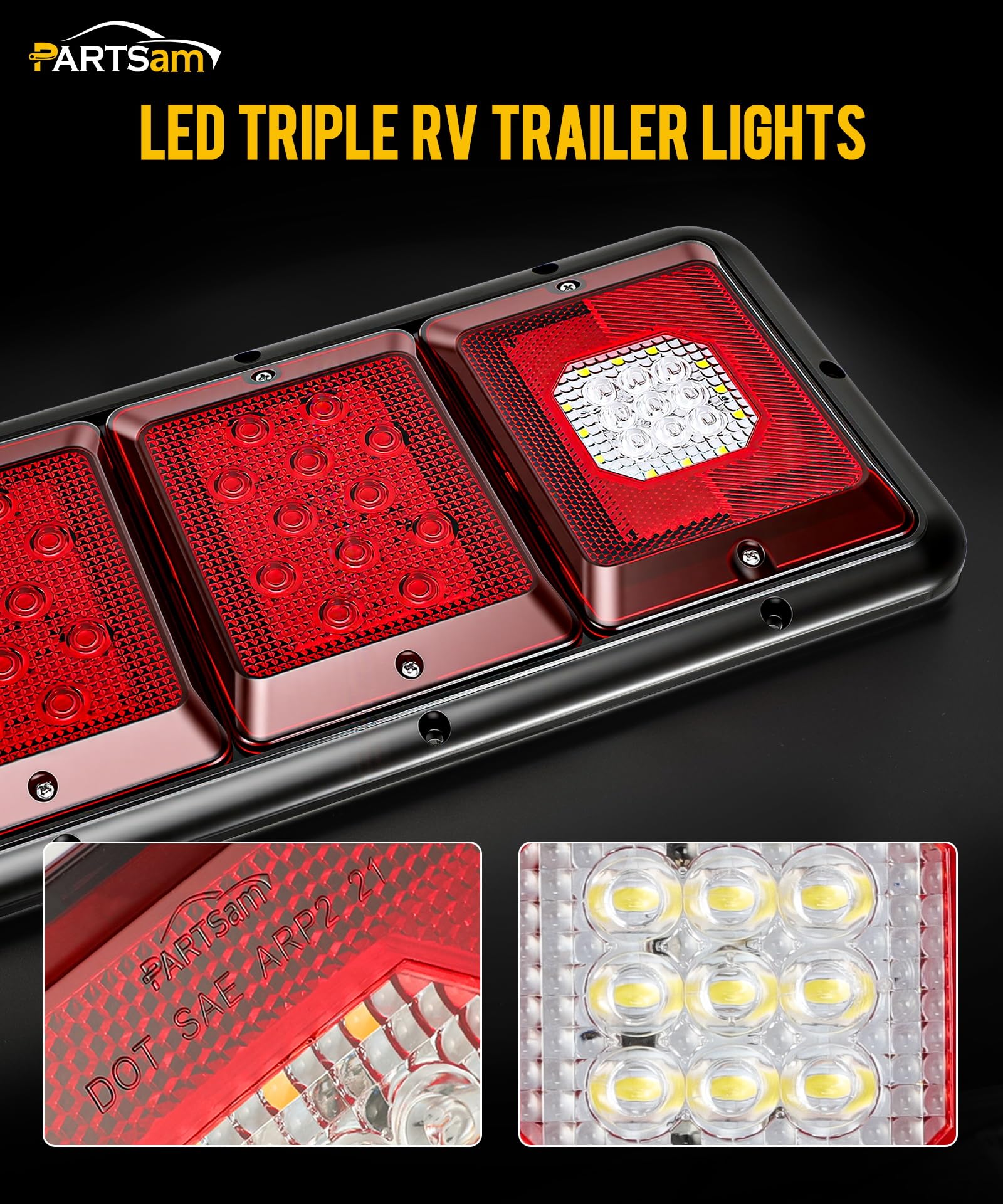

• Low-profile 0.87" thickness reduces snagging and wind load
• LEDs offer improved vibration and shock resistance
• Red/clear lenses designed for clear signaling and backup illumination

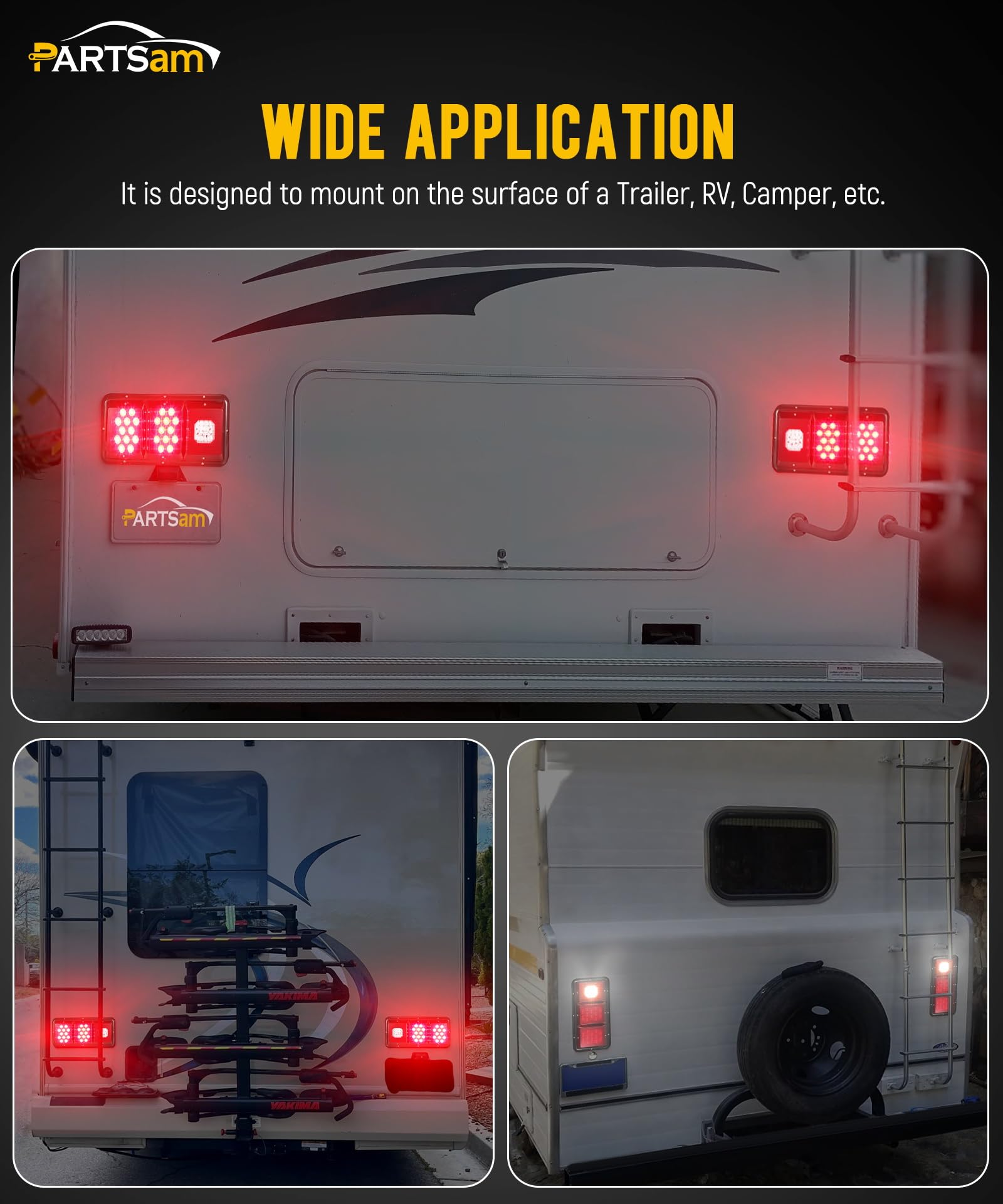

Who is this for? These Partsam LED triple taillights suit owners upgrading lighting on trailers, RVs, campers, utility haulers, and motor homes who want multi-function lamps that fit a range of mounting styles. They’re a good match for DIY installers, fleet managers replacing worn incandescent fixtures, and anyone seeking clearer stop/turn signals plus brighter reverse lighting without extensive rewiring. Keep in mind electrical compatibility with your vehicle’s flasher or sensor system when converting from halogen to LEDs.
