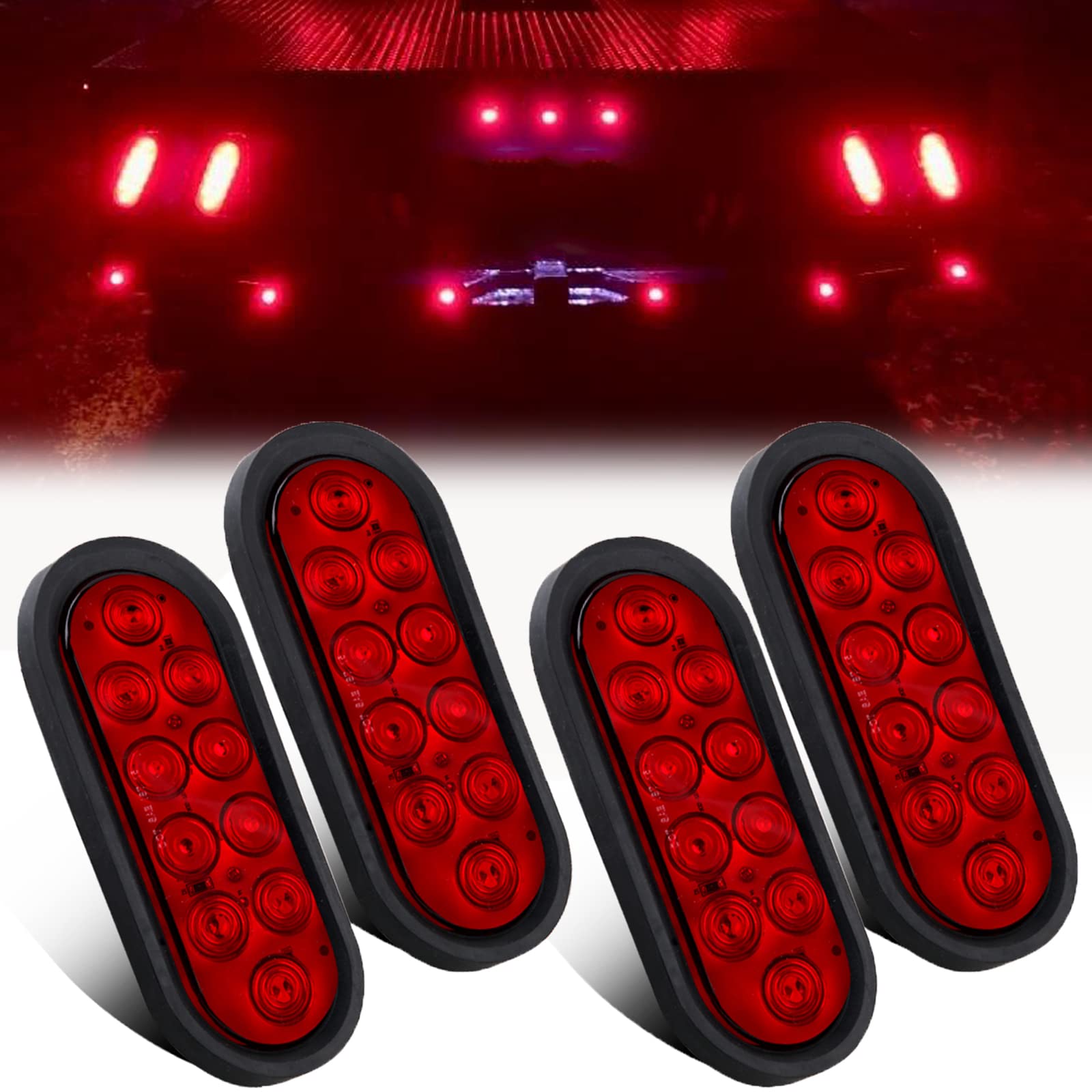

Partswcgg 6-inch Oval LED Trailer Tail Lights 4-Pack — 10-LED Multi-Function, IP67 Waterproof

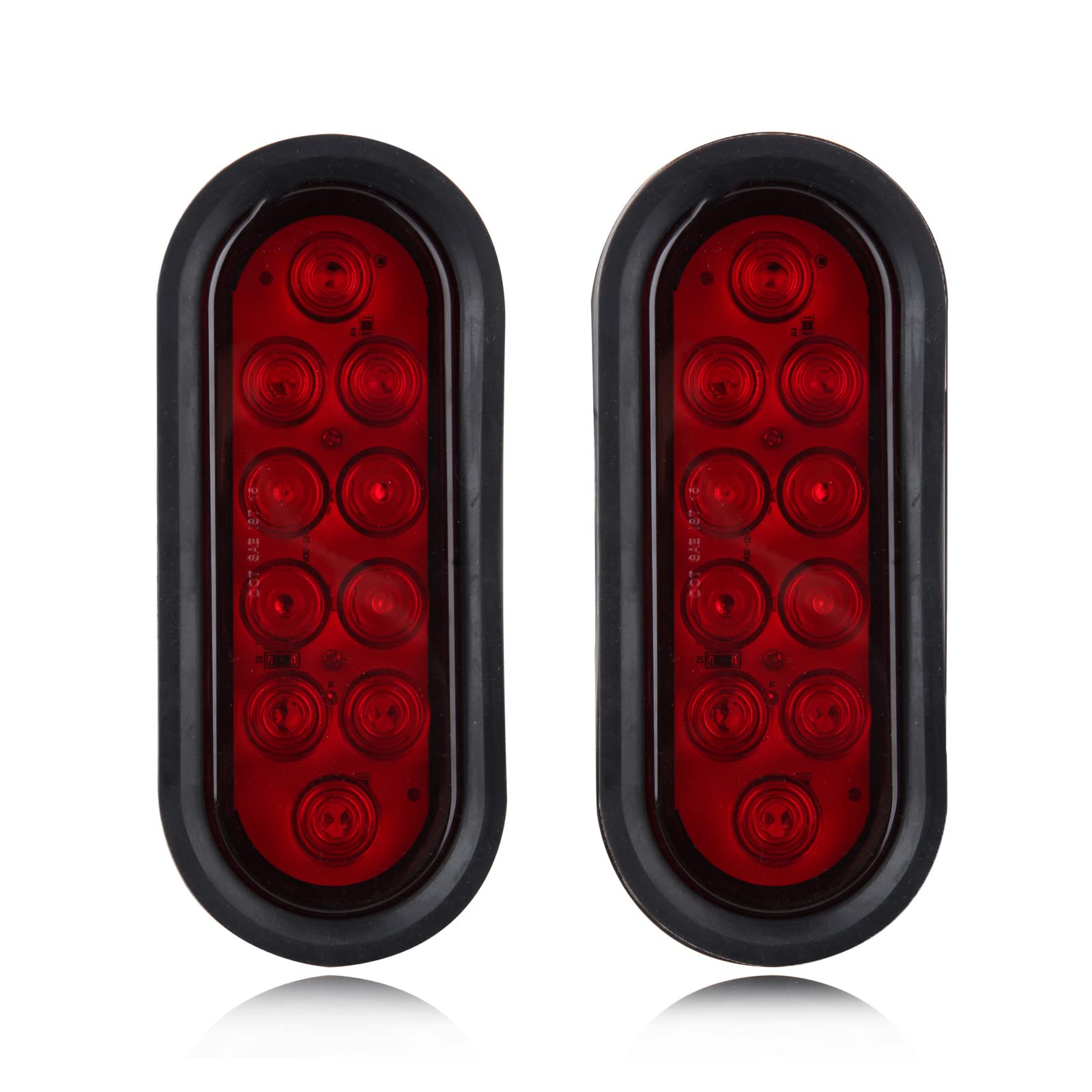

Partswcgg 4-pack 6-inch oval LED trailer tail lights are bright multi-function lamps for stop, tail and turn signal use, built with 10 efficient LEDs and an IP67 water resistance rating for rugged vehicle applications. These oval LED lights pair a compact 6" lens with a sturdy rubber grommet and a standard 3-prong plug to simplify retrofit or replacement on trailers, trucks and utility vehicles. Each lamp uses ten high-output LEDs that draw less current than incandescent bulbs while producing clear, visible signals. The set includes hardware for flush mounting and wiring guidance so you can install them faster and with fewer parts.

How do these lights perform in wet or dusty conditions?

The fixtures are rated IP67 for protection against dust ingress and temporary immersion, making them suitable for most road and marine applications. The sealed housing and rubber grommet reduce moisture intrusion at the mounting point.

• IP67 water resistance for dust-tight sealing and temporary immersion protection
• Rubber grommet included to seal the flush-mount opening
• Durable lens and housing resist road grime and salt spray

What electrical connections and functions do these lights support?

Each lamp is a multi-function unit handling stop/brake, tail, and turn signal duties through a standard 3-prong wiring arrangement. They accept 8–16V DC systems common on trailers and utility vehicles and are engineered for low current draw thanks to LED technology.

• 3-prong plug compatible with standard trailer wiring

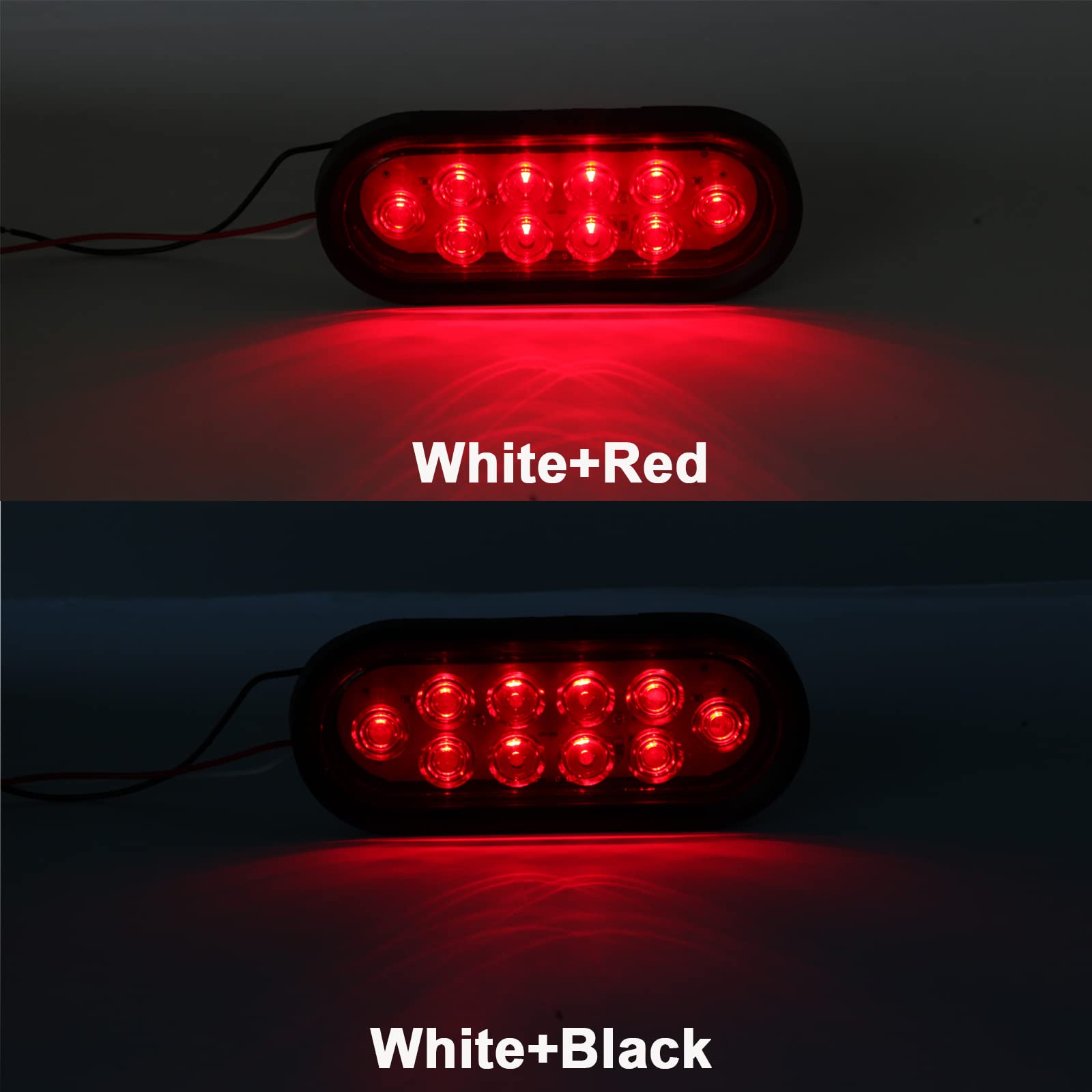

• White = ground, red = high-brightness (stop/turn), black = low-brightness (tail)
• Works with 12V DC vehicle electrical systems (8–16V compatible)

How easy is installation and what are the physical dimensions?

These lights are designed for flush-mount installation with an included rubber grommet and plug, reducing the need for additional mounting hardware. Drill a hole sized to the grommet and seat the light; the plug and wiring color codes speed electrical hookup.

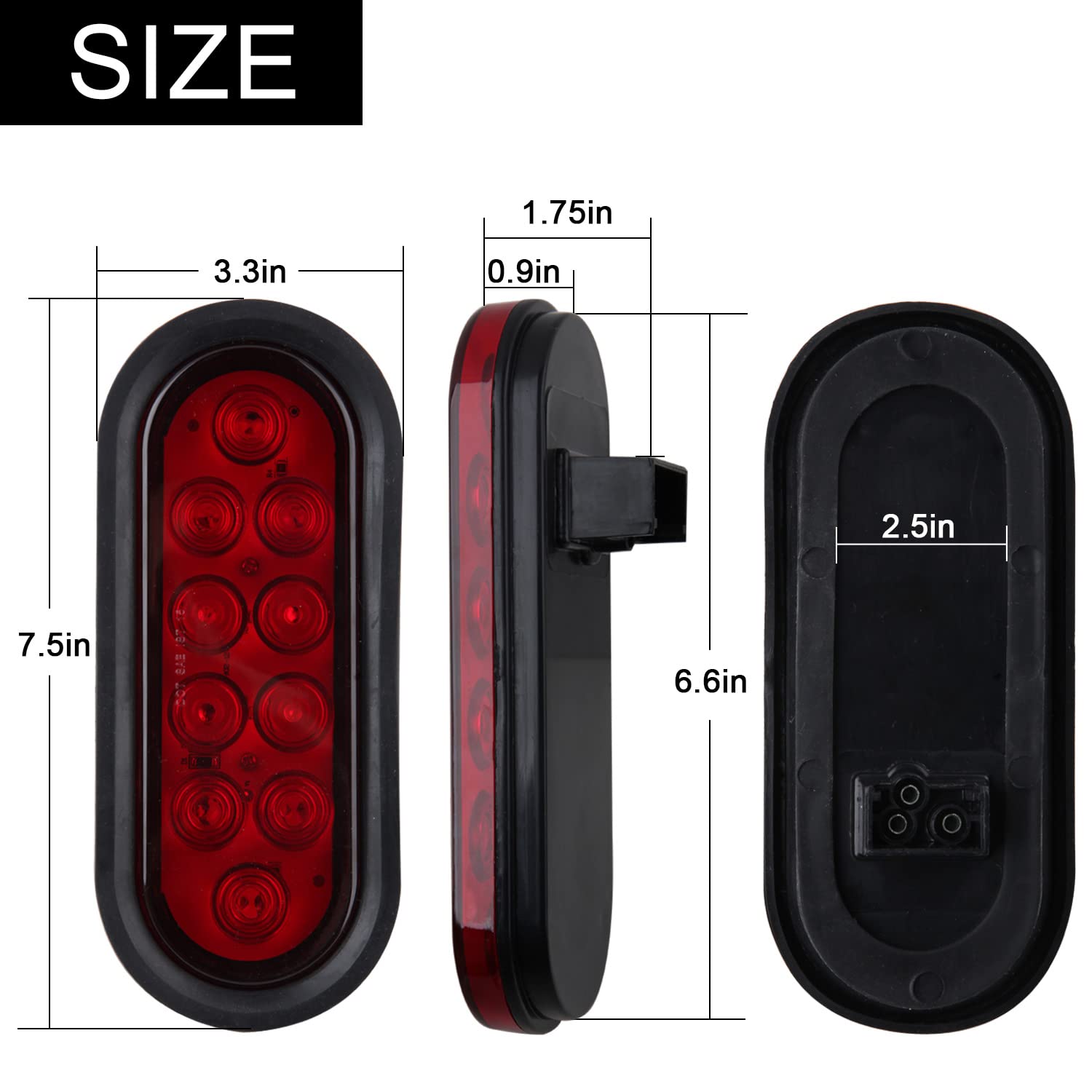

• Flush-mount design with approximately 7.5" grommet ring and 6.3" inner diameter
• Suggested hole diameter ~6.6"; lamp thickness about 1.75"

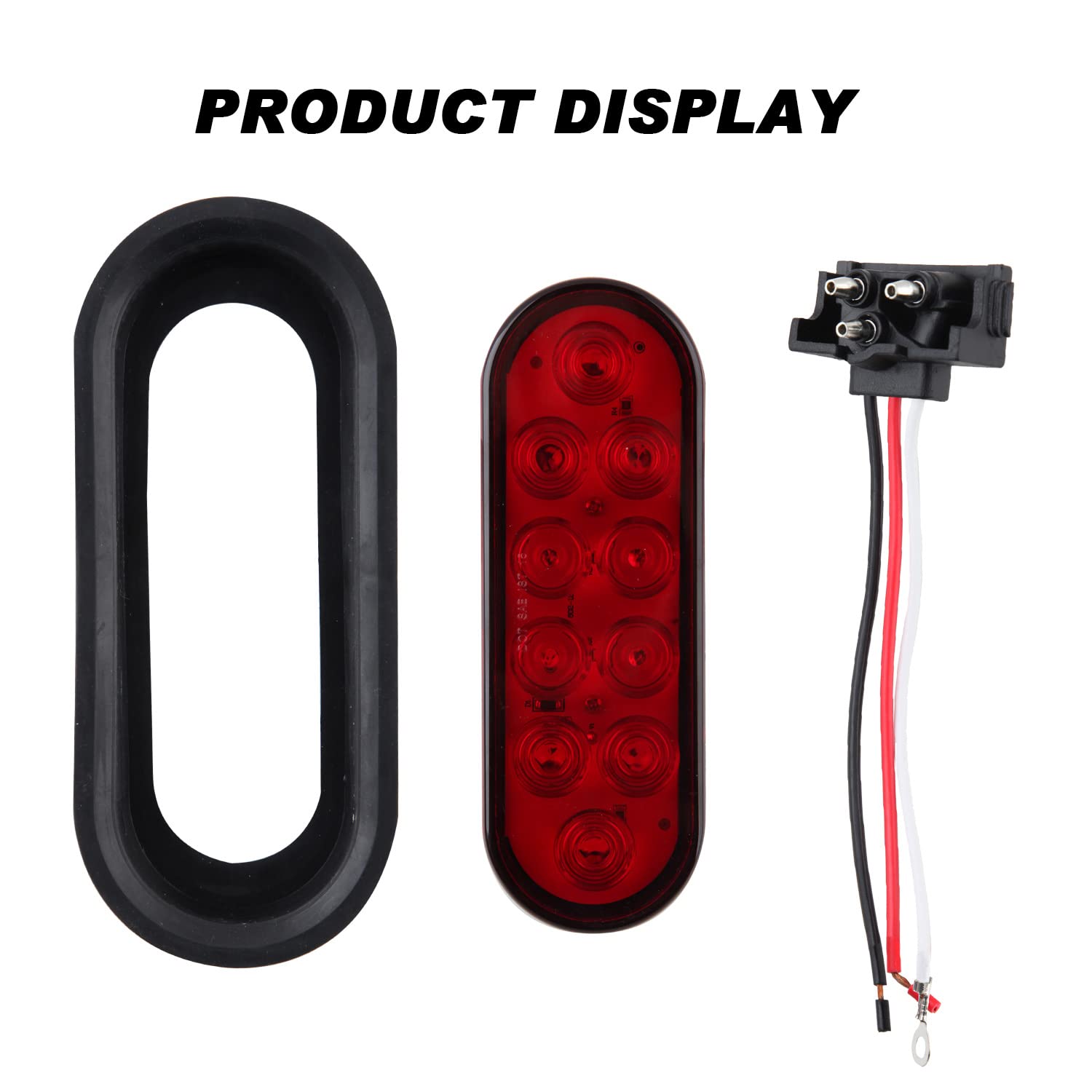

• Set includes four 6" oval lamps, grommets, and 3-prong wire plugs

Will these lights fit my trailer or truck model?

The 6" oval profile and universal 3-prong connector make these lamps compatible with most trailers and light-to-heavy duty vehicles. They are particularly suitable for vehicles that accept oval flush-mount lights and run on standard DC voltages.

• Fits semi trailers, utility trailers, horse trailers, and pickup trucks
• Also suitable for service vans, buses, UTVs, and parade floats
• Universal wiring and mounting minimize custom modification

Who is this for If you maintain trailers, trucks, or utility vehicles and need a reliable, energy-efficient tail light upgrade, this 4-piece kit is built for busy fleet mechanics, DIY owners, and anyone replacing aging incandescent fixtures. The kit is ideal when you want a compact oval lamp with clear multi-function signaling, simple wiring, and robust moisture resistance. For questions about fit or wiring, reach out to Partswcgg customer support for quick assistance within 24 hours.

FAQ

Q: Are these lights compatible with 12V trailers?

A: Yes. They are designed for 8–16V DC systems, so they work with standard 12V trailer electrical setups.

Q: Do I need extra mounting hardware to install them?

A: No extra hardware is typically required; the kit includes rubber grommets and standard 3-prong plugs for flush mounting.
