Partswcgg 6" Oval LED Trailer Tail Lights 10-Pack Red — 10-LED Sealed Flush Mount, IP65 Waterproof

If you need a reliable set of trailer lights that are brighter than incandescent bulbs, energy efficient, and simple to install, this 10-piece Partswcgg kit delivers. Each lamp contains 10 LEDs behind a red lens, ships with rubber grommets and 3-prong plug pigtails, and is designed for flush mounting on trailers, trucks, vans and many utility vehicles. The housings are sealed for weather resistance (IP65 rated) and draw low current, making them a practical replacement or upgrade for older incandescent fixtures.

How do these tail lights handle different lighting duties on a trailer?

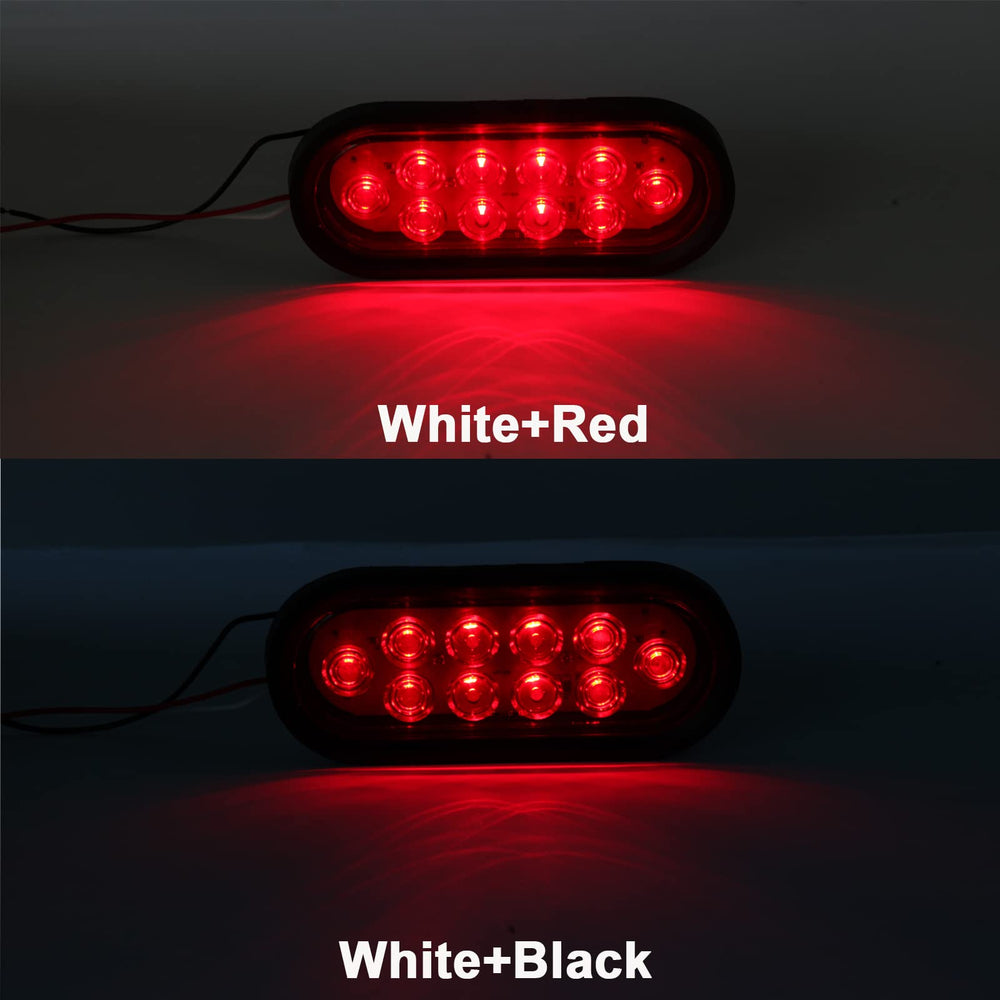

Each oval assembly integrates three functions: brake/stop, tail/parking, and turn signaling. The internal wiring separates high- and low-brightness circuits so the lamp responds correctly to brake, running light, and turn inputs when hooked up to standard 3-pin trailer wiring.

• 10 LEDs per lamp for clear, visible signaling.
• Wiring: white = ground, red = high/bright, black = low/running.
• Sealed lens and housing protect the LEDs from rain and road spray (IP65).

What is involved in installation and what hole size do I need?

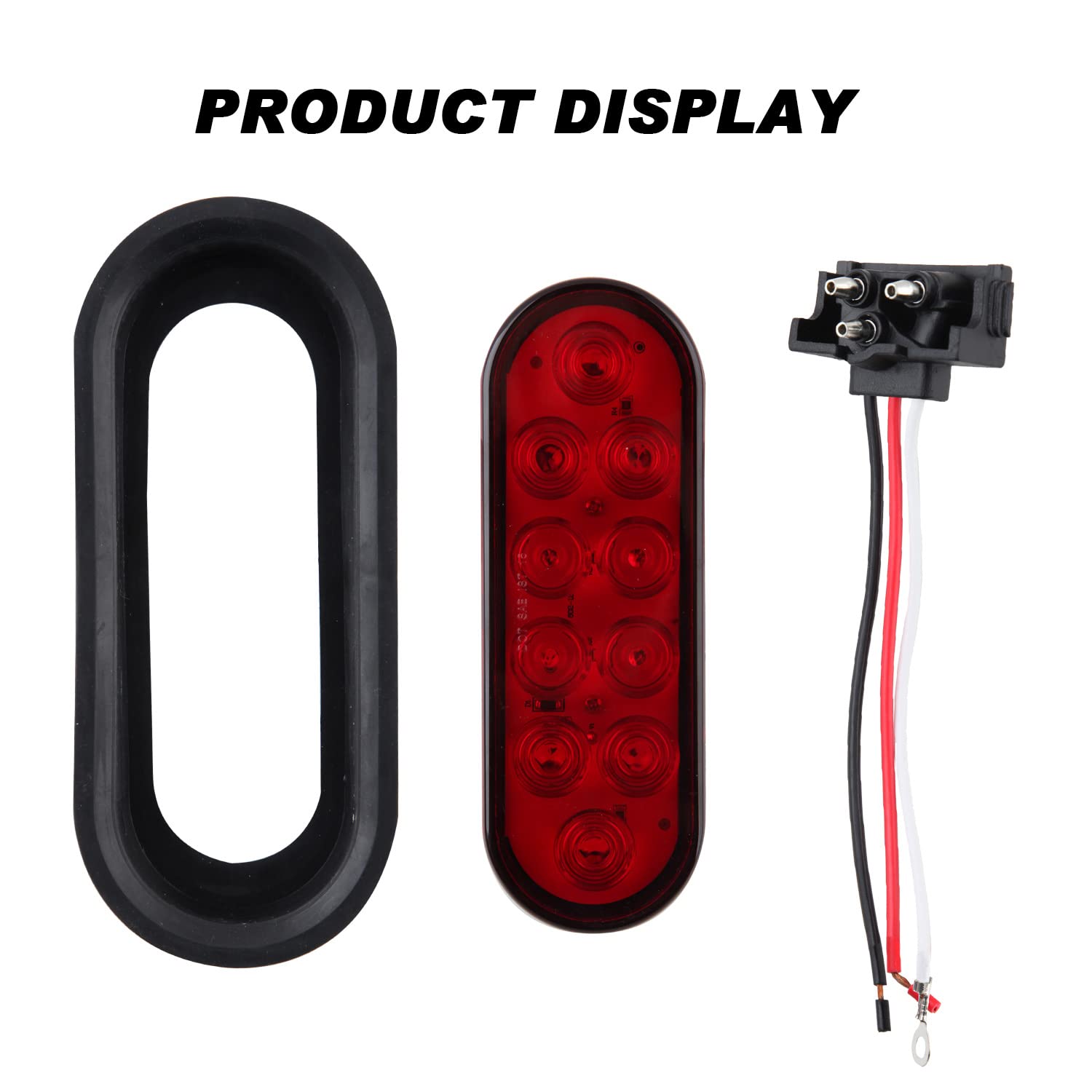

These lamps are made for flush-mounting with a rubber grommet included to seal the opening. The lamps have a roughly 6-inch oval face with a grommet ring of about 7.5 inches and an inner diameter near 6.3 inches. Prepare a round cutout approximately 6.6 inches to ensure the grommet seats properly; wiring uses the included 3-prong plug pigtails for fast connection.

• Flush-mount grommet ring approx. 7.5"; inner diameter ~6.3".
• Recommended drilling/hole size about 6.6" for correct fit.
• Comes with 3-prong plug pigtails for quick hook-up.

Are these lights durable and suitable for outdoor use?

The lights are designed to withstand regular exterior conditions like rain and road grime thanks to a sealed construction and an IP65 rating. They are not intended for continuous submersion, so avoid mounting below the waterline or in areas that will be submerged.

• IP65-rated sealing against dust and water jets.
• Black rubber grommet helps prevent vibration damage and moisture ingress.
• LEDs run cooler and are less vibration-sensitive than incandescent bulbs.

Which vehicles and applications are these lights compatible with?

These oval LEDs work across a broad range of 8–16V DC systems, making them a fit for many trailers and commercial vehicles. Typical uses include semi trailers, utility trailers, service trucks, buses, pickup trucks, horse trailers, float parades and more. Their universal size and simple wiring make them a versatile option for fleet maintenance or DIY trailer upgrades.

• Suitable for trailers, trucks, vans, buses, UTVs, and pickups.
• Works with standard 12V to 16V DC electrical systems.
• Good for fleet replacement or individual vehicle retrofits.

Who is this for: This 10-piece Partswcgg kit is aimed at fleet managers, trailer owners, and DIYers who want a durable, energy-efficient replacement for incandescent tail lights or who need a complete set for new builds. It suits anyone needing easy plug-and-play wiring, a flush-mount appearance, and a sealed light that holds up in typical road and weather conditions. If you require full waterproofing for submerged applications, consider a dedicated marine submersible lamp instead.
