Partswcgg 6" Oval LED Trailer Tail Lights 4-Pack — Red Stop/Turn with White Backup, Sealed IP67

These dual-color oval lights are built for trailers and commercial vehicles that need clear brake/turn signals plus an independent white reverse lamp. Each lamp uses multi-function LEDs and includes wiring pigtails and a separate auxiliary plug for the reverse circuit so the white LEDs take precedence when backing up. The housings are sonically sealed and rated to withstand wet conditions common to road, farm, and marine use.

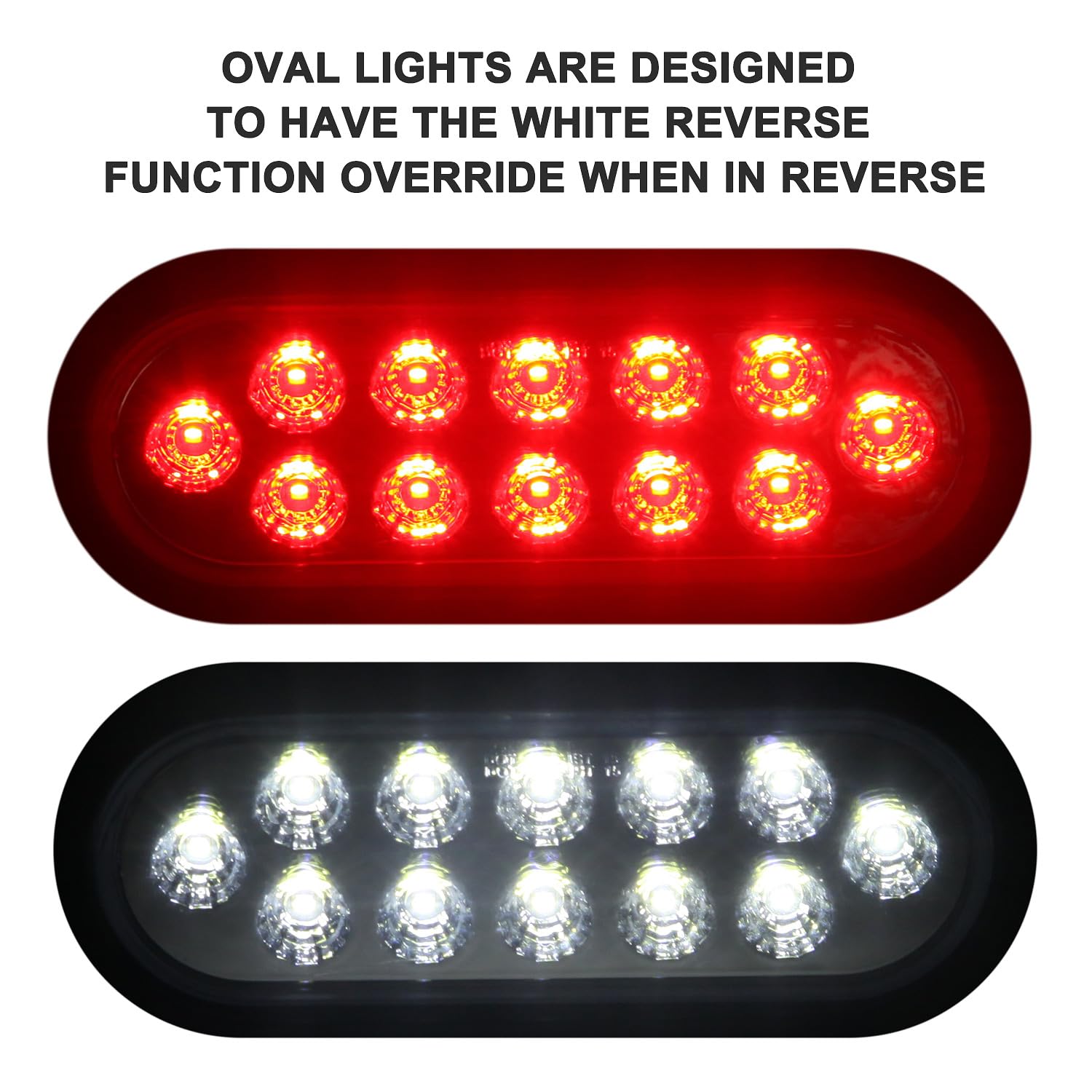

How do these lights behave when I shift into reverse?

The lights are engineered so the white reverse LEDs override the red stop/turn output when the reverse circuit is energized. That ensures a bright white backup signal while retaining red brake and turn functions at other times.

• Separate blue auxiliary lead with male bullet plug activates white reverse LEDs

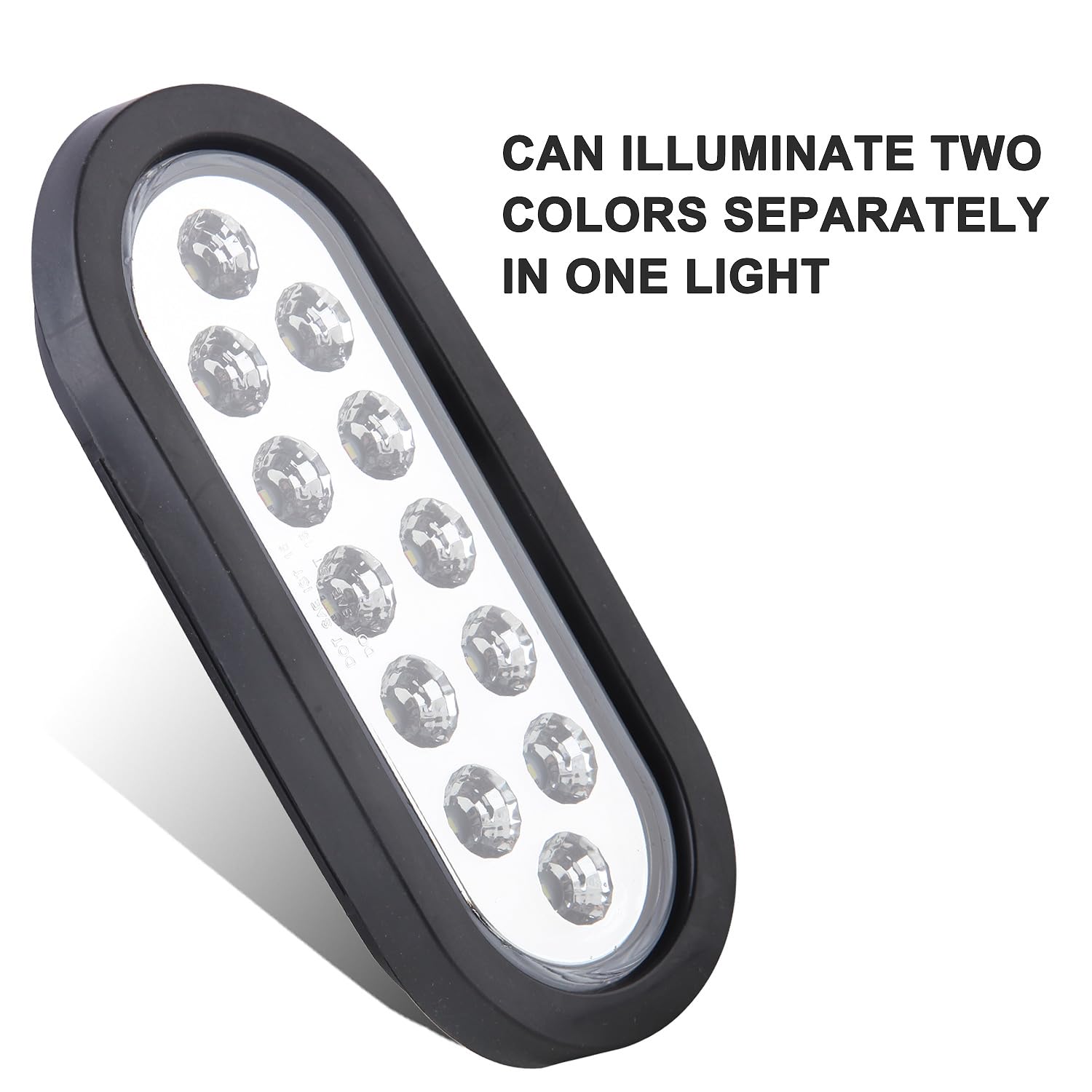

• Dual-color LED array switches color depending on powered circuit
• Designed so reverse output is prioritized for visibility when backing

What wiring and installation steps are required?

Each fixture includes a three-prong pigtail for standard trailer wiring plus an extra auxiliary lead for reverse. The body installs flush with rubber grommets; measure and drill for the mounting hole before fitment.

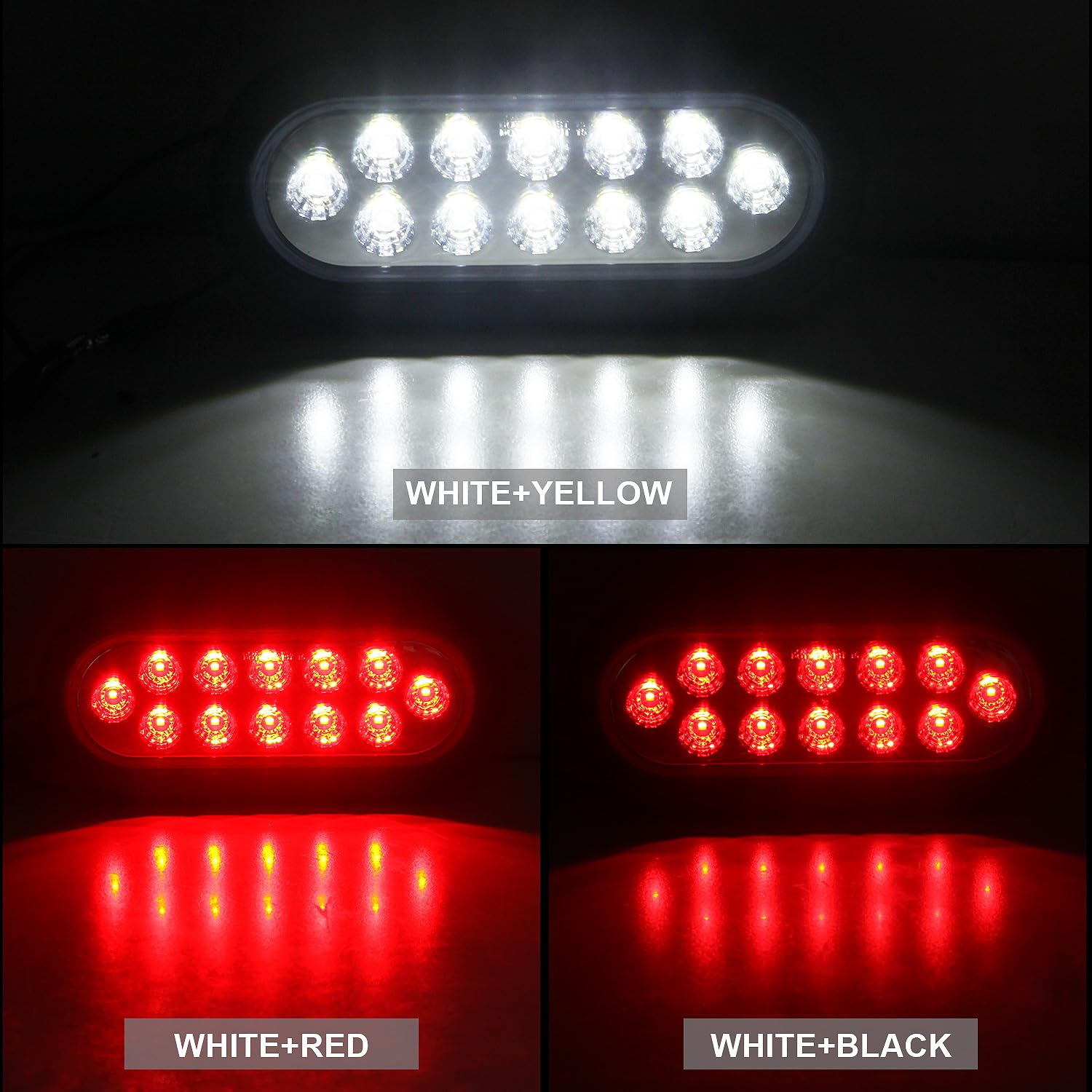

• Wiring: white = ground, red = stop/turn brake, black = tail running
• Extra blue 180° male bullet plug powers the white backup LEDs

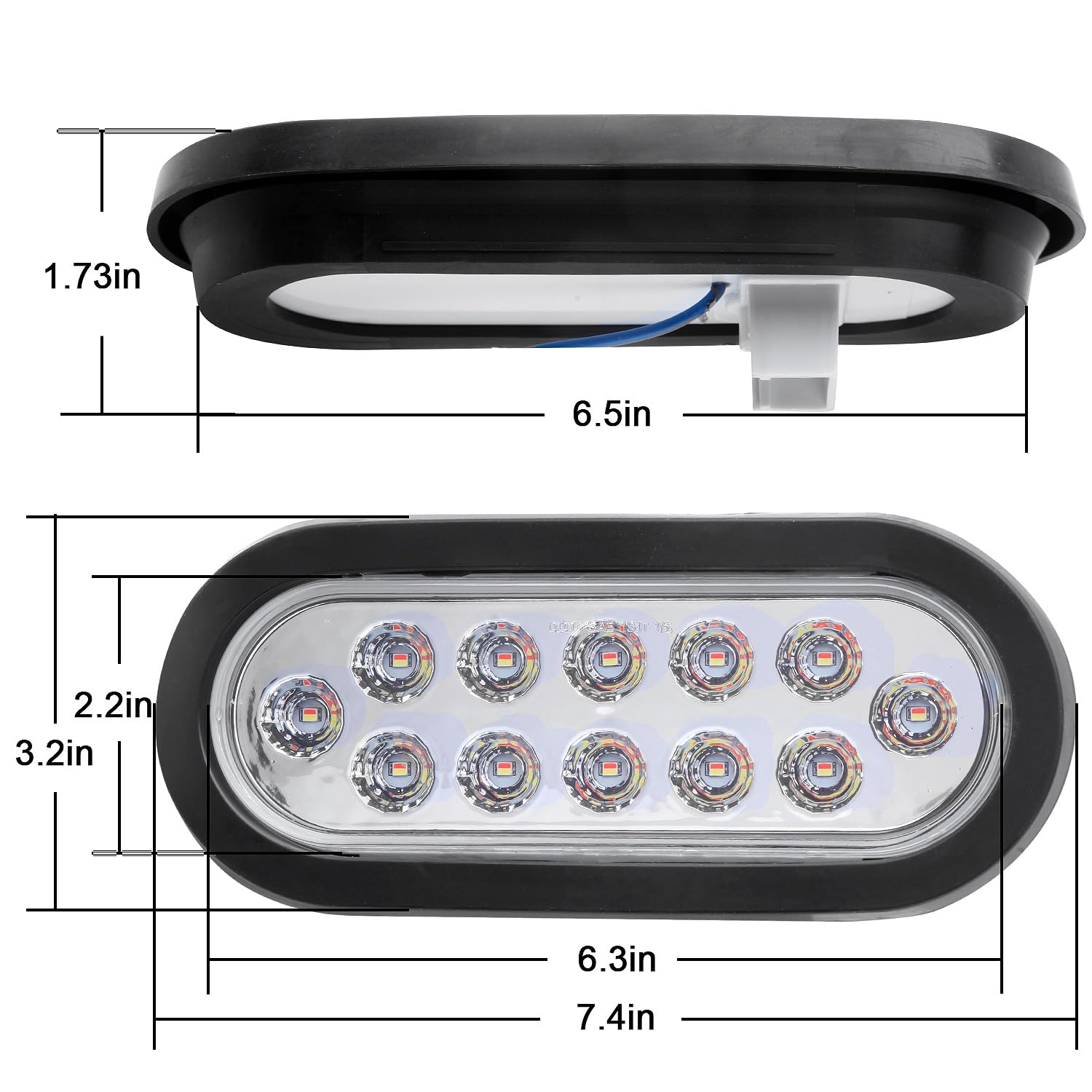

• Overall lamp footprint ~7.4" long by 3.2" thick; drill ~6.5" hole for installation

Are these lights durable and weatherproof for heavy use?

The housings are sonically sealed and rated to be submersible, built to survive rain, road spray, and damp working conditions. They are suitable for a wide range of 8–16V DC vehicles, making them a robust option for commercial and recreational applications.

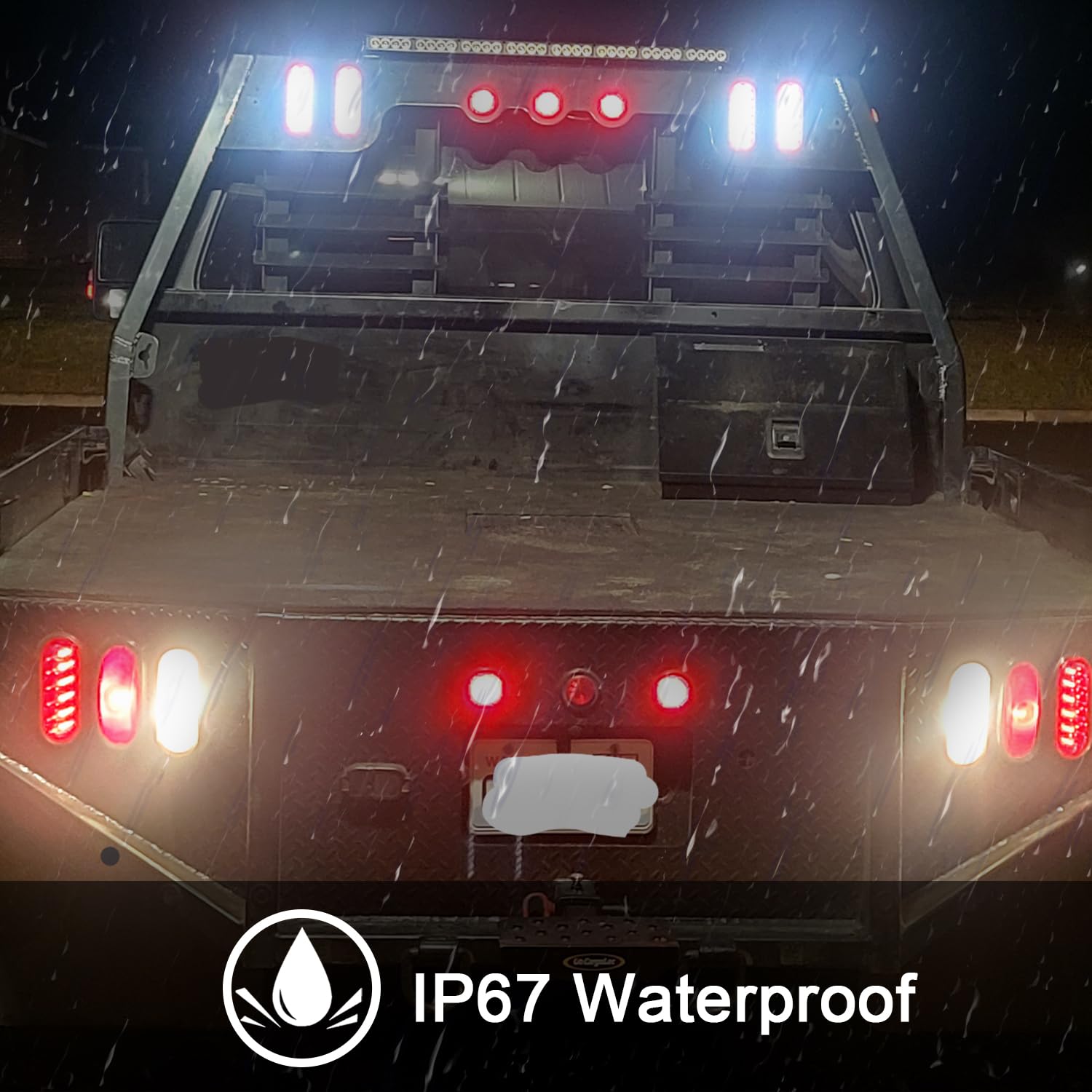

• IP67-level protection: sealed against dust and short-term immersion
• Sonically welded housing prevents moisture ingress and corrosion
• Works across typical vehicle voltage ranges (8–16 V DC)

What vehicle types and situations are these tail lights right for?

These oval dual lights are intended for trailers and utility vehicles where a compact combined stop/turn and reverse solution simplifies wiring and improves rear visibility. They’re a common choice for towing, commercial fleets, and utility trailers that face varying weather and working conditions.

• Fits semi-trailers, boat trailers, horse trailers, utility trailers, and pickup trucks
• Useful for service vehicles, parade floats, and off-road utility equipment

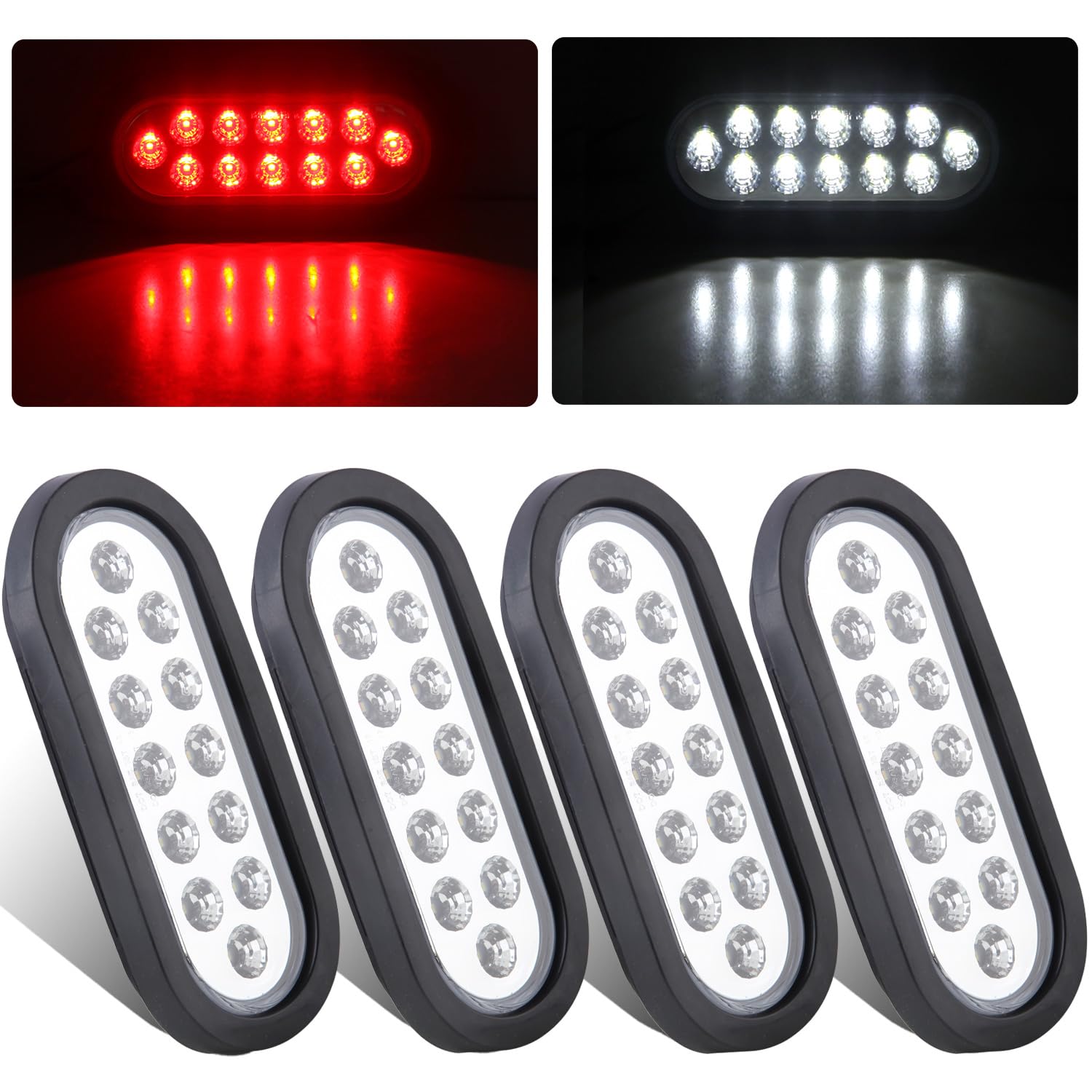

• Four-piece set provides complete rear-lighting coverage for single trailer setups

Who is this for: Installers and vehicle owners who want a compact, sealed LED tail lamp that combines bright red stop/turn signaling with a dedicated white reverse lamp. This 4-piece set from Partswcgg suits fleet managers, trailer owners, and DIY mechanics needing reliable, weatherproof lighting with straightforward wiring and a prioritized reverse function.
