Performance Tool spark plug thread repair kit M14-1.25 — tapered HSS reamer & stainless inserts for motorcycles and small engines

When a spark plug’s threads become stripped or cross-threaded, the W86910 kit from Performance Tool provides a compact, vehicle-ready solution. The set centers on a hardened HSS tapered reamer that removes damaged material without a separate drill, plus three stainless-steel repair inserts of varying lengths and an installation punch to seat them securely. It’s built for M14-1.25 applications—common on many motorcycles and small engines—and is designed for quick, controlled repairs in tight engine bays.

How does this kit fix stripped spark plug threads?

The reamer cleans and reshapes the existing hole to the correct taper and diameter so a new insert can be installed. Once the hole is prepared, a stainless-steel insert restores full, factory-sized threads and provides a durable mating surface for new spark plugs.

• Tapered 4241 HSS reamer forms the correct thread profile without a drill bit
• Stainless-steel 503 inserts replace worn threads with corrosion-resistant material
• Install/punch tool seats inserts flush and locks them into place

Which parts are included and why do their sizes matter?

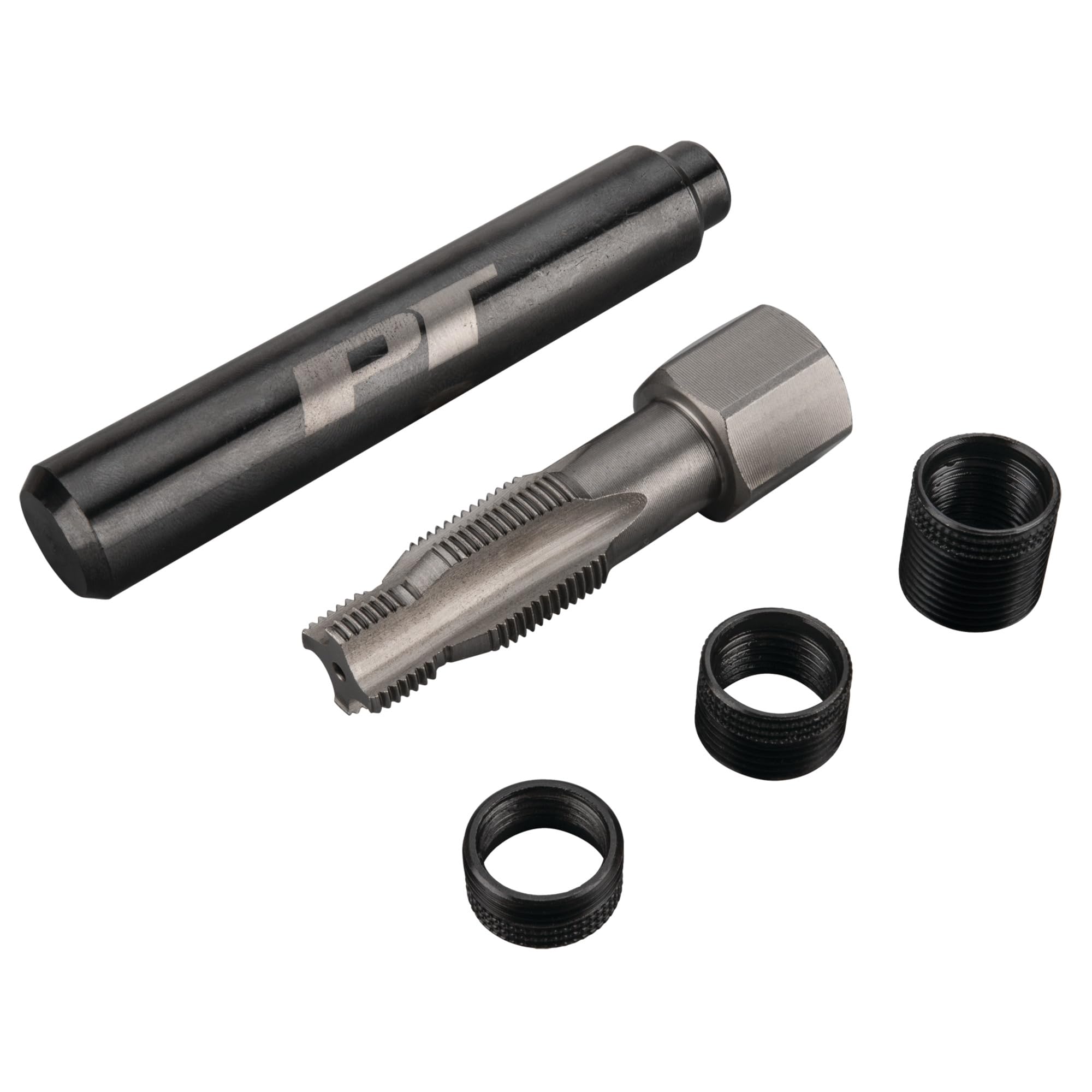

The kit includes one tapered reamer, three inserts in graduated lengths, and an installation punch. Different insert lengths let you choose the correct engagement depth for thin aluminum heads, deeper cast-iron seats, or custom repairs where heat transfer or thread engagement varies.

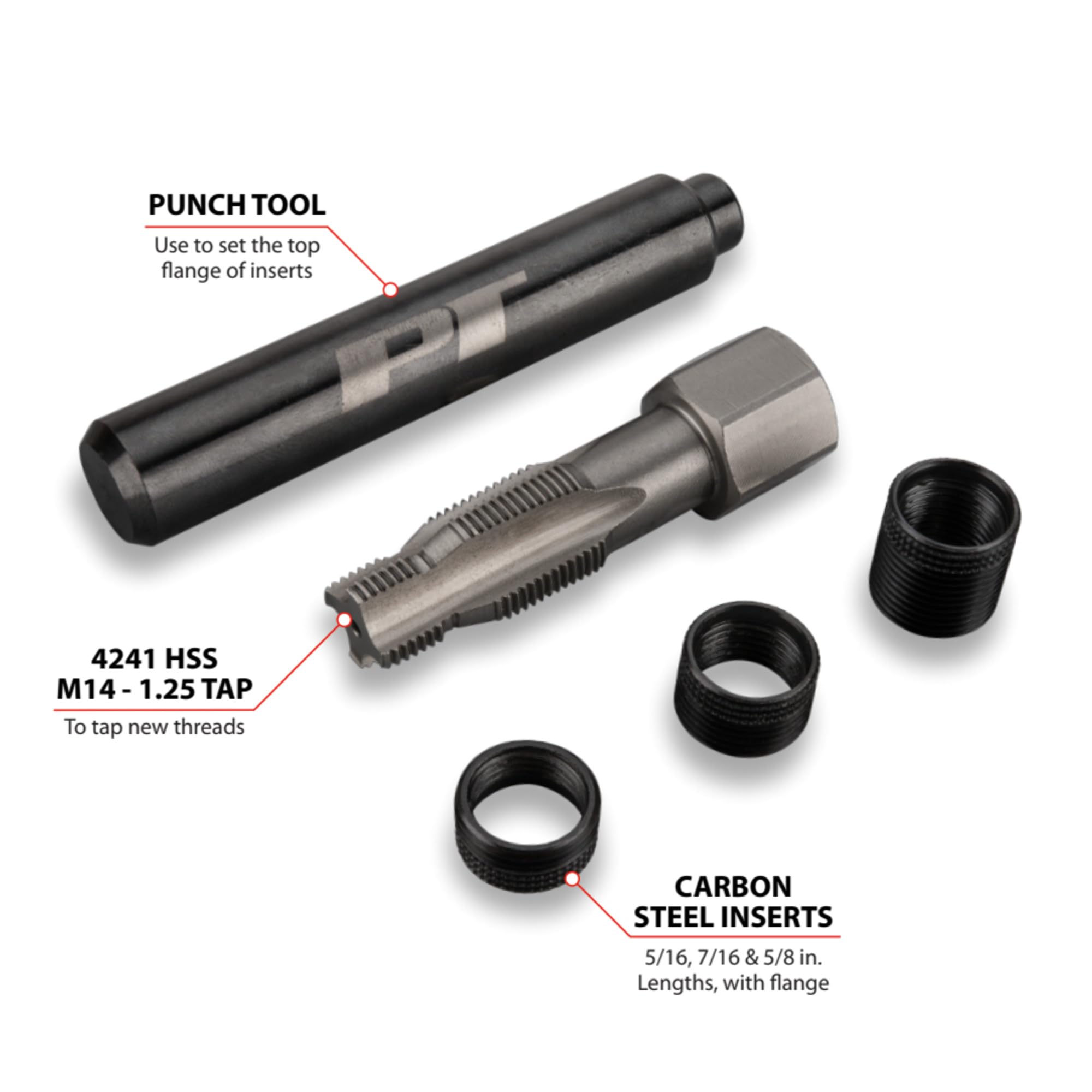

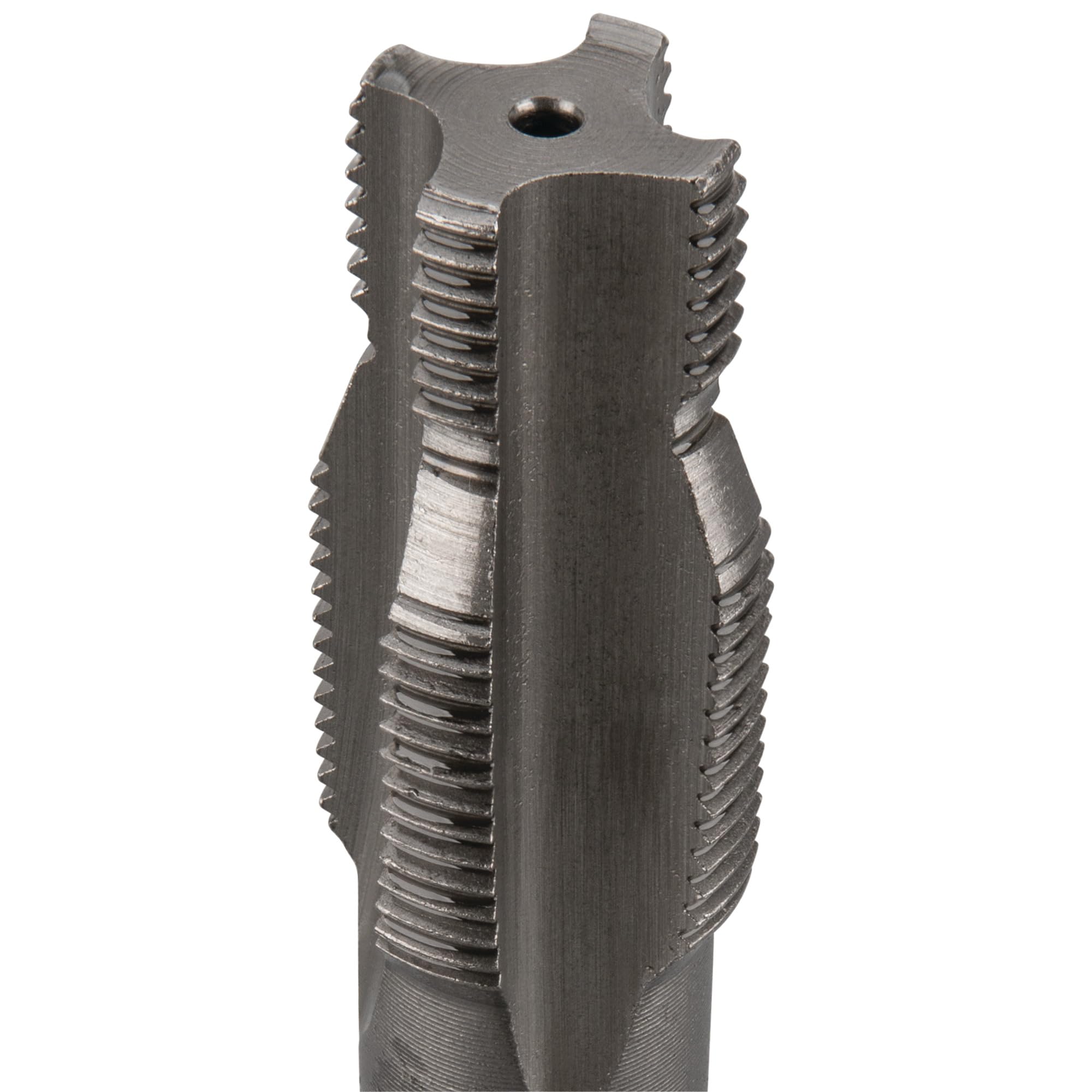

• 1× 4241 HSS tapered reamer — prepares the damaged hole accurately

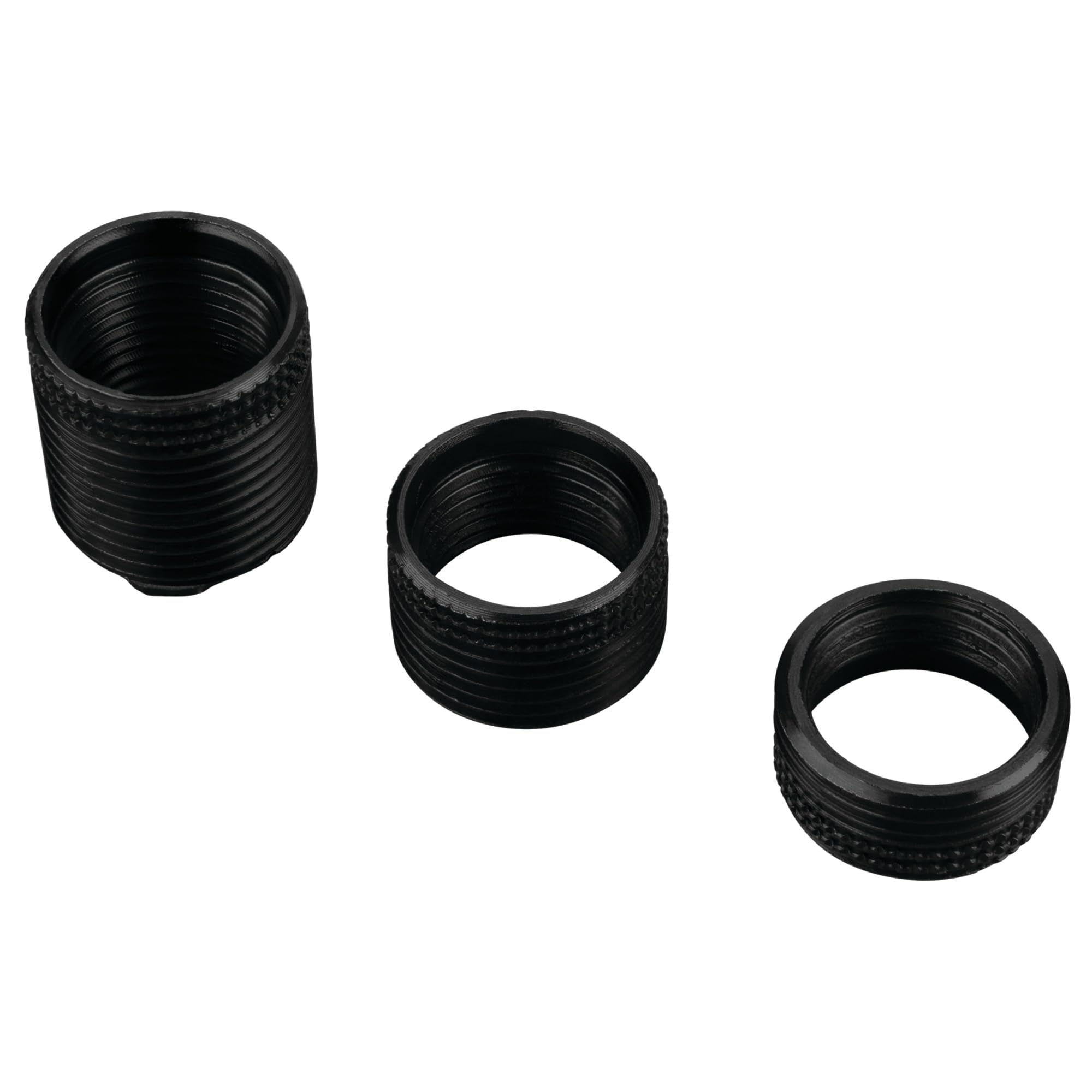

• 3× 503 stainless-steel inserts — lengths: 5/16", 7/16", 5/8" for flexible depth options

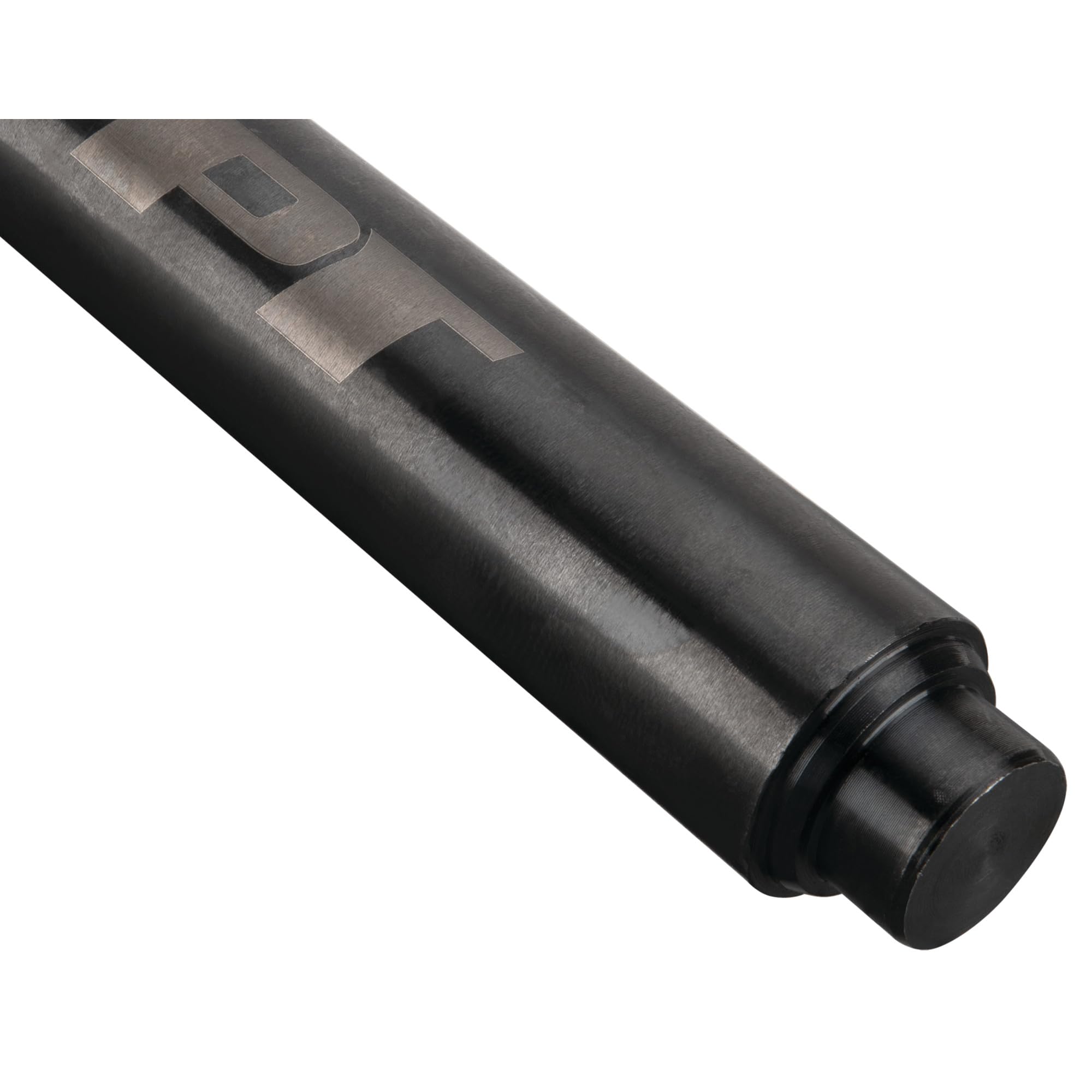

• 1× install/punch tool — ensures the insert is driven and peened correctly

What tools and skills do I need to use the W86910 kit safely?

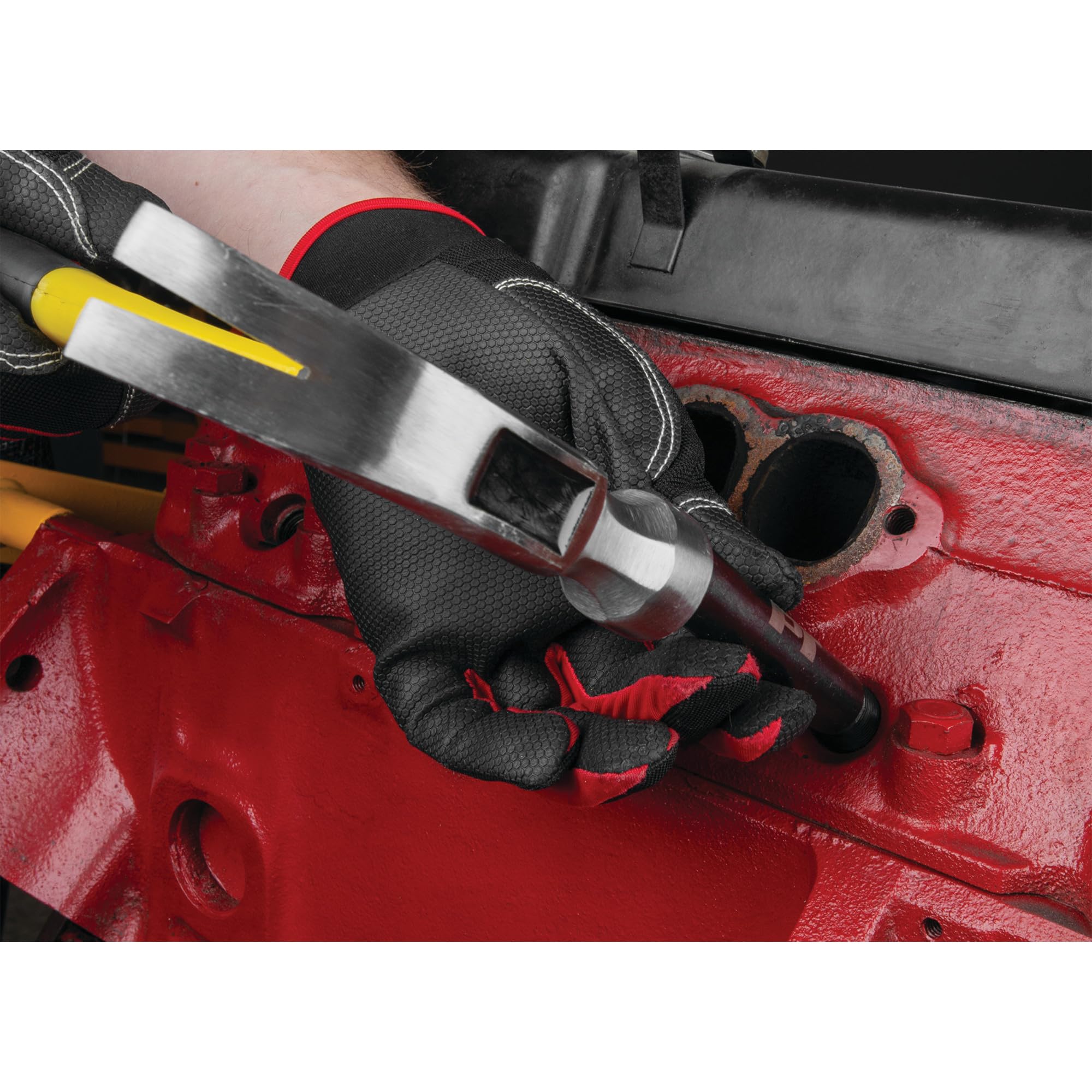

Basic mechanical skills and common hand tools are enough; no specialty drilling tools are required because the tapered reamer eliminates the drill step. Work slowly, keep the reamer aligned with the spark plug axis, and use light taps with the punch to seat the insert evenly.

• Required: wrench or socket for spark plug removal, basic hand tools
• Tip: refrigerate or use penetrating lubricant on seized plugs before removal
• Safety: wear eye protection and ensure engine is cool before starting

Will this kit fit my vehicle’s spark plug size?

This set is specifically for M14-1.25 spark plug threads; it’s not universal. Verify your engine’s thread specification in the service manual or on the existing spark plug—if it lists M14-1.25, this kit is the direct match for thread repair.

• M14-1.25 specification — standard for many motorcycles and small engines
• Not suitable for M12, M18, or metric pitches other than 1.25
• Check your spark plug or OEM manual before purchasing

Who is this for: The Performance Tool W86910 kit is aimed at mechanics, DIY motorcycle and small-engine owners, and roadside technicians who need a reliable repair for stripped M14-1.25 spark plug holes. It’s best for users who prefer a portable, no-drill solution that restores factory thread size using stainless-steel inserts for long-term durability.
