PlugSaf 7-Way Trailer Wiring Harness 8FT — Heavy-Duty 7-Pin, PVC Jacket & Color-Coded

PlugSaf 8FT 7 Way Trailer Plug is a heavy-duty, 7-pin wiring harness designed to reliably connect your tow vehicle to trailers, RVs, campers, and food trucks while protecting circuits from moisture and abrasion.

When towing, a dependable electrical connection is essential for lights, brakes, reverse lamps and auxiliary power. The PlugSaf 8-foot 7-way harness combines thick multi-gauge conductors, color-coded RV-standard wiring, and a rugged PVC jacket to reduce corrosion and wear. It’s built to meet common trailer wiring needs while remaining straightforward to install for DIYers and professional fitters alike.

How does this harness keep electrical connections reliable while towing?

The cord uses appropriately gauged wires for different circuits, minimizing voltage drop and improving signal consistency for lights and auxiliary power. A durable PVC outer sheath protects conductors from road grime, abrasion and water exposure that normally shorten connector life.

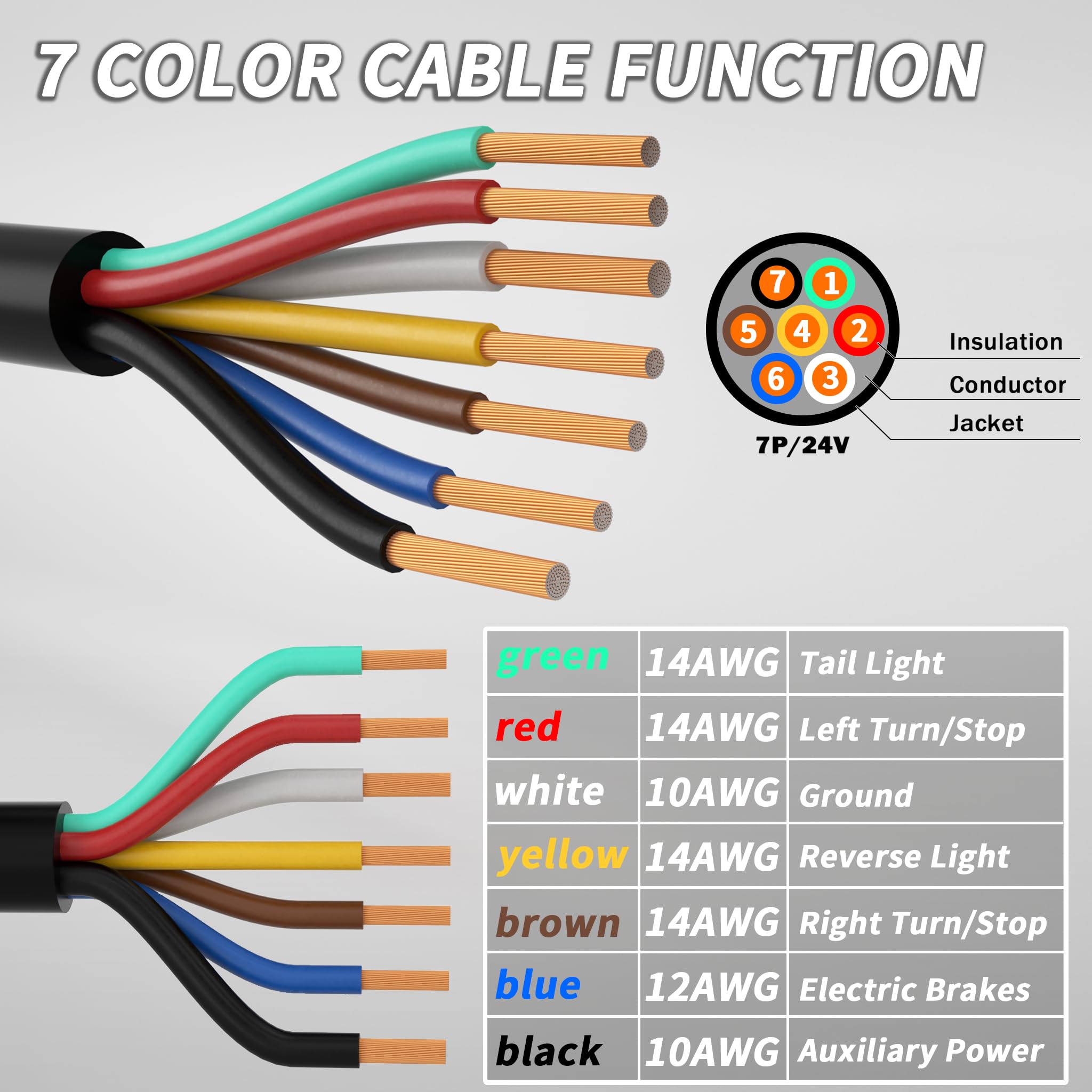

• 7 RV-standard color-coded wires for easy identification and hookup

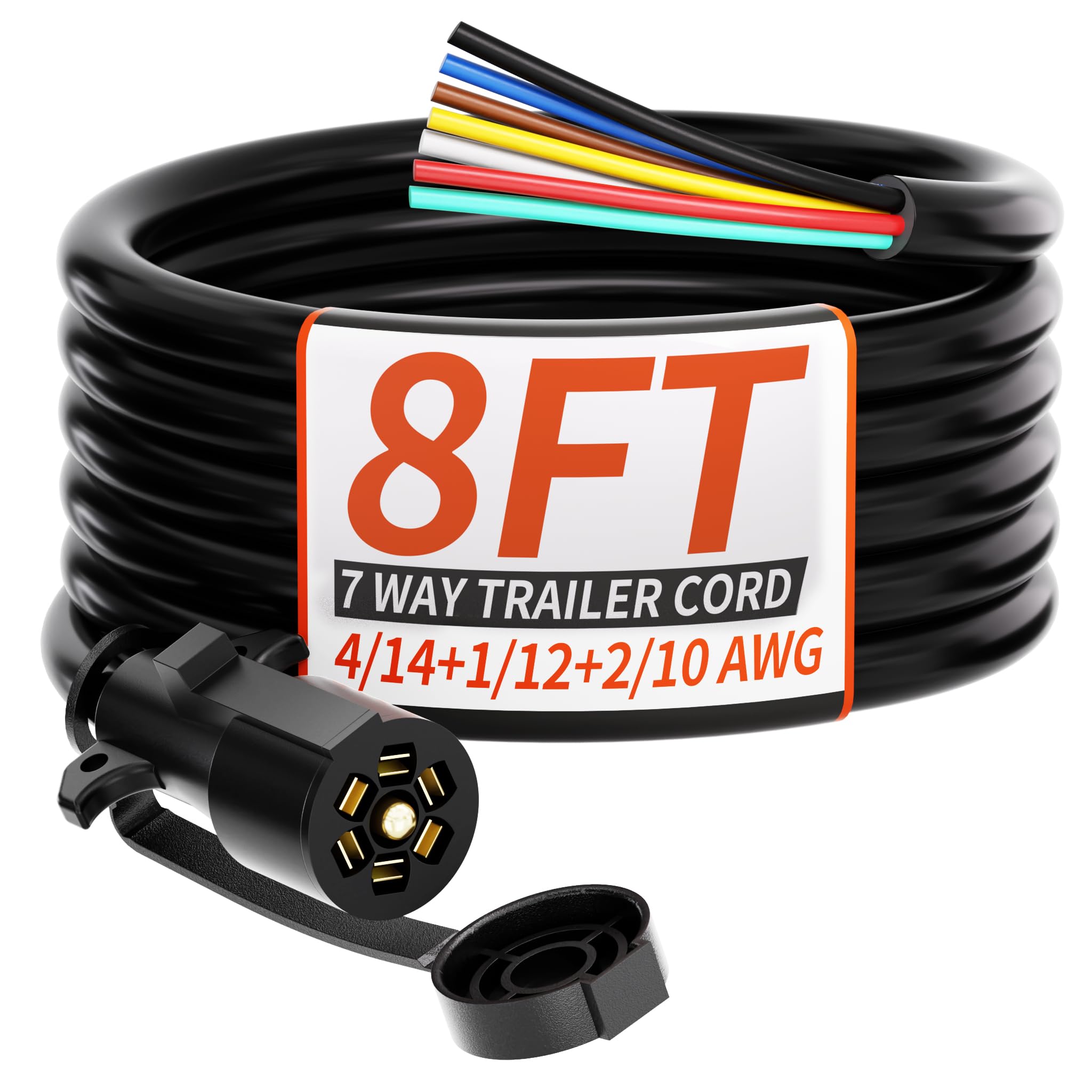

• Wire gauges: 4/14 + 1/12 + 2/10 AWG for matched circuit capacity

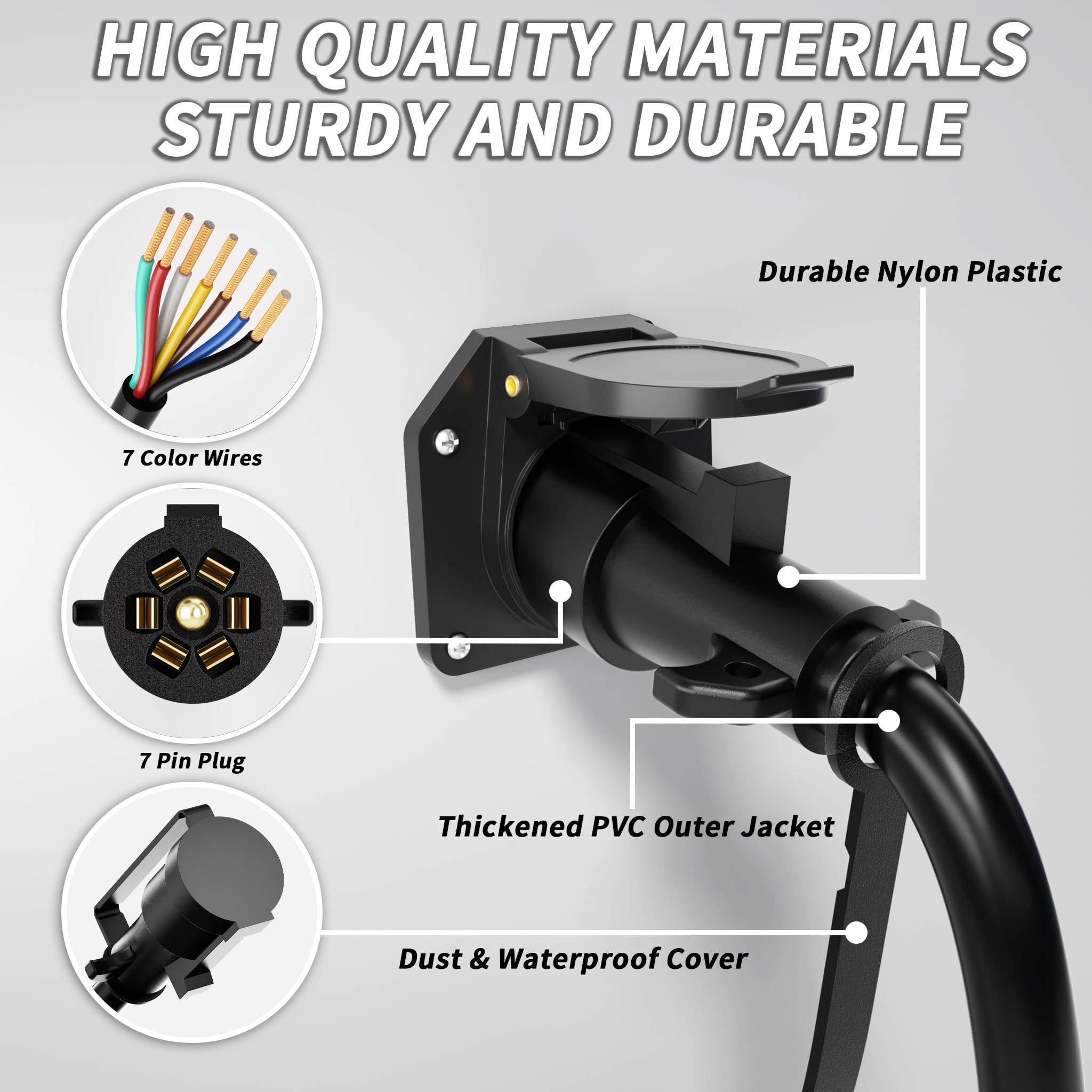

• PVC jacket resists corrosion, moisture and abrasion
• 8-foot length gives flexible routing without strain on connectors

What exactly is included and how simple is installation?

The product is supplied as a complete 8-foot, 7-pin trailer plug assembly with pre-stripped ends and standard RV color coding. Most installations are plug-and-play for trailers with matching 7-pin sockets, and for hardwired jobs the labeled wire colors align with common trailer wiring diagrams.

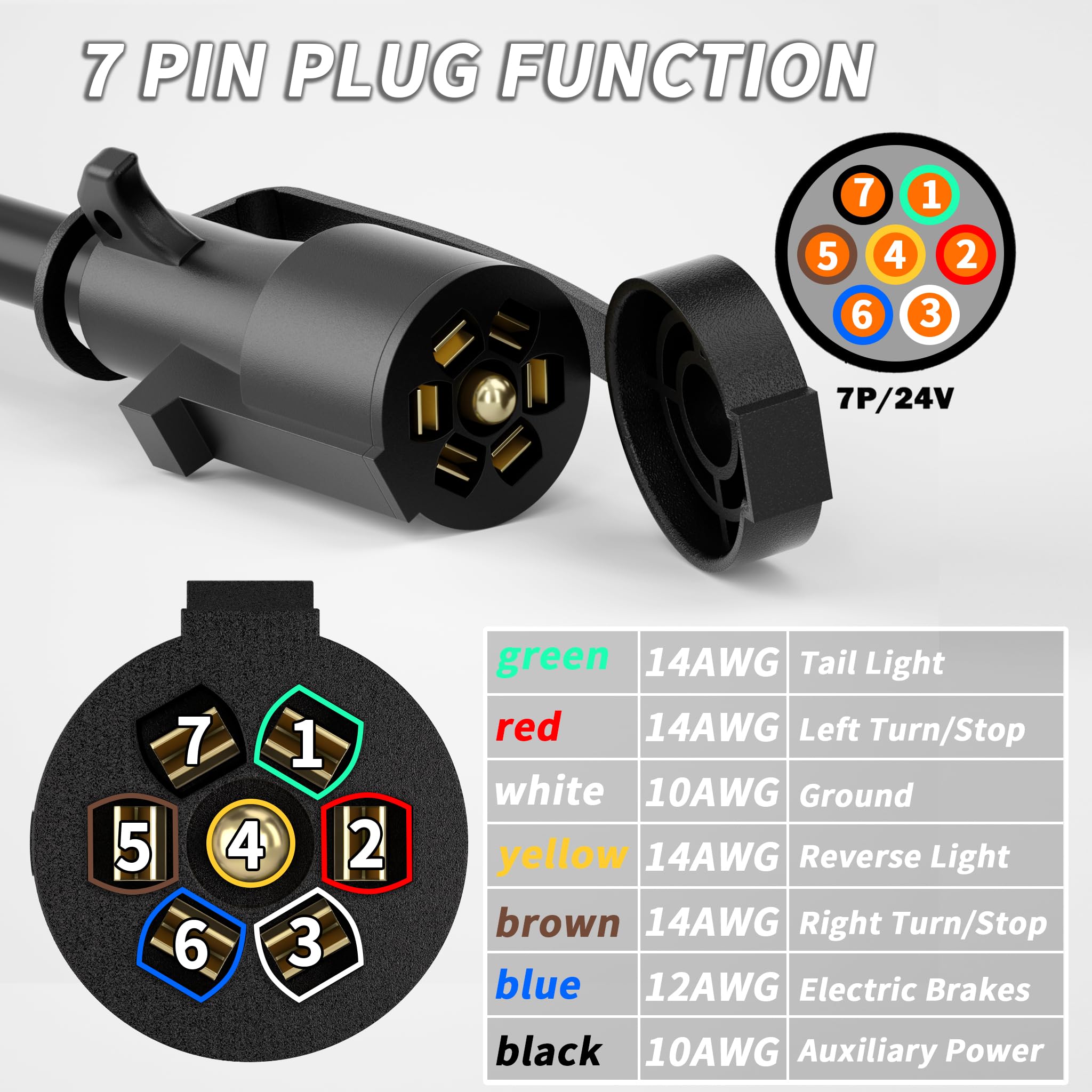

• Pre-terminated 7-pin plug ready for socket insertion

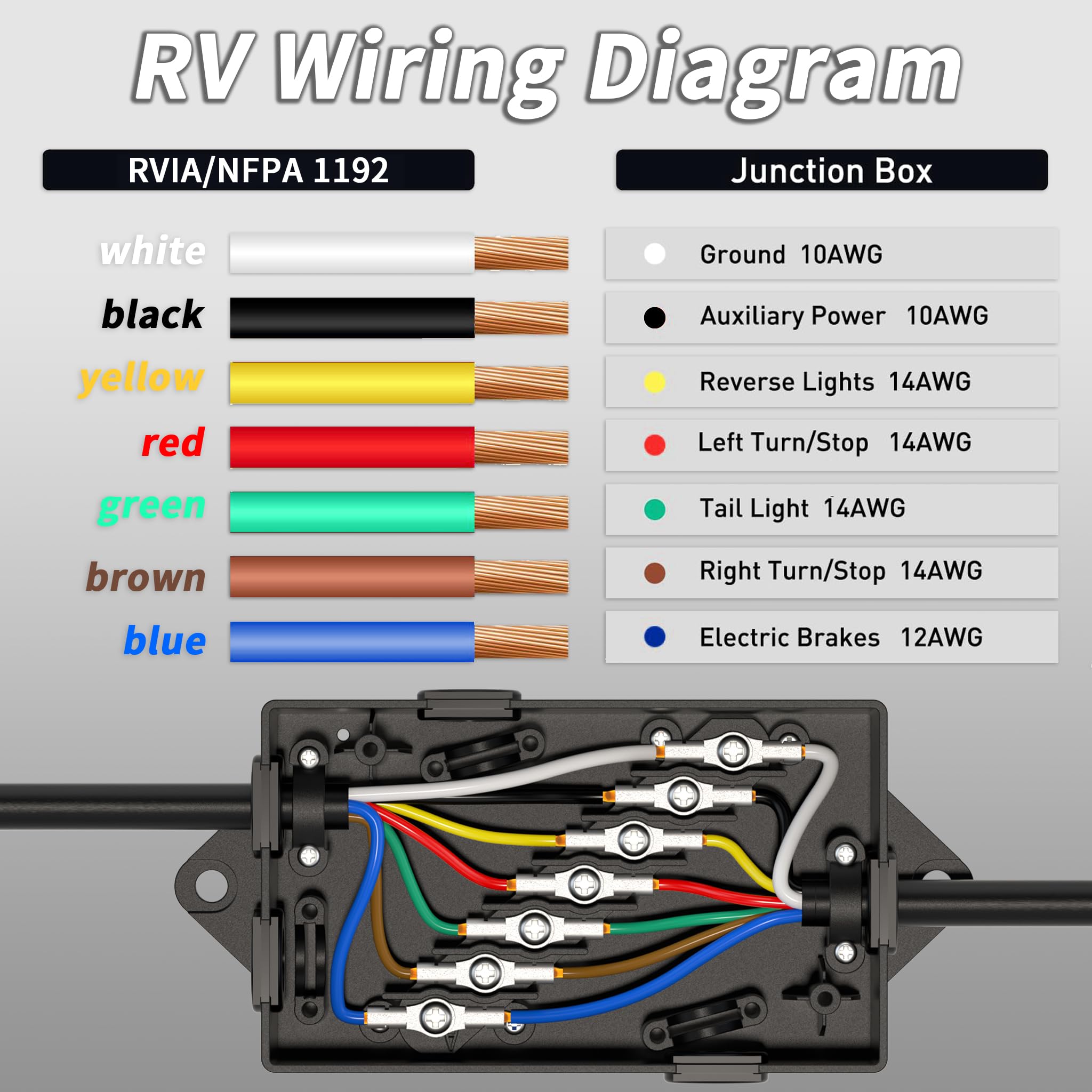

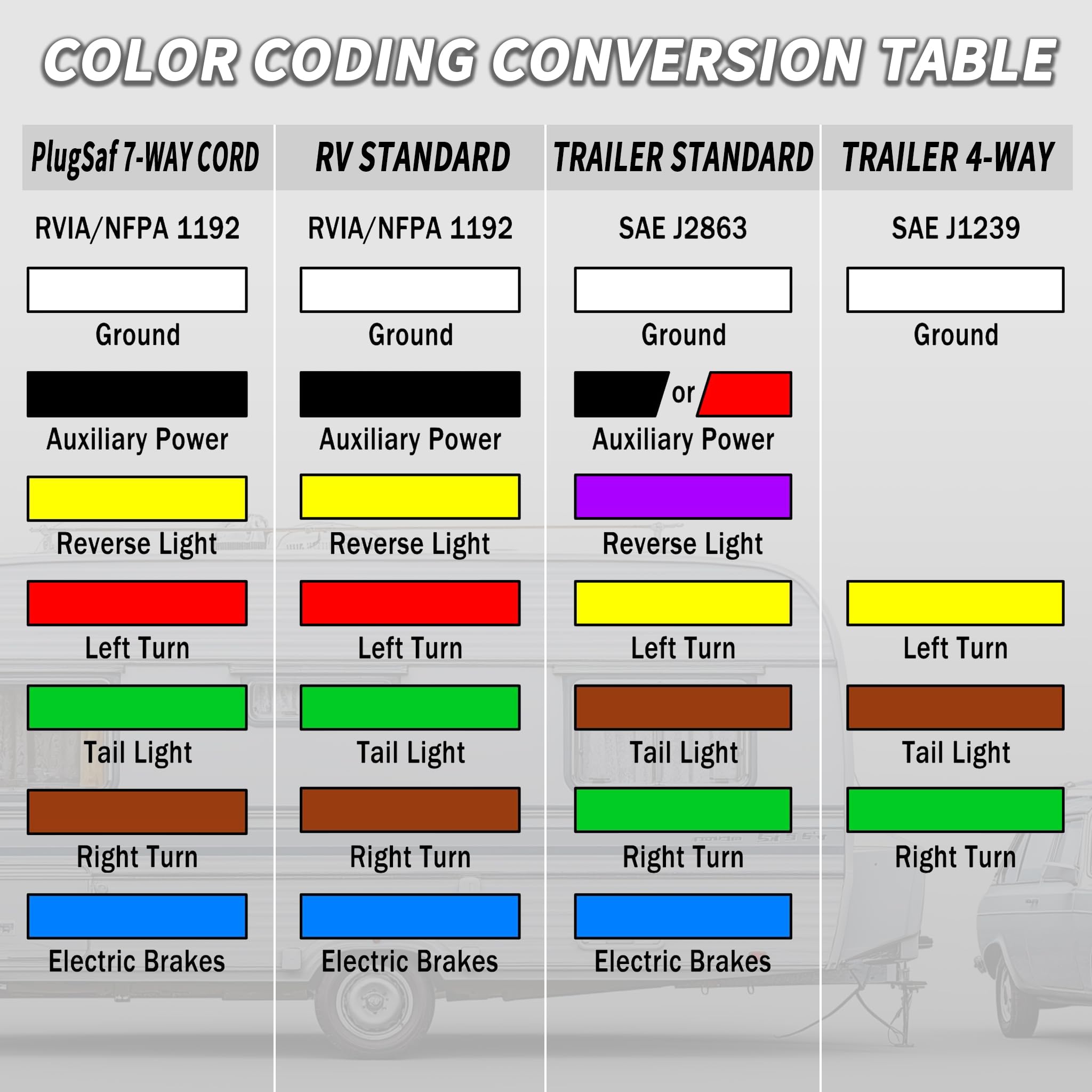

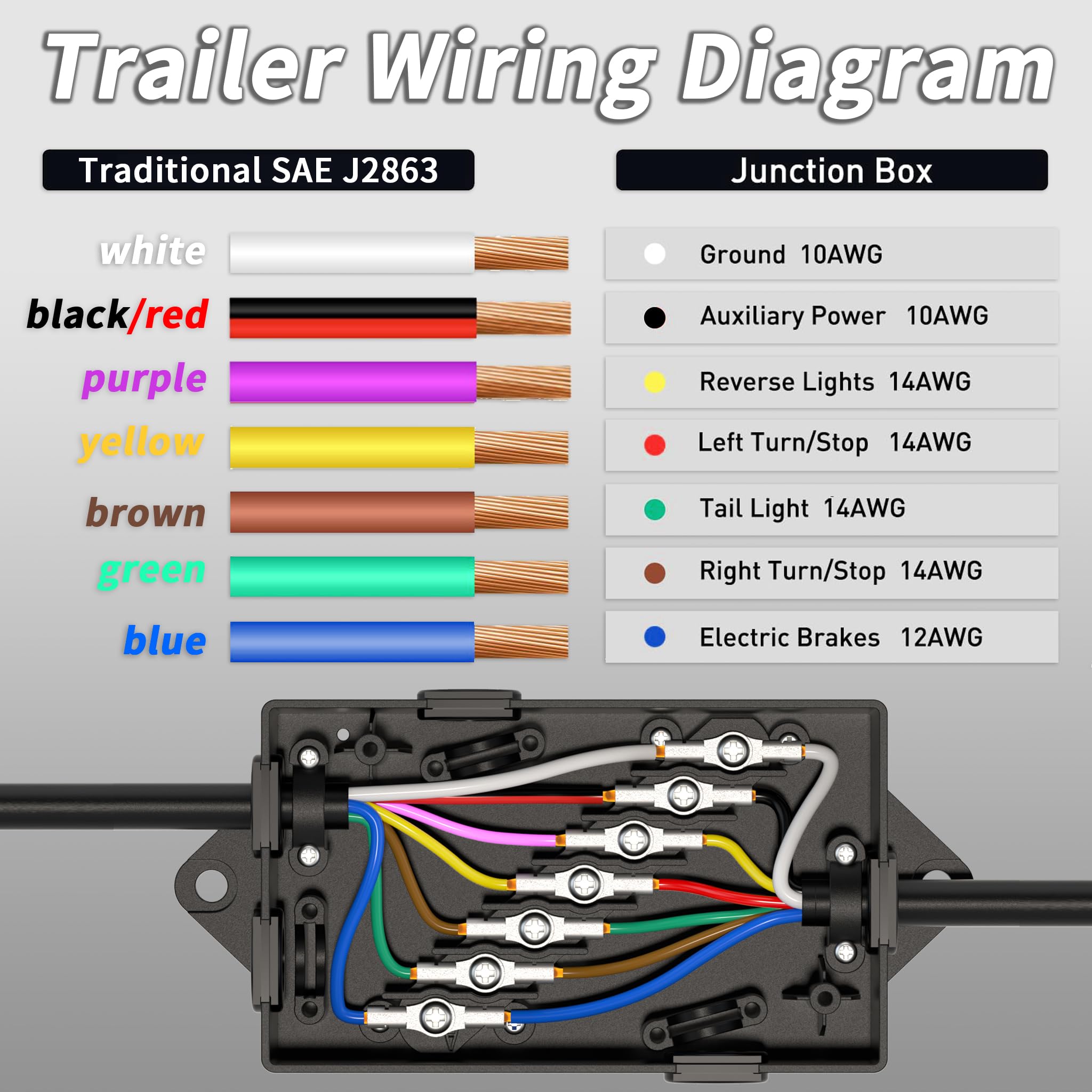

• Standard RV color coding to match common trailer wiring charts
• Clear wiring diagram recommended for first-time installers
• Suitable for replacing worn connectors or creating a new trailer cable

Which towing functions does the PlugSaf 7-way support?

This harness provides all seven standard trailer circuits so tail lights, turn signals, brake lamps and auxiliary power operate as expected. The wiring gauge choices support heavier-draw circuits like brake controllers or interior trailer power without excessive heat or voltage loss.

• Tail, stop and turn signal circuits for safe road signaling
• Reverse light and auxiliary power connections included
• Brake controller circuit capacity with appropriate gauge wiring
• Designed for trailers, RVs, campers, motorhomes and food trucks

Who is this product best for? If you tow trailers or operate RVs, campers, motorhomes or food trucks and need a tougher, longer-lasting 7-pin cable, this PlugSaf 8FT 7-way harness is suitable. It serves owners replacing corroded connectors, fleet technicians updating wiring, and DIYers building harnesses who want clear color coding and robust insulation. Avoid if your vehicle uses a different pin layout or requires custom-length, specialty connectors not covered by standard 7-pin wiring.

Service note: if you find issues after delivery or have questions about matching your vehicle’s wiring diagram, contact PlugSaf support for guidance and replacement options.
