PLUXPAER 14 AWG 4‑Pin DT Waterproof Connector 4‑Pack — 12V Quick-Connect, IP67 Rated

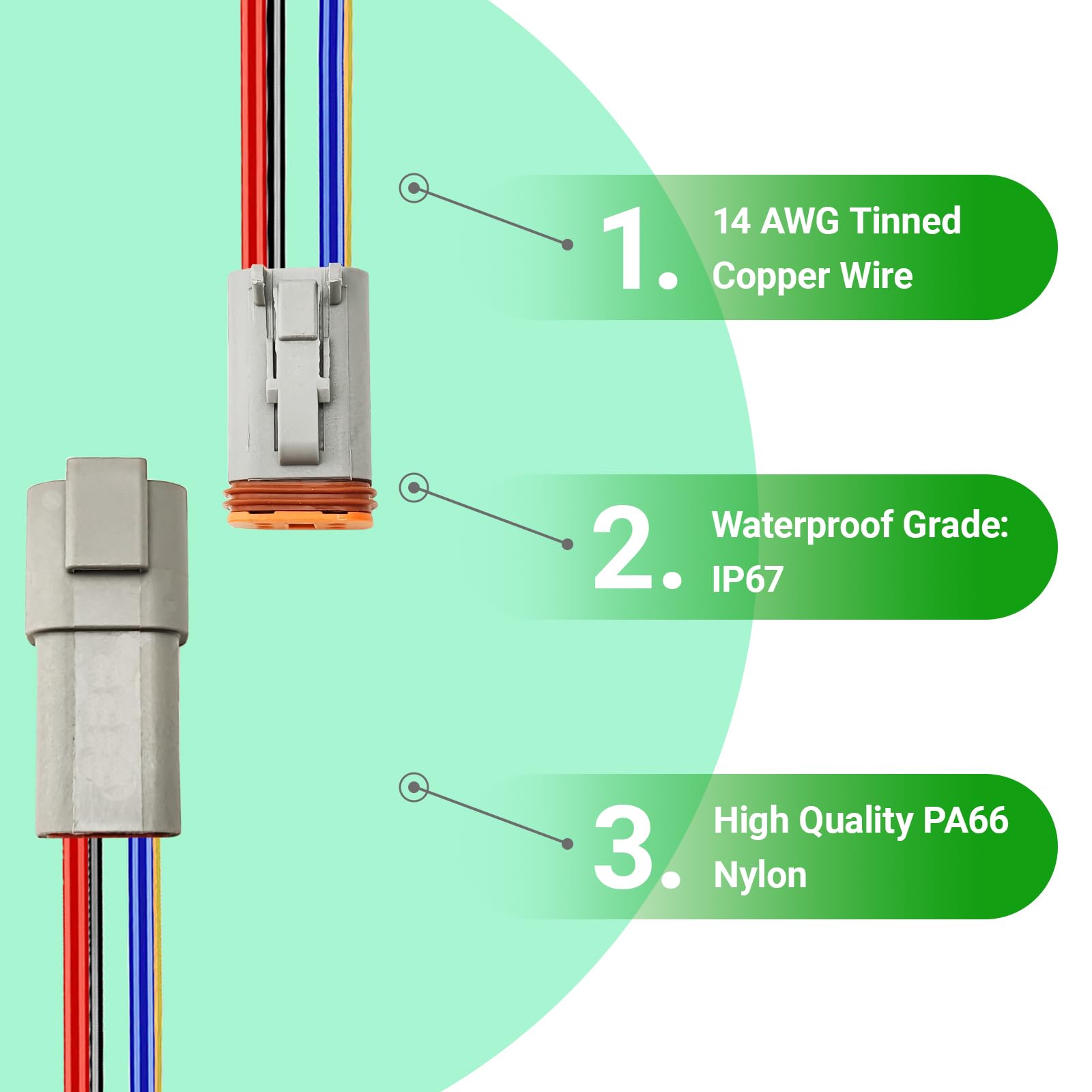

PLUXPAER 14 AWG 4‑pin DT waterproof connectors are durable, IP67-rated quick‑connect plugs with 5.9" pigtails, sold as a 4‑pack for fast, reliable 12V wiring.

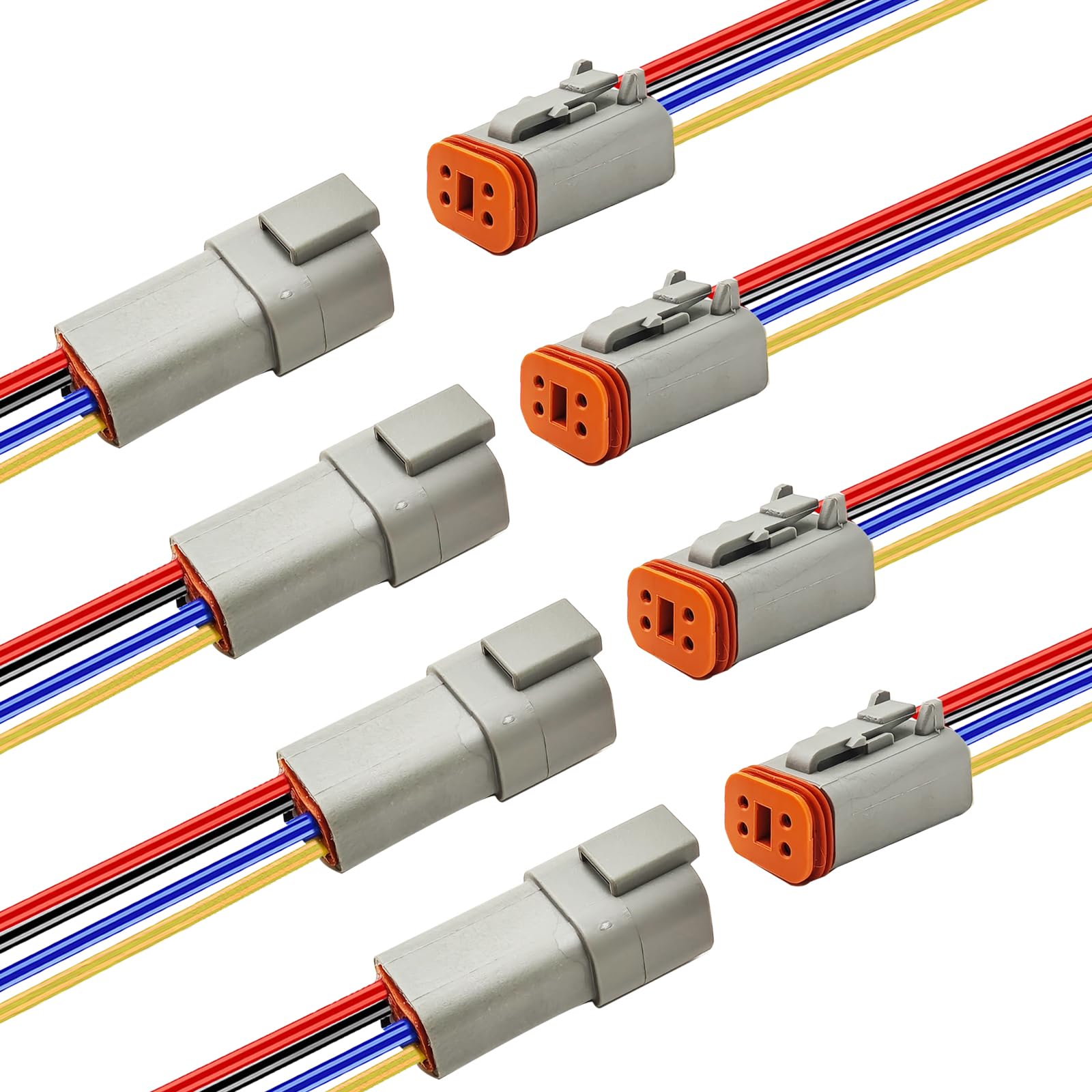

Designed for vehicle and marine electrical work, these 4‑way DT connectors combine 14 AWG tinned copper conductors with PA66 nylon housings to deliver a weather‑resistant, high‑current connection. Each kit contains four male and four female connectors with pre‑attached wires so you can join lights, accessories, or harness sections quickly. The assemblies are built to withstand dust, rain, and temperature swings while keeping contacts secure under vibration.

How do these connectors handle outdoor and marine exposure?

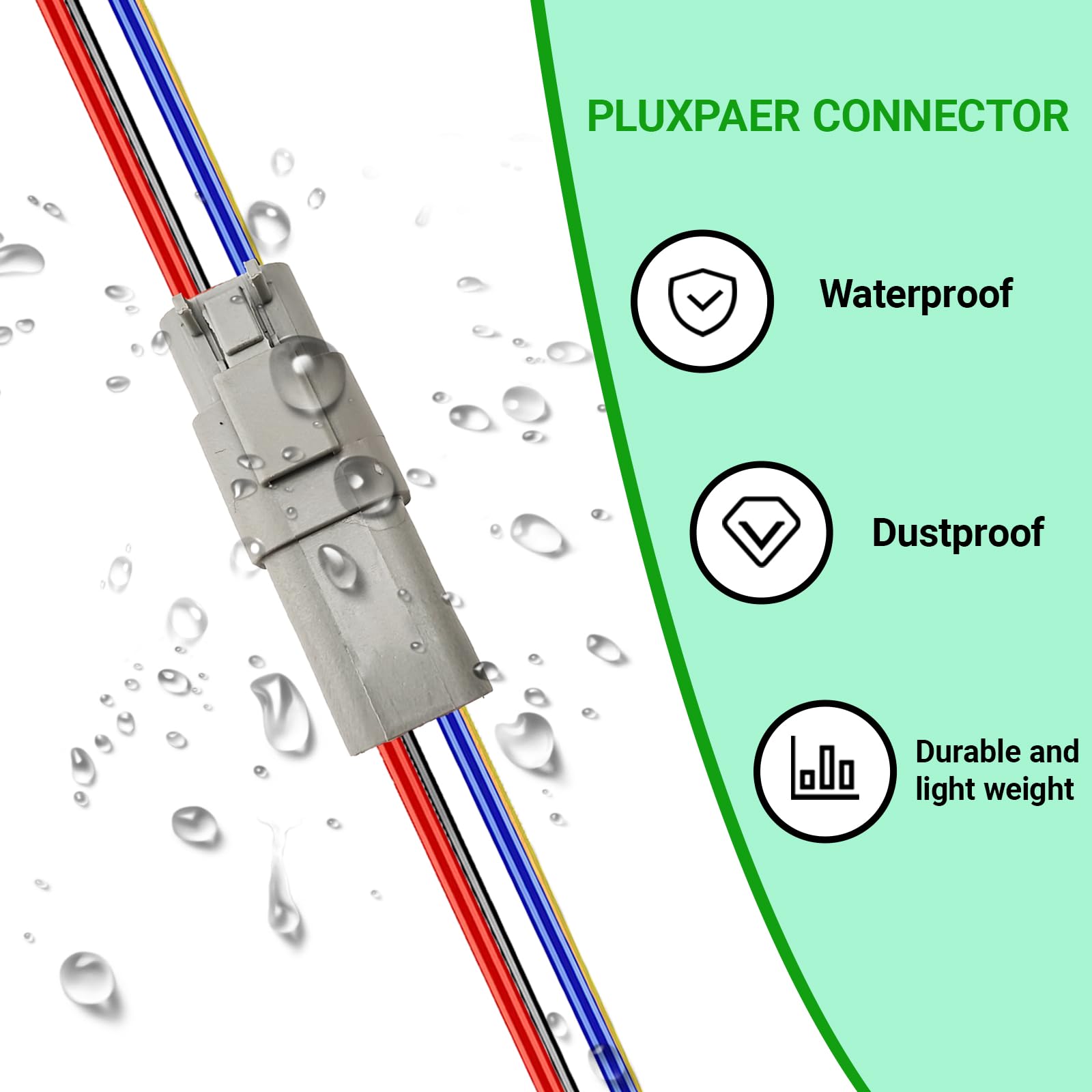

The housings are molded from PA66 nylon and the assemblies meet IP67 ingress protection, keeping water and dust out of the contact area. Seals and precise mating ensure a tight fit that resists corrosion and contamination in harsh environments.

• IP67 waterproof rating for temporary immersion and complete dust protection
• PA66 nylon body resists UV and chemical exposure
• Tinned copper contacts reduce corrosion risk in salty air

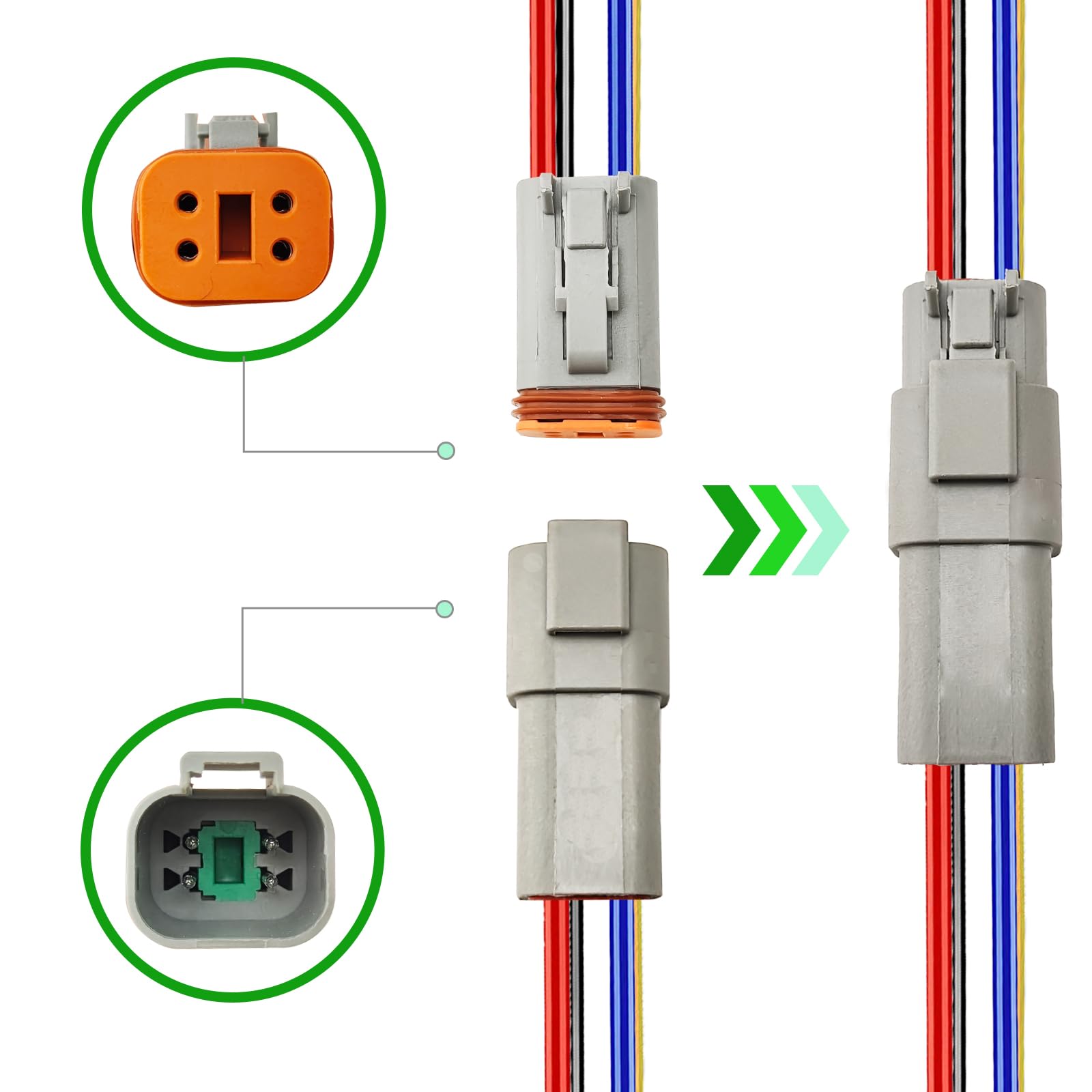

• Secure latch prevents accidental uncoupling during vibration

What electrical capacity and temperature range do these 14 AWG DT connectors support?

Using 14 AWG tinned copper wire delivers good current capacity and reliable conductivity for most 12V accessory circuits. The connector assembly is rated to operate across a wide temperature span, suitable for automotive, marine, and outdoor installations.

• 14 AWG wire for higher current carrying capability than smaller gauges
• Tinned copper improves long‑term conductivity and solderability
• Operating temperature range from -40°C to 120°C
• Appropriate for LED bars, pumps, motors, and accessory feeds at 12V

How simple are they to install and secure?

Each connector comes with 5.9‑inch pre‑wired leads and accepts both soldering and crimping for a dependable electrical joint. The design aims for fast field installs: once wires are prepared and contacts set, the connector mates and seals quickly for minimal downtime.

• Pre‑wired male and female pairs save prep time
• Compatible with standard crimp tools and soldering methods
• Firm mechanical latch and compression sealing keep contacts tight
• Typical install and sealing completed in about 30 seconds per plug

Which projects and vehicles are these connectors best suited for?

These 4‑way DT connectors work well wherever compact, waterproof multi‑pin connections are needed on 12V systems. They are commonly used to join lighting runs, create detachable harness sections, or replace worn connectors on vehicles and equipment operating outdoors.

• LED light bars, work lights, strip lighting, and accent lighting
• Motorcycles, ATVs, UTVs, scooters, and trikes
• Cars, trucks, caravans, boats, jet skis, and other marine craft
• Trailer harnesses, winches, pumps, and outdoor power accessories

Who is this for: Installers, DIY mechanics, boat owners, and fleet technicians who need a rugged, ready‑to‑use 4‑pin connector solution for 12V systems. If you want a compact, water‑resistant connector with thicker 14 AWG wiring for higher current draws and a fast field install, the PLUXPAER 4‑pack delivers plated contacts, durable nylon housings, and pre‑cut leads to simplify wiring jobs.
