PLUXPAER 14 AWG 8-Pin DT Waterproof Connector 2-Pack — IP67 Sealed 12V Quick-Connect

PLUXPAER 14 AWG 8-Pin DT Waterproof Connector is a rugged IP67-rated 8-way plug and socket set with 14 AWG tinned copper leads, sold as a 2-pack for fast, reliable 12V quick connects.

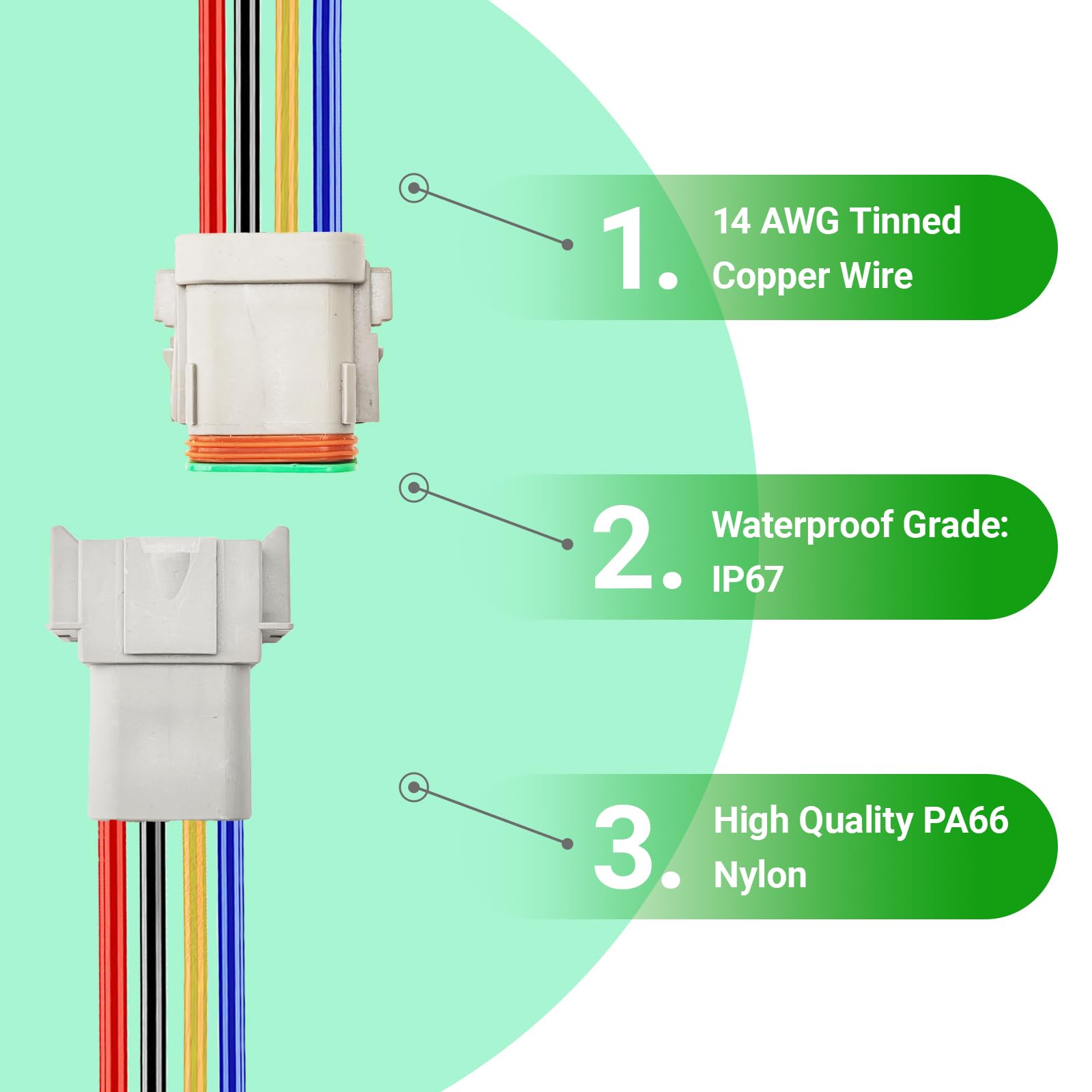

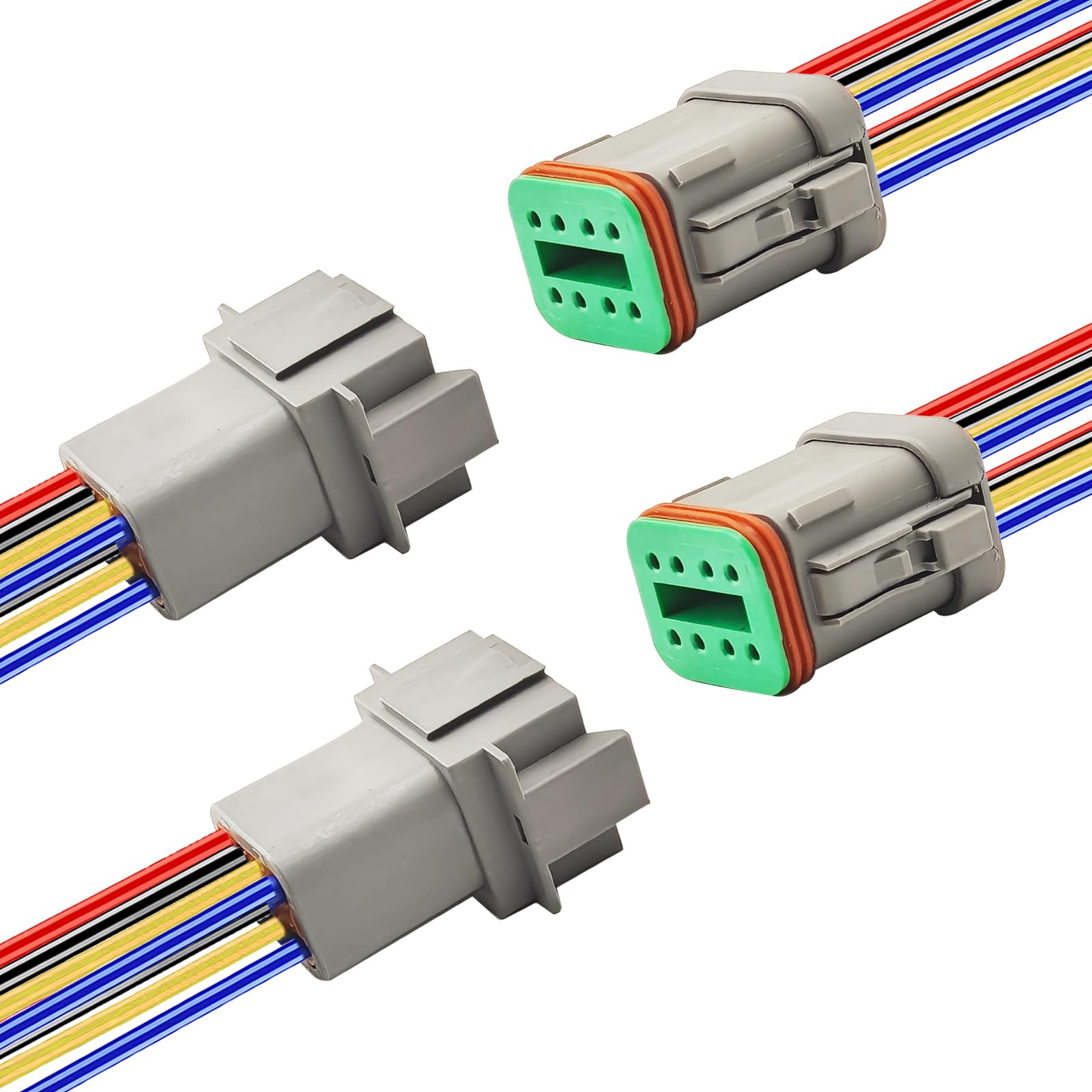

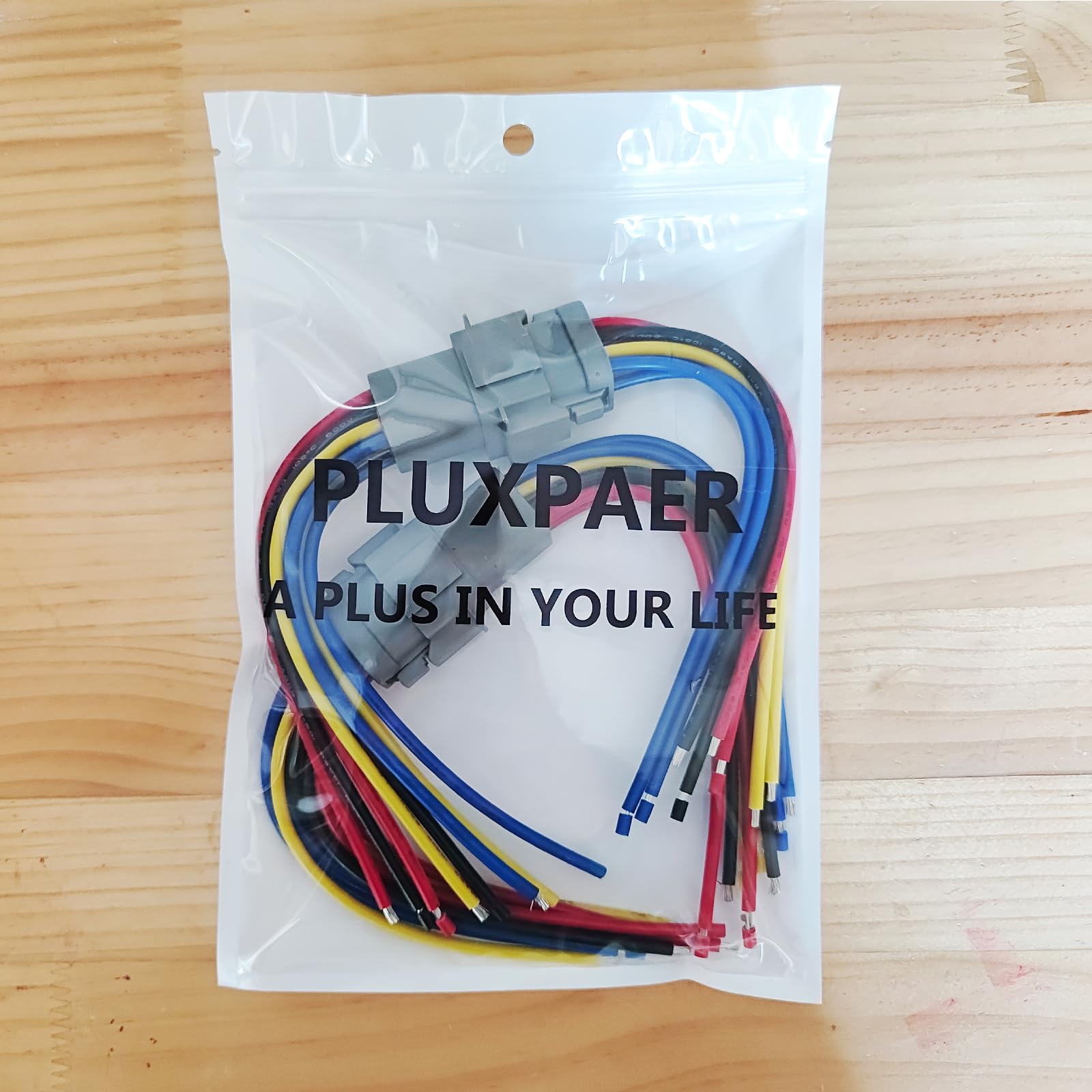

These 8-pin DT connectors are engineered to make multi-conductor 12V wiring installations quick, water-resistant and durable. Built from PA66 nylon housings and 14 AWG tinned copper conductors, the pair includes male and female housings with 5.9-inch pigtail leads that accept crimp or solder terminations. The result is a compact, sealed junction that resists dust, moisture and vibration in automotive, marine and outdoor lighting applications.

How does this connector withstand outdoor and marine conditions?

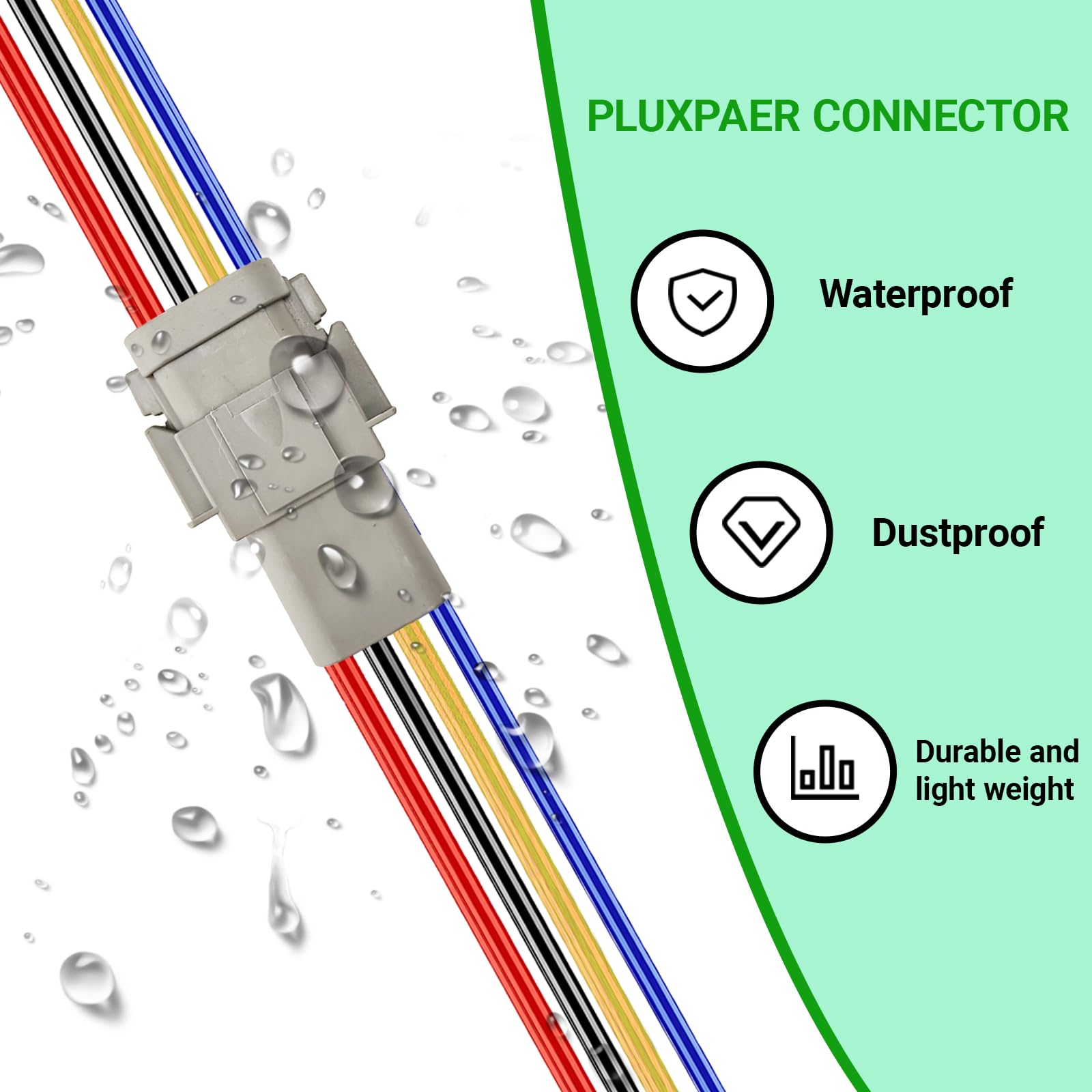

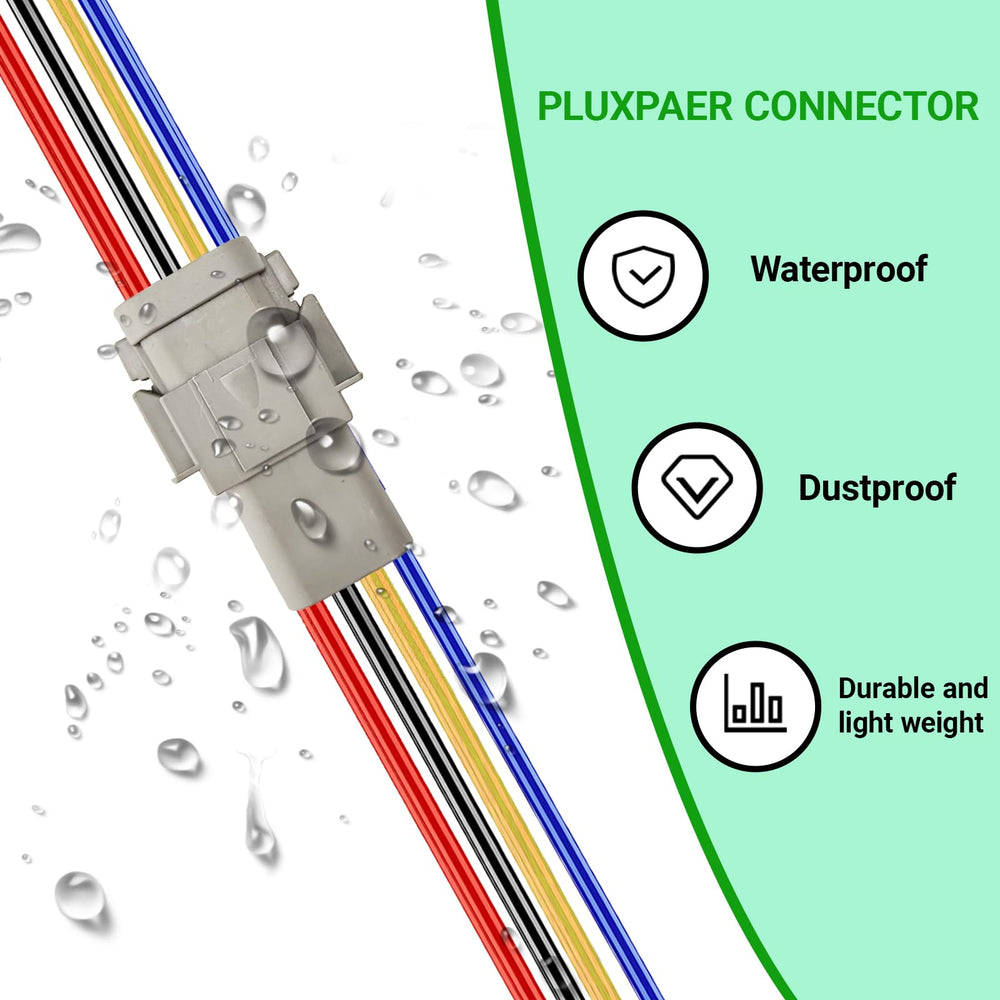

The connector uses a PA66 nylon shell and an IP67-rated seal that protects contacts from dust and immersion in water. Tinned copper conductors reduce corrosion risk, and the materials tolerate wide temperature swings.

• IP67 waterproof rating for splash and temporary immersion protection
• PA66 nylon housing resists impact and UV exposure
• Tinned copper wires minimize oxidation in salty or humid environments
• Operating range from −40℃ to 120℃ for reliable performance

Will these connectors handle high-current 12V circuits?

Yes — 14 AWG conductors provide capacity and low voltage drop for typical 12V accessory and lighting circuits. The robust contact design and properly crimped or soldered terminations ensure stable current flow under load.

• 14 AWG tinned copper for improved conductivity and higher current capacity
• Secure crimp or solder terminations to prevent loose connections
• 8-pin arrangement supports multiple circuits in one sealed plug
• Durable construction reduces heat buildup at contacts

How easy is installation and what tools do I need?

Installation is straightforward: strip the pigtail wires, crimp or solder your field wires to the supplied leads, then mate the housings. Each connector pair is designed for a quick, secure assembly that typically takes under a minute per connection once wires are prepared.

• Uses common tools: wire stripper, crimping tool or soldering iron

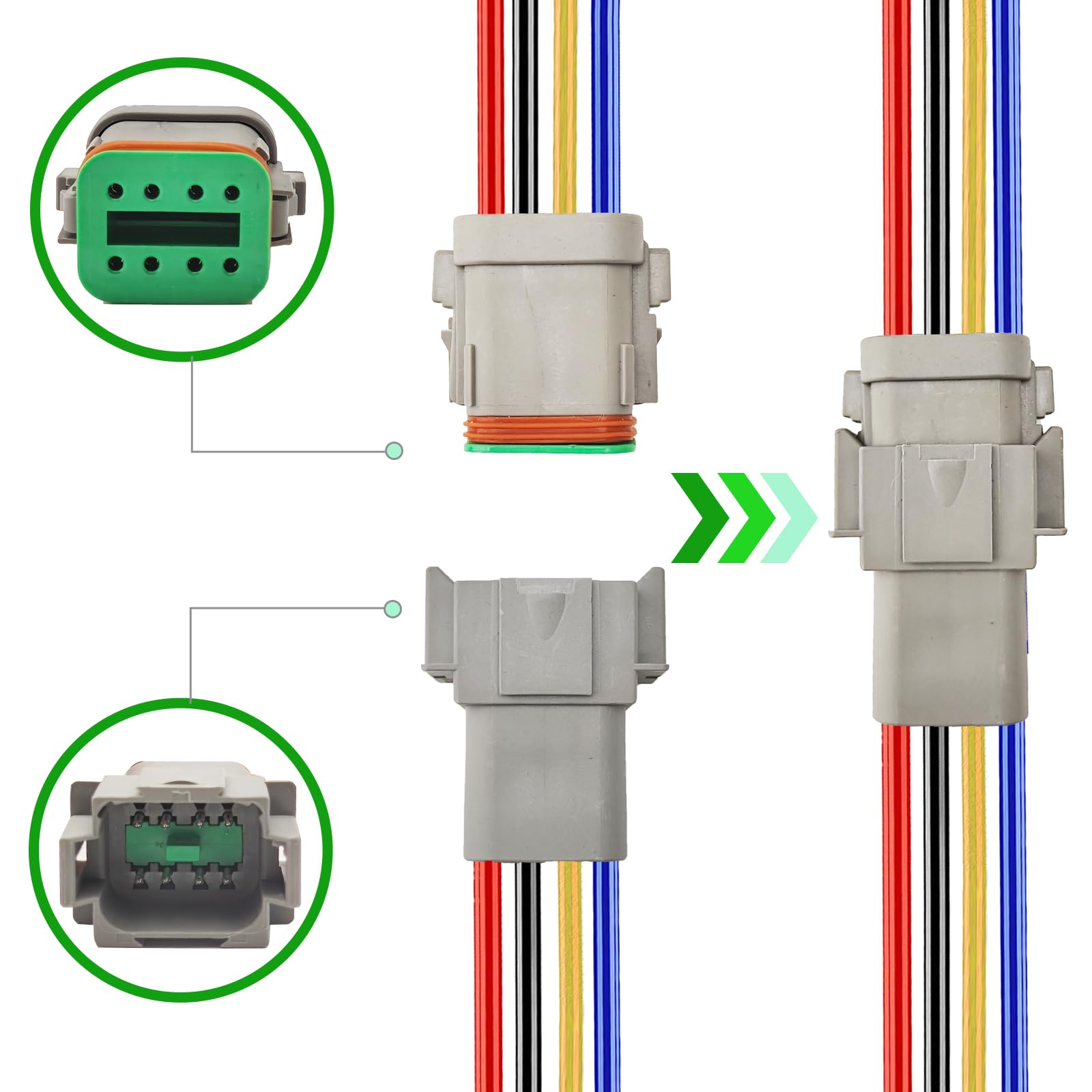

• 5.9-inch pre-attached pigtails simplify field wiring and routing
• Visible latch and keyed shell prevent mis-mating
• Crimped joints lock firmly for vibration resistance

What applications are these 8-way DT connectors best suited for?

The connectors are chosen for vehicle and outdoor electrical systems where multiple circuits must be joined in a sealed package. They work well with LED light bars, trailers, marine installations and any 12V accessory harness requiring a reliable quick-disconnect.

• Automotive: trucks, motorcycles, ATVs, trikes and trailers
• Marine: boats, jet skis, and shore power accessory connections
• Outdoor lighting: LED bars, strips, underground and architectural lighting
• Caravans, RVs and off-grid 12V systems with multiple circuits

Who is this for? The PLUXPAER 14 AWG 8-Pin DT Waterproof Connector 2-pack is aimed at electricians, vehicle and marine technicians, DIY installers, and hobbyists who need a compact, multi-conductor sealed connection. If you install or repair 12V lighting, accessory harnesses, trailers or outdoor electrical systems and require a dependable, corrosion-resistant quick connect, this sealed 8-way plug/socket set provides a professional-grade solution without complex modifications.
