Podavelle 8AN Inline Fuel Filter 30µm Black – High-Flow 900 L/h, Sintered Bronze

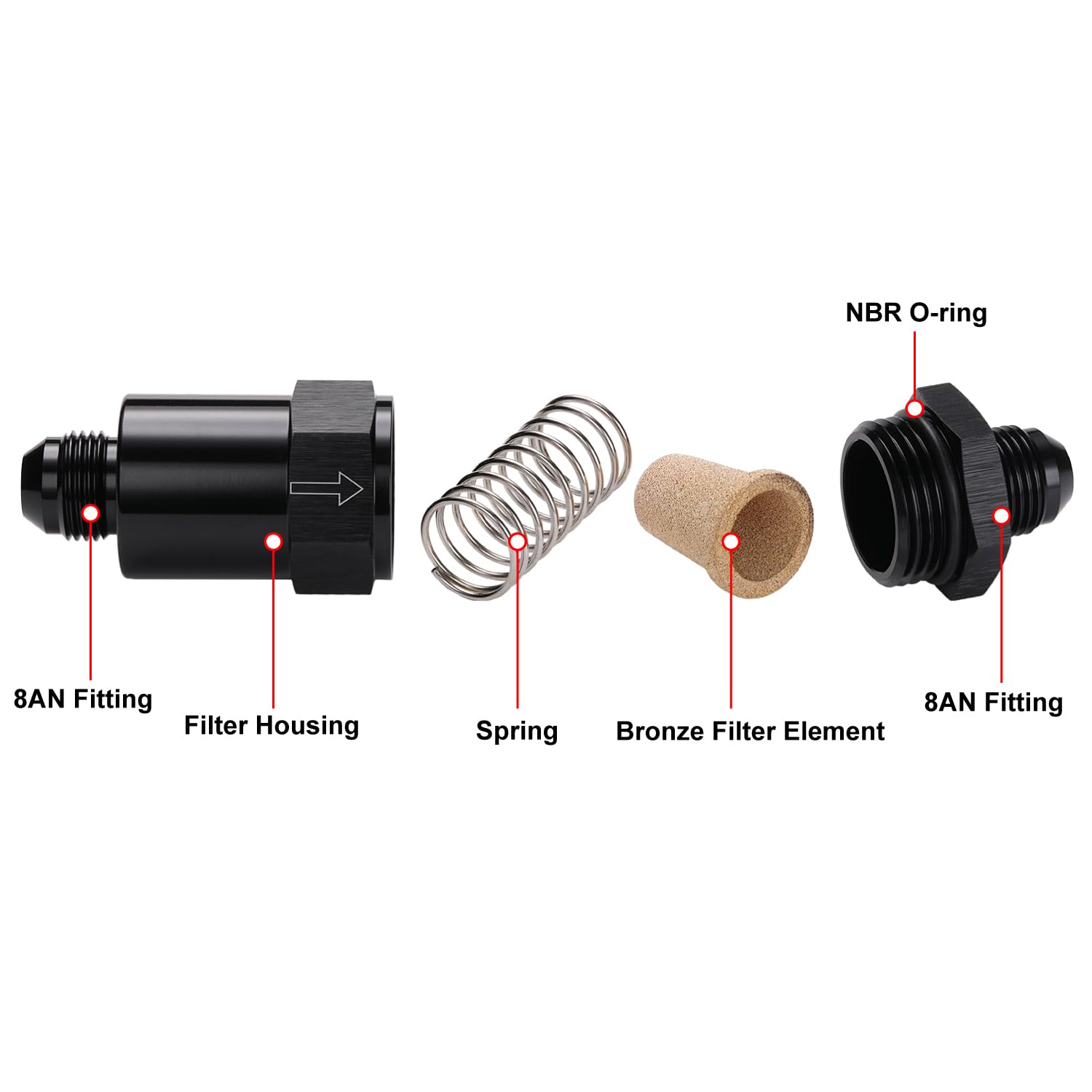

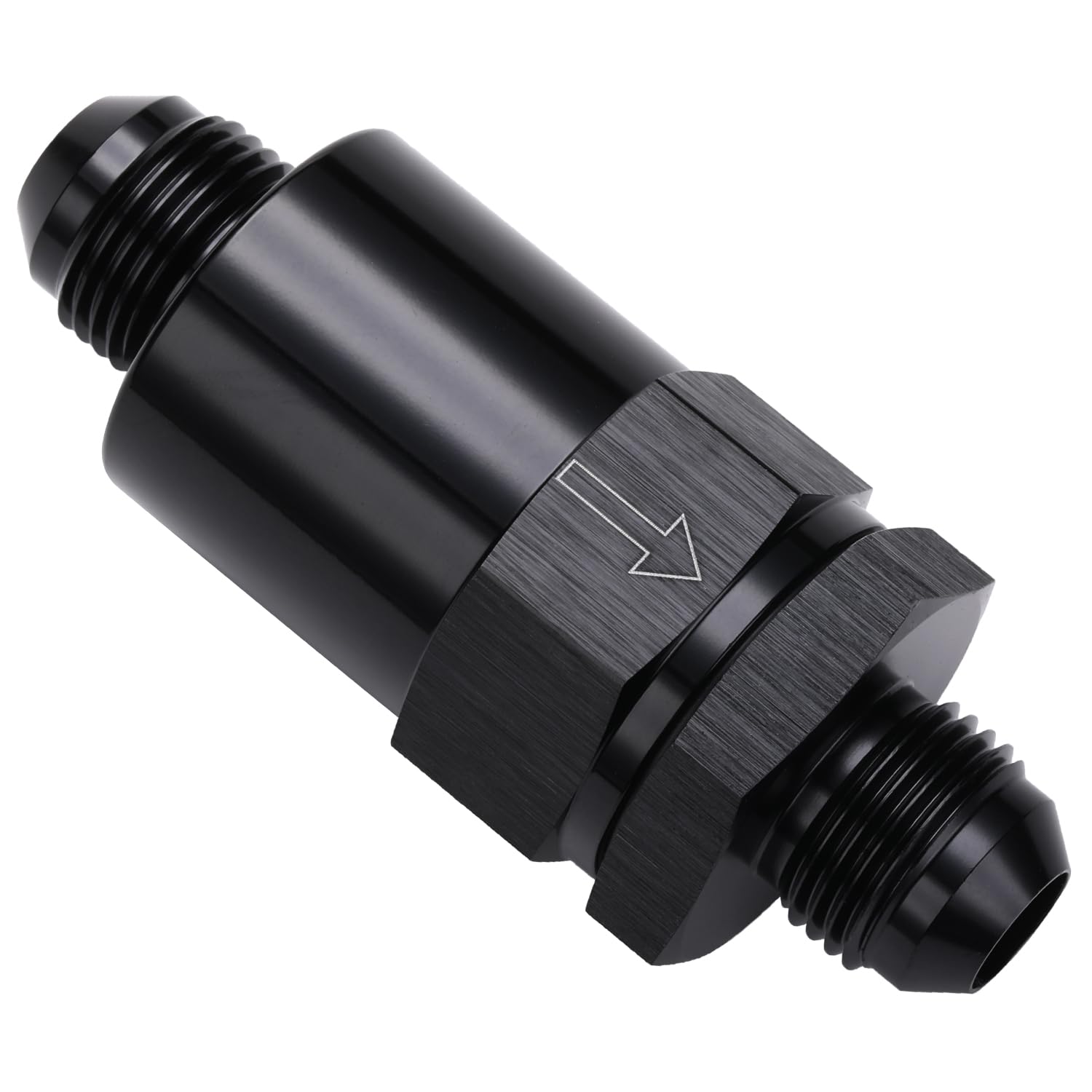

The Podavelle 8AN Billet Inline Fuel Filter is a compact, black-anodized 6061-T6 aluminum in-line filter with a removable 30-micron sintered bronze element designed for high-flow EFI and carbureted fuel systems.

This lightweight inline filter combines durable billet aluminum construction with a high-flow, reusable sintered bronze element to protect engines from particulate contamination without throttling fuel delivery. It’s built to handle demanding automotive and motorsport applications where reliable filtration and low pressure drop are important. The filter uses -8 AN (3/4-16 UNF) fittings and delivers roughly 900 liters per hour while keeping pressure loss under 1 PSI, making it suitable for high-volume fuel pumps.

How does this filter maintain fuel flow without causing pressure loss?

The Podavelle inline filter uses a dense yet porous sintered bronze element sized at 30 microns to trap debris while allowing high throughput. Its internal flow path and optimized element area minimize resistance so the unit sustains high flow rates even under load. This balance of filtration efficiency and low pressure drop helps preserve pump performance and engine response.

• 30-micron sintered bronze element captures fine particles while remaining permeable
• Flows approximately 900 liters per hour to support high-demand systems
• Pressure drop is under 1 PSI at rated flow to avoid hampering pumps
• Removable and reusable element simplifies maintenance without replacements

What are the build materials and how do they resist corrosion?

The housing is machined from 6061-T6 billet aluminum for a high strength-to-weight ratio and precise dimensional stability. The entire exterior receives an anodized black finish that enhances surface hardness and corrosion resistance, suitable for automotive environments. Internal bronze media is naturally corrosion-tolerant and compatible with common fuels when properly maintained.

• 6061-T6 billet aluminum body for rigidity and low weight
• Black anodized surface improves wear and corrosion protection
• Sintered bronze filter element resists chemical degradation from fuels
• Precision machining ensures reliable thread fit and sealing surfaces

Will this filter fit my system and how is it installed?

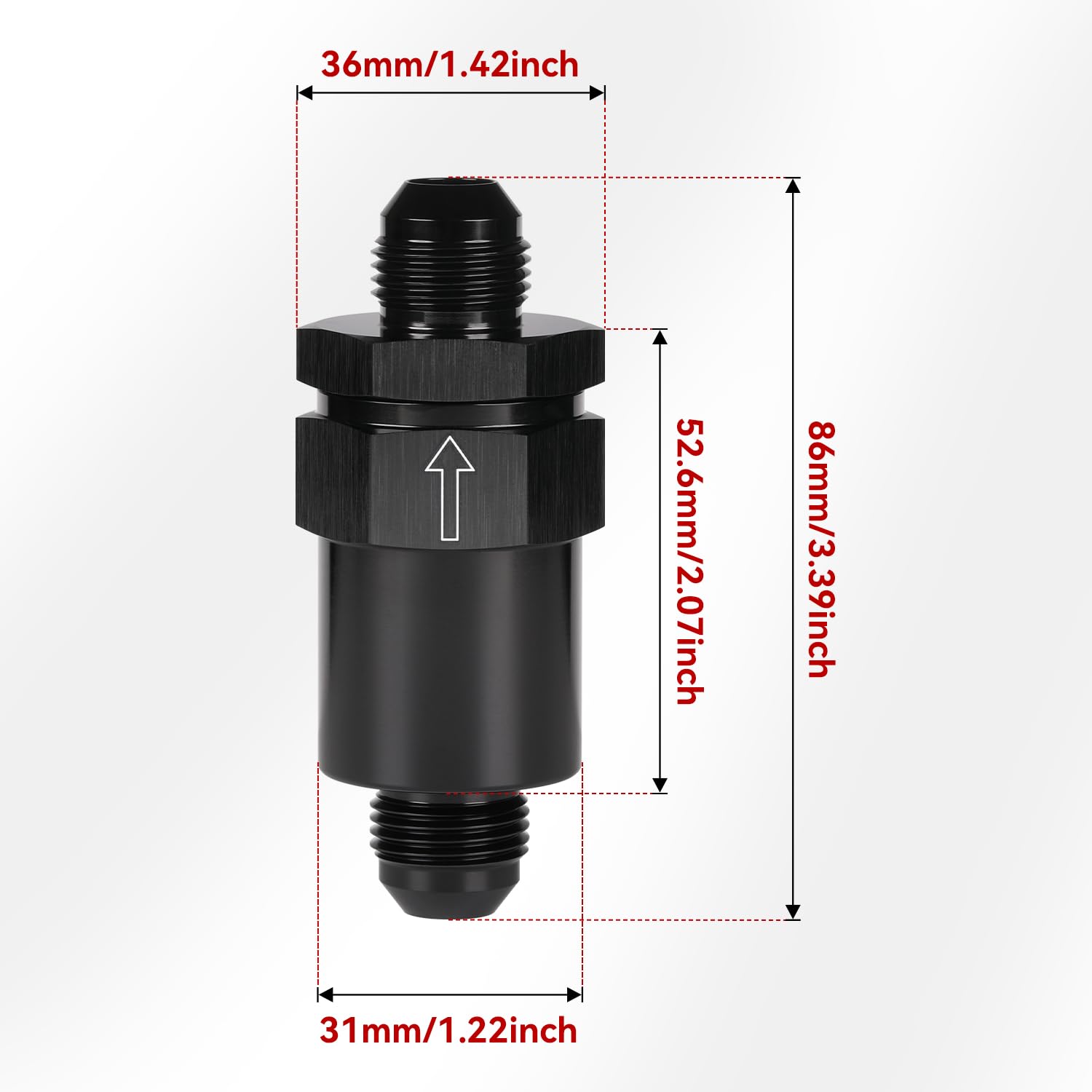

This unit uses -8 AN inlet and outlet threads (3/4-16 UNF) and is suited for fuel lines and fittings compatible with AN8 size. Its compact housing (about 52.6 mm length excluding fittings) fits tight engine bay locations and between hose runs. Professional installation is recommended to ensure proper sealing, mounting, and fuel line orientation for safe operation.

• -8 AN (3/4-16 UNF) thread compatibility with AN8 hoses and adapters
• Compact ~52.6 mm housing length for tight-space installations
• Designed for inline placement ahead of carburetors or EFI rail feed points
• Professional installation advised—no user install guide included

How do I service the filter and what maintenance is required?

The sintered bronze element is removable and intended to be cleaned and reused rather than discarded—this reduces recurring costs and waste. Routine inspection intervals depend on operating conditions; inspect more frequently in dusty or contaminated environments. Clean the element using an appropriate solvent or ultrasonic cleaner and reassemble with proper torque and thread sealing methods.

• Removable/reusable bronze element for periodic cleaning
• Clean with approved solvent or ultrasonic methods; avoid harsh abrasives
• Inspect seals and threads each service; replace O-rings if worn
• Service frequency varies with environment and fuel cleanliness

Who this is for: Enthusiasts, racers, and mechanics who need a high-capacity, low-resistance inline fuel filter for EFI or carbureted systems will find the Podavelle 8AN Billet Filter suitable. It’s aimed at users who prefer durable billet construction, a reusable bronze element, and AN8 compatibility for custom fuel plumbing. Because installation involves fuel-line connections and system pressure considerations, choose this product if you have access to professional installation or solid mechanical experience.
