Podavelle 8AN Male Flare to -8 ORB Banjo Bolt Adapter — Black 90° Low-Profile, 360° Rotatable

Podavelle's 8AN male flare to -8 ORB banjo bolt assembly is a low-profile, 90° AN-to-ORB adapter that lets you route fuel or oil lines in tight spaces with a rotatable banjo and corrosion-resistant construction.

This compact banjo bolt assembly pairs a 6061-T6 billet aluminum banjo with a 304 stainless steel bolt, anodized black for durability and corrosion resistance. It establishes a secure -8 AN (3/4-16 UNF) male flare connection to a -8 ORB (3/4-16 UNF) port at a right angle, delivering a neat, serviceable routing solution for fuel rails, pressure regulators, surge tanks, turbos, steering units and similar systems. The banjo's 360° post-install rotation and slim 24mm thickness help eliminate hose stress and reduce bulk where standard 90° fittings are too large.

How does this banjo adapter save space compared to standard 90° fittings?

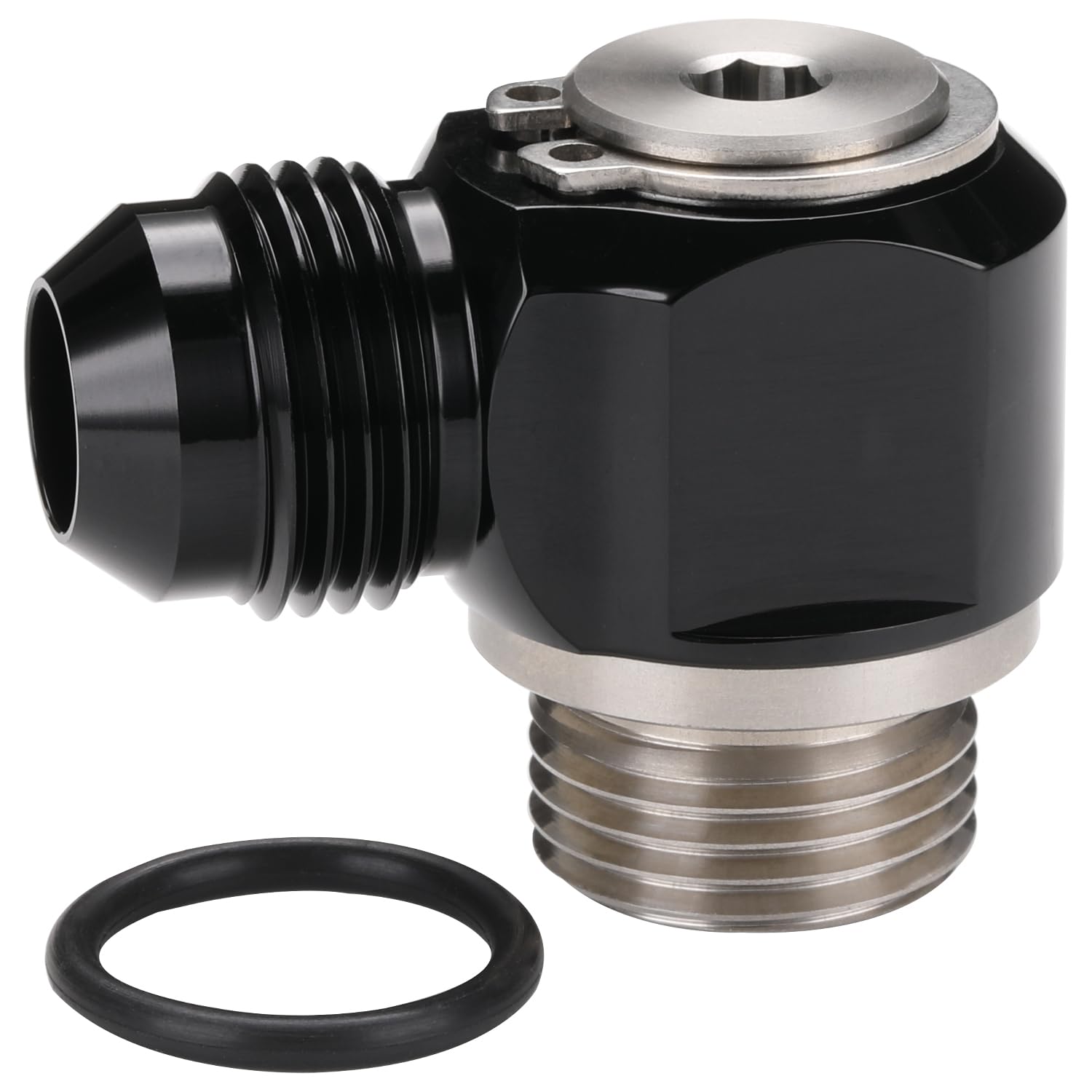

The Podavelle assembly is designed with a slim, 24mm banjo profile that reduces overall height and lateral bulk at the connection point. Its compact geometry positions hoses close to the port, improving fitment in cramped engine bays or behind tightly packaged components.

• 24mm banjo thickness for a lower profile than many elbow fittings
• 90° orientation keeps hoses tucked against components
• Ideal where clearance to chassis or accessories is limited

Can the banjo be aimed after installation to align the hose?

Yes — the banjo is engineered to rotate a full 360° even after the bolt is tightened, permitting precise hose alignment without twisting or stressing the AN line. This helps maintain correct hose routing and consistent flow paths in aftermarket plumbing setups.

• 360° rotation for final orientation and strain relief
• Maintains correct hose angle for optimal flow and longevity
• Useful when ports are offset or access is limited

What materials and threads are used, and are they compatible with fuels?

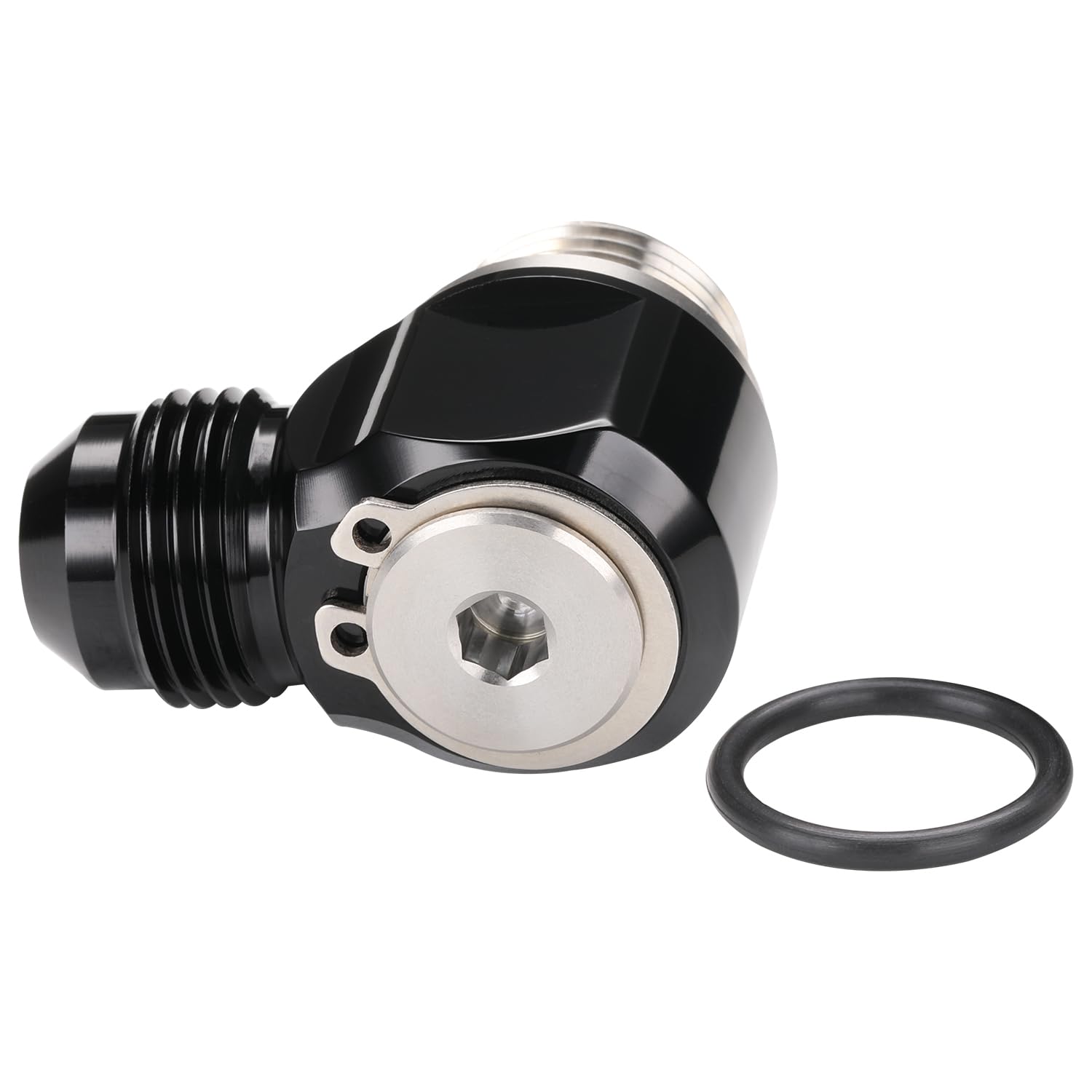

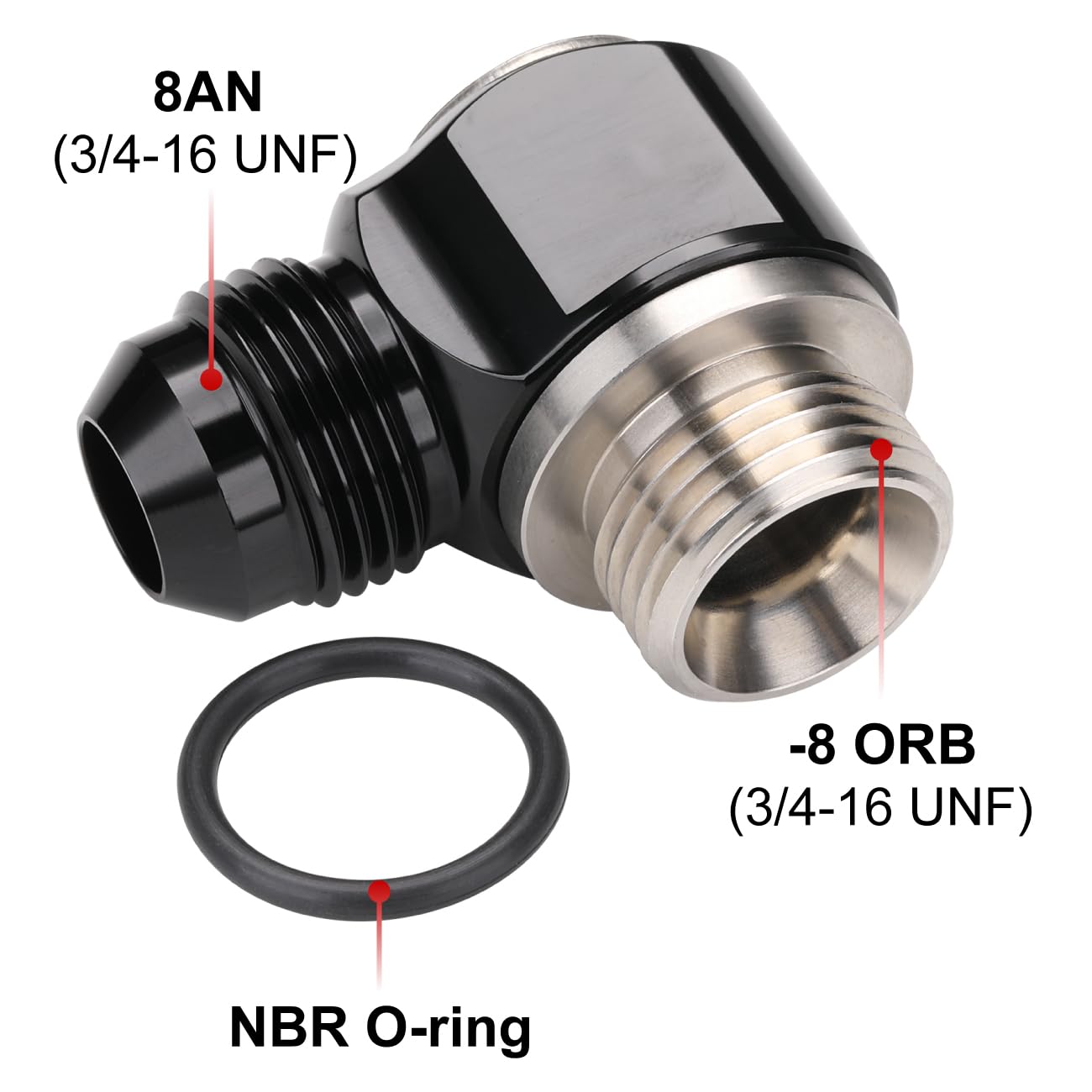

The banjo body is machined from 6061-T6 billet aluminum and the bolt is 304 stainless steel, finished with black anodizing for enhanced surface protection. Threads are AN8 (3/4-16 UNF) male flare on the banjo and -8 ORB (3/4-16 UNF) on the bolt; the assembly is suitable for petroleum and alcohol-based fuels when installed correctly.

• Banjo: 6061-T6 billet aluminum, anodized black
• Bolt: 304 stainless steel for corrosion resistance
• Threads: AN8 male flare and -8 ORB, matching common -8 ports

Where is this fitting typically used and what systems benefit?

This adapter is commonly used anywhere an ORB port needs a clean AN hose connection at 90° without bulky elbows. It suits both performance and maintenance-focused builds where neat routing, accessibility and leak-free joints matter.

• Fuel rails, fuel pressure regulators, surge tanks
• Turbocharger oil feed/return lines and power steering systems
• Applications requiring compatibility with alcohol and blended fuels

Who is this for: The Podavelle 8AN male flare to -8 ORB stainless steel banjo bolt assembly is aimed at mechanics, tuners, and hobbyists fitting aftermarket fuel or oil plumbing in tight engine bays. If you need a compact, serviceable 90° AN-to-ORB connection with corrosion-resistant hardware and the ability to fine-tune hose alignment after installation, this adapter provides a robust option. Professional installation is recommended — no installation instructions are included.
