Podavelle AN6 Y-block Fuel Splitter Adapter Black — Billet 6061-T6 Aluminium, Anodized Durability

Podavelle's AN6 male to parallel dual AN6 male Y-block is a compact aluminum fuel-splitter adapter that lets one AN6 feed be safely routed into two AN6 outputs for fuel, oil, coolant, air or other high-flow fluid systems.

Compact and machined from 6061-T6 billet aluminum with an anodized finish, this Podavelle Y-block adapter provides a durable, corrosion-resistant junction for high-flow lines where splitting a single AN6 feed into two parallel AN6 lines is required. It is engineered for compatibility with gasoline and alcohol-based fuels and works equally well with oil, coolant, water, and compressed air. The adapter’s thread size is AN6 (9/16-18 UNF) male on the single inlet and two AN6 male outlets arranged in a parallel Y configuration.

How does this splitter perform in a high-flow fuel system?

The billet 6061-T6 construction keeps internal passageways stable under pressure and resists deformation, maintaining flow characteristics. The anodized surface adds wear and corrosion protection to extend service life when used with fuel or fluids. Use in systems where balanced parallel feeds are acceptable—this is not a metering device, but a straightforward parallel splitter.

• Solid billet aluminum body for pressure stability and minimal internal restriction
• Anodized finish for corrosion resistance with fuels and fluids

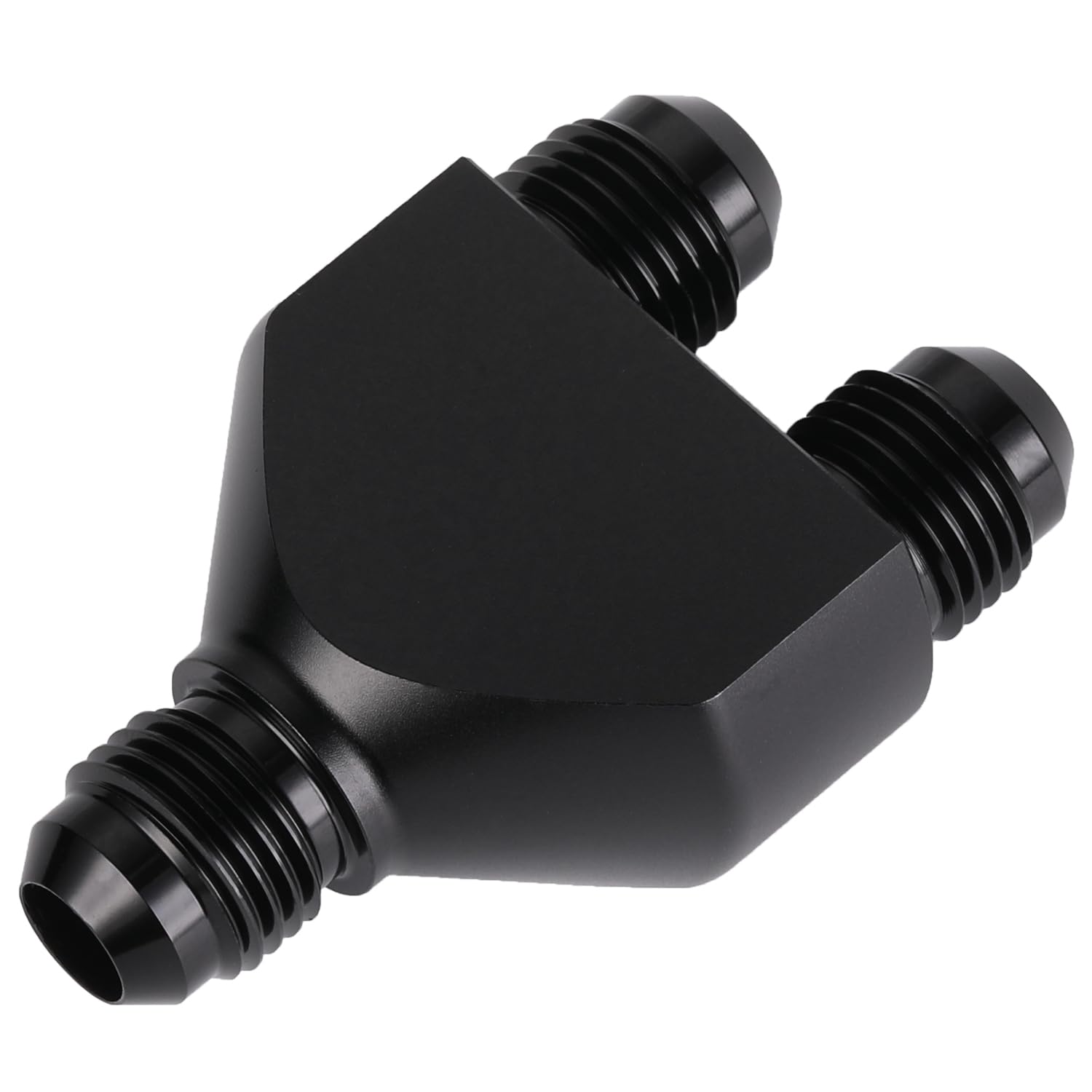

• Parallel Y design splits flow into two equal AN6 outlets
• Compatible with gasoline, alcohol fuels, oil, coolant, water, and air

Will it fit my existing AN6 plumbing and fittings?

This Podavelle adapter uses standard AN6 (9/16-18 UNF) male threads on the single inlet and both outlets, so it threads directly into matching AN6 female swivel fittings or hose ends. Thread form and size follow AN6 conventions, making it compatible with most aftermarket AN6 lines and fittings without adapters. Confirm thread orientation and clearance in tight installations before final assembly.

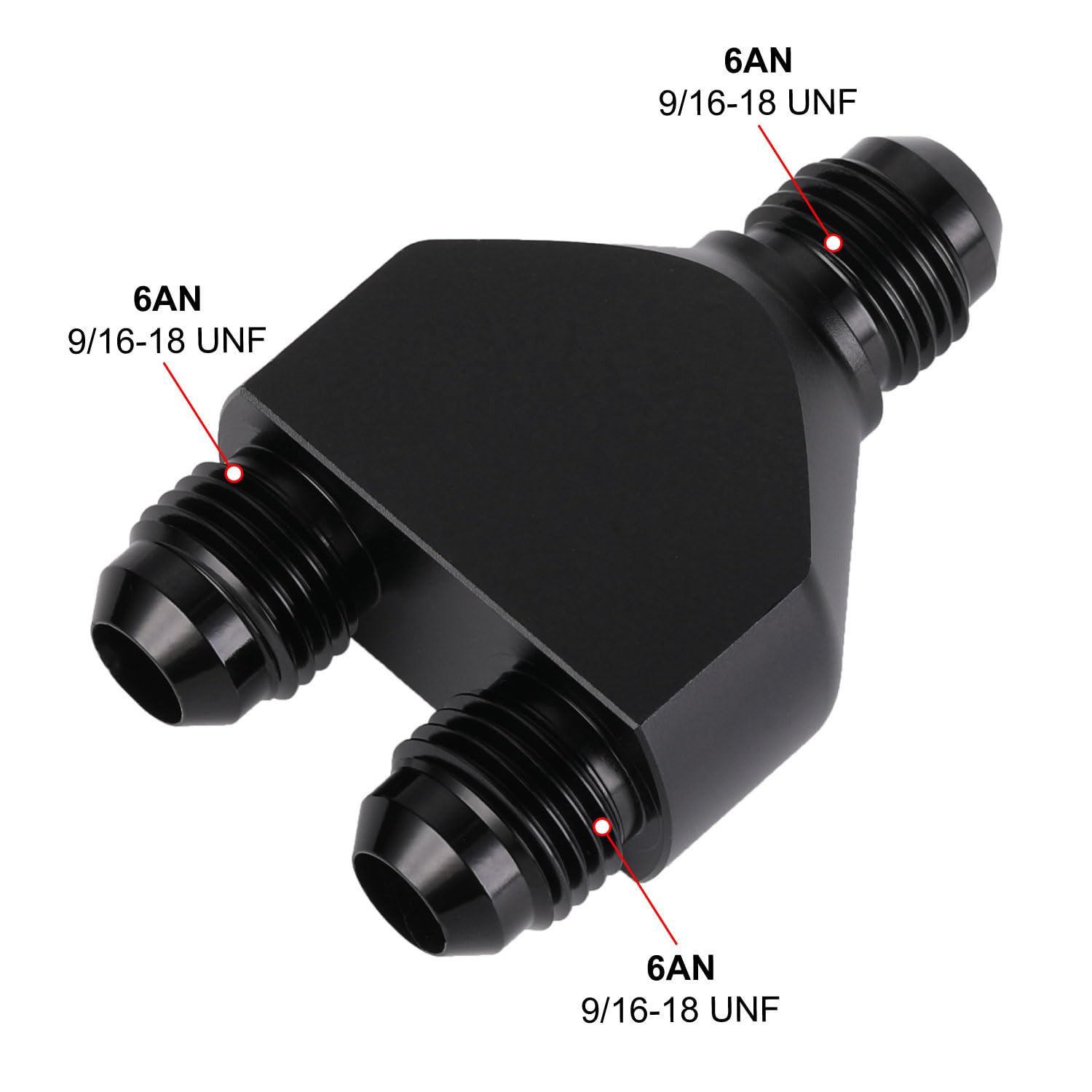

• AN6 male (9/16-18 UNF) on inlet and both outlets
• Direct mating with standard AN6 female swivel fittings and hose ends
• Works with common braided hoses and PTFE lines using AN6 ends
• Check physical clearance for the Y orientation in confined spaces

What maintenance or installation precautions should I follow?

Professional installation is recommended; the product ships without instructions and requires correct torqueing and sealing practices for fuel systems. Inspect thread sealant and washers per your system’s standard procedures, and pressure-test the assembly before use. Avoid overtightening to prevent galling on mating fittings.

• Use proper AN thread sealing methods and torque specifications
• Pressure-test the installation before introducing fuel under normal operation
• Replace damaged or worn AN fittings to preserve sealing integrity
• Avoid mixing incompatible sealants that could degrade fuel-system materials

Can this splitter be used for fluids other than gasoline?

Yes. The 6061-T6 aluminum and anodized finish are compatible with a wide range of liquids and gases such as oil, coolant, water, and compressed air. Podavelle states compatibility with gasoline and alcohol-based fuels specifically; always confirm chemical compatibility if you plan to use aggressive or specialty fluids.

• Suitable for gasoline, alcohol fuels, oil, coolant, water, and air
• Anodized coating improves corrosion resistance for diverse fluids
• Confirm compatibility for acidic or solvent-based specialty fluids
• Not a flow-control or metering component—use only as a parallel splitter

Who is this for? This Podavelle AN6 Y-block adapter is aimed at mechanics, fabricators, and motorsport or custom-vehicle builders who need a reliable, compact way to split one AN6 feed into two parallel AN6 feeds. It suits anyone upgrading fuel, oil, coolant, or auxiliary fluid lines who requires standard AN6 thread compatibility and a lightweight, corrosion-resistant aluminum junction. Because the adapter does not include installation instructions, it is best used by professionals or experienced DIYers familiar with AN fittings and fuel-system safety.
