Power Probe back-probe & blade adapter kit PPTK0005 — 4mm banana-plug adapters for safe voltage and continuity checks

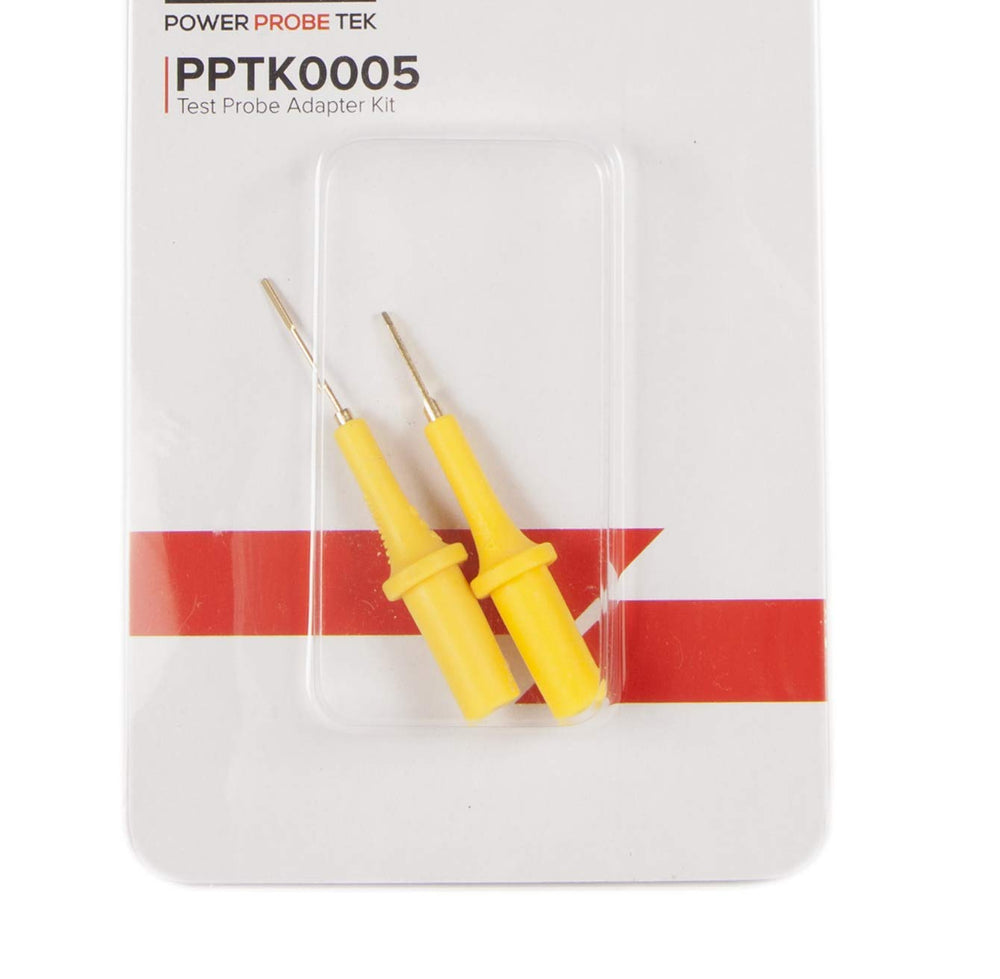

Power Probe Back Probe & Blade Probe Adapter Kit (PPTK0005) supplies two specialized adapter styles that let technicians access circuits precisely without harming connectors.

The Power Probe PPTK0005 kit bundles a back-probe adapter and a blade-probe adapter built to expand the reach and versatility of common 4mm banana-plug test leads. These adapters make it easier to read voltage, continuity, and signal presence at fuses, wire harness terminals and closely packed connector pins while preserving the integrity of terminals and insulation. Compact, durable, and straightforward to attach, the adapters are designed for shop and field diagnostics where fast, repeatable access matters.

How do these adapters protect terminals during testing?

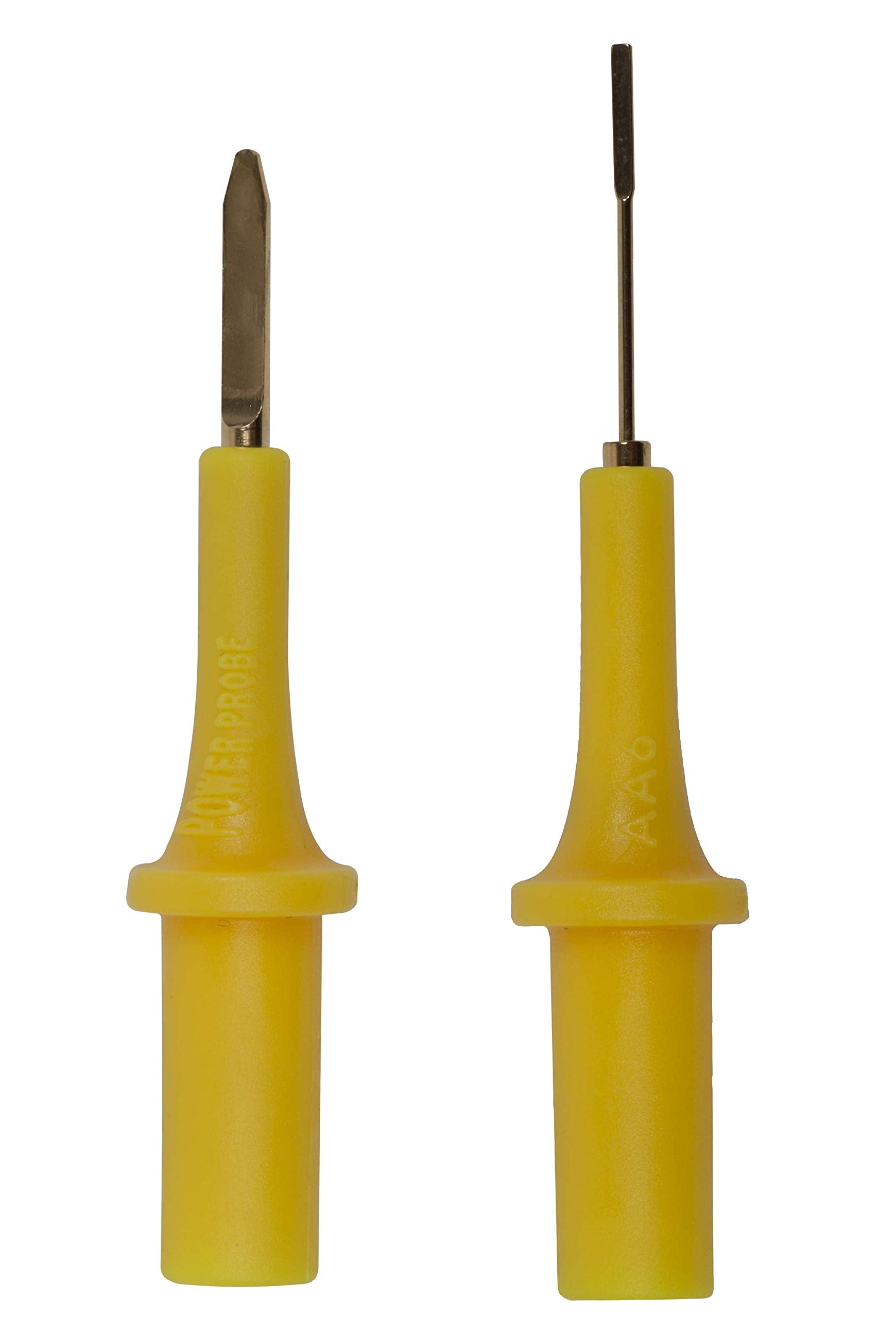

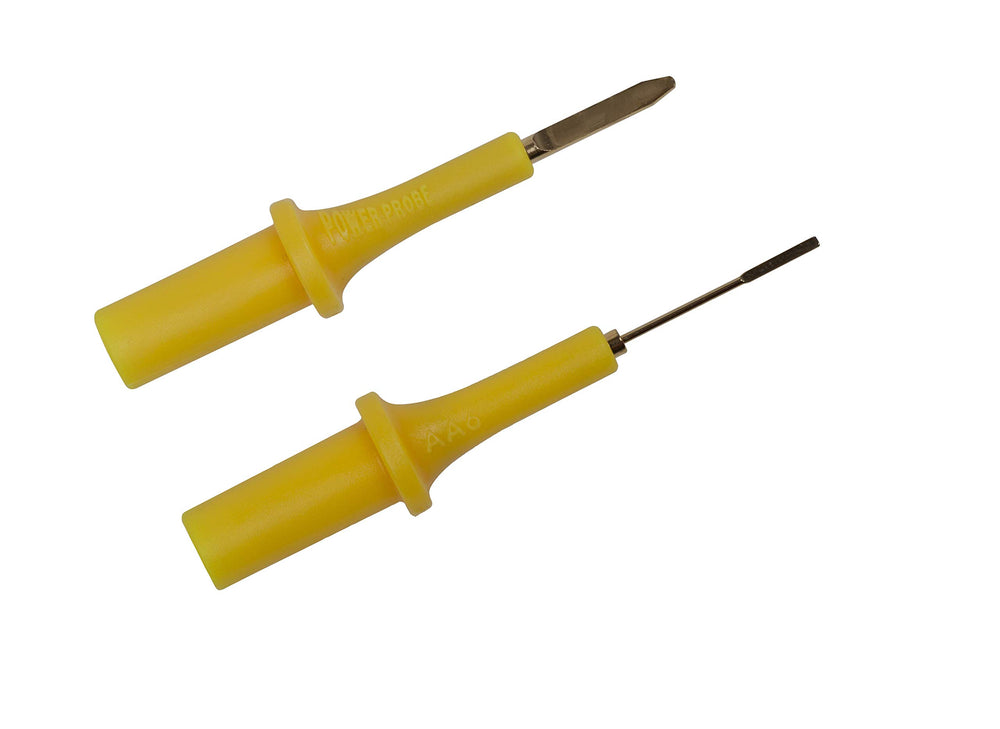

Both adapters are engineered to contact circuits without slicing insulation or widening connector openings. The back-probe piece slides alongside a wire or into the rear of a connector to contact the conductor, while the blade probe contacts flat terminals and fuse blades with a slim profile. Using these adapters reduces the need to strip wires or force probes into tight spaces, preserving component life.

• Back-probe access to pins from the connector rear without removing terminals
• Blade profile matches fuse and spade shapes for stable contact
• 4mm banana-plug termination ensures secure connection to most testers
• Minimizes repeated terminal wear during frequent checks

Which measurements and diagnostic tasks are these adapters best for?

They are optimized for voltage checks, continuity testing and signal verification on automotive and industrial wiring harnesses. Because the adapters terminate in standard 4mm banana plugs, they connect to multimeters, Power Probe tools, bench meters and other instruments. Their geometry keeps probes steady so readings are less likely to be disrupted by vibration or awkward hand positions.

• Steady voltage measurements on fuse boxes and connector harnesses
• Quick continuity checks without disassembling connectors
• Signal probing for sensors, switches and control modules
• Use with handheld testers, bench meters, and Power Probe devices

How do I attach and use the Power Probe adapters safely?

Connect the adapter’s 4mm banana plug to your tester, then position the back-probe or blade tip at the target terminal while the circuit is powered or unpowered as required for the test. Avoid forcing the tip into connectors; let the slim tip slide into service openings or seat on the terminal face for a stable contact. Always follow the meter and vehicle manufacturer safety guidance—disconnect battery power when instructed.

• Plug into any 4mm-compatible test lead or meter socket
• Slide back probe into connector access points gently for contact
• Seat blade probe on flat fuse blades or spade terminals for reading
• Follow standard electrical safety: proper PPE, meter settings, and isolation

What materials and compatibility should I expect from this kit?

The PPTK0005 is built with conductive metal tips and insulated housings sized for durability and repeated service use. Banana plugs conform to 4mm standards so they fit broadly across test equipment. The kit is not reliant on a single brand of tester—its compatibility is mechanical and electrical, designed to integrate into existing tool bags without adapters.

• Durable conductive tips for reliable readings over many cycles
• Insulated bodies to reduce accidental shorts during probing
• Standard 4mm banana-plug termination for wide tool compatibility
• Compact form factor to fit into crowded engine bays and panels

Who is this for: The Power Probe Back Probe & Blade Probe Adapter Kit (PPTK0005) suits automotive technicians, electrical troubleshooters, fleet maintenance teams and hobbyists who need fast, reliable access to terminals and fuses without damaging connectors. If you perform routine diagnostics on wiring harnesses, modules or fuse boxes and value repeatable, non-destructive contact, this kit adds targeted probing options to your meter or Power Probe toolset.
