PowMr 48V Battery Equalizer — 4×12V Voltage Balancer, 10A Active Balancing for Gel/AGM/Lithium

PowMr 48V Battery Equalizer balances voltages across multi‑battery banks (4×12V by default) to reduce imbalances and prolong battery service life.

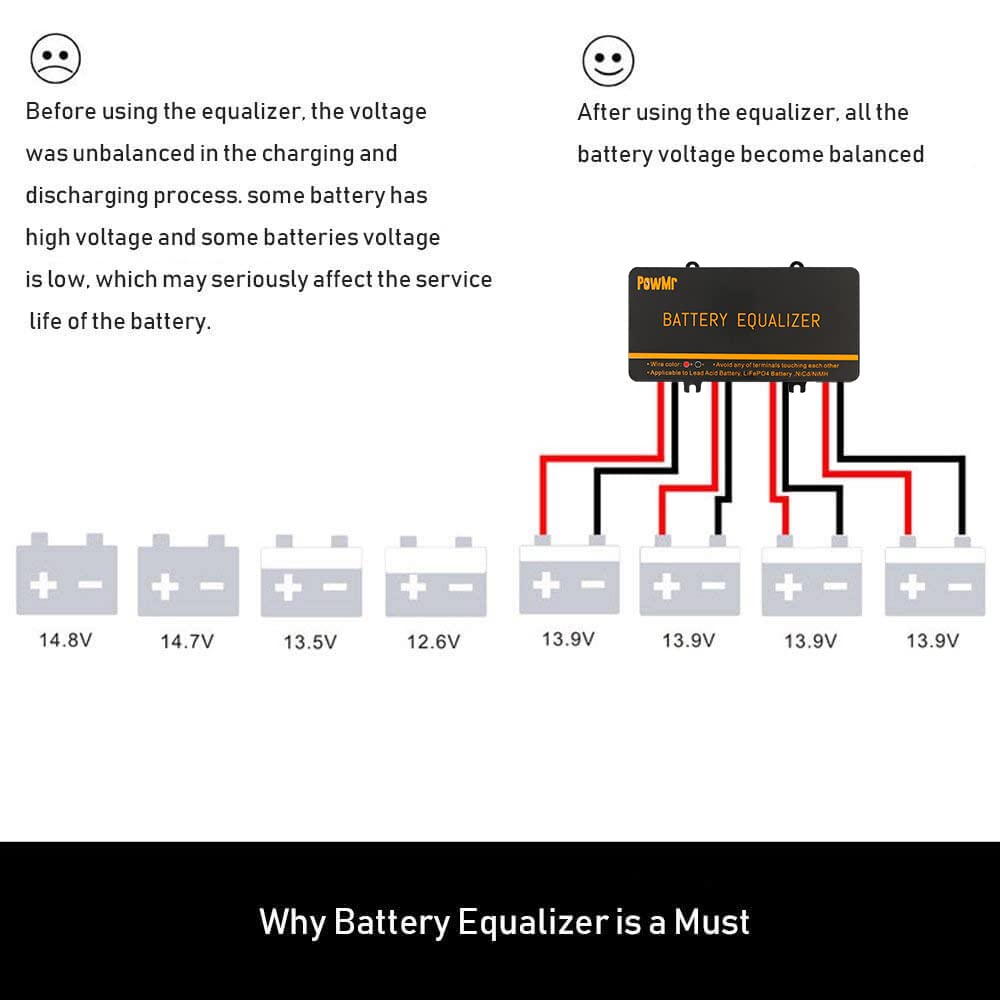

When batteries are wired in series or parallel, small differences in state of charge or internal resistance cause uneven voltages that shorten overall runtime and accelerate wear. The PowMr 48V Battery Equalizer detects voltage differences and shifts current between battery pairs to even out charge levels. It supports common chemistries including gel, flooded, AGM and lithium and is built with protections to prevent damage from incorrect wiring or low voltages.

How does the equalizer keep a 48V bank balanced?

The unit continuously monitors voltage across its connected 12V segments and transfers charge from higher voltage batteries to lower ones until voltages align. This active balancing reduces cycling stress on weaker cells and helps each battery in the bank share load more evenly.

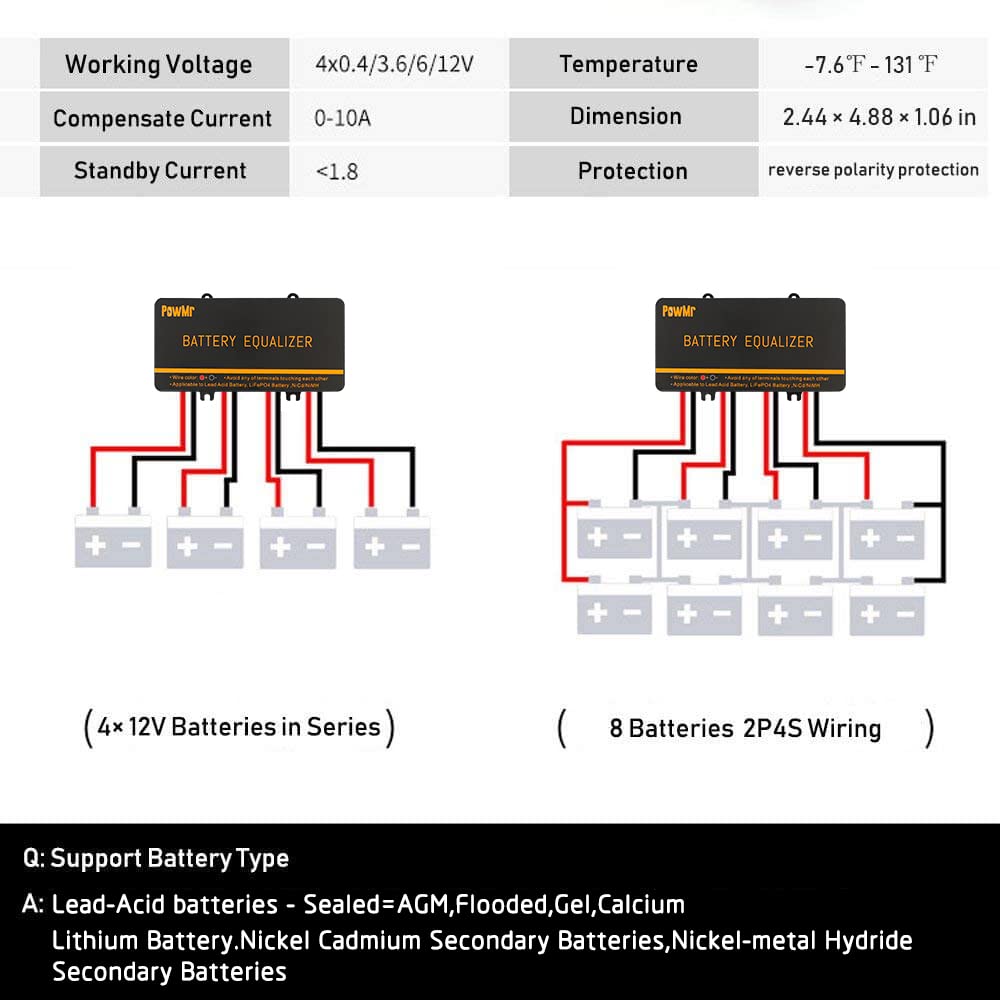

• Connects by default to four 12V batteries (48V total) and supports series or parallel configurations.
• Maximum compensation current up to 10A to correct moderate imbalances.
• Operates automatically while installed—no manual intervention needed.

Will it work with my battery type and system size?

PowMr designed the HA02 equalizer to be chemistry‑agnostic for common 12V types: gel, flooded, AGM and many lithium variants. It can also be used in expanded battery setups by pairing multiple units to cover 8×12V or larger banks, following proper installation guidance.

• Compatible with gel, flooded, AGM and many lithium 12V batteries.
• Use multiple equalizers for larger banks or nonstandard configurations.
• Suitable for vehicles, RVs, boats, solar arrays, golf carts and forklifts.

What safety features protect my batteries and system?

The equalizer includes built‑in safeguards to reduce risk from wiring mistakes and extreme conditions. Reverse polarity protection prevents damage if leads are connected incorrectly, and a low voltage disconnect protects batteries from excessive discharge.

• Reverse polarity protection to guard against incorrect connections.
• Low Voltage Disconnect helps avoid deep discharge and battery stress.
• Audible click/operation noise may occur while current flows during balancing.

How do I install and where can I use this device?

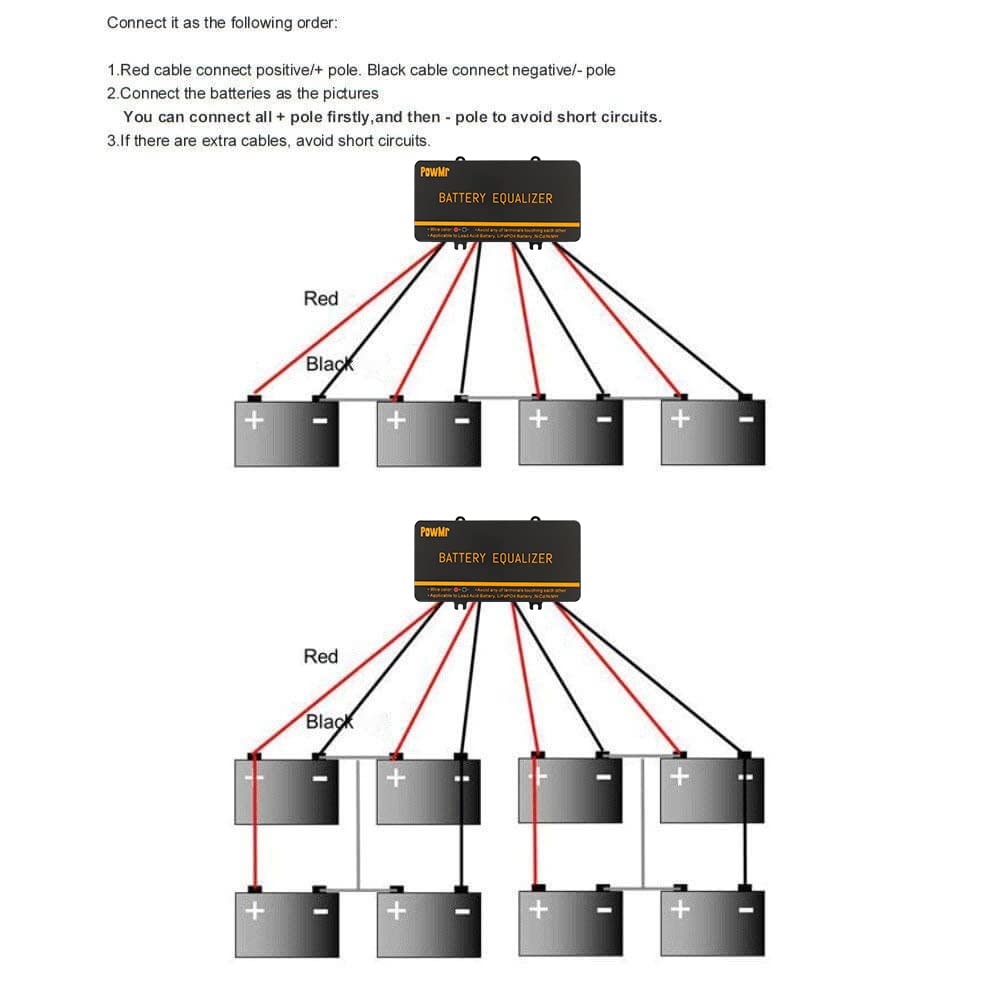

Installation is straightforward for anyone comfortable with battery terminals and safety precautions: mount the module near the battery bank, connect the specified 12V taps per the wiring diagram, and secure all terminals. The unit is designed for long‑term connection so it can continuously maintain balance in daily use.

• Mount close to the battery bank and follow polarity markings when wiring.
• Recommended for autos, boats, RVs, solar systems, trucks, golf carts and forklifts.
• Audible sounds when balancing are normal—indicates current flow until equilibrium.

Who this is for: The PowMr 48V Battery Equalizer fits owners and installers who rely on multi‑battery 12V systems and want to reduce imbalance‑related wear without replacing batteries prematurely. It’s useful for DIY solar installers, fleet managers, marine and RV enthusiasts, and anyone using series or parallel 12V banks who needs an automated way to improve battery longevity while maintaining regular system operation.
