Pro Chaser Carburetor FR691V Replacement Kit for Kawasaki Engines — includes gaskets, fuel hose & spark plugs

Pro Chaser FR691V replacement carburetor is a complete aftermarket unit designed to fit Kawasaki FR691V/FR730V/FS691V/FS730V engines and compatible mower models, supplied with gaskets, filter, spark plugs, fuel hose and shut-off valve for straightforward installation.

If your lawn mower is running poorly, hard to start, or using more fuel than usual, a faulty carburetor can be the cause — this Pro Chaser FR691V carburetor kit is built as a direct-replacement option for a number of Kawasaki-powered lawn and garden machines. Before ordering, compare the photos and mounting points with your existing carburetor because small design differences can mean a different model is required. If you’re unsure, send clear pictures of both sides of your current carburetor to the seller for verification.

Will this carburetor work with my mower and engine?

This unit is intended for Kawasaki FR691V, FR730V, FS691V and FS730V engines and several popular zero-turn and riding mowers. It’s commonly used as a replacement on Cub Cadet Ultima ZT1/ZT2, John Deere X320/X324/X380, Husqvarna Z254F and certain Toro SS-series models. Always check bolt pattern, throttle linkage and fuel inlet location against your original part.

• Fits Kawasaki FR691V/FR730V/FS691V/FS730V engine families
• Compatible with Cub Cadet ZT1/ZT2 and similar models
• Also suitable for select John Deere, Husqvarna and Toro models
• Confirm physical mounting, linkages and inlet positions before purchase

What comes in the package and how does that save me time?

The kit includes the carburetor plus installation consumables so you won’t need to source small parts separately. That reduces downtime and ensures you have the common replacement items on hand during installation. All parts are packaged together for immediate use.

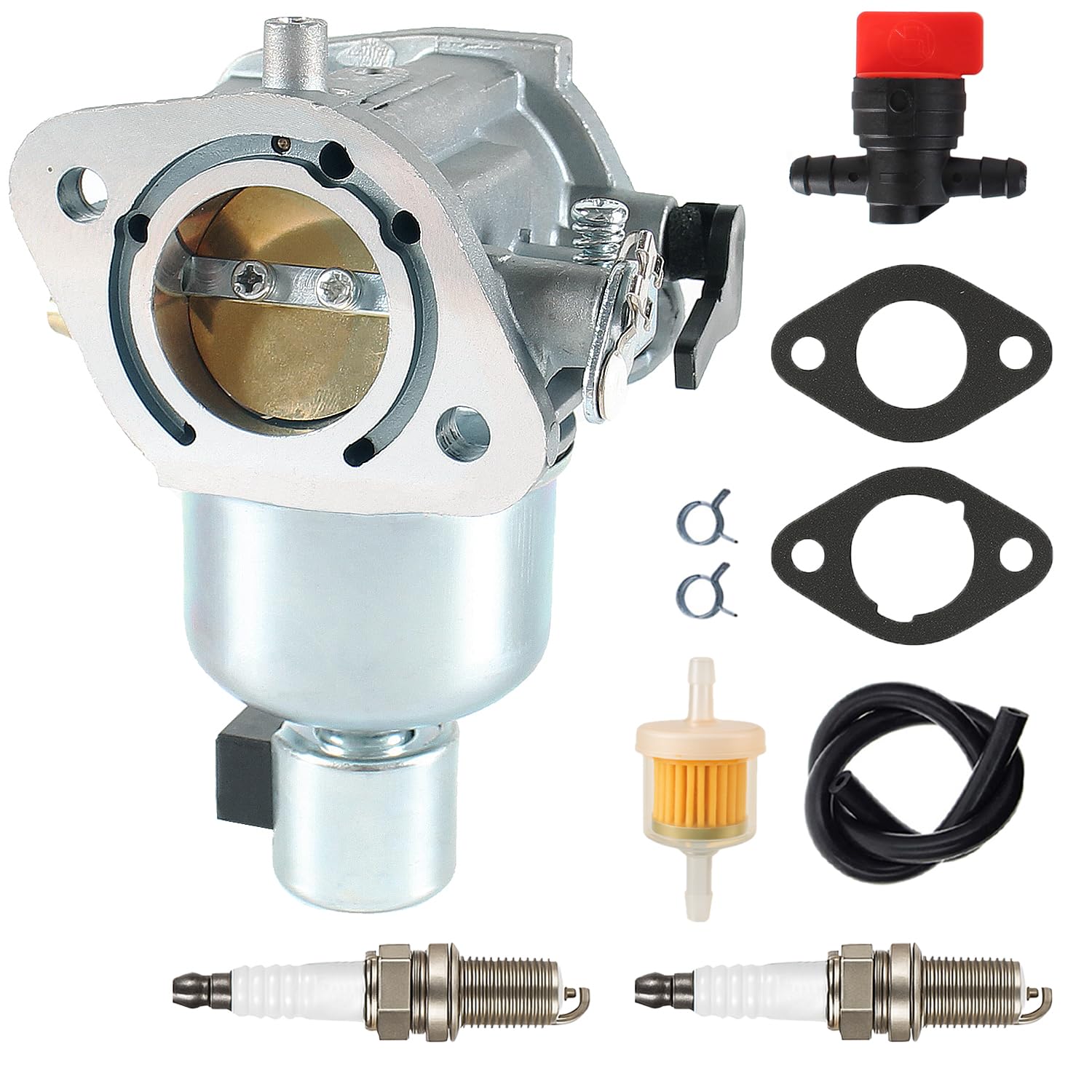

• 1 × Pro Chaser FR691V carburetor (assembly)
• 2 × gaskets to seal intake connections
• 1 × fuel filter and 1 × fuel hose to replace old lines
• 2 × spark plugs and 1 × shut-off valve for fuel control

How difficult is installation and what tools are needed?

Installation is moderate in difficulty for someone comfortable with small-engine maintenance. Typical steps include draining fuel, removing the air cleaner and old carburetor, fitting gaskets and new connections, and adjusting linkages. If you lack experience, a small-engine technician can complete the swap quickly.

• Basic hand tools: sockets, screwdrivers, pliers
• Needle-nose pliers for linkages and clips
• Clean cloths and small container for drained fuel
• Optional: service manual for engine-specific adjustment specs

How should I verify compatibility before ordering?

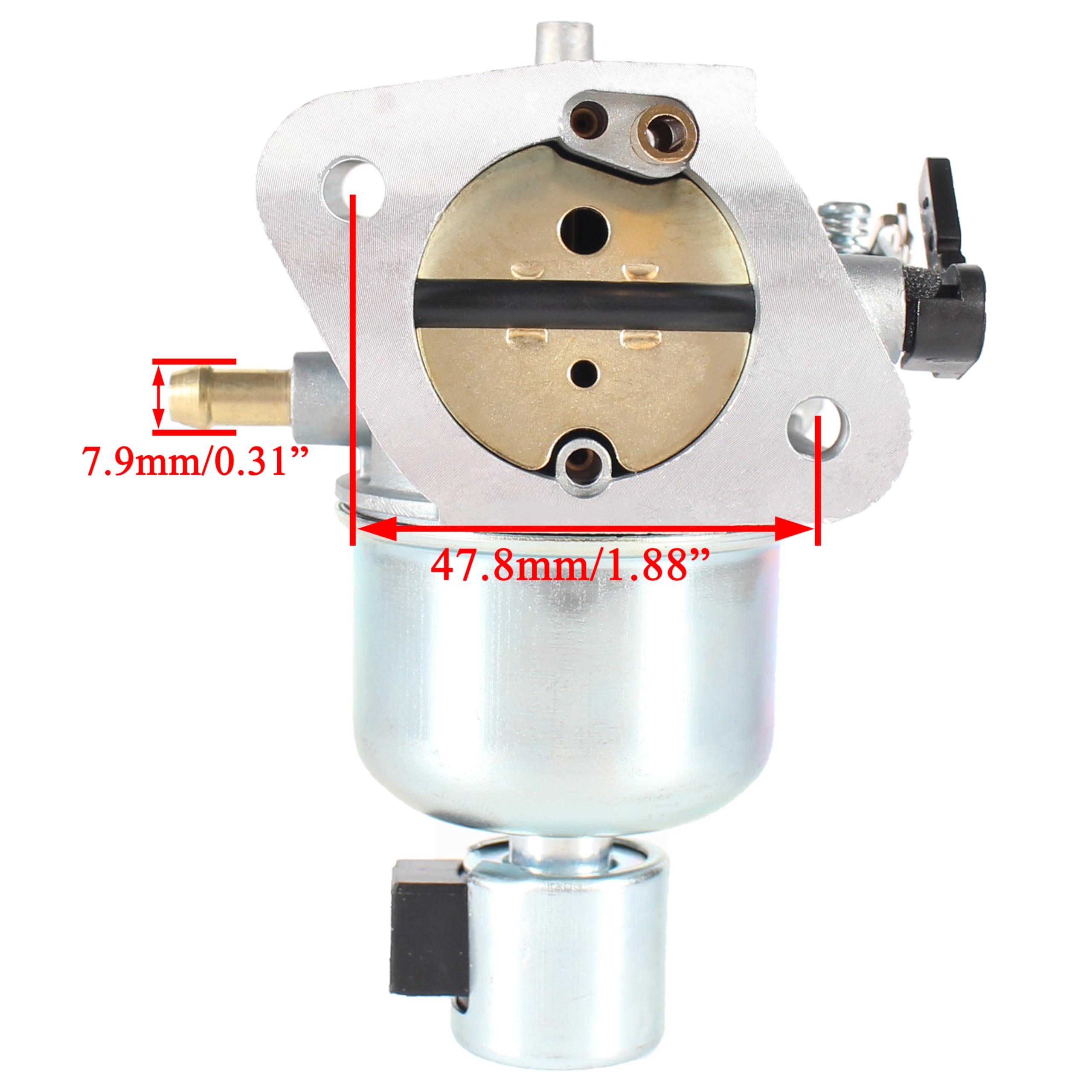

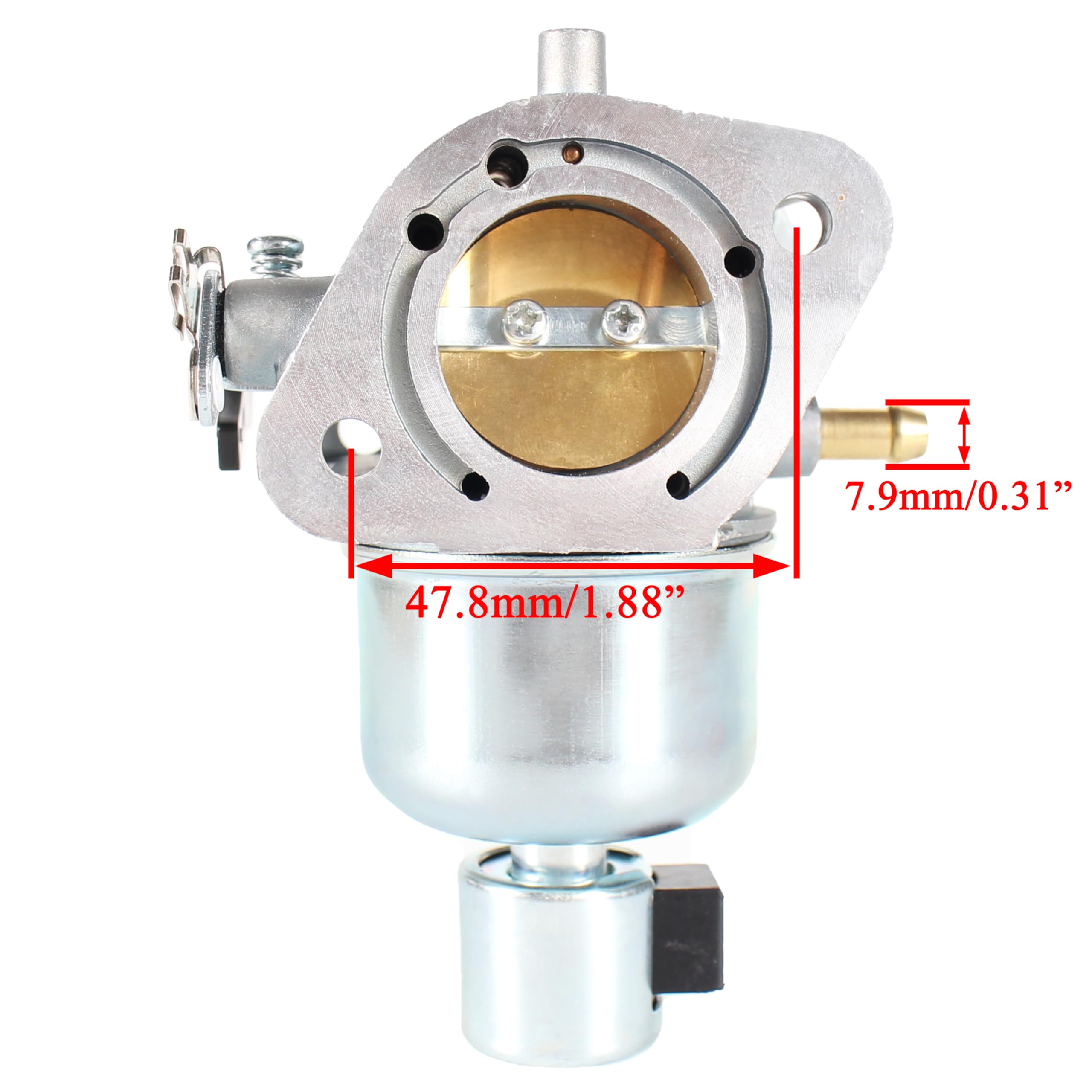

Compare your current carburetor photos and part features to the images and measurements provided by the seller. Pay attention to the mounting flange, throttle/ choke levers and fuel inlet orientation. When in doubt, send clear photos of both sides of your existing carburetor to Pro Chaser for confirmation.

• Match bolt pattern and flange shape with your old unit
• Confirm throttle/choke linkage placements align
• Check fuel inlet orientation and hose diameter
• Use seller verification if you cannot confirm visually

Who is this for: This Pro Chaser carburetor kit is aimed at homeowners, landscapers and small-engine mechanics who need a ready-to-install replacement for Kawasaki FR691V-series engines on walk-behind, zero-turn and riding mowers. It suits anyone who wants a single-purchase solution with the common gaskets and fittings included, but it’s not ideal if your machine requires a different carburetor design — verify fit before fitting.
