QWORK 12V Wireless Winch Remote Kit — 4-Transmitter, 5-Wire Universal Receiver, IP65 Weather-Resistant

The QWORK 12V Wireless Winch Remote Control Kit is a universal four-transmitter, two-receiver system that lets you operate most 12V solenoid winches remotely up to the rated capacity of your winch.

If you need a reliable, weather-resistant remote kit to control a vehicle-mounted winch from a distance, this QWORK bundle is built for common 12V systems and simplifies wiring with a color-coded five-wire receiver. It’s designed to work with low-trigger solenoid winches (commonly found on trucks, ATVs, and SUVs) and offers multiple remotes so several users can access the winch without swapping transmitters.

How does the QWORK kit connect to my winch and vehicle?

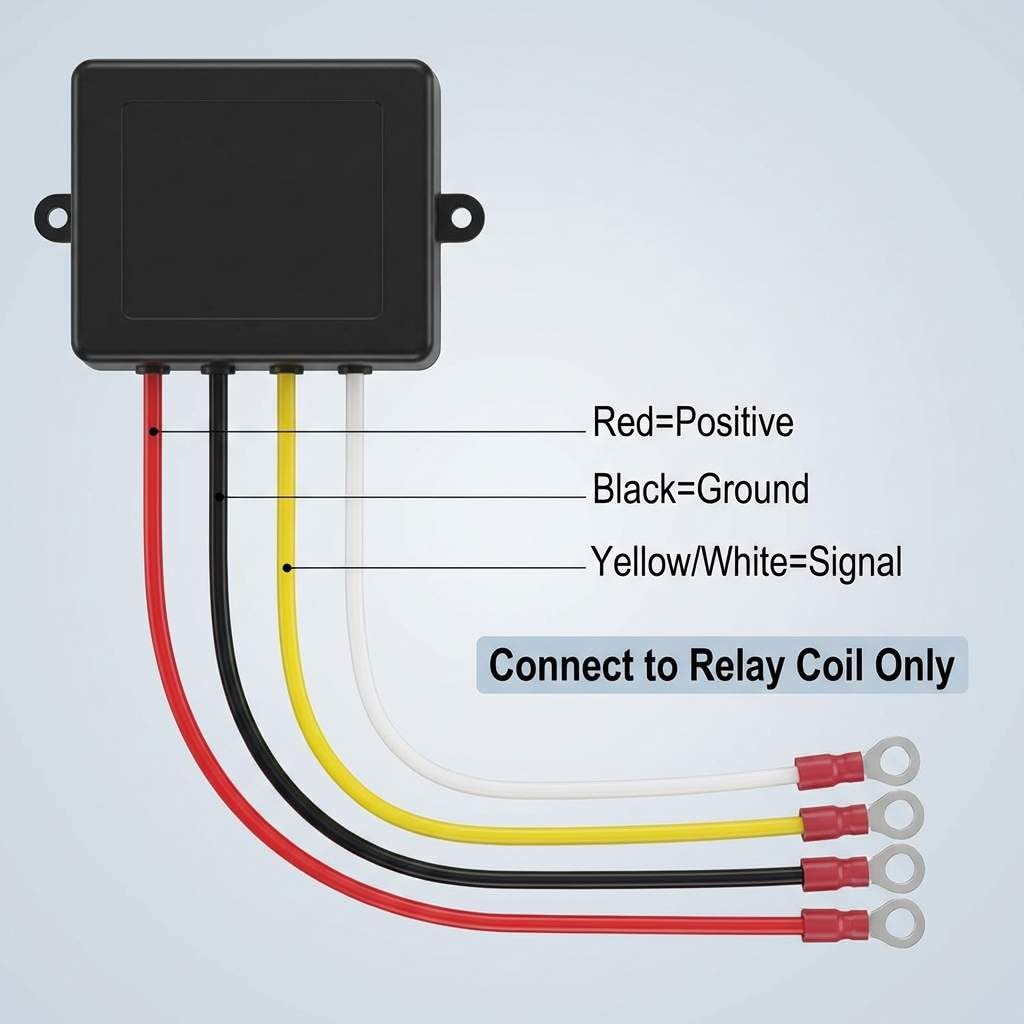

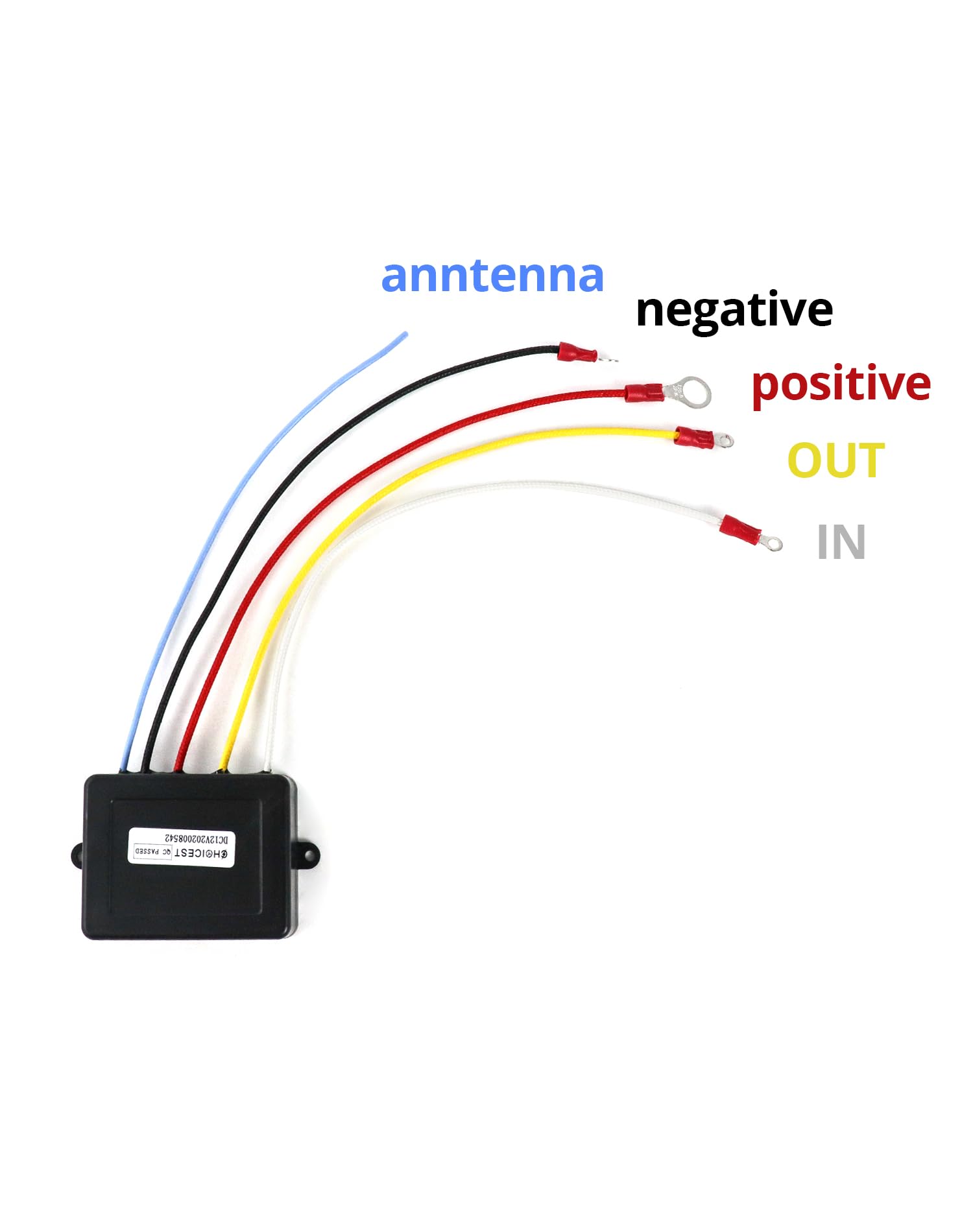

The kit uses a five-wire receiver with color-coded leads that match standard winch relay connections, reducing guesswork during installation. You mount the receiver near the winch, connect the wires to the battery, motor, and solenoid as instructed, then secure the antenna for best signal.

• Color-coded 5-wire receiver simplifies correct hookups
• Designed for 12V low-trigger solenoid winch systems
• Quick-mount receiver housing with IP65 weather resistance

How do I pair and operate the transmitters?

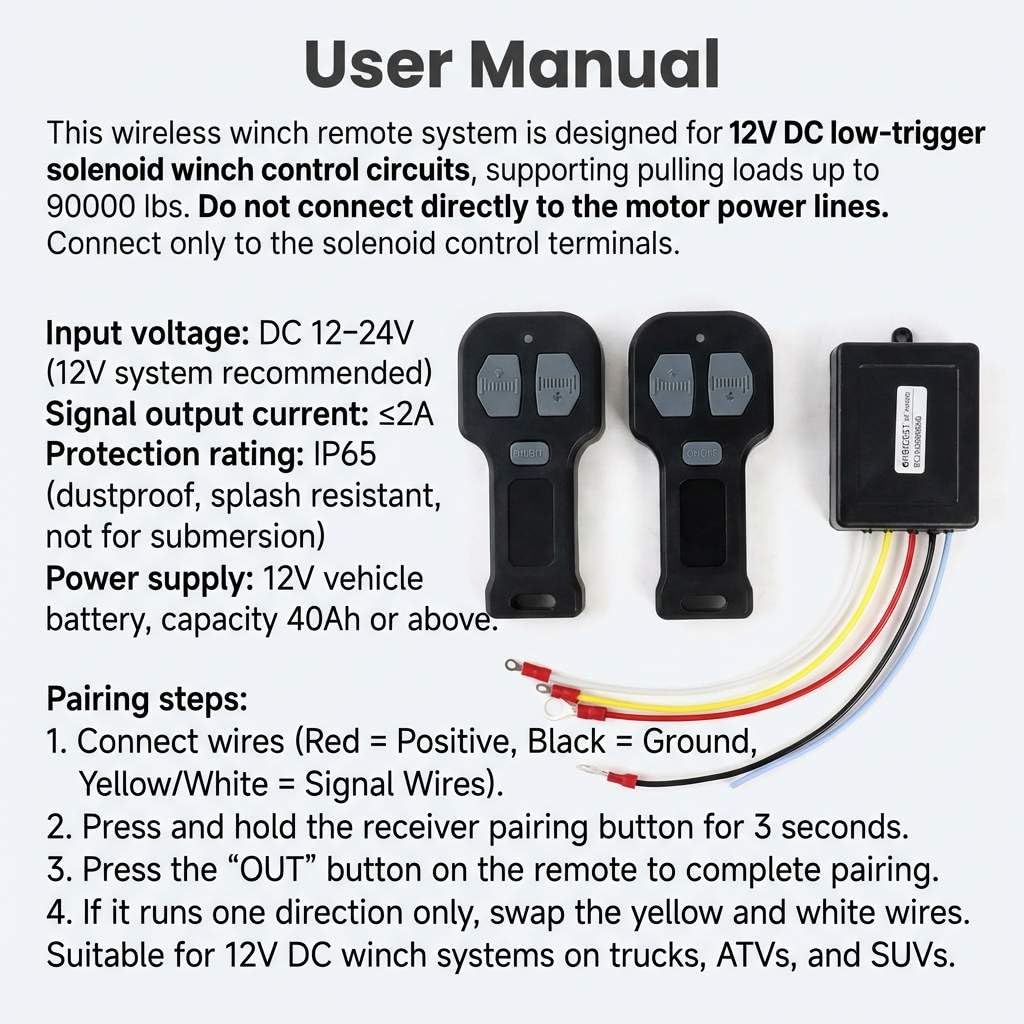

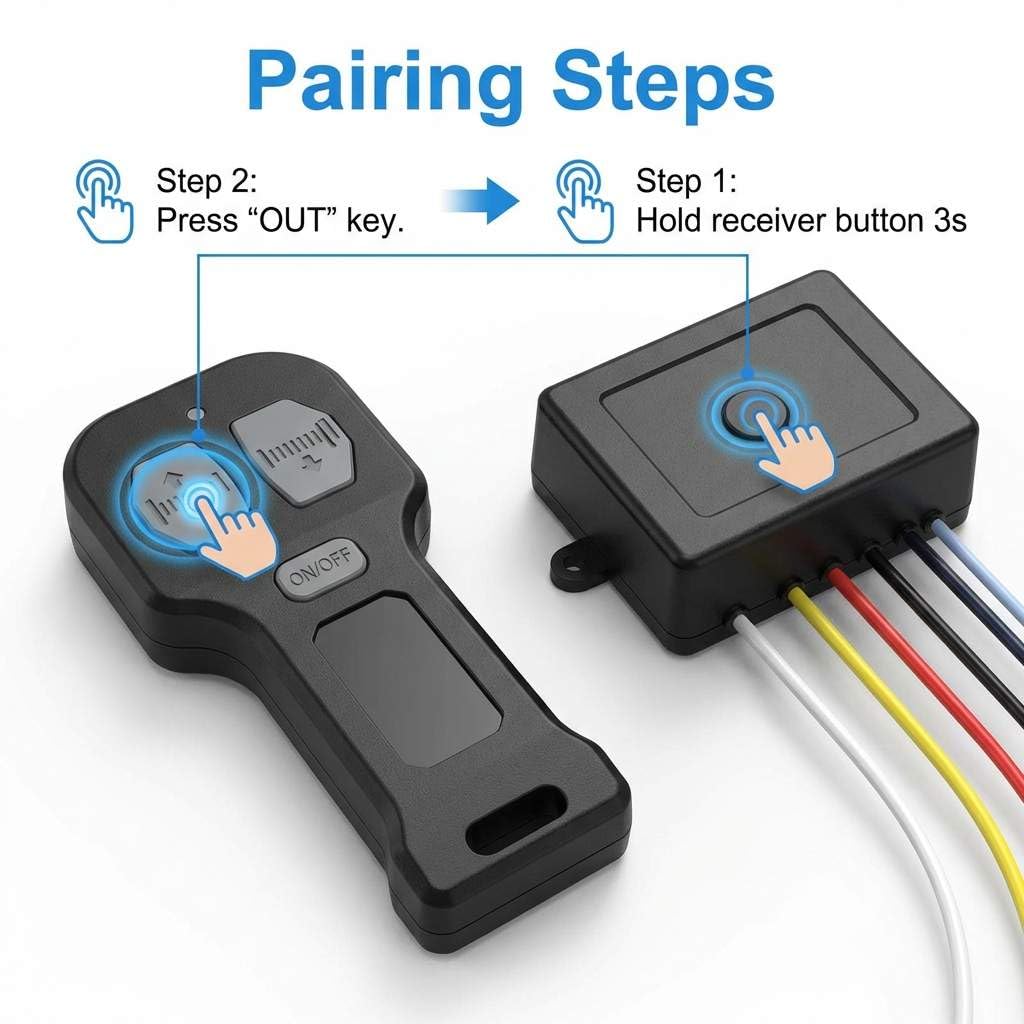

Pairing is a simple process: press the receiver’s pairing button and the transmitter’s OUT key to bind each remote. Once paired, the LED indicator on the receiver shows signal reception and confirms commands, so you know when the winch is responding.

• Pair transmitter by pressing receiver button then OUT key
• LED indicator shows remote operation and signal feedback
• Four transmitters in the pack allow multiple authorized users

Is the system durable enough for outdoor and off-road use?

The receiver housing is rated IP65, which protects against dust ingress and low-pressure water sprays, and the transmitters are built to withstand typical outdoor handling. While not submersible, the components resist splashes and dirt common in recovery and off-road scenarios.

• IP65-rated receiver housing for dust and splash protection
• Rugged transmitters designed for field use
• Weather-resistant seals reduce corrosion risk at connection points

What winch sizes and safety limits should I consider?

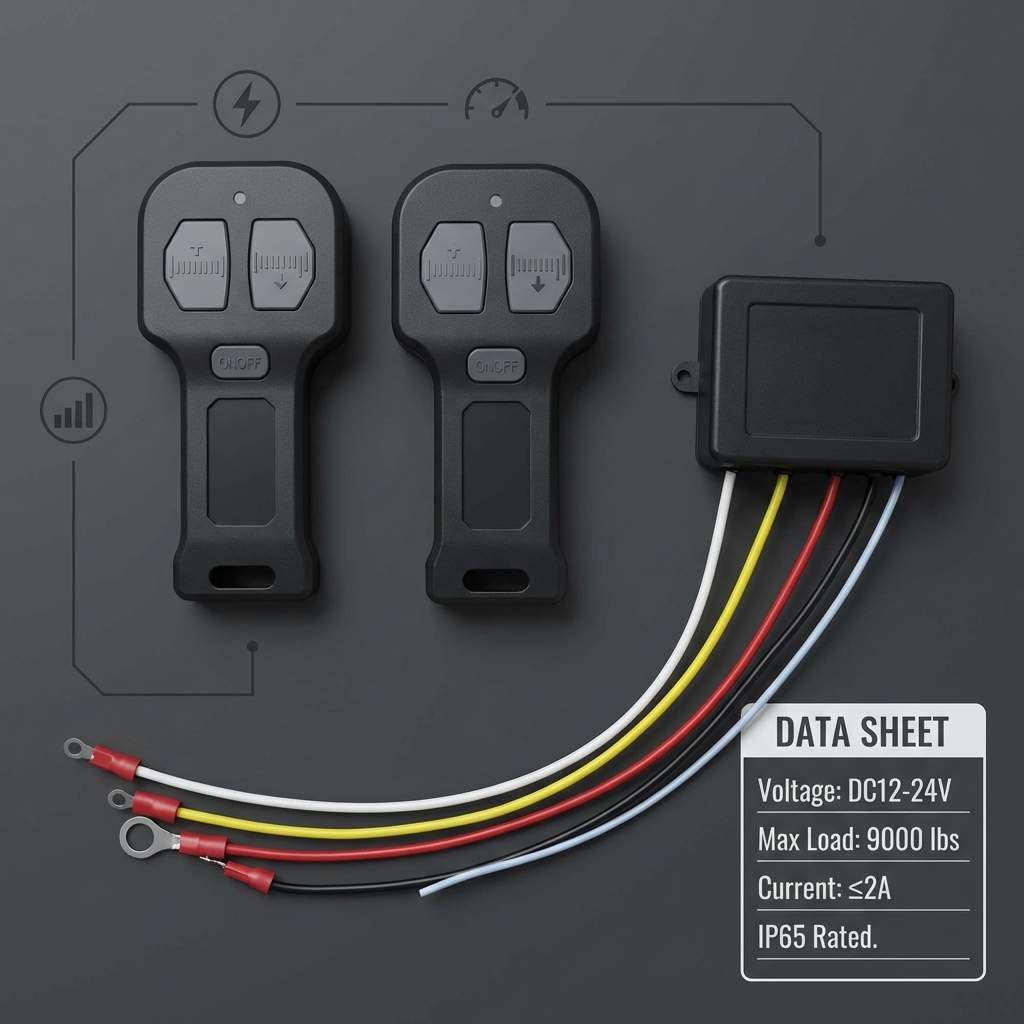

This remote control is compatible with many 12V low-trigger solenoid winches up to approximately 9,000 lbs capacity, but it does not change the mechanical limits of your winch or towing vehicle. Always follow your winch manufacturer’s load ratings and safe recovery practices.

• Supports typical 12V solenoid winches up to 9,000 lbs capacity
• Does not alter winch mechanical ratings or safe working loads
• Recommended to verify compatibility with your winch model before installation

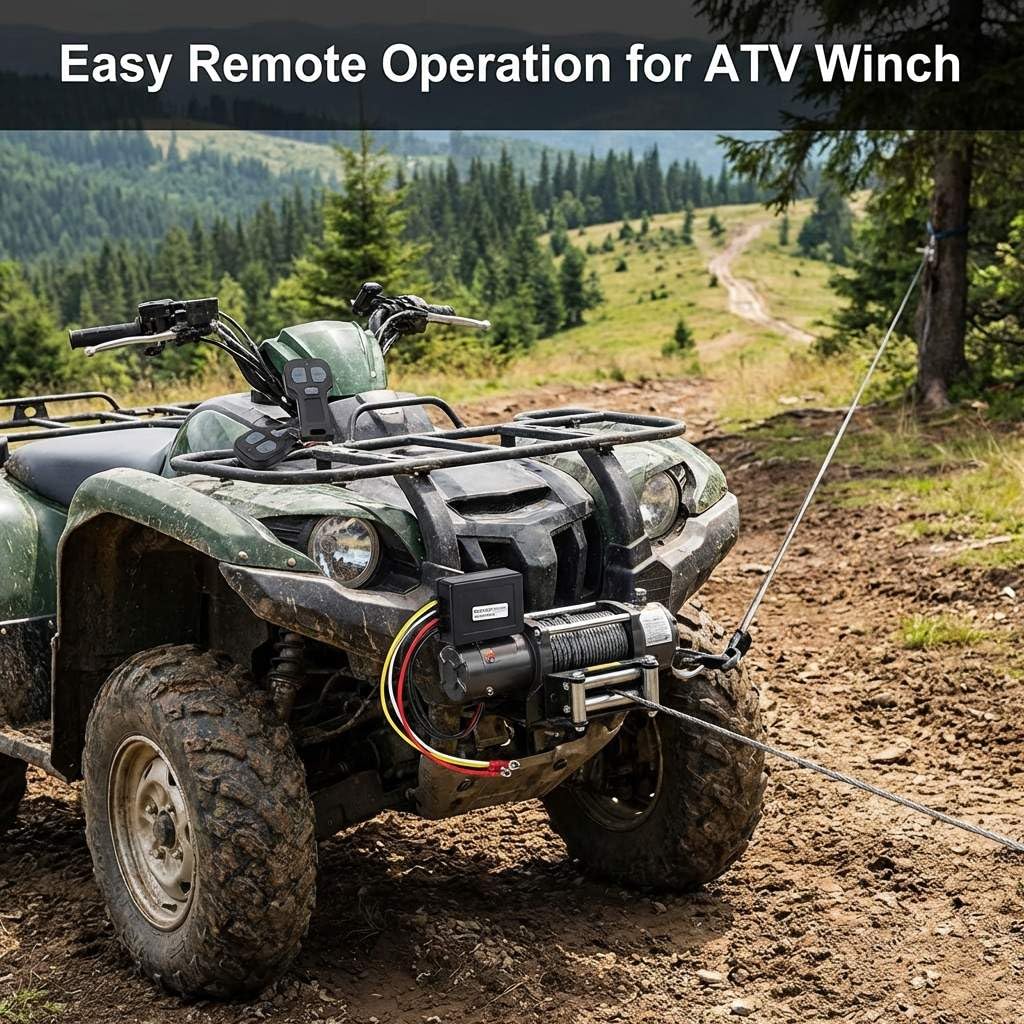

Who this is for: The QWORK 12V Wireless Winch Remote Control Kit is intended for owners of trucks, SUVs, UTVs, and ATVs who want a practical, multi-user remote solution for standard 12V solenoid winches. It suits DIY installers and service shops that need a straightforward color-coded receiver, a visible LED indicator for troubleshooting, and a weather-resistant fit for frequent outdoor use. If your winch uses a different voltage, a unique solenoid trigger type, or requires submersible electronics, check compatibility or consider a model designed for those conditions.

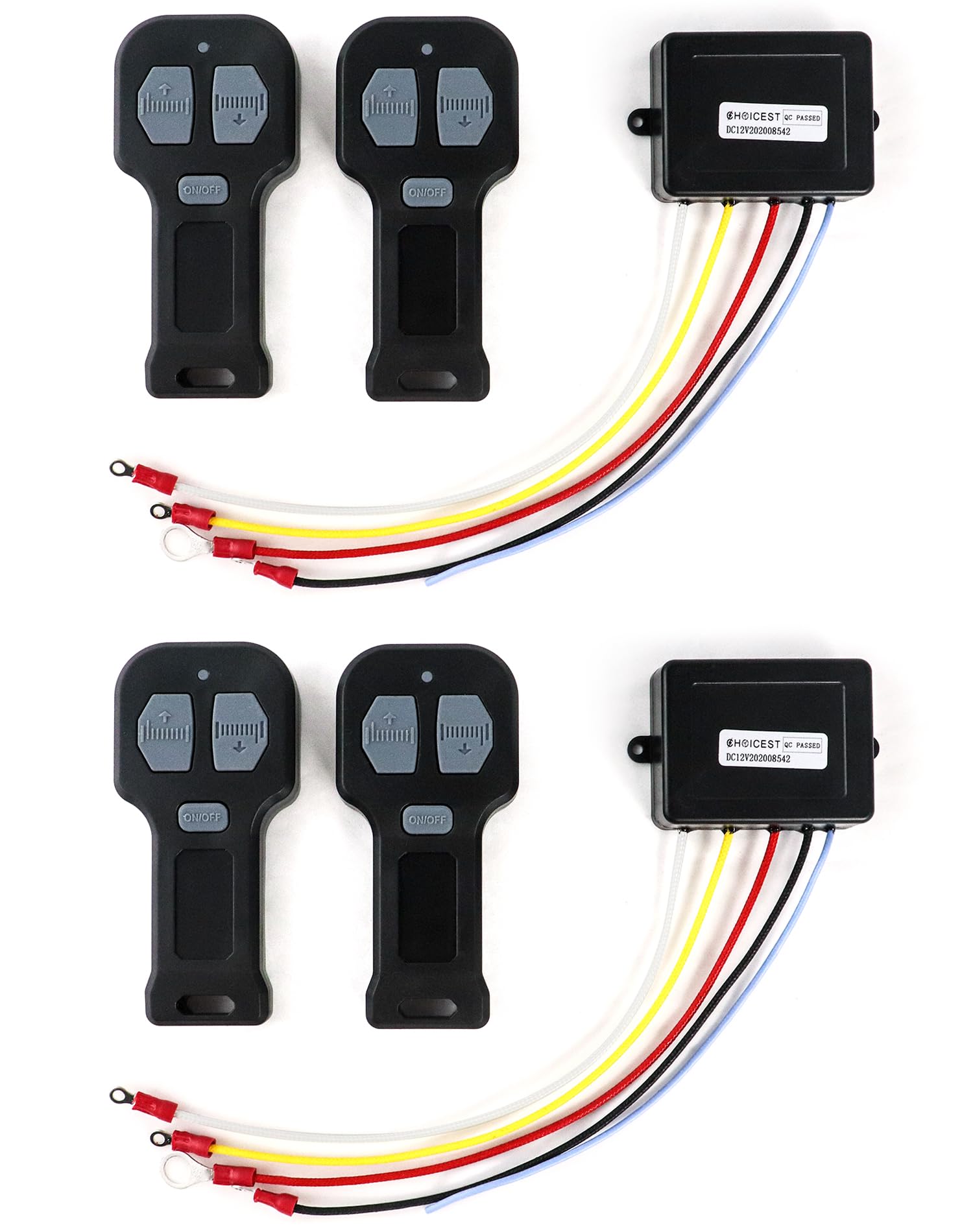

Contents and features: this package includes four wireless transmitters and two five-wire receivers, simple pairing steps, an LED indicator for status, and IP65-rated protection for the receiver. Always follow installation diagrams and secure all electrical connections to prevent accidental engagement and ensure safe operation.
