RABROPAR 3/4" DD Steering Shaft U-Joint, Black Powder-Coated, 3-1/4" Compact with 35° Articulation

RABROPAR's 3/4" DD x 3/4" DD powder-coated universal steering shaft is a compact, double-D-ended U-joint designed to transmit steering input with a 3-1/4" overall length and up to 35° working angle.

This steering shaft coupling is built for vehicles and custom steering setups that need a short, robust connection between steering components. The unit uses a double-D (DD) profile on both ends (no splines), features a black powder-coated finish for corrosion resistance, and accepts two set screws per end for secure installation. Its compact size and simple geometry make it suitable for tight-fit applications, aftermarket steering columns, and DIY projects where reliable mechanical engagement is required.

What size and profile does this universal steering shaft use?

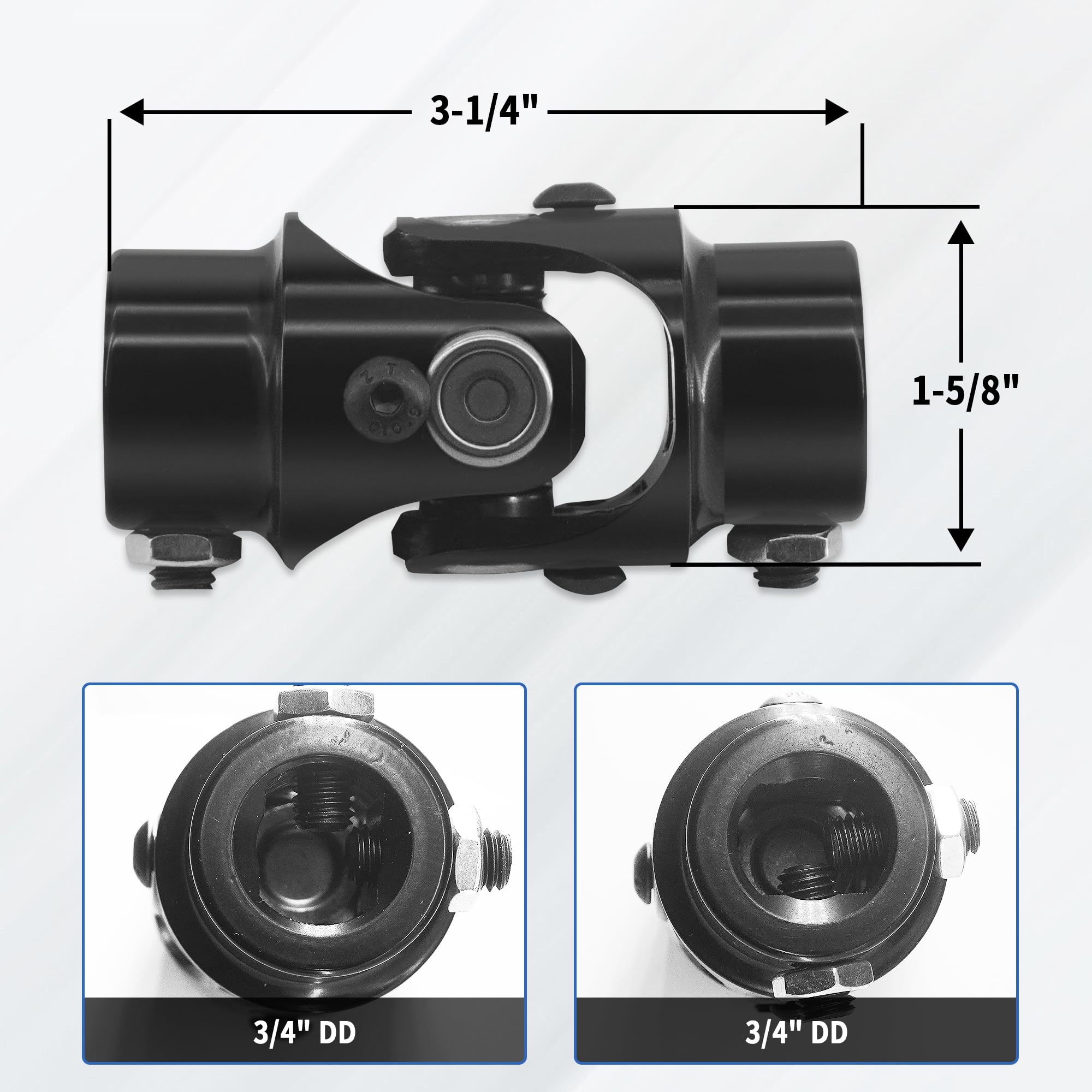

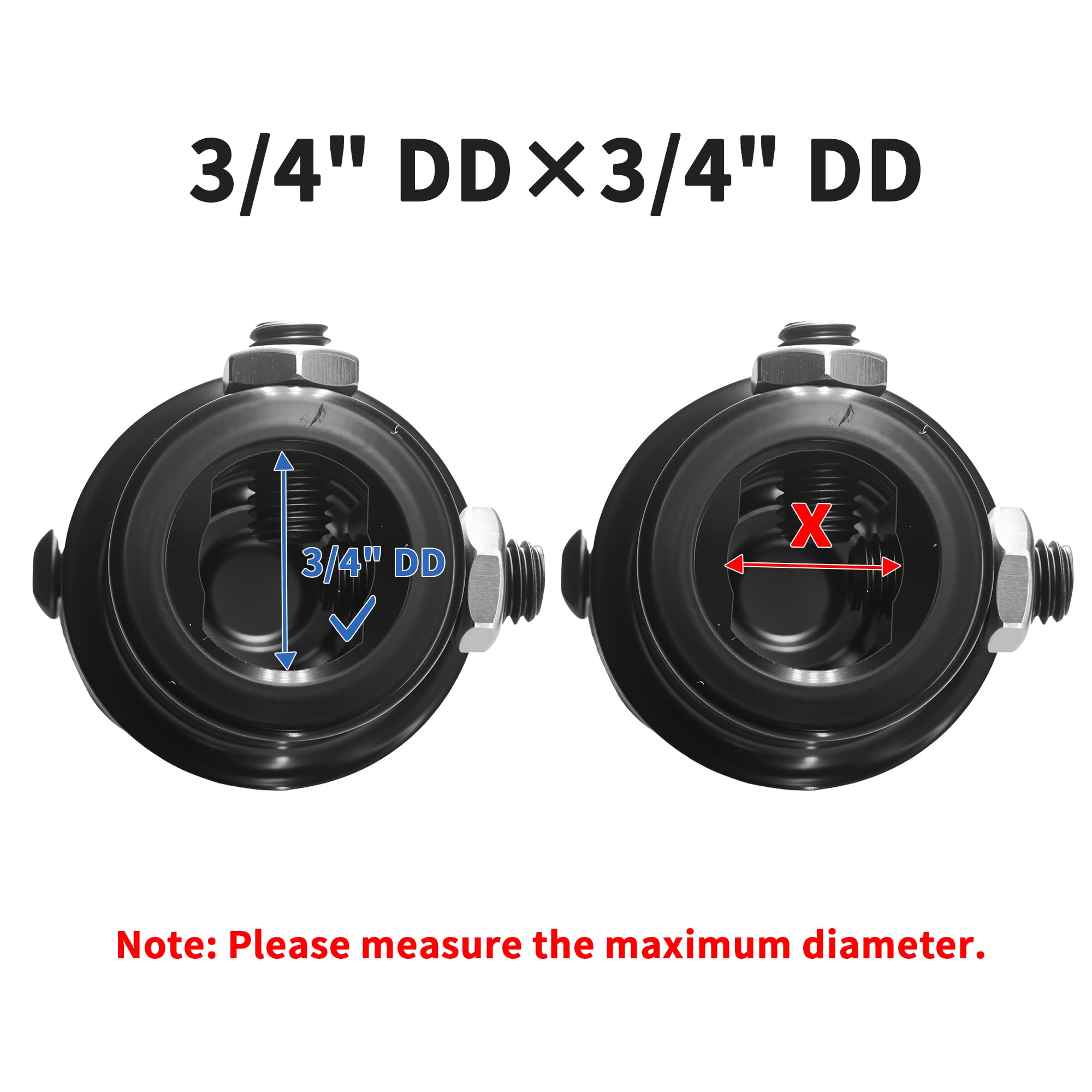

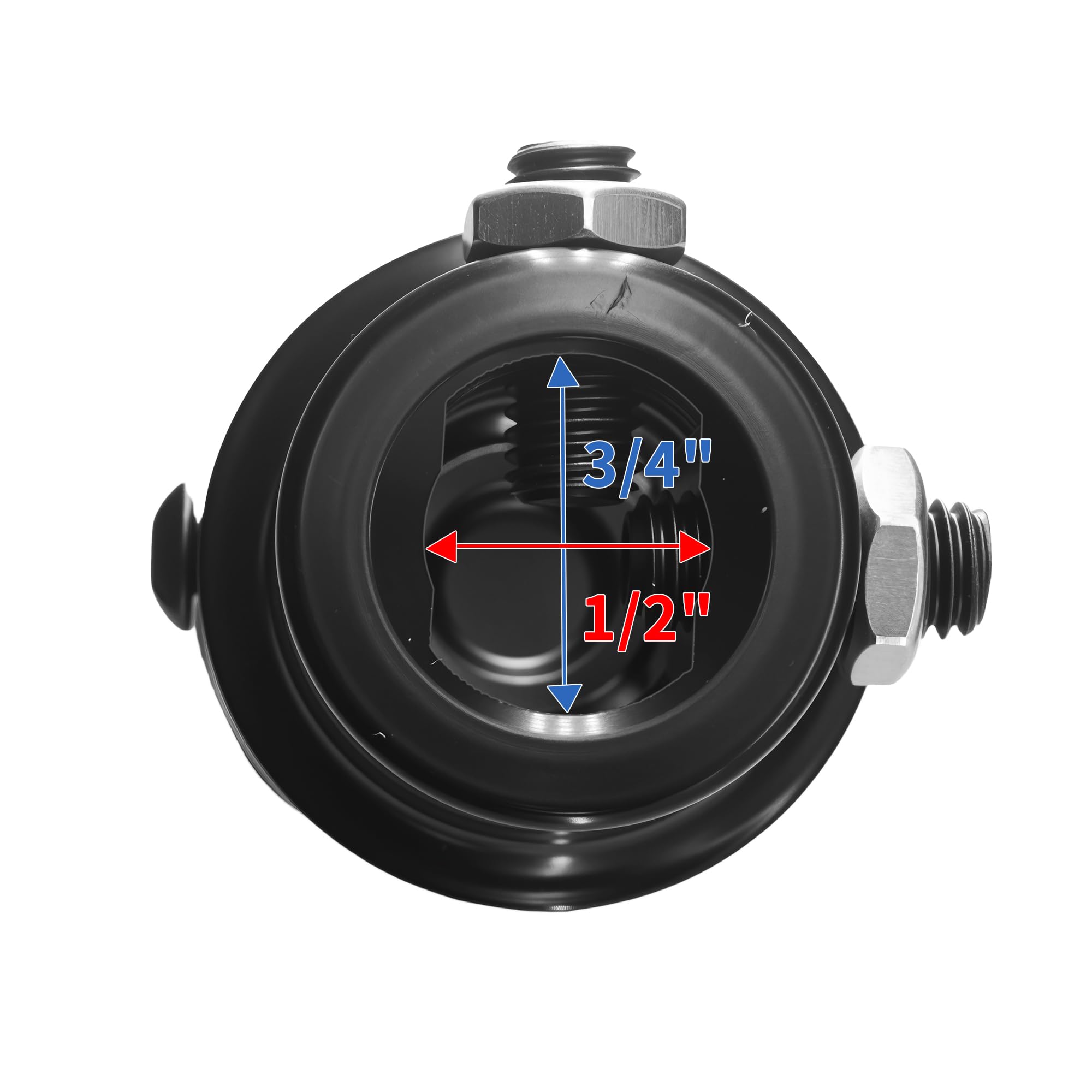

The shaft is 3/4" Double D (DD) on both ends, meaning each coupling end has a flattened D-shaped profile rather than splines. The overall length measures 3-1/4" (approx. 82.5 mm) and the outer diameter is 1-5/8" (approx. 41 mm), offering a compact footprint for limited-clearance installations.

• End profile: 3/4" DD on both ends (no splines)
• Overall length: 3-1/4" (82.5 mm)
• Outside diameter: 1-5/8" (41 mm)
• Two set screws per end for secure clamping

How much articulation and speed can this U-joint handle?

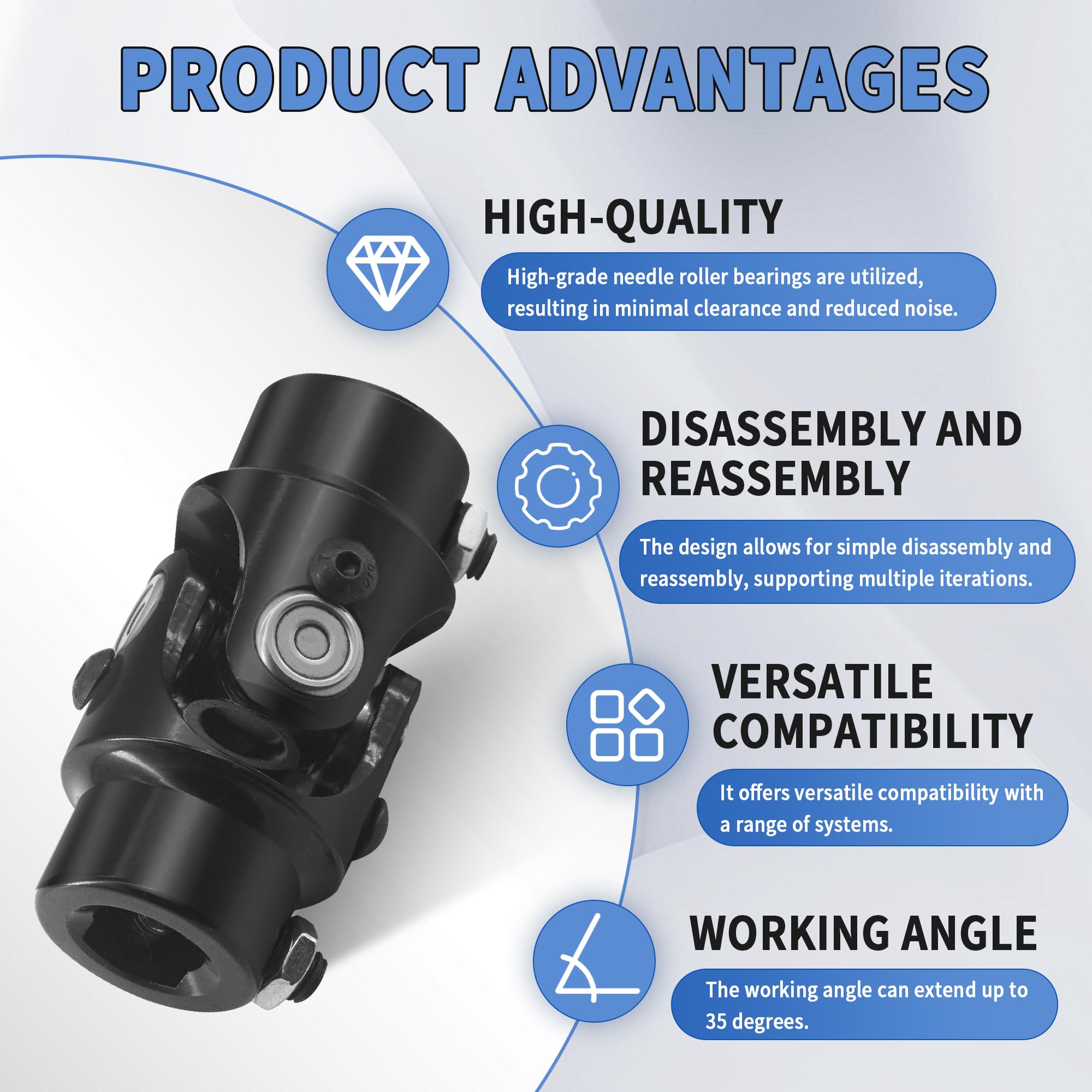

This RABROPAR joint supports a maximum working angle of 35°, allowing substantial steering angle without binding in most custom or replacement situations. It is rated for a maximum operating speed of 4000 rpm, which covers typical steering shaft rotational speeds encountered in road and off-road vehicles under normal driving conditions.

• Maximum working angle: 35°
• Maximum operating speed: 4000 rpm
• Designed for intermittent steering motion in automotive settings
• Powder-coated finish helps prevent corrosion over time

How is the shaft secured and installed in a steering system?

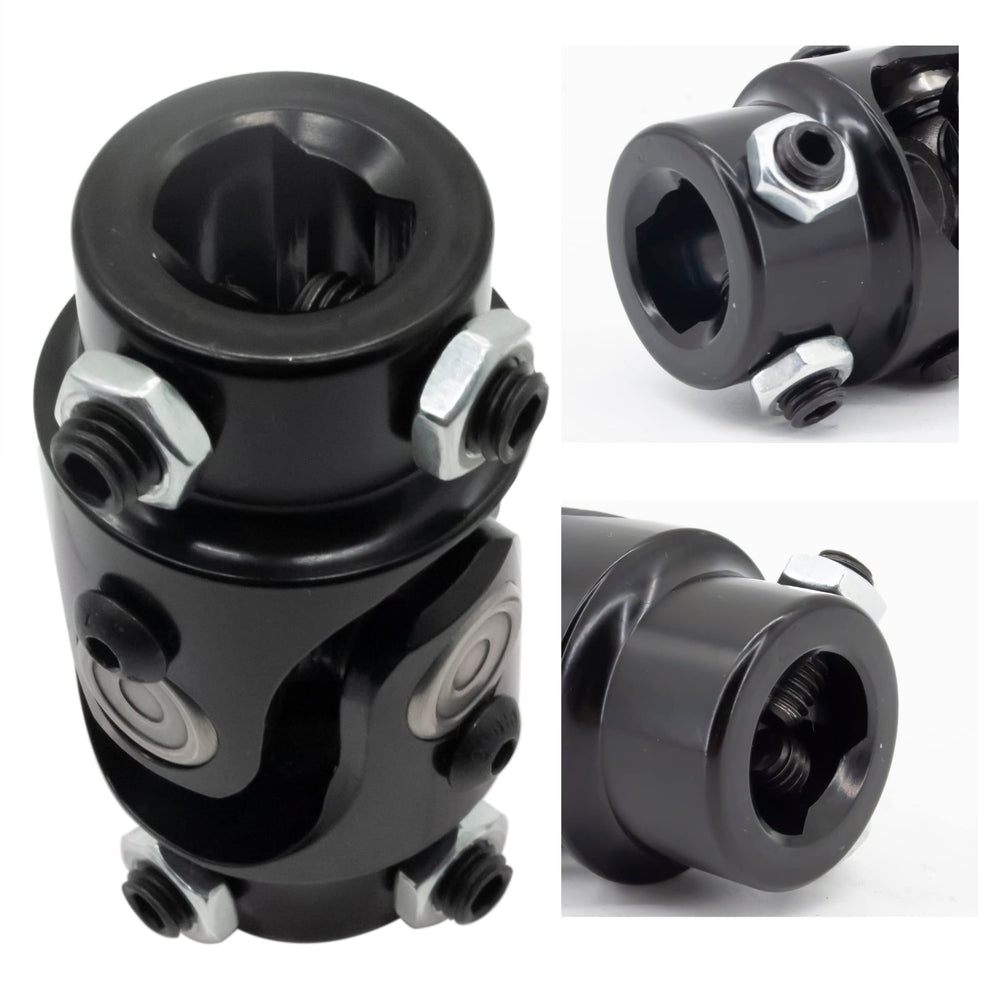

The coupling uses two set screws on each end to clamp onto mating shafts with the 3/4" DD profile, giving a straightforward mechanical connection that is easy to tighten and inspect. Because the ends are DD instead of splined, alignment during installation is important to ensure proper engagement and torque transfer.

• Attachment: two screws per end for reliable clamping
• End mating: requires corresponding 3/4" DD male/female shafts
• Installation: check alignment and torque on set screws after fitment
• Best used where tight spacing prevents longer couplers

What materials and finish protect this steering shaft?

The shaft is finished with a black powder coat that offers a durable barrier against rust, chips, and abrasion common in automotive environments. The coating and compact metal construction provide a balance of corrosion resistance and mechanical durability for long-term use in under-dash or engine-bay locations.

• Finish: black powder coat for corrosion resistance
• Construction: metal coupling suitable for steering loads
• Maintenance: inspect set screws and finish periodically
• Ideal for environments where moisture or road salts are present

Who is this for? The RABROPAR 3/4" DD x 3/4" DD powder-coated universal steering shaft is aimed at mechanics, fabricators, and DIY enthusiasts building or repairing steering assemblies where space is limited and a DD connection is required. Choose this shaft when you need a short, dependable coupling with a protective black finish, predictable working-angle capacity, and simple set-screw attachment.
