RECOIL in-line Mini ANL Fuse Holder 2-Pack — 60/80/100A, 0–4 AWG input to dual 4/8 AWG outputs

RECOIL ZMFH11-2 is a heavy-duty in-line mini ANL/ANL fuse holder 2-pack that accepts 60A, 80A, or 100A fuses and adapts 0/2/4 gauge input to dual 4/8 gauge outputs for high-current audio and power installations.

Built for car audio systems, marine power runs, and any application that needs a compact, high-current protection point, these fuse holders combine robust metal construction with heat-resistant insulating components. Each package contains two identical holders, available with matched 60A, 80A, or 100A fuses, making them suitable for bi-amped systems or dual battery/alternator configurations. The zinc die-cast body, satin chrome finish and polycarbonate base create a balance of conductivity, corrosion resistance and electrical safety.

How do I wire the RECOIL ZMFH11-2 into my system?

Wiring is straightforward: the holder accepts a single larger input conductor and splits to two smaller output conductors. Use the specified gauge sizes to maintain safe current flow and minimize voltage drop.

• Input: 0, 2, or 4 AWG conductor into the single input terminal.
• Outputs: two 4 or 8 AWG conductors from the twin output terminals.
• Tighten terminals to manufacturer torque recommendations; use appropriate ring terminals for a secure connection.
• Place the holder near the power source within an accessible, ventilated location.

What materials protect the fuse and resist corrosion?

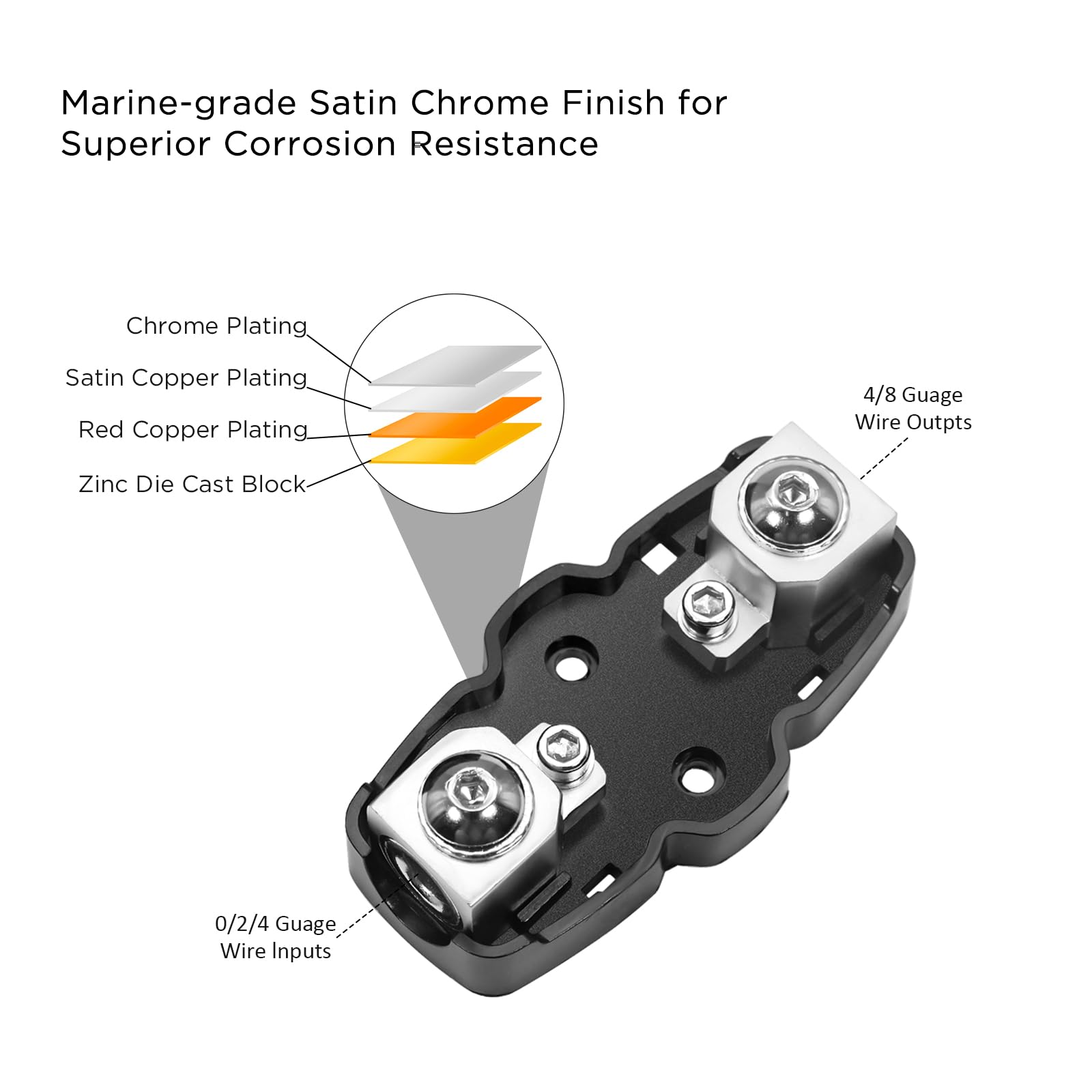

Critical parts are chosen for electrical performance and longevity. The housing is zinc die-cast to provide a low-resistance current path while the satin chrome finish helps resist rust in damp or marine environments.

• Zinc die-cast main body for efficient power transfer and strength.
• Marine-grade satin chrome surface treatment for corrosion resistance.

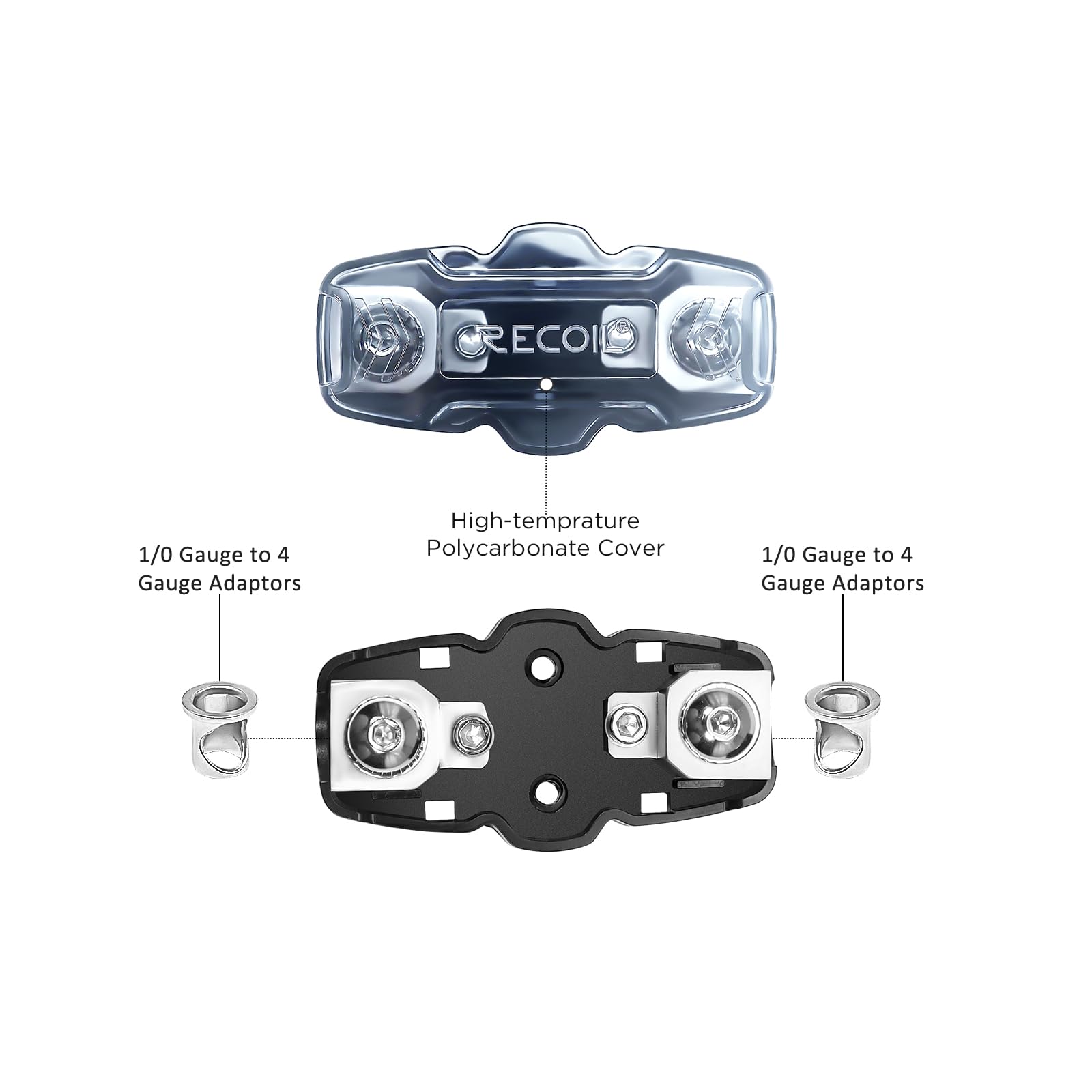

• High-temperature polycarbonate base and cover to insulate and protect the fuse element.
• Sealed-fit cover design to reduce exposure to dust and spray.

Which fuse ratings and protection scenarios are supported?

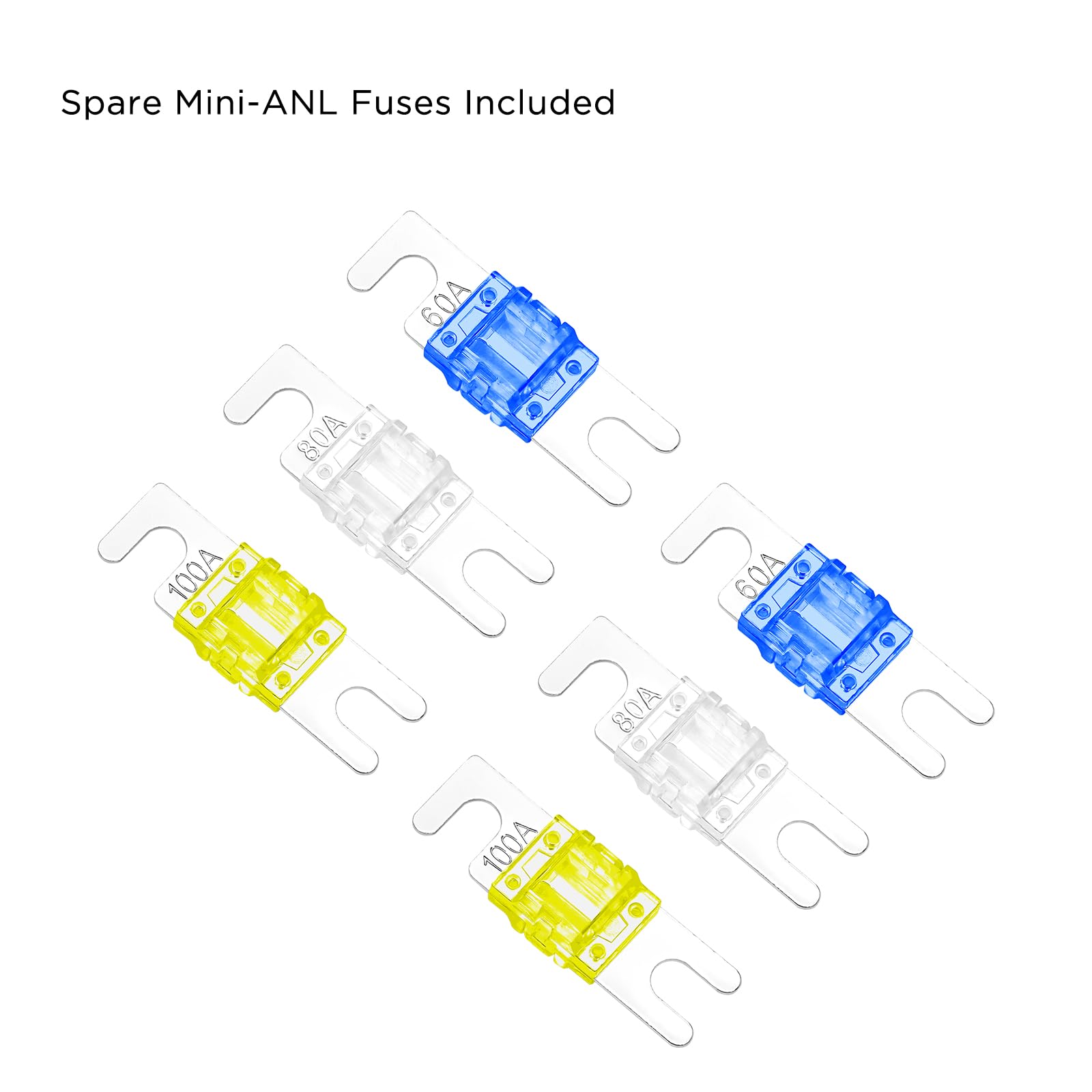

The ZMFH11-2 comes with matched pairs of replaceable ANL-style fuses in 60A, 80A, or 100A ratings. Choose the fuse ampacity based on conductor capacity and the maximum continuous current of your equipment.

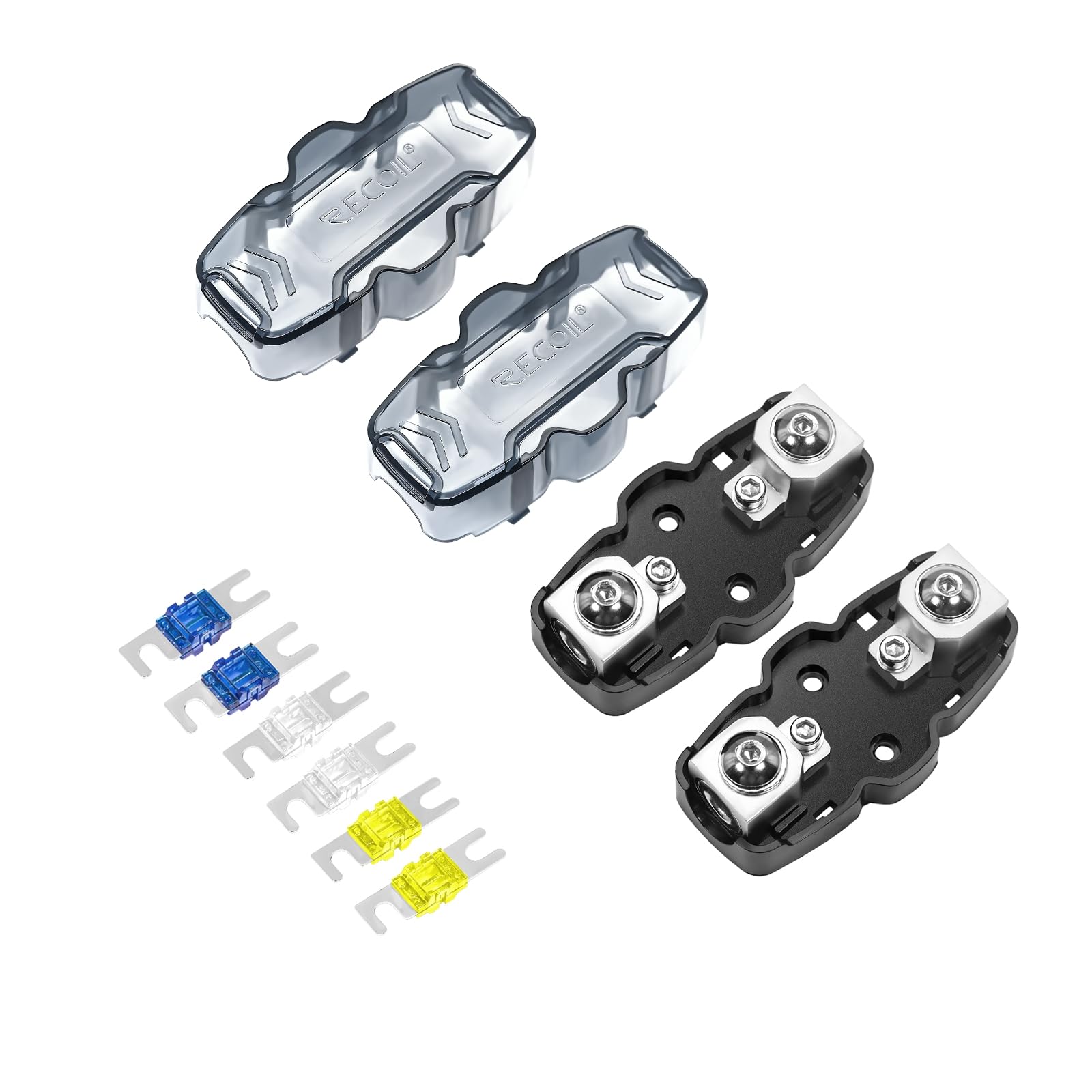

• Available fuse sets: 2×60A, 2×80A, or 2×100A in each package.
• Use 60A for modest audio amps or auxiliary systems; 100A for higher-power setups.
• Always match fuse rating to cable ampacity and expected load characteristics.
• Replace fuses with the same ANL type to preserve protection behavior.

Can the fuse holder withstand heat and vibration in vehicles or boats?

Yes—the combination of a high-temp polycarbonate base and a sturdy metal body is selected for mechanical resilience. The build resists thermal stress and common vibration found in mobile environments.

• Polycarbonate parts rated for elevated temperatures keep insulation stable near hot components.
• Zinc die-cast structure minimizes flex and terminal creep under vibration.
• Satin chrome finish reduces corrosion when exposed to humidity or salt air.

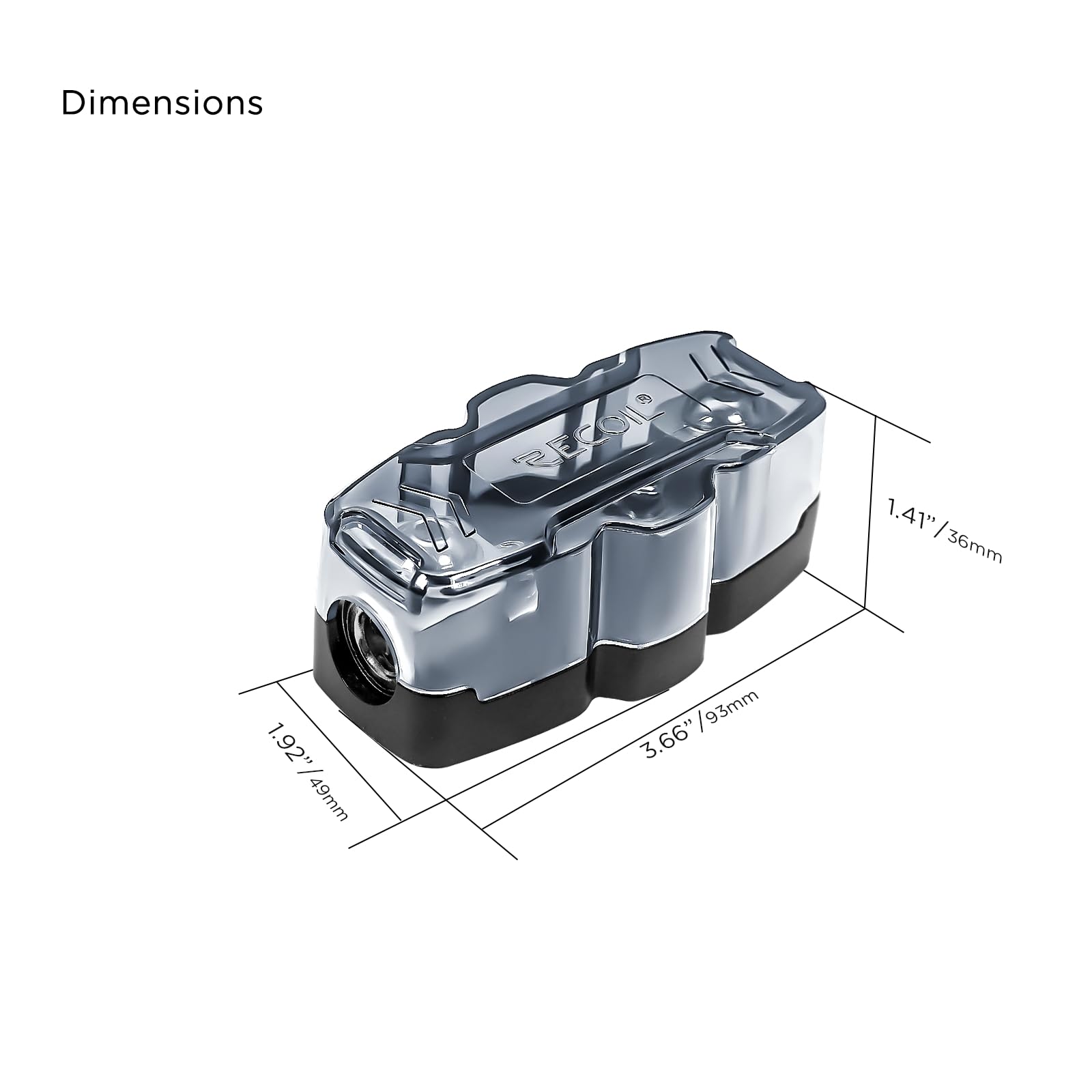

• Compact form factor helps secure the holder in confined engine bays or tight racks.

Who is this for? The RECOIL ZMFH11-2 is designed for installers, car audio enthusiasts, and marine technicians who need a compact, reliable way to fuse high-current feeds and split power to two downstream circuits. Choose the fuse ampacity to match your cable sizes and load demands—these holders are ideal when you need robust conductivity, corrosion resistance, and an accessible fuse location without a large chassis-mounted block.
