RECOIL Mini-ANL Inline Fuse Holder SFH11-5 4/8 Gauge — Super-Compact, Forged Brass

The RECOIL SFH11-5 is a super-compact Mini-ANL inline fuse holder that accepts 4/8 gauge input and output wires and ships as a 5-piece bag ready for high-current installations.

This compact inline fuse holder is built to deliver reliable power distribution where space is tight and performance matters. Constructed with forged and machined brass for low-resistance connections, a marine-grade satin chrome finish for corrosion resistance, and a high-temperature polycarbonate base and cover for electrical insulation, the SFH11-5 balances durability with a minimal footprint. It includes wire reducers so you can connect directly to 4 or 8 gauge conductors and is sized for Mini-ANL style fuses used in car audio, marine, and mobile power setups.

How does the SFH11-5 fit into crowded wiring looms?

Its super-compact form factor is designed to mount in constrained areas where standard ANL blocks wouldn’t fit. The low-profile housing keeps the assembly close to panels or chassis while still leaving enough room for secure terminal connections.

• Compact dimensions minimize required mounting space.
• Low-profile terminals reduce interference with nearby components.

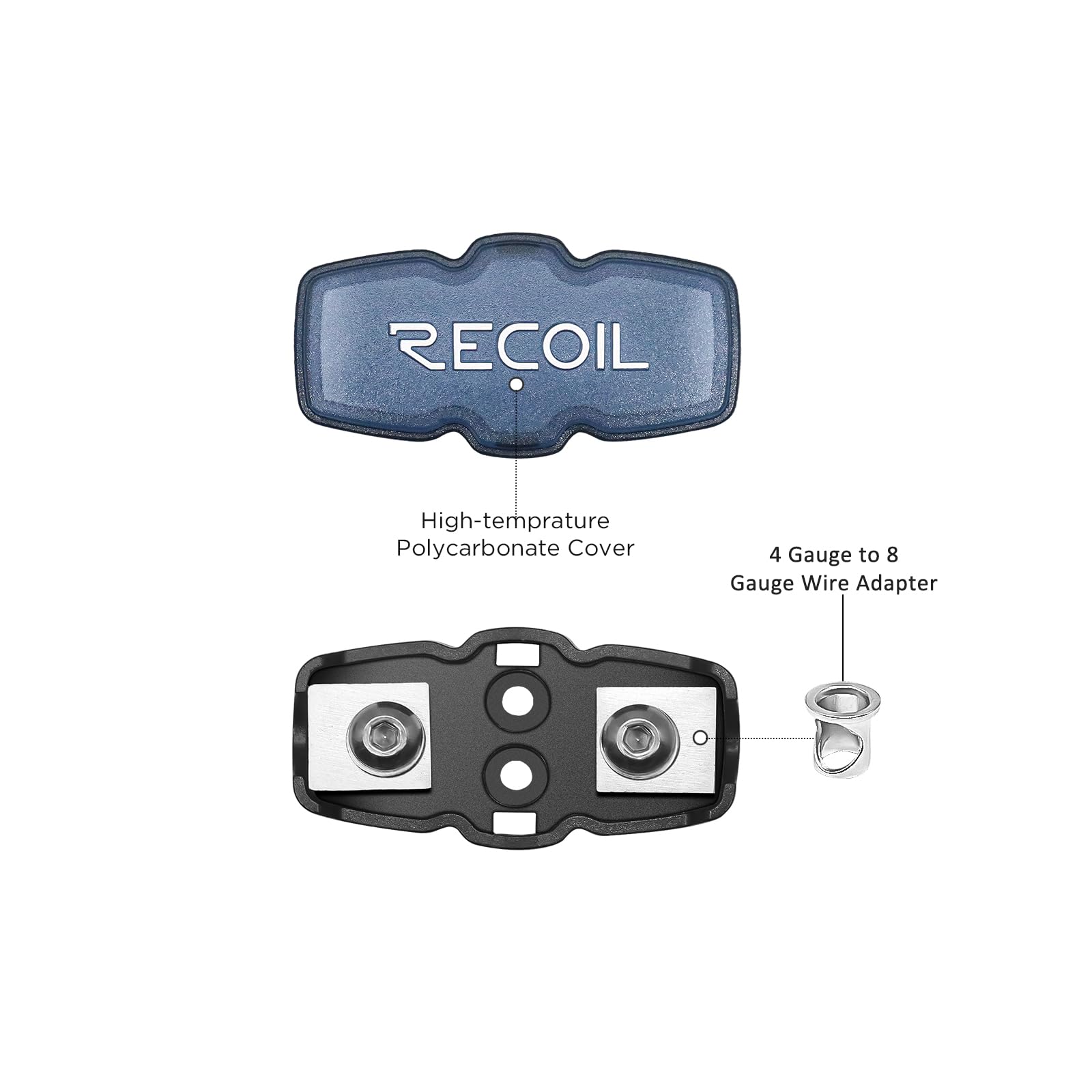

• Includes wire reducers for 4 and 8 gauge flexibility.
• Mountable with common hardware for tight installations.

What materials and finishes improve longevity and conductivity?

The SFH11-5 combines heavy-duty brass conductors with a satin chrome plating and thermally stable plastics to resist corrosion, vibration, and heat. Brass is forged and machined to maintain tight tolerances and low contact resistance under high current loads.

• Forged and machined brass terminals for efficient current transfer.
• Marine-grade satin chrome finish to fight oxidation in damp environments.
• High-temperature polycarbonate base and cover for electrical insulation.
• Secure cover design prevents exposure and minimizes loosening from vibration.

Which wiring sizes and fuse types are supported?

The holder is engineered for 4 and 8 gauge input and output wiring and accepts Mini-ANL fuses. Wire reducers are included so you can adapt the terminal bore to the conductor size without sacrificing clamping pressure.

• Accepts 4 gauge and 8 gauge conductors using included reducers.
• Sized for Mini-ANL blade-style fuses commonly used in mobile audio and power systems.
• Design accommodates ring terminals or direct cable lug connections.
• Torque-friendly fasteners allow secure, low-resistance clamps.

Is the SFH11-5 easy to service and inspect?

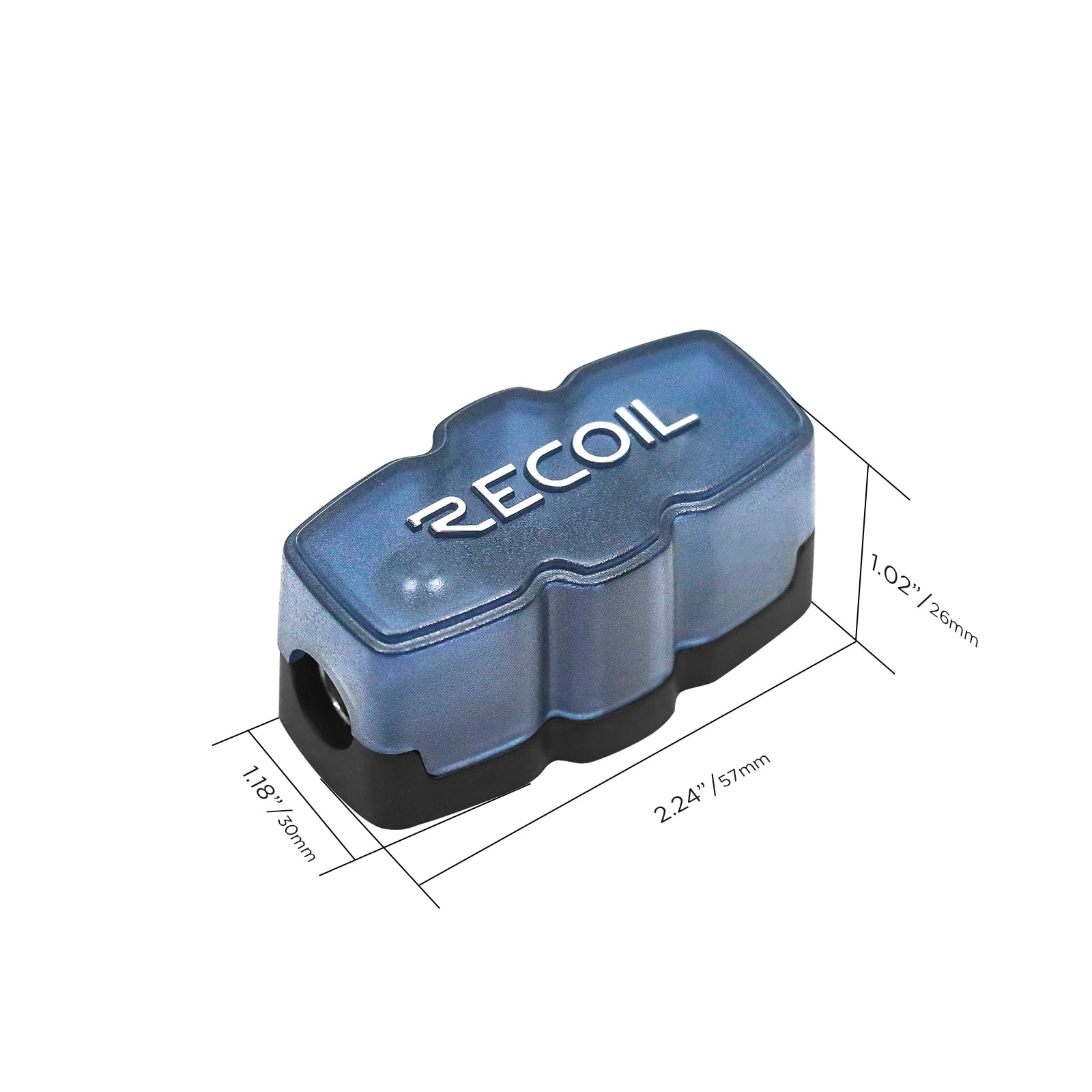

The polycarbonate cover snaps on for tool-free visual inspection, and the modular layout lets you change fuses quickly without reworking the cable routing. The visible fuse position makes routine checks straightforward during maintenance sessions.

• Snap-on cover enables quick visual fuse checks.
• Modular assembly simplifies fuse replacement and retermination.
• Accessible fasteners for standard hand tools.
• Sturdy cover protects contacts from dirt and accidental shorts.

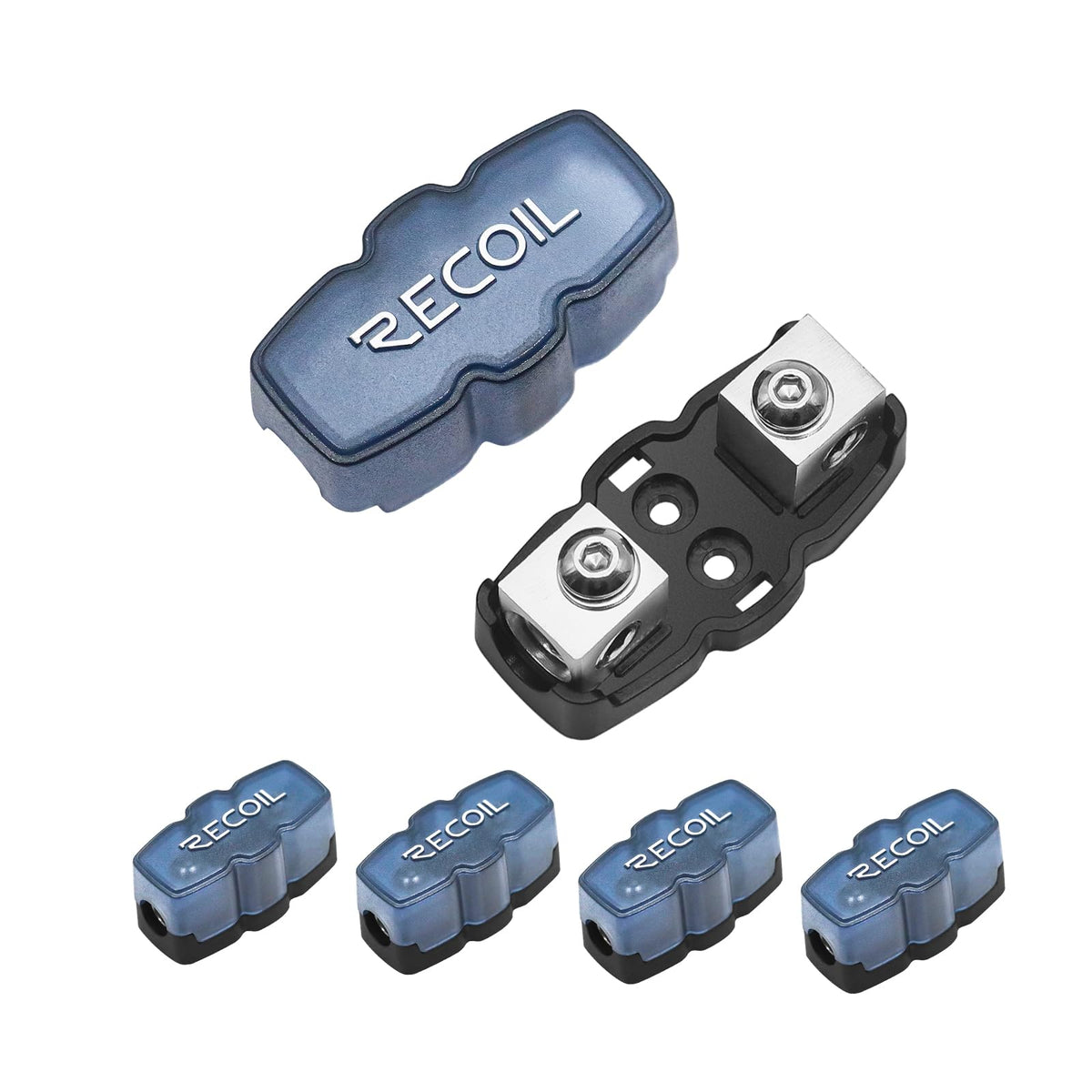

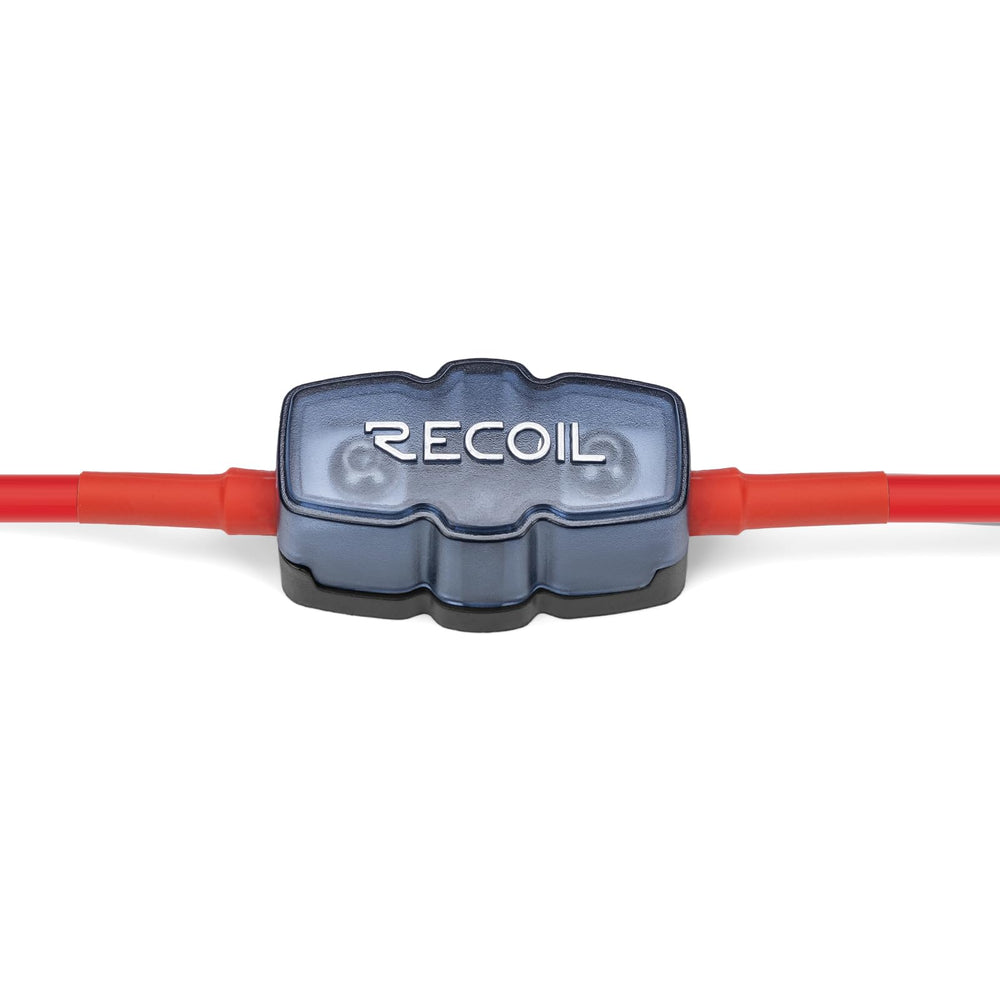

Who is this for: The RECOIL SFH11-5 is intended for installers and DIYers who need a small but robust ANL-style inline fuse holder for car audio, marine, and mobile power applications. It suits setups where space is limited but reliable high-current connections are required — ideal for amplifiers, battery isolators, or distribution blocks in tight engine bays, under seats, or inside compact enclosures. Each bag contains five units to outfit multiple circuits or to keep spares on hand for professional installs.
