RED WOLF 100A DC Circuit Breaker 12–48V — Manual Reset Visible Lever for Marine/RV

RED WOLF BS6100 is a 100‑amp DC circuit breaker with a visible manual reset lever and push‑button kill switch, protecting 12–48V electrical systems in boats, RVs, trucks and car audio setups.

The RED WOLF BS6100 combines a high‑capacity 100A trip rating with a manual reset and a clear visible lever so you can quickly identify and restore a tripped circuit. Built for DC systems from 12 to 48 volts, this breaker is intended for auxiliary circuits such as trolling motors, stereo amplifiers, winches and solar battery feeds. The construction uses copper internal contacts and UL‑rated thermoplastic housing for durable, long‑term service in mobile and marine environments.

How does this breaker protect my trolling motor or stereo?

The BS6100 interrupts excessive current before wiring, components or batteries overheat. It trips automatically on sustained overcurrent and stays open until you manually reset it, preventing repeated fault cycling and helping isolate the problem.

• 100A trip point suitable for many high‑draw DC motors and audio amplifiers.
• Automatic trip with manual push‑button reset for controlled restoration.
• Acts as a master disconnect to stop current flow during diagnosis or service.

Will this work with my 12V, 24V or 48V system?

Yes — the BS6100 is designed to operate across a wide DC voltage range, making it compatible with common mobile and off‑grid systems. Confirm the 100A rating meets your device’s continuous current requirements and wire sizing to ensure safe operation.

• Rated for DC 12–48 volts, suitable for most marine, RV, truck and solar battery circuits.
• Ideal for auxiliary loads including battery chargers, amplifiers, winches and trolling motors.
• Use appropriate gauge cabling and fuses where needed for additional protection.

What materials and safety features are built into the BS6100?

Quality materials and a robust housing make the BS6100 resilient in mobile and marine conditions. Internal copper components provide reliable electrical conductivity while the thermoplastic case meets UL 94V‑0 flammability standards to reduce fire risk.

• Pure copper internal screw and contact elements for low resistance and durability.
• Thermal plastic housing rated UL 94V‑0 for flame retardance and impact resistance.

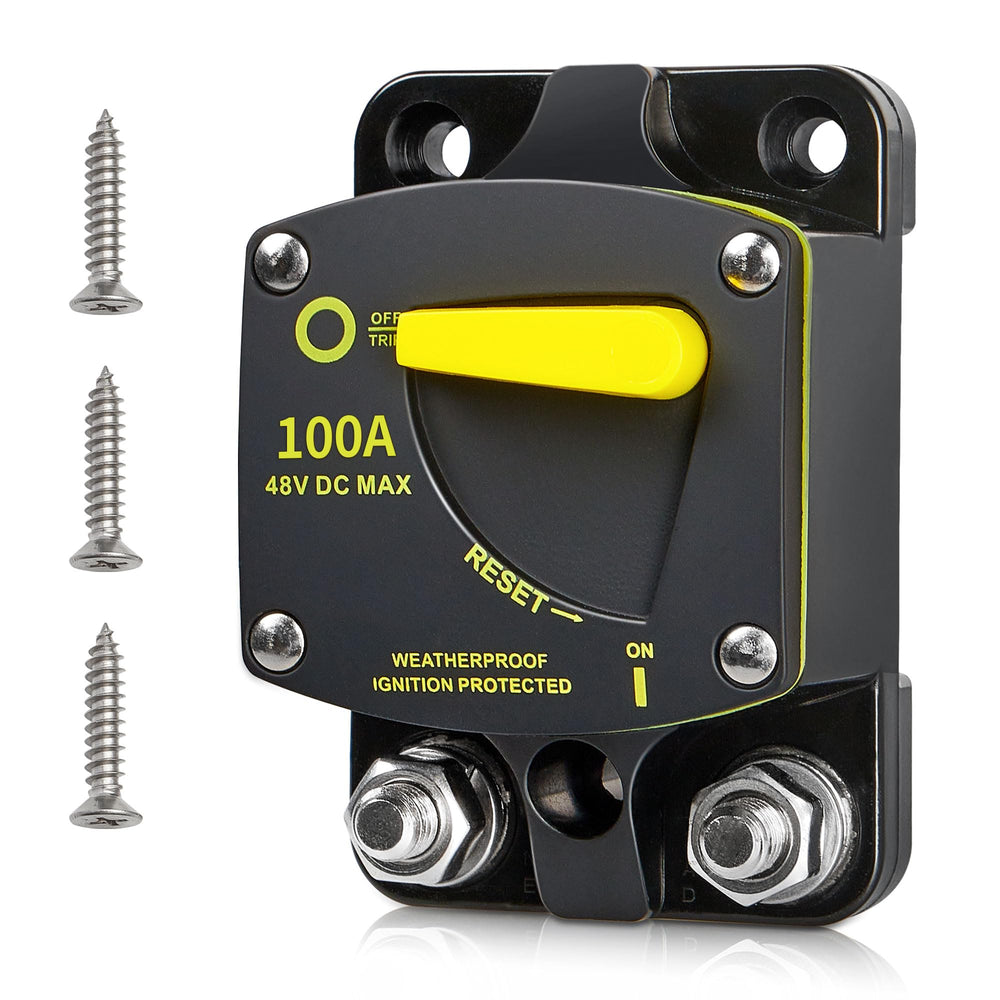

• Visible reset lever and tactile push button for quick status checks and operation.

How do I install and reset the circuit breaker safely?

Installation is straightforward: mount the breaker in a dry, accessible location and wire it inline on the hot lead between the battery and the protected load. If the breaker trips, push the reset button after resolving the fault; for maintenance, use the button as a convenient master disconnect.

• Mount on a secure surface with recommended hardware and clear access to the reset button.
• Wire inline on the positive lead, observing correct polarity and torque specifications.
• Reset only after identifying and clearing the cause of the overcurrent event.

Who is this for: The RED WOLF BS6100 is for boaters, RV owners, truck or off‑grid vehicle installers and car audio enthusiasts who need a durable, easy‑to‑operate 100A DC protective device. It suits tradespeople wiring high‑draw accessories, DIYers upgrading stereo or trolling motor protection, and anyone who wants a visible, manual reset breaker that doubles as a simple kill switch for safer maintenance and troubleshooting.
