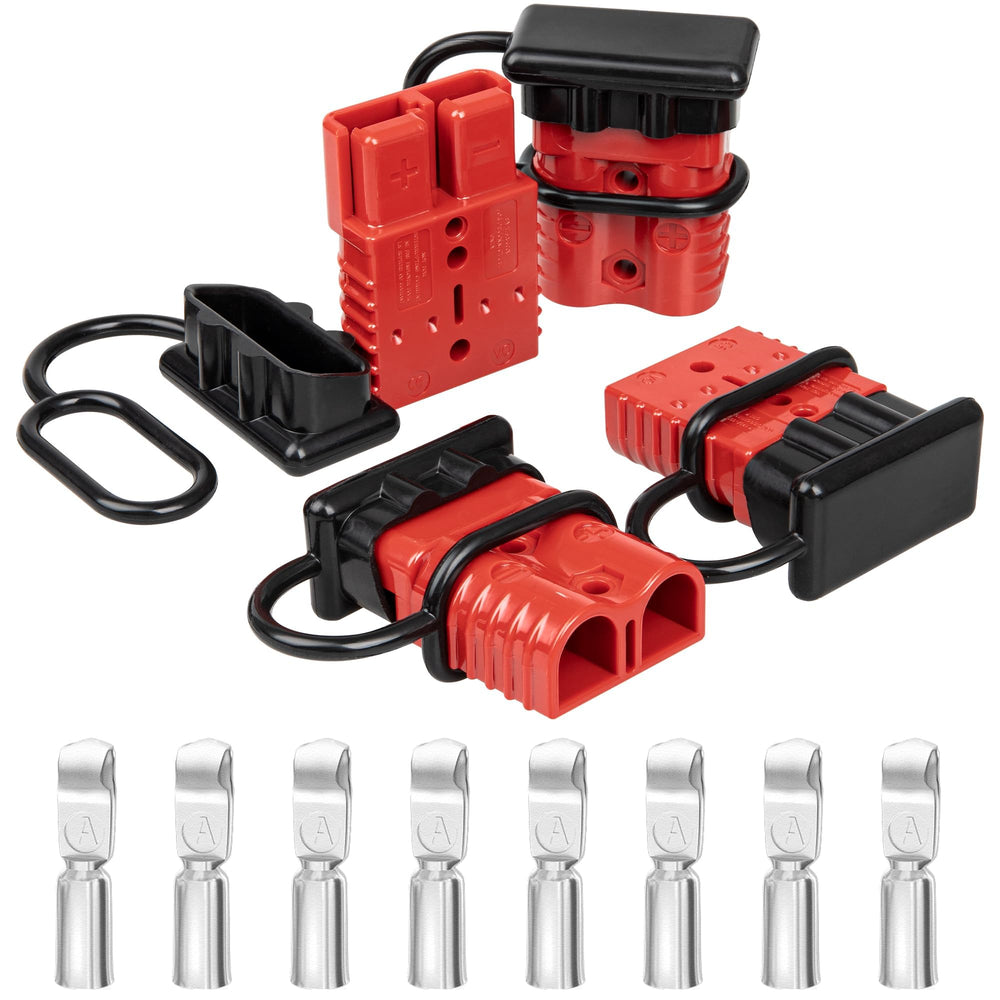

RED WOLF 175A Battery Quick Connector SB175 1/0 AWG Plug Kit, 4-Pack Red — Flame-Retardant, Screwless Snap-Fit

RED WOLF 175A Battery Quick Connector is a four-piece Anderson-style SB175 plug kit that creates fast, secure 1/0 AWG battery connections for trailers, RVs, winches and outdoor power systems.

Designed for installers, DIYers and fleet technicians who need a rugged, serviceable alternative to welded terminals, this RED WOLF kit uses a flame-retardant unibody housing, silver-plated copper lugs and a polarized locking design to make connecting and disconnecting 12–36V systems quicker and safer. The plug set supports heavy current up to 175 amps and includes dust-proof rubber covers for outdoor exposure, making it suitable for boats, caravans, forklifts and other mobile power equipment.

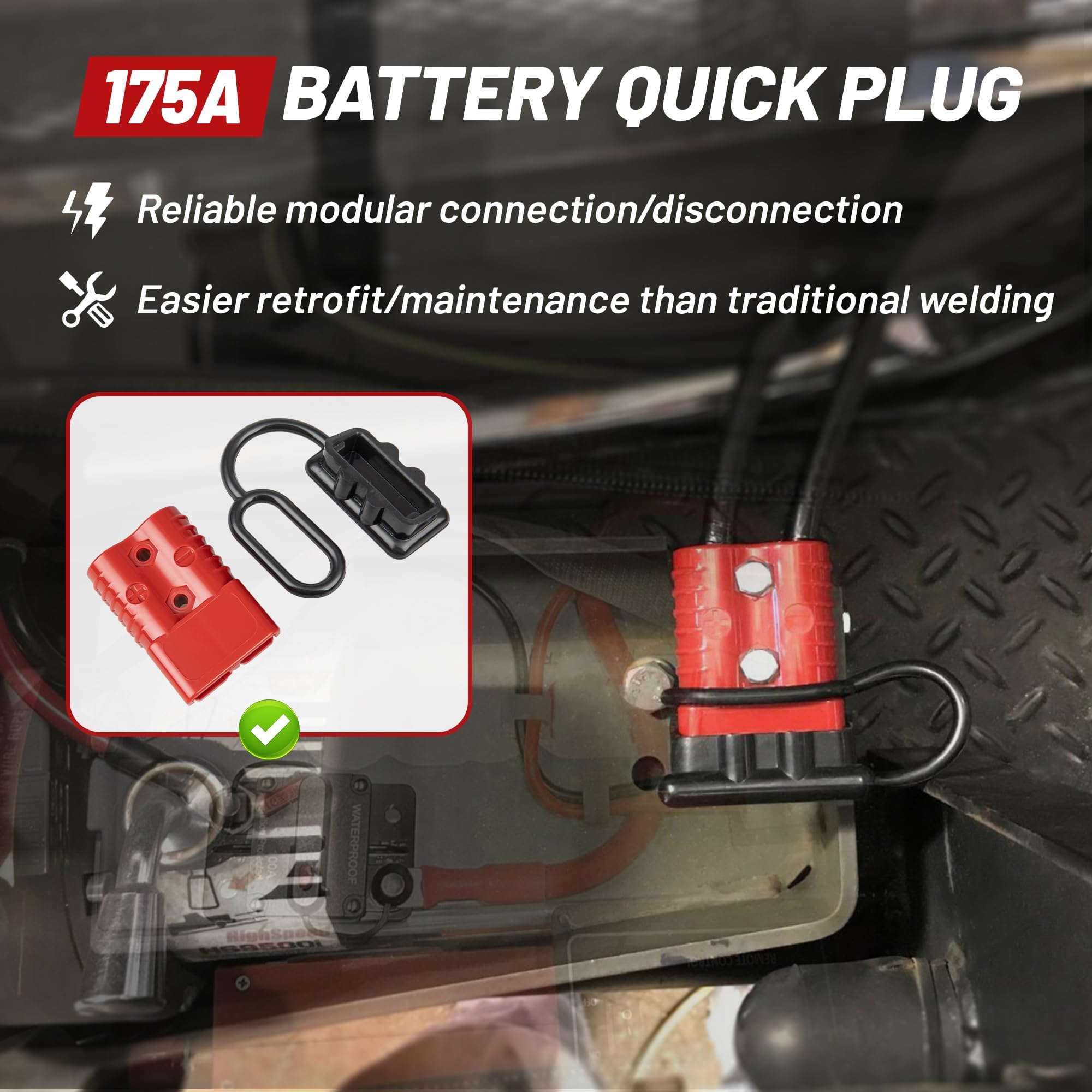

How does the RED WOLF SB175 plug simplify on-the-road maintenance?

The screwless snap-fit design replaces time-consuming welding and bolting with a one-click insertion that locks securely. This reduces downtime during repairs or battery swaps and makes field servicing possible without specialized tools.

• One-click snap-fit installation—no screws or extra tools required
• Screwless copper lug crimping for quick replacement
• Removable plugs speed battery or accessory swaps

What features protect the connector in harsh outdoor environments?

RED WOLF engineered the housing from flame-retardant PC and uses manganese-steel locking springs to resist corrosion and maintain contact over time. A soft rubber dust cover helps block dirt and moisture when the connector is not in use, extending service life in marine and off-road settings.

• Flame-retardant unibody polycarbonate housing for heat resistance
• Silver-plated copper lugs for reliable current transfer and corrosion resistance
• Dust-proof rubber cover to keep ports clean and dry

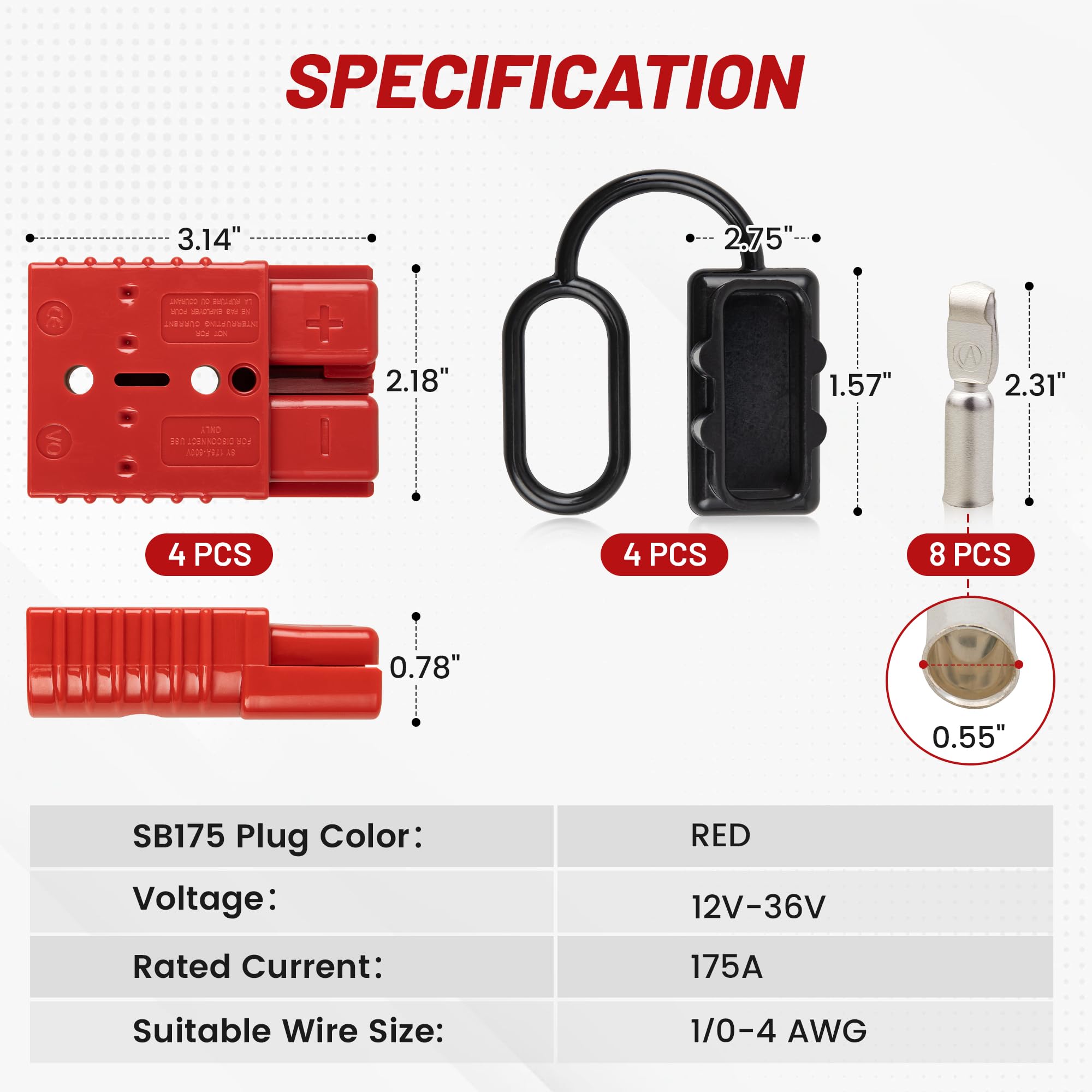

Will these plugs fit my cables and electrical systems?

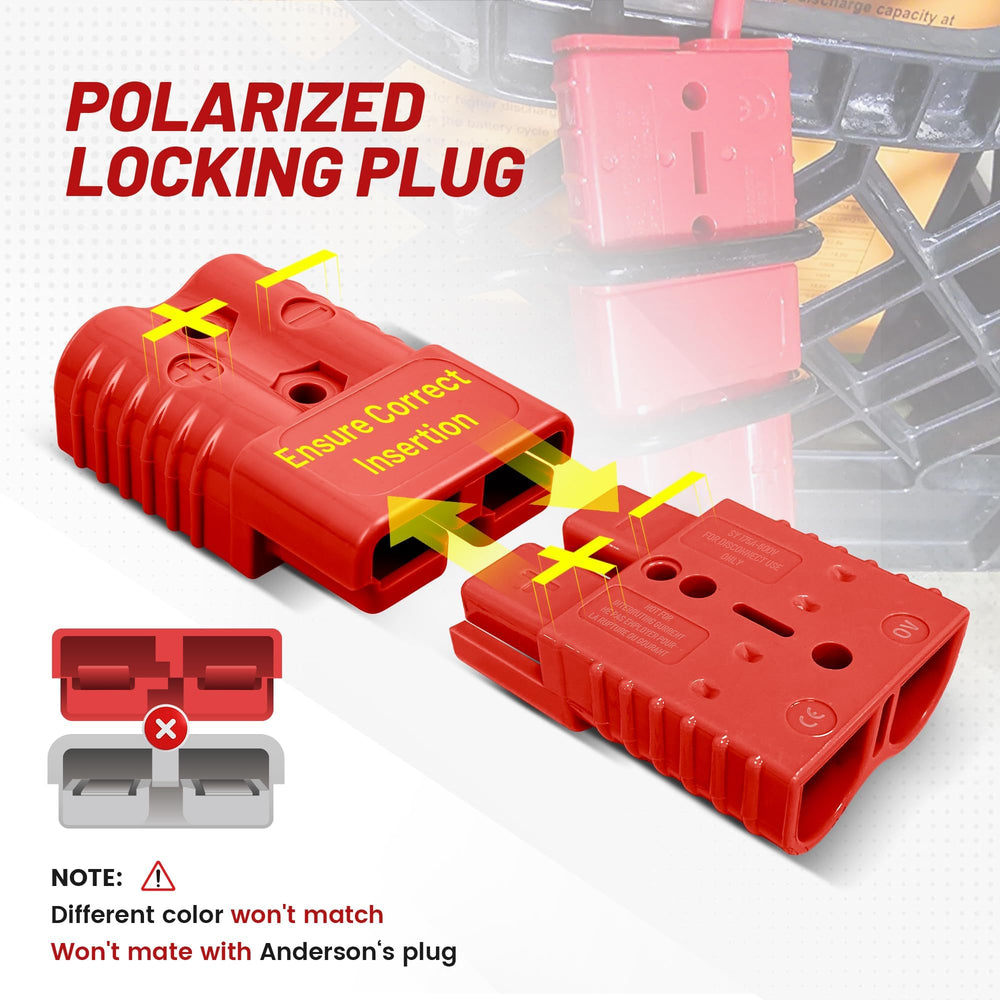

The RED WOLF SB175 is sized for 1/0 AWG copper conductors and rated for 12–36V systems up to 175A. Polarized geometry prevents reverse insertion, reducing risk of shorts or equipment damage when connecting batteries, winches, motors or accessory banks.

• Compatible with 1/0 AWG copper wiring and copper-lug terminations
• Voltage range: 12–36V; current capacity: 175A
• Asymmetrical plug shape with polarity marks to avoid incorrect mating

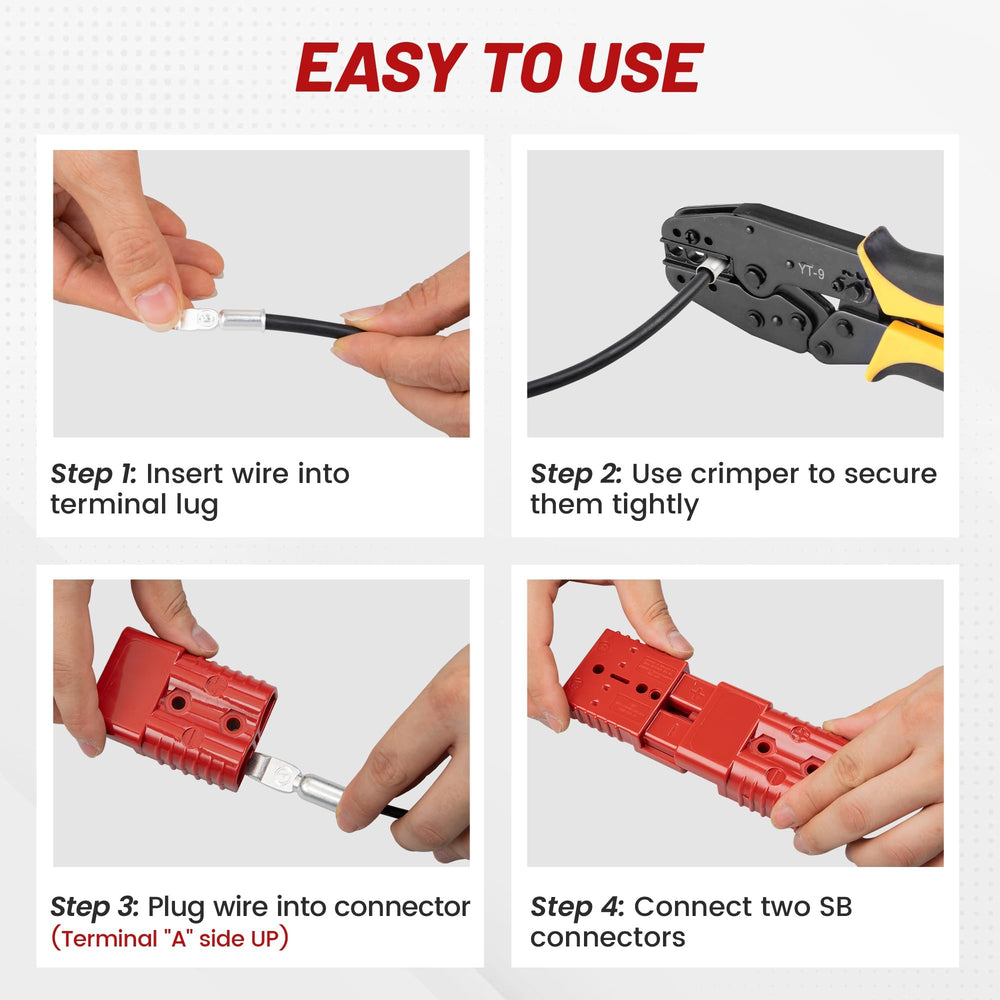

How do I install and secure the connector for long-term use?

Installation follows a simple crimp-and-snap process: crimp the wire into the copper lug, insert the lug into the housing until it clicks, then fit the rubber cover for environmental protection. Regularly inspect the Mn-steel spring tab and lug for signs of wear and reseat connections if needed to preserve conductivity.

• Crimp wire into the silver-plated copper lug using appropriate crimp tools
• Insert crimped lug into housing until a secure click is felt
• Cover unused ports with the rubber dust cap to prevent contamination

Who is this for: Installers, marine and RV owners, off-grid vehicle builders, and fleet maintenance crews who want a portable, high-current disconnect that’s easier to service than welded terminals. Choose RED WOLF SB175 connectors when you need a durable, polarized quick-connect for 1/0 AWG battery systems that must withstand temperature extremes and outdoor exposure.
