RED WOLF SB175 Battery Quick Connector Kit, 4‑pc Grey — 175A 1/0 AWG Flame‑Retardant Quick‑Connect

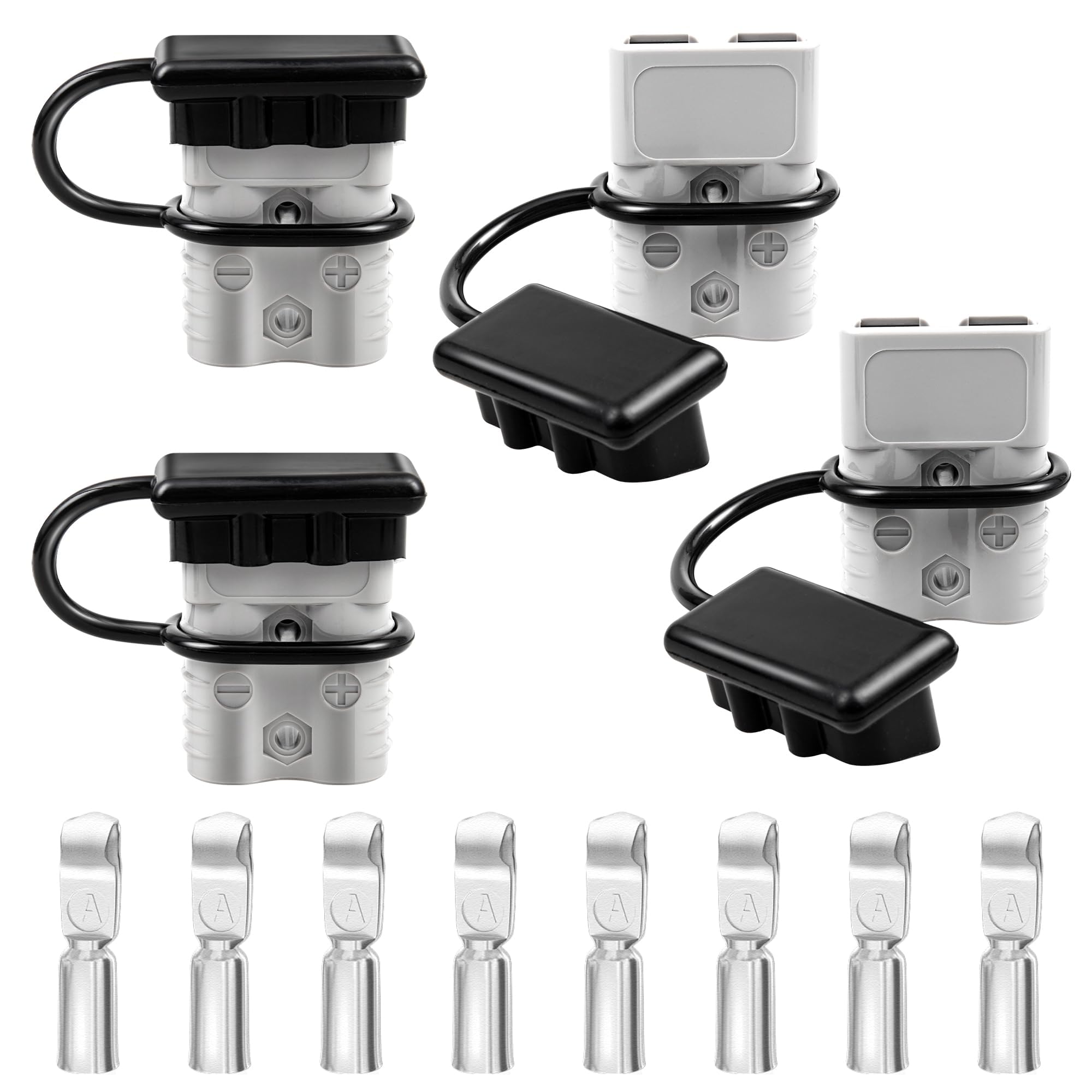

RED WOLF 175A Battery Quick Connector is a four-piece SB175-style plug kit that provides a fast, tool-free way to connect and disconnect 1/0 AWG battery cables for 12–36V systems with a flame‑retardant housing and polarized safety design.

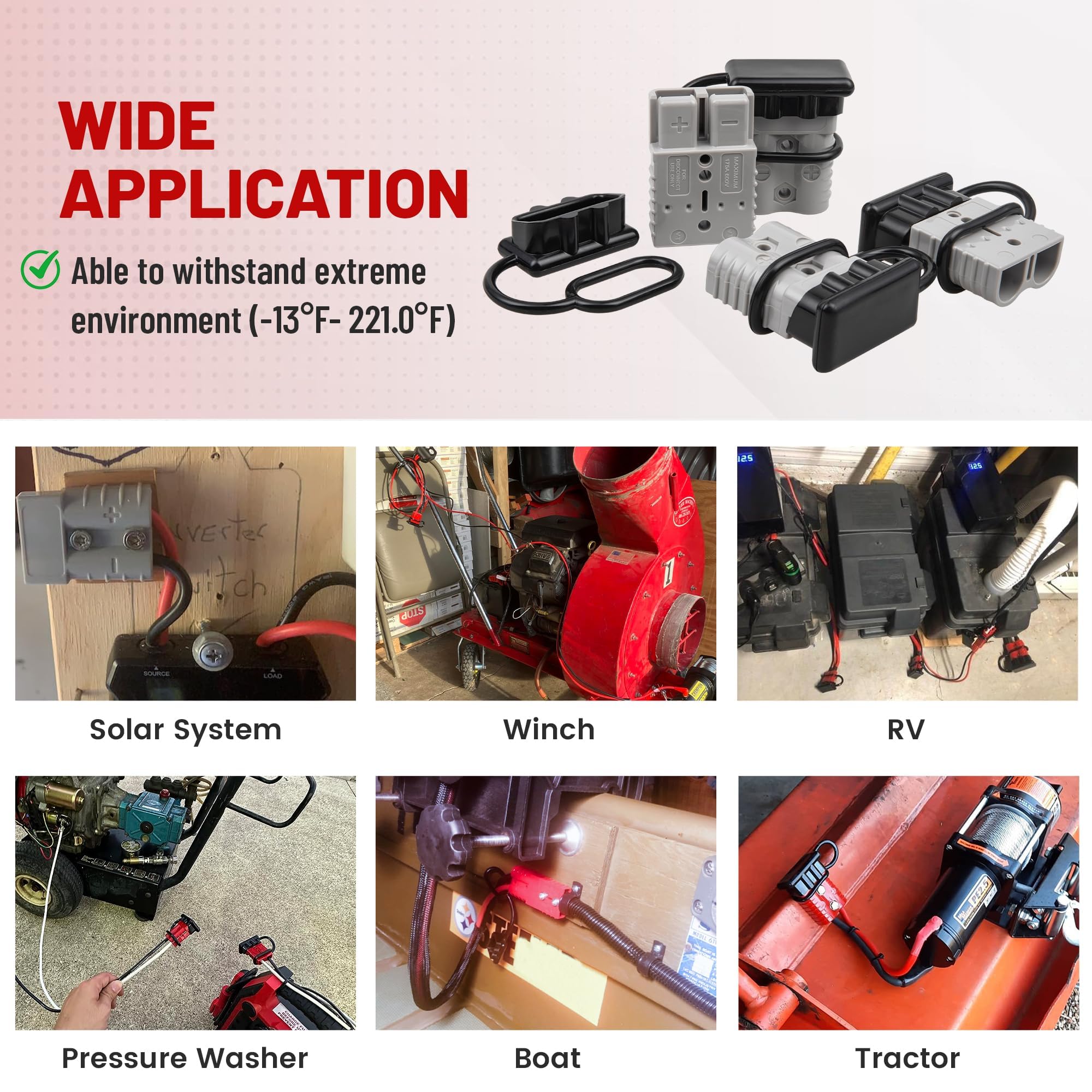

This compact connector set replaces permanent welded joints with a modular plug-and-play solution designed for outdoor power systems. Each grey SB175-style plug uses a unibody PC housing, silver‑plated copper lugs, and a manganese‑steel locking tab for reliable conduction and long-term contact integrity. The kit includes protective rubber dust covers and supports environments from -13°F to 221°F, making it suitable for vehicles, marine craft, backup distribution, and industrial mobile equipment.

How does this connector make battery maintenance faster?

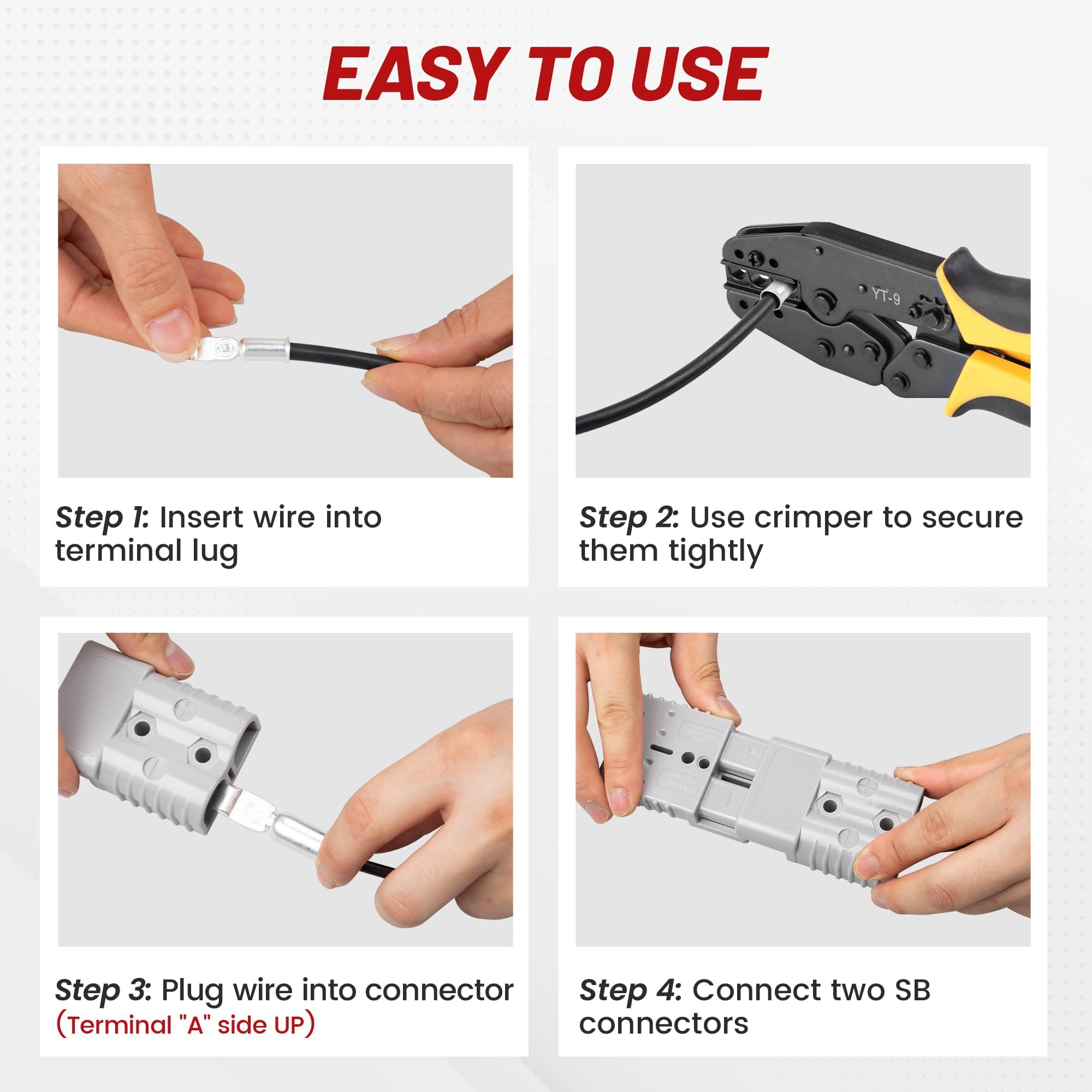

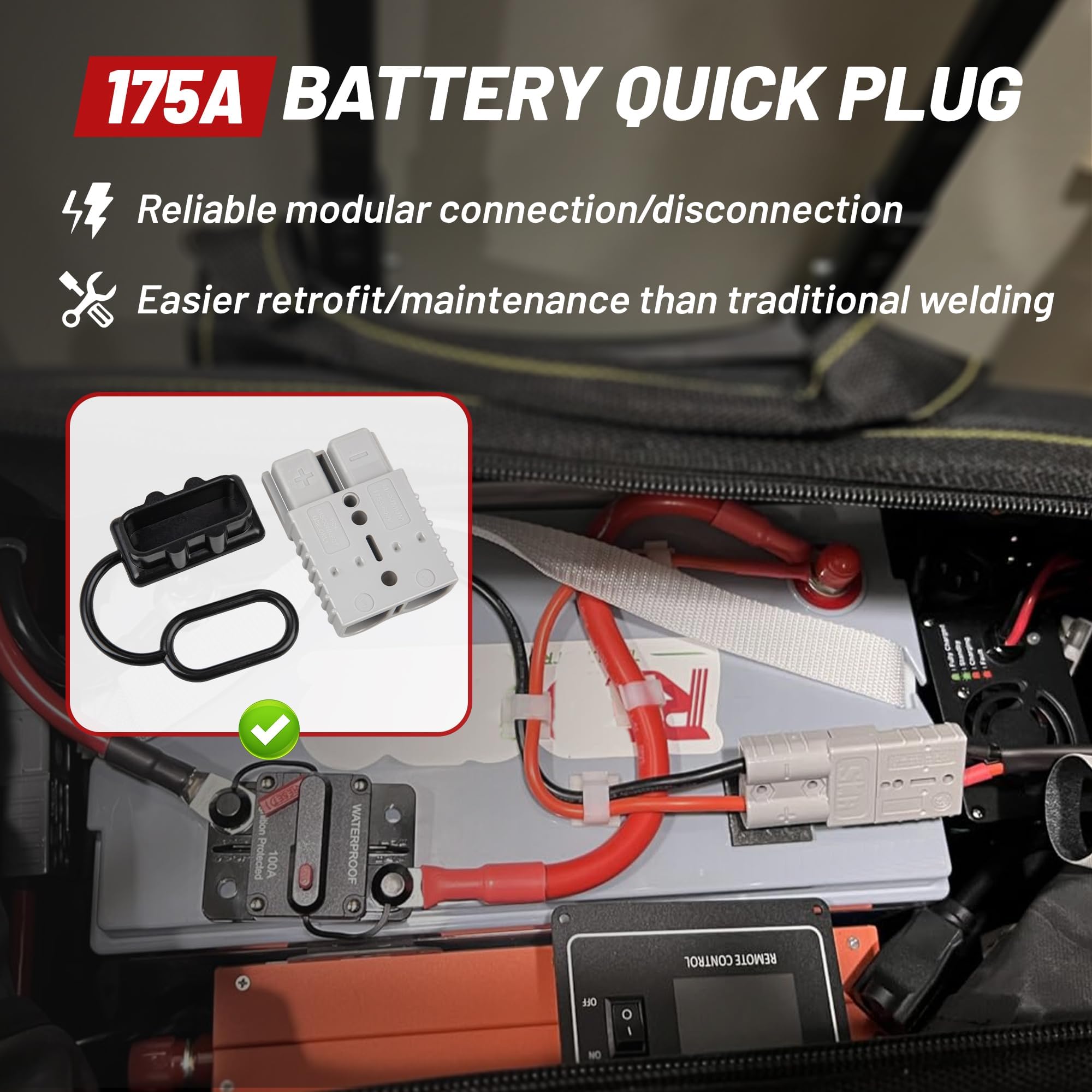

The SB175 quick connector installs with a one-click snap-fit that removes the need for repeated welding or complex terminal screws. Technicians can disconnect power immediately for service or swap components without disturbing cable routing.

• Tool-free snap-fit locking; clicks into place for immediate use
• Crimp-style copper lug accepts 1/0 AWG cable for solid mechanical and electrical contact
• Removable plug design speeds retrofit and troubleshooting tasks

Are these plugs safe for outdoor and heavy-duty use?

Yes — the housing is made from flame‑retardant PC and the internal locking spring is manganese‑steel, reducing corrosion and risk of poor contact. Polarized insertion prevents reverse connections that can cause short circuits or equipment damage.

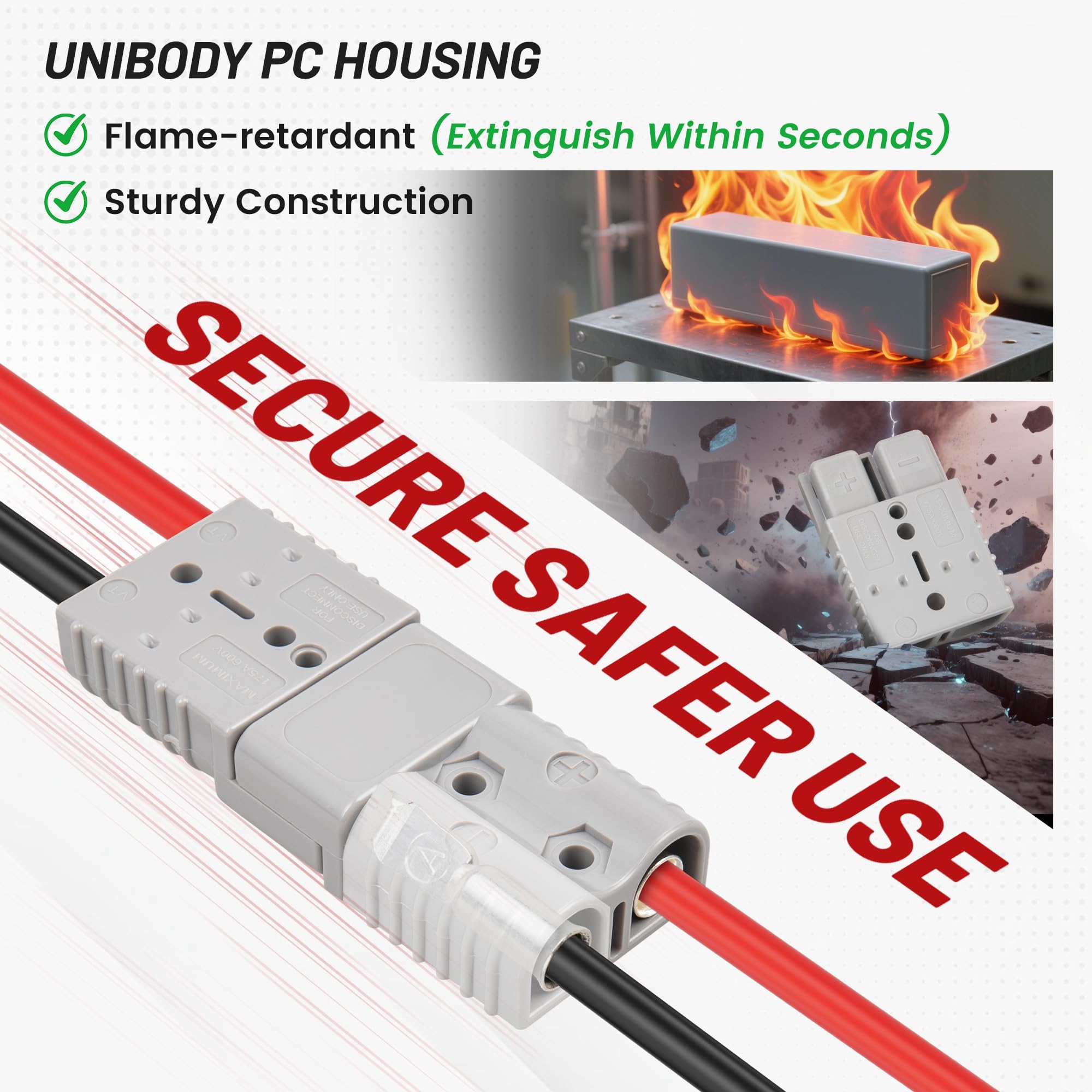

• Flame‑retardant unibody PC housing for added safety

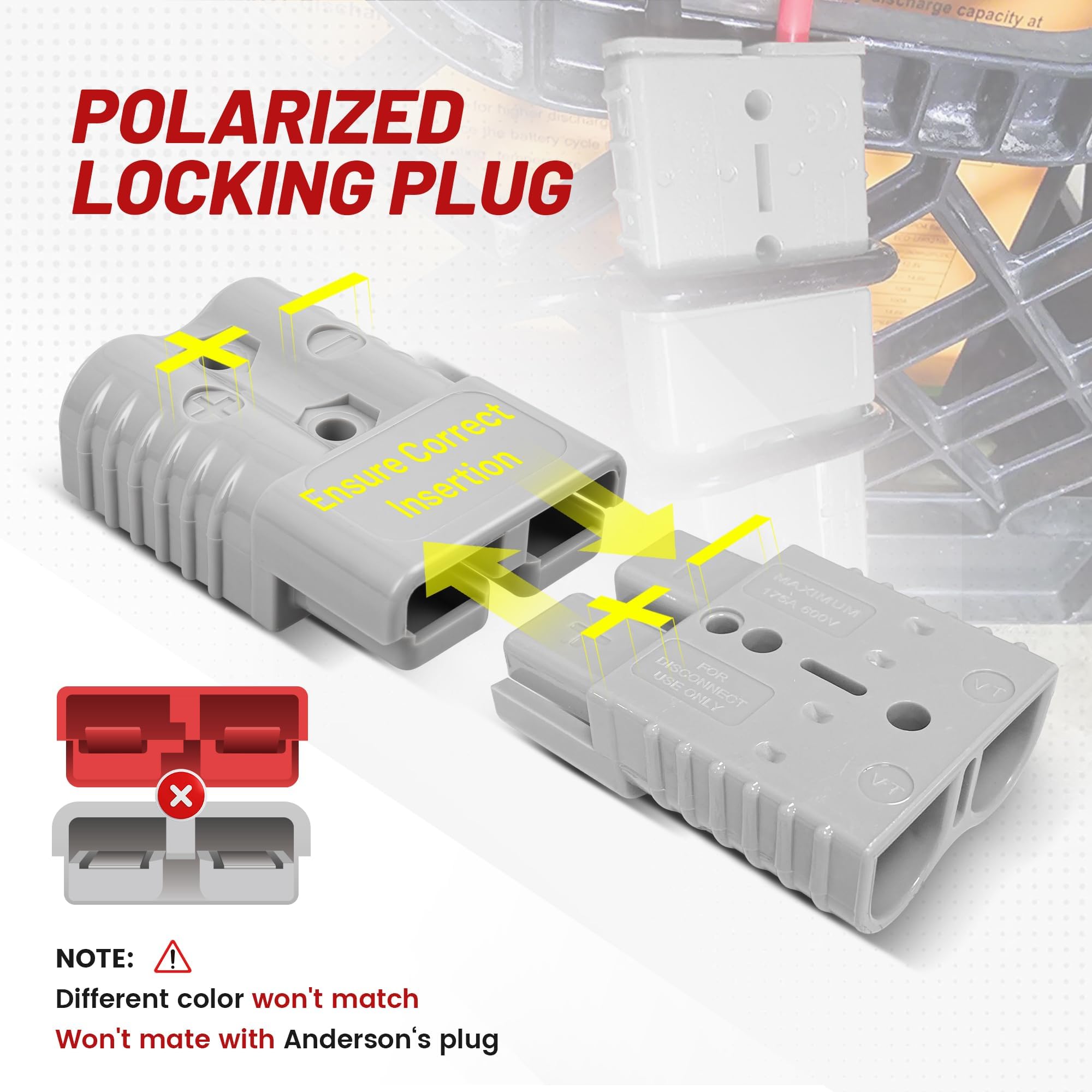

• Polarized asymmetrical design prevents incorrect mating
• Silver‑plated pure copper lugs for high current capacity and low resistance

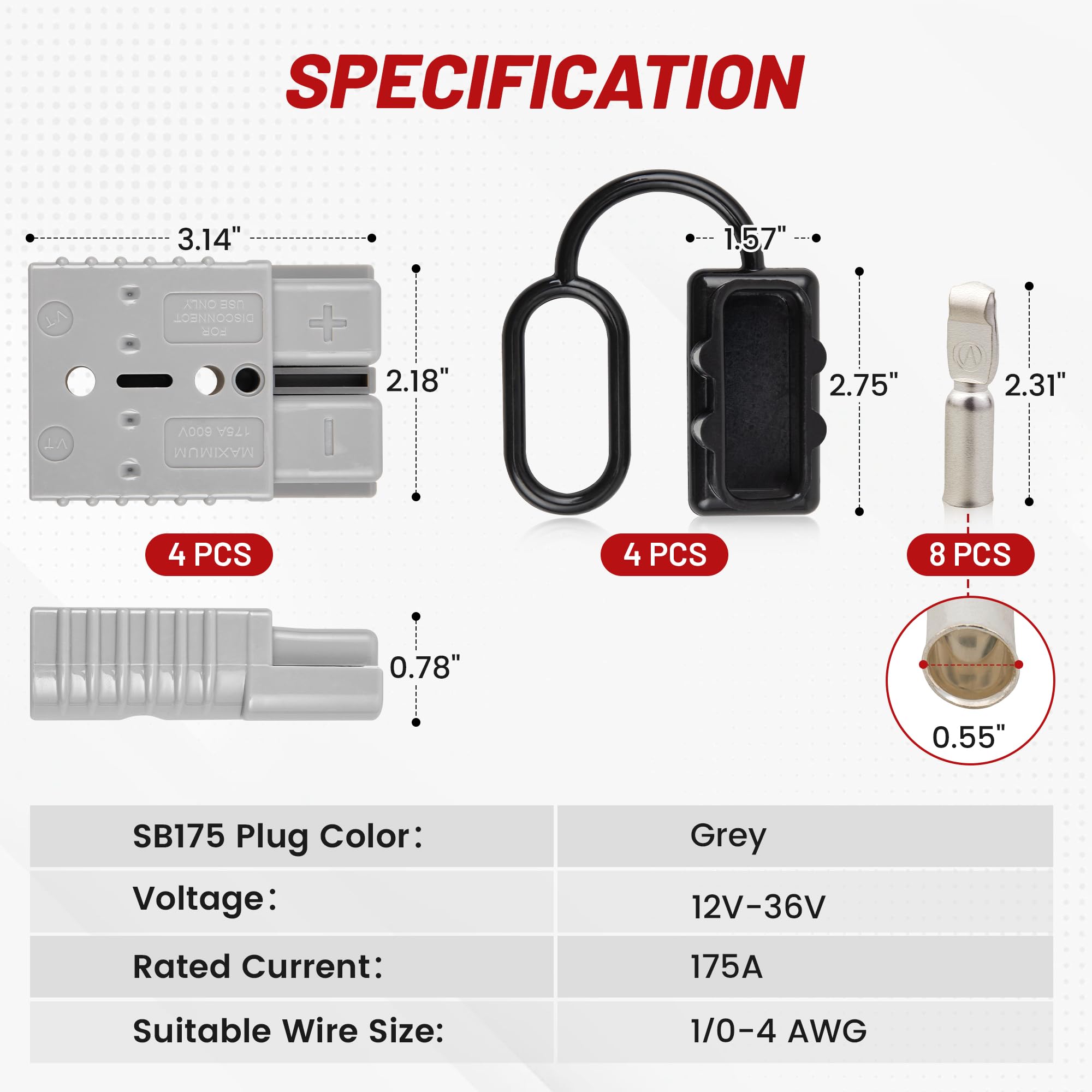

What electrical specs and cable sizes does it support?

The RED WOLF SB175 kit is rated for continuous currents up to 175A and designed for 12–36V systems. The built-in copper lug is sized for 1/0 AWG cable, making it suitable for many automotive, marine, and mobile power applications.

• Current rating: 175A continuous
• Voltage range: 12V–36V systems
• Wire compatibility: 1/0 AWG (crimp into terminal lug)

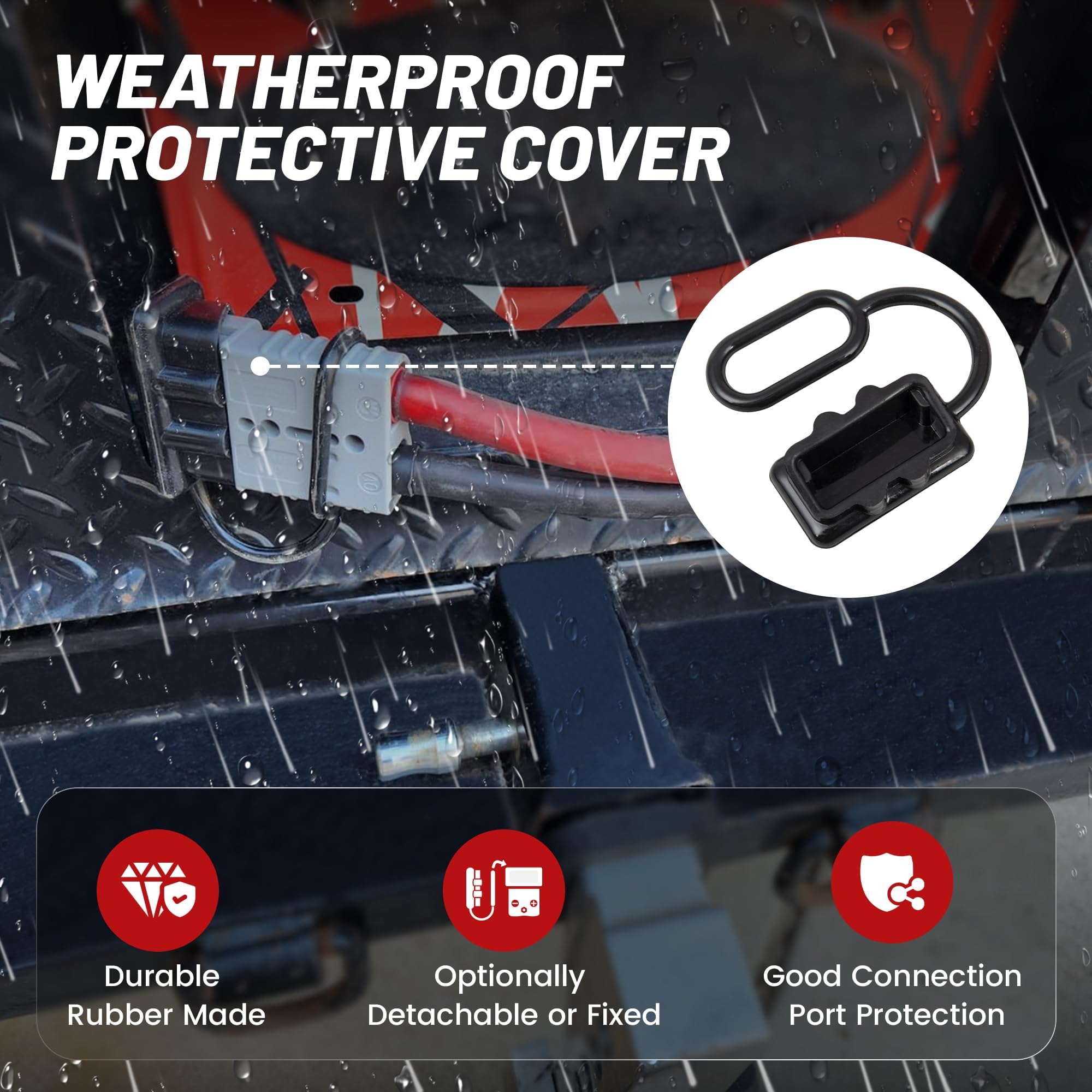

How does the kit protect connectors when not in use?

Each plug includes a soft rubber dust cover that slips over the connection face, preventing dust, moisture and debris from entering the port. This simple barrier helps maintain consistent contact quality and extends service life in outdoor conditions.

• Soft rubber shell resists rain and dust ingress
• Easy on/off cover for quick protection during storage or transport
• Works with the polarized plug to keep terminals clean and safe

Who this is for: installers, fleet and marine technicians, RV and caravan owners, and DIYers who need a robust, quick-disconnect solution for high-current 12–36V systems. Choose this RED WOLF SB175 4-piece kit if you want a flame-retardant, polarized connector that accepts 1/0 AWG cable and simplifies maintenance without compromising reliability.
