Renogy Battery Monitor 500A — Shunt-Based Battery Meter with 1% Accuracy and Backlit Display

Renogy 500A Battery Monitor is a shunt-based battery meter that delivers precise real-time readings of voltage, current, and remaining capacity for 12V/24V/48V systems.

Whether you run solar arrays, off-grid RV systems, marine batteries, or backup power banks, reliable battery data is essential to avoid unexpected shutdowns and to maximize battery lifespan. The Renogy 500A monitor provides 1% accuracy through a dedicated shunt, an easy-to-read backlit display, high/low capacity alarms, and compatibility with common battery chemistries.

How accurate is the Renogy 500A at measuring battery performance?

The 500A uses a shunt-style sensing method to measure current and voltage, giving much tighter accuracy than simple clamp-on meters. Readings for voltage, current, consumed amp-hours, and state of charge are updated in real time, helping you track usage precisely.

• Shunt-based measurement with approximately 1% accuracy.

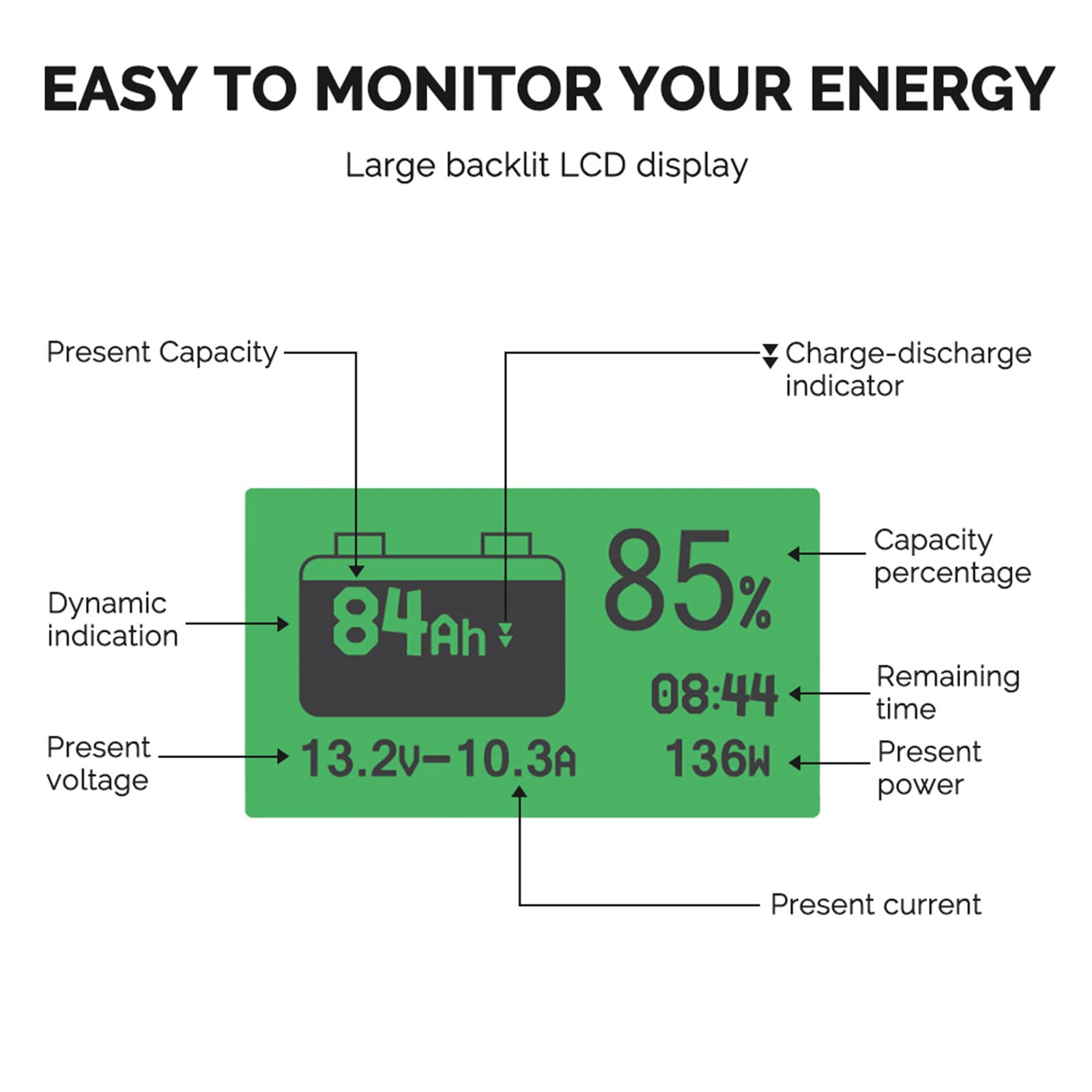

• Displays voltage, current, consumed power (Ah), and capacity percentage.
• High-definition backlight for clear values in various lighting conditions.

Which battery types and voltages does this monitor support?

The Renogy 500A is built to work with most conventional battery chemistries and system voltages found in mobile and stationary setups. It supports Lead Acid variants and modern lithium packs used in renewable and recreational applications.

• Compatible with Lead Acid (including AGM and GEL), LiFePO4, Li-ion, and NiMH chemistries.
• Operates in 12V, 24V, and 48V systems without additional hardware changes.
• Configurable alarm thresholds for high and low state-of-charge protection.

What installation and display features should I expect?

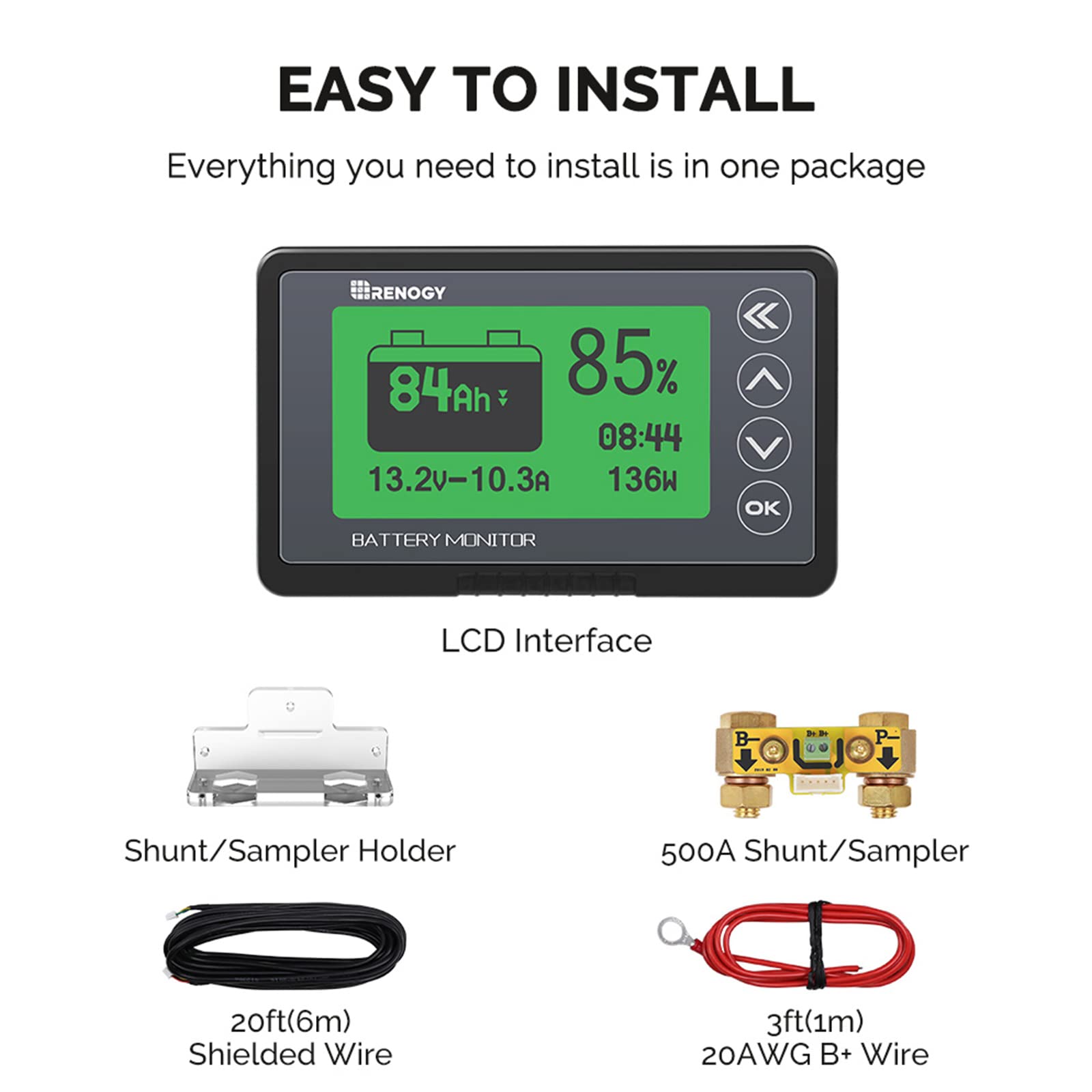

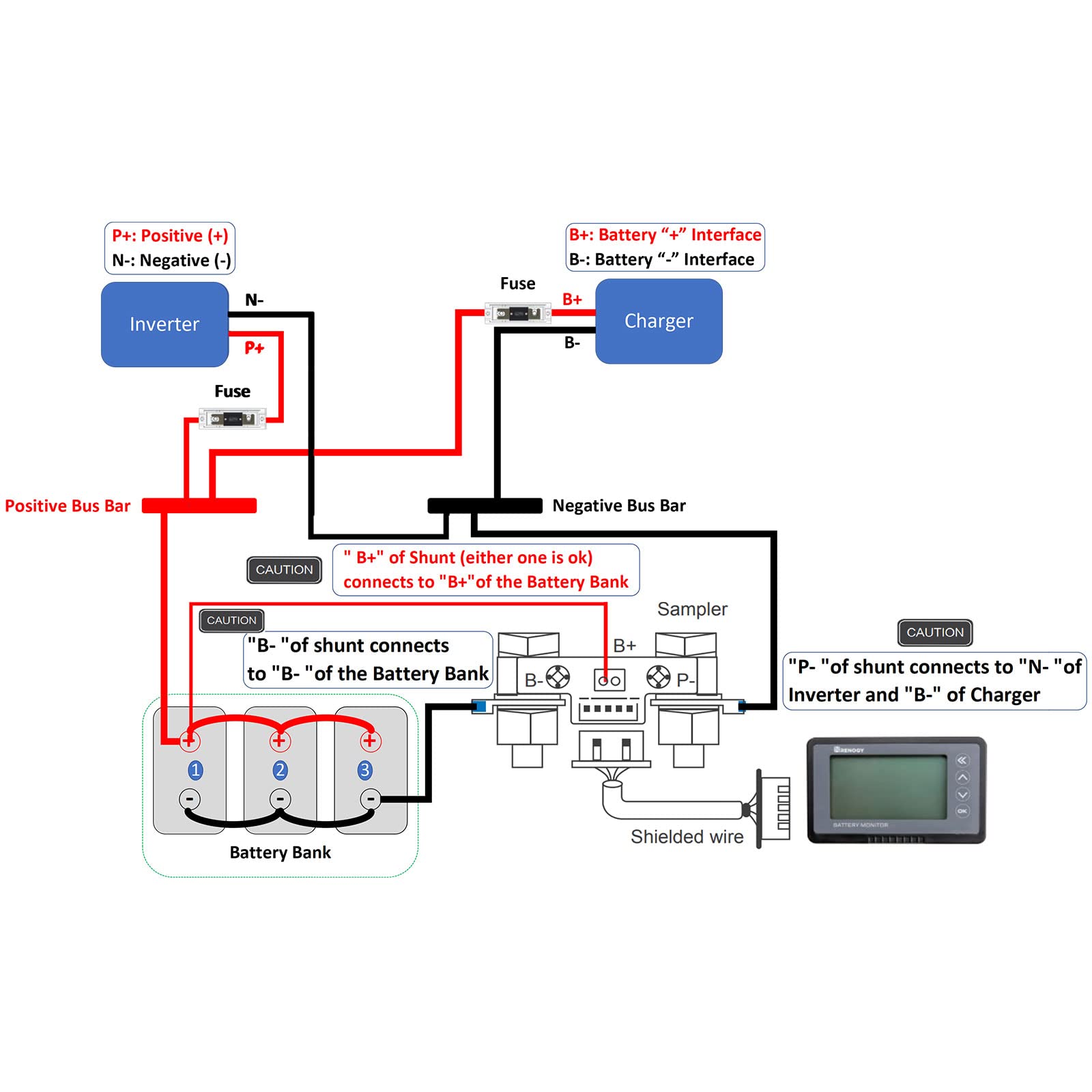

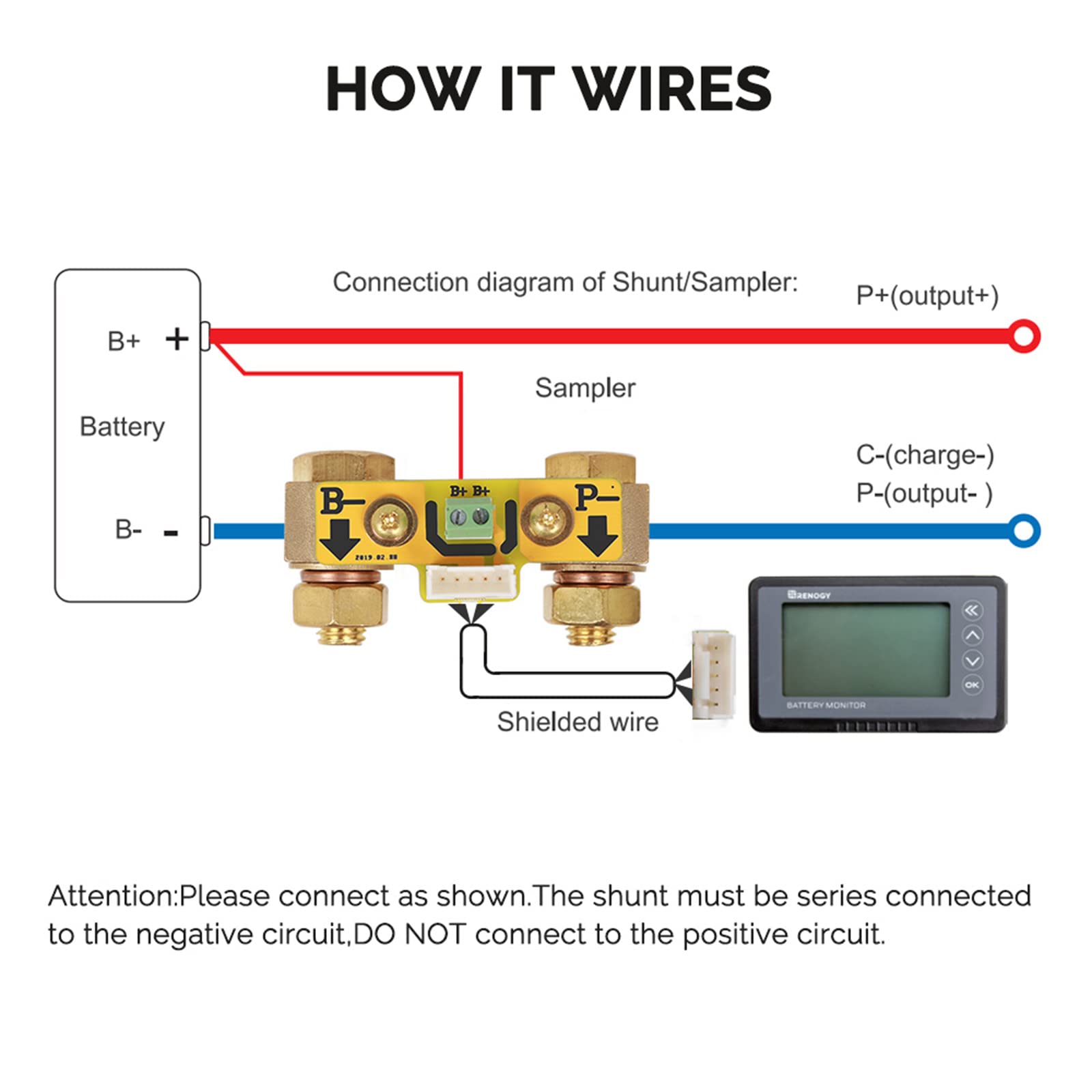

Installation centers on mounting the included shunt in the main negative conductor and routing the supplied shielded cable to the monitor display. The monitor’s transparent shunt holder and long 20 ft shielded cable make positioning flexible and tidy.

• Transparent shunt holder simplifies mounting and visual inspection.
• 20-foot shielded cable allows remote mounting of the display panel.

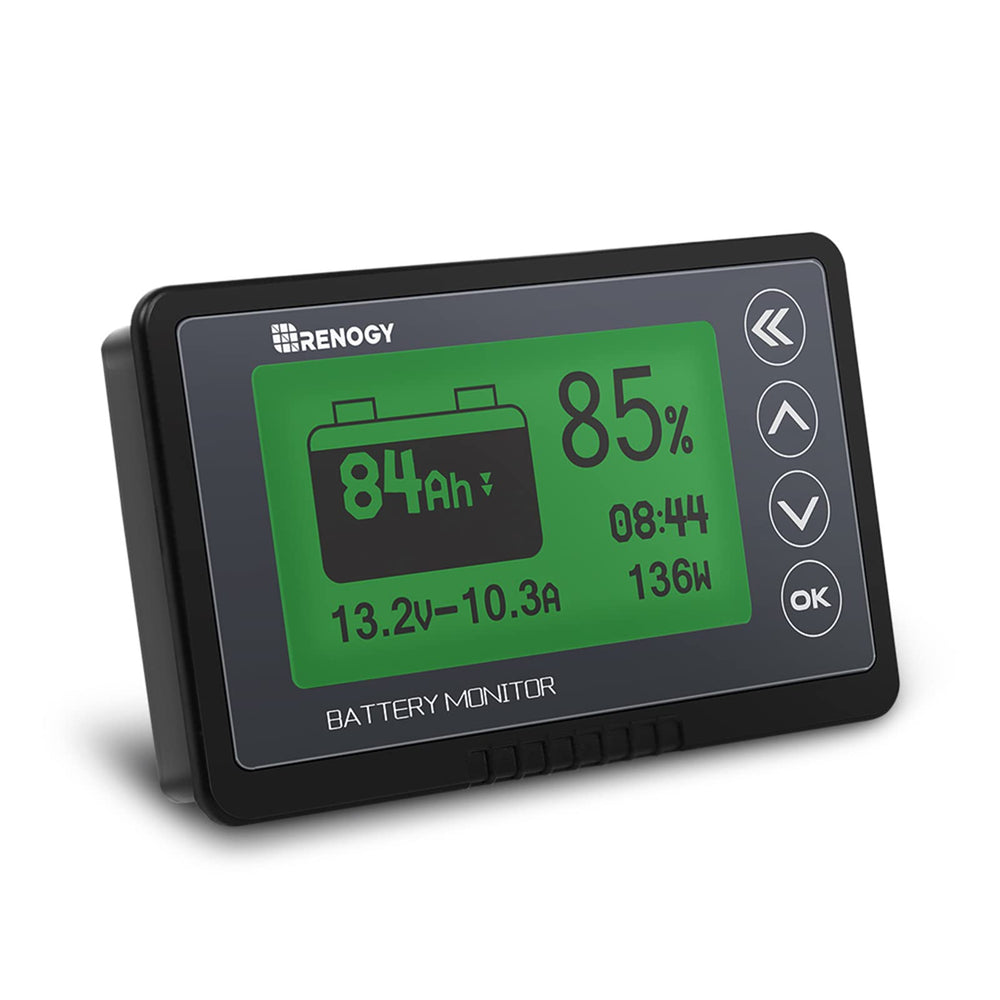

• Clear numeric display with adjustable backlight brightness for easy reading.

How does the alarm system help protect my batteries?

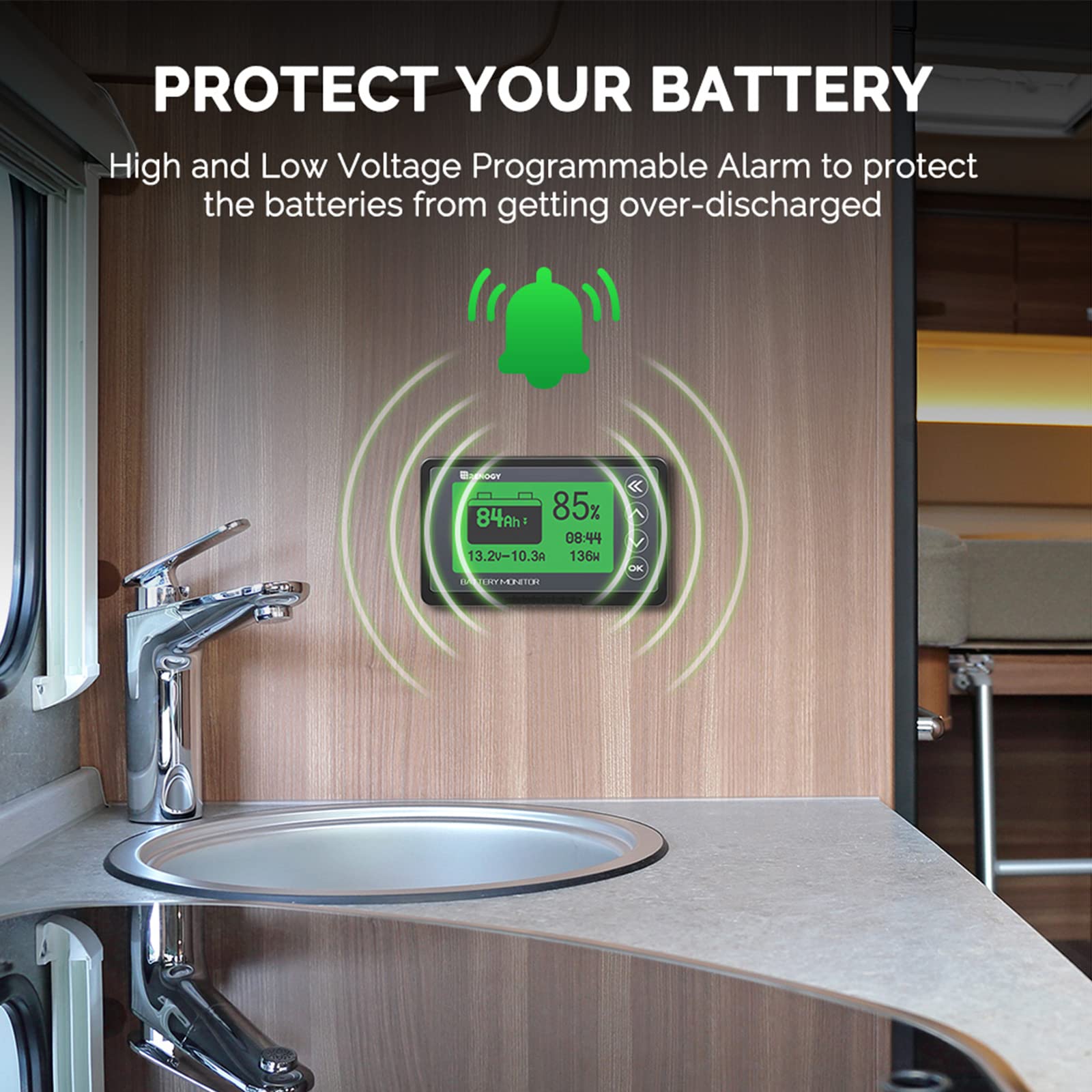

The monitor includes programmable high and low capacity alarms that alert you before a battery reaches damaging states. When a threshold is breached, the unit sounds an alarm and flashes the backlight and voltage readout so you notice quickly.

• Audible alarm plus flashing backlight and voltage readout on threshold events.
• User-set high/low capacity limits to match battery specs and usage patterns.
• Helps avoid excessive discharge and signals when charging is needed.

Who is this for? The Renogy 500A Battery Monitor is ideal for RV owners, marine operators, off-grid homeowners, solar installers, and anyone running multi-battery systems who needs precise, continuous insight into energy flow. If you want to monitor amp-hours used, understand charging behavior, and get early warnings to prevent deep discharge, this shunt-based meter delivers measurable improvements over basic voltmeters or clamp meters.
