RHINOVAL Universal Winch Mounting Plate 10 x 4.5 in, 15,000 lb, Raised Bolt Pattern with Fairlead Flange & Hardware

RHINOVAL's Universal Winch Mounting Plate is a heavy-duty steel adapter that secures 10" x 4.5" bolt-pattern winches up to 15,000 lb, with an integrated fairlead flange and full hardware kit.

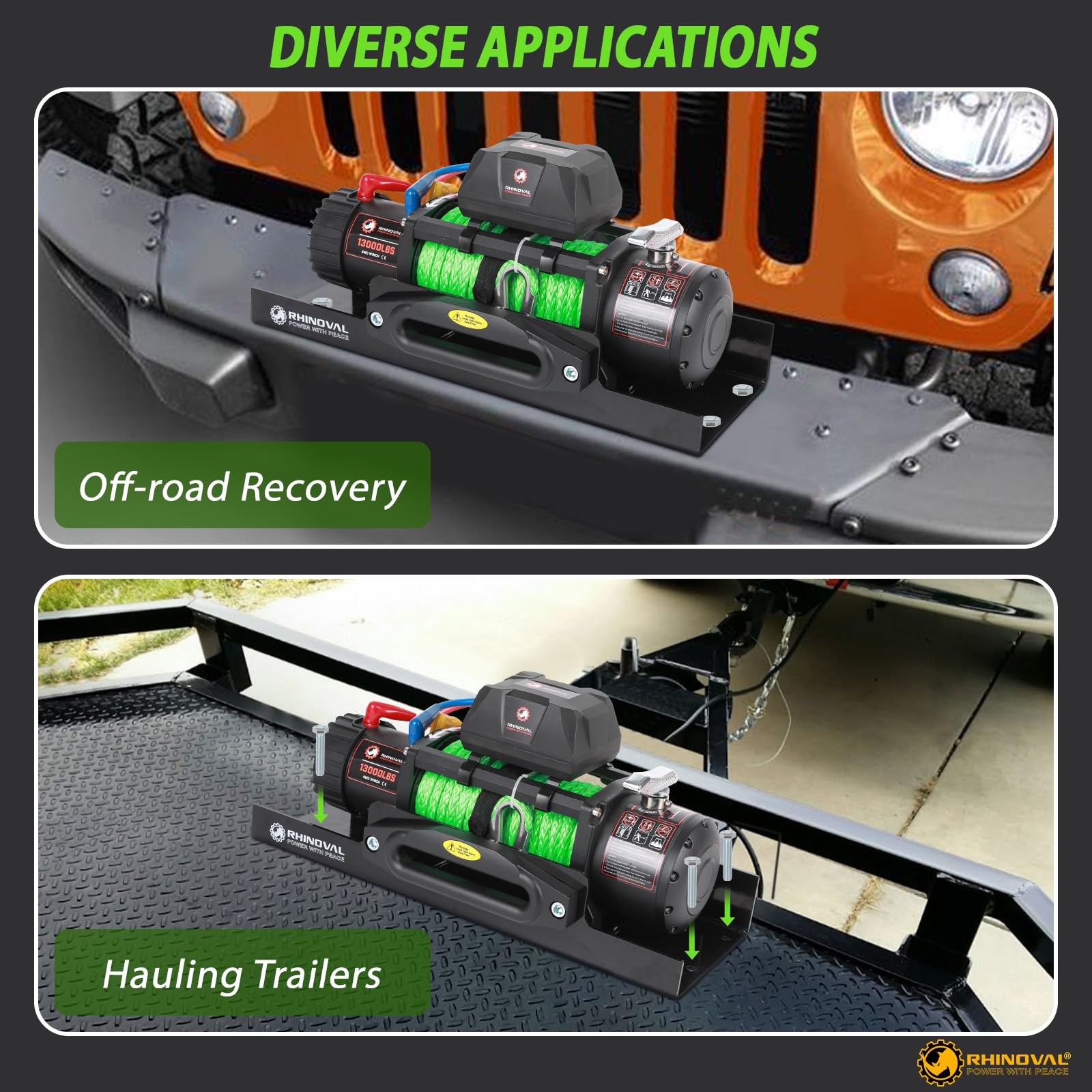

This universal mounting plate converts a variety of winches for use on trucks, SUVs, trailers, ATVs and UTVs by providing a low-profile, raised-bolt mounting surface. The plate is engineered to minimize drilling through the winch base, improve bolt clearance, and keep the winch base in full contact with the adapter for reliable load transfer. Built from robust steel and pre-drilled for cable routing and drainage, the kit includes all necessary bolts, nuts and washers so installation is straightforward for fabricators and experienced installers.

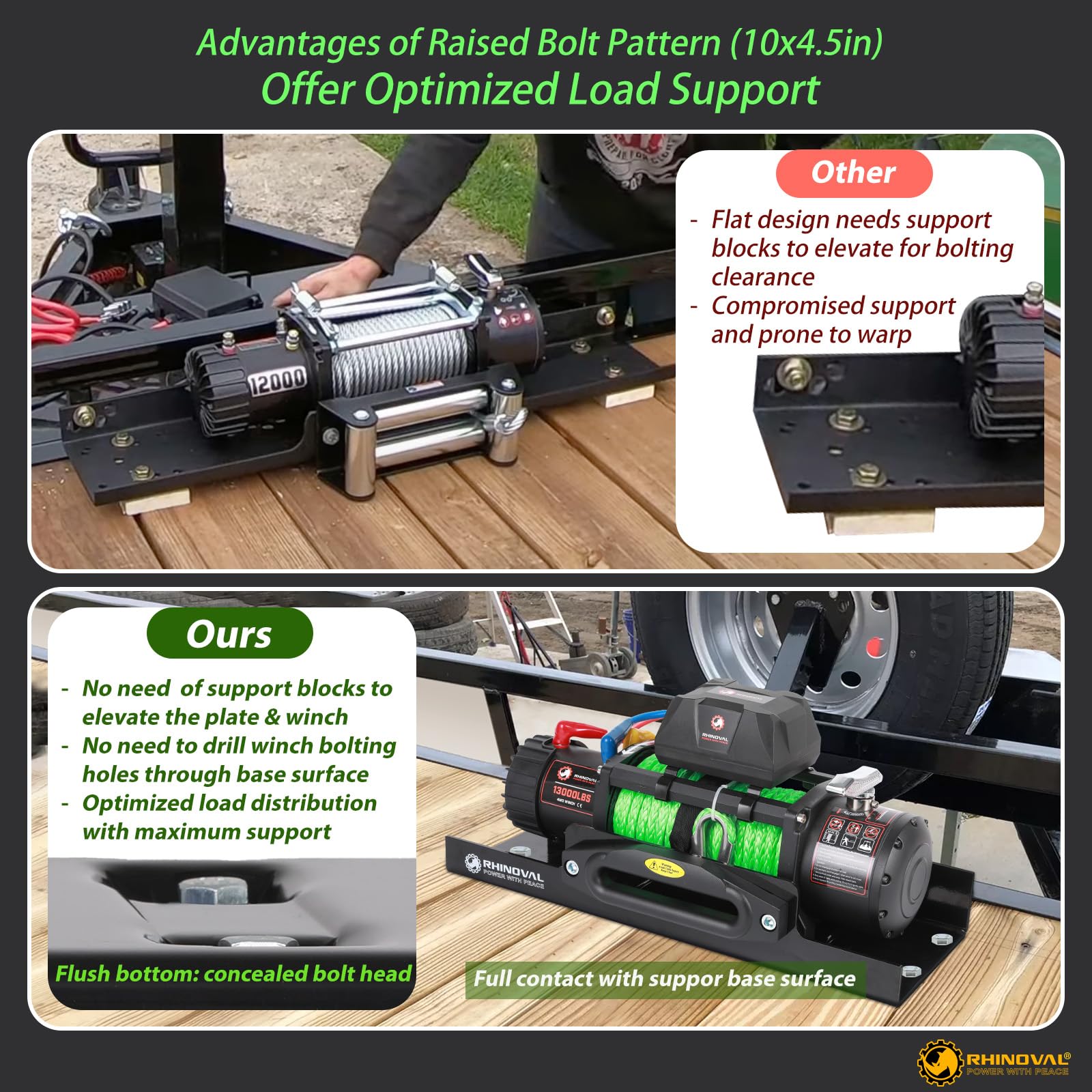

How does the raised bolt pattern improve installation and strength?

The raised bolt pattern lifts the winch’s mounting studs slightly above the main plate surface, eliminating the need for additional spacer blocks. This design ensures the winch base sits flush against the adapter where it matters, distributing load broadly across the plate rather than through isolated spacers. It also reduces the risk of bolt interference when using common 10" x 4.5" winches.

• Raised pattern fits standard 10" x 4.5" (254 mm x 114 mm) bolt spacing
• Reduces or removes need for spacer blocks
• Maximizes contact area for improved load distribution
• Prevents bolt head interference for many winch models

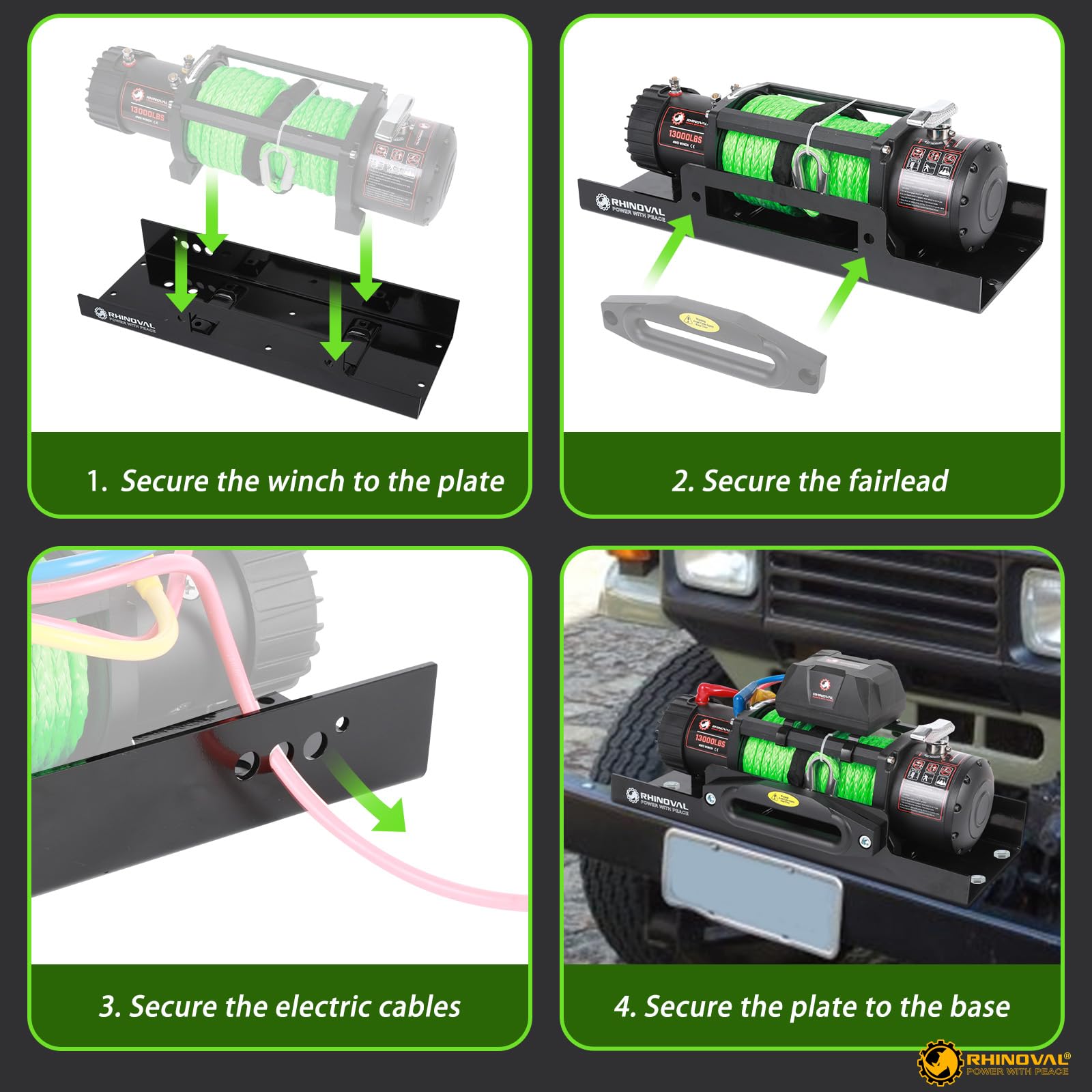

What drilling or modifications are required for installation?

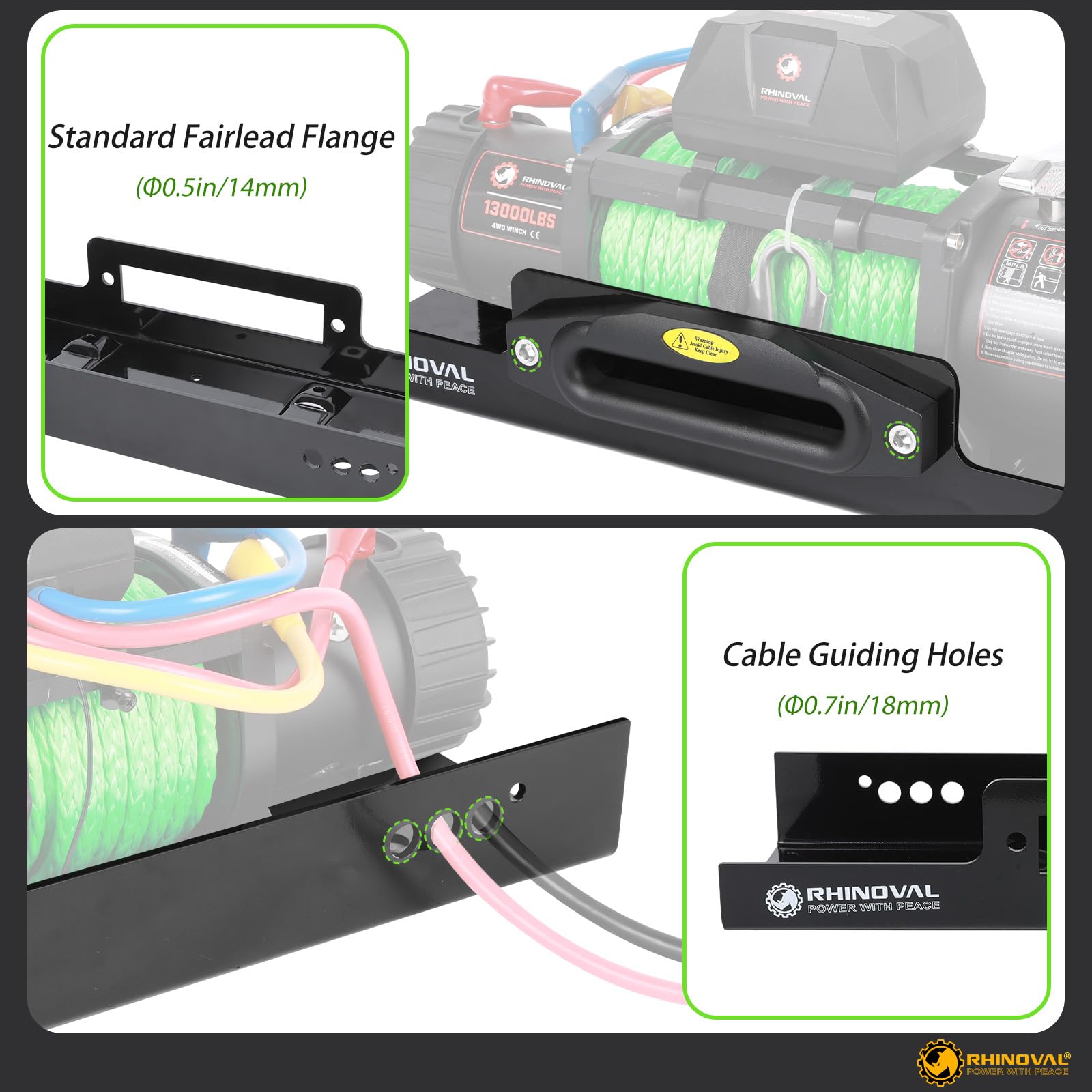

The plate is engineered so the winch’s four center mounting holes typically do not need to be drilled through your vehicle’s base. Only the four plate-to-base connection holes must be drilled into the vehicle or bumper surface, which preserves the winch base integrity and simplifies mounting. There are also pre-drilled cable pass-throughs and drainage holes to ease wiring and reduce moisture build-up.

• Only four plate-to-base holes usually need drilling
• Pre-drilled cable routing and drainage ports included
• Not a direct bolt-on for all vehicles (e.g., many Jeeps require customization)
• Includes long bolts, nuts and washers for assembly

Will this plate fit my winch and carry the load I need?

The RHINOVAL plate supports winches rated up to 15,000 pounds and accepts the common 10" x 4.5" bolt pattern used by many large winch models. Its compact overall dimensions help it fit tight bumper or frame locations while the 5 mm steel thickness offers a balance of rigidity and reduced bulk. Always confirm your winch bolt pattern and weight rating before installing to ensure compatibility and safe use.

• Supports winches up to 15,000 lb capacity
• Designed for 10" x 4.5" bolt pattern winches

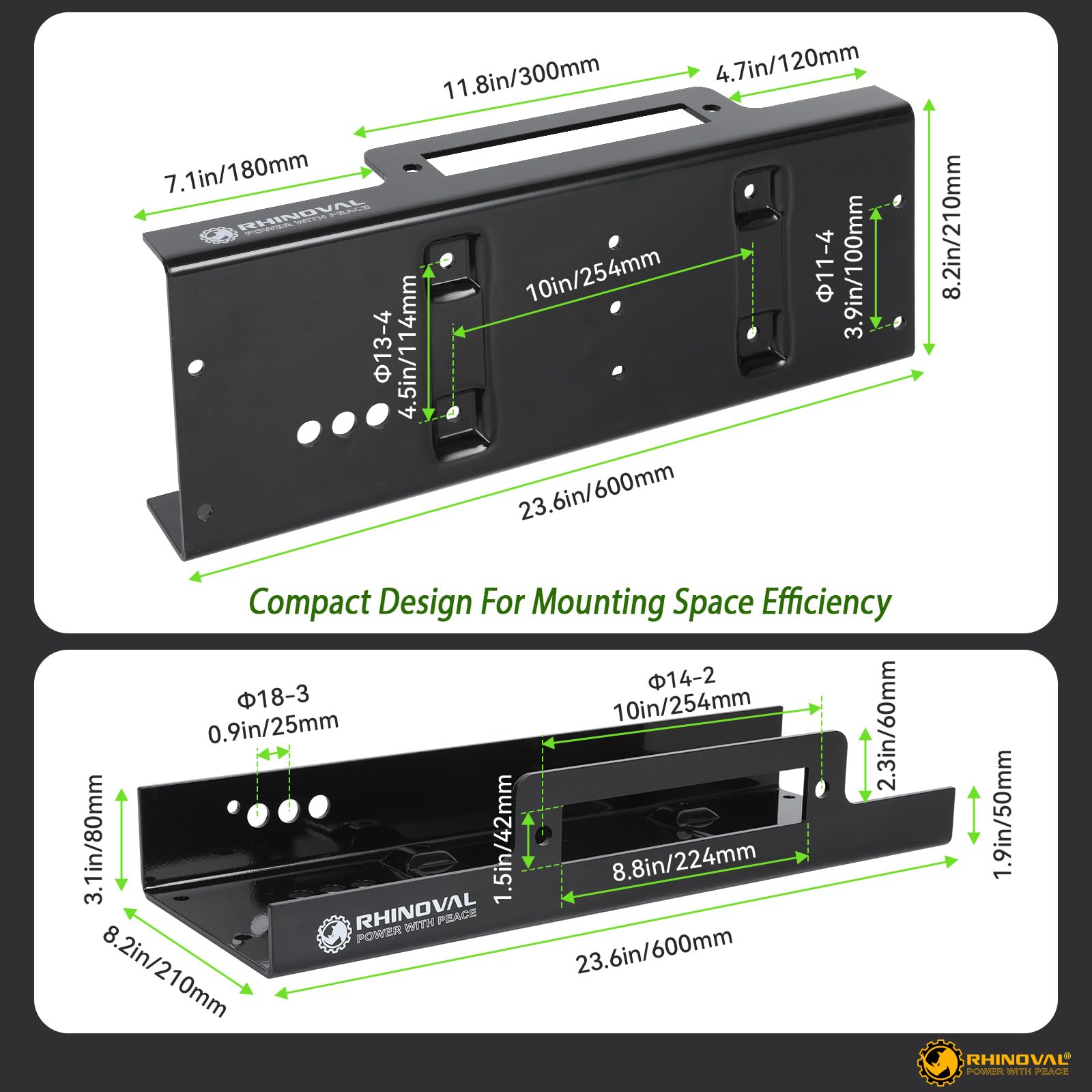

• Plate thickness: 0.2" (5 mm); overall size 23.6" x 8.2"
• Includes integrated fairlead flange for hawse or roller fitment

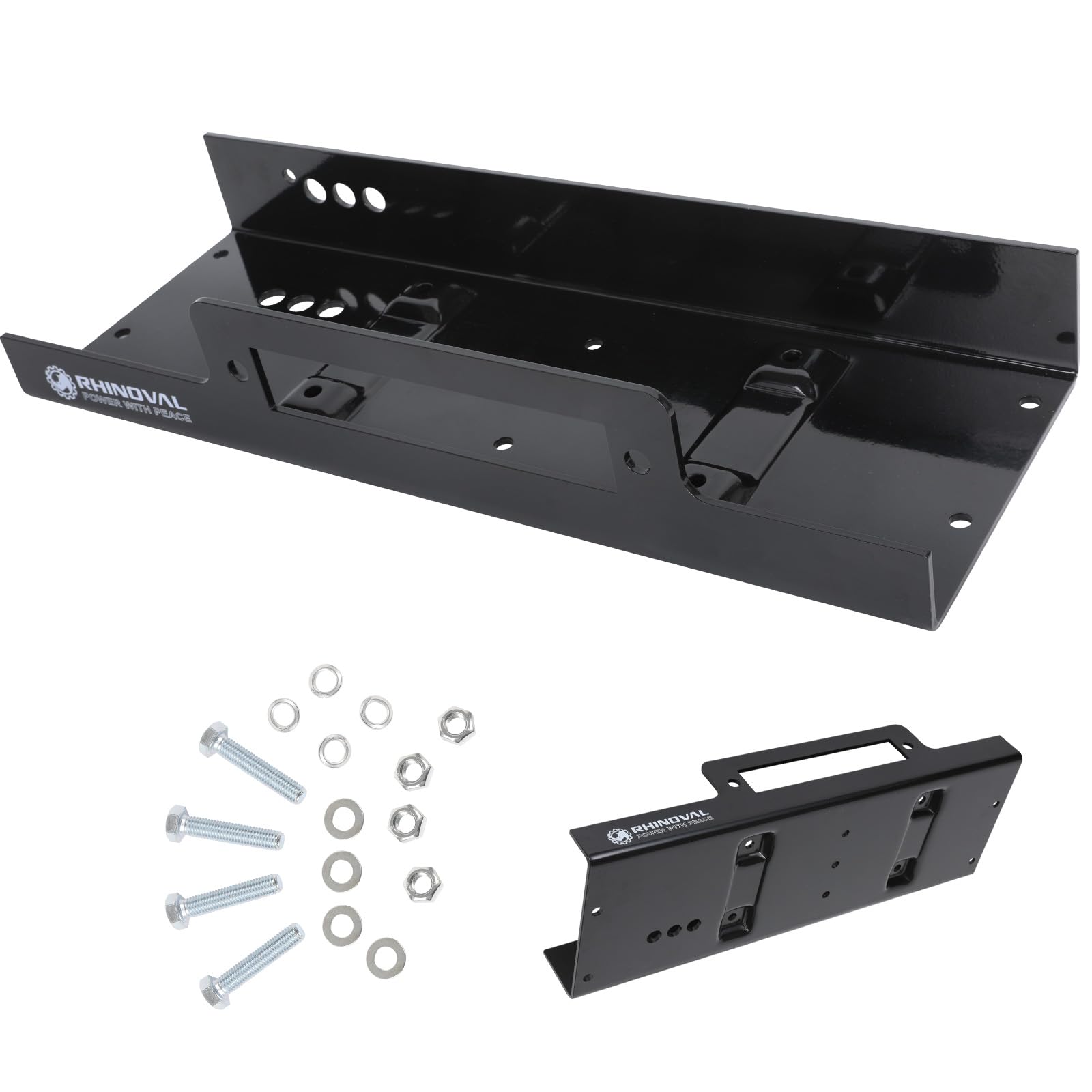

What does the kit include and what should I expect after purchase?

The package contains the universal mounting plate with an integrated fairlead flange and a full set of installation hardware—long bolts, nuts and washers—so you can begin assembly without sourcing parts. RHINOVAL provides customer support for installation questions or missing parts, and the plate’s pre-drilled features simplify wiring and drainage once mounted. Keep in mind some vehicle-specific trimming or bracketry may still be required for a perfect fit.

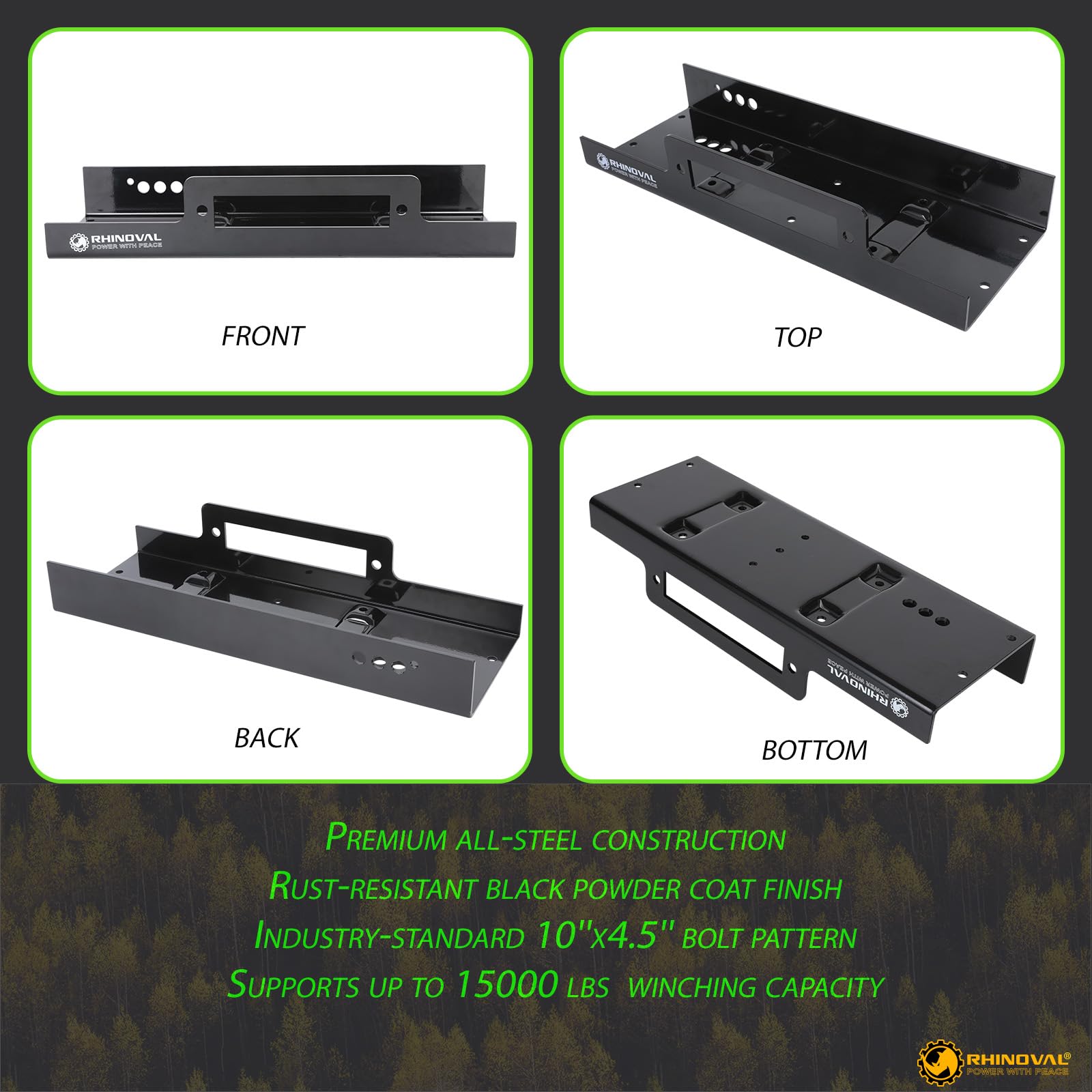

• Mounting plate with raised bolt pattern and fairlead flange
• Complete hardware kit: long bolts, nuts and washers
• Pre-drilled cable pass-throughs and drainage holes
• Customer support through the RHINOVAL seller contact channel

Who this is for: installers, fabricators and off-road enthusiasts who need a robust, space-conscious solution to mount large 10" x 4.5" winches to custom bumpers, trailers or vehicle frames. If you’re fitting winches up to 15,000 lb and want fewer spacer blocks, pre-drilled cable routing and an included fairlead flange, this RHINOVAL plate streamlines the job. Note: owners of vehicles with unique factory bumper interfaces (for example many Jeep models) should plan for additional customization or bracketry to achieve a proper fit.
