RJSPHH Broken Spark Plug Remover Kit for Ford Triton 5.4L (2004+), 3‑Step Extractor, Left‑Hand Tap

RJSPHH 65700 is a three-step broken spark plug remover kit engineered to extract seized or fractured spark plug tips from 2004-and-newer Ford Triton 3-valve 5.4L cylinder heads.

If a spark plug has sheared off flush with the cylinder head, typical sockets and pliers can’t reach the retained porcelain and metal tip. This kit combines a porcelain pusher, porcelain push rod and a self-tapping left-hand extractor so you can press, break, and then back out the stuck fragments without removing the cylinder head. It’s purpose-built for the geometry and common failure modes of the Triton 3-valve engines but follows a general three-stage approach that works on similar seized plug situations.

How does the three-step system actually remove a broken plug?

The kit follows a sequential method: first reposition the porcelain, then break any remaining brittle porcelain, and finally cut and extract the stainless-steel tip. Each stage prepares the plug for the next so the extractor can bite securely and remove the piece by turning counter-clockwise.

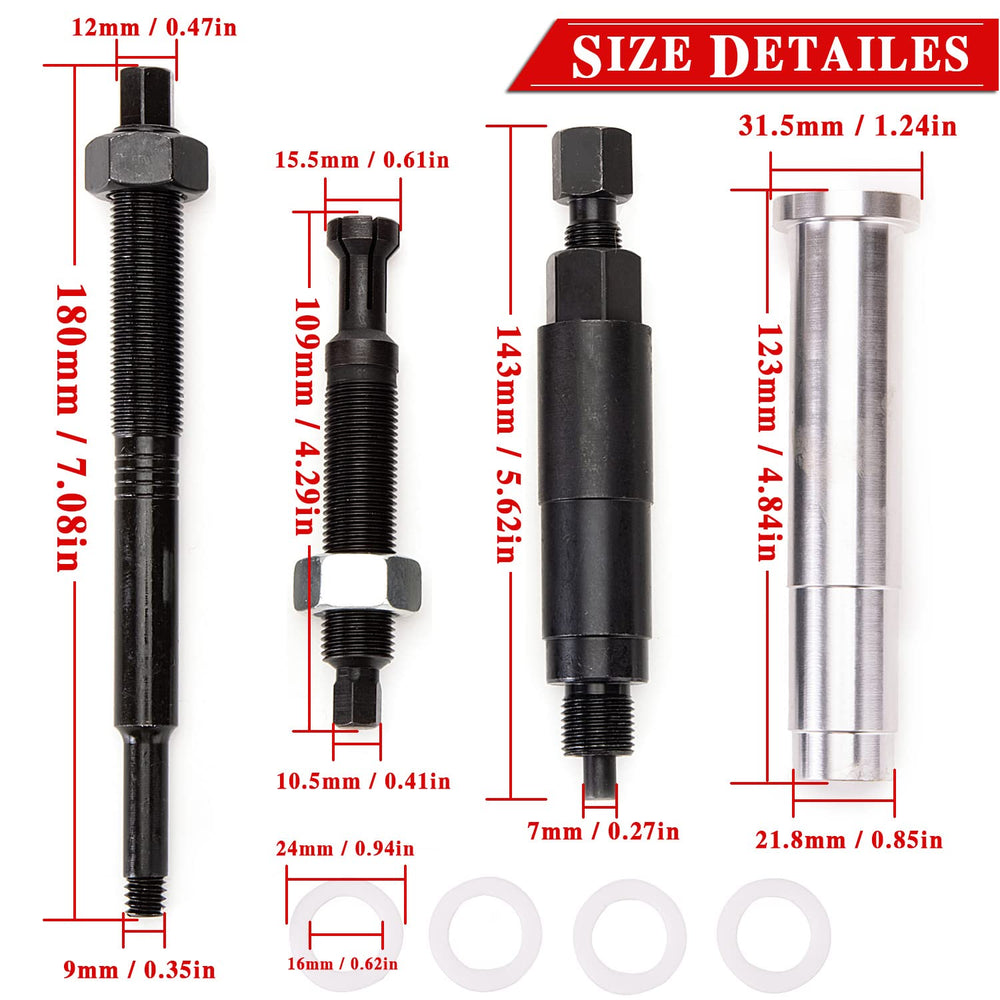

• Porcelain pusher: compresses the porcelain portion inward to create working room.

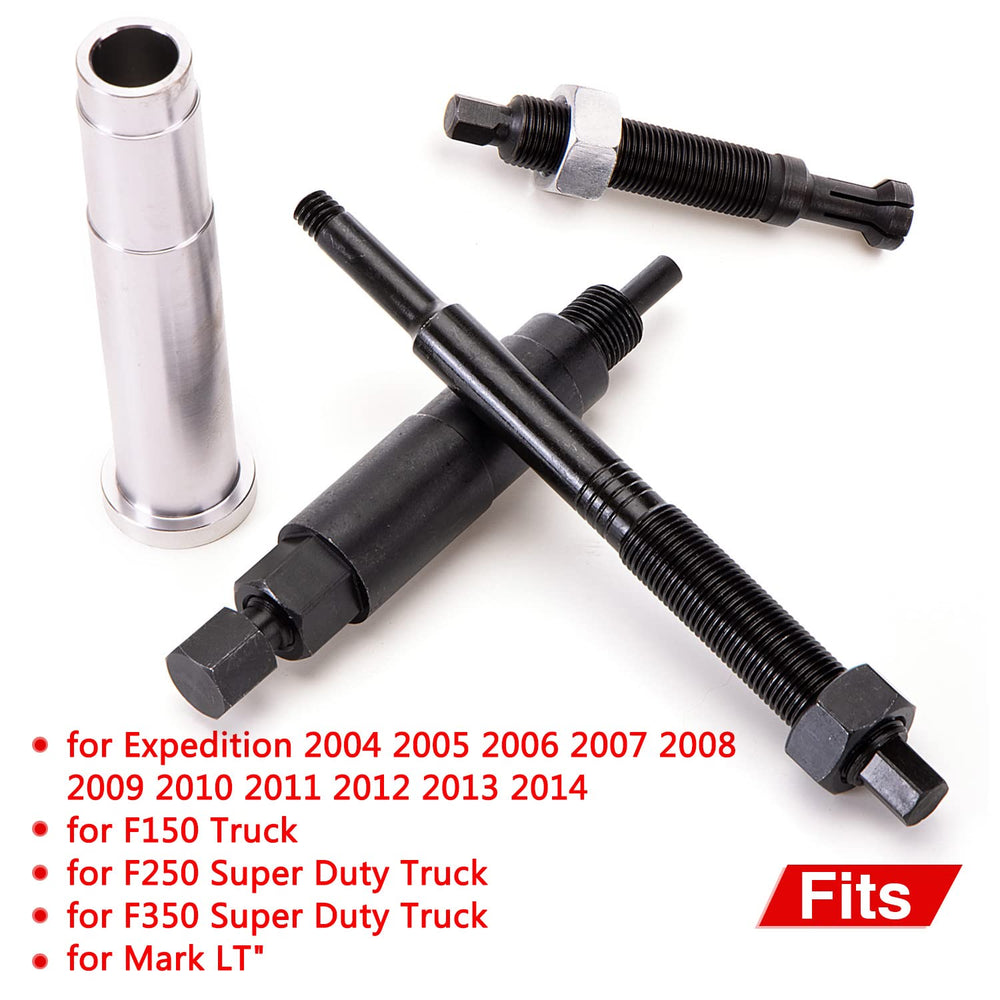

• Porcelain push rod: chips and clears the fragile porcelain tip safely.

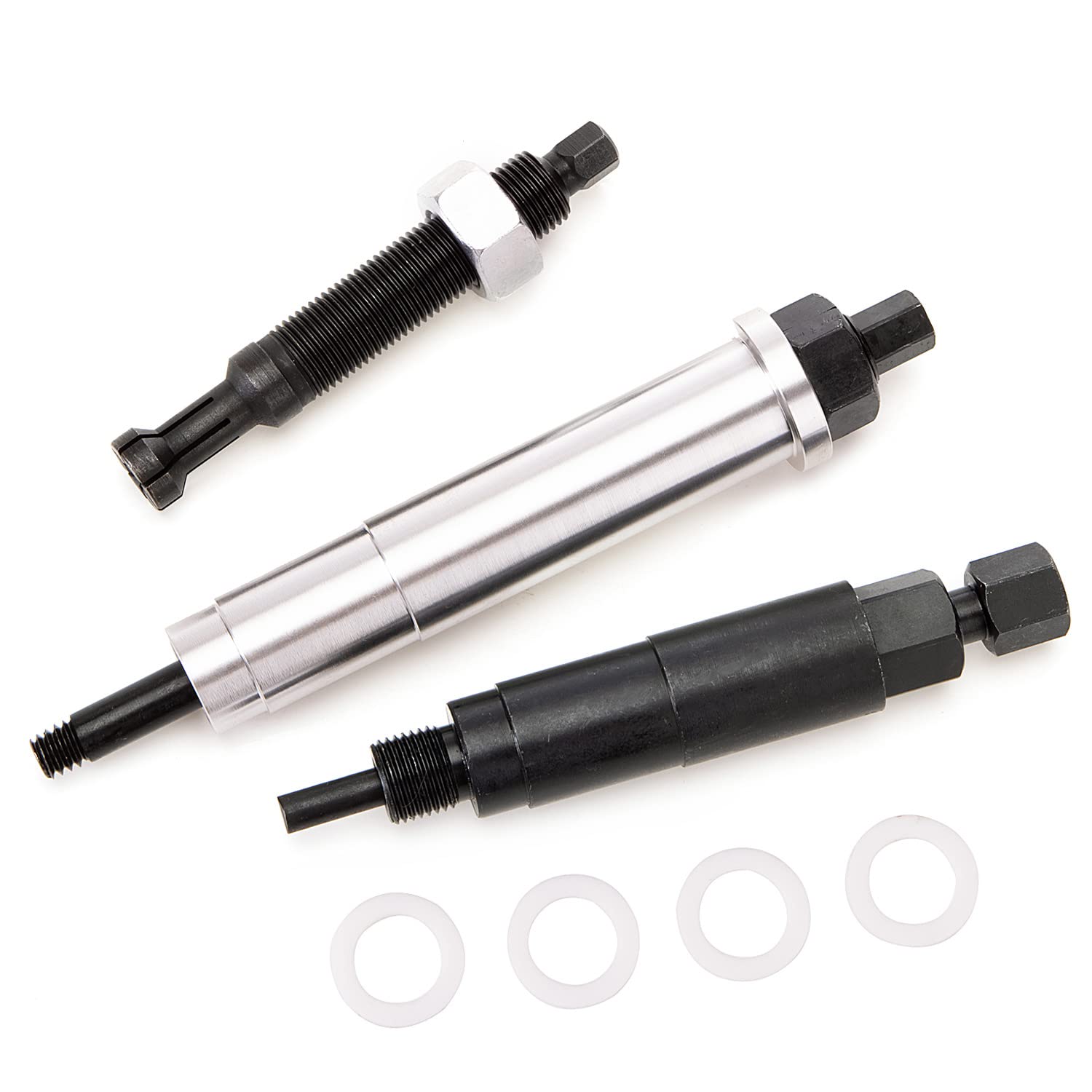

• Self-tapping left-hand remover: taps into the metal tip to thread inward and pull outward.

Will this kit damage my cylinder head threads?

No tool can guarantee zero risk in every situation; damaged threads can occur if the metal is corroded or if excessive force is used. The extractor is designed to minimize thread stripping by using a left-hand, self-tapping action that draws the tip out rather than forcing it deeper.

• Left-hand tap bites into the metal tip and reverses it out, lowering risk of further embedding.
• Porcelain handling reduces sudden shattering that could scatter fragments into the chamber.
• Follow step-by-step technique and moderate torque to avoid thread compromise.

What engines and model years is the RJSPHH 65700 compatible with?

This set is intended for 2004 and newer Ford Triton 3-valve-per-cylinder engines, specifically 5.4L configurations where plug tips commonly seize in the head. It may also work on other engines with similar spark plug geometry, but fitment is not universal.

• Optimized for Ford Triton 3-valve 5.4L heads from 2004 onward.
• Possible compatibility with engines that share plug tip dimensions—verify before use.
• Not a guaranteed fix for every seized plug scenario; inspection recommended.

What should I expect when using the kit and what service support exists?

Expect a methodical repair: compress the porcelain, clear the brittle tip, then use the self-tapping extractor to remove the metal. Results depend on corrosion, how long the plug has seized, and prior damage. RJSPHH offers a 1-year quality guarantee and customer support if you encounter breakage or unexpected failures.

• Step-by-step removal lowers the chance of scattering debris into the cylinder.
• One-year warranty covers manufacturing defects; contact RJSPHH for handling guidance.
• Complex or severely damaged cases may still require professional machine work.

Who is this for: The RJSPHH 65700 kit is aimed at professional mechanics, experienced DIYers and fleet technicians who service Ford Triton 3-valve 5.4L engines and need a targeted, compact extractor solution. If you frequently encounter seized or sheared spark plugs and want a focused, three-stage toolset to recover plug tips without cylinder-head removal, this kit provides a practical repair path. If you’re unsure about the condition of the threads or lack experience with left-hand extractors, consider consulting a machine shop to reduce the risk of thread damage.
