Ruikarhop 3in to 4in 90° Silicone Elbow Coupler — 4-ply, 5mm Wall with 2 T-Bolt Clamps

Ruikarhop's 3" to 4" 90° 4-ply silicone coupler is a reinforced high-temperature elbow hose kit that joins mismatched turbo or intake piping with durable silicone and two T-bolt clamps.

This silicone elbow is built for high-stress automotive, marine, and industrial plumbing where a reliable 90-degree transition is needed between 3-inch and 4-inch (76mm to 102mm) pipes. Constructed from four-layer reinforced silicone with a 5mm wall, the hose resists extreme temperatures, UV and ozone exposure, and handles elevated boost and pressure conditions. The kit ships with two heavy-duty T-bolt clamps featuring a nylon-insert lock nut for secure, leak-resistant connections.

How hot or cold can this silicone coupler withstand?

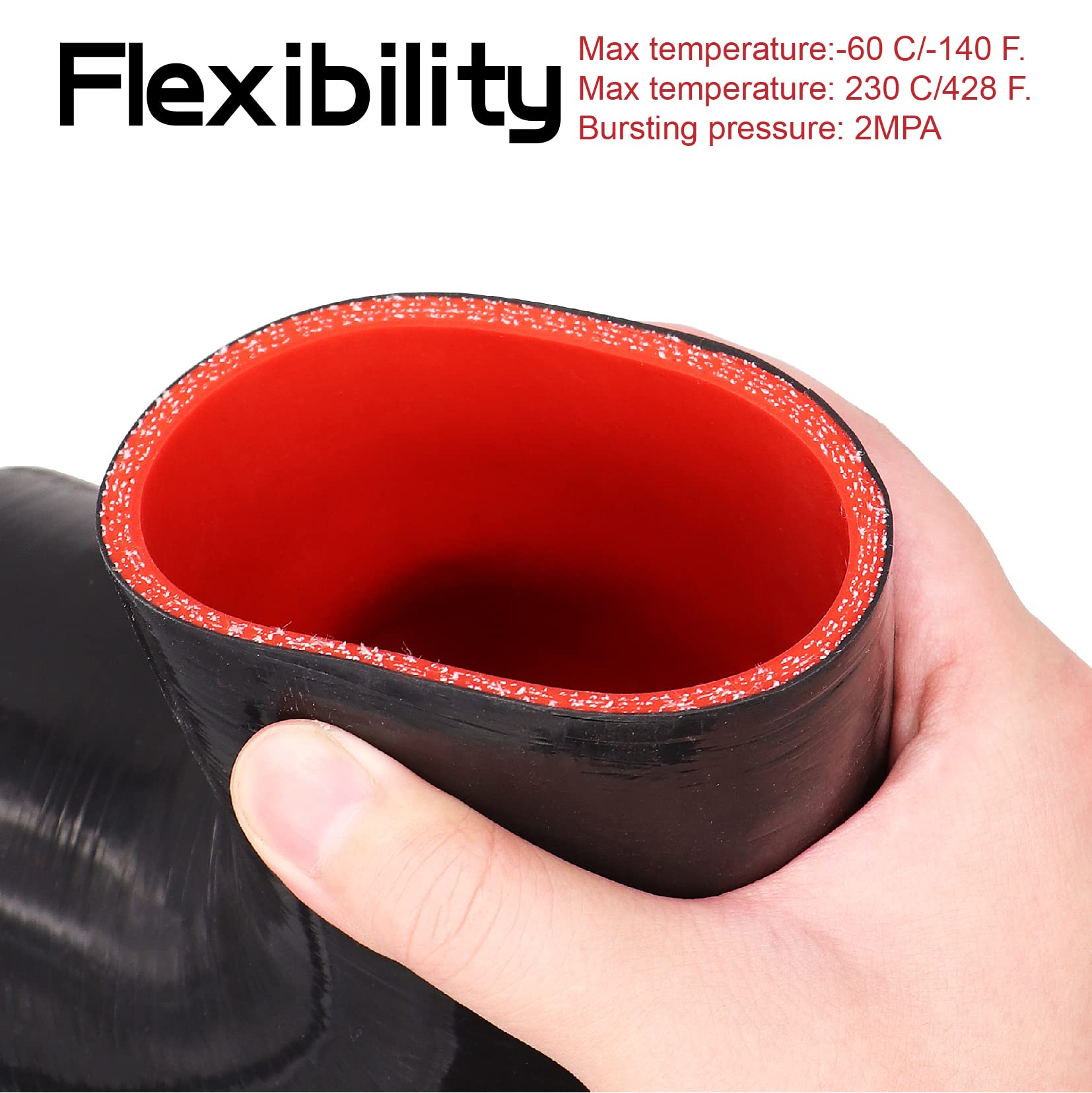

The Ruikarhop 4-ply silicone elbow covers a broad temperature range suitable for demanding environments. It tolerates extreme cold down to -60°C (-140°F) and continuous use up to 230°C (428°F). This range makes it suitable for both cold-start conditions and hot under-hood operating temperatures.

• Minimum temperature: -60°C / -140°F
• Maximum temperature: 230°C / 428°F
• 4-ply construction maintains shape across temperature swings
• UV and ozone resistant for outdoor or marine exposure

Is this coupler strong enough for boosted applications?

Yes — the 4-ply reinforcement is engineered for elevated boost loads and heavy-duty use. The hose has a bursting pressure rated at 2 MPa (approximately 300 PSI) and a recommended working pressure range between 0.3 and 0.9 MPa. That combination of wall thickness and reinforcement helps prevent collapse and blow-off under boost.

• Bursting pressure: 2 MPa (≈300 PSI)
• Working pressure: 0.3–0.9 MPa

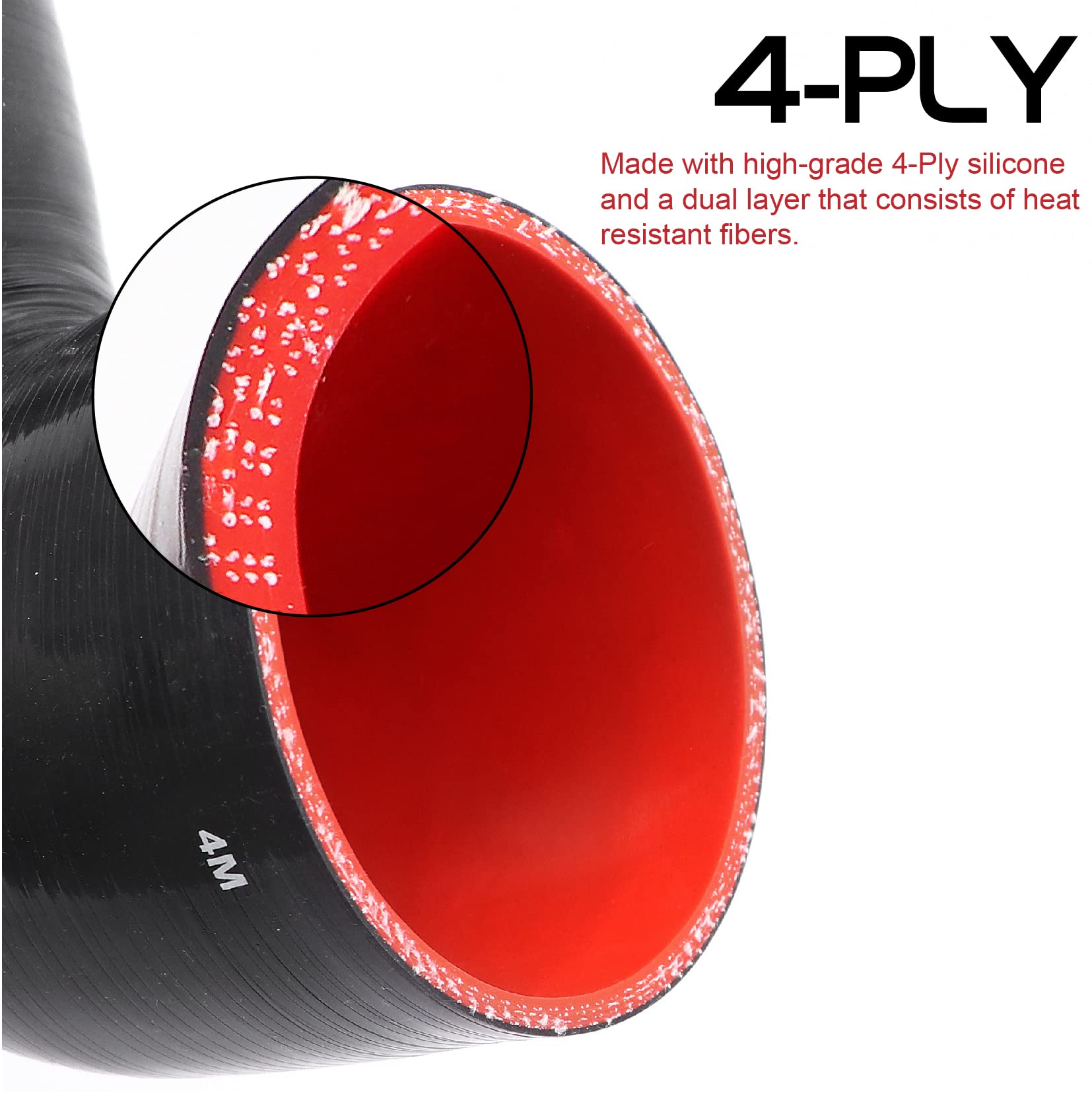

• 5mm wall thickness for rigidity and durability
• 4-ply layers to resist deformation under pressure

What hardware comes with the elbow and how reliable are the clamps?

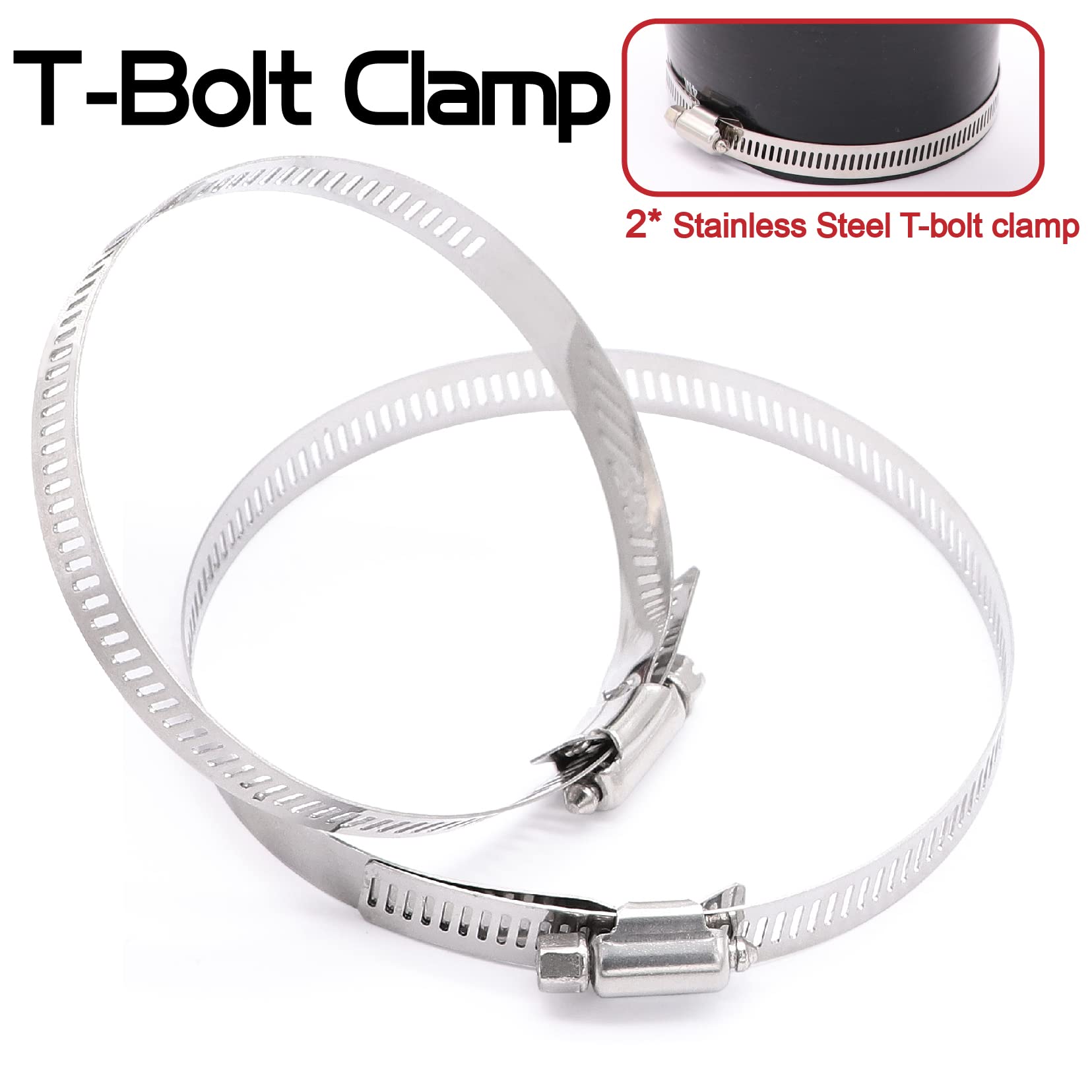

The kit contains one silicone elbow and two T-bolt clamps designed for long-term performance in engine bays and industrial systems. The T-bolt clamps feature a nylon insert lock nut to reduce loosening from vibration and to provide consistent clamping force across the silicone flange. These clamps are commonly used where a leak-proof, high-strength connection is required.

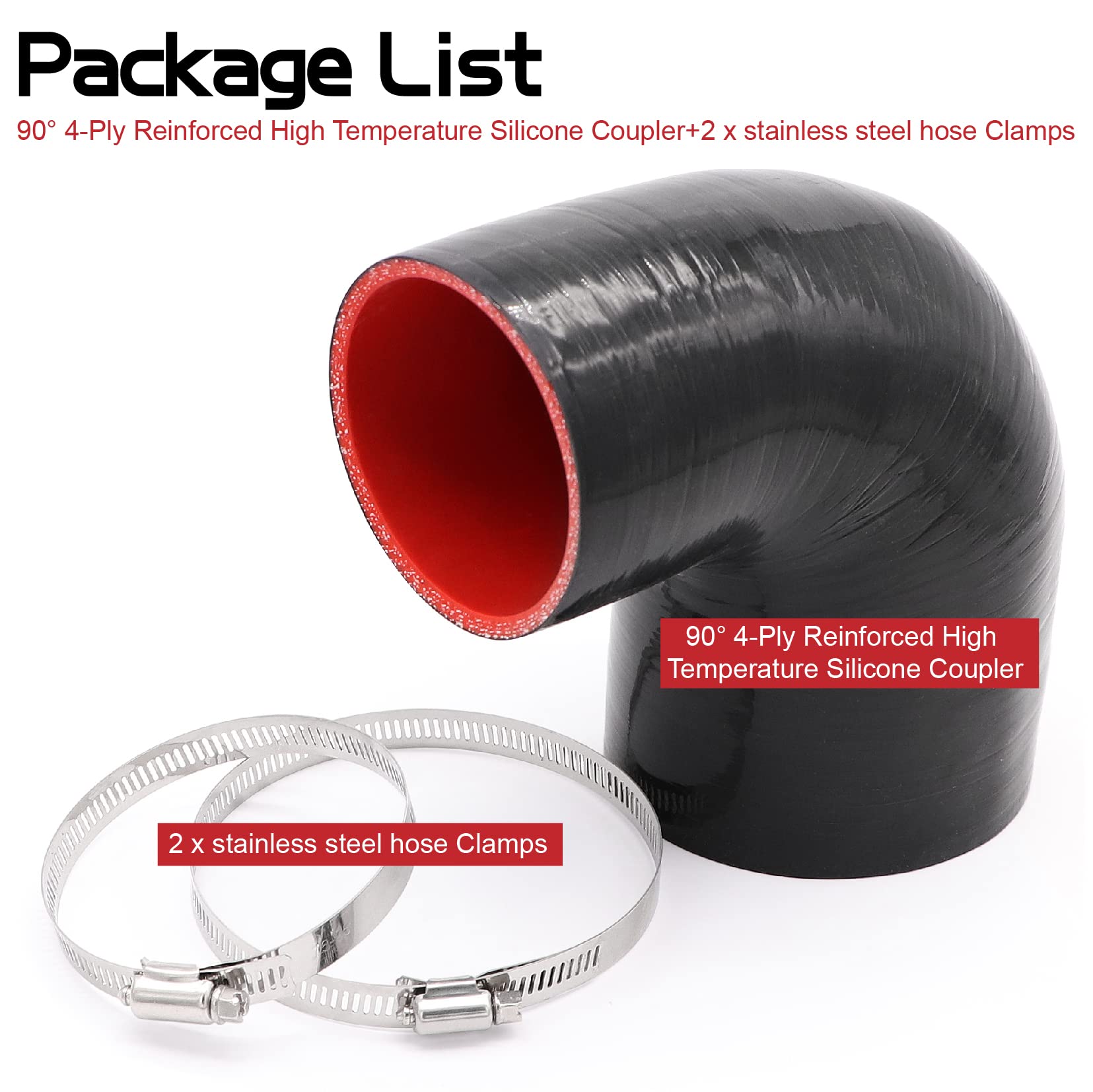

• Includes: 1 silicone elbow, 2 T-bolt clamps
• T-bolt clamps with nylon-insert lock nuts for vibration resistance
• Engineered to create a tight seal on booster and intake piping
• Sturdy construction suitable for repeated installations

Will this elbow fit my project and what are common uses?

The elbow is a universal-style coupler sized to transition from 3 inches (76mm) to 4 inches (102mm) at a 90-degree angle, making it a practical choice for many piping setups. It's widely used to join turbocharger outlets, intercooler plumbing, intake piping runs, and custom marine or industrial ductwork where a compact, heat-resistant bend is needed. Measure your pipe diameters and the required bend orientation to confirm fit before ordering.

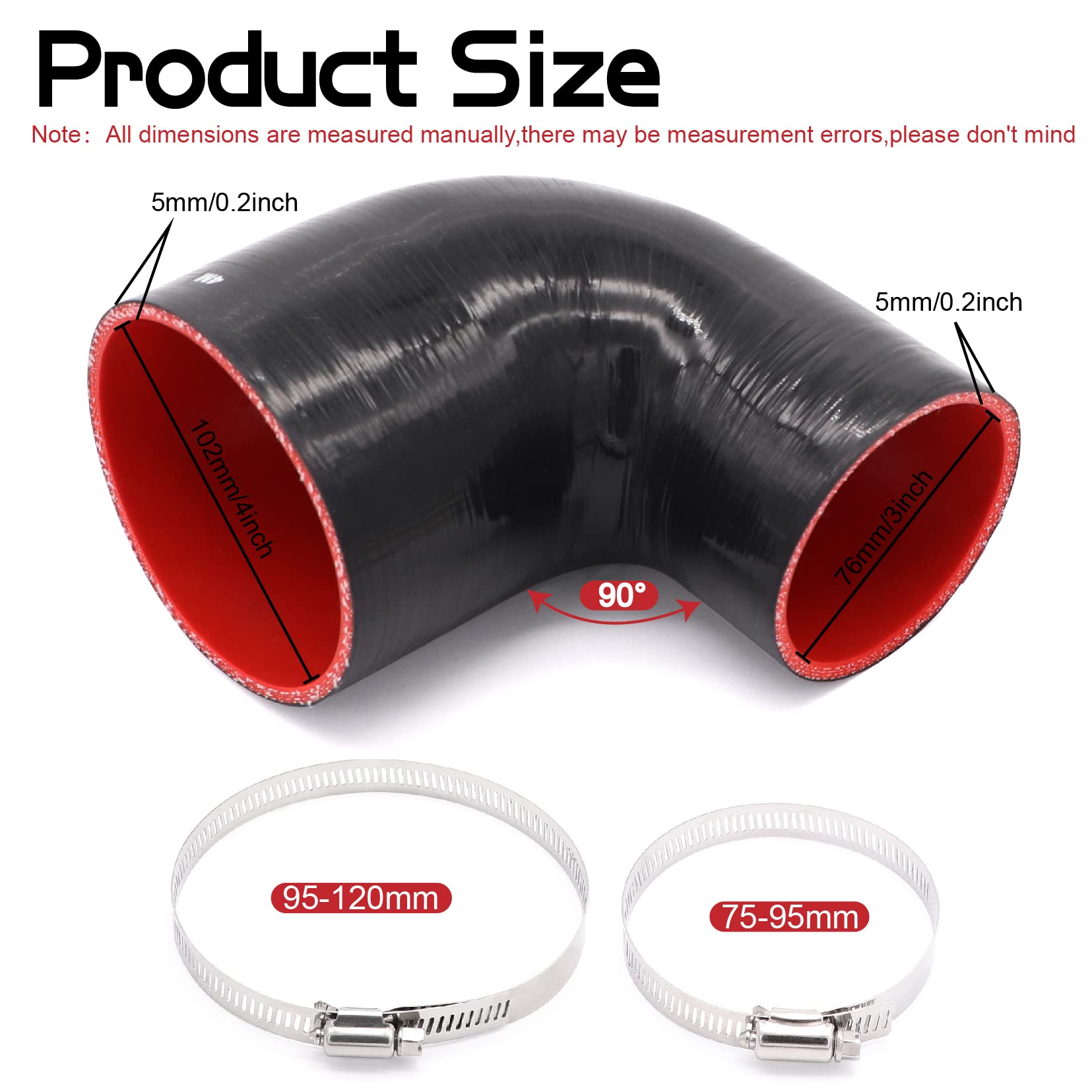

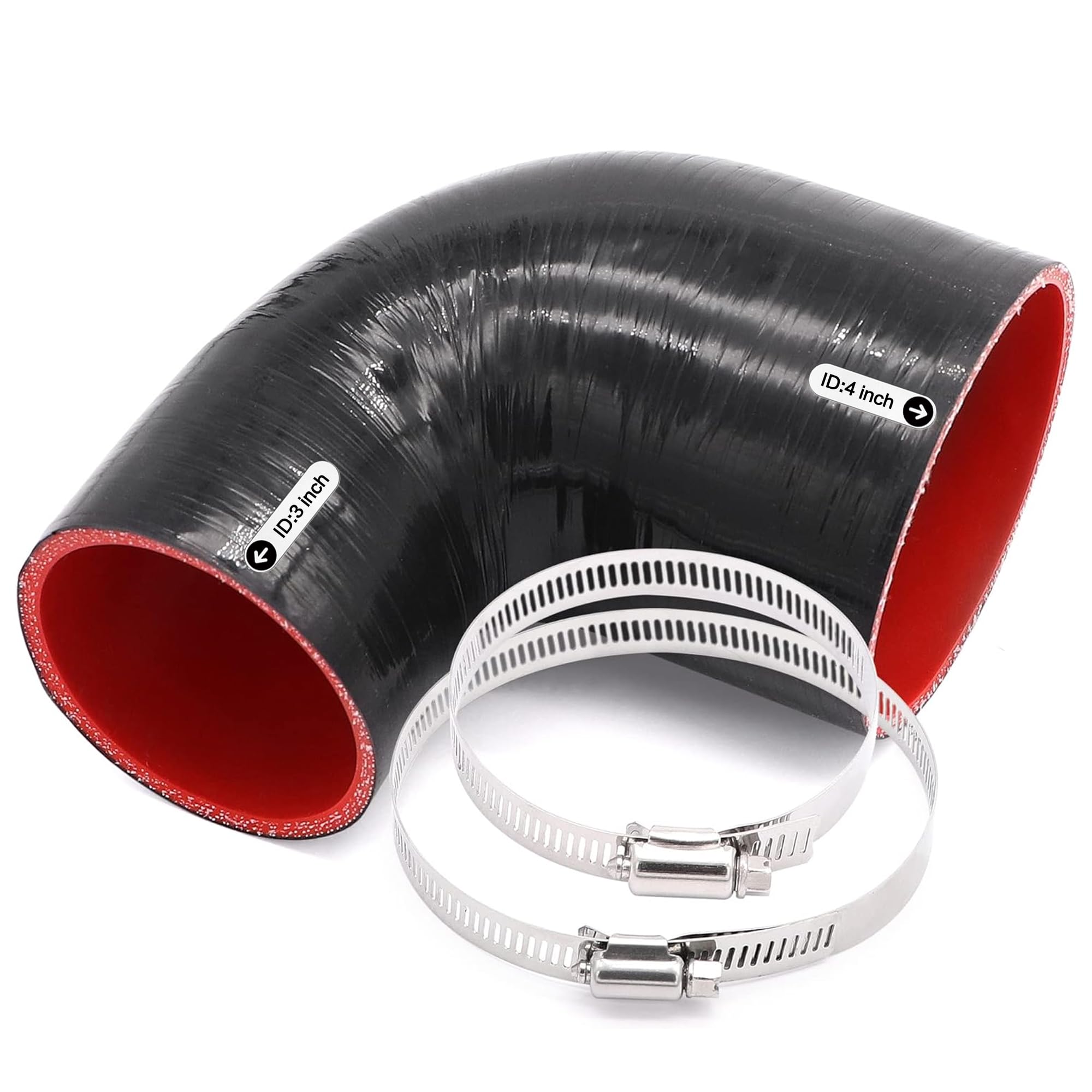

• Size: 3" to 4" (76mm to 102mm), 90-degree elbow

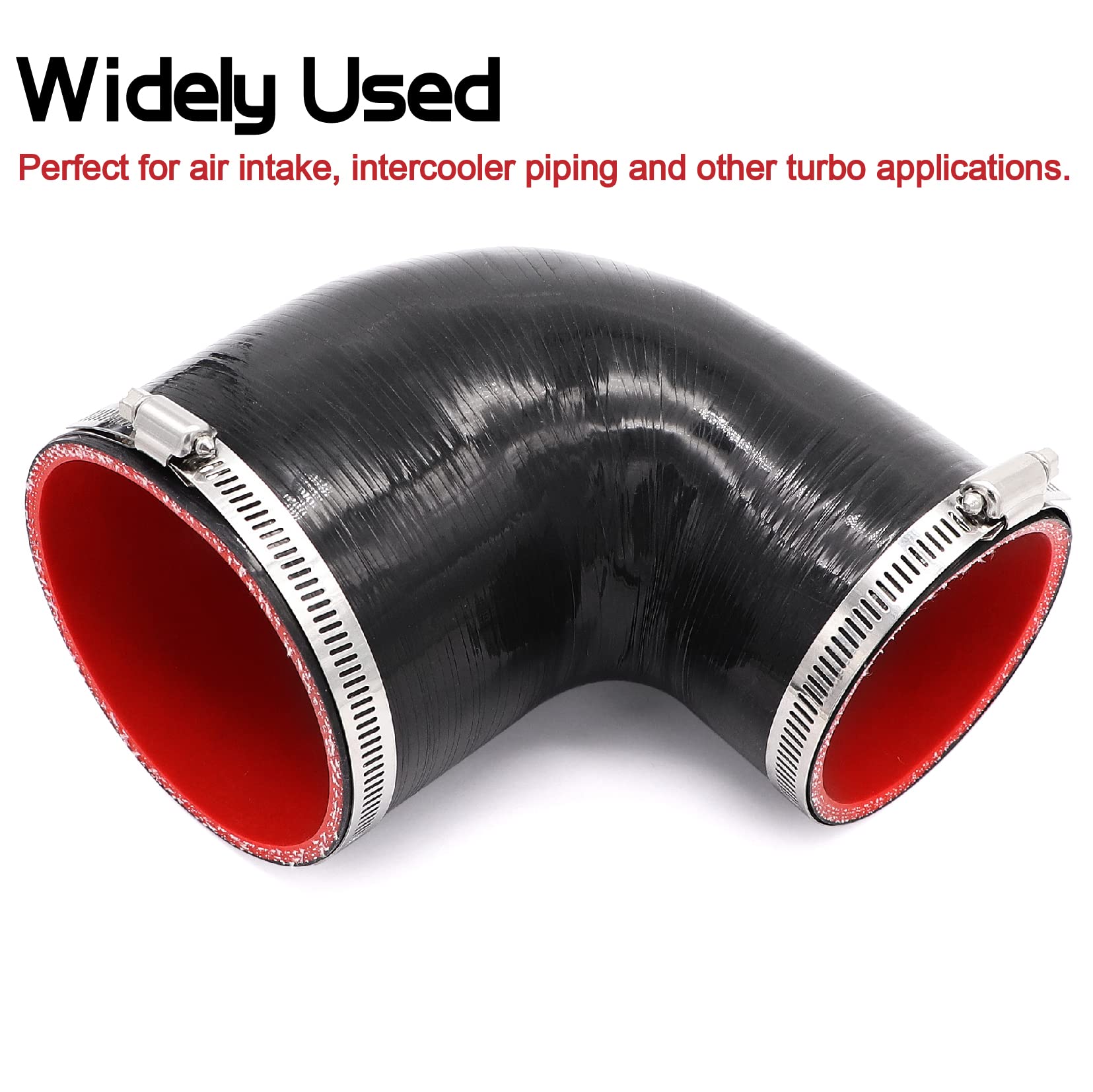

• Ideal for turbocharger, supercharger, intake, and intercooler lines
• Also suited for marine and industrial air or coolant routing
• Black and red color options for visual match or customization

Who is this for: Professionals and DIYers who need a reliable, high-temperature 90° transition between 3" and 4" piping — including tuners, mechanics, fabricators, marine installers, and industrial maintenance teams. If your application requires reinforced silicone that resists heat, ozone, and boost pressure with dependable clamp hardware, this Ruikarhop elbow kit is built for those demands.
